Product Description

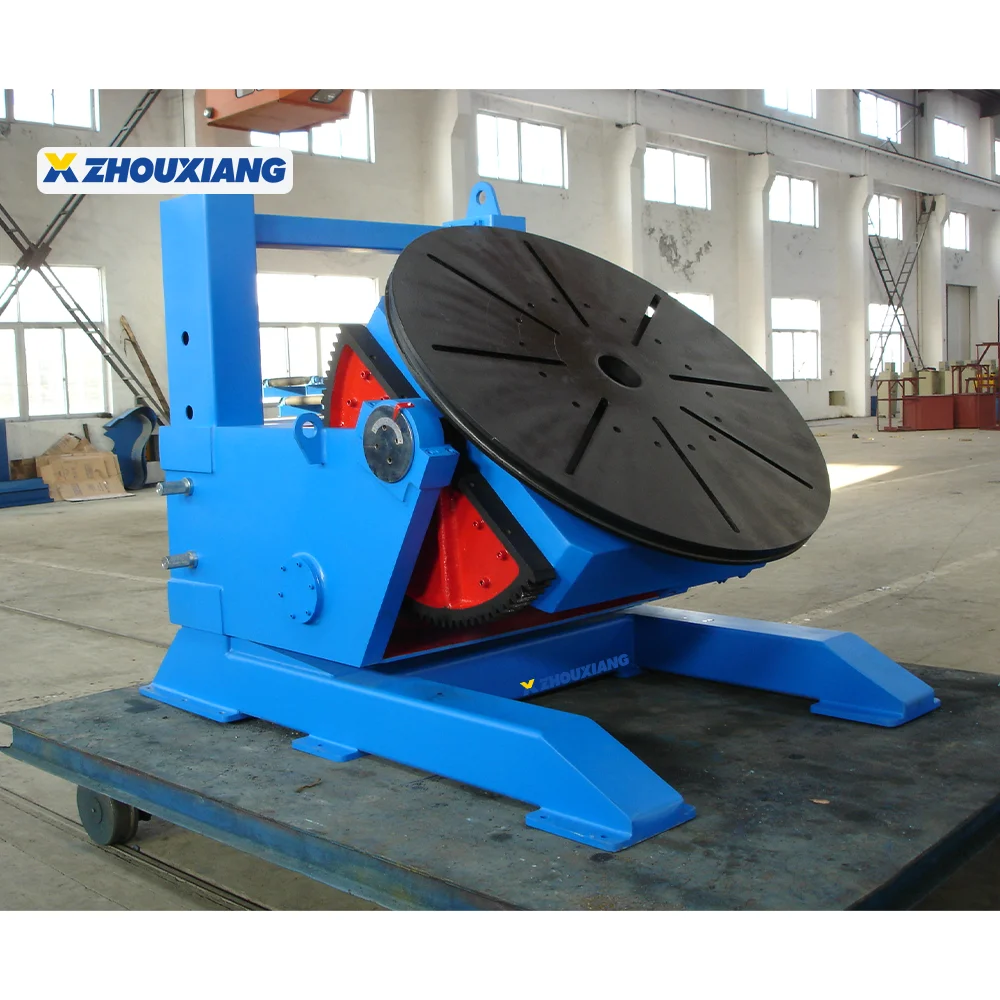

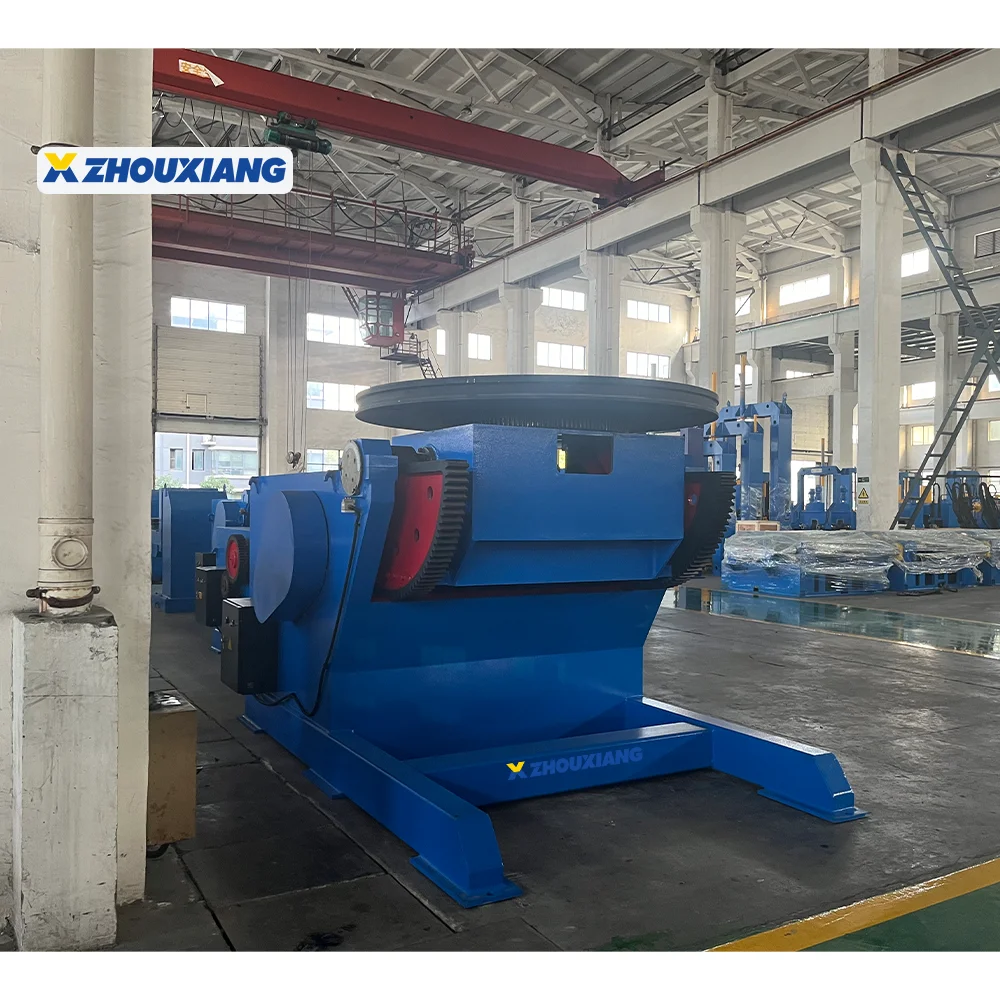

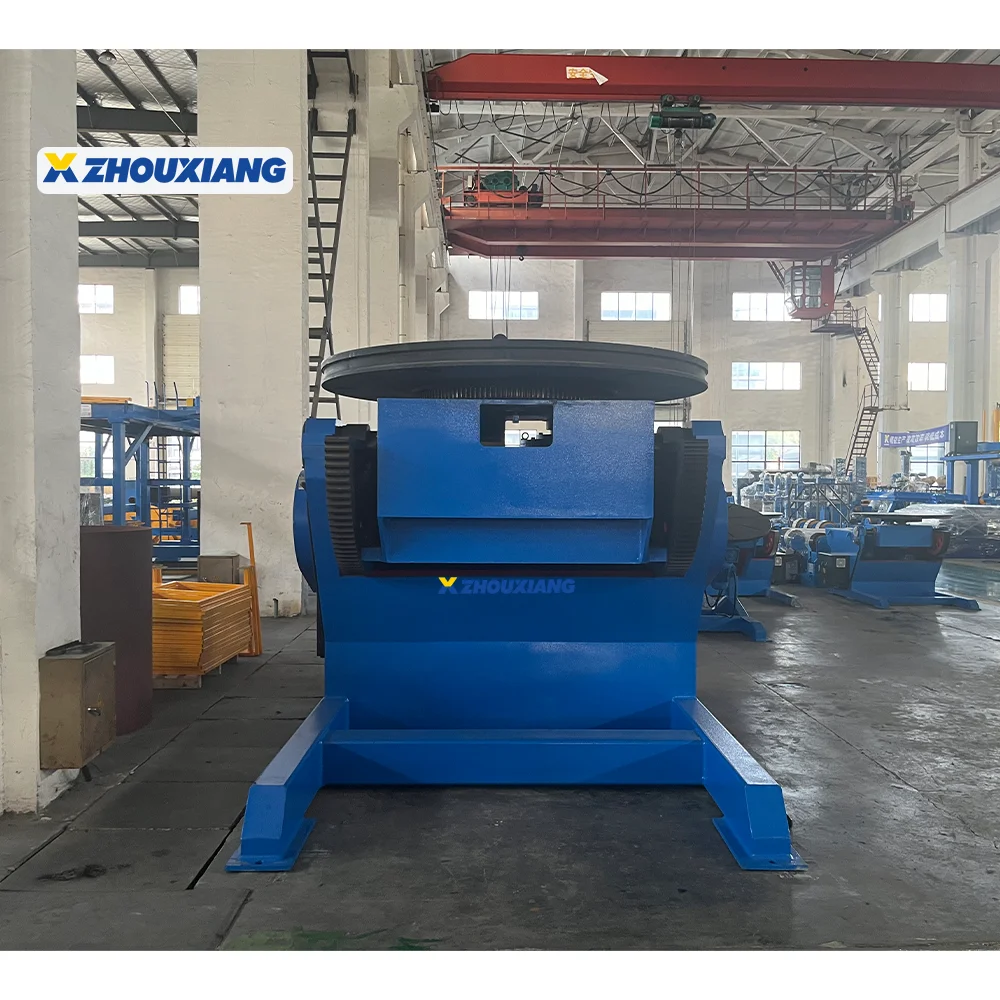

Welding positioner
Welding positioner is a universal and efficient welding equipment that mainly realizes circular seam welding. The welding positioner can be equipped with welding power: such as argon arc welding power (wired or not filled), molten gas shielded welding power (C02/MAG/MIG welding machine), plasma welding power, flame or plasma cutting torches etc., and can be combined with other auxiliary machinery, Such as welding manipulators, robots... etc. constitute an automatic welding system.
Welding positioner is a universal and efficient welding equipment that mainly realizes circular seam welding. The welding positioner can be equipped with welding power: such as argon arc welding power (wired or not filled), molten gas shielded welding power (C02/MAG/MIG welding machine), plasma welding power, flame or plasma cutting torches etc., and can be combined with other auxiliary machinery, Such as welding manipulators, robots... etc. constitute an automatic welding system.
Model | Load Capacity（Kg） | Table Speed | Table | Power | Table Dia.(mm) | Machine Size L*W*H(mm) | ||||
Ratation （RPM） | Tilt （RPM） | Tilt Angle(°) | Ratation(Kw) | Tilt (Kw) | ||||||
HBZ-1 | 100 | 0.35-3.5 | 1.0 | 0-90 | 0.18 | 0.18 | 400 | 740*525*480 | ||
HBZ-3 | 300 | 0.20-2.0 | 1.0 | 0-90 | 0.37 | 0.37 | 600 | 940*720*610 | ||
HBZ-6 | 600 | 0.09-0.9 | 1.0 | 0-90 | 0.75 | 0.75 | 1000 | 1500*1120*1000 | ||
HBZ-10 | 1000 | 0.05-0.5 | 0.8 | 0-120 | 1.1 | 1.5 | 1200 | 1850*1210*1140 | ||
HBZ-30 | 3000 | 0.05-0.5 | 0.23 | 0-120 | 1.5 | 1.5 | 1400 | 2200*1740*1355 | ||
HBZ-50 | 5000 | 0.05-0.5 | 0.16 | 0-120 | 2.2 | 3 | 1500 | 2700*1984*1510 | ||
HBZ-100 | 10000 | 0.017-0.17 | 0.1 | 0-120 | 3 | 5.5 | 2000 | 3460*2500*2024 | ||
HBZ-200 | 20000 | 0.017-0.17 | 0.1 | 0-120 | 4 | 5.5 | 2000 | 3610*2930*1974 | ||
Product Details
1.Strong load-bearing capacity China Manufacturers Pipe Welding Positioner Robotic Welding Positioner Heavy Duty
After the positioner’s worktable uses high-strength plates, it carried with heat treatment and finishing after welding. The table rotation adopts slewing support, which has strong load-bearing capacity.
2.Overturning angle ruler display
The positioner is equipped with ruler, and the overturning angle can be clearly displayed on the ruler, which is convenient for grasping the overturning angle.
3.Stepless variable frequency speed control
Schneider frequency converter is used to realize variable frequency speed control of worktable slewing and overturning. High Capacity And Precise Control Heavy-Duty Welding Positioner Rotating Table

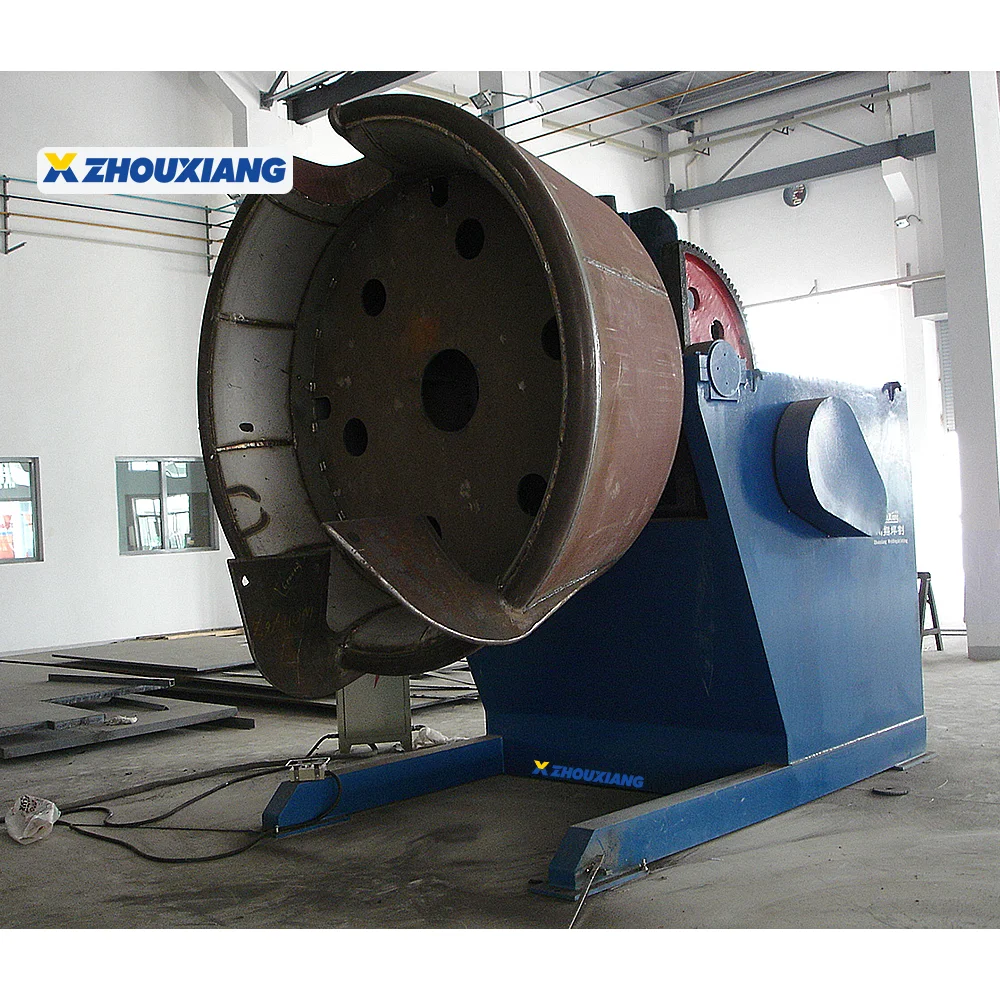

Customer Cases
About Us
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships. High Capacity And Precise Control Heavy-Duty Welding Positioner Rotating Table
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships. High Capacity And Precise Control Heavy-Duty Welding Positioner Rotating Table
Our Services
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
High Capacity And Precise Control Heavy-Duty Welding Positioner Rotating Table
2.Q: What are the payment terms?
A: L/C; T/T.
High Capacity And Precise Control Heavy-Duty Welding Positioner Rotating Table
3.Q: How long is the delivery time?
A: 30 Days.
High Capacity And Precise Control Heavy-Duty Welding Positioner Rotating Table
4.Q:How long is the warranty period?
A: 1 Years.
A: 1PCS.
High Capacity And Precise Control Heavy-Duty Welding Positioner Rotating Table
2.Q: What are the payment terms?
A: L/C; T/T.
High Capacity And Precise Control Heavy-Duty Welding Positioner Rotating Table
3.Q: How long is the delivery time?
A: 30 Days.
High Capacity And Precise Control Heavy-Duty Welding Positioner Rotating Table
4.Q:How long is the warranty period?
A: 1 Years.
