Product Details



   1

Axle
Strong load-bearing capacity and high bending strength.The maintenance free axle can last for up to 3 years



   2

Flatform Size
Multiple models to choose from.
There is always one that suits you



   3

Tight welding
Adopting modern welding technol-ogy to make the body joints tighter



   4

Customized
We can customize and process products according to customer needs, with a variety of styles available



   5

Tires
It can maintain good stability under load and is not prone to deformation or fracture

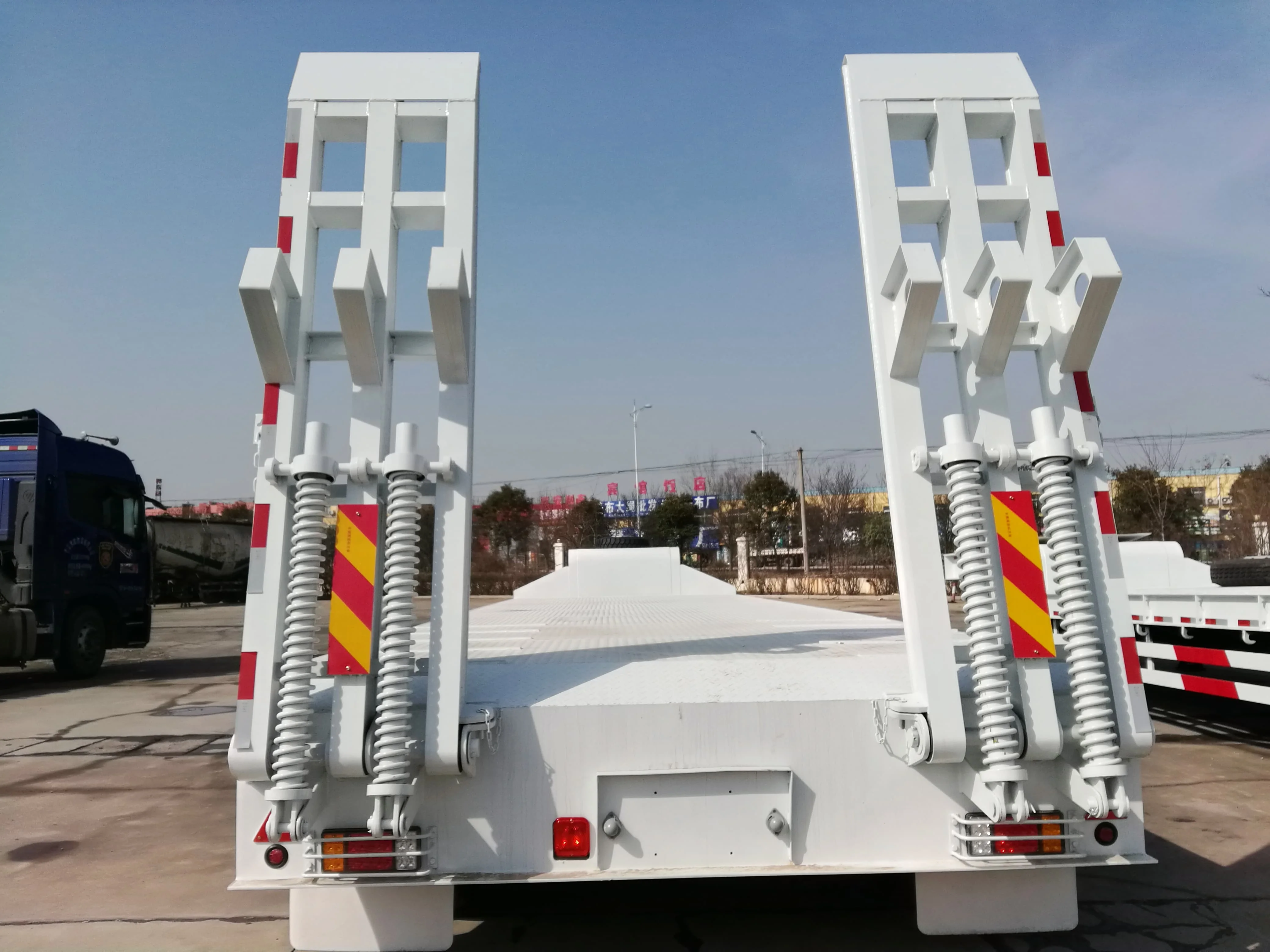

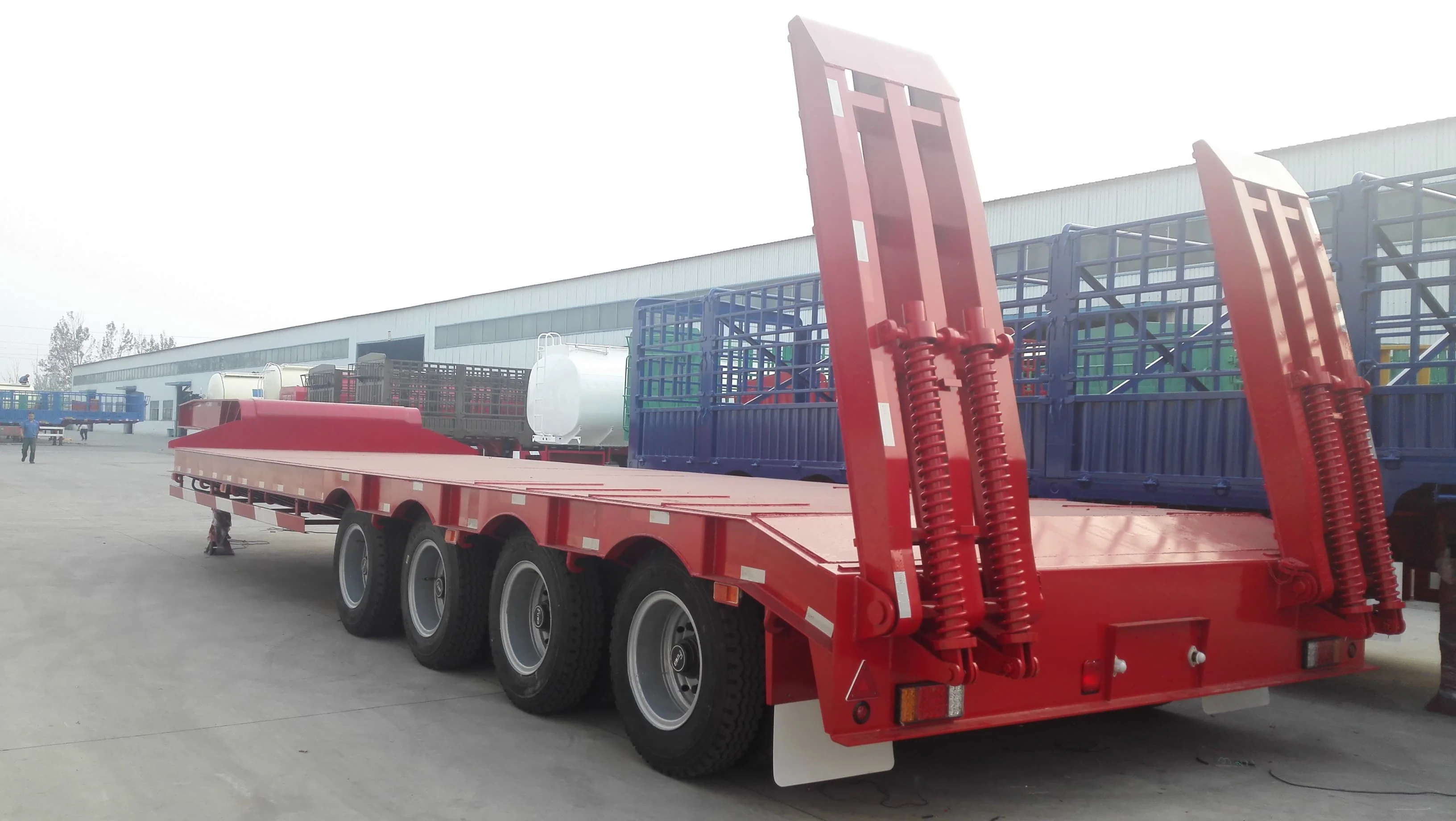

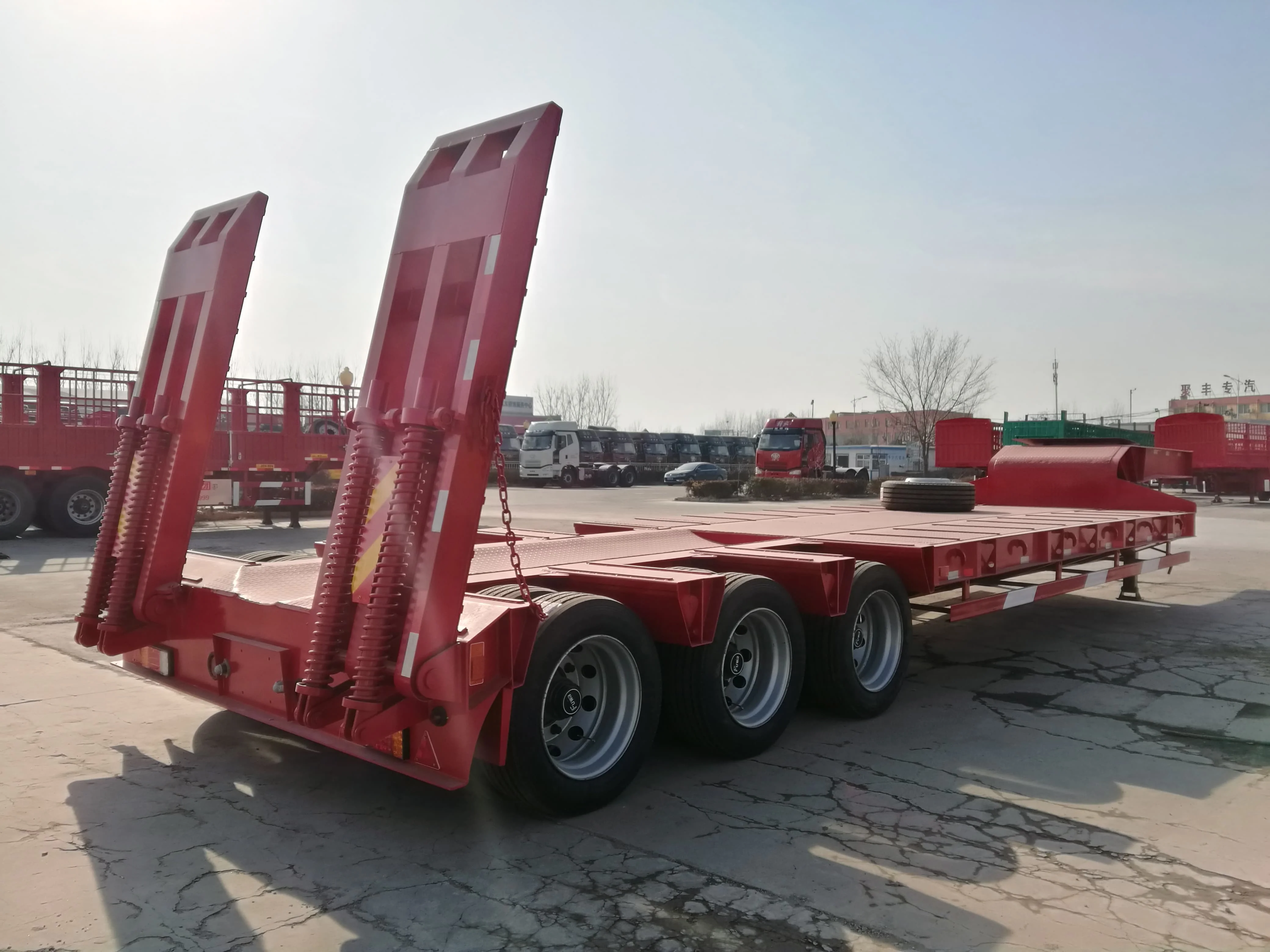

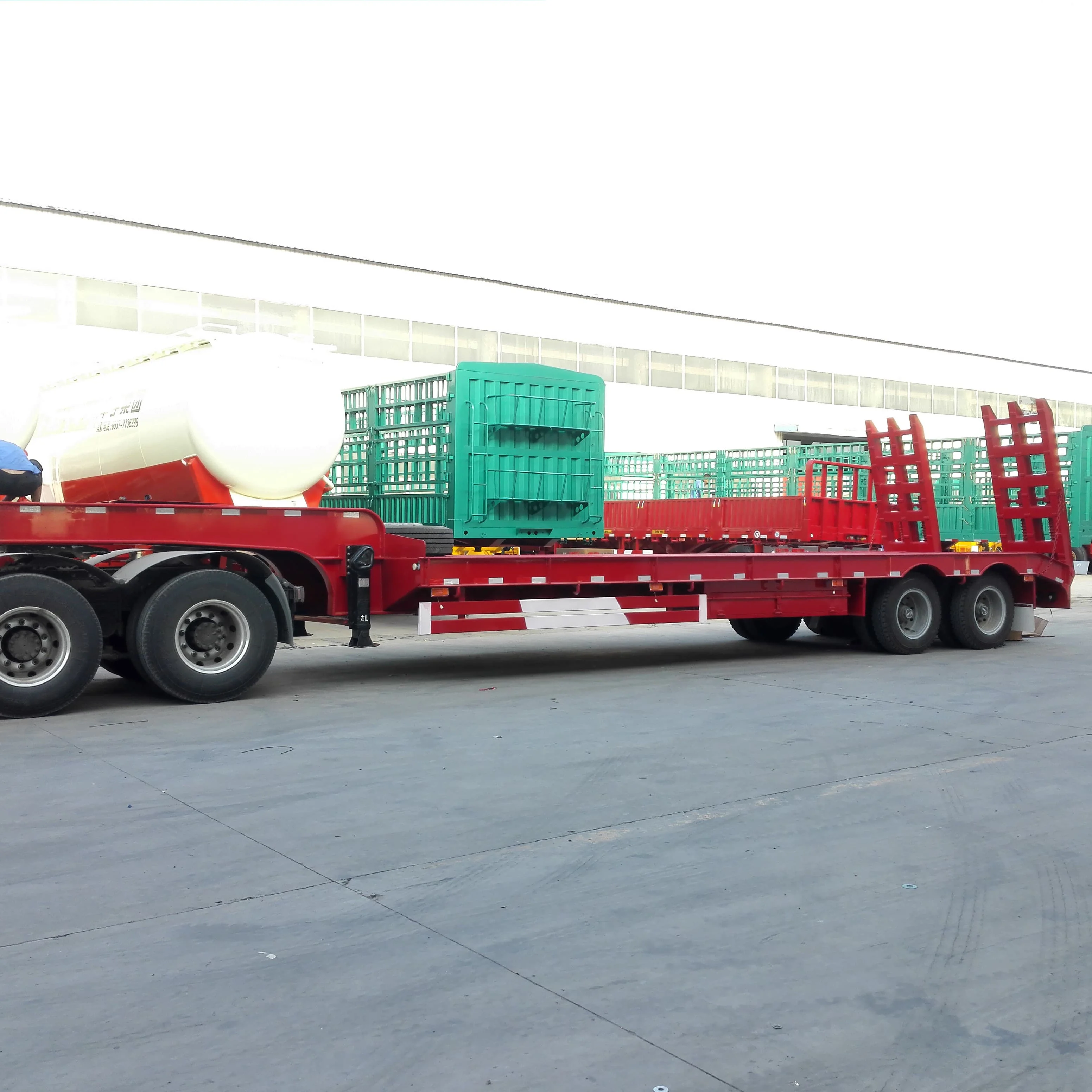

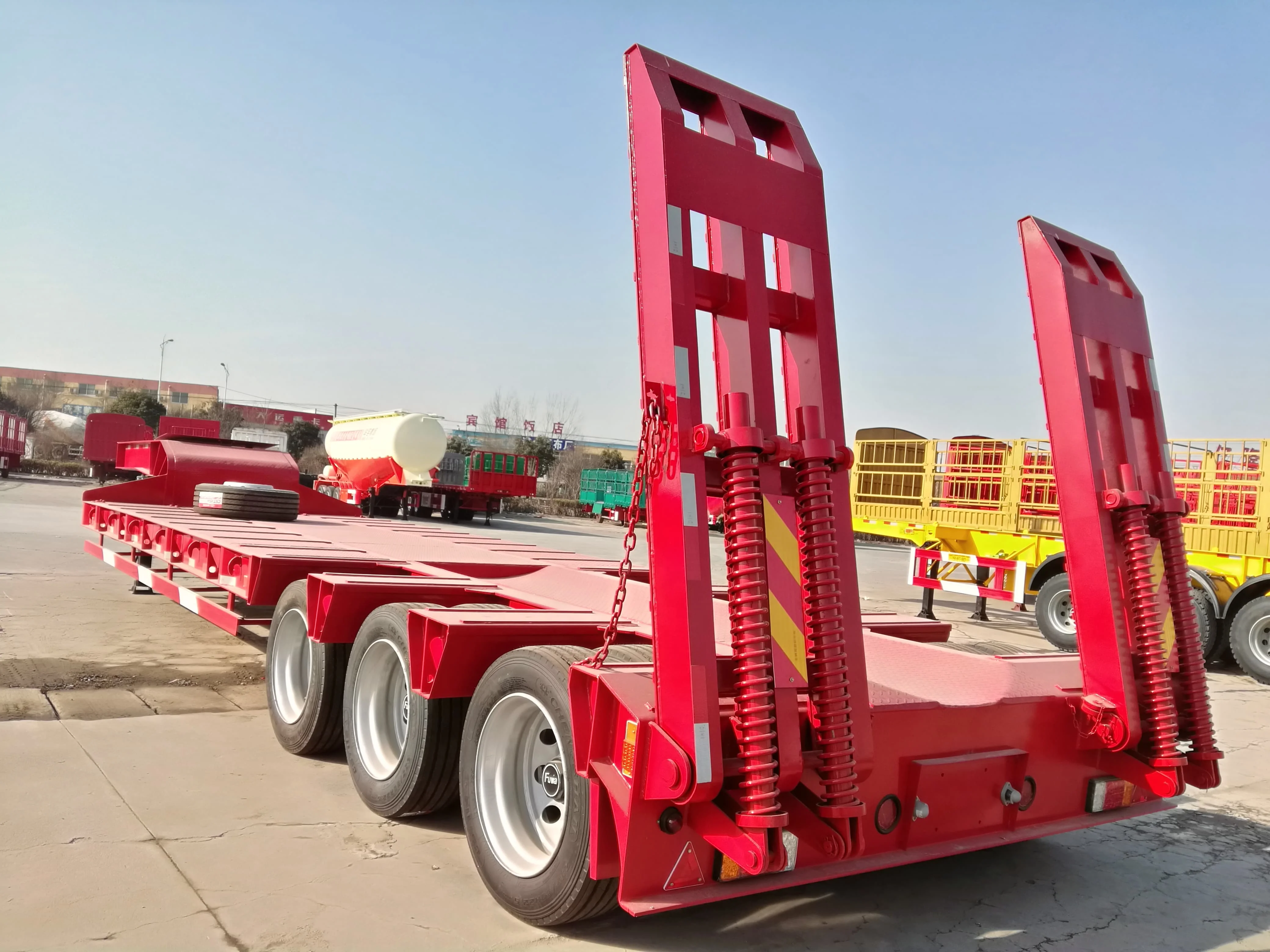

Product Display




Size
13000mm*3000mm*2900mm (Size optional)
Payload
30-120T
Main beam
Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes.
Top flange 22mm,width140mm;Middle Flange 16mm height 500mm;bottom flange 22mm,width 140mm
Side beam
25# channel steel (Optional)
Cross member
16# channel steel (Optional)
Floor
5mm checkered plate (Optional)
Side wall
No
Front board
No
Axle
3 axle FUWA brand 13T (Optional)
Suspension
Mechanical suspension American type local brand (Optional)
Leaf spring
Leaf spring 10pcs*90*13mm (Optional)
Tire
12R22.5 12pcs (Brand and specs optional)
Wheel rim
9.0-22.5 12pcs (Brand and specs optional)
Kingpin
2”/3.5” bolt-in /welded king pin
Landing gear
Two-speed, manual operating ,heavy duty landing gear 28T
Ladder
Mechanical/Hydraulic ladder
Braking system
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS
Optional
Lights
LED 8 side lights and 2 rear lights 2 width lamp
Painting
Complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final painting
Accessories
One standard tool box、one spare tire carrier、one crank、one shaft head wrench、four side light、two rear light




Company Profile


About us   Shandong Tank Automobile Sales Co.,Ltd
Shandong tank automobile sales company limited is a professional semi trailer and trailer parts exporter.Qur company have our own semi trailer and trailer parts factory.Our factory covering an area of 200000 square meters, and over 130 employees.
Our semi trailer factory was established in 2002.We started producing export trailers for foreign trade companies in 2009.Now we establish our own export companyin 2024. At present, the company mainly specializing in manufacturing special vehicles such as low bed semitrailer, flatbed semi trailer, oil tank semi trailer, bulk cement semi trailer,dumper semi trailer and so on.And our trailer parts factory mainly manufacture semi trailer axle, suspension and landing gear. Our boasts strong technical force, advanced line production equipment of welding and excellent quality guarantee system, modern testing means and high qualified specialist technicians.making the products trusted and welcomed widely by the users.
We warmly welcomes friends from all over the world to LiangShan for tours and businesses


Product packaging




Why Choose Us




Exhibition




Logistics&Payment




FAQ


Q1: Do you accept small orders or low MOQ?
A1: YES we do. Contact us any time .we offer low MOQ with your logo custom and our luxury back gound ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. We offer global deliver. it can be by express by sea.If you don't have your own ship forwarder, we can help you find best one.
Q3: Can you do OEM and ODM for me?
A3: We accept all OEM and ODM orders,you just contact us and give me your design and information. we will offer you reasonable price and make samples for you .
Q4: What's your payment terms ?
A4: By T/T,LC,Paypal. T/T 30% deposit in advance, balance 70% before shipment by T/T or L/C. Small Order need to Full amount by T/T.
Q5: How long is your production lead time?
A5:It depends on product and order quantity. Normally, it takes us 15 days for an order with MOQ quantity .
Q6: When can I get the quotation ?
A6: We usually quote you within 12 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or
tell us in your mail, so that we could regard your inquiry priority.
