Product Description
Customized Self Clean Permanent Stainless Steel Powder Pneumatic Magnetic Separator for Barium Carbonate

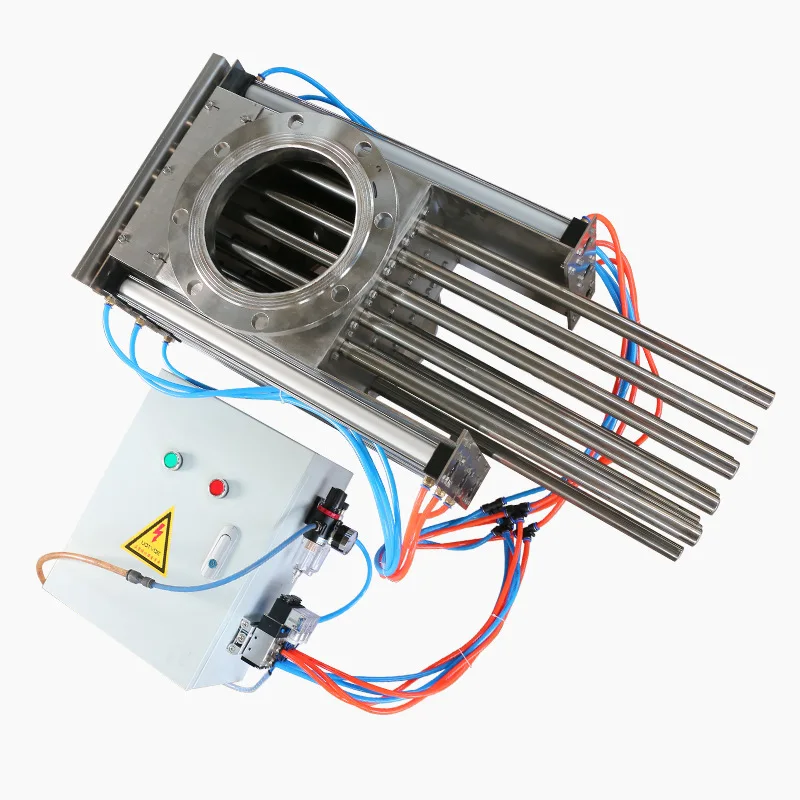

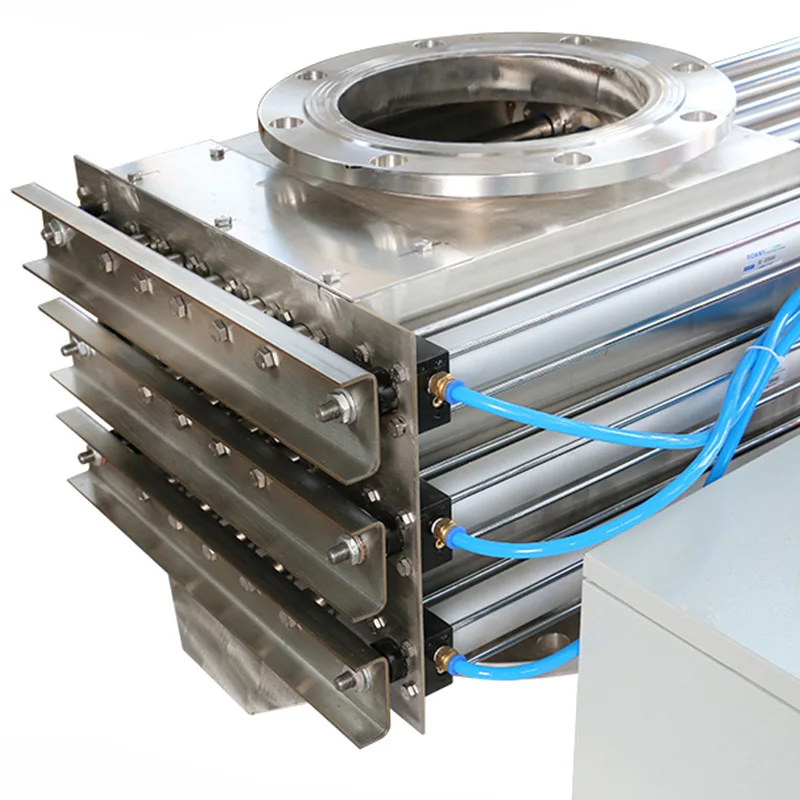

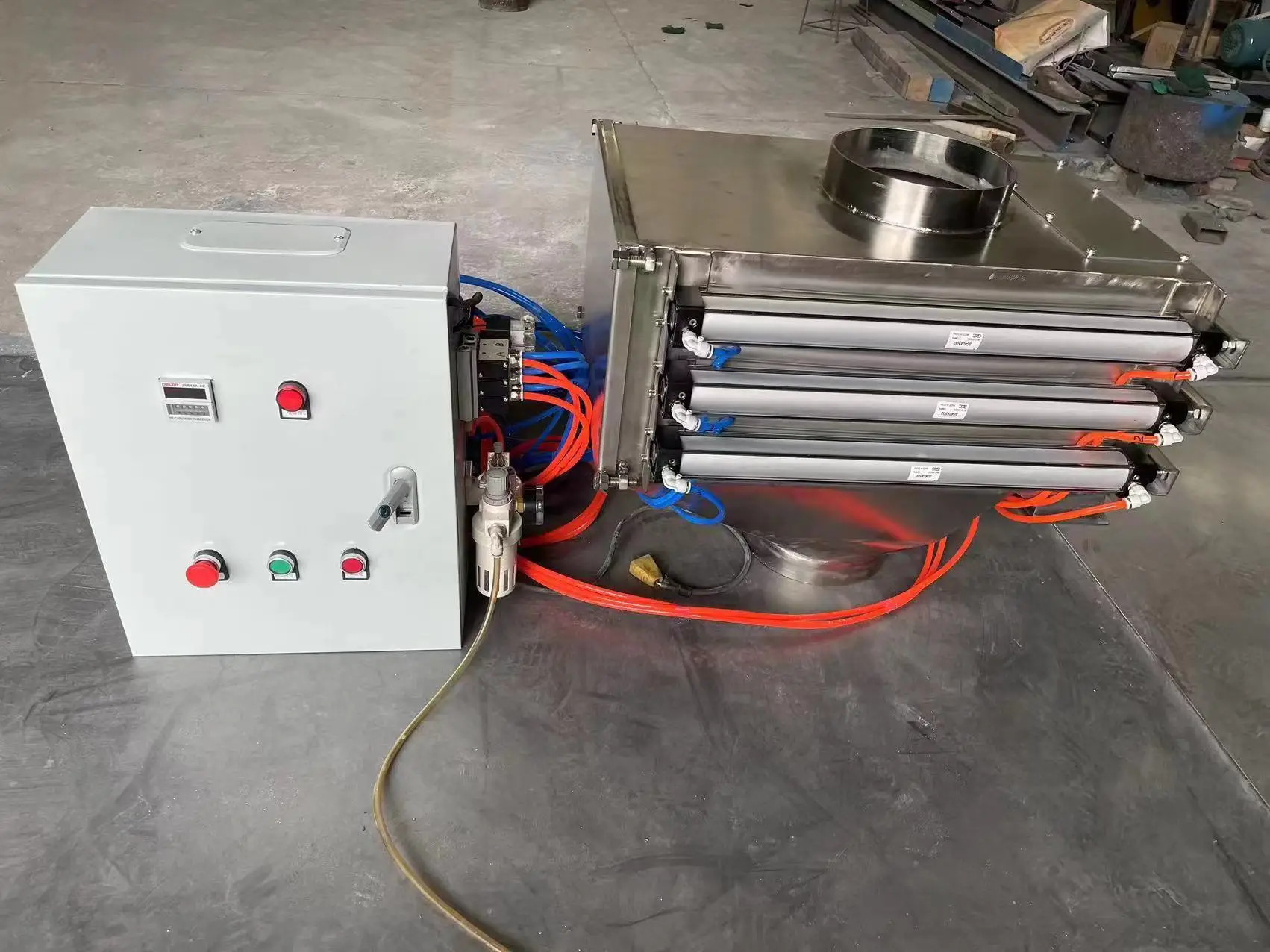

Customized Self Clean Permanent Stainless Steel Powder Pneumatic Magnetic Separator for Barium Carbonate is self-cleaning Magnetic Separator will absorb and clean iron automatically, which is major for the material with much iron, clean the iron is convenient and quickly, the air cylinder pulls the magnetic rod layer by layer, the iron adsorbed on the magnetic rod automatically falls off, and the work is continuously, and the raw materials can continue to work when the iron is extracted one by one without stopping the feeding. The material is fed from the feed port of the magnetic separator and passes through the permanent magnet bar in the magnetic separator. The iron of the material is adsorbed on the magnetic bar by magnetic force, and the non-magnetic mineral particles pass through the magnetic bar and are discharged from the discharge port; At the same time, the permanent magnet bar is pulled layer by layer through the cylinder device, so that the ferromagnetic substance adsorbed on the permanent magnet bar is automatically separated and discharged from the iron removal port.
Feature
Customized Self Clean Permanent Stainless Steel Powder Pneumatic Magnetic Separator for Barium Carbonate is perfect for removing fine iron and paramagnetic contamination from a variety of dry free flowing products such as sugar, grain, tea, and other similar products. They are made entirely of 304 stainless steel and are made up of a row or rows of spherical magnetic tubes that are integrated into drawers. Across the gaps between the magnetic bars, a strong magnetic field is produced. Because the product comes into direct and repeated contact with a magnet as it goes through the housing, it is forced to run in a zig-zag pattern from row to row over the magnetic tubes. This provides maximal tramp metal capture potential. Housings are available for both square and round pipelines, and can be customized to meet each customer's installation needs.
N style and E style are the two sorts.
Customized Self Clean Permanent Stainless Steel Powder Pneumatic Magnetic Separator for Barium Carbonate is perfect for removing fine iron and paramagnetic contamination from a variety of dry free flowing products such as sugar, grain, tea, and other similar products. They are made entirely of 304 stainless steel and are made up of a row or rows of spherical magnetic tubes that are integrated into drawers. Across the gaps between the magnetic bars, a strong magnetic field is produced. Because the product comes into direct and repeated contact with a magnet as it goes through the housing, it is forced to run in a zig-zag pattern from row to row over the magnetic tubes. This provides maximal tramp metal capture potential. Housings are available for both square and round pipelines, and can be customized to meet each customer's installation needs.
N style and E style are the two sorts.
(1) Standard drawer magnet separator N-Style Iron impurities and small metal particles in the flow and loose material can be successfully absorbed by the bar magnet. The exterior bar magnet is commonly made of 304 or 316 stainless steel (used for high corrosion resistance and cleanliness of the occasion) Internal materials include rare earth permanent magnets, ferrite, and other magnetic elements in a seamless stainless-steel conduit. The standard working temperature
for a bar magnet is 80 degrees Celsius; but if asked, we may deliver a bar magnet with a maximum operating temperature of 350 degrees Celsius.
for a bar magnet is 80 degrees Celsius; but if asked, we may deliver a bar magnet with a maximum operating temperature of 350 degrees Celsius.
(2) E-style: Simple-to-clean Magnets for Drawers Advantage: Cleaning is straightforward. Isolate the product flow from the outside by releasing the fastening bolts and removing the easy-clean grid assembly. After removing the Easy-clean Grid
magnet from the housing, just activate the release mechanism, pull the magnetic cores out of the stainless-steel cartridge, and the contaminants will fall away.
magnet from the housing, just activate the release mechanism, pull the magnetic cores out of the stainless-steel cartridge, and the contaminants will fall away.
Details Images
Our Advantages
Application industry
1. Types of products accommodate various materials.
2. The maximum magnetic strength for normal (N Style) and simple cleaning (8000GS) is 13000GS (E Style).
3. Standard operating temperature is 80°C, with a maximum working temperature of 350°C if necessary.
4. Simple installation, separation, and cleaning thanks to ferrules, bolt plates, flanges, and uneven heads, among other things.
5. For pipeline material, 304 or 316L stainless steel is offered.
6. Optimal magnetic setup enables optimum magnetic impact without obstructing liquid flow.
7. Customer specifications on pressure or other features are also available as needed.
2. The maximum magnetic strength for normal (N Style) and simple cleaning (8000GS) is 13000GS (E Style).
3. Standard operating temperature is 80°C, with a maximum working temperature of 350°C if necessary.
4. Simple installation, separation, and cleaning thanks to ferrules, bolt plates, flanges, and uneven heads, among other things.
5. For pipeline material, 304 or 316L stainless steel is offered.
6. Optimal magnetic setup enables optimum magnetic impact without obstructing liquid flow.
7. Customer specifications on pressure or other features are also available as needed.

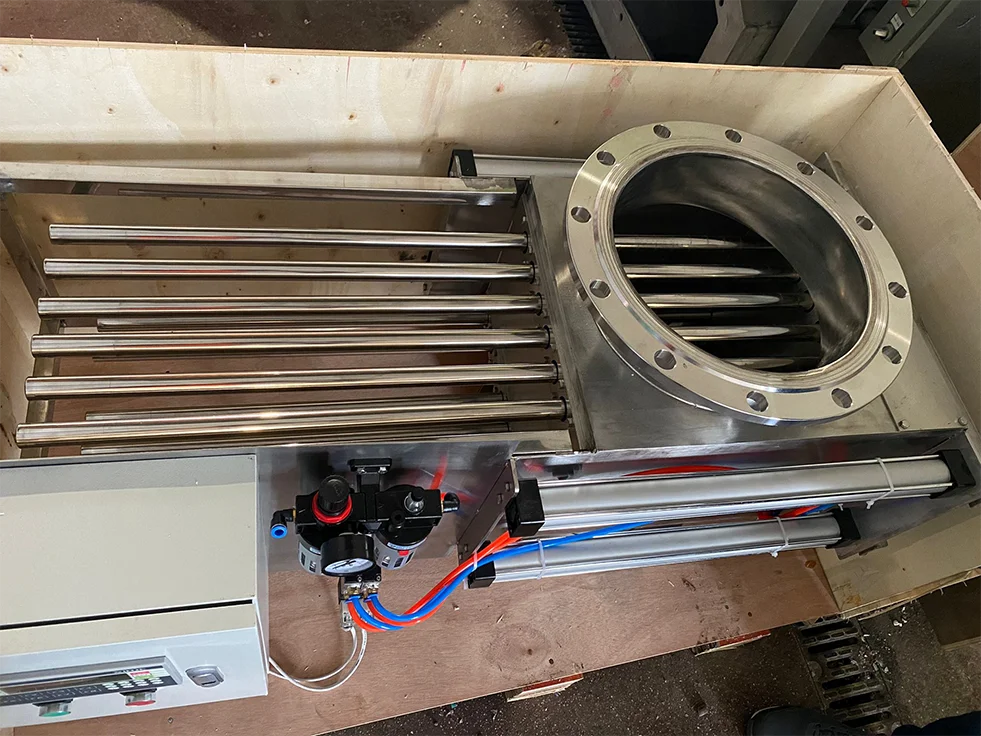

Packing & Delivery
Company Profile
As a professional vibrating sieve and magnetic separator manufacturer, ZHONGNUO help manufacturers upgrade quality,efficiency and profitability. We will work with you to customize our standard products and find the best solution possible.
We are sieving and filtration solutions to guarantee your product quality. We are your dependable partner.
We are sieving and filtration solutions to guarantee your product quality. We are your dependable partner.
FAQ
Q:How to choose the suitable machine?
A:Please tell us the below information and we can choose the suitable model:
1. Name and feature of the raw material?
2. Production capacity: kg /h, L/h?
3. Input&Output size? mm
4. How many layers/rows you need?
Note: You had better send us the relevant pictures about the details.
Q:Is it support the special requirement available?
A:Yes, the equipment could be designed according to customer's using aim or special requirements.
Q: How long will my order take?
A: Normal delivery is about 7-10 working days. Ending delivery schedule depends on the quantity and items you ordered.
A:Please tell us the below information and we can choose the suitable model:
1. Name and feature of the raw material?
2. Production capacity: kg /h, L/h?
3. Input&Output size? mm
4. How many layers/rows you need?
Note: You had better send us the relevant pictures about the details.
Q:Is it support the special requirement available?
A:Yes, the equipment could be designed according to customer's using aim or special requirements.
Q: How long will my order take?
A: Normal delivery is about 7-10 working days. Ending delivery schedule depends on the quantity and items you ordered.
