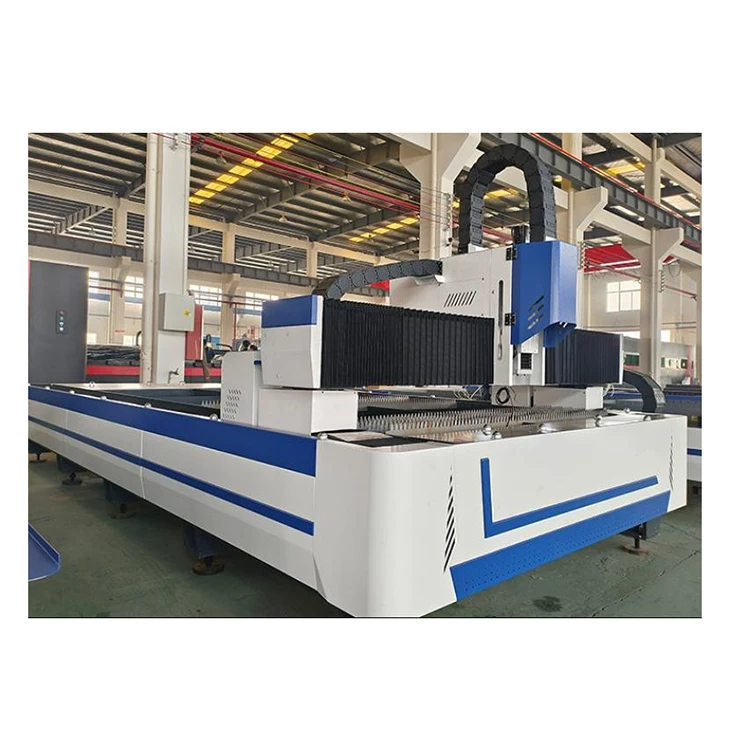

Высокая мощность 3015 2040 волоконно-оптическая лазерная резка с полным охватом для металлического листа 4000 Вт 6000 8000 промышленное лазерное оборудование
6 100,00-6 200,00 $
6090 9060 co2 все в одном лазерный станок для резки лазерной гравировальной машины дерева ткань акриловая хобби использование
- Категория: >>>
- Поставщик: Shandong Jowuey Intelligent Equipment Co. LtdShandong Ltd
Сохранить в закладки 1601289689417:
Описание и отзывы
Характеристики

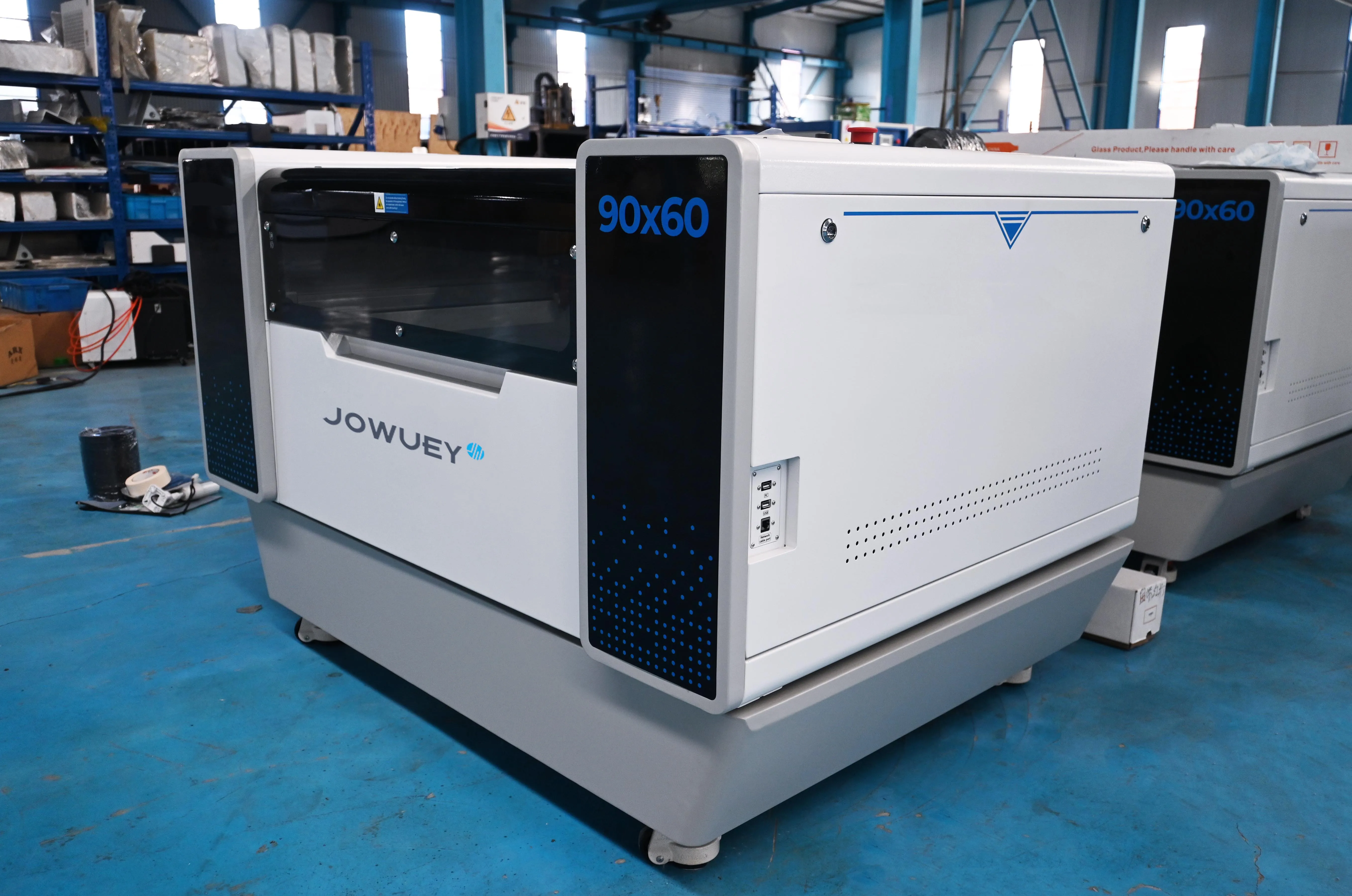

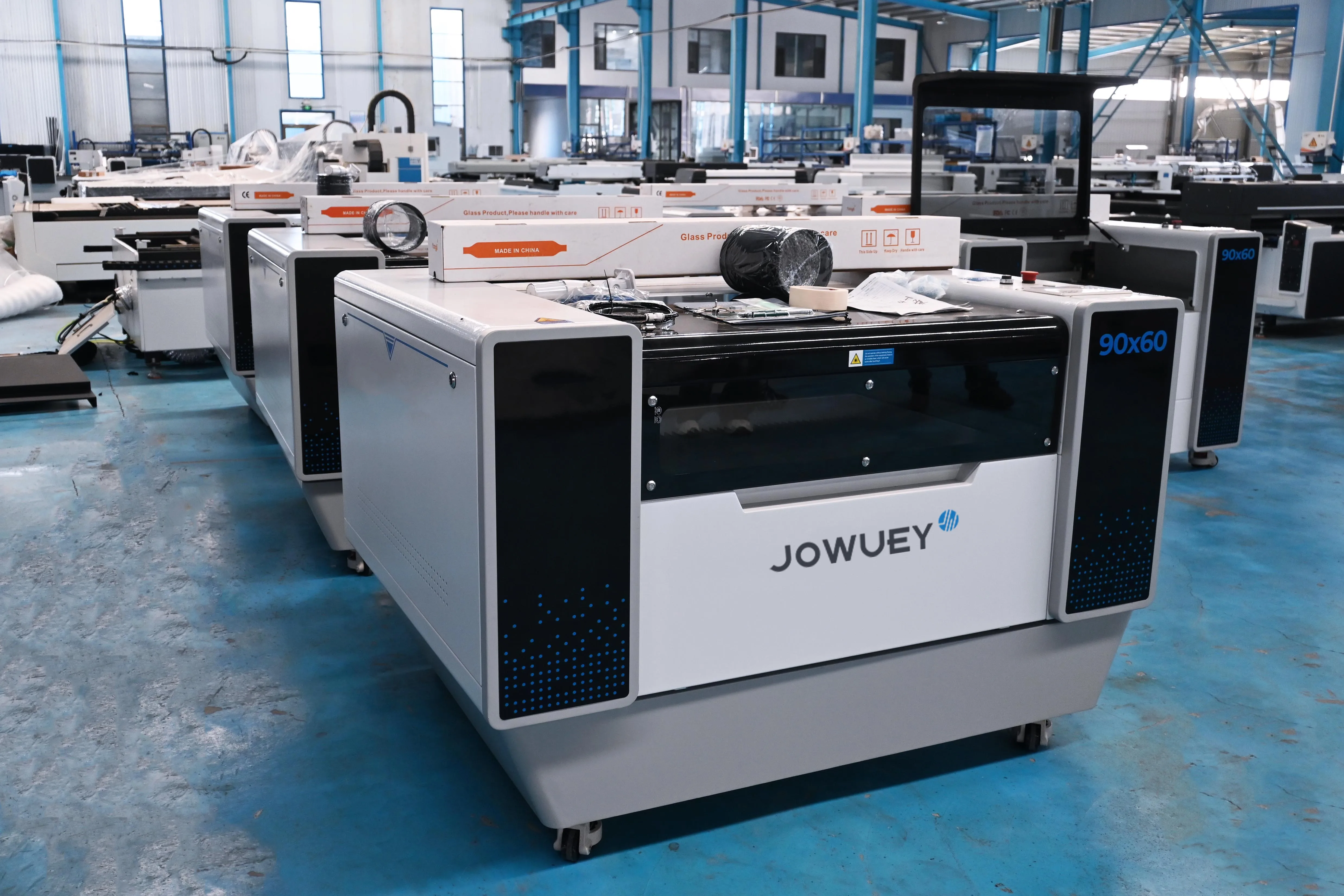

JOWUEY 6090M7 INTEGRATED CO2 LASER CUTTIN MACHINE
Product Paramenters
To learn more about the rule parameters or to customize the size of the machine Please contact the online customer service
Working area | 600*900mm |
Power | 80-300w |
Cutting thickness | 0-30mm |
Supply Voltage | AC 110v-220v±10% |
Engraving speed | 0-64000mm/min |
Cutting speed | 0-36000mm/min |
Dimension | 1420*1080*1080mm |
Packaging Size | 1520*1180*1250mm |
Gross Weight | 300KG |
Positioning accuracy | ≤±0.05mm |
Mininum Shaping Character | English1x1mm,Chinese2×2mm |
Operating humidity | 5%-95% |
Working temperature | 0-45° |
Data transmission interface | USB |
Cooling mode | Water-cooling and protection system |
Graphic file format | PLT,DST,DXF,DWG,AI,LAS |
Details Images
Electrical box
The wiring of our electric box is neatly planned,and it is easy to identify by using different colors
Leadshine stepper motor and driver
Leadshine, a well-known trademark in China,does not lose steps during work, with a speedupratio of 30%, good cooling effect, smoothoperation, relatively small vibration, and powersaving.
Reci laser tube
01 Beam quality TEM00 mode more than 95%;02 Advantages of optical resonant cavity toimprove product power: 03 The world's mostadvanced nuclear radioactive material coatedlens; 04 Laser tube metal head and glass directsintering process.
Ruida controller
The most recent DSP control system. USBinterface. LCD screen, and the board as a wholehave better ability to resist high voltage
andanti-static interference
andanti-static interference
The installation of motors
Our company's motor is installed vertically. Thereis only one resonance point can reduce the
vibration and improve cutting effect.
vibration and improve cutting effect.
Lens and Mirror
Optical lenses imported from the United Statesperfect engraving and cutting effects, smallcutting gaps, high reflectivity, up to 99.98%

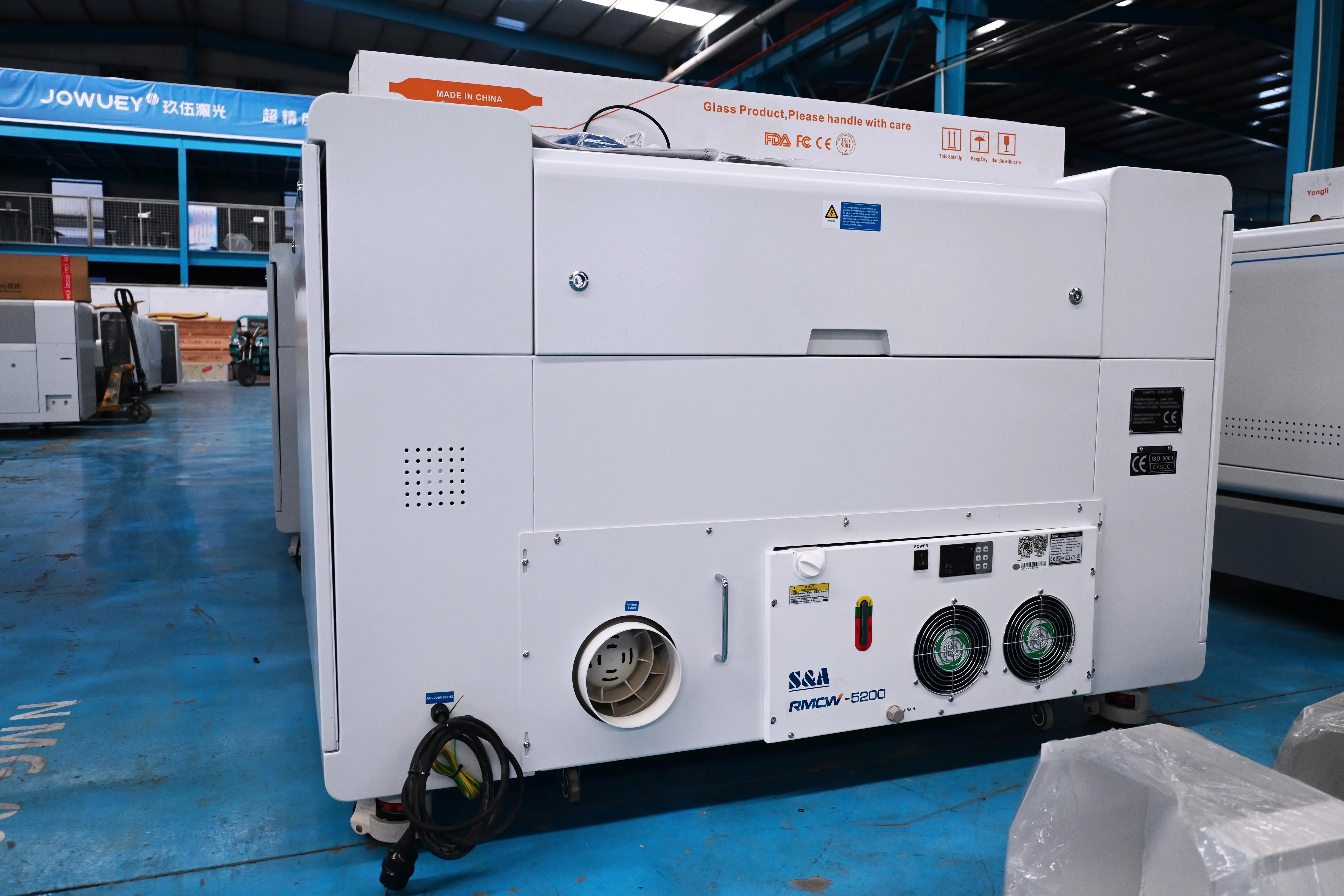

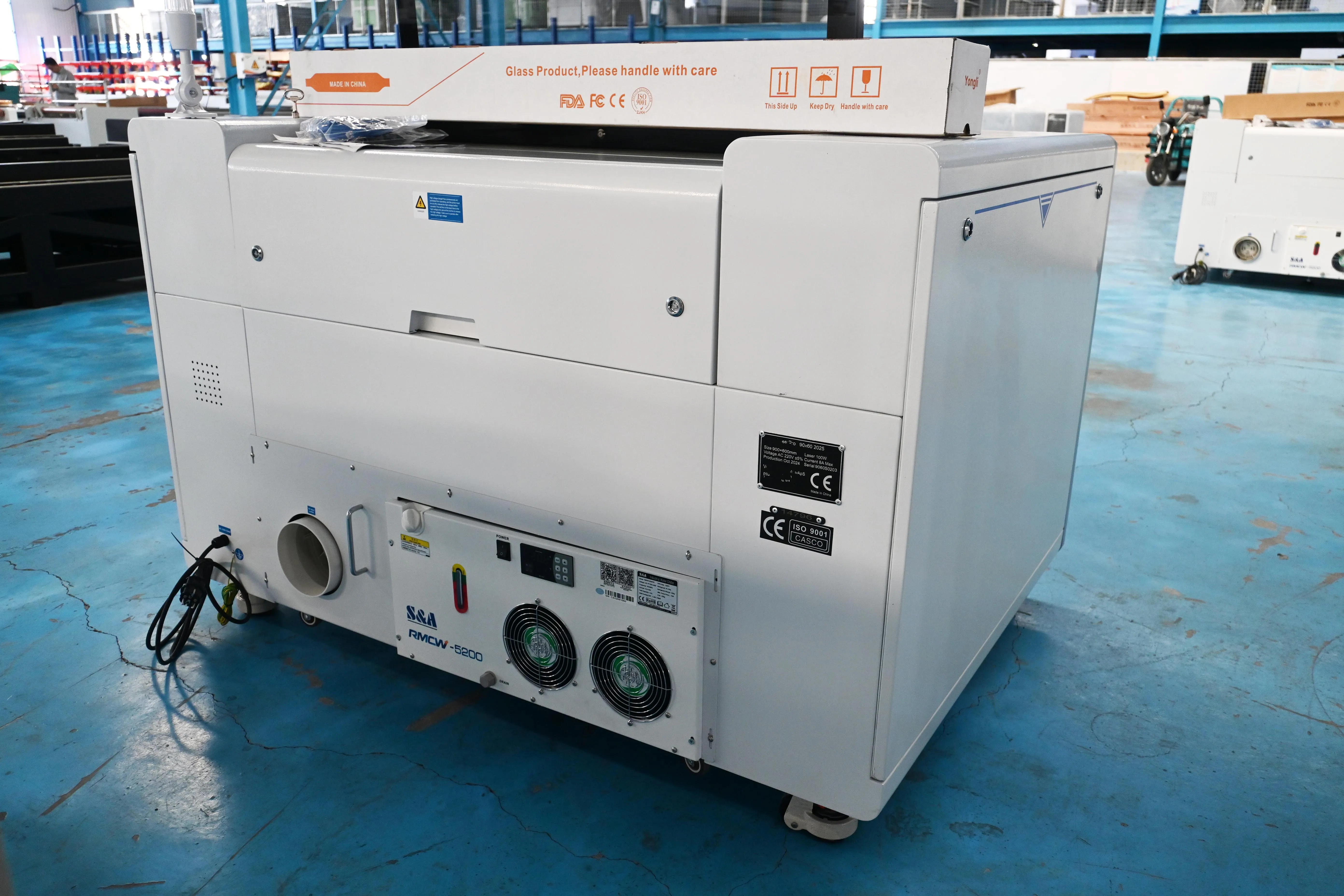

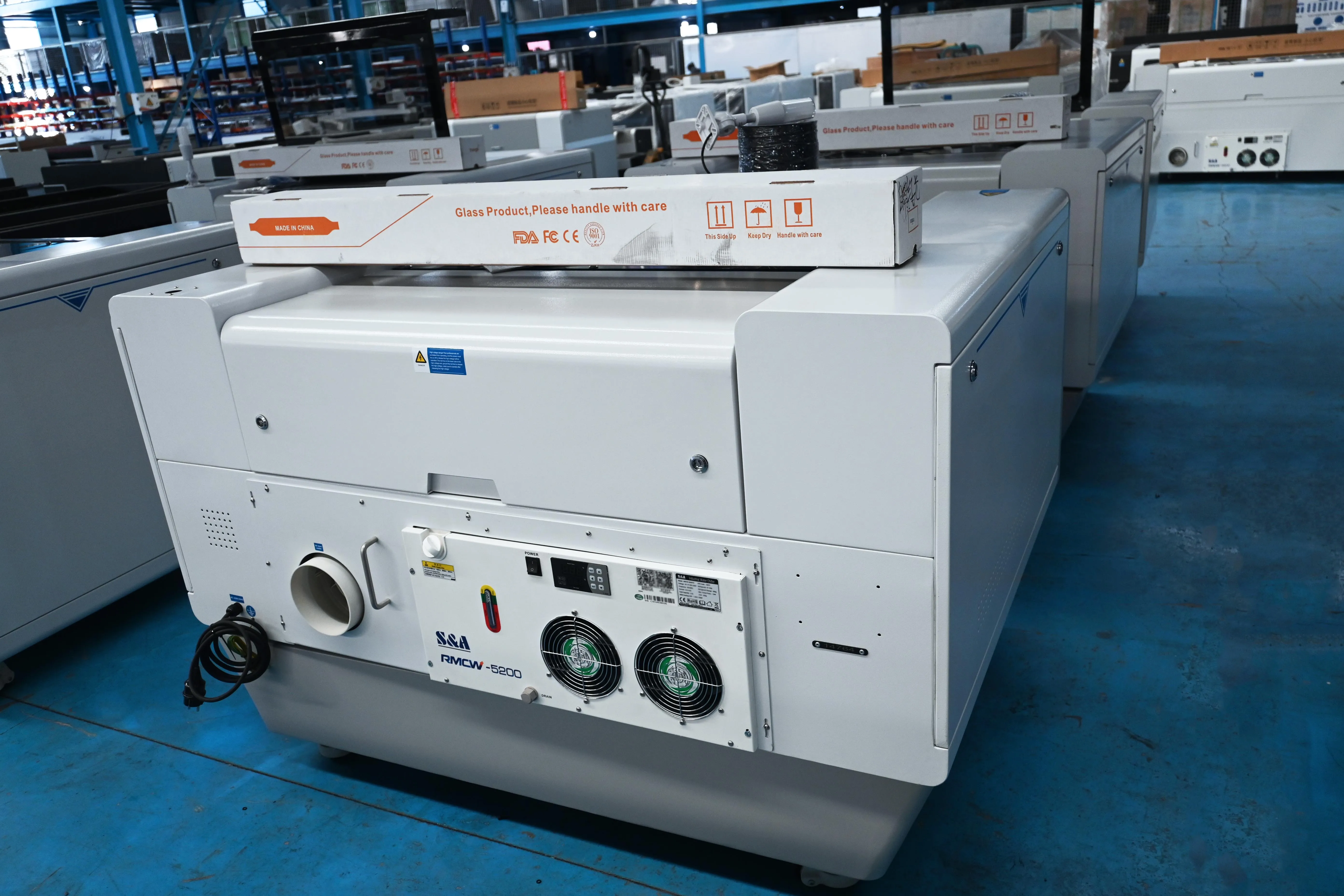

Water chiller
Precision water chiller, the temperature can becontrolled +0.3C， it has two functions ofconstant temperature and intelligent temperatureregulation.
Air compressor
Produce continuous air flow, cooling the cuttingsurface to avoid excessive cutting temperature
Blade table
The contact surface between the blade table andthe cutting material can be reduced as much aspossible, and the blade density can be adjustedaccording to the size of the material. Thisplatform is suitable for the processing of acryliand other plates, reducing the contact surfacebetween the material and the platform, solving thediffuse reflection caused by the laser hitting theplatform after cutting through the material, andleaving traces on the lower part of the material toachieve a better cutting effect.
Dust collector 550w
With adsorption function, the soft material isadsorbed on the platform. and at the same time.the smoke generated by engraving and cutting isexhausted from the room to ensure thecleanliness of the workpiece and the inside
Laser power supply
We provide a stabilized laser power supply tocontinuously supply power to the laser tube,making the voltage more stable, the optical pathmore stable, and with the cutting effect good.
Gear
This is a synchronous gear made of pure copperwhich is wear-resistant and corrosion-resistant
Lens holder
We use the thin wire optical frame made of purecopper, which is not easy to change light, maketthe optical path more stable, can fx the mirrorwire, and has the effect of cooling the lens quickly
Application Materials
it is suitable for engraving cutting wood, plastic, MDF, glass, leather, rubber, laminate and other non-metallic materials.(For more materials and finished products, please contact online customer service)
Our Advantages
Configuration
1.Working area 1300x900 mm
2.130W/150W/300W reci laser tube (the best laser tube in China)
3.RD-6442S control system
4.Singapore lenses and mirrors
5.Dongling drive system
6.Yardfalk belt
7.Exhaust fan, air pump, chiller
1.Working area 1300x900 mm
2.130W/150W/300W reci laser tube (the best laser tube in China)
3.RD-6442S control system
4.Singapore lenses and mirrors
5.Dongling drive system
6.Yardfalk belt
7.Exhaust fan, air pump, chiller
Advantages
CCD Camera laser cutting machine,Edge finding cutting.1. Professional Ruida 6445G laser control system,precise,stable and fast.
2. Brand laser tube.good spot quality,stable output power,good engraving effect.
3. With universal wheel bracket,easy to move.
4. USB2.0 interface,support offline work.
5. Color LCD display,support multi-language operation.Electric UP&Down platform,convenient for customers to place thick materials.
6. Optional rotary attachment,convenient for customers to engrave the required materials.
Our Service
What kind of support you can get from LASER MAX?
♦Warranty:
We promise to keep products that are manufactured and shipped according to a formal contract, and we guarantee that every repaired machine will perform well if used correctly. You have the right to repair or replace an item in the warranty period if you have a material or technical problem. We will charge maintenance in normal cases. It will be free if the machine has special problems.
♦After sale services:
1.12 months quality guarantee, the machine with main parts (not including consumables) will be changed for free if there is any problem during the warranty period.
2. Free training in our plant.
3. We will provide the Consumable Parts at an agency price when replacement is required.
4. Can help you solve problems online or by email in 24 hours, free technical support.
♦Warranty:
We promise to keep products that are manufactured and shipped according to a formal contract, and we guarantee that every repaired machine will perform well if used correctly. You have the right to repair or replace an item in the warranty period if you have a material or technical problem. We will charge maintenance in normal cases. It will be free if the machine has special problems.
♦After sale services:
1.12 months quality guarantee, the machine with main parts (not including consumables) will be changed for free if there is any problem during the warranty period.
2. Free training in our plant.
3. We will provide the Consumable Parts at an agency price when replacement is required.
4. Can help you solve problems online or by email in 24 hours, free technical support.
Company Profile
Shandong Namingao Laser Equipment Co, Ltd. was founded in 2013 (subsidiary JOWUEY/Jiu-wu). It is a global non-metal and metal laser cutting intelligent solution provider integrating R&D, design, production, sales and service of laser processing application products. After nearly ten years of development, our company's products cover multi-power series of fber laser cutting machine, CO2 laser cutting machine, laser engraving machine, automatic feeding laser cutting machine, metal and non-metal mixed cutting machine, laser marking machine, etc.They are widely used in advertising industry, wood-working industry, machinery manufacturing, kitchen utensils, hardware tools, metal processing and cutting, furniture manufacturing, lighting word en-gineering, LED advertising word, craft products.signs, packaging, architectural models, industrial molds, decoration, clothing, textiles, leather, indus-trial fabrics and many other industries.
Product Packaging
Layer 1
For the inside layer,adopt stretch film for waterproof
Layer 2
In the middle ,the machine is covered by foam,to protect the machine shaking
Layer 3
For the outside used standard export wooden case
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following details:
1. What is your material?
2. The size of the material?
3. The thickness of the material?
Q: Do you have the CE document and other documents for customs clearance?
A: Yes, we have the Original. First, we will show you and after shipment,we will give you CE/Packing list/Commercial Invoice/Sales
contract for customs clearance.
Q: Do the machine can be customized according to my requirements?
A: Sure, we have a strong technical team and rich experience. Our goal is to make you satisfied. Q:Can you arrange the shipment
for me?
A: We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, and EXW are available.
1. What is your material?
2. The size of the material?
3. The thickness of the material?
Q: Do you have the CE document and other documents for customs clearance?
A: Yes, we have the Original. First, we will show you and after shipment,we will give you CE/Packing list/Commercial Invoice/Sales
contract for customs clearance.
Q: Do the machine can be customized according to my requirements?
A: Sure, we have a strong technical team and rich experience. Our goal is to make you satisfied. Q:Can you arrange the shipment
for me?
A: We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, and EXW are available.
What can we offer?
1. Free sample marking
2. Free customers training
3.24 hours multi-language
4.24 hours of online support
5. After-sale technical support team
6.2 years warranty
