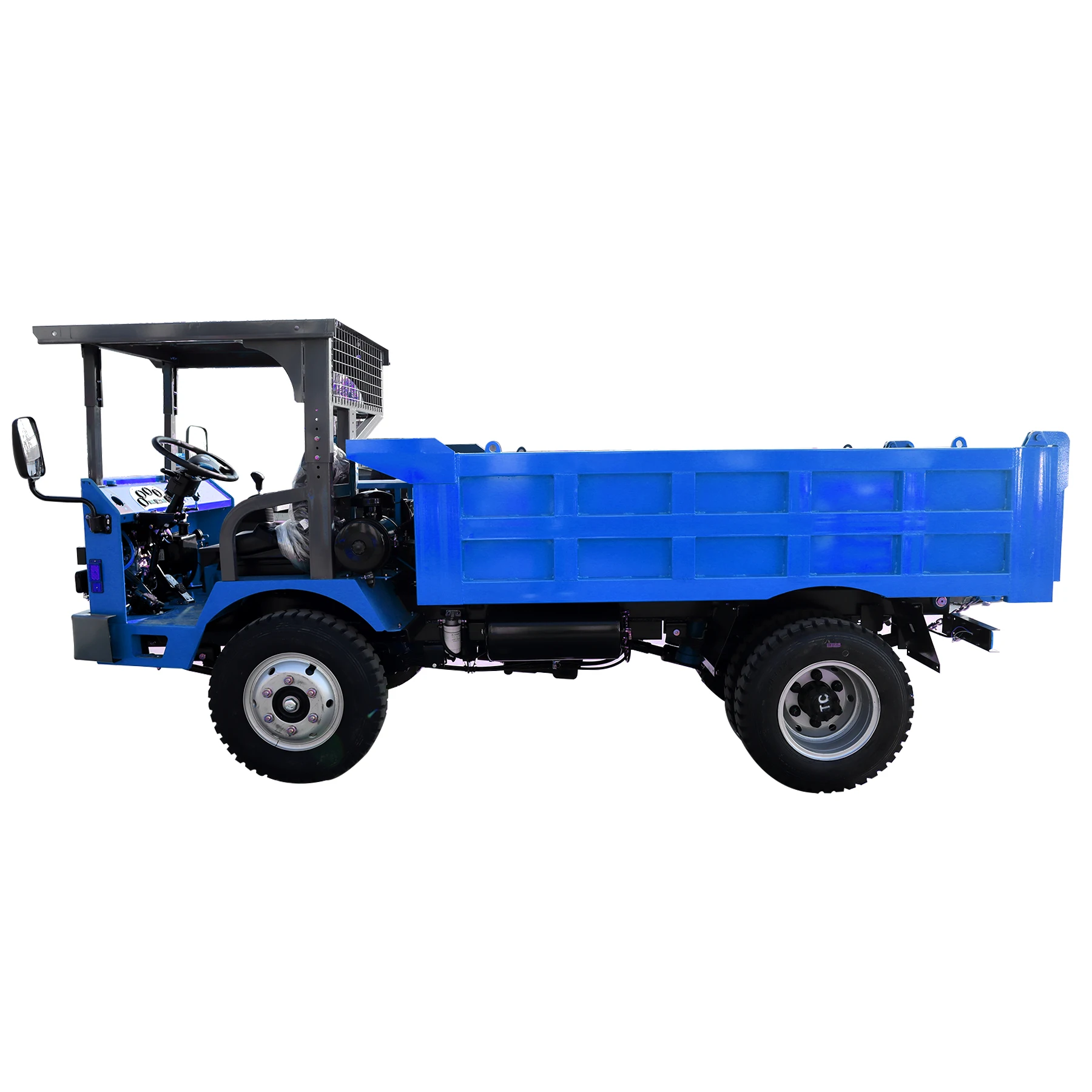

Подземные 5-тонные самосвалы используются для транспортировки угля и добычи полезных ископаемых
316 751,68-339 376,80 ₽

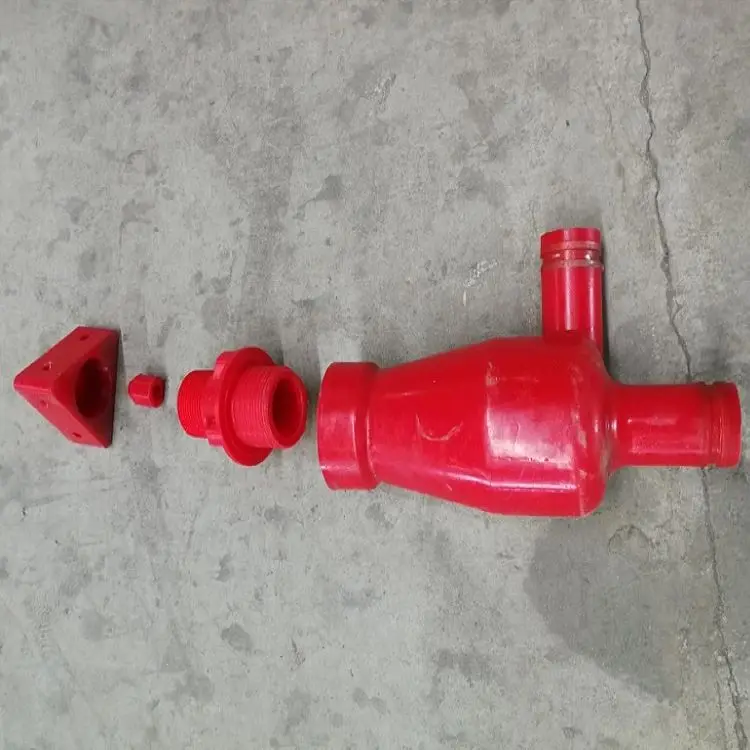

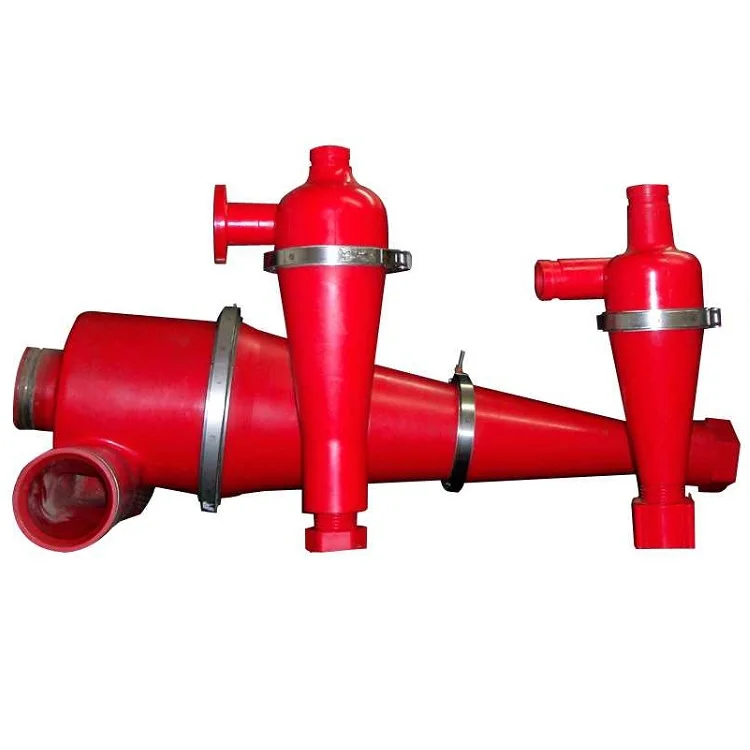

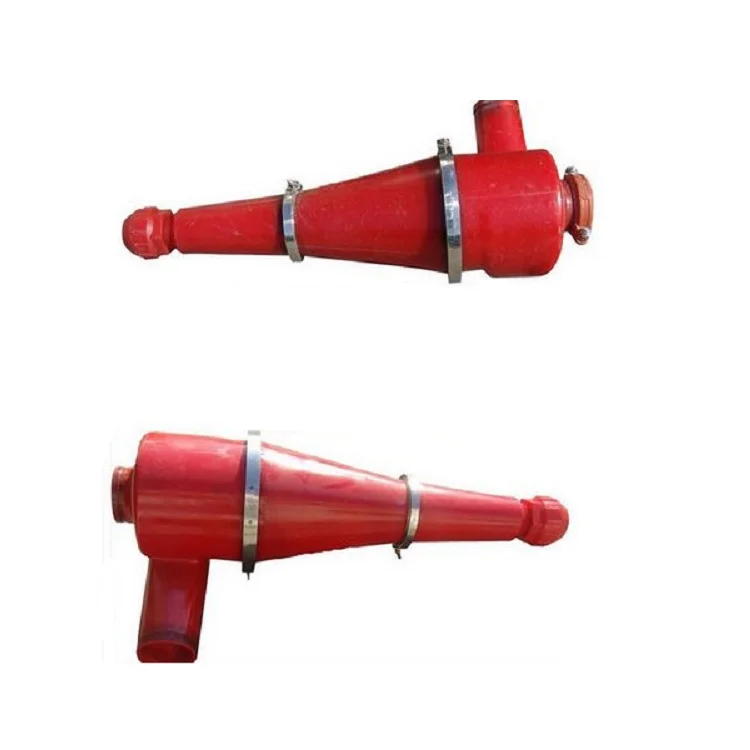

Твердотельный гидроциклонный десандер с насосным двигателем и оборудованием для бурения нефтяных скважин
- Категория: >>>
- Поставщик: Dongying Link Petroleum Equipment Co. Ltd.Dongying Ltd.
Сохранить в закладки 1601289726063:
Описание и отзывы
Характеристики

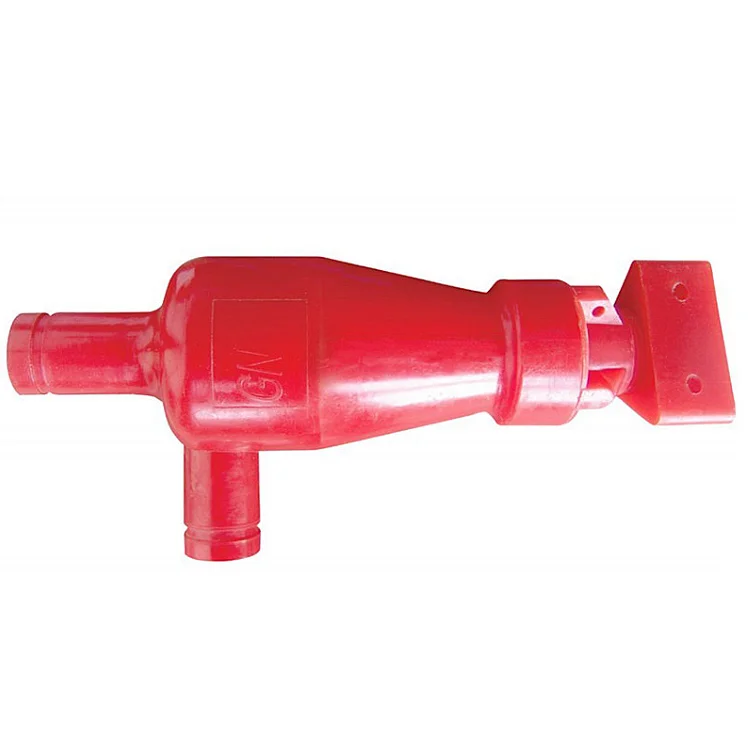

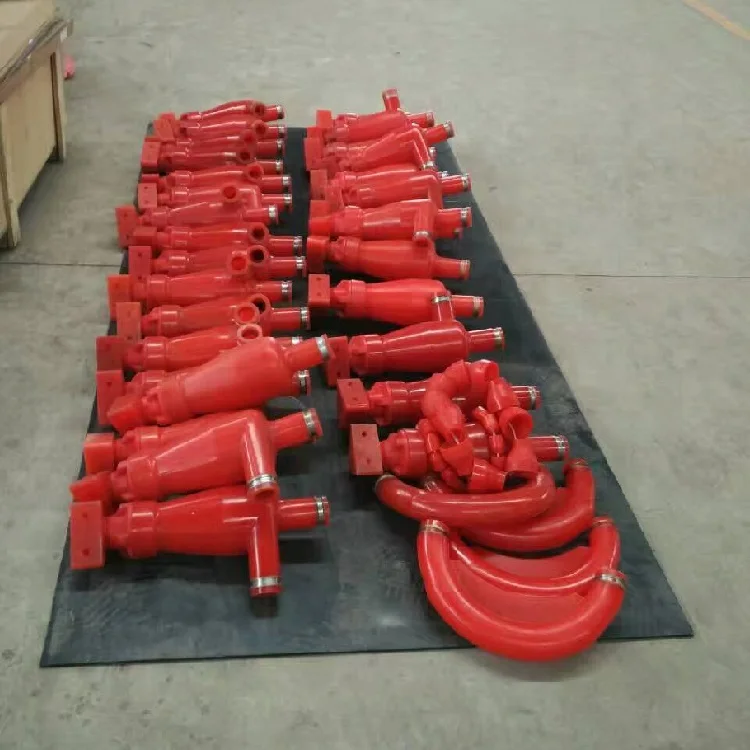

Solid Control Hydrocyclone Desander with Pump Motor and Gear-Oil Drilling Essential Equipment
Products Description
1.Hydrocyclones is also called cyclone separator, Hydrocyclones include hydrocyclone desander (10 inch cone) and hydrocyclone desilter (4 inch cone), which is used to separate sand and silt from the drilling fluid.
2.A hydrocyclone is a static separation device that applies centrifugal force and fluid resistance to a flowing liquid mixture so as to promote the separation of heavy and light components.
3.Centrifugal pump is used to pump the drilling fluids from mud tank into the set of hydrocyclones.
4.Sand hydraulic cyclone is one of the most important deviced in the minerals industry, its main use in mineral processing being as a classifier, which has proved extremely efficient at fine separation size.
5. It is widely used in closes-circuit grinding operaions but has found many other uses,such as desliming,degtritting, and thickening.
2.A hydrocyclone is a static separation device that applies centrifugal force and fluid resistance to a flowing liquid mixture so as to promote the separation of heavy and light components.
3.Centrifugal pump is used to pump the drilling fluids from mud tank into the set of hydrocyclones.
4.Sand hydraulic cyclone is one of the most important deviced in the minerals industry, its main use in mineral processing being as a classifier, which has proved extremely efficient at fine separation size.
5. It is widely used in closes-circuit grinding operaions but has found many other uses,such as desliming,degtritting, and thickening.
Specification
Model | Inner diameter | Feed diameter | Overflow diameter | Angle of cone | Max size | Separation size(micron) | Feed pressure(Mpa) | Treating capacity(m³/h) |
inch | ||||||||
2 | 50mm | 16x6mm | 12mm | 6º | 0.3mm | 5-30 | 0.1-0.4 | 1.6 |
3 | 75mm | 15-17mm | 22mm | 7º,15º | 0.6mm | 20-405-74.5 | 0.1-0.5 | 2-5 |
4 | 100mm | 26x16mm | 40mm | 20º | 1mm | 20-60 | 0.1-0.3 | 8 |
5 | 150mm | 30x26mm | 40mm | 20º | 1.5mm | 30-100 | 0.05-0.3 | 15 |
6 | 200mm | 60x30mm | 50-80mm | 20º | 2mm | 40-100 | 0.05-0.25 | 40 |
8 | 250mm | 95x50mm | 80-106mm | 20º | 3mm | 40-100 | 0.05-0.25 | 60 |
10 | 300mm | 64mm | 120-135mm | 20º | 4.5mm | 40-100 | 0.03-0.25 | 70 |
12 | 350mm | 80mm | 95-115mm | 19º | 7mm | 40-110 | 0.03-0.25 | 90 |
Packing&Shipping
Standard shipping packing
Company Profile
Dongying LINK Petroleum Equipment Co.Ltd
Dongying LINK Petroleum Equipment Co.Ltd, is a professional equipment manufacturer , sales and service provider focusing on the oil and gas industry.
We provide many types of drilling equipment, as well as corresponding accessories and services,including cementing and drilling tools, handing tools, mud pump parts, valves, solid control and well control equipment, etc. All products are certified to international standards API, ensuring reliability and safety under extreme conditions.
We try our best to provide high-quality, high-performance petroleum equipment, and we are very glad to establish a long-term business relationship with you. If you are interested in any of our products, please feel free to contact us for more information.
We provide many types of drilling equipment, as well as corresponding accessories and services,including cementing and drilling tools, handing tools, mud pump parts, valves, solid control and well control equipment, etc. All products are certified to international standards API, ensuring reliability and safety under extreme conditions.
We try our best to provide high-quality, high-performance petroleum equipment, and we are very glad to establish a long-term business relationship with you. If you are interested in any of our products, please feel free to contact us for more information.
Certifications
FAQ
Q1:How to get an accurate quotation?
A1: You should offer concrete technical requirements, drawings, pictures and so on, then our engineers will provide solutions and quotations in time.
Q2. How about your MOQ?
A2: Min order quantity is different depending on your quantity.
Q3. How about your delivery time?
A3: The specific delivery time depends on the items and the quantity of your order. And also our price is based on products and order quantity.
Q4. How about the Payment terms?
A4: Generally, T/T, 30% deposit in advance +70% balance before shipment.
Q5: How about your after-sales service?
A5:As a manufacturer, we accept goods return or replace for quality problem. Backup skillful and experienced sales team would help you get an efficient solution.
A1: You should offer concrete technical requirements, drawings, pictures and so on, then our engineers will provide solutions and quotations in time.
Q2. How about your MOQ?
A2: Min order quantity is different depending on your quantity.
Q3. How about your delivery time?
A3: The specific delivery time depends on the items and the quantity of your order. And also our price is based on products and order quantity.
Q4. How about the Payment terms?
A4: Generally, T/T, 30% deposit in advance +70% balance before shipment.
Q5: How about your after-sales service?
A5:As a manufacturer, we accept goods return or replace for quality problem. Backup skillful and experienced sales team would help you get an efficient solution.
Похожие товары

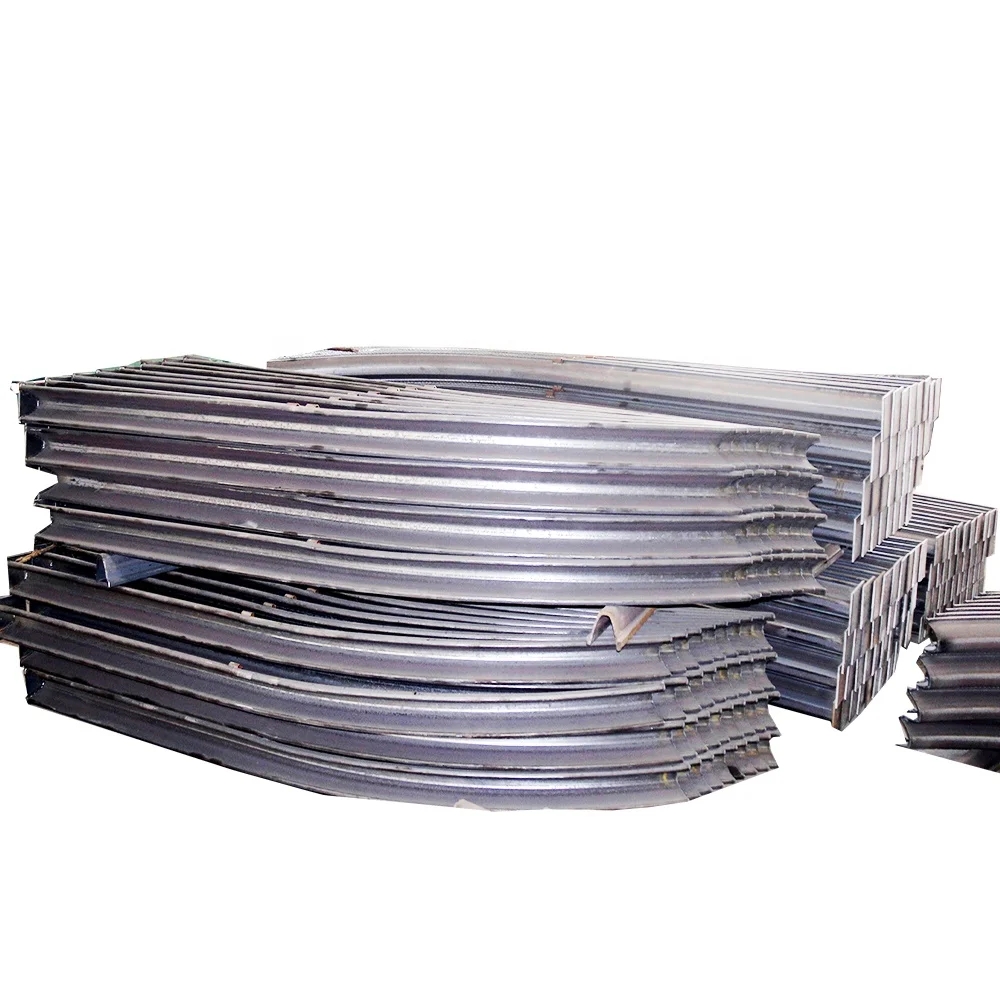

Поставка шахтного опорного изделия U-образная стальная АРКА для майнинга U-образный опорный стальной кронштейн
90 500,48-96 156,76 ₽

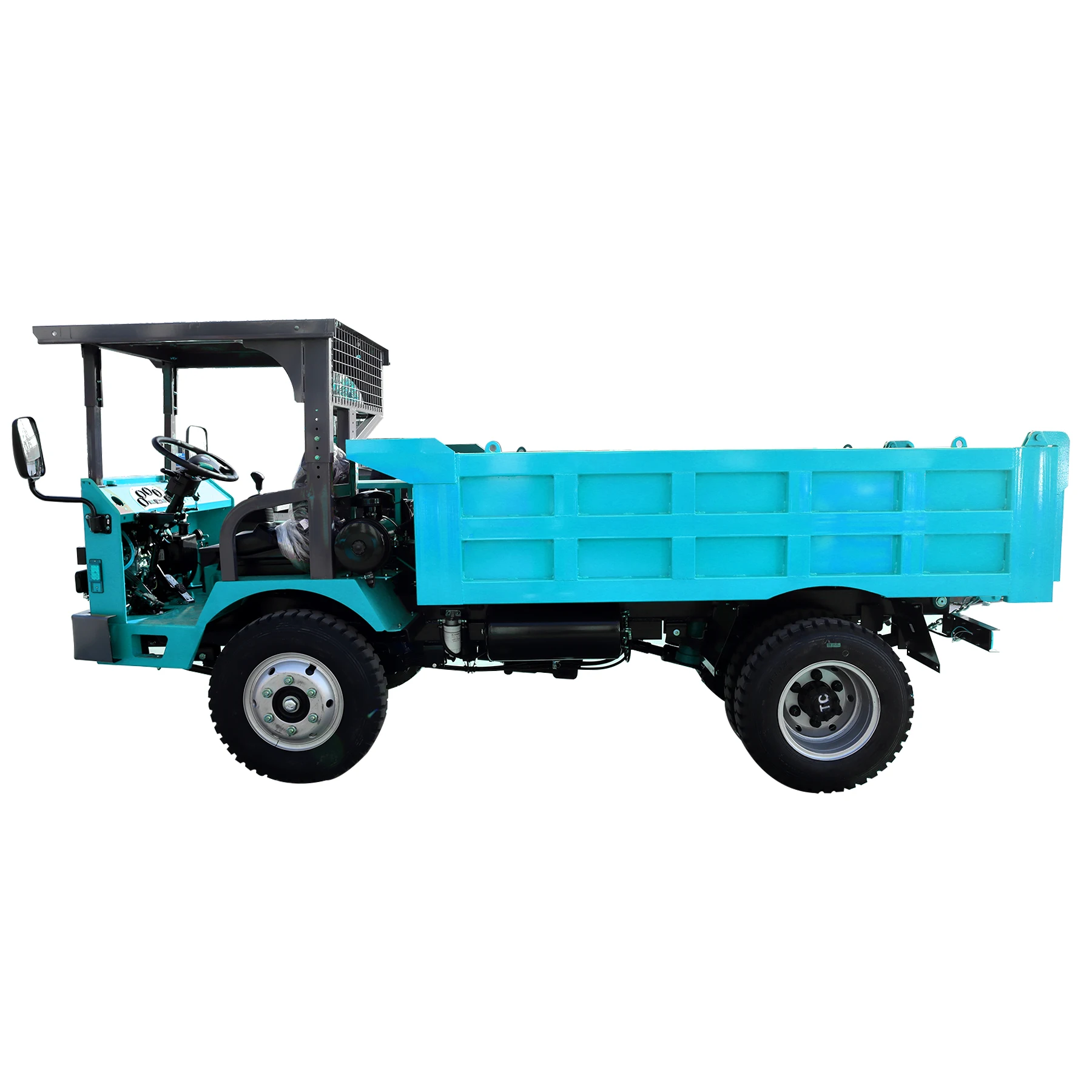

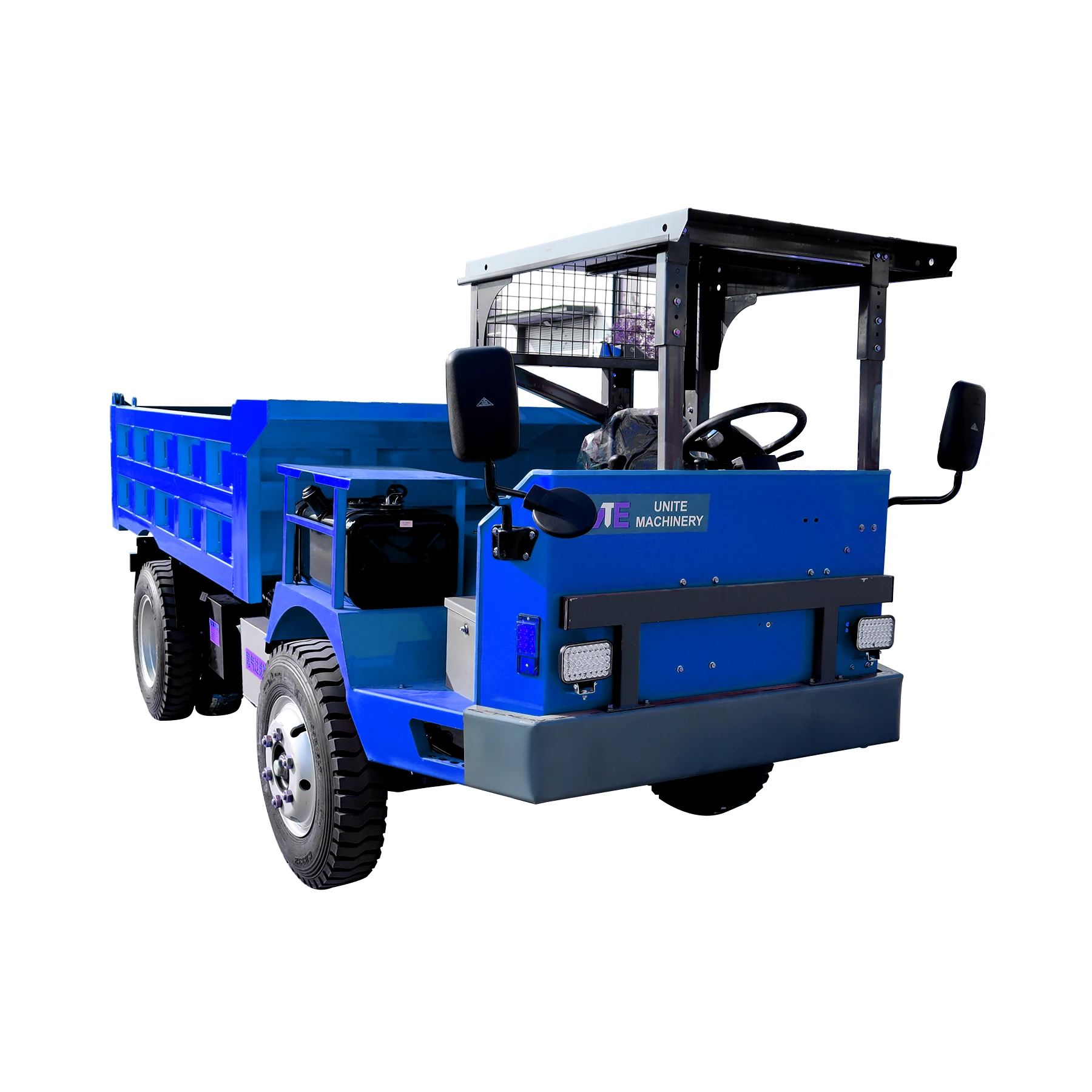

5-тонные самосвалы удобны для подземной эксплуатации тоннеля транспортировки угля
316 751,68-339 376,80 ₽
10-тонный 5-тонный Профессиональный карьерный самосвал экспортные производители
316 751,68-339 376,80 ₽

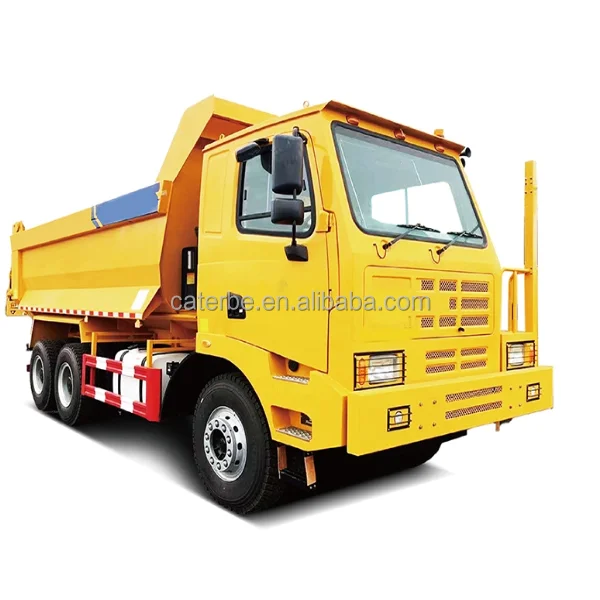

Самосвал Changlin GKM45P 30 тонн 20 м3 6*4 самосвал по заводской цене
2 262 512,00-2 488 763,20 ₽
Горнодобывающая техника Sinomach самосвал GKM45P 30 тонн 6*4 карьерный для продажи
2 262 512,00-2 488 763,20 ₽

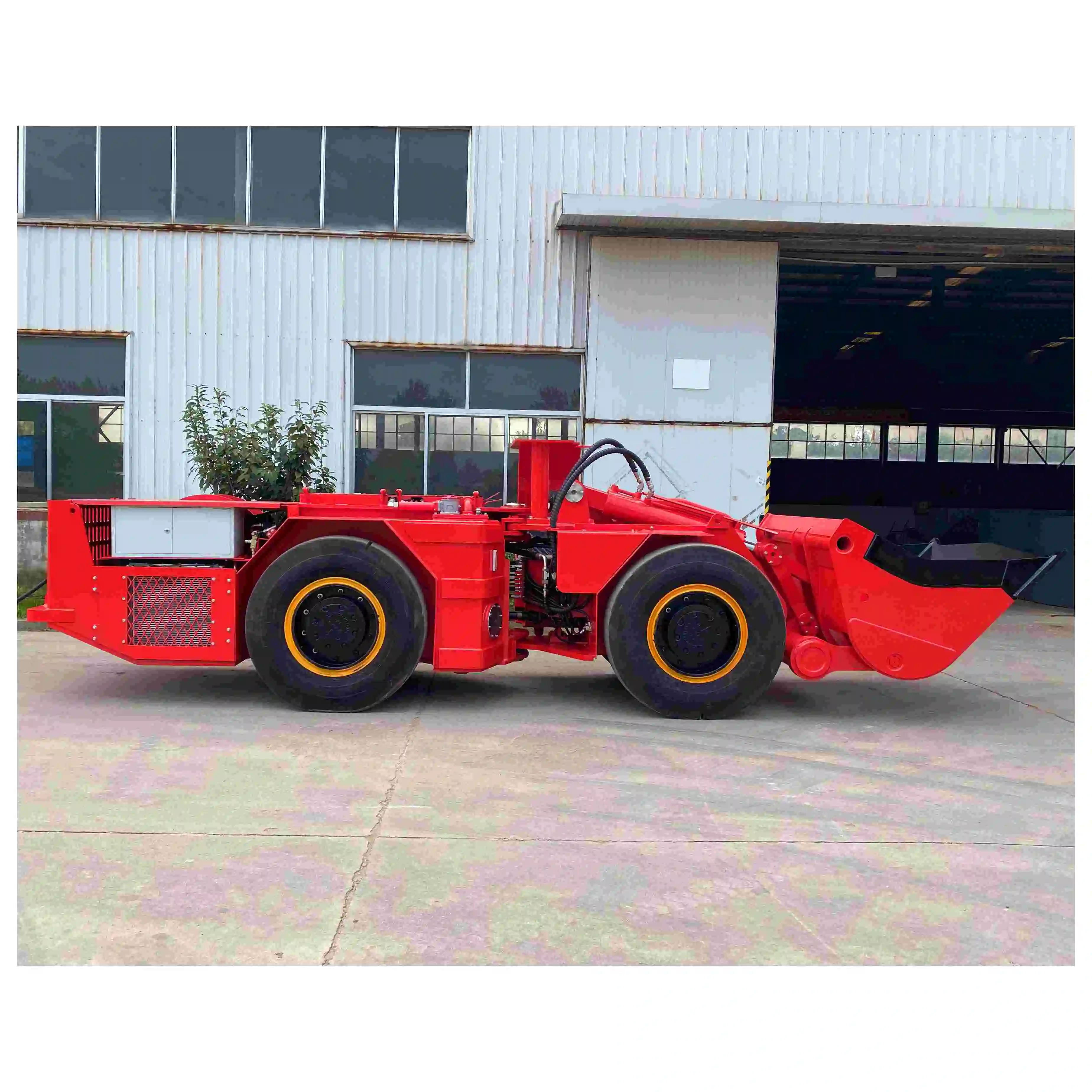

Колесный мини-погрузчик с шарнирным сочленением 4x4 3 тонны погрузчик полезной нагрузкой TC-150E для горных машин
10 645 118,96-11 154 184,16 ₽

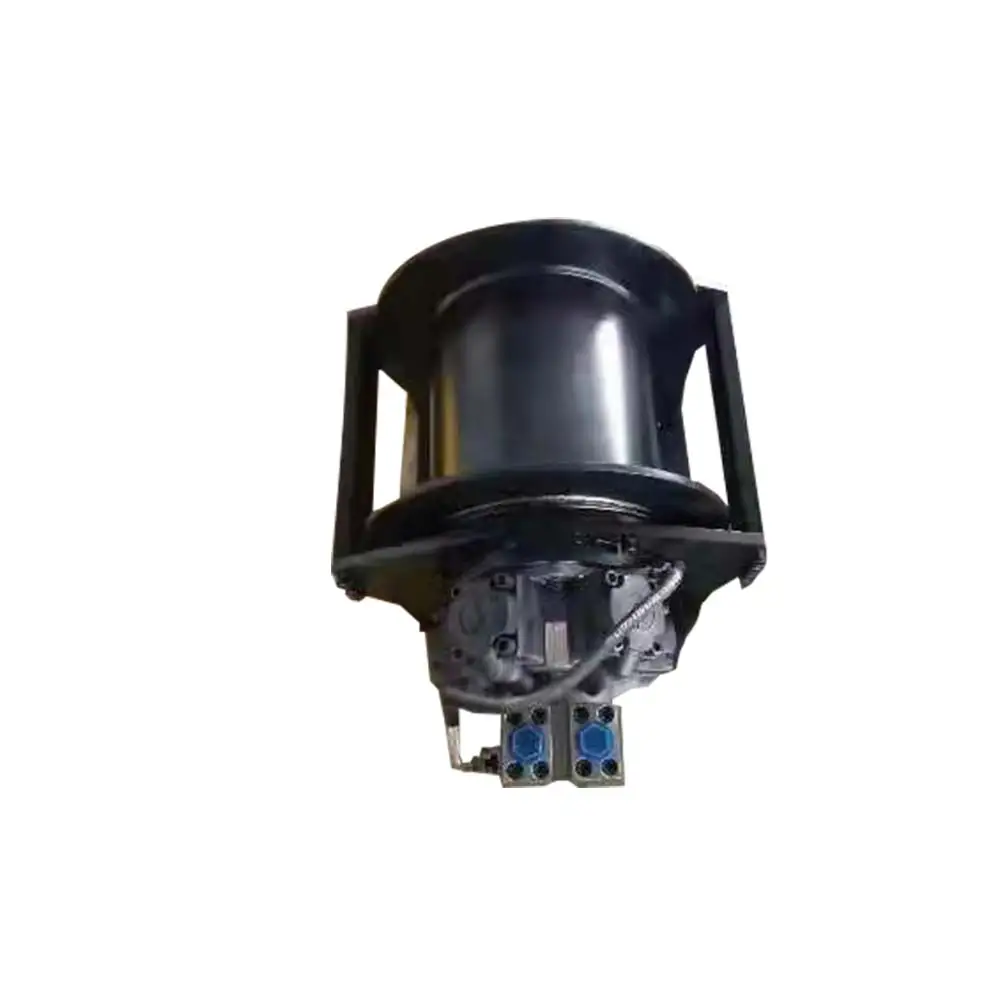

5-тонная гидравлическая лебедка с сверхбольшой тяговым усилием точное управление низкая цена
