Бесплатная доставка USD672 M4 4K 60fps 4 hd mi(in) 2 mi (out) 5 каналов большой экран дюймов видеовыход микшер Потоковое вещание

Product Introduction
Overview

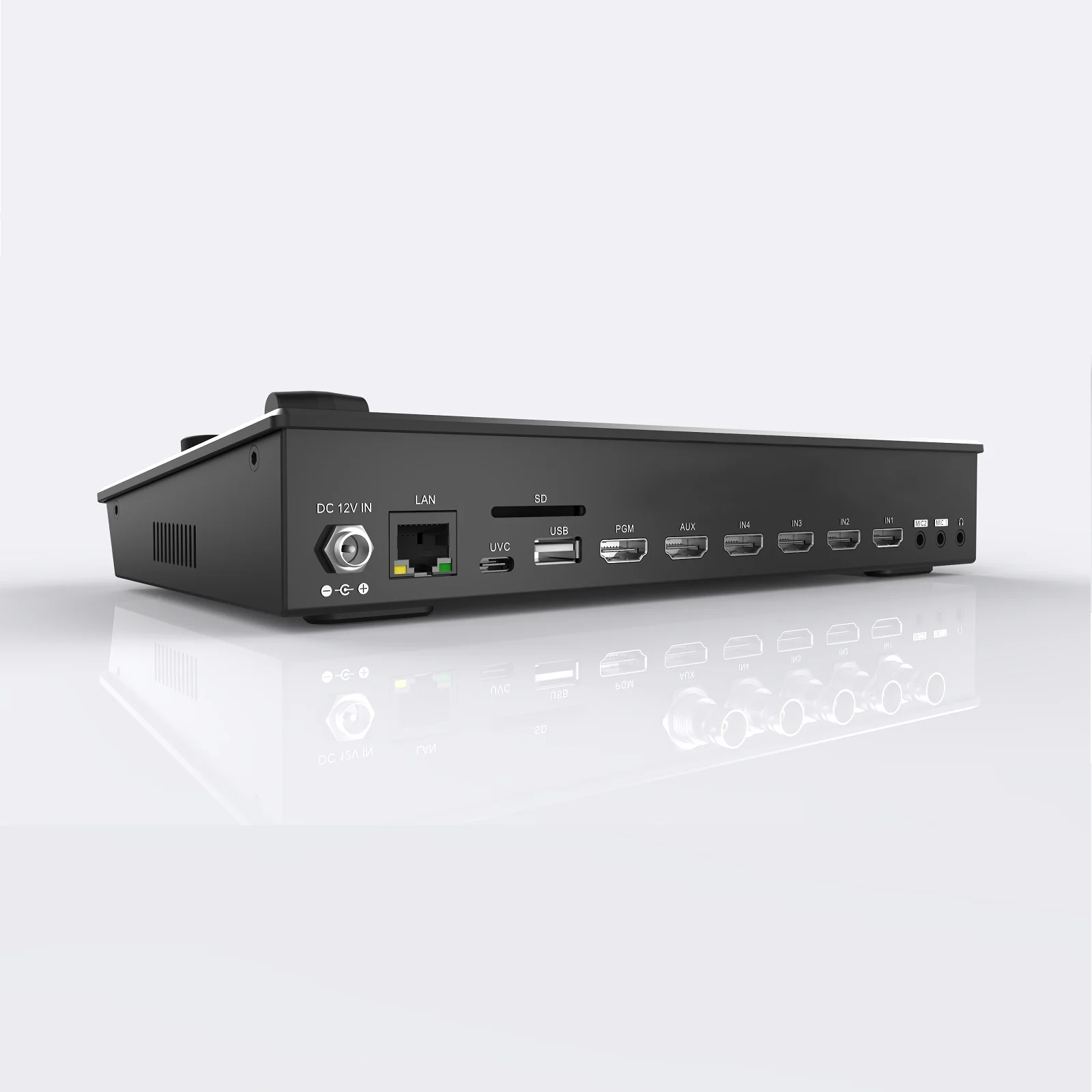

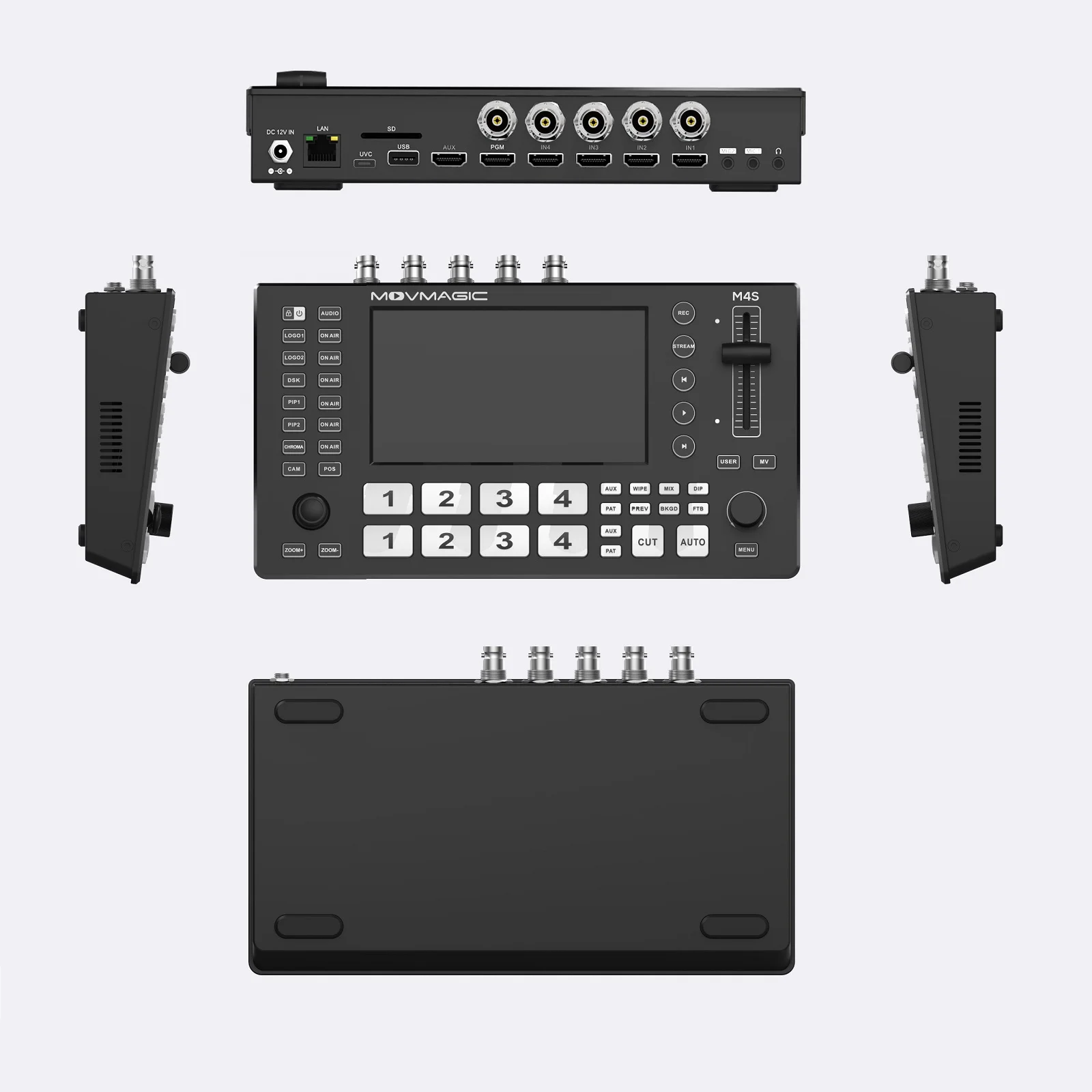

The switcher is a video switcher with four HDMI and four SDI (HDMI IN1 and 2 support 4K60P input, HDMI IN3 and 4 support 1920×1080p60 input; SDI IN 1, 2, 3, 4 support 3G Level A YCbCr422 10 bit input) and one USB 2.0 input, one SDI PGM + one HDMI PGM + one USB 3.1 (Type-C) and one RJ45 network streaming.

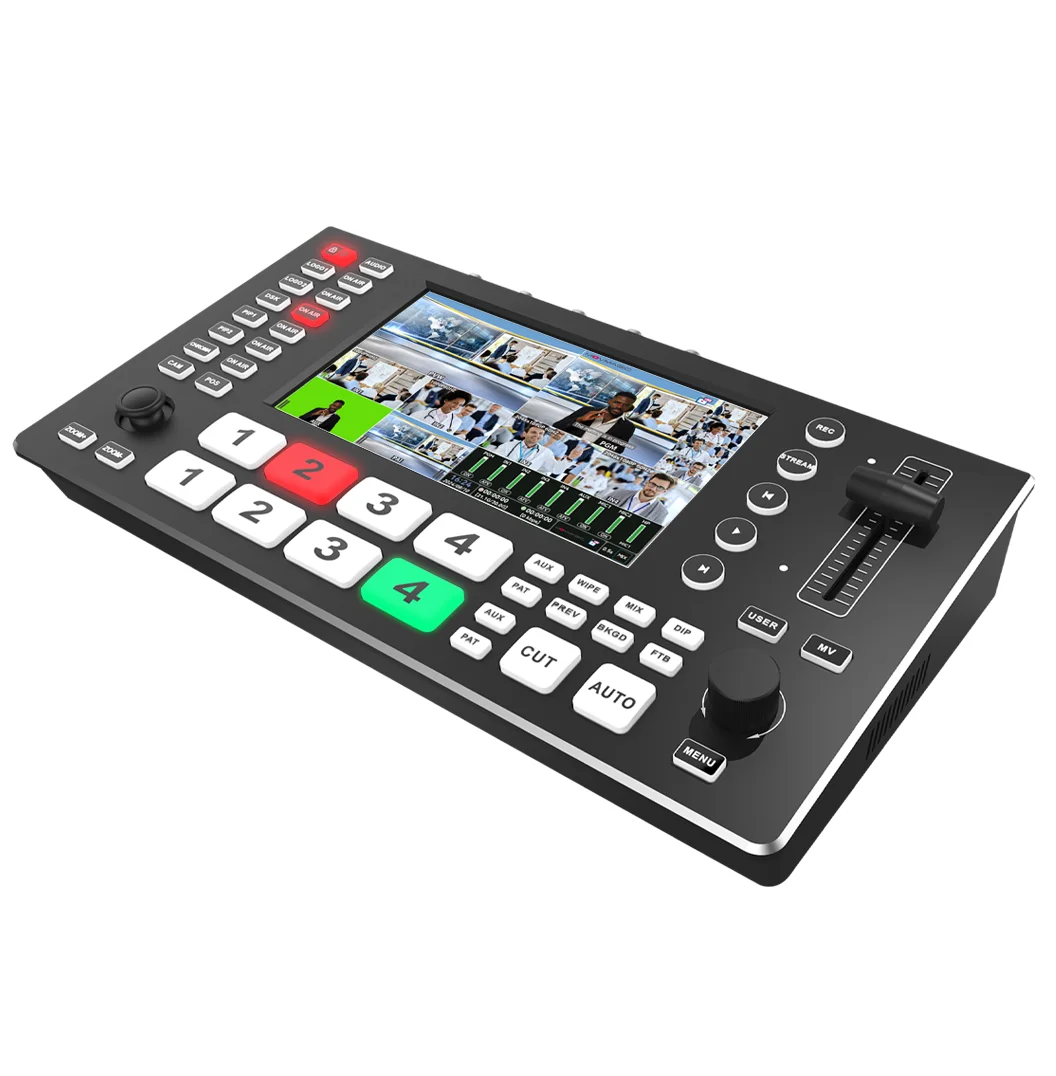

The switcher audio and video switcher is designed based on the FPGA hardware platform and supports broadcast-level functions such as video special effects switching, green screen keying, audio mixing and adjustment, built-in media library, horizontal and vertical screen, PIP at any position and size, LOGO, multi-layer overlay, etc. At the same time, the powerful multimedia function of the switcher can simultaneously support USB 3.1 streaming, live recording, direct multi-channel network streaming and one network pull streaming. The switcher is equipped with a 5.5-inch high-definition screen, which can directly view multi-screen signals and flexible menu operations, and can also operate the five-way joystick and knob to control multiple PTZ cameras.

Main Features
 ●4-channel HDMI input & 4-channel SDI and USB inputx1, SDI PGMx1, HDMI PGM and HDMI AUX output x1, USB 3.1 lossless output x1
 ●PGM can superimpose up to 8 layers, providing powerful directing capabilities
 ●2-channel picture-in-picture, can support arbitrary cropping and resizing to meet the application needs of various scenarios
 ●2-channel LOGO, support alpha channel, the effect is more realistic and natural
 ●Support T-Bar switching, support up to 30 switching effects
 ●2-channel network push, 1-channel network pull
 ●Built-in media library, picture generator, support user-defined preset patterns and external imported images
 ●Support DSK, can realize subtitles and other functions
 ●Flexible switching between horizontal and vertical screens, horizontal and vertical screen push
 ●Video recording and playback, the played video can be used as an auxiliary source to participate in program production

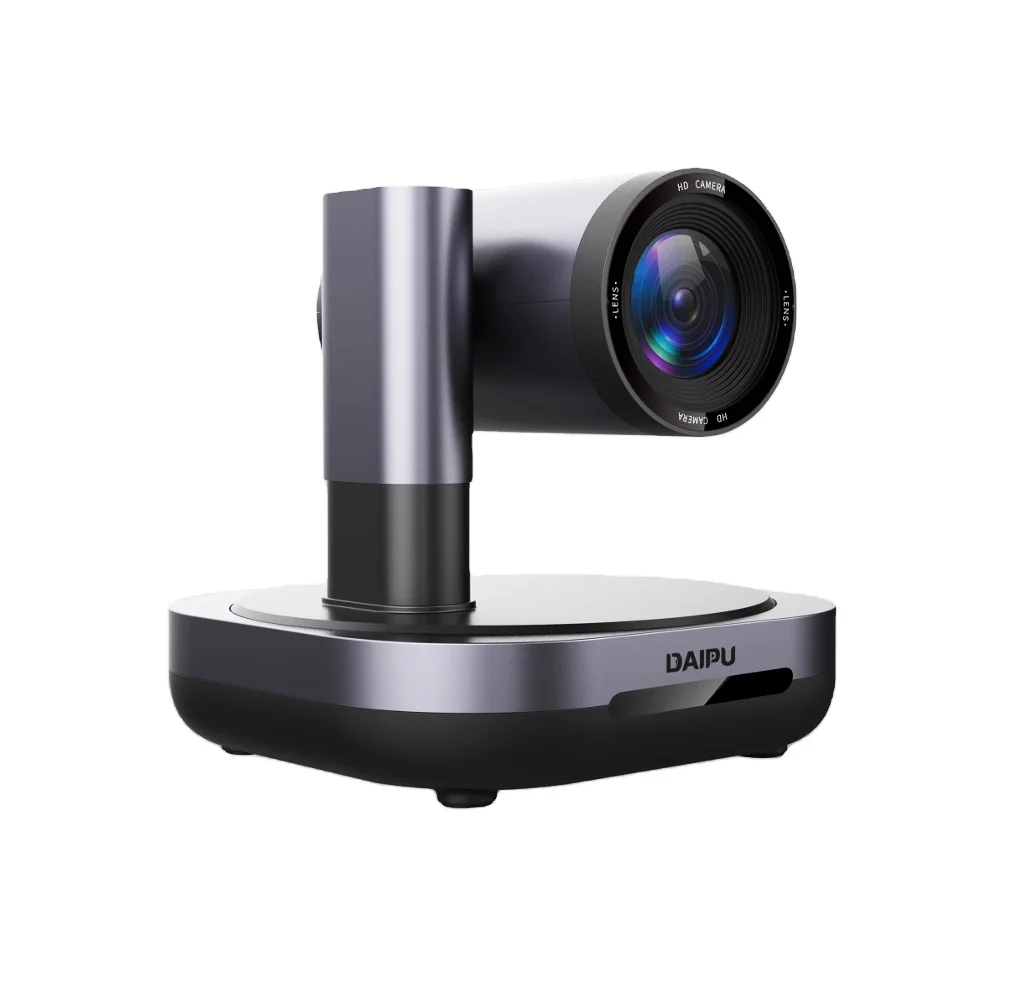

 ●Integrated PTZ camera control, one person and one machine are in control
 ●Professional-level chroma cutout to create a realistic virtual studio
 ●Brightness key to help users achieve video effects
 ●Built-in Web, supports flexible control of personal computers, mobile phones and smart devices
