Высокоточный волоконный лазерный гравер 20 Вт-100 Вт Raycus Max JPT для металла cheep цена два года гарантии лазерные маркировочные машины
127 014,76-152 570,28 ₽
Китайский производитель OEM лазерный гравер цена Raycus 3D резка волоконно лазерная маркировочная машина для металла лазерная гравировальная
- Категория: >>>
- Поставщик: Liaocheng Dongchangfu Ketai Laser Equipment Co. Ltd.Liaocheng Ltd.
Сохранить в закладки 1601290329295:
Описание и отзывы
Характеристики
RAYCUS JPT MAX IPG FIBER LASER MARKING MACHINE FOR METALS ENGRAVING CUTTING
20W 30W 50W 60W
70W 80W 100W 200W
20W 30W 50W 60W
70W 80W 100W 200W
FIBER LASER MARKING MACHINE

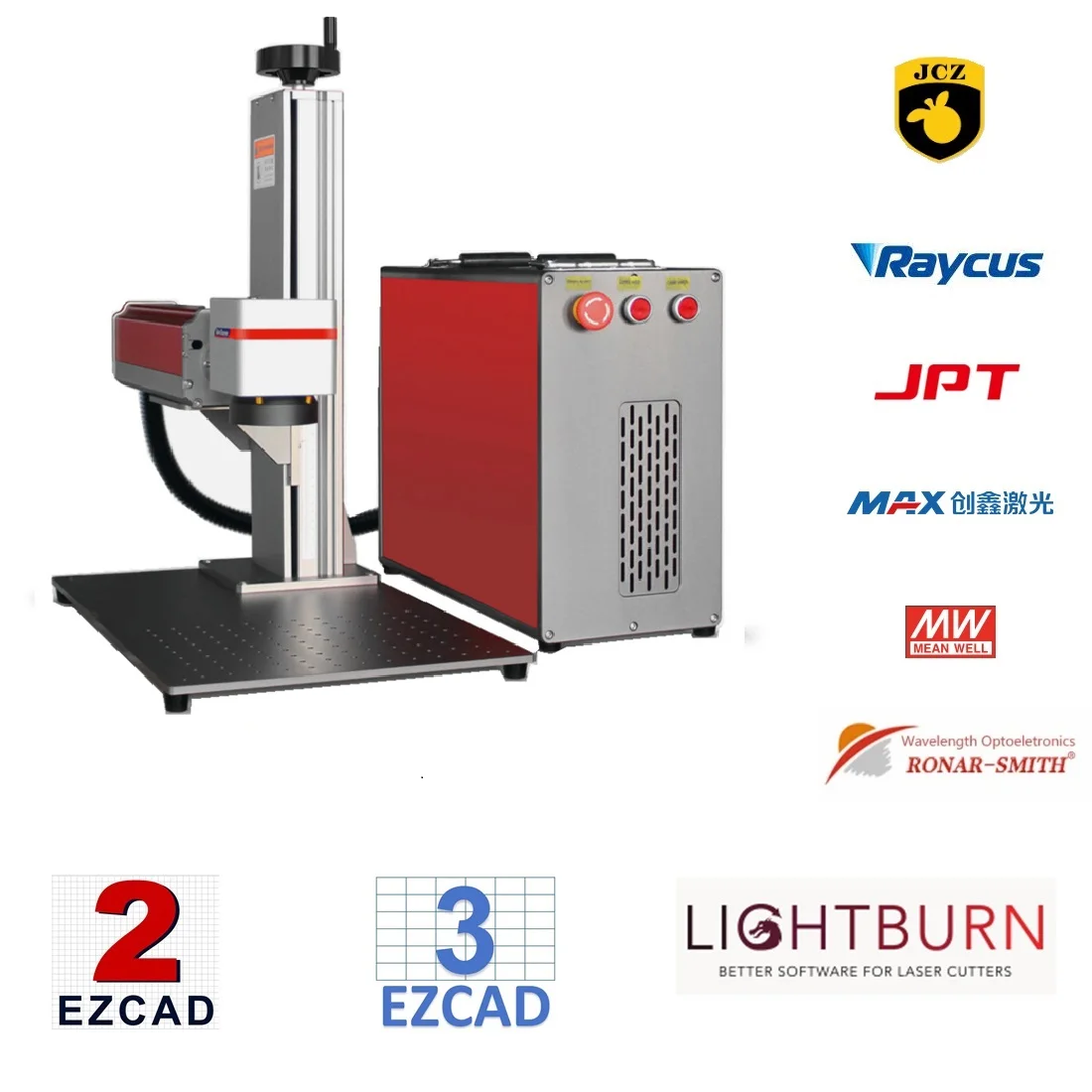

RAYCUS/MAX/JPT(MOPA) laser source
Sino-Galvo scanning system
BJJCZ mother board
EZCAD controller
MEANWELL power supply
You can Engrave or Cut metal sheets, engineering plastics, knives, watches, jewelries, auto parts, cooking utensils, stainless steel products.
Sino-Galvo scanning system
BJJCZ mother board
EZCAD controller
MEANWELL power supply
You can Engrave or Cut metal sheets, engineering plastics, knives, watches, jewelries, auto parts, cooking utensils, stainless steel products.
Samples
Mopa Laser Application
1. Aluminum sheet stripped surface: No deformation, fine marking.
2. Aluminum sheet black color marking.
3. Metal depth marking.
4. Stainless steel color marking: marking different colors by setting the parameters.
5. PCB, ABS, plastic without yellow color.
3. Metal depth marking.
4. Stainless steel color marking: marking different colors by setting the parameters.
5. PCB, ABS, plastic without yellow color.
Details Info

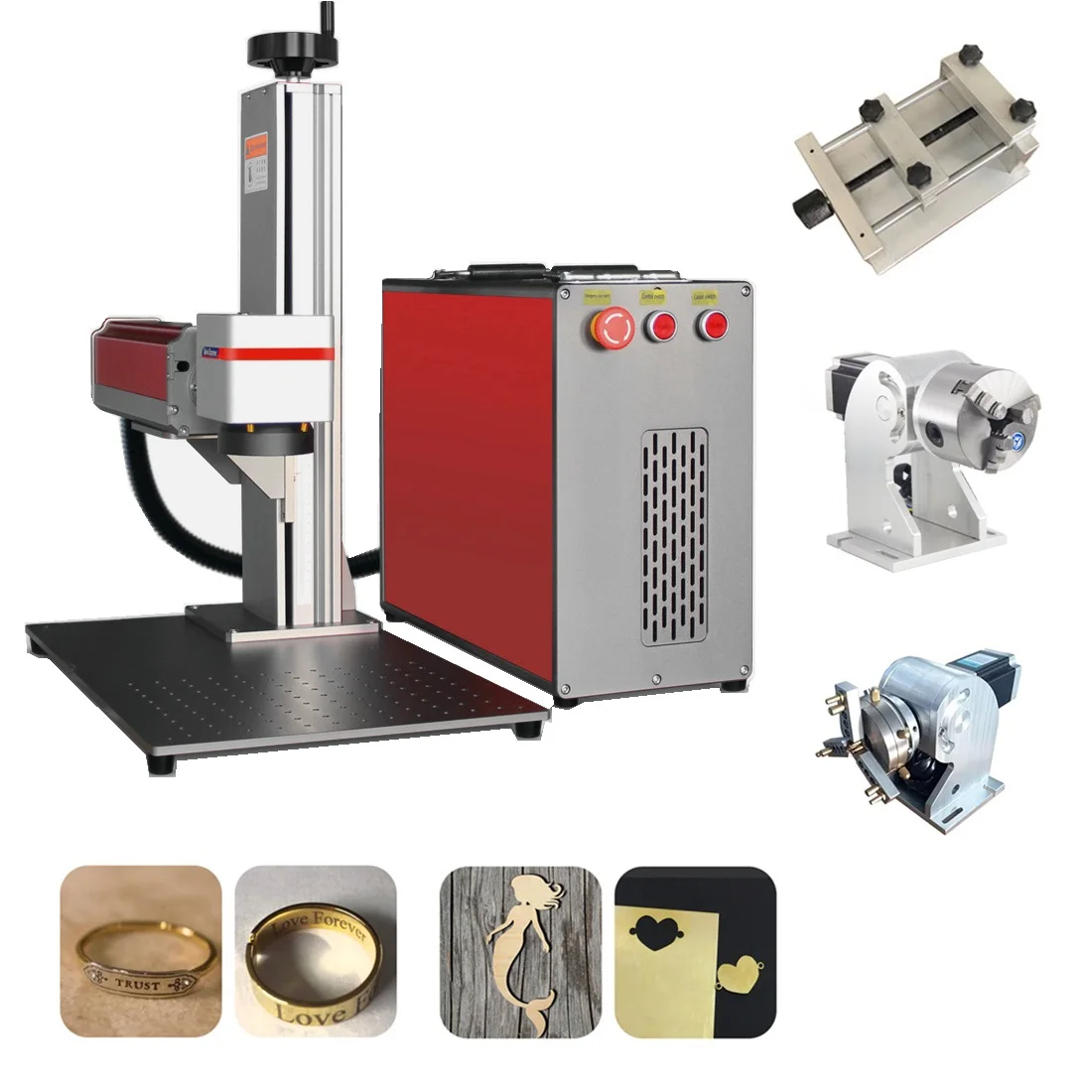

STANDARD CONFIGURATION OF THE MACHINE
A. Fiber Laser Source (RAYCUS MAX JPT IPG Or More)
B. Galvo Head (SINO GALVO 1001/ 7110/ 7210/ 7310 )
C. Double Red Light Pointer
D. Focus Lens (Opex 'Quartz')(110/150/200/300mm Or More)
E. Column (500mm Or 800mm)
F. Lift Wheel (Manual Or Electrical Lift)
G. Work Table (Aluminium 35*55cm)
B. Galvo Head (SINO GALVO 1001/ 7110/ 7210/ 7310 )
C. Double Red Light Pointer
D. Focus Lens (Opex 'Quartz')(110/150/200/300mm Or More)
E. Column (500mm Or 800mm)
F. Lift Wheel (Manual Or Electrical Lift)
G. Work Table (Aluminium 35*55cm)
Type specification | KT-20 | KT-30 | KT-50 | KT-100 | |||
Wave length of laser | 1064nm | ||||||
Laser repetition frequency | 20kHz~100kHz | ||||||
Laser power | 20W | 30W | 50W | 100W | |||
Marking scope | 110*110 /150*150 /200*200/300*300mm | ||||||
Laser sources | Fiber module | ||||||
Laser Head | Scanning head | ||||||
Minimal character | 0.01*0.01mm | ||||||
Marking speed | ≤8000mm/s | ||||||
Repeated accuracy | 0.01mm | ||||||
Cooling ways | air Cooling | ||||||
Power supply | 220V/ 50Hz/2kVA | ||||||
Process Material | All kinds of metal and part of Non-metal Materials | ||||||
Support format | PLT, BMP, DXF, JPG, TIF, AI etc | ||||||
Package | Standard Crate for export | ||||||

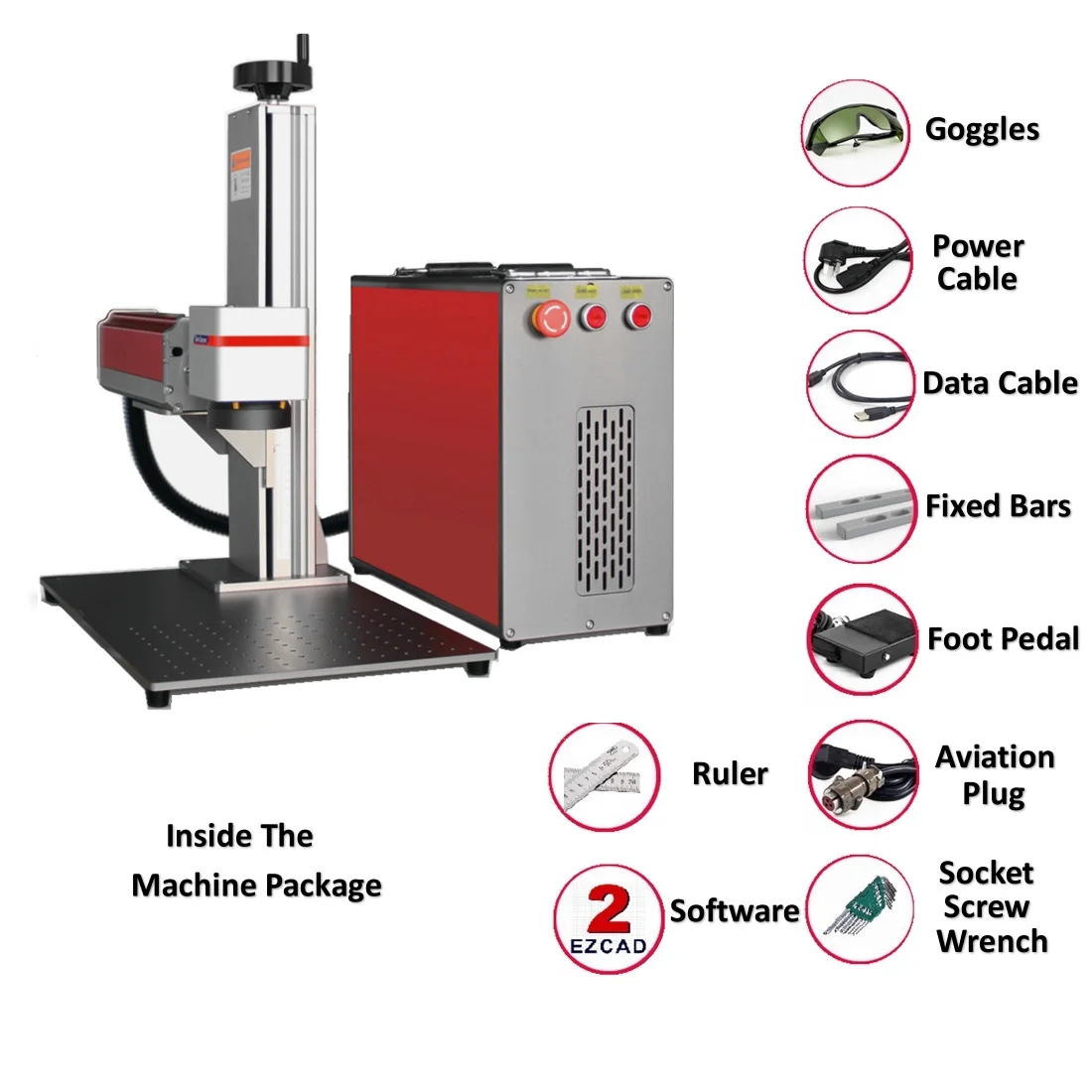

Accessories
Package and shipping
1.We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam,to protect the machine from shaking.For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Air-WorthyPacking or Sea Packing which comply with international standard.
Products Description
Company Profile
Liaocheng Ketai Laser Equipment Co.,Ltd
Liaocheng Ketai Laser Equipment Co., Ltd. which located in Liaocheng City, Shandong Province, China .It was established in 2007, a professional factory which owns the complete system of R&D, Manufacturing, sales and service integration. We are now specializing in manufacturing laser engraving & cutting machine, desktop laser stamp engraving machine, fiber marking machine, laser tube, liner guide seat, laser heads, working platform for laser machine, and engraving and cutting machines under outstanding quality.
Liaocheng Ketai Laser Equipment Co., Ltd. which located in Liaocheng City, Shandong Province, China .It was established in 2007, a professional factory which owns the complete system of R&D, Manufacturing, sales and service integration. We are now specializing in manufacturing laser engraving & cutting machine, desktop laser stamp engraving machine, fiber marking machine, laser tube, liner guide seat, laser heads, working platform for laser machine, and engraving and cutting machines under outstanding quality.
Survice
1.Two year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
6.For free sample testing, please send us your file, we will do marking here and make video to show you the effect,or send sample to you for checking quality.
FAQ
Q: Can I do the installation all by myself?
A: Sure you can. All you need to do is to connect the power cord. Engineers have set the parameters before delivery. Meanwhile, we
will send you a user manual and operation video to help you use the machine easily.
Q: Warranty?
A: 2 years warranty for core components.
Q: How can I get technical support after deal?
A: You can contact us on skype, Whatsapp and email at anytime. Our professional engineer will solve your problem perfectly. If any
remote assistant support is needed, we will provide with Teamviewer software.
Q：How can I get the best machine for me?
A: You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your
need or not. Then we can give you the best model depends on our experiences.
A: Sure you can. All you need to do is to connect the power cord. Engineers have set the parameters before delivery. Meanwhile, we
will send you a user manual and operation video to help you use the machine easily.
Q: Warranty?
A: 2 years warranty for core components.
Q: How can I get technical support after deal?
A: You can contact us on skype, Whatsapp and email at anytime. Our professional engineer will solve your problem perfectly. If any
remote assistant support is needed, we will provide with Teamviewer software.
Q：How can I get the best machine for me?
A: You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your
need or not. Then we can give you the best model depends on our experiences.
