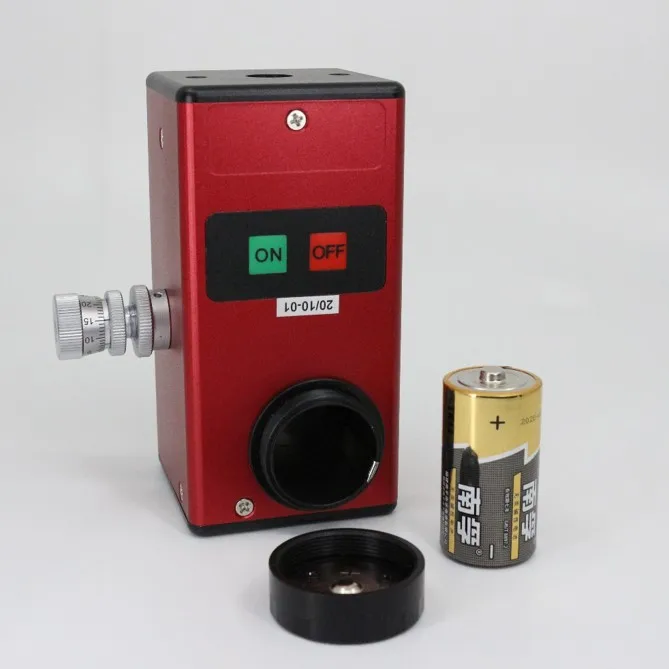

Геометрический измерительный лазер 645 нм с высокой точностью и направленностью для измерения параллелизма
722 971,20-1 024 209,20 ₽
Лазерный диодный модуль CS 638 нм для волоконно лазерной накачки используемой освещения и медицинского оборудования
- Категория: >>>
- Поставщик: Wuhan CS Tec Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1601290366828:
Описание и отзывы
Характеристики
Product Details
Products Description
808nm 15W Uncooled Multimode Laser Diode Module
diode lasers employing
professional coupling technology, that enjoy multiple advantages, e.g.,
compact design, stable output power, high power, high efficiency and
convenient packaging. These laser diode modules can provide
solutions for fiber laser applications and direct suppliers.
The performance and aging tests have been performed upon the
production line to guarantee reliable, stable and long lifetime of products.
To provide customers with high-quality, high cost performance products is
the company’s goal.
professional coupling technology, that enjoy multiple advantages, e.g.,
compact design, stable output power, high power, high efficiency and
convenient packaging. These laser diode modules can provide
solutions for fiber laser applications and direct suppliers.
The performance and aging tests have been performed upon the
production line to guarantee reliable, stable and long lifetime of products.
To provide customers with high-quality, high cost performance products is
the company’s goal.
Product Features
Key Parameters:
Based on single fire spot laser module
High output power 15W
High stability
0.22NA 400μm core multimode fiber
Parallel weld 2-Pin sealed package
Standard central wavelength 808nm
RoHS compliance
Application:
Medical
Lighting
pump source
Material processing
Based on single fire spot laser module
High output power 15W
High stability
0.22NA 400μm core multimode fiber
Parallel weld 2-Pin sealed package
Standard central wavelength 808nm
RoHS compliance
Application:
Medical
Lighting
pump source
Material processing
Product Paramenters
Specification：
Functional parameters are tested on condition that the heat sink temperature is 25 degree, contact resistance of the
component and the heat sink is smaller than 1CM2 K/W.
component and the heat sink is smaller than 1CM2 K/W.
Parameter | Min | Typ | Max | Unit | Conditions |
Output Power | 15 | 16 | |||
Centre Wavelength | -3 | 808 | +3 | nm | |
Spectral Width (FWHM) | . | 4 | 6 | nm | |
Threshold Current | 1.5 | 2. | A | ||
Operating Current | - | - | 10 | A | |
Operating Voltage | . | 3.6 | 4 | ||
Convention Efficiency | . | 45 | . | % | |
90% Power | 0.18 | NA | |||
Wavelength shift vs.Temperature | 0.3 | . | nm/℃ | ||
Slop Efficiency | - | 1.8 | W/A | ||
Storage Temperature | -30 | 25 | 70 | ℃ | Non-Condensing |
Operating Temperature | 15 | 25 | 55 | ℃ | |
Fiber Bend Radius | 75 | . | mm | ||
Buffer Diameter | 760 | μm | |||
Cladding Diameter | - | 440 | μm | ||
Core Diameter | 400 | . | μm | ||
Numeric Aperture | 0.2 | 0.22 | 0.24 | ||
Fiber length | 0.9 | . | M | ||
Protection Tube | 1.5 | . | mm | ||
Fiber Connector | - | . |
Product Advantages
Company Profile
Wuhan CS Tec Co., Ltd
Wuhan CS Tec Co., Ltd.,(also known as "CS"), is a high-tech company located in the heart of Wuhan's Optical Valley. We are a dedicated enterprise specializing in laser-related equipment and customized products, offering an expansive portfolio of services that cater to the diverse needs of our clients.
With over a decade of international experience in the laser industry, CS Tec is an established industry leader. Our expertise is deeply rooted in providing a wide array of cost-effective laser products, ranging from fiber laser core devices to comprehensive solutions tailored to our customers' unique needs.
At CS Tec, we pride ourselves on our access to global resources of high-quality, high-power fiber laser products suitable for all types of industrial processing. Our understanding of the market is global in scope. We continuously gather market information from all corners of the world to understand the unique needs of each region, equipping us to serve a wide variety of customers with precision and excellence.
At CS Tec, we are more than a supplier; we are a partner in innovation. We strive to stay at the forefront of laser technology, constantly innovating and refining our offerings to ensure our customers have the cutting-edge solutions they need. Trust in CS Tec to provide the laser technology that helps shape your future. "Capture the laser, shape the future" - with CS Tec, you're in capable hands.
Wuhan CS Tec Co., Ltd.,(also known as "CS"), is a high-tech company located in the heart of Wuhan's Optical Valley. We are a dedicated enterprise specializing in laser-related equipment and customized products, offering an expansive portfolio of services that cater to the diverse needs of our clients.
With over a decade of international experience in the laser industry, CS Tec is an established industry leader. Our expertise is deeply rooted in providing a wide array of cost-effective laser products, ranging from fiber laser core devices to comprehensive solutions tailored to our customers' unique needs.
At CS Tec, we pride ourselves on our access to global resources of high-quality, high-power fiber laser products suitable for all types of industrial processing. Our understanding of the market is global in scope. We continuously gather market information from all corners of the world to understand the unique needs of each region, equipping us to serve a wide variety of customers with precision and excellence.
At CS Tec, we are more than a supplier; we are a partner in innovation. We strive to stay at the forefront of laser technology, constantly innovating and refining our offerings to ensure our customers have the cutting-edge solutions they need. Trust in CS Tec to provide the laser technology that helps shape your future. "Capture the laser, shape the future" - with CS Tec, you're in capable hands.
Exhibition
FAQ
Q:What does Wuhan CS TEC Co do?
A: Wuhan CS TEC Co is a high-tech company located in the heart of Wuhan's Optical Valley, specializing in laser-related equipment
and customized products. They offer a wide range of services to meet the diverse needs of their clients.
Q: What products does Wuhan CS TEC Co offer?
A: The company's products include laser diodes, laser components and fiber processing equipment, single-mode continuous wave (CW)
fiber lasers, special wavelength fiber lasers, direct diode lasers, and more.
Q: What are the features of Wuhan CS TEC Co's laser diodes?
A: The laser diodes offered by the company have multiple advantages such as high reliability, stable output power, high power,high
efficiency, long lifespan, and high compatibility. They are wavelength-selectable, covering a wide spectral range from 405 to
1550nm, and are available in different power levels to suit various application needs.
Q: What are the advantages of Wuhan CS TEC Co's fiber lasers?
A: The company's fiber lasers boast high beam quality, high energy density, and high electro-optical efficiency, making them
suitable for various fields such as precision machining, deep penetration welding, and scientific research.
Q: What are the characteristics of Wuhan CS TEC Co's special wavelength fiber lasers?
A: The company's special wavelength fiber lasers feature a complete fiber design, a wide selection of wavelengths, and an
optimized OEM solution, catering to the needs of the industrial, medical, and R&D markets.
Q: What are the benefits of Wuhan CS TEC Co's direct diode lasers?
A: The company's direct diode lasers have a wall-plug efficiency approaching 35% and are used across a variety of applications
such as soft soldering, metal hardening, plastics welding, silicon surface modification, and Flat Panel Display (FPD) bonding.
They also serve as an excellent source for optical laser pumping.
Q: What system solutions does Wuhan CS TEC Co provide?
A: The company provides comprehensive solutions for all laser systems, with a particular emphasis on traditional laser
applications for marking and cutting.
Q: What are the features of Wuhan CS TEC Co's marking machines?
A: The company's marking machines include both table and portable types, equipped with either fiber laser or UV laser technology.
These marking machines cover the full range of power, making them suitable for a wide array of applications, from small-scale
marking tasks to high-volume industrial projects.
Q: What are the advantages of Wuhan CS TEC Co's cutting machines?
A: The company's cutting machines offer several standard types, each tailored for specific applications. Their precision cutting
machines are designed for tasks requiring high levels of accuracy. The single table and double table models cater to different
work volume requirements, while their full enclosure machines provide an extra level of safety for operators.
Q: What are the characteristics of Wuhan CS TEC Co's welding machines and cleaning machines?
A: The company's welding machines come in two standard types: handheld and platform models. They are equipped with Continuous Wave
(CW), Quasi Continuous Wave (QCW), or Yttrium-Aluminum-Garnet (YAG) lasers, covering the full range of power to suit different
welding tasks. Their cleaning machines offer two types based on their source of power. The first type is equipped with a
Continuous Wave (CW) fiber laser with power up to 3000W, ideal for intense cleaning operations. The second type employs a pulsed
fiber laser with power up to 500W, which is perfect for tasks requiring controlled and precise cleaning.
A: Wuhan CS TEC Co is a high-tech company located in the heart of Wuhan's Optical Valley, specializing in laser-related equipment
and customized products. They offer a wide range of services to meet the diverse needs of their clients.
Q: What products does Wuhan CS TEC Co offer?
A: The company's products include laser diodes, laser components and fiber processing equipment, single-mode continuous wave (CW)
fiber lasers, special wavelength fiber lasers, direct diode lasers, and more.
Q: What are the features of Wuhan CS TEC Co's laser diodes?
A: The laser diodes offered by the company have multiple advantages such as high reliability, stable output power, high power,high
efficiency, long lifespan, and high compatibility. They are wavelength-selectable, covering a wide spectral range from 405 to
1550nm, and are available in different power levels to suit various application needs.
Q: What are the advantages of Wuhan CS TEC Co's fiber lasers?
A: The company's fiber lasers boast high beam quality, high energy density, and high electro-optical efficiency, making them
suitable for various fields such as precision machining, deep penetration welding, and scientific research.
Q: What are the characteristics of Wuhan CS TEC Co's special wavelength fiber lasers?
A: The company's special wavelength fiber lasers feature a complete fiber design, a wide selection of wavelengths, and an
optimized OEM solution, catering to the needs of the industrial, medical, and R&D markets.
Q: What are the benefits of Wuhan CS TEC Co's direct diode lasers?
A: The company's direct diode lasers have a wall-plug efficiency approaching 35% and are used across a variety of applications
such as soft soldering, metal hardening, plastics welding, silicon surface modification, and Flat Panel Display (FPD) bonding.
They also serve as an excellent source for optical laser pumping.
Q: What system solutions does Wuhan CS TEC Co provide?
A: The company provides comprehensive solutions for all laser systems, with a particular emphasis on traditional laser
applications for marking and cutting.
Q: What are the features of Wuhan CS TEC Co's marking machines?
A: The company's marking machines include both table and portable types, equipped with either fiber laser or UV laser technology.
These marking machines cover the full range of power, making them suitable for a wide array of applications, from small-scale
marking tasks to high-volume industrial projects.
Q: What are the advantages of Wuhan CS TEC Co's cutting machines?
A: The company's cutting machines offer several standard types, each tailored for specific applications. Their precision cutting
machines are designed for tasks requiring high levels of accuracy. The single table and double table models cater to different
work volume requirements, while their full enclosure machines provide an extra level of safety for operators.
Q: What are the characteristics of Wuhan CS TEC Co's welding machines and cleaning machines?
A: The company's welding machines come in two standard types: handheld and platform models. They are equipped with Continuous Wave
(CW), Quasi Continuous Wave (QCW), or Yttrium-Aluminum-Garnet (YAG) lasers, covering the full range of power to suit different
welding tasks. Their cleaning machines offer two types based on their source of power. The first type is equipped with a
Continuous Wave (CW) fiber laser with power up to 3000W, ideal for intense cleaning operations. The second type employs a pulsed
fiber laser with power up to 500W, which is perfect for tasks requiring controlled and precise cleaning.
Похожие товары
UV 405nm волоконный лазер 300mW 105um диодный лазерный модуль для экспозиции PCB
8 603,36-12 019,40 ₽
Медицинские исследования УФ-волоконный лазер 375 нм 1 6 Вт высокомощный многорежимный космический соединенный волоконный лазерный модуль
361 485,60-373 535,12 ₽

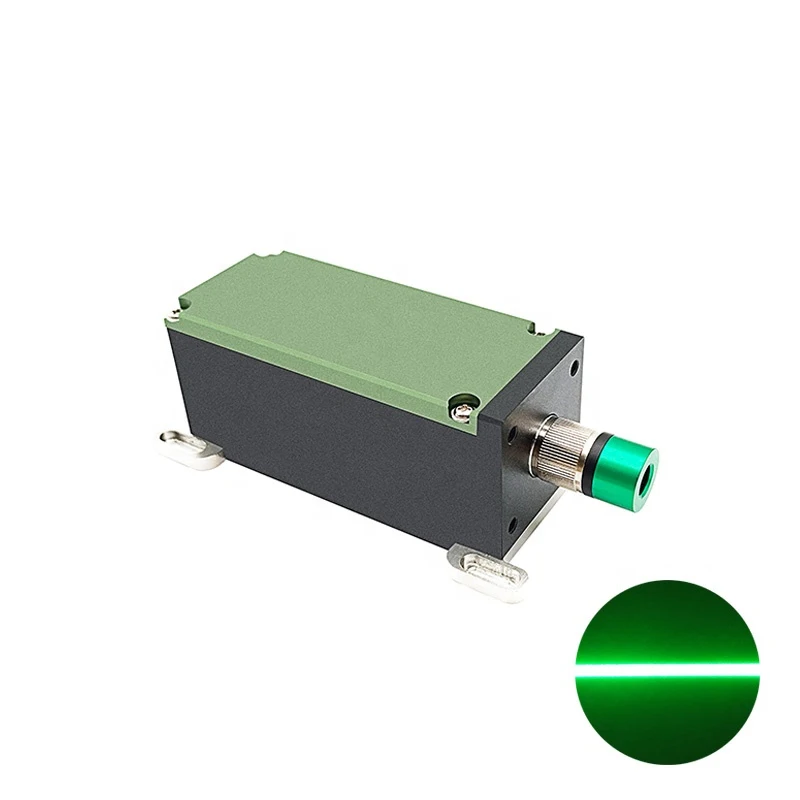

Высокомощный Компактный регулируемый Фокусировочный модуль 520 нм 1 Вт 1000 МВт 12 В 24 хорошее тепловыделение промышленного класса зеленая линия лазерный
577-нм одиночный Продольный желтый dpss лазерный коллимационный медицинский лечебный научный световой дисплей SLM модуль

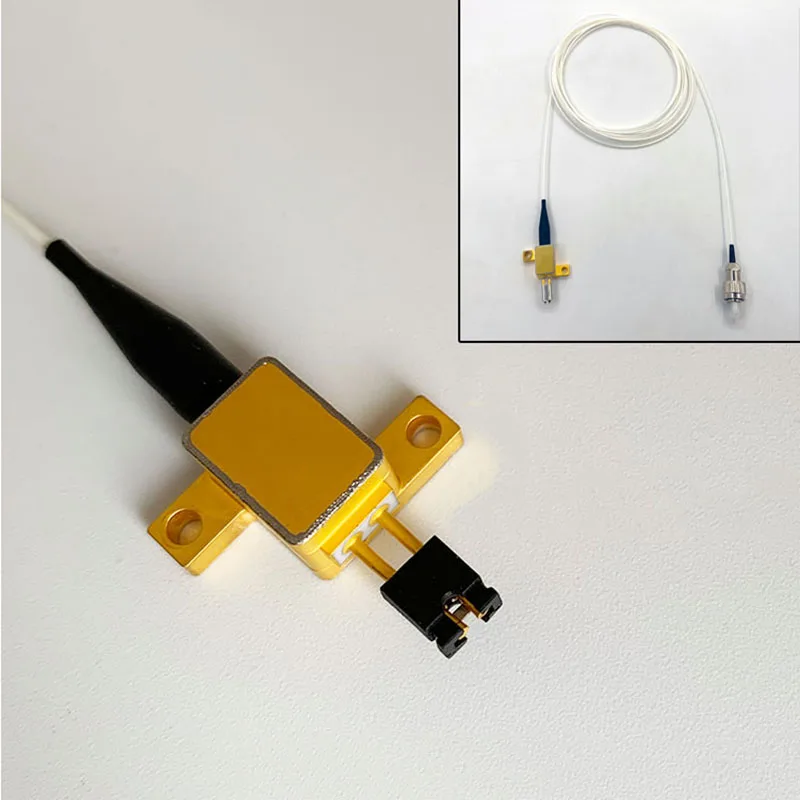

808 нм 810 5 Вт волоконно-оптический лазерный диод с 10 или 200 мкм Многомодовые волоконные лазеры 2-контактный пакет
31 756,51-32 262,59 ₽
850 нм 25 Вт импульсный VCSEL лазерный диод
843,47 ₽

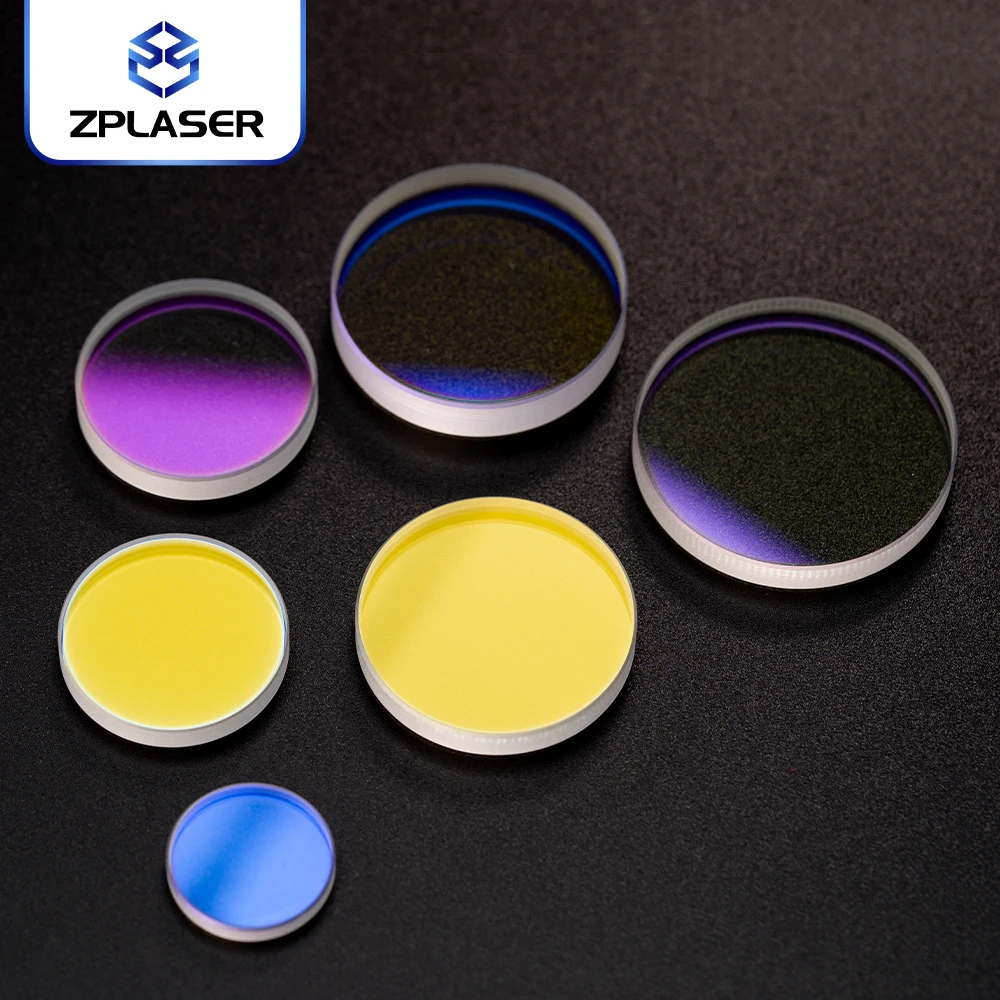

Лазерная Защитная линза ZPLASER 21 5*2 мм 22 35*4 24 4*2 30*5 37*7 для лазерной режущей головки
