Настенный светильник для офиса тонкая очистка 2 фута линейный светодиодный 4 Светодиодная трубка
1,29-2,59 $
Алюминиевые встроенные лампы для офиса
- Категория: >>>
- Поставщик: Anhui Lanrui Electronics Technology Co. Ltd.Anhui Ltd.
Сохранить в закладки 1601290435815:
Описание и отзывы
Характеристики
Model | Watt | Size | Base | Lumen | |||
LR600-T8-9W-A1 | 9W | 600*26mm | G13 | 100Lm/W | |||
LR900-T8-13W-A1 | 13W | 900*26mm | G13 | 100Lm/W | |||
LR1200-T8-18W-A1 | 18W | 1200*26mm | G13 | 100Lm/W | |||
LR1500-T8-24W-A1 | 22W | 1500*26mm | G13 | 100Lm/W | |||
LR2400-T8-40W-A1 | 36/40/45/56/60W | 2400*26mm | Fa8 | 100Lm/W | |||
Material: | Aluminum +PC | ||||||
Voltage: | AC85-265V/100-277V/175-265V | ||||||
Color temperature: | 3000-3500K/4000-4500K/6000-6500K | ||||||
Warranty: | 2 years/3 years /5 years | ||||||
Features
●110g high quality aluminum material, light and economical, excellent thermal conductivity
●High transmittance PC lampshade, brighter and more comfortable
● Strictly preferred power source and light source to ensure long life and excellent lumen maintenance
●High temperature flame retardant plastic box for full electrical isolation of power supply
●The same size design as the traditional T8 tube makes it easy to replace old and new
● Power input single-ended, double-ended mode optional, frosted lamp cover and transparent lamp cover optional
● 90-277Vac wide voltage design, globally applicable
● 160-180lm/W high lumen series design, energy saving 60% and 80% higher than traditional fluorescent lamps
●Can be customized for 0-10V dimming and Type A+B compatible features
Highlight 2835 lamp beads.
High brightness, low light decay.
Select high penetration PC cover.
Select high penetration PC cover.
Light uniform, bright and soft.
Strong and anti-oxidation
Good heat dissipation.
High quality drive, long life.
High quality drive, long life.
Integrated Tube lamp,
waterproof Tube lamp,
G13 Tube lamp,
Fa8 Tube lamp,
R17D Tube, etc

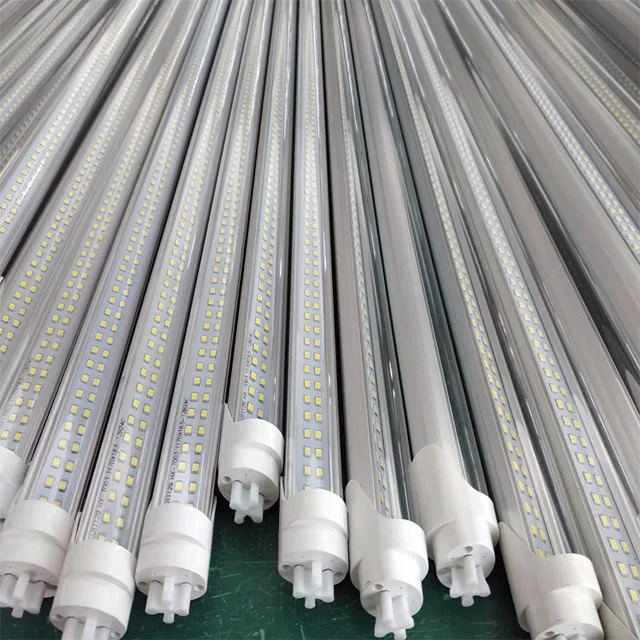

Real Picture
Installment types
Installation Steps:
Installation Steps:
1. Disconnect the power supply from the lamp holder before installation. It is strictly forbidden to operate under power supply during the installation process.
2. Check if the lamp holder line meets the drawings A2 and B2. If it is, directly install the LED fluorescent lamp on the G13 lamp holder.
3. For the traditional T8 fluorescent tube socket line, please follow the steps shown in the following illustration to adjust the line.
3. For the picture A1 line, install the LED fluorescent tube directly on the G13 lamp holder after removing the starter (as shown in picture A2).
4. For the picture B1 line, first remove the electronic ballast and connect L and N to the lamp connector of the lamp holder (as shown in picture B2).
5. After the line is adjusted, install the LED tube according to the installation method of the traditional fluorescent tube, turn on the power, and check whether the tube is working normally.
1. Disconnect the power supply from the lamp holder before installation. It is strictly forbidden to operate under power supply during the installation process.
2. Check if the lamp holder line meets the drawings A2 and B2. If it is, directly install the LED fluorescent lamp on the G13 lamp holder.
3. For the traditional T8 fluorescent tube socket line, please follow the steps shown in the following illustration to adjust the line.
3. For the picture A1 line, install the LED fluorescent tube directly on the G13 lamp holder after removing the starter (as shown in picture A2).
4. For the picture B1 line, first remove the electronic ballast and connect L and N to the lamp connector of the lamp holder (as shown in picture B2).
5. After the line is adjusted, install the LED tube according to the installation method of the traditional fluorescent tube, turn on the power, and check whether the tube is working normally.
Product packaging
Foam Packaging
Color Box Packing
Paper Roll Packing
Related Products
We have more than 18 years of experience in the production of LED tube lamps.
The highest light efficiency can reach 170-180lm/w.
In addition, we have LED T8/T5 integrated lamps; LED waterproof lamp; LED induction tube; LED plant lamp; LED emergency lamp; LED purification tube and so on.
The highest light efficiency can reach 170-180lm/w.
In addition, we have LED T8/T5 integrated lamps; LED waterproof lamp; LED induction tube; LED plant lamp; LED emergency lamp; LED purification tube and so on.
Company Profile
Exhibition
FAQ
Q1.You are a factory or trading company?
We are a professional direct led manufacture and have more than 15,000 square meters factory.
Q2. Do you have the ability to do independent research and development?
Yes, we have a R&D center in Shenzhen for more than 8 years and have our own research patents.
Q3.Do you provide free samples ?
We can provide one pc free sample for our led lights and the buyer need to pay the freight.
Q4.How about the delivery time?
Samples need 1-2 days and batch order need 5-10 days. Depend on the order quantity.
Q5.How many years of the led light warranty?
We provide 2-3 years for our led lights
Q6. What’s the MOQ ?
The MOQ is one piece for each model.
Q7. What’s the payment options?
Small order can be paid by Paypal or Western Union and batch order can be paid by Bank
Q8. Can you provide OEM/ODM?
Yes, we can provide OEM/ODM for oversea customers.
We are a professional direct led manufacture and have more than 15,000 square meters factory.
Q2. Do you have the ability to do independent research and development?
Yes, we have a R&D center in Shenzhen for more than 8 years and have our own research patents.
Q3.Do you provide free samples ?
We can provide one pc free sample for our led lights and the buyer need to pay the freight.
Q4.How about the delivery time?
Samples need 1-2 days and batch order need 5-10 days. Depend on the order quantity.
Q5.How many years of the led light warranty?
We provide 2-3 years for our led lights
Q6. What’s the MOQ ?
The MOQ is one piece for each model.
Q7. What’s the payment options?
Small order can be paid by Paypal or Western Union and batch order can be paid by Bank
Q8. Can you provide OEM/ODM?
Yes, we can provide OEM/ODM for oversea customers.
Похожие товары

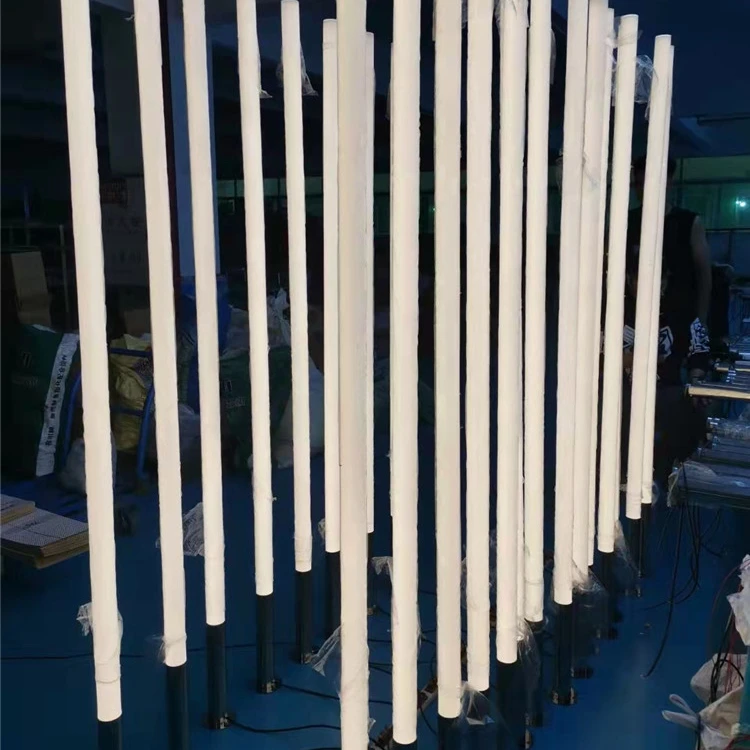

Индивидуальный Светодиодный светильник T10 T12 1 5 м 360 градусов стойка RGB наружная цветная Ландшафтная лампа для двора

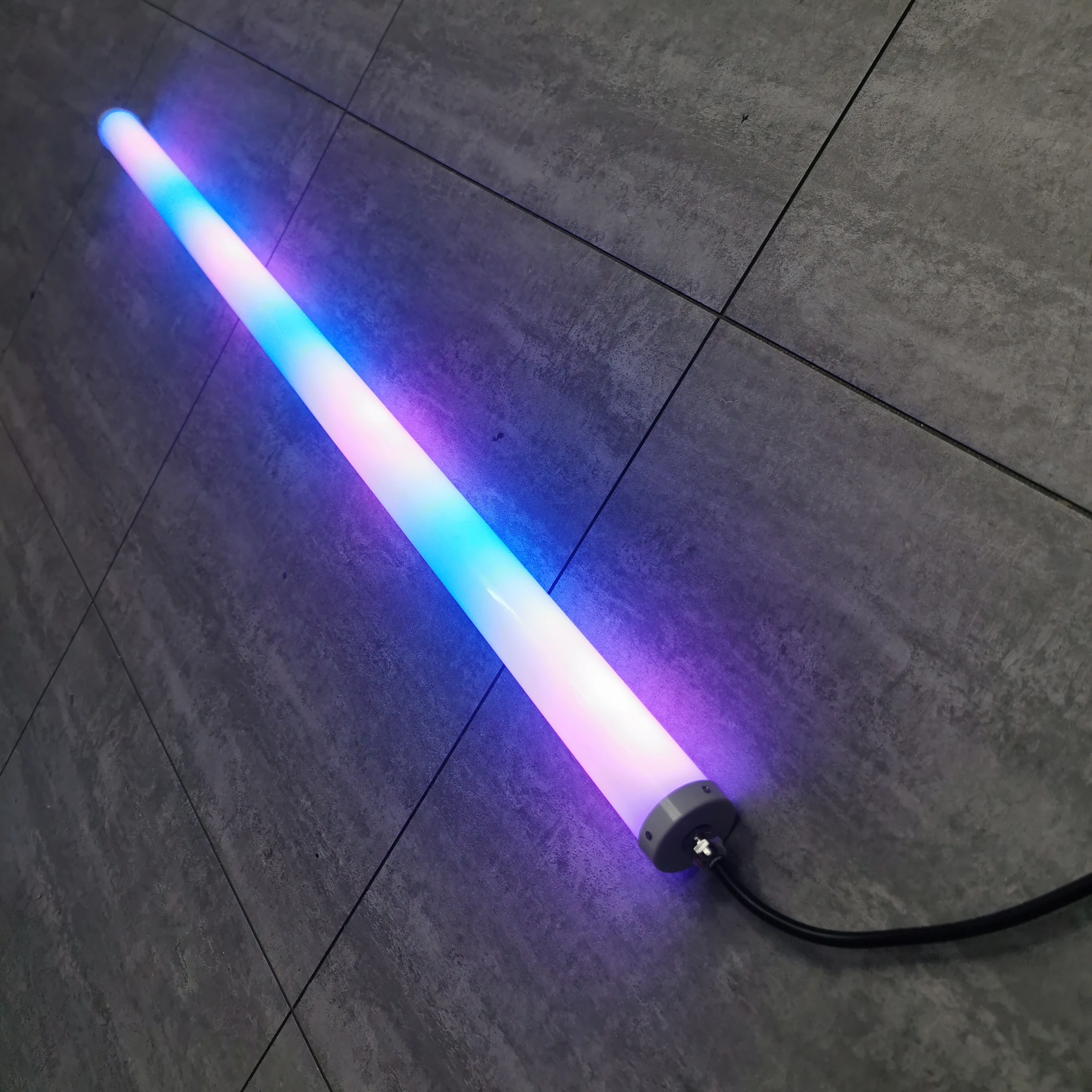

Наружная 360 круглая Rgb светодиодная неоновая трубка наружный оптовый продавец
21,60-31,50 $

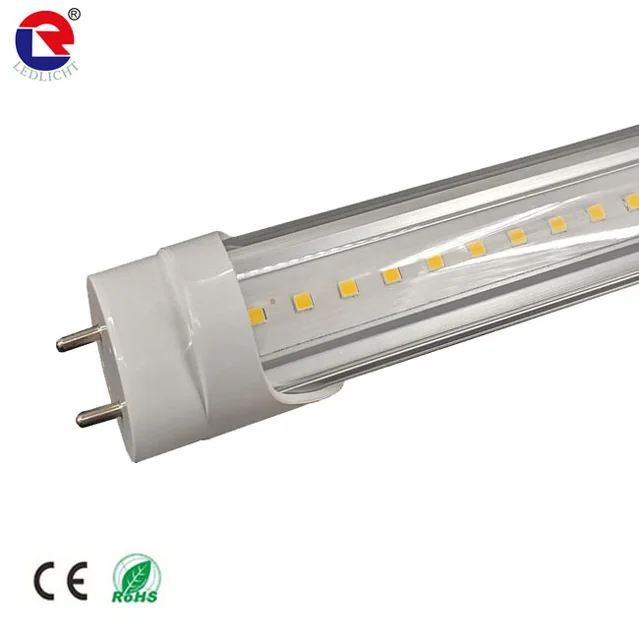

2700 - 6500 К CE ROHS 50 000 ч. 18 Вт 1200 мм t8 из светодиодов трубы двойного питания
Светодиодные Трубки Прайс-лист; T8 120 см 18 Цвет Белый

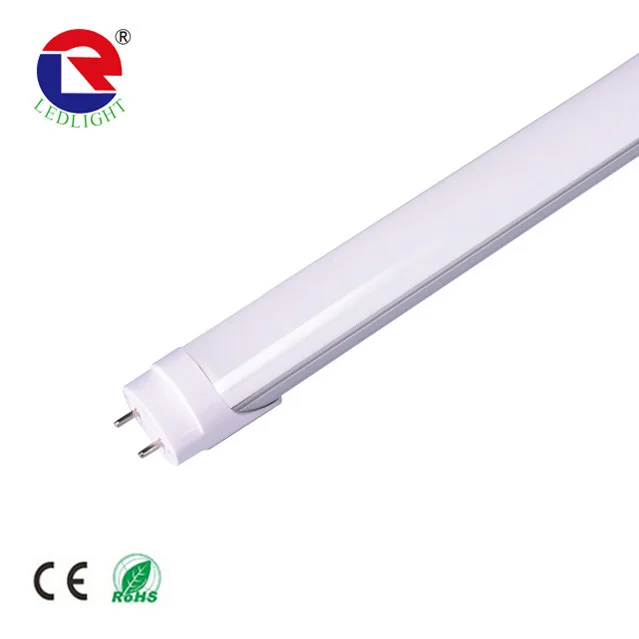

Вращающаяся Светодиодная трубка G13 T8 CRI 95 2 фута 3 4 длительный срок службы 50000 часов Plug & Play для дома фабрики магазина настенная лампа
