100 кВт чистый синусоидальный солнечный инвертор постоянного тока в переменный 220/230 В вне сети для RV домашней солнечной системы
33 937,68-79 187,92 ₽
4 2 кВт 24 В двойной выход 50/60 Гц MPPT чистый синусоидальный однострунный инвертор 120A 60 500VDC WIFI Коммуникационный светодиод переменного тока
- Категория: >>>
- Поставщик: Shenzhen Youwanjia New Energy Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601290537802:
Описание и отзывы
Характеристики

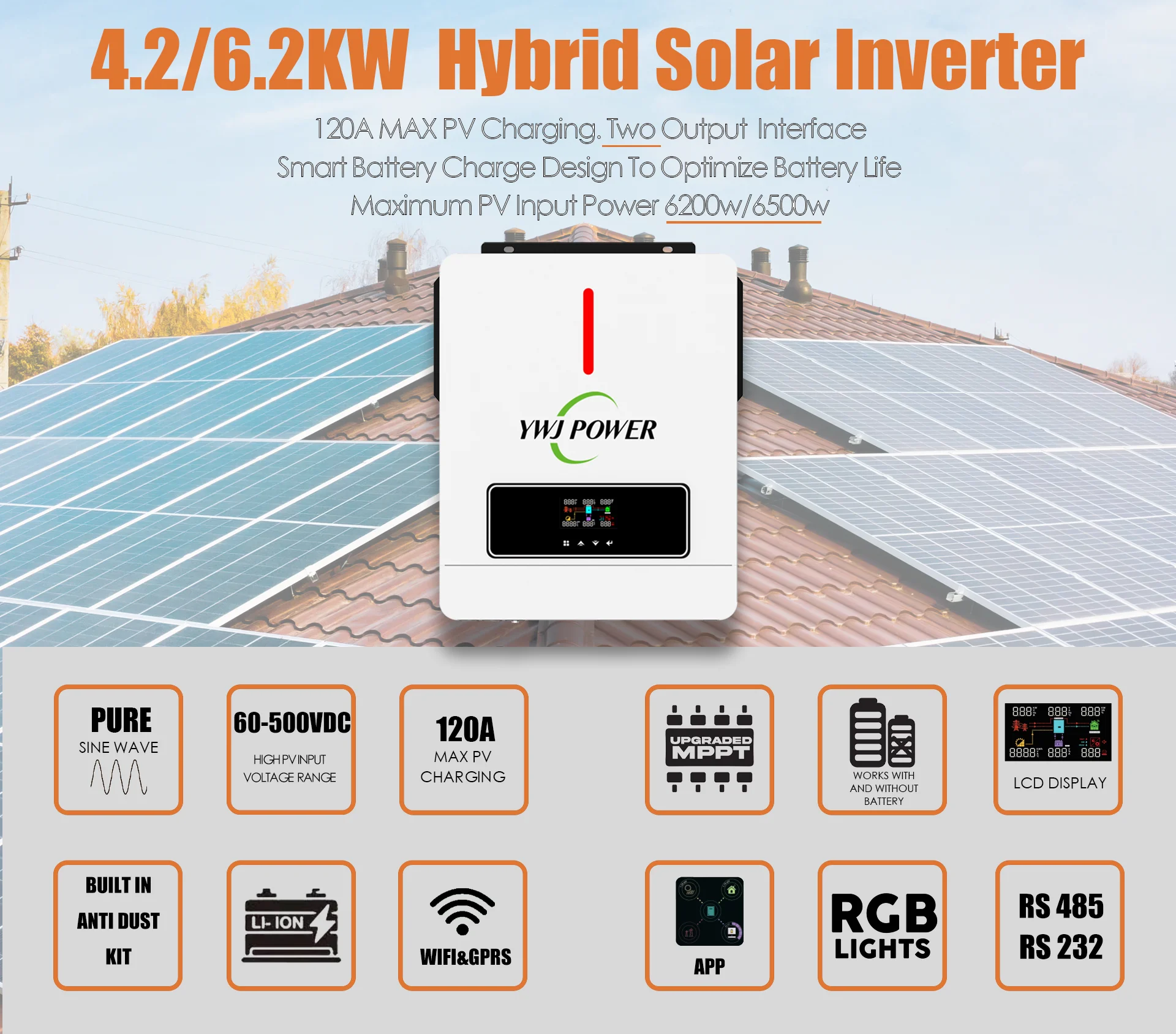

Features.
1.Pure sine wave solar inverter(on/off Grid)
2.Output powerfactor1.0
3.WFl&GPRS available forlOS and Android
4.Inverter can run without battery
5.One-key restoration to factory Settings
6.Built-in 120AMPPT Solar charge
7.Built-in Lithium battery automatic activation
8.High PVinput voltage range(60~500VDC)
9.Built-in anti-dust kit for harsh environment
10.Smart battery charge design to optimize battery life
11.Dual output
12.Automatic access to the generator
13.Dual communication ports for Battery communication and Wifi communication
2.Output powerfactor1.0
3.WFl&GPRS available forlOS and Android
4.Inverter can run without battery
5.One-key restoration to factory Settings
6.Built-in 120AMPPT Solar charge
7.Built-in Lithium battery automatic activation
8.High PVinput voltage range(60~500VDC)
9.Built-in anti-dust kit for harsh environment
10.Smart battery charge design to optimize battery life
11.Dual output
12.Automatic access to the generator
13.Dual communication ports for Battery communication and Wifi communication

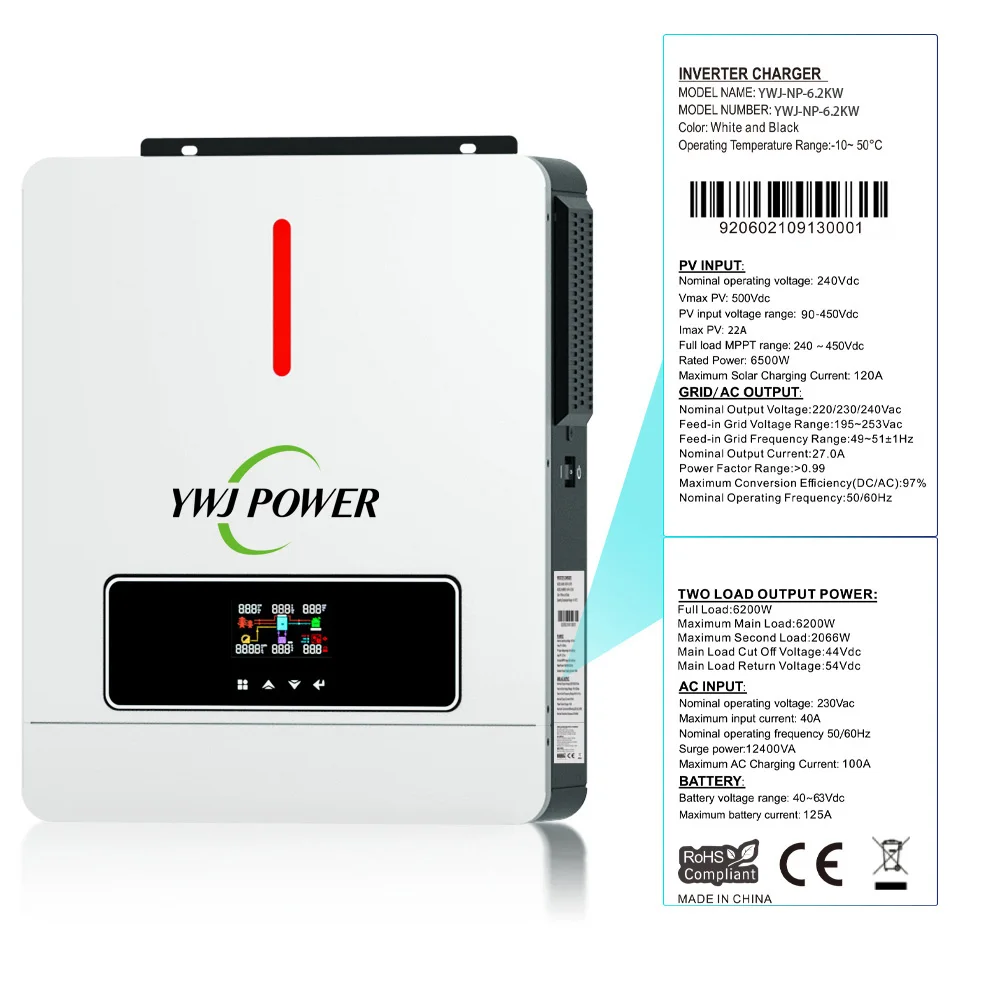

Products Description
Model | YWJ-NP-4.2KW | YWJ-NP-6.2KW | ||||||
Phase | 1-Phase | |||||||
Maximum PV Input Power | 6200W | 6500W | ||||||
Rated Output Power | 4200W/4200VA | 6200W/6200VA | ||||||
Maximum Solar Charging Current | 120A | |||||||
GRID-TIE OPERATION | ||||||||
PV Input(DC) | ||||||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||||||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||||||
MPPT Voltage Range | 60~500VDC | |||||||
Number of MPPT/Max Input Current | 1/18A | 1/22A | ||||||
GRID OUTPUT(AC) | ||||||||
GRID OUTPUT(AC) | 220/230/240VAC | |||||||
Output Valtage Range | 195.5~253VAC | |||||||
Norminal Output Current | 15.7A | 27.0A | ||||||
Power Factor | >0.99 | |||||||
Feed-in Grid Frequency Range | 49~51Hz | |||||||
EFFICIENCY | ||||||||
Max Conversion Efficiency(Solar to AC) | 98% | |||||||
TWO LOAD OUTPUT POWER(V2.0) | ||||||||
Full Load | 4200W | 6200W | ||||||
Maximum Main Load | 4200W | 6200W | ||||||
Max Second Load(battery mode) | 1200W | 2067W | ||||||
Main Load Cut Off Voltage | 22VDC | 44VDC | ||||||
Main Load Return Voltage | 26VDC | 52VDC | ||||||
OFF-GRID OPERATION | ||||||||
AC Input | ||||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||||||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||||||
Maximum AC Input Current | 30A | 40A | ||||||
Nominal operating frequency | 50/60Hz | |||||||
Surge power | 7200W | 12400W | ||||||
Battery Mode Output(AC) | ||||||||
Nominal Output Voltage | 24VDC | 48VDC | ||||||
Output Waveform | Pure sine wave | |||||||
Efficiency(DC to AC) | 94% | |||||||
PHYSICAL | ||||||||
Dimension,D*W*H(mm) | 423*334*110mm | |||||||
Net Weight(Kgs) | 9.5 | 10.5 | ||||||
INTERFACE | ||||||||
Communication Port | RS232/WIFI/RS485 | |||||||
ENVIRONMENT | ||||||||
Operating Temperature | -10~50℃ | |||||||
Details Images
Shenzhen YWJ Power Technology Co., Ltd. is One of Leading Manufacturer and Wholesale Supplier for the Solar Power Solution System Products & Service Provider. Our Products Include Hybrid Solar Inverter, Off Grid Solar Inverter, Solar Charger Controllers and LiFePO4 Storage Batteries Since 2013. We Have More Than 10 Years Experience in Designing and Manufacturing of Solar Power Products. Our High-quality Products Have Made Us a Well-deserved and Great Reputation in the Whole World Market.
YWJ Power :You Win Just Solar ,Power Your Green Life ,Our Goal Constantly Committed to Bring Uninterruptible Power Solutions to Our Customers.
YWJ Power :You Win Just Solar ,Power Your Green Life ,Our Goal Constantly Committed to Bring Uninterruptible Power Solutions to Our Customers.

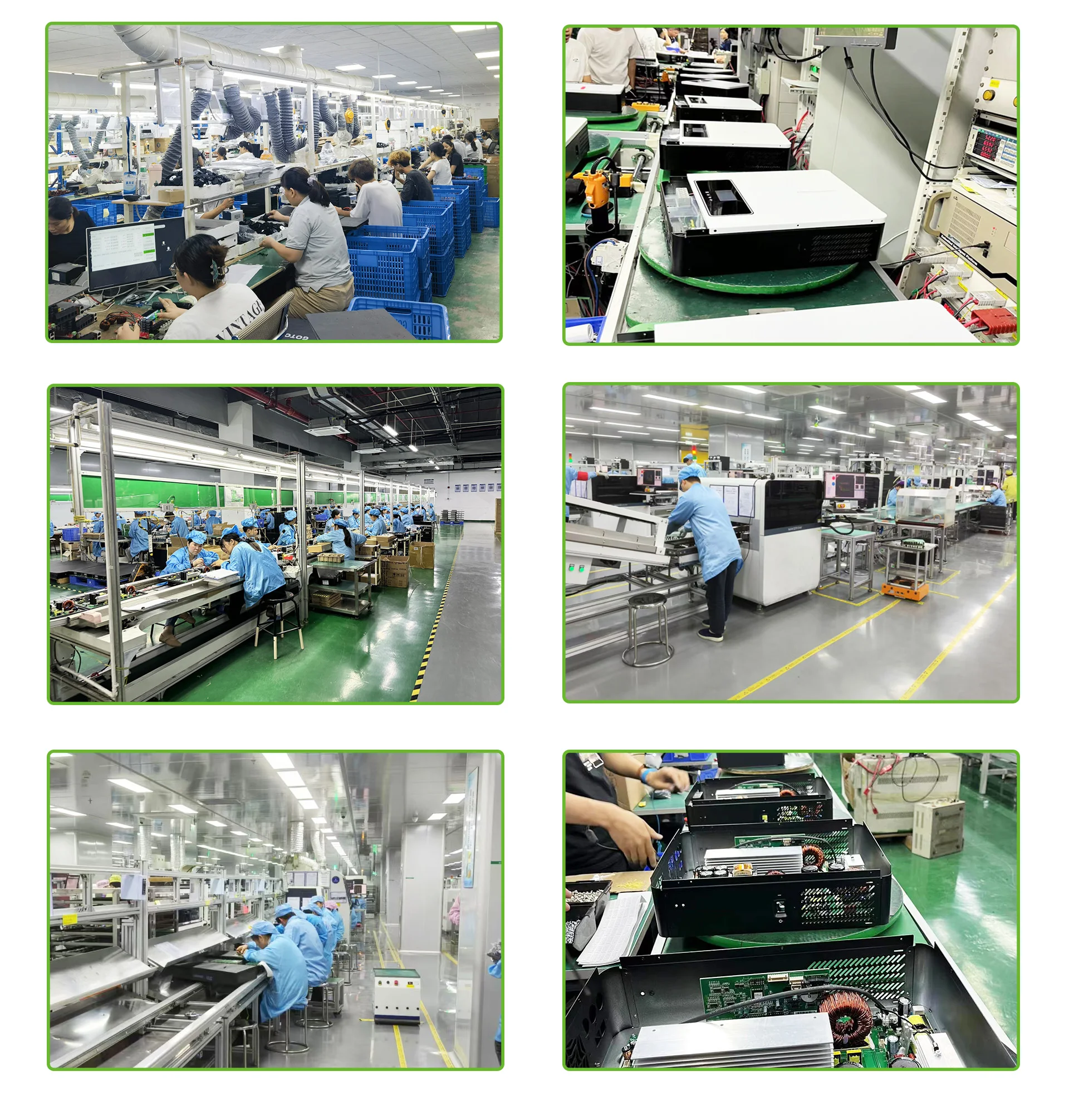

Our Factory.
Our factory covers an area of 27000 square meters and has over 530 employees. YWJ POWER focuses on management, research and development, and continuously produces cutting-edge products. Including Hybrid Solar Inverter; Off Grid Solar Inverter; On/Off Grid Solar Inverter; Solar Charger; Energy Storage Systems, etc. The average monthly production capacity is 180000 pieces. Strict quality control, Products can be customized according to customer requirements.
FAQ
Q1: How to install and use the solar inverter?
A1: We have the English teaching manual, All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: How to choose a right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q3 How about the delivery time?
A3: 3- 7 days for sample; 10-20 days for bulk order.
Q4:How is your product quality?
A4: We have a strict quality control system . We have a strong R&D and manufacturing team which supported by a complete new energy supply chain. Our products have been operating widely in China, Europe, America and many other countries. We are regarded as a high quality inverter supplier.
Q5: How can I make sure it's a secure transaction ?
A5: Trade Assurance is Alibaba's order protection service that ensures your products are produced with the quality you expect,paid securely, and shipped on time. As you do the payment, the money will go directly to Alibaba bank account. After we send your the items and you confirm the detailed information, Alibaba will release us the money.
Q6 : Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7: How is your technical support?
A7: We provide lifetime online support through Whatsapp/Wechat/ Email. Any problem after delivery, we will offer you video call anytime.
Q8:How to become your agent?
A8:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
A1: We have the English teaching manual, All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: How to choose a right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q3 How about the delivery time?
A3: 3- 7 days for sample; 10-20 days for bulk order.
Q4:How is your product quality?
A4: We have a strict quality control system . We have a strong R&D and manufacturing team which supported by a complete new energy supply chain. Our products have been operating widely in China, Europe, America and many other countries. We are regarded as a high quality inverter supplier.
Q5: How can I make sure it's a secure transaction ?
A5: Trade Assurance is Alibaba's order protection service that ensures your products are produced with the quality you expect,paid securely, and shipped on time. As you do the payment, the money will go directly to Alibaba bank account. After we send your the items and you confirm the detailed information, Alibaba will release us the money.
Q6 : Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7: How is your technical support?
A7: We provide lifetime online support through Whatsapp/Wechat/ Email. Any problem after delivery, we will offer you video call anytime.
Q8:How to become your agent?
A8:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
