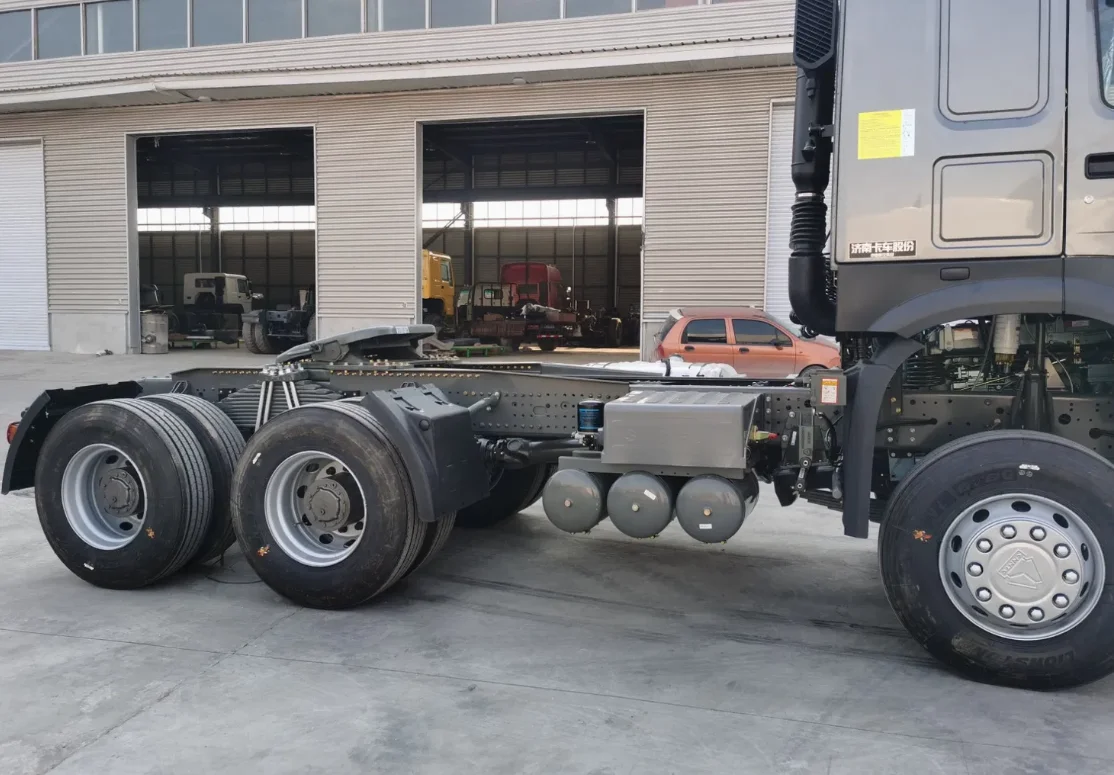

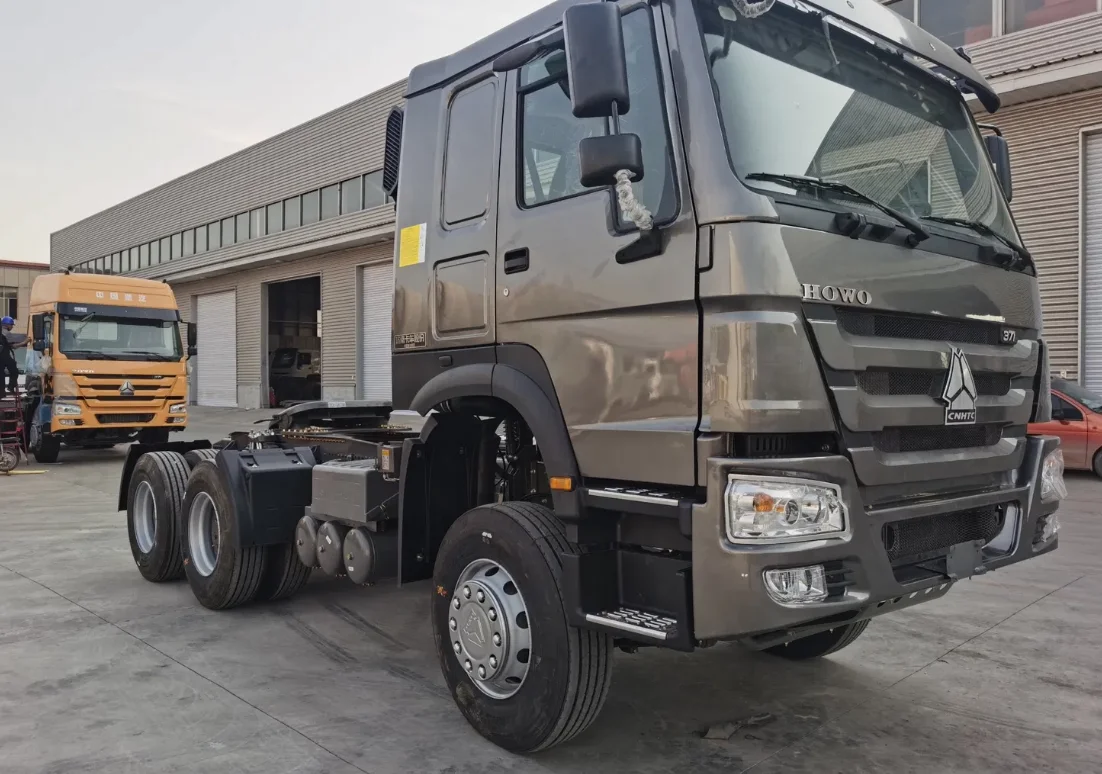

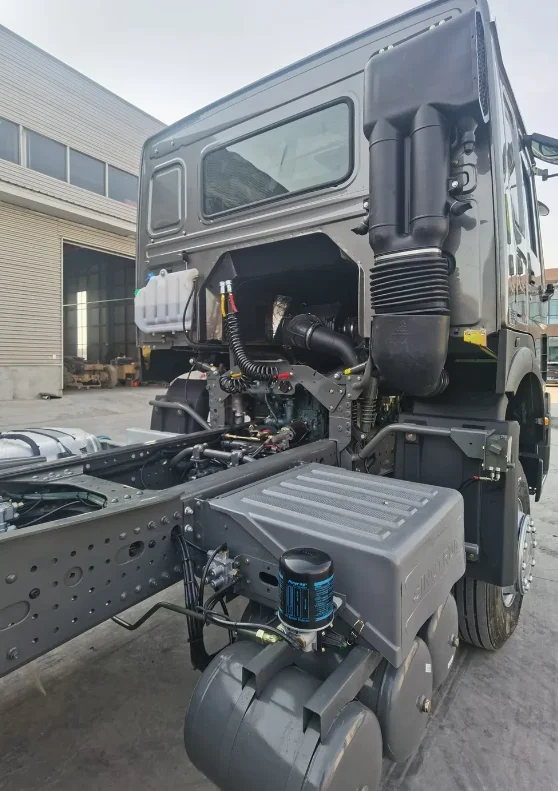

Самосвал shaman 6x4 китайский самосвал мощностью 380 л.с. 100 тонный распродажа
10 800,00-12 800,00 $
Сохранить в закладки 1601290653669:
Drive type | 8×4 |
Kerb mass (kg) | 18200 |
Rated loading capacity(kg) | 50000 |
Total mass(kg) | 68000 |
Max. speed (km/h) | 75 |
Min. turning circle (m) | 18 |
Approach/Departure(°)/ | 16/70 |
Max. gradeability (%) | 60 |
Appearance dimensions (mm) | 10150×2500×3450 |
Wheel base (mm) | 3500+1350 |
Overhang(front/rear) | 1500/725 |
Track width (mm) (front/rear) | 2022/2041 |
Engine | CNHTC Engine, WD1615.47, 371hp (E-II) |
Rated output power | 309kW |
Torque(N.m r. p. m) | 1820/1100 - 1500 |
Displacement(L) | 9.726 |
Fuel tank capacity (L) | 300 |
Tyre | 12.00R20 (12 + 1pc) |
Clutch | φ430 diaphragm spring |
Gearbox | Transmission HW19710, 10 forward&2 reverse (Manual) |
Front axle | VGD9.5 |
Drive axle | HC16 (ratio 5.73) |
Steering | ZF8118 (left-hand drive) |
Brake | Service brake: With dual-circuit compressed air brake; Park brake: Power spring brake acting on front & rear wheel; Auxiliary brake: Engine exhaust valve brake |
Cab | HW76 Cab with Single sleeper A/C (With Wind scooper and air guide sleeve) |
Battery | 165AH |
Carriage Internal Dimensions | 7300×2300x 1500mm |
Steel thickness of Carriage | Floor: 8mm, Side: 6mm (Chinese brand front lift) |
