Китай асфальтоукладчик
50 000,00-70 000,00 $
Asphalt Mixing Plant Machine
- Категория: >>>
- Поставщик: Taian Chenli Construction Machinery Co. Ltd.Taian Ltd.
Сохранить в закладки 1601290796663:
Описание и отзывы
Характеристики
Asphalt mixing plant cold mix asphalt plant asphalt batch mixing plant parts
Product Description
Asphalt plants are equipment designed to produce hot mix asphalt. It uses aggregate, bitumen and filler material to produce asphalt concrete (Hot mix asphalt).
The main feature of an asphalt plant is that it mixes them with bitumen and other filling materials to heat the aggregate and then prepare hot mix asphalt. These aggregates, bitumen and fillers are mixed in certain proportions.The end product, asphalt mix, can be widely used for the construction of highways, urban roads, rural roads, parking lots.
Product Composition
Working principle
1. Raw material handling. First, mineral materials (such as slag, gravel, etc.) and bitumen are processed to meet specific quality requirements. The mineral materials are put into the aggregate silo and the flow is controlled by the weighing system, and then prepared according to the mix ratio. The bitumen enters the storage tank through a hot bitumen tank truck and is transported to the mixer through pumps and pipelines.
2. Drying and heating. During the production of asphalt mixtures, mineral materials usually need to be dried to remove moisture. Drum dryer are used for this purpose and the dried mineral material is fed into the mixer.
3. Mixing process. Add mineral materials, hot bitumen, fillers and additives to the mixer and stir thoroughly. During the mixing process, powder may also be used as a water reducing agent. The mixer usually adopts double-shaft forced type, with counter-rotating mixing shaft and mixing blades to ensure that all materials are evenly mixed.
4. Control System. The control system is responsible for monitoring and regulating the entire production process of asphalt plant, including important parameters such as material ratio, asphalt content, and mix temperature. It achieves this function through signals detected by sensors, ensuring that the quality of the mixture produced meets user requirements.
Specification
| Model | JLB3000 | JLB4000 | JLB5000 | ||
| Productivity(t/h) | 240 | 320 | 400 | ||
| Mixer capacity(kg) | 3250 | 4250 | 5250 | ||
| Total power(kw) | 581 | 690 | 960 | ||
| Drum dryer productivity(t/h) | 260 | 360 | 460 | ||
| Fuel consumption(kg/t) | 6 | 6 | 6 | ||
| Elevator productivity(t/h) | 260 | 360 | 460 | ||
| Measuring accuracy | Aggregate | ±0.3% | Environmental protection standards | Discharged dust content from dust collector | ≤20mg/Nm3 |
| Mineral powder | ±0.2% | Ambient noise | 70dB(A) | ||
| Bitumen | ±0.2% | Control room noise | ≤60dB(A) | ||
Features
1. The height of the asphalt plant is reduced to within 15 meters, and is divided into the hot material silo building and the main mixing building. The hot aggregate is transported to the main mixing building via a lifting trolley (which ensures the accuracy of the proportioning and is better than the elevator structure) after measuring. The asphalt plant is centrally placed in the factory building in the industrial park to achieve industrialized production.
2. The asphalt plant is equipped with high-end environmental protection configuration. The discharging of dust, smoke and noise meets international environmental protection requirements.
3. High metering accuracy, short mixing cycle, and high output.
4. Ground warehouse type batching system, optional intelligent background feeding system.
5. Container modular design, integrated installation, convenient and quick installation and debugging.
Application
Asphalt plant is an important road construction equipment, mainly used to produce asphalt mixture, and is widely used in road construction, bridge construction, airport runway construction, industrial park construction and other industries.
Advantages
PRODUCTION IN EUROPEAN STANDARDS
MAXIMUM PERFORMANCE
LOW OPERATION AND MAINTENANCE COSTS
ENVIRONMENTALLY SENSITIVE AND LONG LASTING FILTER TECHNOLOGY
POWERCONTROL AUTOMATION SYSTEM
AFTER SALES SERVICE, WARRANTY AND SPARE PARTS
REDUCE YOUR CONCRETE FOUNDATION COSTS
Recommended Products

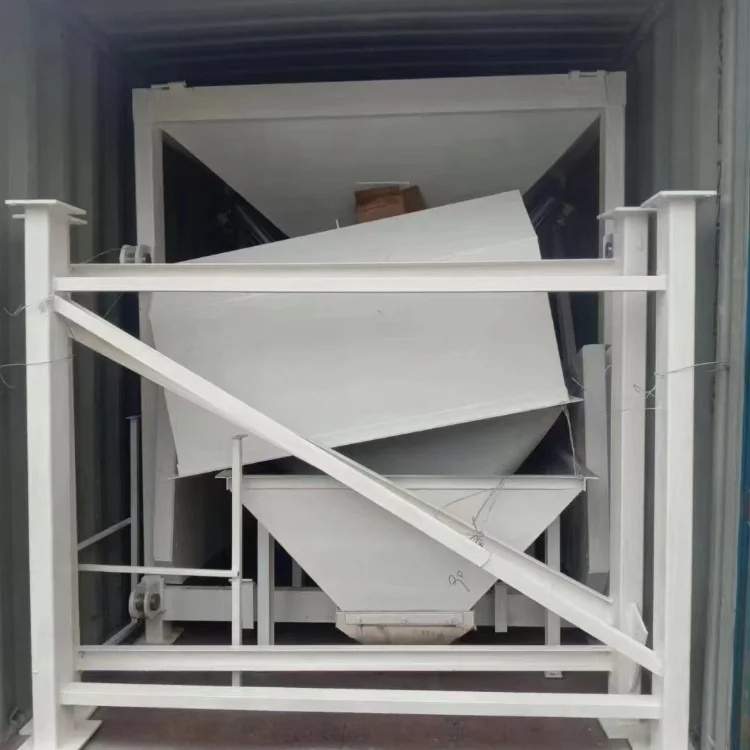

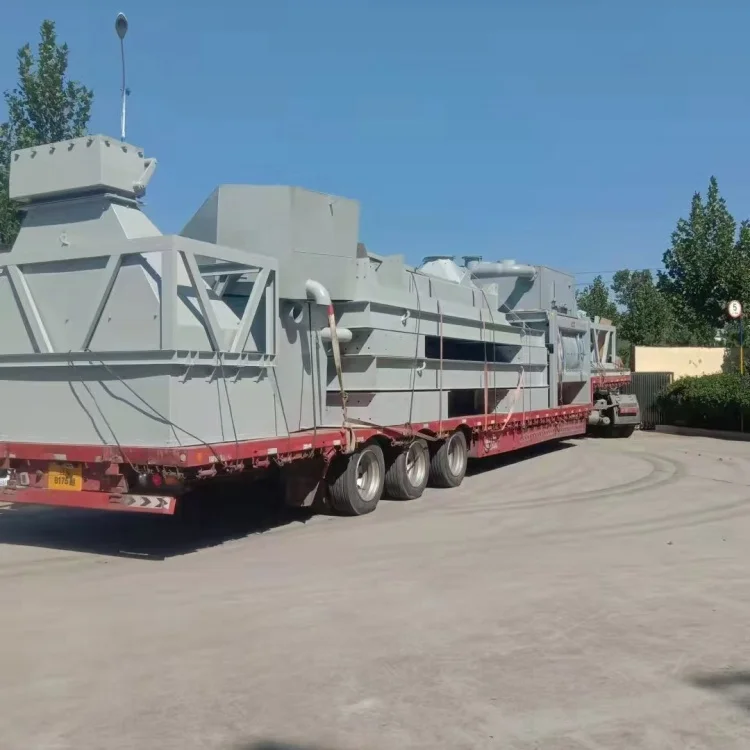

Packaging & Shipping
Our Factory
Tai'an Chenli Construction Machinery Co., Ltd. is a technology-based company focusing on the development, design, manufacturing, engineering and service of intelligent complete equipment for building materials. The current leading products are cement concrete batching plants, mortar production lines, tower type sand making machine, and environmental protection equipment for batching plants. The products win the trust of the market with high standards and high reliability, and are deeply trusted by users.
Certification
FAQ
1. Do you offer warranty on your equipment?
Yes, we offer a full warranty on new equipment purchasing.
2. Where is the port of loading?
Normally the port of loading is QINGDAO PORT, SHANDONG, CHINA.
3. Can you print other LOGO on your machine?
Yes, we can, and we also offer OEM service.
4. Who are we?
We are professional manufacturer of concrete batching plant.
5. Where are you?
We are located in TAIAN City SHANDONG Province China.
