Product Description

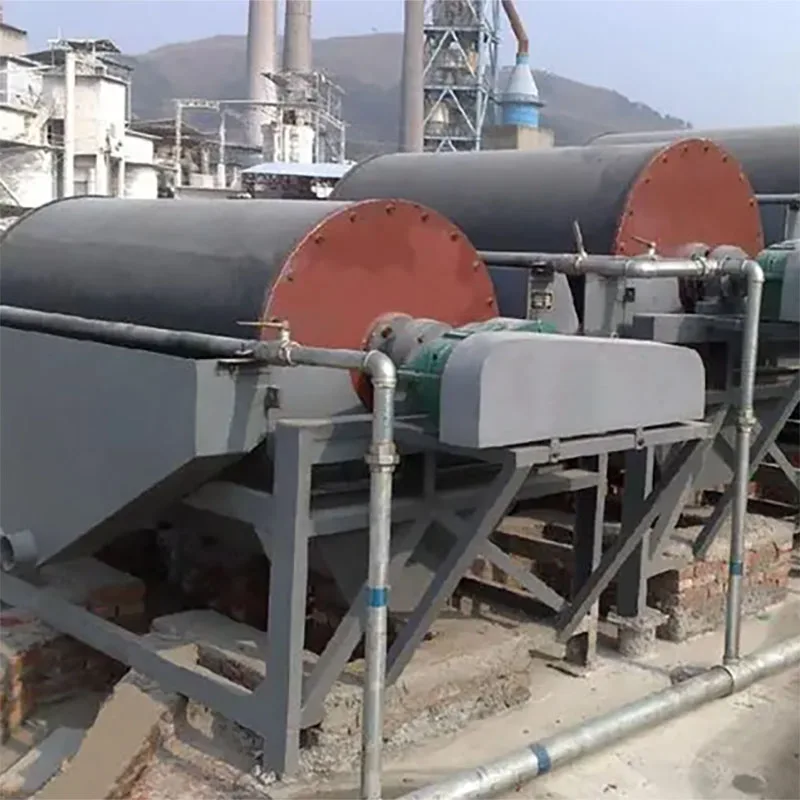

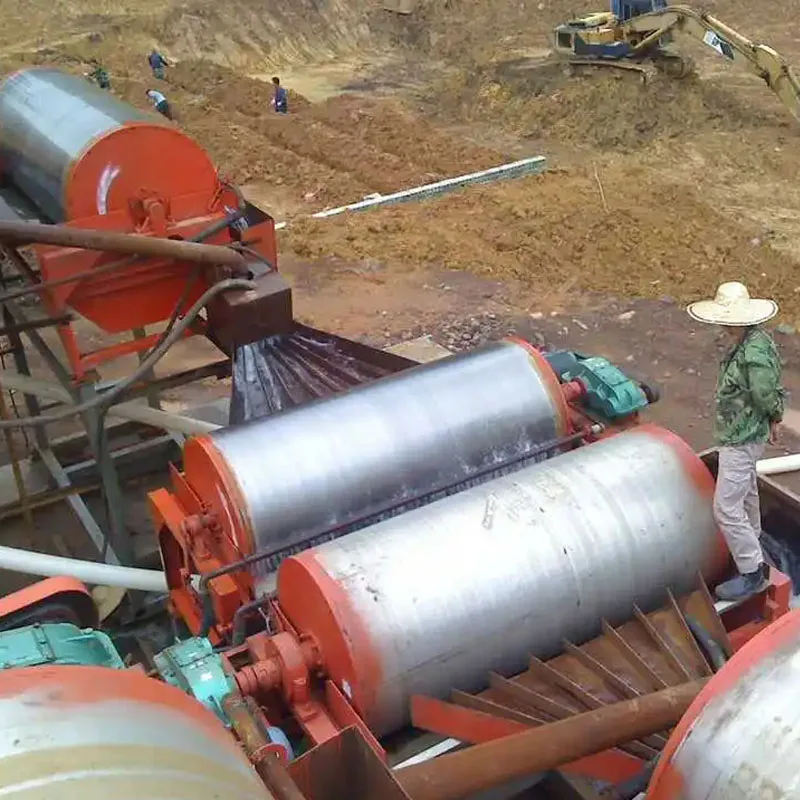

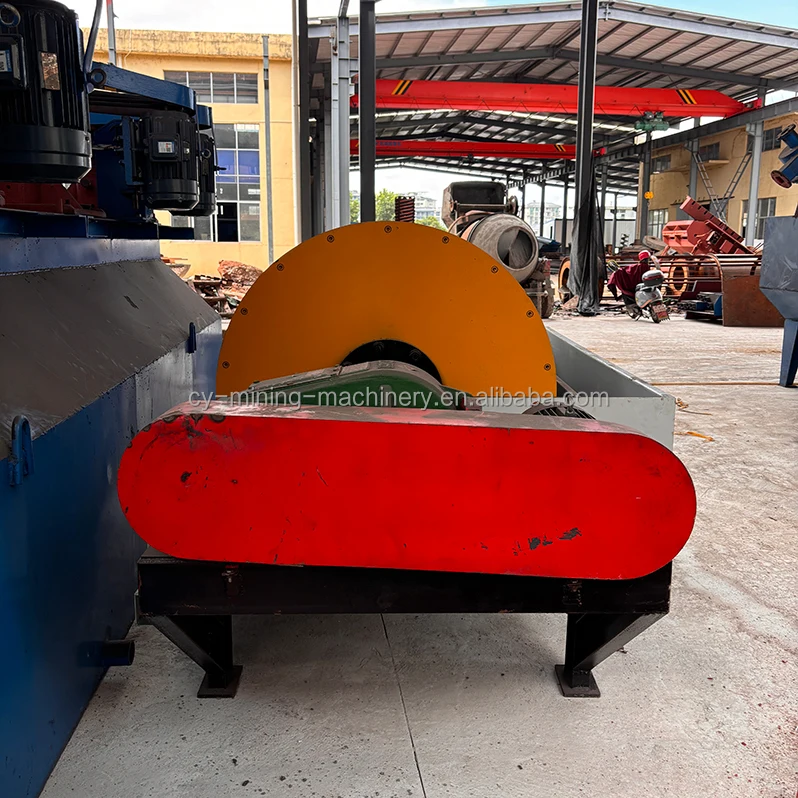

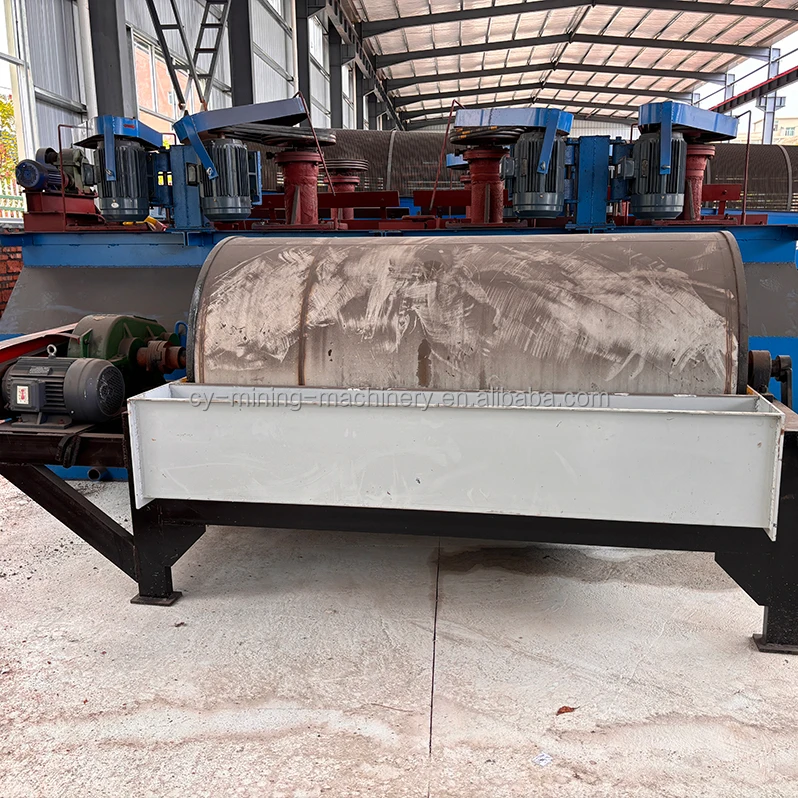

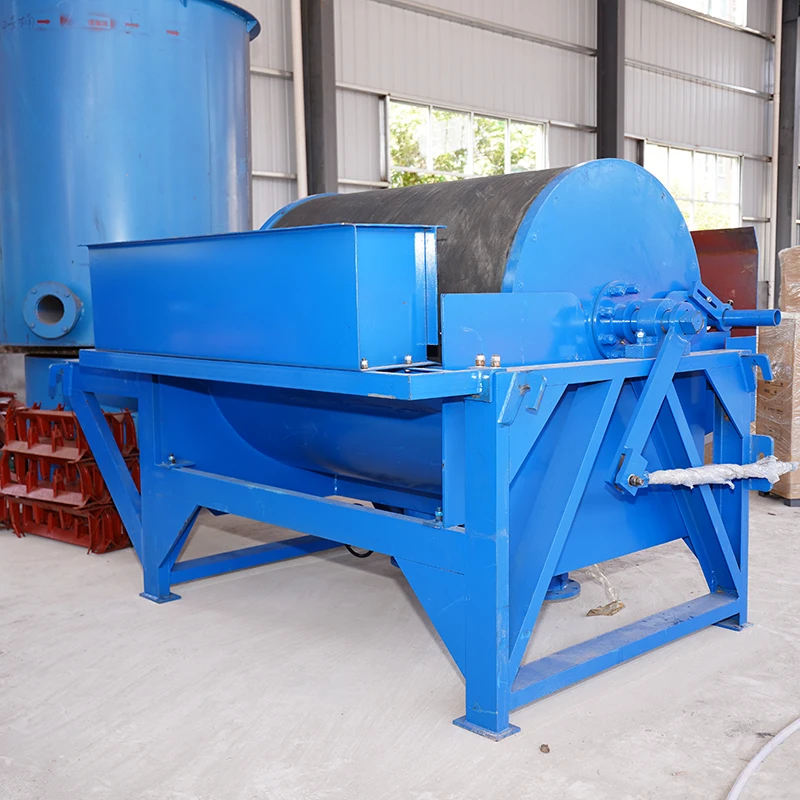

The wet drum magnetic separator is a commonly used iron ore processing equipment (iron ore magnetic separator) and manganese ore equipment (manganese ore magnetic separator) and is a mainstream strong magnetic separator ore dressing equipment.
Magnetic intensity can be from 800 to 9000 gauss as per requested, drum quantity can be one , or two or three.
Wet drum magnetic separation is suitable for wet magnetic separation of magnetite, pyrrhotite, roasting ore, ilmenite and other materials with a particle size of 3mm or less. It is also used for iron removal of coal, non-metallic minerals, building materials, etc.
Magnetic intensity can be from 800 to 9000 gauss as per requested, drum quantity can be one , or two or three.
Wet drum magnetic separation is suitable for wet magnetic separation of magnetite, pyrrhotite, roasting ore, ilmenite and other materials with a particle size of 3mm or less. It is also used for iron removal of coal, non-metallic minerals, building materials, etc.
Working Principle
When the raw materials flow into the tank body of the dry magnetic separator, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
Features and Application
Mostly used for separating strong magnetic minerals, such as Iron , magnetite, hematite , ilmenite,ect.
Features of this kind magnetic separator :
1.Magnetic intensity: usually low to middle intensity, from 800 gauss to 9500 gauss (on the condition of drum dia -500mm), if drum dia +500mm, instensity can be only 5000 gauss.
2.Process method : wet or dry process available
3.Drum quantity : 1 pc or 2 pc or 3 pcs
4.Feeding position: for wet process feeding material from side of drum, for dry process feeding material from top of drum
5.Adjustable intenstity: NO
6.Magnetic block : 1/3, 2/3,1/4 of the drum, fixed on the machine, not moving when drum rotating.
7.Maxi feeding size: 2 mm
8.Process capacity: Depends on drum size and feeding size.
Features of this kind magnetic separator :
1.Magnetic intensity: usually low to middle intensity, from 800 gauss to 9500 gauss (on the condition of drum dia -500mm), if drum dia +500mm, instensity can be only 5000 gauss.
2.Process method : wet or dry process available
3.Drum quantity : 1 pc or 2 pc or 3 pcs
4.Feeding position: for wet process feeding material from side of drum, for dry process feeding material from top of drum
5.Adjustable intenstity: NO
6.Magnetic block : 1/3, 2/3,1/4 of the drum, fixed on the machine, not moving when drum rotating.
7.Maxi feeding size: 2 mm
8.Process capacity: Depends on drum size and feeding size.
Product Paramenters
Packaging&Shipping
Packaging | Wooden box, iron frame, customized | ||||||
Port | XIAMEN, SHENZHEN, QINGDAO, ETC. | ||||||
Our Services
Pre-Sales Service
*Inquiry and consulting support;
*Ore sample testing support;
*View our Factory;
*Design Flowchart.
*Ore sample testing support;
*View our Factory;
*Design Flowchart.
After-Sales Service
* Training how to instal the machine, training how to use the machine;
* 1 year warranty;
* Engineers available to service machinery overseas.
* 1 year warranty;
* Engineers available to service machinery overseas.
About Us
Jiangxi Changyi Mining Machinery Co., Ltd.
It is a professional mining machinery manufacturer with more than 10 years of experience led by a young team, providing a full range of processing equipment for gold, tin, tungsten, iron, diamond,coltan,silica sand, zircon sand, black sand, chromium, etc.
Main products: shaker, ball mill, drum sand washer, spiral sand washer,spiral chute, jig, centrifugal concentrator, vibrating screen, drum screen, jaw crusher, hammer crusher, flotation machine, spiral classifier, magnetic separator, etc. and a full range of small laboratory mining equipment and alloy bearings.
It is a professional mining machinery manufacturer with more than 10 years of experience led by a young team, providing a full range of processing equipment for gold, tin, tungsten, iron, diamond,coltan,silica sand, zircon sand, black sand, chromium, etc.
Main products: shaker, ball mill, drum sand washer, spiral sand washer,spiral chute, jig, centrifugal concentrator, vibrating screen, drum screen, jaw crusher, hammer crusher, flotation machine, spiral classifier, magnetic separator, etc. and a full range of small laboratory mining equipment and alloy bearings.
Main markets: Africa, South America, Europe, Southeast Asia, Asia, etc. Our cooperative customers cover Congo, Ghana, Uganda,South Sudan, Israel, Pakistan, Mozambique, Suriname, Zambia, Nigeria, Cameroon, Malaysia, Indonesia, South Korea,Philippines,Mongolia,Singapore, India, Iran, Mexico, Brazil, Chile, Peru, Spain, Canada, Australia, the United States, the United Arab Emirates, etc.
Tanzania Exhibition
Customer visit
Contact Us
April Deng
Phone/WhatsApp:+86 19144725806
Web:https://cy-mining-machinery.en.alibaba.com
E-Mail:sales9@jxchangyi.com
Fax:0797-5712436
Fax:0797-5712436
Company:Jiangxi Changyi Mining Machinery CO.,LTD.
Add:No.10,Gongye 3rd Road,Guzhang Industrial Zone,Shicheng County,Ganzhou,Jiangxi,China.
FAQ
1. How is the quality of your products? (Mining Equipment/Machines)
A: Our products are strictly produced according to national and international standards, and we will test each machine before delivery.
2. Is there a quality guarantee?
A: All our products have a one-year warranty. If the product quality is not consistent with our description or promise before placing an order, we promise 100% refund.
3. How about the price?
A: For exactly the same machine, we can guarantee that our quality is the best when the price is the same as other competitors, and our price can be the lowest when the quality is up to standard level.
4. Service and payment terms?
A: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is an international trade practice; finished product pictures will be provided to customers before delivery.
A: Our products are strictly produced according to national and international standards, and we will test each machine before delivery.
2. Is there a quality guarantee?
A: All our products have a one-year warranty. If the product quality is not consistent with our description or promise before placing an order, we promise 100% refund.
3. How about the price?
A: For exactly the same machine, we can guarantee that our quality is the best when the price is the same as other competitors, and our price can be the lowest when the quality is up to standard level.
4. Service and payment terms?
A: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is an international trade practice; finished product pictures will be provided to customers before delivery.
