Products Description
poultry feeding and drinking equipment are widely used in Pakistan,Philippines,Indonesia...It is mainly used for animal husbandry, poultry house, livestock breeding,Chicken house etc.

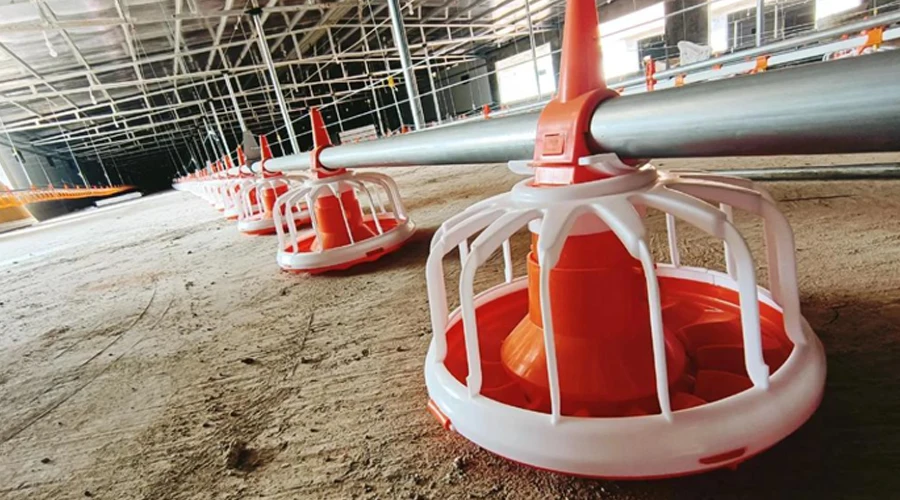

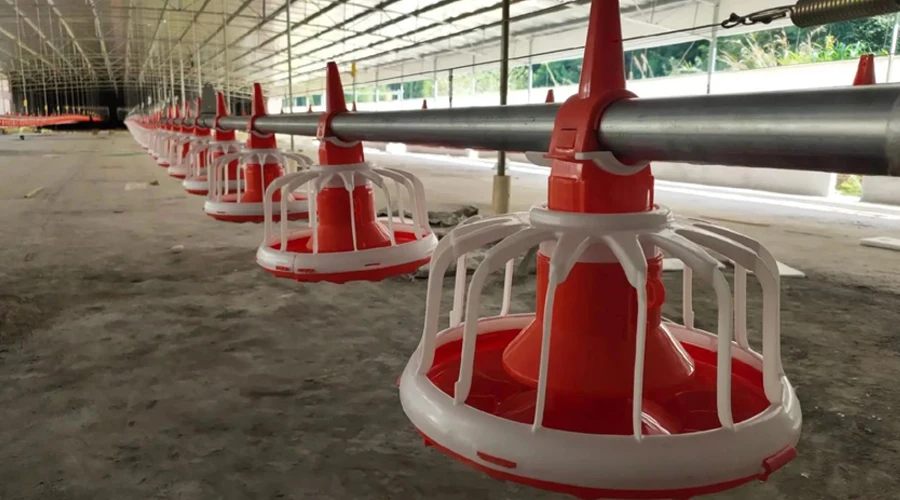

Broiler automatic feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor.
The main function of the system is to transport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the oder to motor to make it working or stop
Automatic feeding system advantage and feature:
Kinds of feeding level adjustment
The height is suitable for all ages of broilers,easy access and start feed from day-old.
Control feed waste as a deep pan bottom; easy access feed as a shallow pan edge, provide a wide feeding space.
Save feed; less feed waste, improve feed conversion.
Keep the feed distribution uniform and quickly.
Broiler automatic feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor.
The main function of the system is to transport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the oder to motor to make it working or stop
Automatic feeding system advantage and feature:
Kinds of feeding level adjustment
The height is suitable for all ages of broilers,easy access and start feed from day-old.
Control feed waste as a deep pan bottom; easy access feed as a shallow pan edge, provide a wide feeding space.
Save feed; less feed waste, improve feed conversion.
Keep the feed distribution uniform and quickly.
fully Automatic complete chicken broiler and layer farming poultry equipment
1.Main feeding system
2.Automatic pan feeding line
3.Automatic nipple drinking line
4.Ventilation fan system
5.Cooling pad system
6.Oil/gas/electric heating system
7.Plastic floor system
8.Spray disinfection system
9.Environment controlling system
1.Main feeding system
2.Automatic pan feeding line
3.Automatic nipple drinking line
4.Ventilation fan system
5.Cooling pad system
6.Oil/gas/electric heating system
7.Plastic floor system
8.Spray disinfection system
9.Environment controlling system
1.Vice Hopper | Size: 60Kg 70Kg, 90Kg Material:hot-dip galvanized sheet, thickness:1mm |
2.Feed Pipe | Feed pipe: Diameter of feed pipe:Φ45mm Material:hot-dip galvanized sheet pipe with the zinc coating amount—more than 275m2. Helical spring auger: imported from South Africa, feeding ability:450Kg/h |

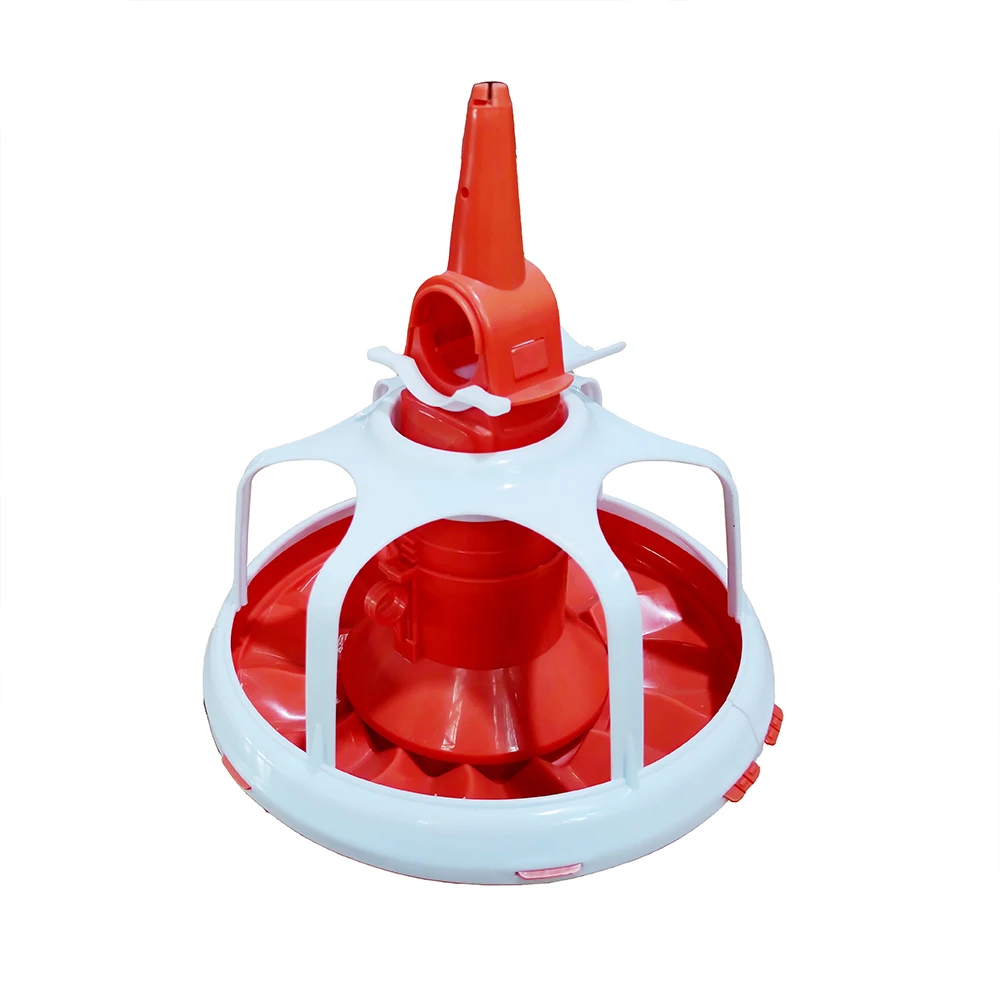

3.Feed Pan | 4 feed pans/3m, Feed pan capacity: 50-55 broilers/pan |
4.Control feed pan(with sensor) | imported from Germany time delay range: 0-2hours The sensor is usually installed at the end of each feeding line which controls motor on and off to achieve feed delivery automatically. The motor will start working and convey feed when sensor doesn't touch feed, the motor will stop conveying feed when sensor touchs feed. |
5.Driving motor | Taiwan brand Power: 0.75Kw/1.1Kw/1.5Kw, Voltage:380V/220V/others, three-phase/single-phase Frequency:50Hz, AC current |
6.Connector box | Firm connection |
7.End tube | End tube position |
8.Anti-perching system | It prevents chickens from staying on the ground for too long. |
9.Lifting & Suspension | It's very convenient to adjust the feeding line height by winch. |
10.Hopper bin | Hopper bin position |
11.Cross beam | Cross beam position |
Automatic nipple drinking line
Square water supply pipe 22 mm x 22 mm.
Light resistant water pipe prevent algae.
Nipple with stainless steel body and plastic shell.
Galvanized support pipe.
Easy push together assembly.
Folding hangers hold the water pipe firmly in peace.
Light resistant water pipe prevent algae.
Nipple with stainless steel body and plastic shell.
Galvanized support pipe.
Easy push together assembly.
Folding hangers hold the water pipe firmly in peace.
Plastic slat floor system
100% pure PP
Floor size:
1200X500X40mm/1000X500X40mm
Hole size:
Bigger hole size:20X24mm
Smaller hole size:13X17mm
Beam:
1.Materail: PVC
2.Height: 9cm, 12cm
3.Weight: 1.5kg/m
Floor size:
1200X500X40mm/1000X500X40mm
Hole size:
Bigger hole size:20X24mm
Smaller hole size:13X17mm
Beam:
1.Materail: PVC
2.Height: 9cm, 12cm
3.Weight: 1.5kg/m
Environment controlling system
*12-stage controlling
*used for ventilation control in closed-type livestock buildings
*computer network
High-performance CPU
The controller chooses MicroChip PIC18F4685, the latest product of Microchip, as its main CPU.
Closed-type Controller Enclosure
The controller has 16 red status LEDs, which indicating the current operation status, allowing the user to monitor the operation
of the system without entering the building.
*used for ventilation control in closed-type livestock buildings
*computer network
High-performance CPU
The controller chooses MicroChip PIC18F4685, the latest product of Microchip, as its main CPU.
Closed-type Controller Enclosure
The controller has 16 red status LEDs, which indicating the current operation status, allowing the user to monitor the operation
of the system without entering the building.
Product packaging
Exhibition
Why Choose Us
NORTH&HUSBANDRY is an exhaust fan factory.We are in Weifang City, Shandong Province, China.Welcome to visit our factory.We choose high quality raw materials, which have stronger corrosion resistance.It has a thicker galvanized zinc coat.We combine better workflows based on our experience,then give you the highest quality product and the lowest price.Of course, visiting the factory and checking the quality are the premise of the choice.Or give me a small order to check the quality.Another way is to visit the factory by video.
We want to give you the best service and give you the lowest price.
FAQ
Customer: Are you a factory?
North&Husbandry: Yes, this is a manufacturer from Weifang City, Shandong, China. Welcome to visit our factory.
Customer: What products can you supply?
North&Husbandry: We can produce many types of products and also make some sheet metal products based on your drawings.
Our main products are Centrifugal Cone Fan, Hammer cone fan,Butterfly cone fan, Pull and push Exhaust fan, Hammer fan, hanging fan,Brown cooling pad,single side of black cooling pad, green and yellow,Environmental control system,poultry pan feeding equipment,nipple drinker,Poultry Cages,Cages Feeder, Silo, Electric outdoor sunshade curtain,Electric retractable canopy,small garden greenhouse,and so on.
If you purchase our products, you also need some other accessories.We are also willing to help you purchase and put it in the container.
Customer: We would like to know the performance and quality of the exhaust fan.Can you provide an answer?
North&Husbandry: Yes, we provide high-quality exhaust fans and guarantee their quality to you. Firstly, 275g zinc coated galvanized sheet is our first choice.We use the best brands in China and well-known foreign brands for our motors. We use the SanliX brand and Mitsubishi brand the belts. We use Japanese bearings to ensure the lifespan of the exhaust fan.Our responsibility is to choose the most suitable accessories, produce high-quality products, and reduce usage costs.Enable customers to achieve maximum benefits.
Customer: Whether can be to customize the voltage and frequency of the motor?
North&Husbandry: Yes, 110V? 220V? 380V? 415V? 50HZ? 60HZ?
North&Husbandry: Yes, this is a manufacturer from Weifang City, Shandong, China. Welcome to visit our factory.
Customer: What products can you supply?
North&Husbandry: We can produce many types of products and also make some sheet metal products based on your drawings.
Our main products are Centrifugal Cone Fan, Hammer cone fan,Butterfly cone fan, Pull and push Exhaust fan, Hammer fan, hanging fan,Brown cooling pad,single side of black cooling pad, green and yellow,Environmental control system,poultry pan feeding equipment,nipple drinker,Poultry Cages,Cages Feeder, Silo, Electric outdoor sunshade curtain,Electric retractable canopy,small garden greenhouse,and so on.
If you purchase our products, you also need some other accessories.We are also willing to help you purchase and put it in the container.
Customer: We would like to know the performance and quality of the exhaust fan.Can you provide an answer?
North&Husbandry: Yes, we provide high-quality exhaust fans and guarantee their quality to you. Firstly, 275g zinc coated galvanized sheet is our first choice.We use the best brands in China and well-known foreign brands for our motors. We use the SanliX brand and Mitsubishi brand the belts. We use Japanese bearings to ensure the lifespan of the exhaust fan.Our responsibility is to choose the most suitable accessories, produce high-quality products, and reduce usage costs.Enable customers to achieve maximum benefits.
Customer: Whether can be to customize the voltage and frequency of the motor?
North&Husbandry: Yes, 110V? 220V? 380V? 415V? 50HZ? 60HZ?
