Wood Timber Beam H20 for Formwork System and Concreted Modles

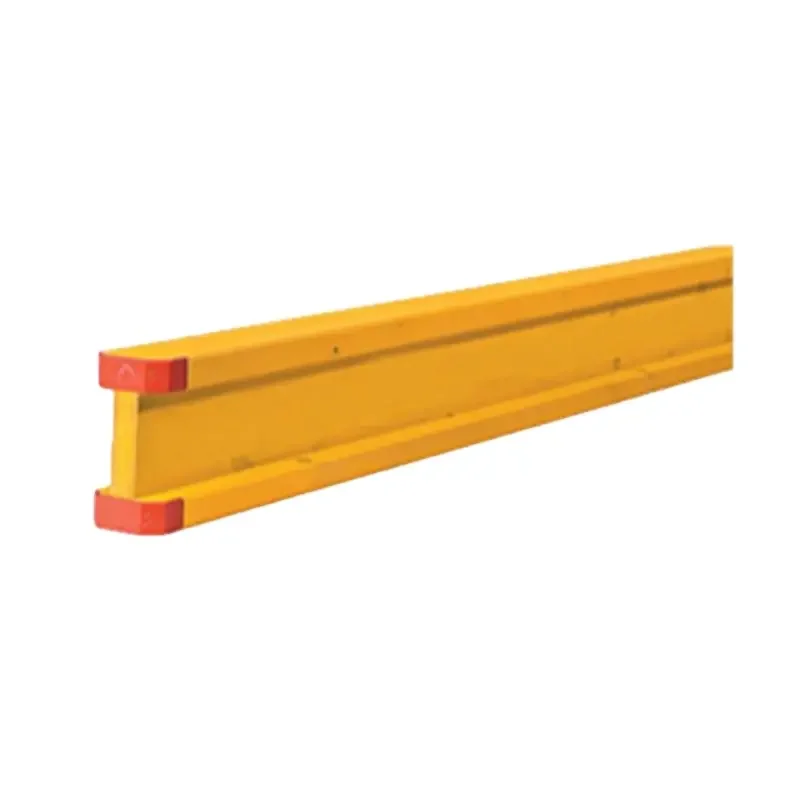

H20 wooden beam is a concrete formwork timber beam, double T-section timber beam used in a variety of forming and bracing applications.
Lightweight, durable, and comes with a plastic cover to protect them from shock and moisture. Suitable for all formwork systems, including wall formwork, table formwork, slab formwork, column formwork, etc.
Product Name | H20 Beam |
Material | Pine, spruce or as request |
Height | 200mm, +/-0.5mm, as request |
Chord Height | 40 mm or as request |
Chord Width | 80 mm or as request |
Length | 1.8-5.9m (1.8m, 2.9m, 3.0m, 3.3m, 3.9m, 4.9m, 5.9m) |
Glue | Phenolic WBP/waterproof |
Color | Coating with painting (yellow color, waterproof, rot-proof, frozen-proof) |
Package | Pallets on the bottom,and Steel band for strength |
Loading Quantity | 3800-4200m per 40ft container. |
Certification | CE ISO9001 FSC CARB/AS/NZS4357.0 |
Usage | Wall formwork, slab formwork, table formwork, column formwork ect. |
H20 Wooden Beam Features
• Available in a variety of sizes, the outer parts are made of selected high-quality solid fir wood, comb-coupled with finger-joint technology, and have a triple-layer core.
• On request, plastic protection is available to reduce the risk of scratching the outside of the beam.
• Wooden H20 beams are lightweight and heavy-duty, easy to handle and safe for construction.
Sturdy and stable. The surface of the formwork wooden beams is treated with water-repellent stains. H20 beam spray paint is also protected against UV radiation and fire.
• Dimensions standards: 80 x200x2450/2900/3300/3600/3900/4200/4900/5900 mm
TRICO was founded in 2002. As an expert in the field of formwork and scaffolding, TRICO is committed to providing better products and services to customers in the globalconstruction industry.TRICO has a wide range of product lines, including the production and supply of full system of building formwork, scaffolding and related components, and has realized the "1+N" one-stop service mode. The products sell well in more than 90 countries and regions, winning the recognition and trust of business partners around the world.
TRICO's R&D team is experimenting and optimizing products every day. The endless improvement and perfection is the gene of TRICO culture. TRICO's mission is to promote the quality improvement, cost reduction and environmental protection and efficiency enhancement of global buildings.
Let's work together to make it easier to build houses anywhere in the world!
