Пресс машина Merido J23 12 т 16 25 40 63
- Категория: >>>
- Поставщик: Wuhan Mairuiduo Trading Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1601291065984:
Описание и отзывы
Характеристики

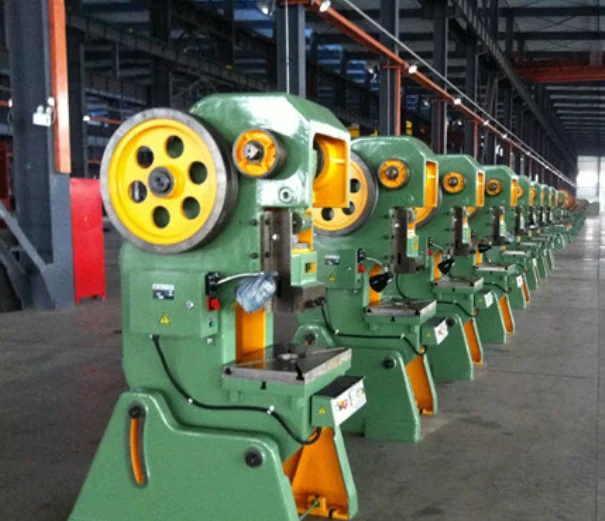

J23 Series C-frame Inclinable Press Machine
item | value | ||||||
CNC or Not | Normal | ||||||
Condition | New | ||||||
Machine Type | Punching Machine | ||||||
Slide Stroke (mm) | customization hydraulic press | ||||||
Power Source | Mechanical | ||||||
Place of Origin | China | ||||||
Voltage | 380V/50HZ | ||||||
Dimension(L*W*H) | 680x630x1658 | ||||||
Certification | ISO 9001\\ CE | ||||||
Motor Power (kW) | 1.1 | ||||||
Weight (T) | 0.6 | ||||||
Key Selling Points | High Productivity | ||||||
Warranty | 1 Year | ||||||
Applicable Industries | Manufacturing Plant | ||||||
After Warranty Service | Video technical support, Online support | ||||||
Local Service Location | None | ||||||
Showroom Location | None | ||||||
Marketing Type | Hot Product 2021 | ||||||
Machinery Test Report | Provided | ||||||
Video outgoing-inspection | Provided | ||||||
Warranty of core components | 1 Year | ||||||
Core Components | Bearing, Pump, PLC | ||||||
Main Features:
1. Adopt horizontally placed crankshaft.
2. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
3. Steel-welded frame, high rigidity and less deformation Compact.
4. Thick plates and large columns provide the stable platform you need for your demanding application.
5. Wide body frame eliminating vibration for improved IDE life and machine, which means economical and practical.
6. Operation space is wide, and the movable bolster could be moved out of frame to set the die.
7. Rigid rotated bond clutch.
8. Manual shut height adjustment with scale display.
9. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
1. Adopt horizontally placed crankshaft.
2. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
3. Steel-welded frame, high rigidity and less deformation Compact.
4. Thick plates and large columns provide the stable platform you need for your demanding application.
5. Wide body frame eliminating vibration for improved IDE life and machine, which means economical and practical.
6. Operation space is wide, and the movable bolster could be moved out of frame to set the die.
7. Rigid rotated bond clutch.
8. Manual shut height adjustment with scale display.
9. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

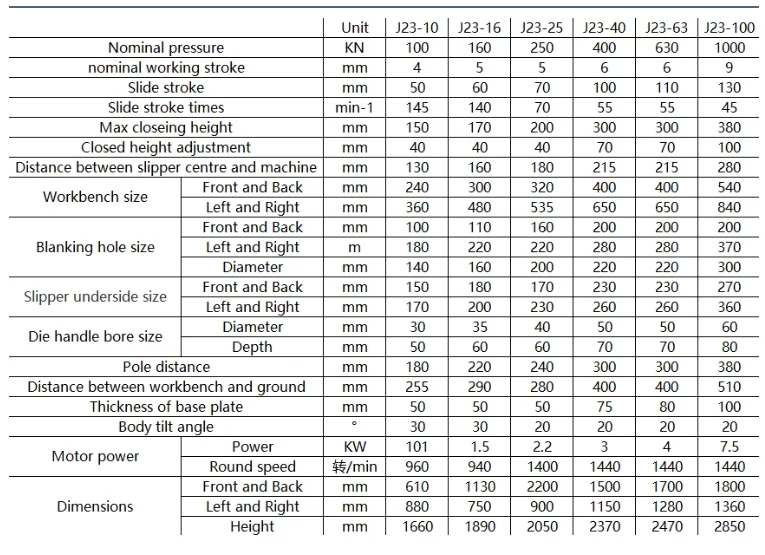

Main Specifications:
Specifications | Unit | J23-6.3 | J23-10 | J23-16 | J23-25 | J23-35 | J23-40 | ||
Nominal force | KN | 63 | 100 | 160 | 250 | 350 | 400 | ||
Nominal Stroke | mm | 2 | 2 | 2 | 2.2 | 3.5 | 6 | ||
Slide Stroke | mm | 35 | 45 | 55 | 65 | 80 | 90 | ||
Slide Strokes Per Minute | H-Speed | min-1 | 170 | 145 | 125 | ||||
L-Speed | min-1 | 55 | 50 | 45 | |||||
Maximum Die Set Height | mm | 150 | 180 | 220 | 270 | 290 | 320 | ||
Die Height Adjustment | mm | 30 | 35 | 45 | 55 | 60 | 65 | ||
Throat Depth | mm | 110 | 130 | 160 | 200 | 220 | 250 | ||
Distance Between Uprights | mm | 150 | 180 | 220 | 270 | 280 | 340 | ||
Bottom size of slide | L×R | mm | 140 | 170 | 200 | 250 | 250 | 300 | |
F×B | mm | 120 | 150 | 180 | 220 | 220 | 260 | ||
Shank Hole Size | Dia | mm | 30 | 30 | 40 | 40 | 40 | 50 | |
Depth | mm | 55 | 55 | 60 | 60 | 60 | 70 | ||
Bolster size | L×R | mm | 310 | 370 | 450 | 560 | 610 | 700 | |
F×B | mm | 200 | 240 | 300 | 370 | 400 | 460 | ||
Blanking Hole Diameter | mm | 60 | 80 | 100 | 120 | 130 | 150 | ||
Bolster Thickness | mm | 30 | 35 | 40 | 50 | 60 | 65 | ||
Max Angle of Inclination | 45 | 35 | 35 | 30 | 30 | 30 | |||
Bolster Surface Height | mm | 750 | 730 | 750 | 800 | 815 | 850 | ||
Overall Dimensions | F×B | mm | 780 | 900 | 1150 | 1345 | 1460 | 1721 | |
L×R | mm | 620 | 665 | 847 | 950 | 1058 | 1335 | ||
H | mm | 1503 | 1658 | 1910 | 2130 | 2225 | 2488 | ||
Distance Between Foundation Bolts | F×B | mm | 530 | 610 | 780 | 920 | 1020 | 1060 | |
L×R | mm | 314 | 394 | 450 | 600 | 650 | 750 | ||
Motor | Power | Kw | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | |
Weight(Approximate) | Kg | 400 | 576 | 1085 | 1780 | 2650 | 3540 | ||

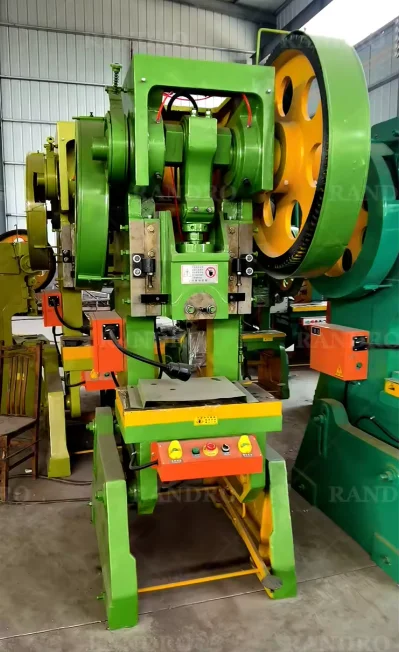

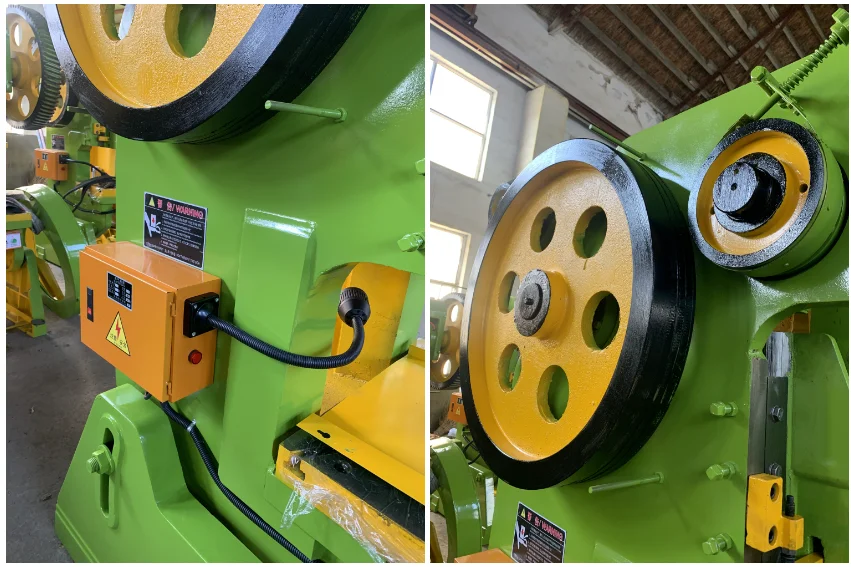

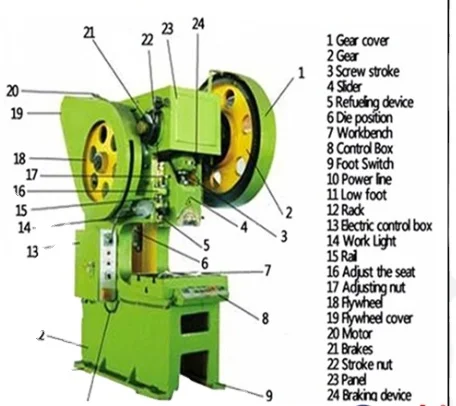

Detailed Photos
Q1: How to confirm if it is suitable for my machine？
A1: Manufactured entirely according to drawings, CAD files available.
Q2:What’s your MOQ?
A2: 1 set brake pads molds as one order.
Q3: What are your trade terms?
A3: Payment term: TT, 30% deposit before production, 70% balance before shipment.
Q4: What is the lead time?
A4: Mass products need 30 days.
Q5: How do you ship the goods and how long does it take arrive?
A5: By DHL, UPS, FedEx or TNT,Air and sea ship is acceptable.
Q6: How to precede the order if I need custom made?
A6: Provide drawings, or tell us your hot press machine parameters.
Q7: How do you make our business long-term and good relationship?
A7:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A1: Manufactured entirely according to drawings, CAD files available.
Q2:What’s your MOQ?
A2: 1 set brake pads molds as one order.
Q3: What are your trade terms?
A3: Payment term: TT, 30% deposit before production, 70% balance before shipment.
Q4: What is the lead time?
A4: Mass products need 30 days.
Q5: How do you ship the goods and how long does it take arrive?
A5: By DHL, UPS, FedEx or TNT,Air and sea ship is acceptable.
Q6: How to precede the order if I need custom made?
A6: Provide drawings, or tell us your hot press machine parameters.
Q7: How do you make our business long-term and good relationship?
A7:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Похожие товары
Листогибочный пресс с ЧПУ пресс-форм/Станок для гибки листового металлических штампиков листогибочный набора пресс-форм инструменты продажи

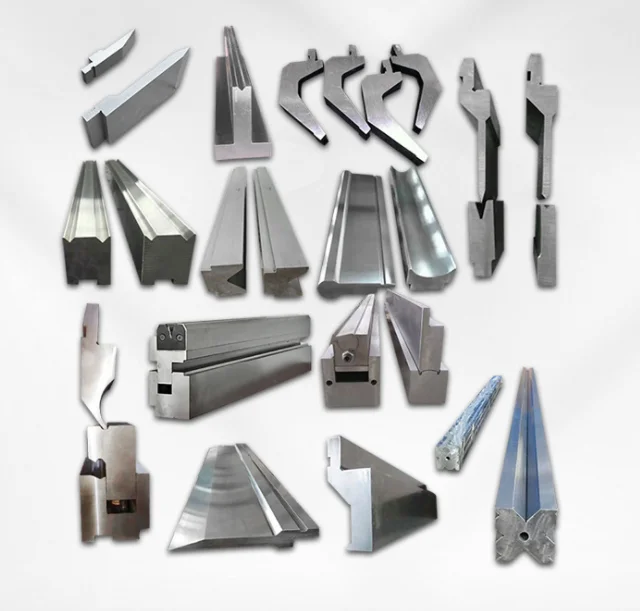

Cnc листовой пресс формирующий штамп верхний тормозная оснастка
