Современная Автоматическая клетка H-типа для птицеводческих ферм новое состояние домашнего использования и розничной торговли
110,00-280,00 $
H тип автоматическая система мясо куриный Бройлер куриная клетка
- Категория: >>>
- Поставщик: Qingzhou Bangchi Machinery Equipment Co. Ltd.Qingzhou Ltd.
Сохранить в закладки 1601291116826:
Описание и отзывы
Характеристики
Broiler Cage System
>high degree of automation
>effectively preventing infectious diseases
>increase stocking density
>High Land Utilization
>strong and sturdy
Product Name | Single row broiler cage | Double row broiler cage | |
Material | hot dip galvanized steel | hot dip galvanized steel | |
Tier | 3/4 tiers | 3/4 tiers | |
Dimension | 1250*1000*450mm | 1250*800*450mm | |
Capacity | 75/100 chickens | 120/160 chickens | |
Support system | Automatic Feeding System,Automatic Drinking System,Automatic Manure Cleaning System,Enviroment Control System | ||
Advantage
High Land Utilization
>Reasonable High-density Raising —save land and reduce investment cost.
>3-10 Tiers Battery Cage —the land can raise more birds.
>Reasonable High-density Raising —save land and reduce investment cost.
>3-10 Tiers Battery Cage —the land can raise more birds.
Cage and frame
1. Punching from the hot dip galvanized steel panels, zinc cocating 275g/m2, no welding, all fixed by screws.
2. Feeding through: PVC or galvanized steel

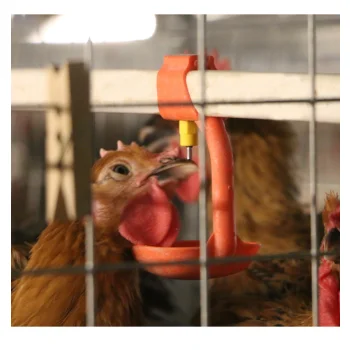

3. Drinking system: Including squre pipes, nipples,regulators, drip cups, steer wires and installation accessories
2. Feeding through: PVC or galvanized steel
3. Drinking system: Including squre pipes, nipples,regulators, drip cups, steer wires and installation accessories
Automatic Feeding system.
1. Feeding trolley, Material is hot dip galvanized steel
2. Feed conveying and dispensing device: 1) Delivery auger pipe: material: PPR, Diameter: 90mm 2) Auger: import from South Africa
3. Feed silo: 5t to 30t can be choosing
2. Feed conveying and dispensing device: 1) Delivery auger pipe: material: PPR, Diameter: 90mm 2) Auger: import from South Africa
3. Feed silo: 5t to 30t can be choosing
Automatic Manure Removing System
1. Belt type manure cleaning machine
2. Manure conveying belt: Material is PP
3. Horizontal transport manure device: 1) convey manure out of layer house and
to truck automatically. 2) Width: 44cm
2. Manure conveying belt: Material is PP
3. Horizontal transport manure device: 1) convey manure out of layer house and
to truck automatically. 2) Width: 44cm
Lighting System
1. LED straight lights inside the cages
2. Chicken farm LED bulds also including
2. Chicken farm LED bulds also including
Cooling Pad function:
When the air goes through cooling pads, the heat will
be taken down by the evaporation of water. So the air
will be cooled before going into your poultry farms.
be taken down by the evaporation of water. So the air
will be cooled before going into your poultry farms.
Exhaust Fan function:
Ventilation fan system controls poultry house inner environment, provides fresh air, proper humidity for
your chickens, ensuring your broilers provide
maximum production.
your chickens, ensuring your broilers provide
maximum production.
Foggy system
1) Pump: 1.5kw/2.2kw
2) Pipes: PE, Diameter:10mm
3) Nozzles: Pure copper
4) Nozzle base: Stainless steel
2) Pipes: PE, Diameter:10mm
3) Nozzles: Pure copper
4) Nozzle base: Stainless steel
Environment Control system
Option 1: Agrologic Brand, imported from Israel, Model: T607/T610/T616
Option 2: Our own brand, also with good function.
Option 2: Our own brand, also with good function.
Qingzhou Bangchi Machinery Equipment Co.,ltd
Bangchi is a verified livestock farming equipment manufacturer ,reputable and trustworthy. We have more than 13 years of experience in poultry farm equipment supplying, serving for 5000+ farm projects in 25 different countries.Annual sales is 3millions USD dollar, We can provide most related poultry equipment like broiler farm equipment,breeder farm equipment and layer farm equipment.Since our company was founded we have always adhered to the principles of reputation as the basis, strategy of development through quality, improvement boosted by meditation, and pursuing the future based on learning.
Company culture Our vision: To be the best possible practitioner of new-style livestock farming Our mission: To steadily enlarge our clients' value through our products and services.Our value: To service the clients, fulfill the employee and dedicate the society;Our Enterprise Spirit: Tenacity, innovation, cooperation and learning
Our after-sales team will guide customers for the installation and proficiency in operating equipment. We try to cover all-around service, from designing, manufacturing, shipment, installation to training. The goal is to provide customers solutions that are easy to understand and operate, and cost-effective.As our clients, you can count on impeccable quality and sustainable product policy.Bangchi is your one-stop shop for livestock farming businesses.
Company culture Our vision: To be the best possible practitioner of new-style livestock farming Our mission: To steadily enlarge our clients' value through our products and services.Our value: To service the clients, fulfill the employee and dedicate the society;Our Enterprise Spirit: Tenacity, innovation, cooperation and learning
Our after-sales team will guide customers for the installation and proficiency in operating equipment. We try to cover all-around service, from designing, manufacturing, shipment, installation to training. The goal is to provide customers solutions that are easy to understand and operate, and cost-effective.As our clients, you can count on impeccable quality and sustainable product policy.Bangchi is your one-stop shop for livestock farming businesses.
