Высоковольтная аккумуляторная система заземления Eco 10kWh 15kWh 20kWh ARK HV литиевая батарея для коммерческих и бытовых
314 930,49-581 292,77 ₽
Высоковольтные литий ионные аккумуляторы 10 кВтч 15 20 штабелируемые батареи Lifepo4 для домашней системы хранения энергии
- Категория: >>>
- Поставщик: Nanjing Tianya New Energy Technology Co. Ltd.Nanjing Ltd.
Сохранить в закладки 1601291232074:
Описание и отзывы
Характеристики
Product Features

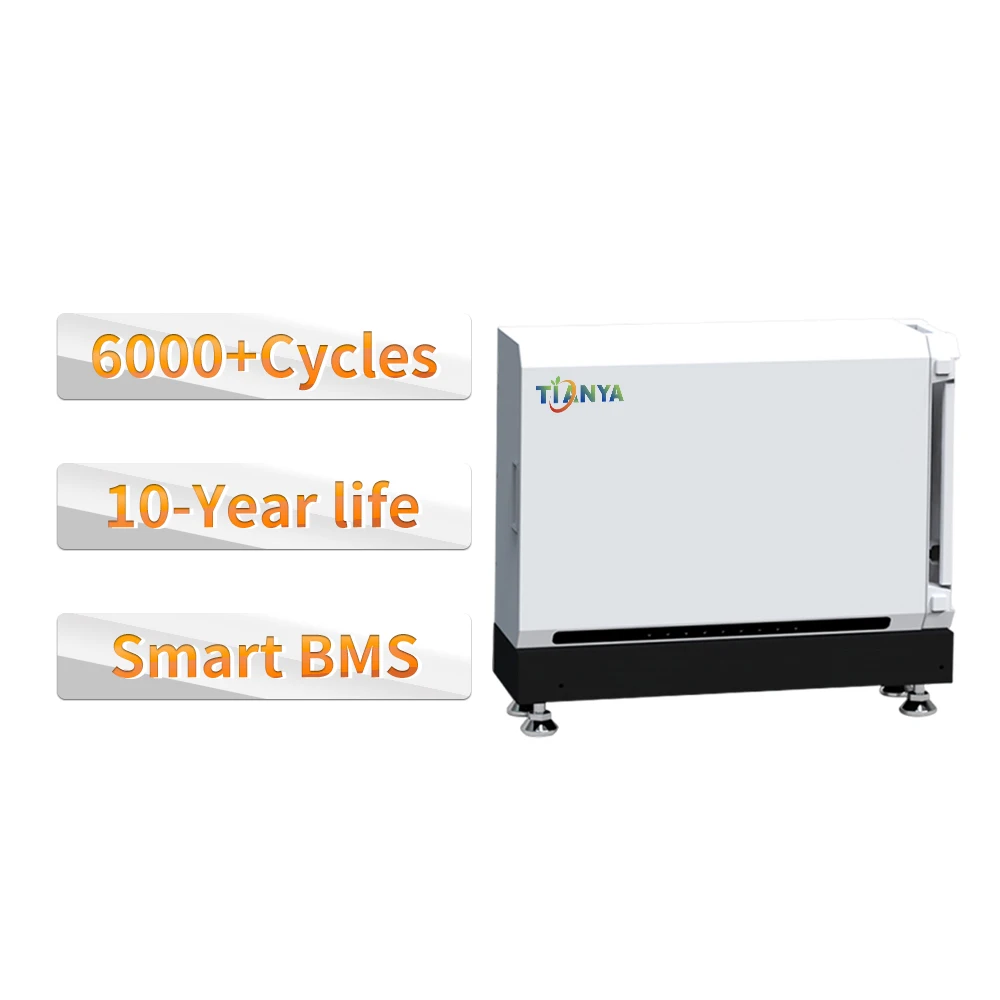

1. Performs 6000+ cycles;

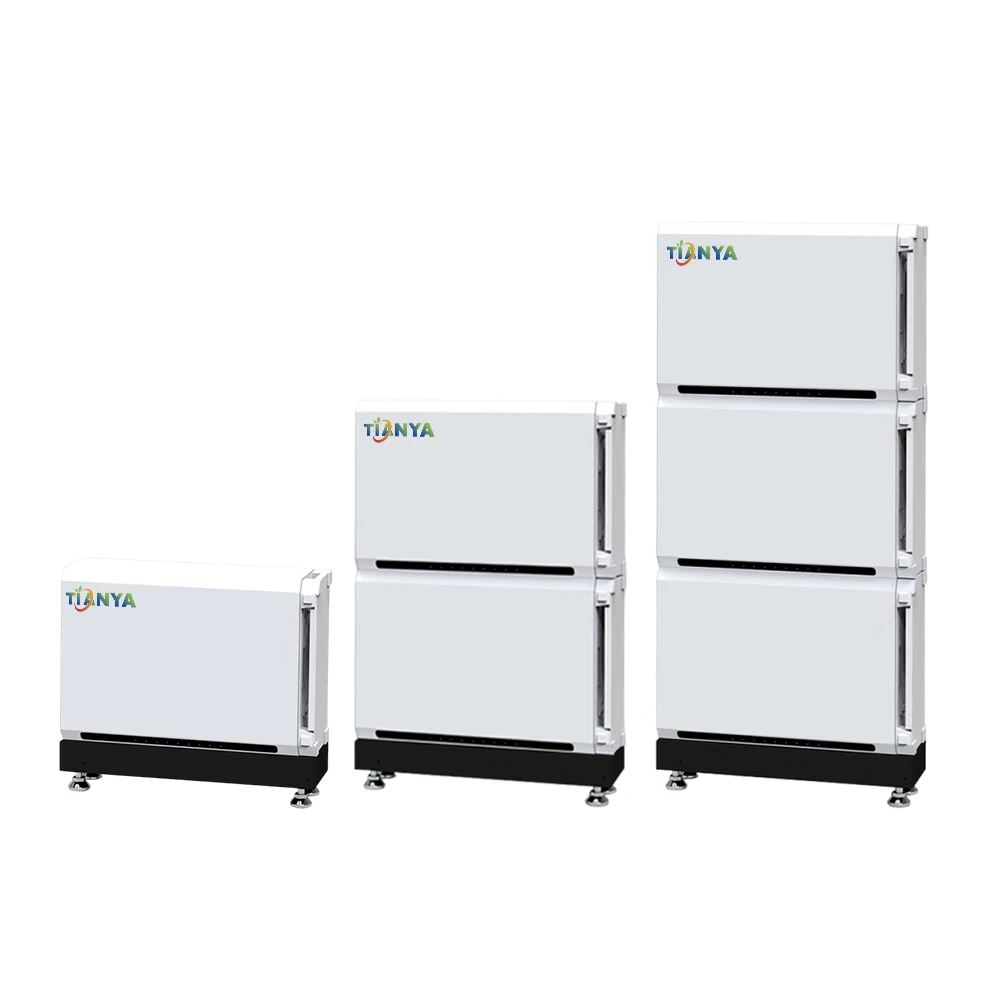

2. Flexible connection and 4 different installation ways by option (Side stackable, flat stackable, rack mounted or wall mounted);
3. Support max. 30pcs in parallel to increase capacity up to 150kWh;
4. Wide compatible with main brand inverters, BMS with multiple communication protocols;
5. Widely applicable to residential, commercial and industrial energy storage systems;
6. With Bluetooth function, battery real-state can be monitored on Phone Bluetooth App;
7. Excellent high temperature and safety performance, with built-in smart BMS to carry on protection;
8. With CE BIS, MSDS, UN38.3 approved, etc.
7. Excellent high temperature and safety performance, with built-in smart BMS to carry on protection;
8. With CE BIS, MSDS, UN38.3 approved, etc.
Battery Characteristics | ||||||||||||
Max. Parallelling Modules | Max. 30pcs, up to 150kWh | |||||||||||
Modular Parameters | ||||||||||||
Battery Type | LiFePO4 | |||||||||||
Battery Model | 51.2V 100Ah | |||||||||||
Nominal Energy | 5120Wh | |||||||||||
Nominal Voltage | 51.2V | |||||||||||
Operating Voltage | 40V -58.4V | |||||||||||
Max. Continuous Charging/Discharging Current | 100A | |||||||||||
Max. Peak Charging/Discharging Current | 150A | |||||||||||
Depth of Discharge | 100% | |||||||||||
Communication Interface | CAN/RS485 | |||||||||||
Bluetooth Function | Yes | |||||||||||
General Specification | ||||||||||||
Dimensions (L*W*H) (mm/inch) | 595*400*181.5mm / 23.43'*15.75'*7.15' | |||||||||||
Weight (kg/lbs) | 47kg / 103.62lbs | |||||||||||
Mounting Method | Wall mounted; Rack mounted; Flat stackable; Side stackable | |||||||||||
Operating Ambient Temperature Range | Charge:0~55ºC / Discharge:-20~65ºC | |||||||||||
Allowable Relative Humidity Range | 0% to 95% | |||||||||||
Cooling Method | Natural convection | |||||||||||
Warranty | 5 years | |||||||||||
FAQ
Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly,
confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on
the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly,
confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on
the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
