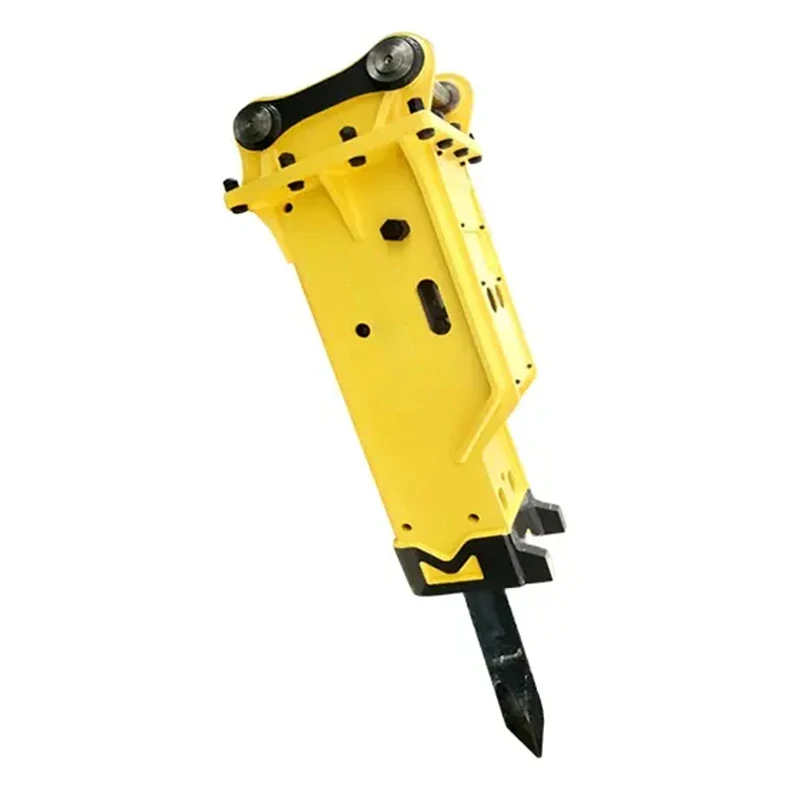

Экс10u EX12 EX15 EX17 EX18 Гидравлический Молот для экскаватора гидравлический молоток sb20 трамбатор разрушения камней
920,00 $
Мини экскаватор 4 Тонный Гидравлический бетонный молоток
- Категория: >>>
- Поставщик: Yantai Jiwei Construction Machinery Equipment Co. LTDYantai LTD
Сохранить в закладки 1601291240529:
Описание и отзывы
Характеристики
Product Description

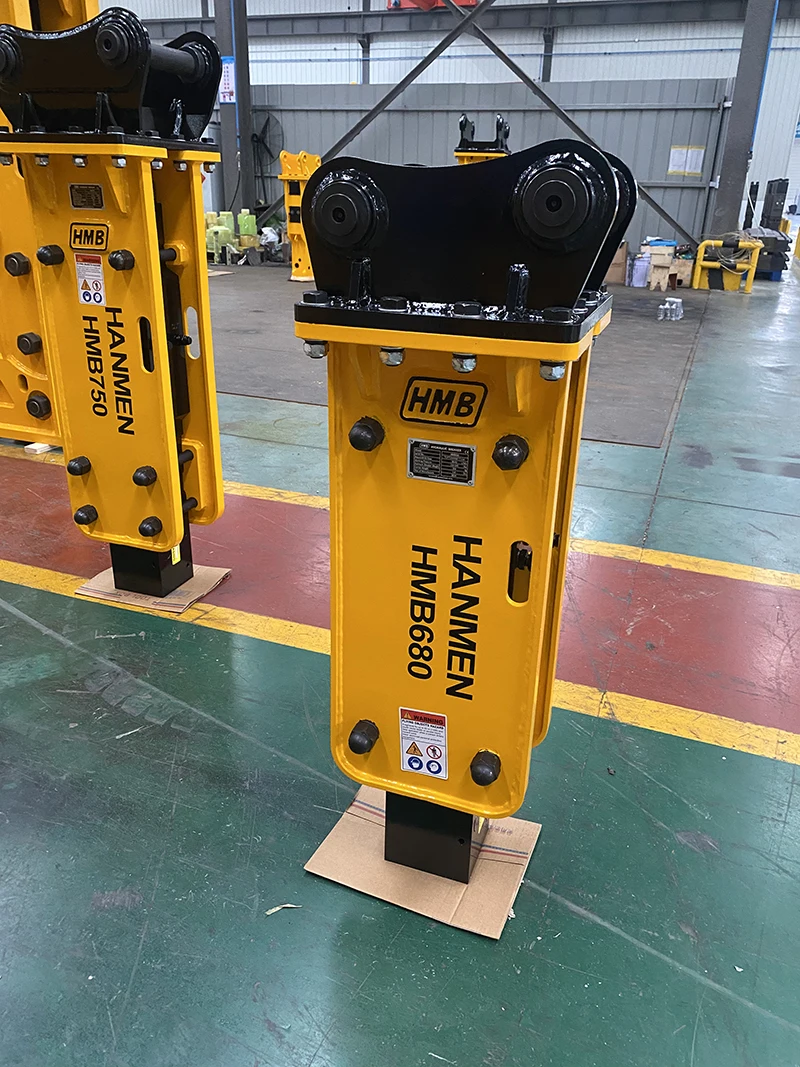

Hydraulic breakers produced by our company mainly include three types: Top Type (Open type), Silenced-box Type and Side Type.
silence hydraulic breaker
1.Reduce noise
2.Protect the enviroment
2.Protect the enviroment
top hydraulic breaker
1.Easy to locate and control
2.More conductive to excavator
3.light weight, the lower risk of broken drill rod
2.More conductive to excavator
3.light weight, the lower risk of broken drill rod

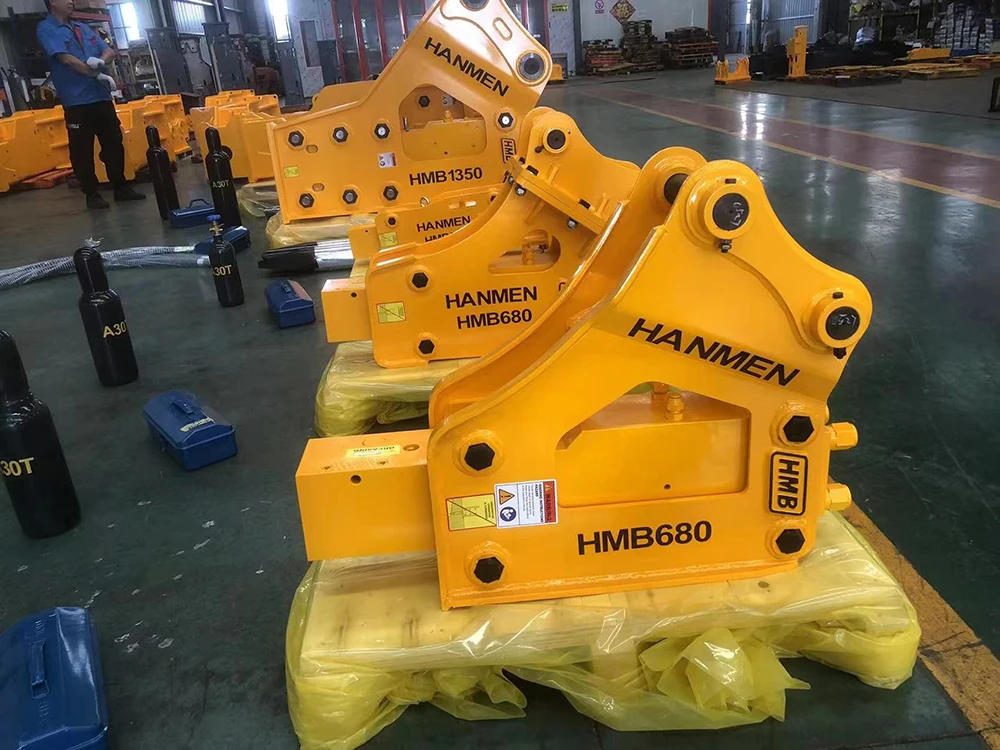

side hydraulic breaker
1.Overall length shorter
2.Hook back objects conveniently
3.Maintenance-free
2.Hook back objects conveniently
3.Maintenance-free
HYDRAULIC BREAKER SPECIFICATIONS | ||||||||||||||||
HMB Model | Operating Weight (kg) | Required Oil Flow (L/Min) | Working Pressure (Bar) | Impact Rate (Bpm) | Chisel Diameter (mm) | Hose Diameter (inch) | Carrier weight (ton) | Valve Ass'y Position (/) | ||||||||
HMB450 | 150 | 20-40 | 90-120 | 700-1200 | 45 | 1/2 | 1.2-3 | Internal | ||||||||
HMB530 | 190 | 25-45 | 90-120 | 500-1100 | 53 | 1/2 | 2.5-3 | Internal | ||||||||
HMB680 | 340 | 36-60 | 110-140 | 500-900 | 68 | 1/2 | 3-7 | Internal | ||||||||
HMB750 | 480 | 50-90 | 120-170 | 400-800 | 75 | 1/2 | 6-9 | Internal | ||||||||
HMB850 | 580 | 45-85 | 127-147 | 400-800 | 75 | 3/4 | 7-14 | Internal | ||||||||
HMB1000 | 950 | 80-120 | 150-170 | 400-650 | 100 | 3/4 | 10-15 | Internal | ||||||||
HMB1350 | 1650 | 130-170 | 160-185 | 400-650 | 135 | 1 | 18-25 | Internal | ||||||||
HMB1400 | 2000 | 150-190 | 165-195 | 400-800 | 140 | 1 | 20-30 | Internal | ||||||||
HMB1550 | 2900 | 150-230 | 170-200 | 400-800 | 155 | 1 | 27-36 | Internal | ||||||||
HMB1650 | 3250 | 200-260 | 180-200 | 250-400 | 165 | 5/4 | 30-45 | Internal | ||||||||
HMB1750 | 4150 | 210-280 | 180-200 | 250-350 | 175 | 5/4 | 40-50 | Internal | ||||||||
HMB1800 | 4200 | 280-350 | 190-210 | 230-320 | 180 | 5/4 | 45-55 | Internal | ||||||||
HMB1900 | 4230 | 280-350 | 190-210 | 230-320 | 190 | 5/4 | 50-60 | Internal | ||||||||
WHY CHOOSE US ?
1. Selected raw material – high quality heavy duty wear resistant steel.
2. over 13 years experience
3. High-quality and durable wear parts.
4. Advanced manufacturing facilities, introduced from South Korea.
5. High energy and impact frequency (high performance).
6 Low maintenance, less breakdown, long using life.
1. Selected raw material – high quality heavy duty wear resistant steel.
2. over 13 years experience
3. High-quality and durable wear parts.
4. Advanced manufacturing facilities, introduced from South Korea.
5. High energy and impact frequency (high performance).
6 Low maintenance, less breakdown, long using life.
8. Suitable For FRUKAWA; SOOSAN; HANWOO; MSB; OKADA; DAEMO; ATLAS COPCO;MTB;TEISAKU; BLTB; KOMAC; EDT
if you buy HMB hydraulic breaker,you will get free spare parts including:
Main Features:
1.Cylinder & valves: prevents scuffing with precision finishing treatment.
2.Piston: every piston tolerance machined perfectly according to each cylinder.
3.Chisel: 42CrMo, exceptional performance and reliability;
4.Seal kit: original NOK
1.Cylinder & valves: prevents scuffing with precision finishing treatment.
2.Piston: every piston tolerance machined perfectly according to each cylinder.
3.Chisel: 42CrMo, exceptional performance and reliability;
4.Seal kit: original NOK

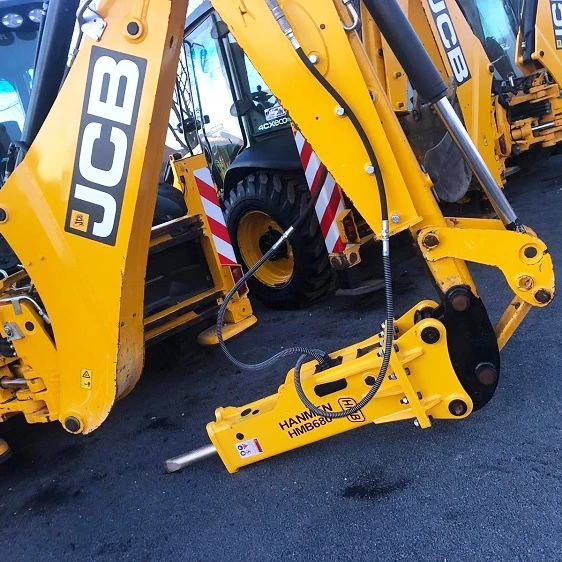

Product Application
Company Introduction
Located in Yantai, Shandong province, established in 2009, Yantai Jiwei Construction Machinery Equipment Co.,Ltd registered HMB Brand in 2011. We started to develop oversea market in 2013.With 12 years experience, specialized in manufacturing Hydraulic Breakers, Quick Couplers, Excavator Palte Compactors, Earth Augers and Spare Parts. Our own brand "HMB" hydraulic breakers have full series and are compatible to all brands' excavators.
Exhibition Show

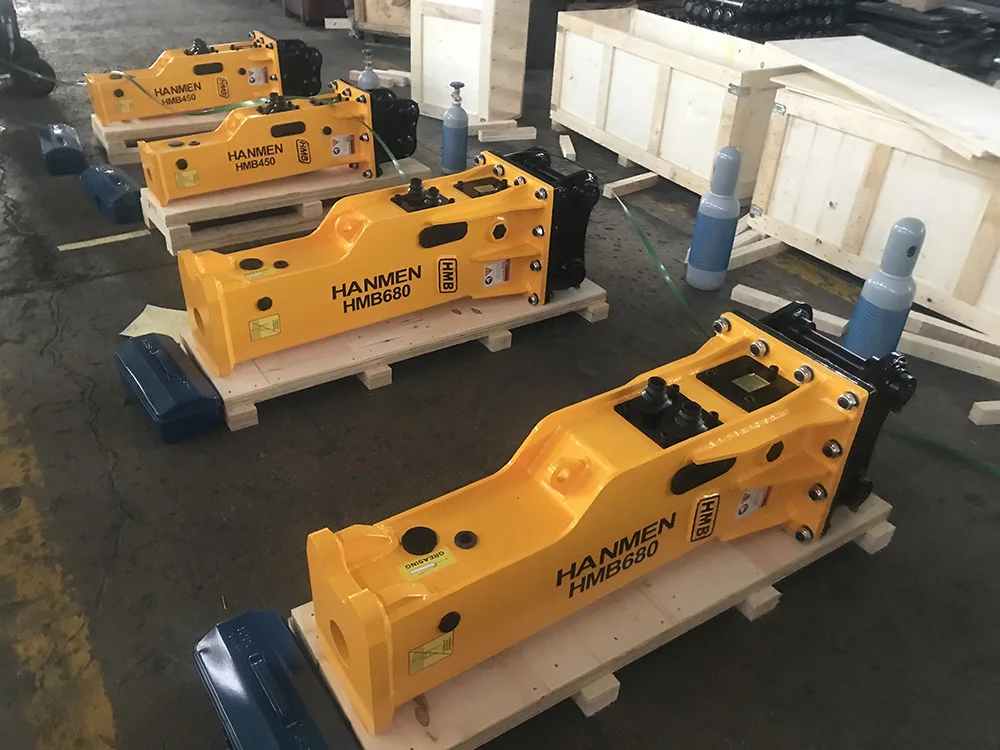

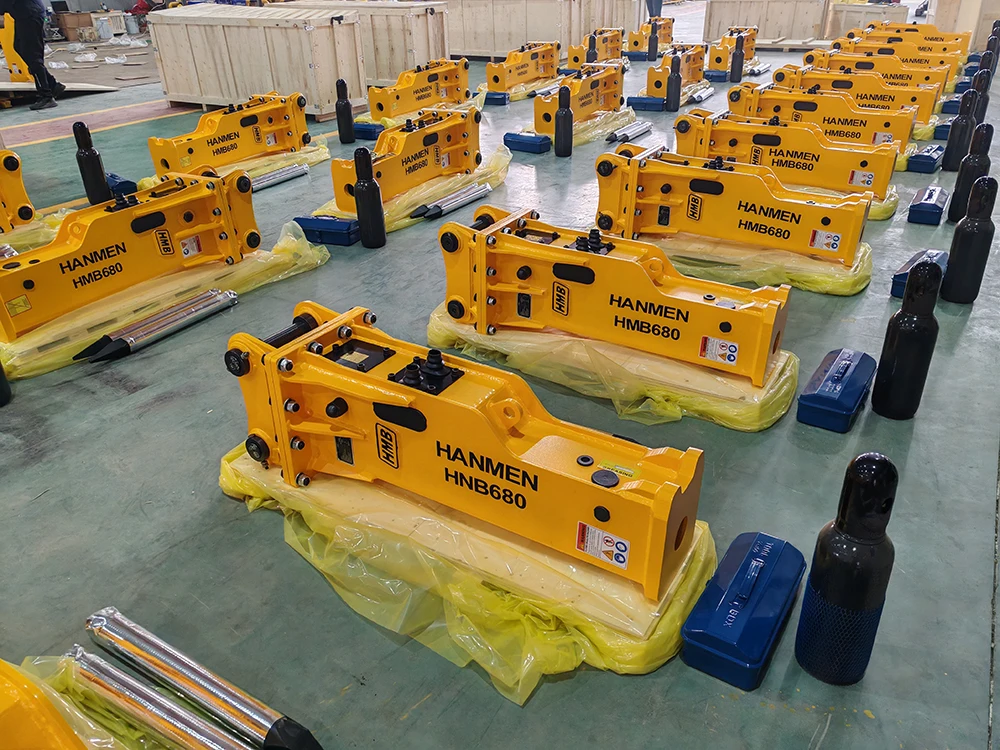

Packing&Shipping
Plastic cloth, Tensile membranes, Packing tape, Steel Belt and Wooden box contribute a wonderful packing procedure. With Plastic and tensile membranes, can prevent breaker rusting when sailing on the sea for long time. Packing tape , steel belt and outside wooden box can protect breakers free from collision.
FQA
Q: Are you a manufacturer?
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
