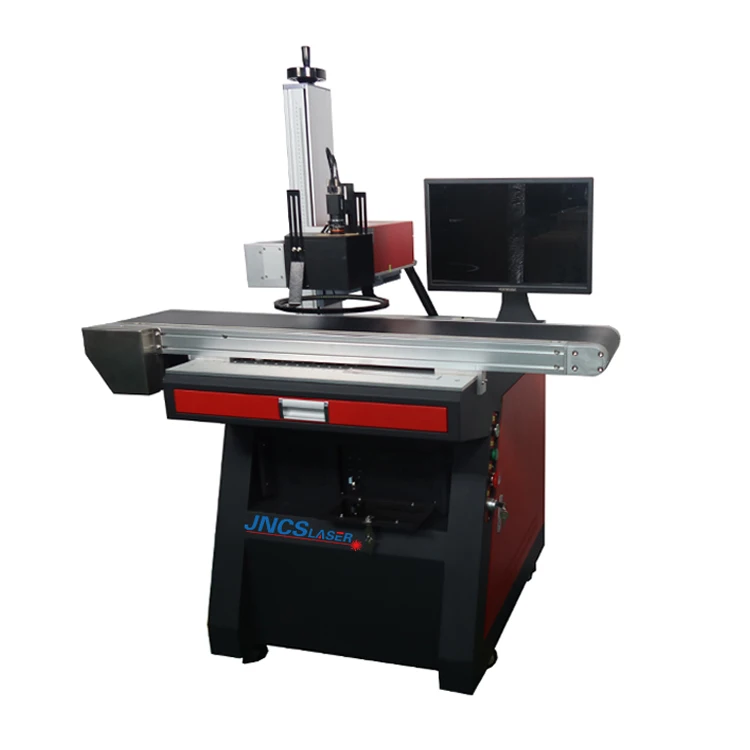

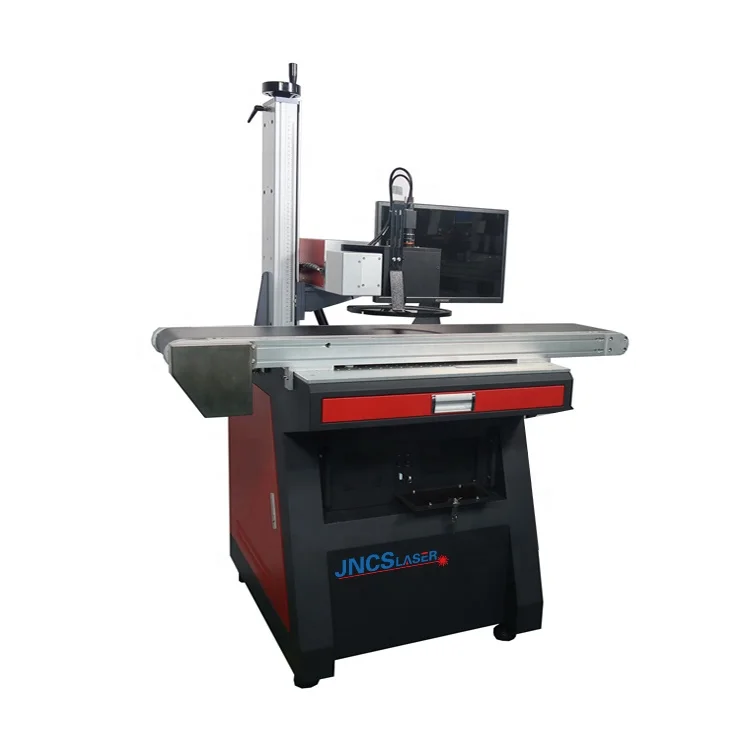

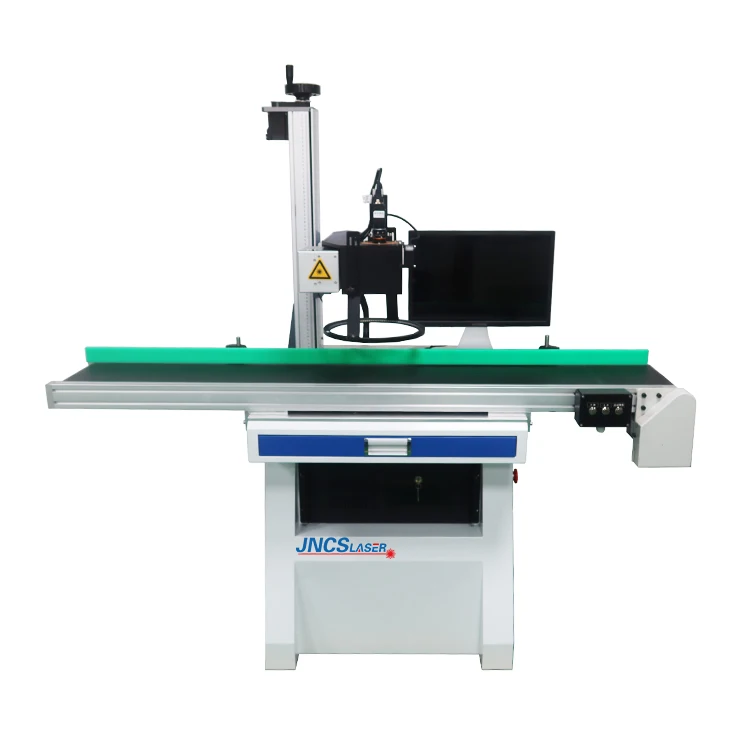

Высокоточная камера видения позиционирования CCD 30 Вт волоконно лазерная маркировочная машина
- Категория: >>>
- Поставщик: Jinan Consure Electronic Technology Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601291241757:
Описание и отзывы
Характеристики
Products Description
Machine Desciption
Fiber laser marking machine designed to easy-move equipment, air-cooling, compact machine, Perfect output beam quality, high reliability, no consumables, maintenance-free. Long life Working. Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed, without distortion.
Main Feature
1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4.Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4.Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
Technical Parameters
Type specification | CS-F20 CS-F30 CS-F50 |
Wave length of laser | 1064nm |
Laser repetition frequency | 20kHz~100kHz |
Laser power | 20W 30W 50W |
Marking scope | 70*70mm 110*110 mm 150*150mm 175*175mm 200*200mm 250*250mm 300*300mm optional |
Laser sources | Fiber module |
Laser Head | Scanning head |
The minimum focus facula diameter | 20μm |
Minimal character | 0.01mm |
Marking speed | ≤7000mm/s |
Repeated accuracy | 0.0025mm |
Cooling ways | Force-air Cooling |
Power supply | 220V/ 50Hz/2kVA |
Process Material | All kinds of metal and part of Non-metal Materials |
Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
Package | Standard Crate for export |
Package Size and Gross Weight | 0.91X0.93X1.57M 150KG |
Machine Optional Parts
Rotary clamp
Diameter: 80mm
Rotary clamp for ring
Diameter: 50mm
2D Working Table
It can be moved left and right,
Front and back.
Front and back.
Smoke Purifier
Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials
Flat rotate table for marking pen
It can be put 24 pcs pens.
Cutting Fixture
It is used for fixing metal sheet when cutting. It will be choosed by 50w 100w big power machine.
The wheel rotary clamp
It is suitable for 5-120mm diamater cylinder.
It can bear within 20Kg cylinder.
It can bear within 20Kg cylinder.
Industry Application
Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, Medical Instruments etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, Gold Silver Brass Jewelry etc.
Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, Medical Instruments etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, Gold Silver Brass Jewelry etc.
Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Marking Materials
Fiber laser marking machine could work perfectly for most metal materials. Such as Gold Silver Brass Jewelry, Aluminium, Stainless Steel, Iron Copperetc. And some plastic materials, such as ABS.
Especially 50w and 100w laser marking machine could cut small gold silver brass jewelry within 1mm.
Especially 50w and 100w laser marking machine could cut small gold silver brass jewelry within 1mm.

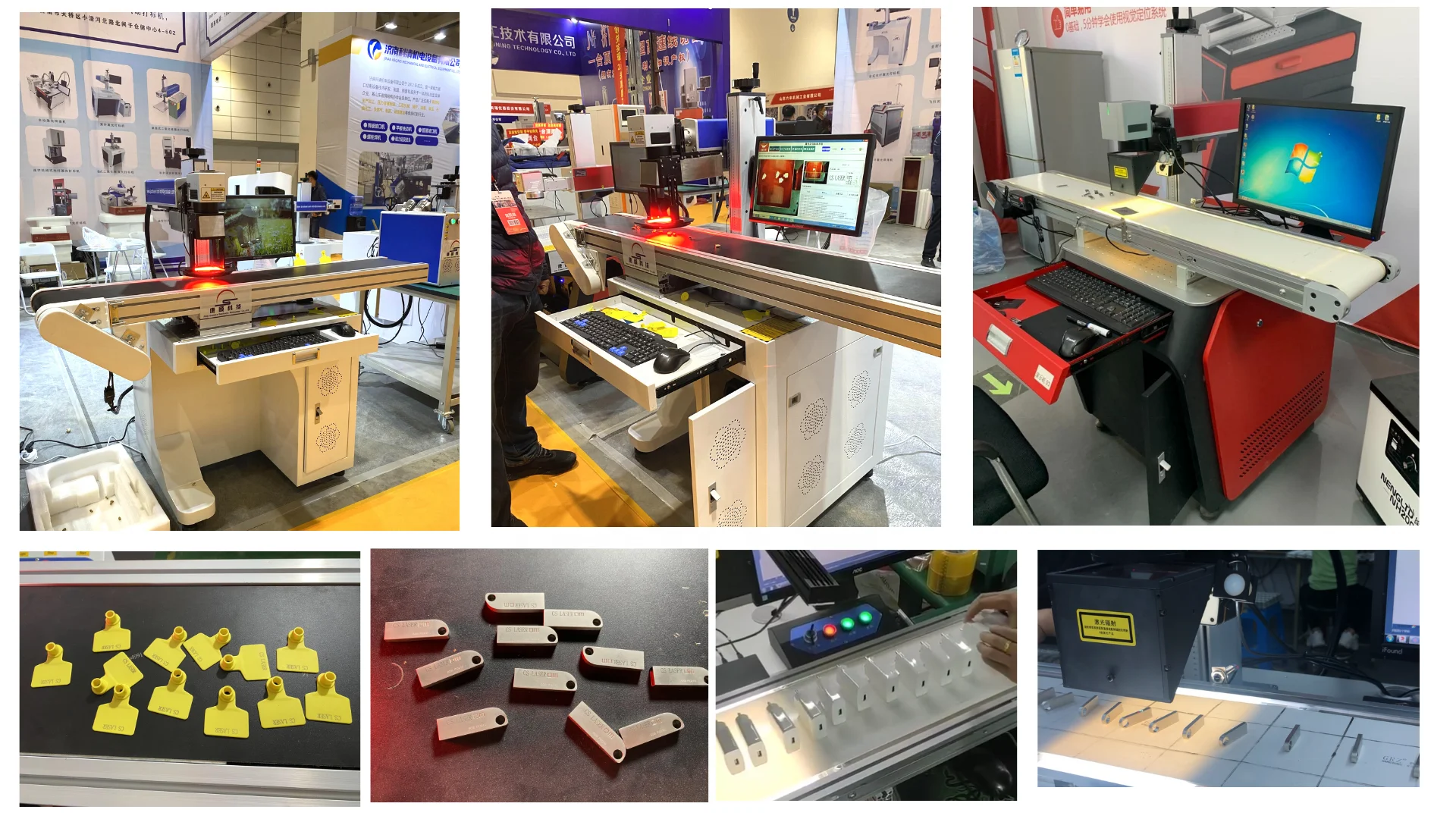

Sample Show
More Products
Our Company
Packing&Payment
FAQ
