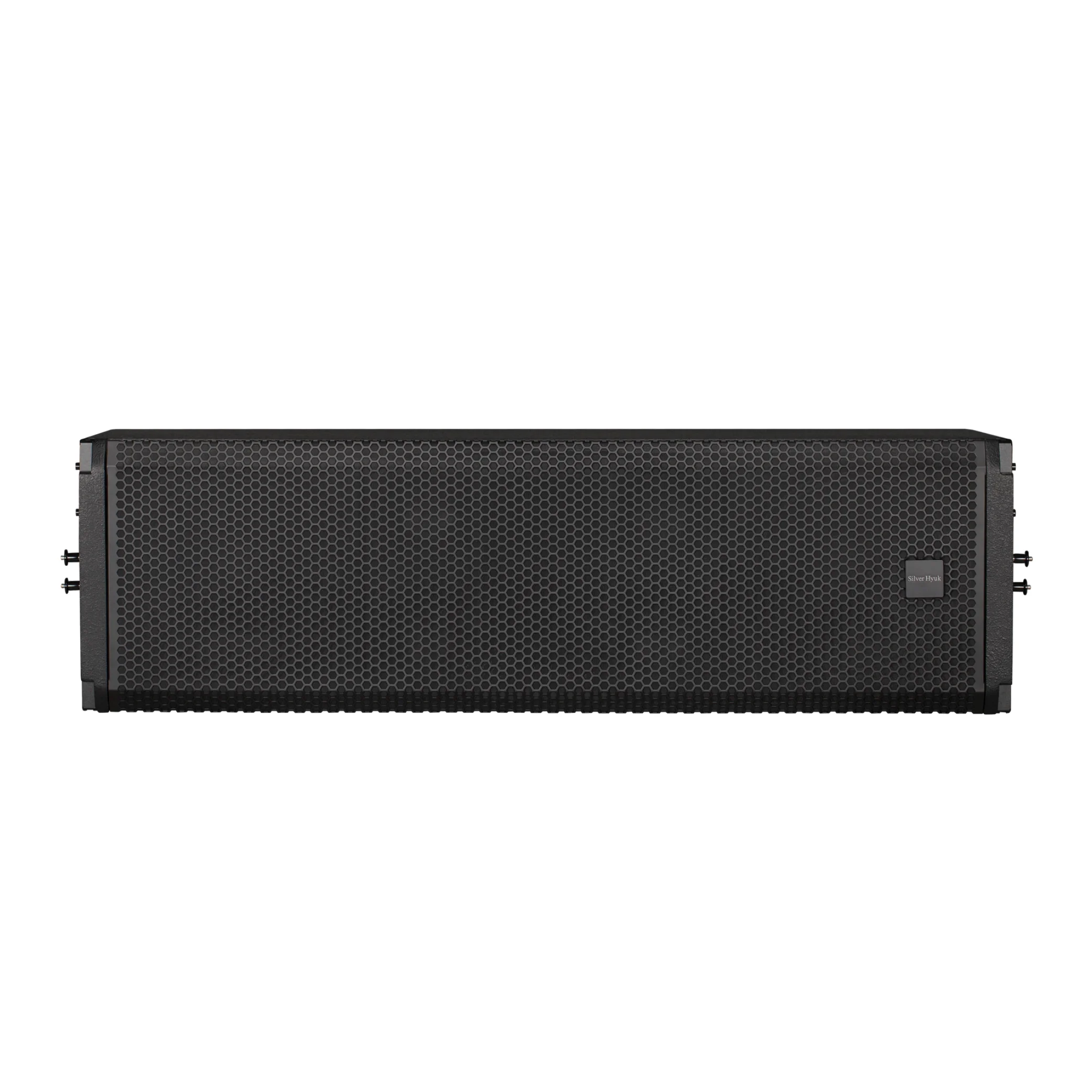

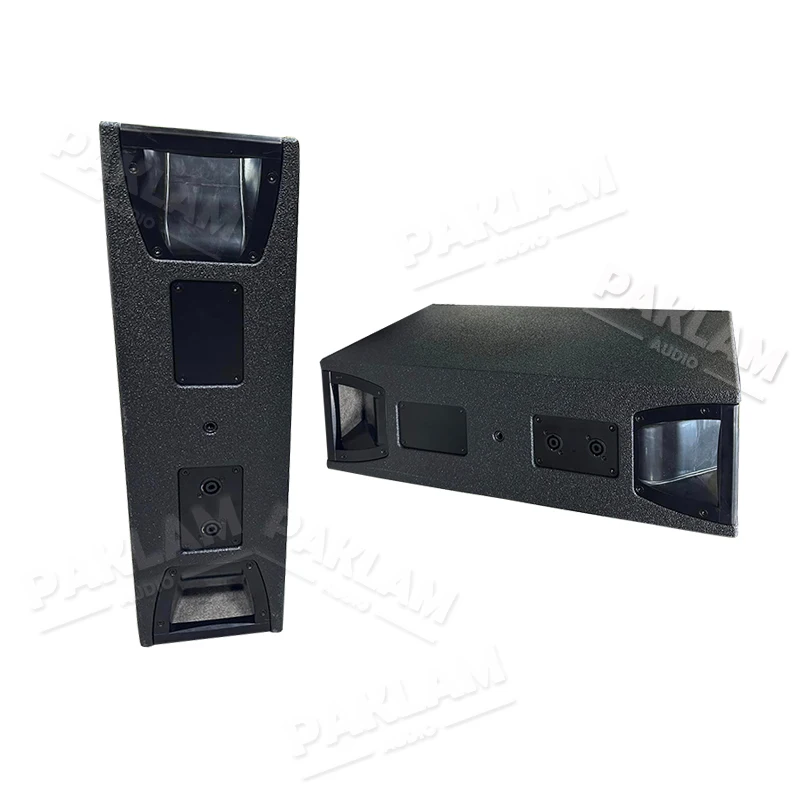

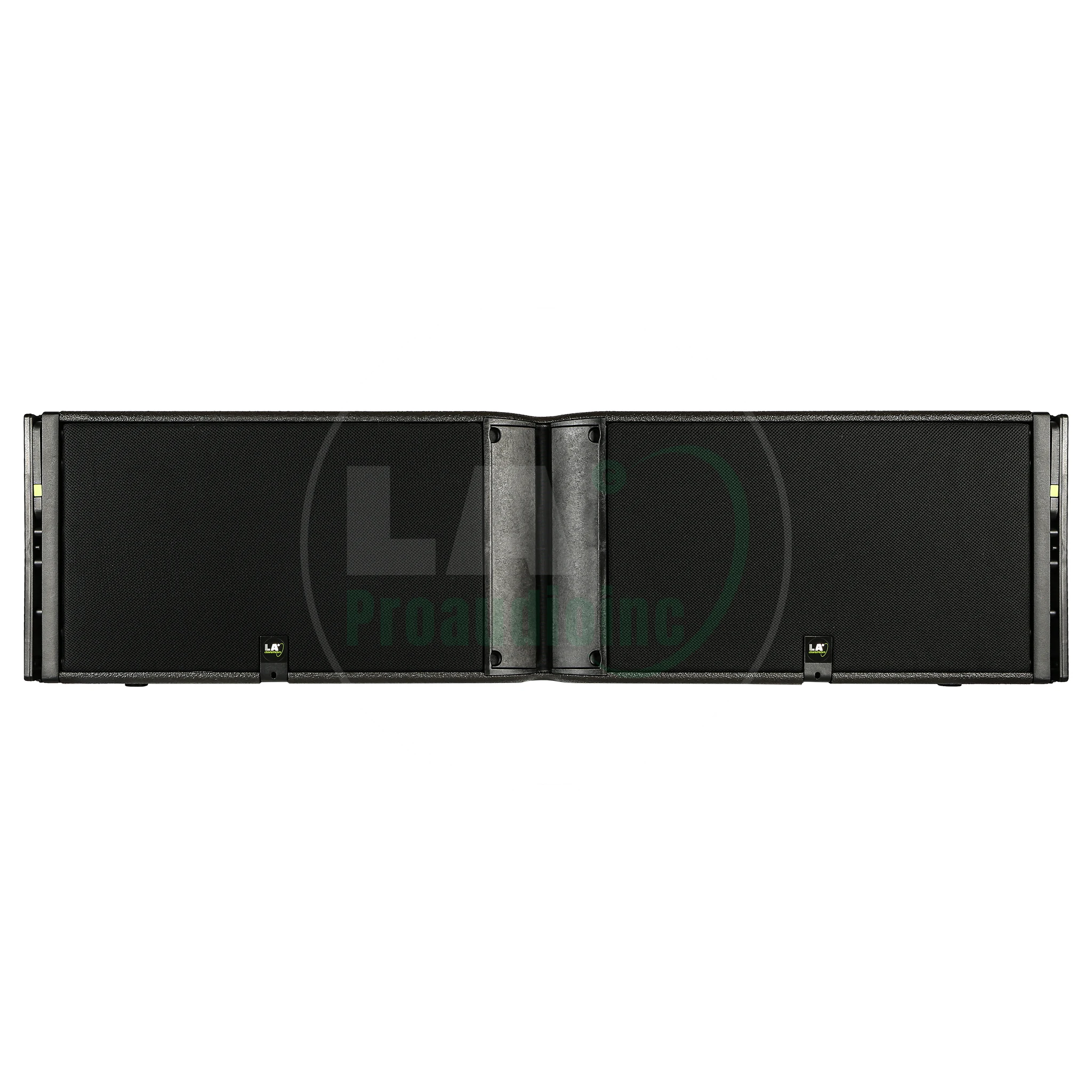

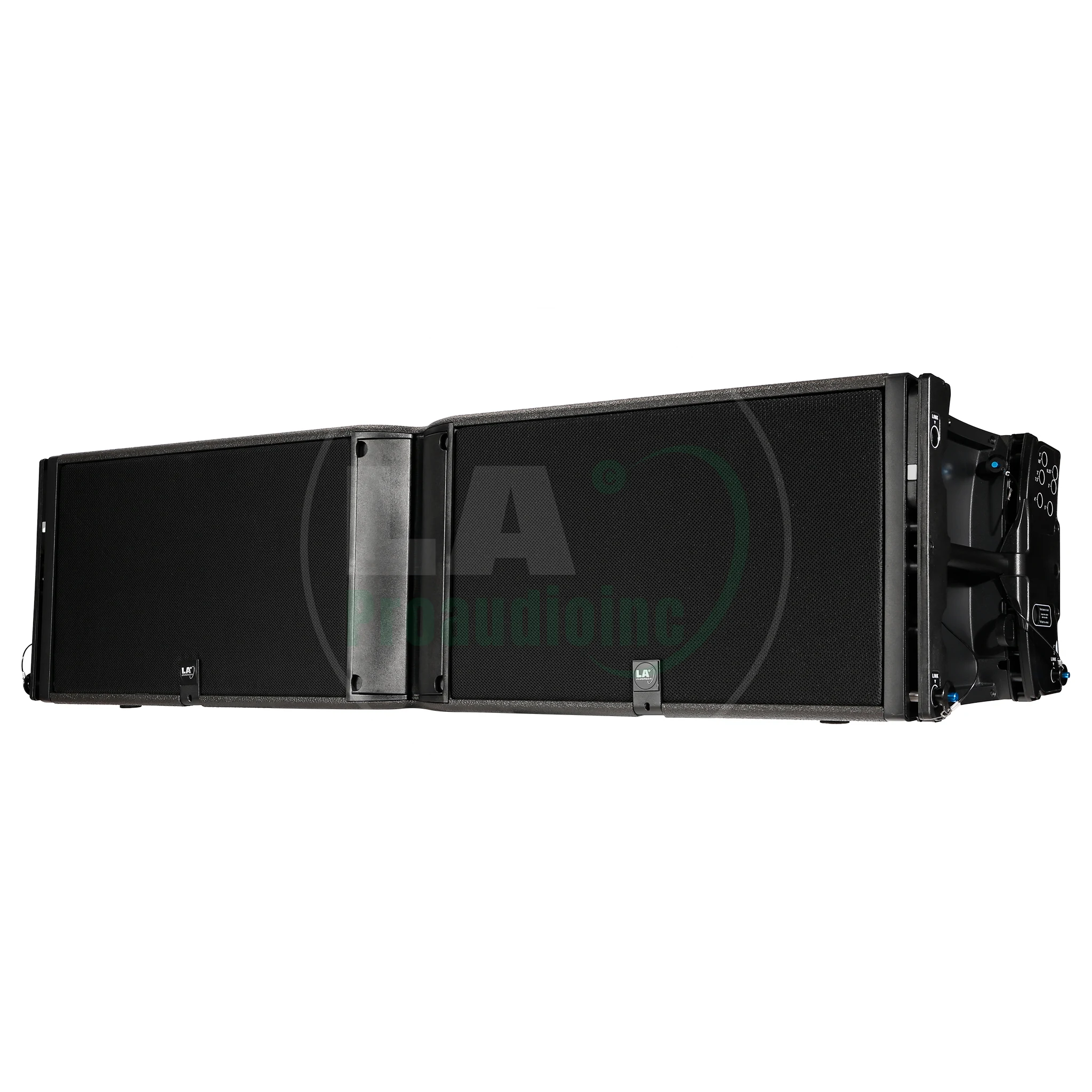

LA K2 линейная система динамиков легкий вес 3 сторонний активный двойной 12 дюймовый

Сохранить в закладки 1601291550962:


Цена:197 969,80 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

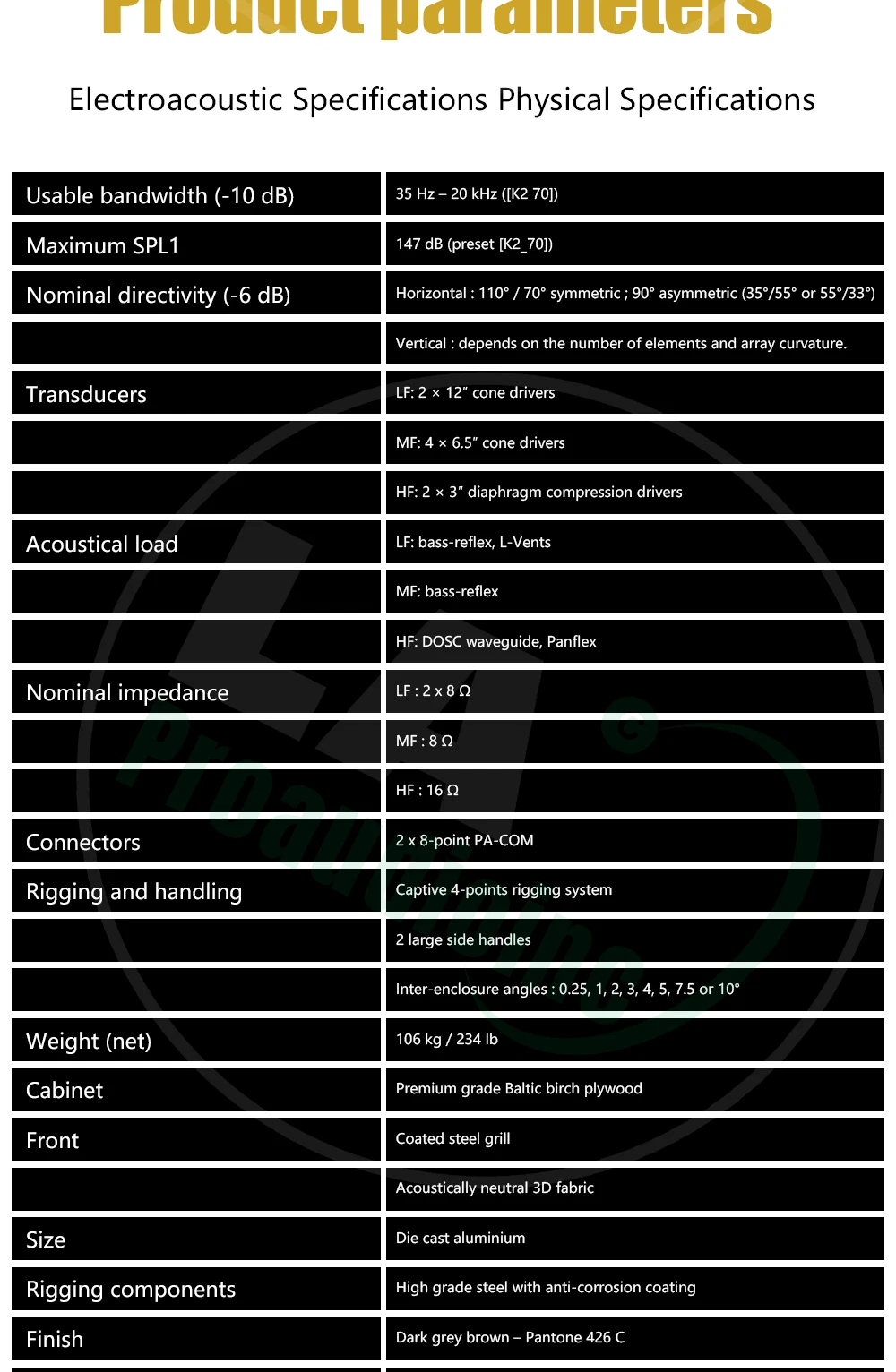

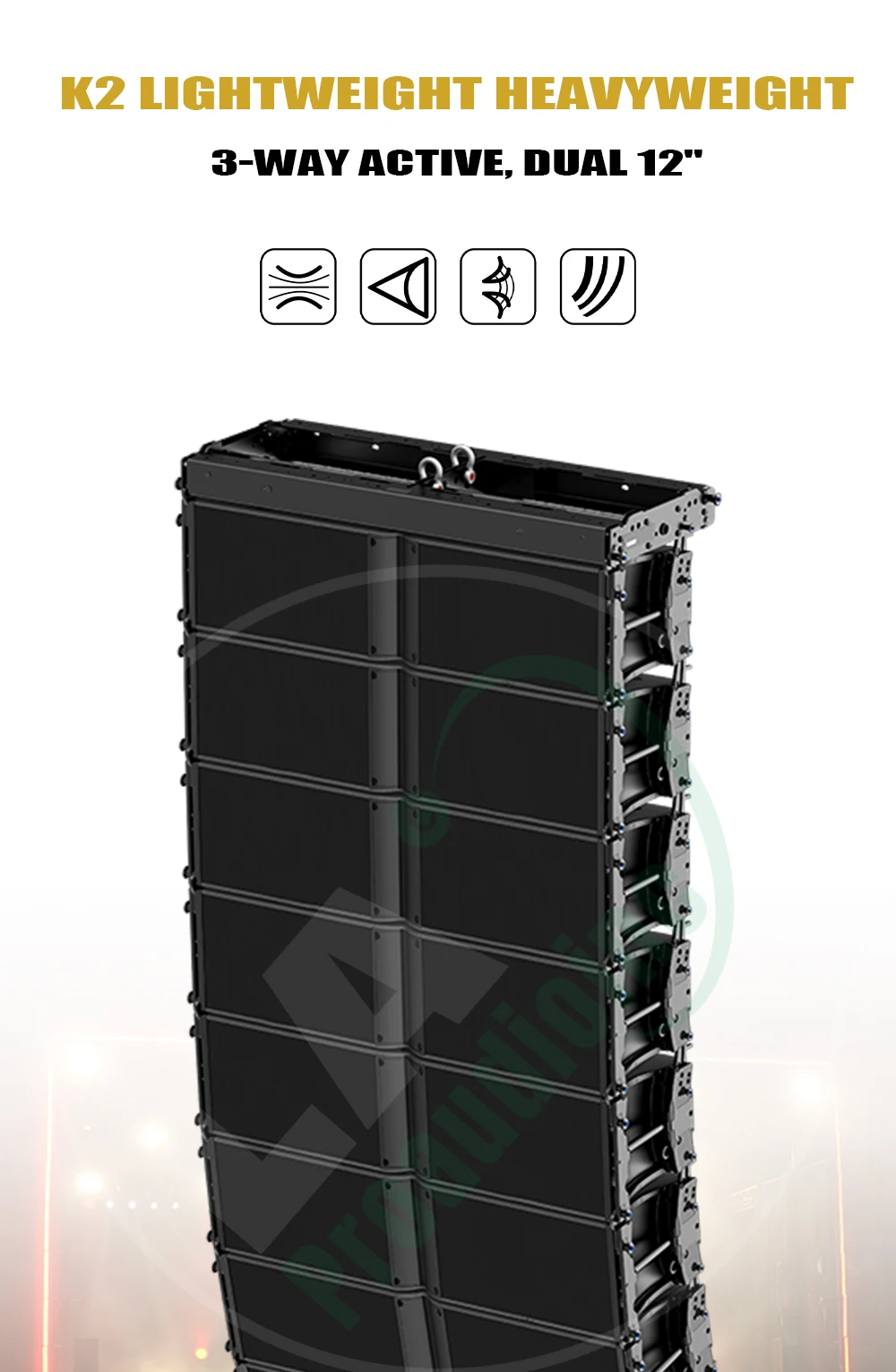

LA-K2 Lightweight heavyweight 3-way active, dual 12"
quad-amplified by LA4X / LA12X
Usable bandwidth (-10 dB) 35 Hz – 20 kHz ([K2 70])
Maximum SPL1 147 dB (preset [K2_70])
Nominal directivity (-6 dB) Horizontal : 110° / 70° symmetric ; 90° asymmetric (35°/55° or 55°/33°)
Vertical : depends on the number of elements and array curvature.

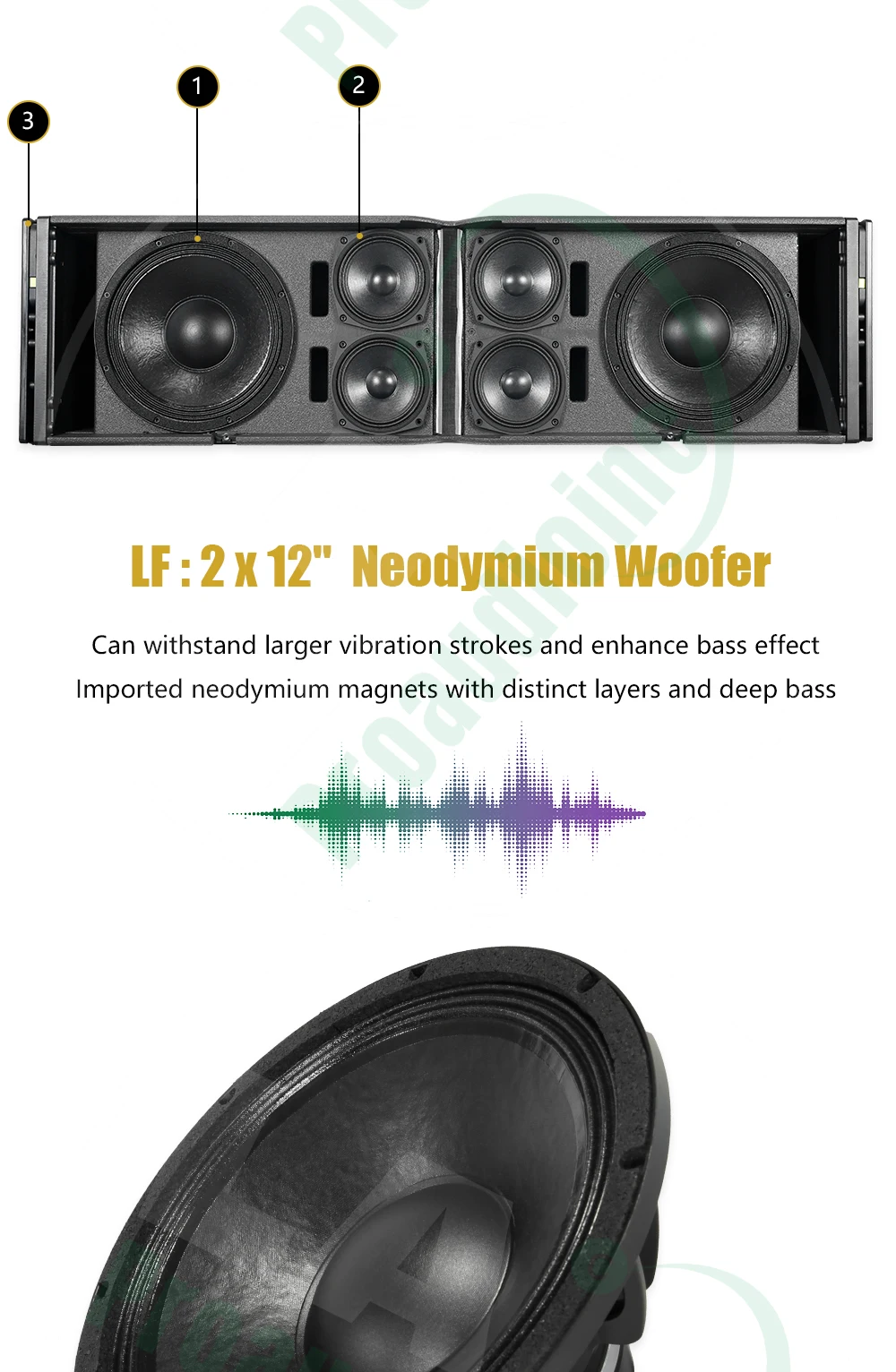

Transducers LF: 2 × 12″ cone drivers

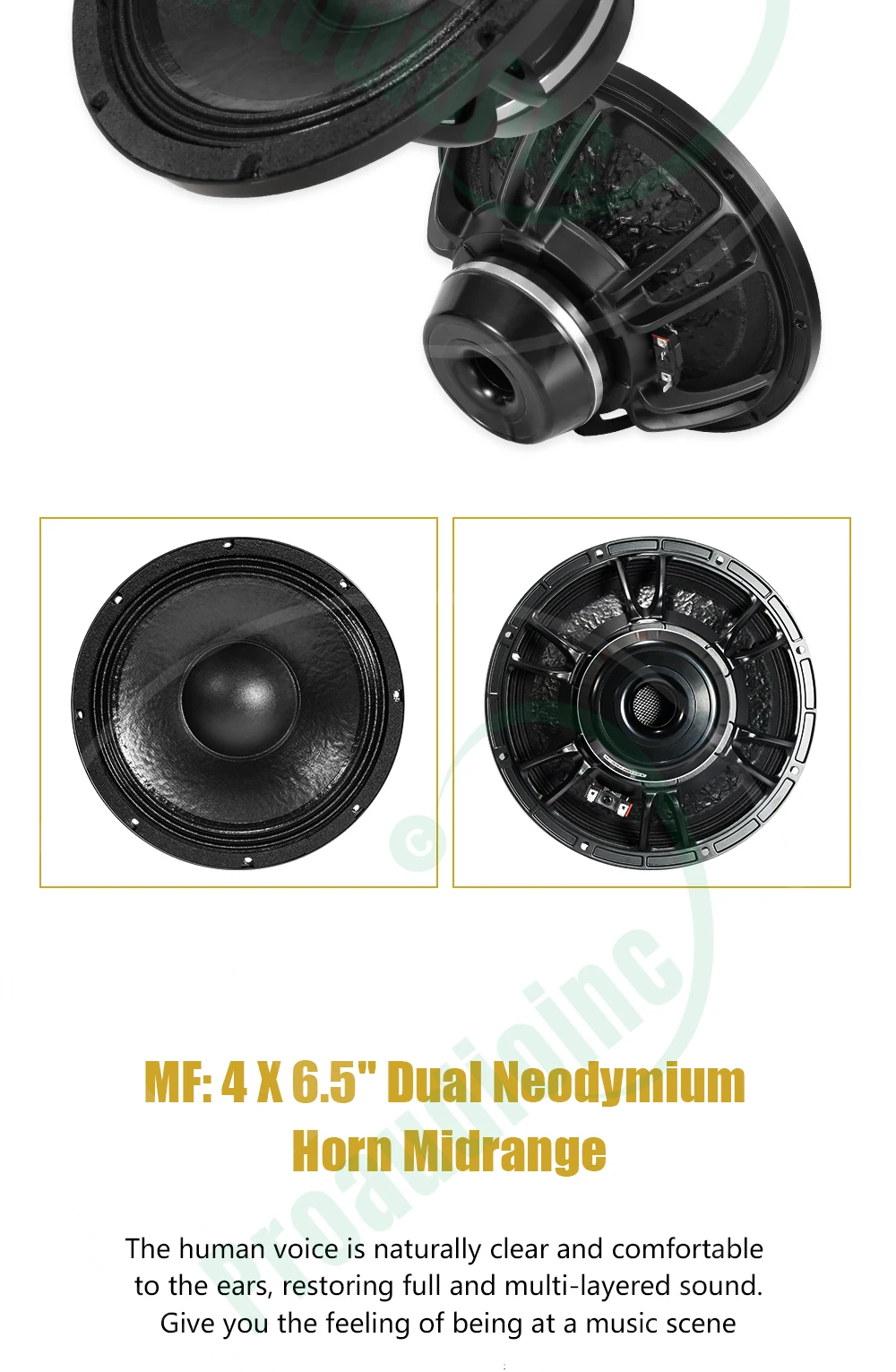

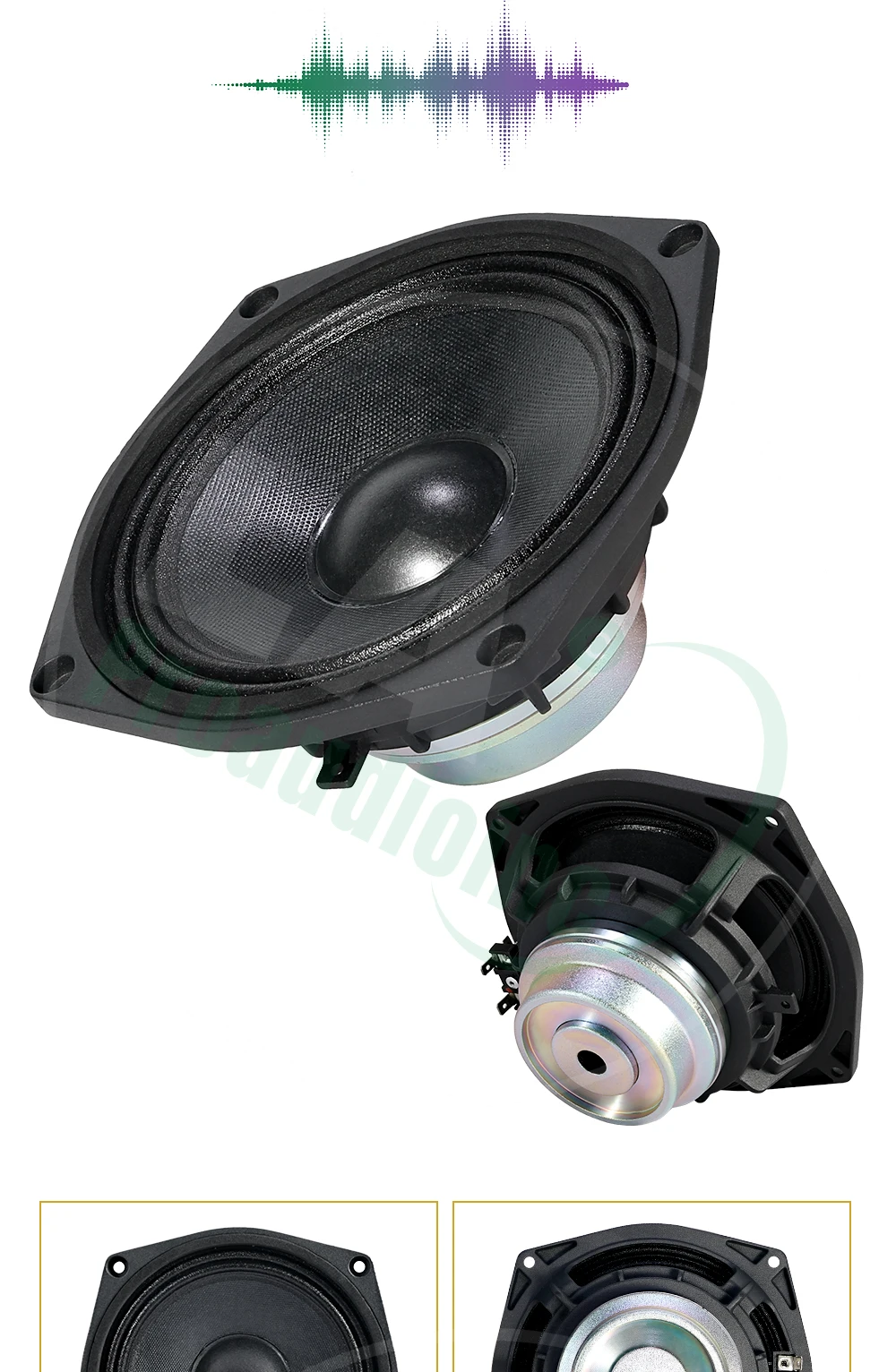

MF: 4 × 6.5″ cone drivers

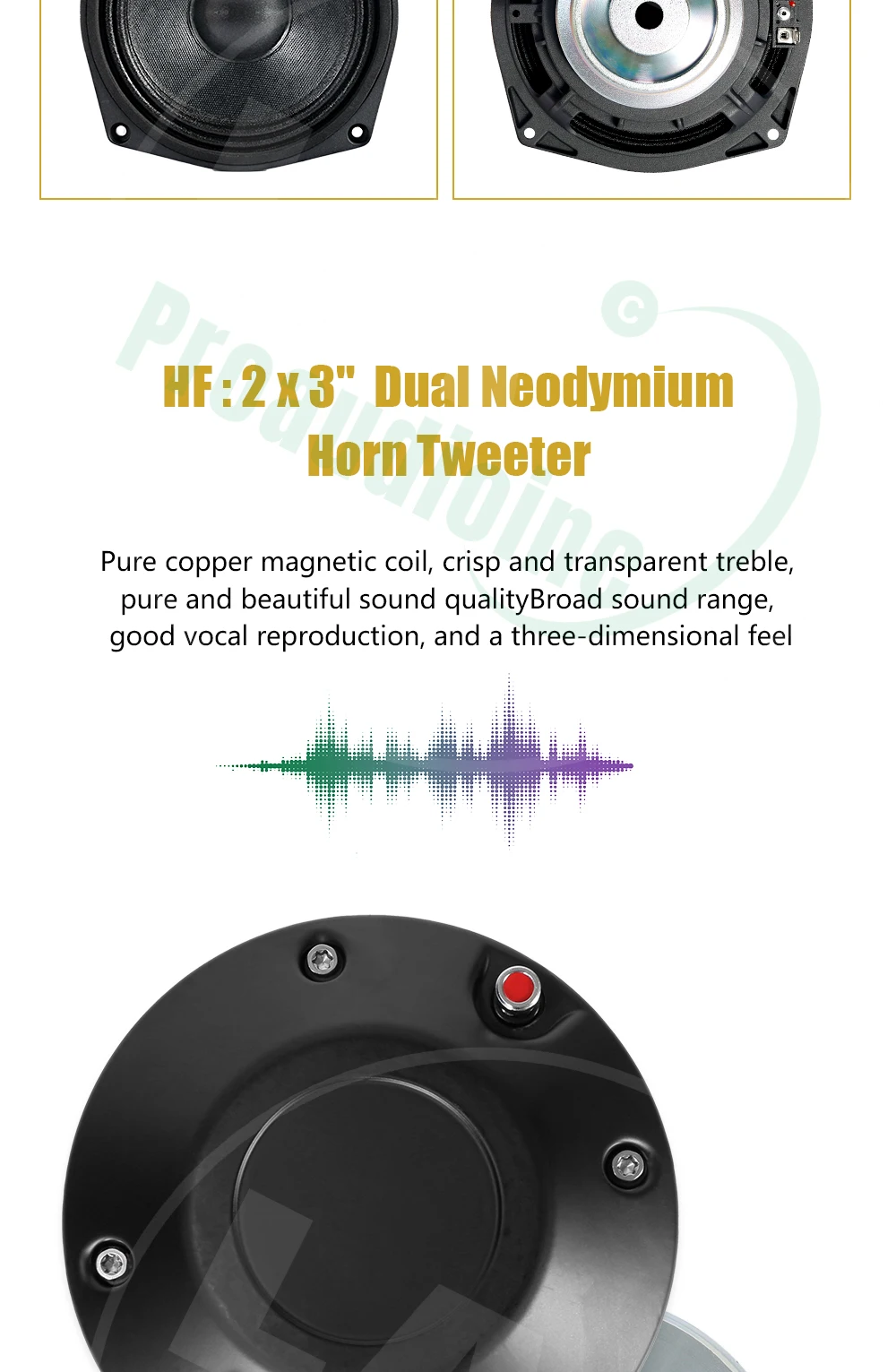

HF: 2 × 3″ diaphragm compression drivers
Acoustical load LF: bass-reflex, L-Vents
MF: bass-reflex
HF: DOSC waveguide, Panflex
Nominal impedance LF : 2 x 8Ω
MF : 8Ω
HF : 16Ω
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs

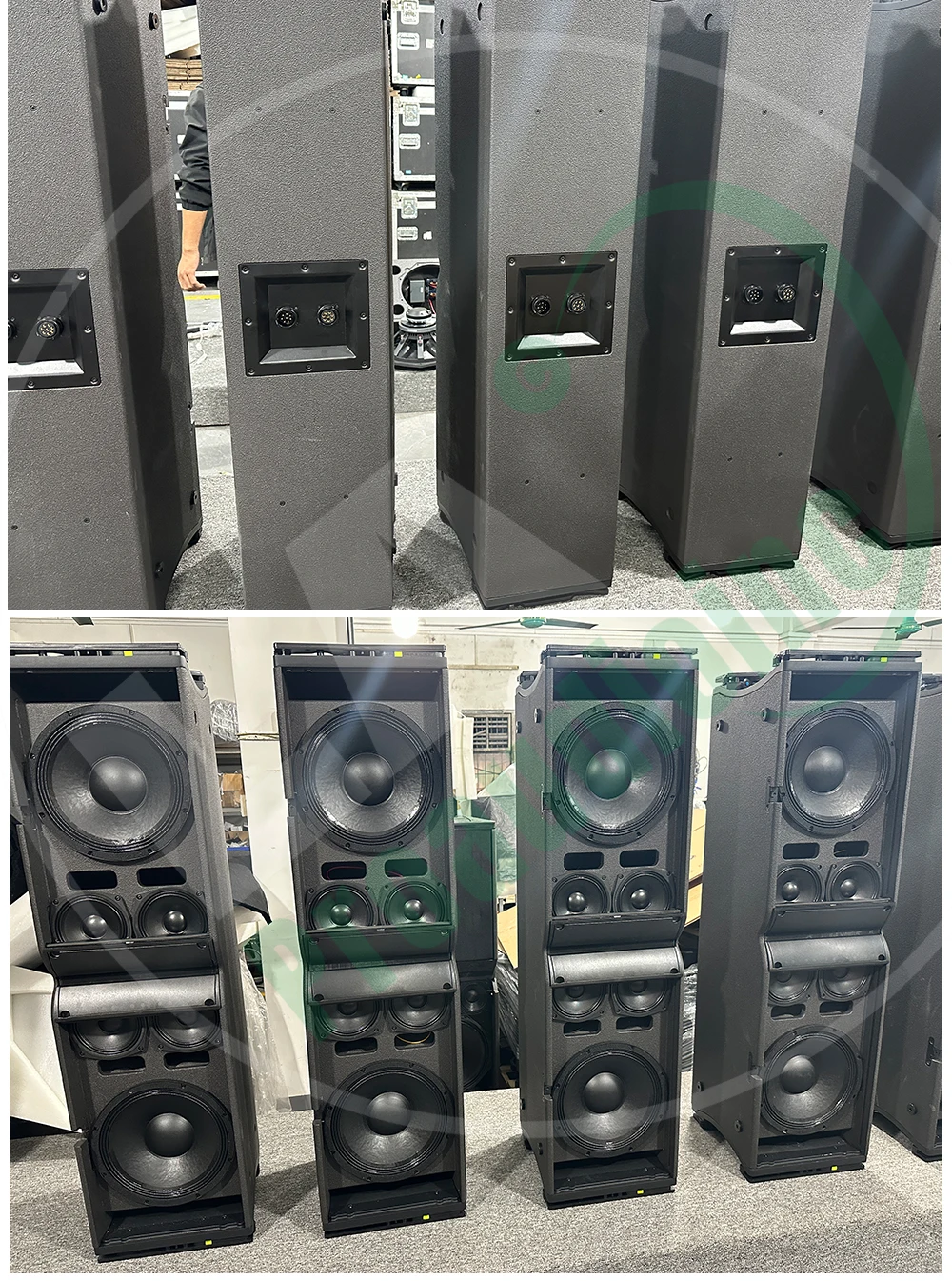

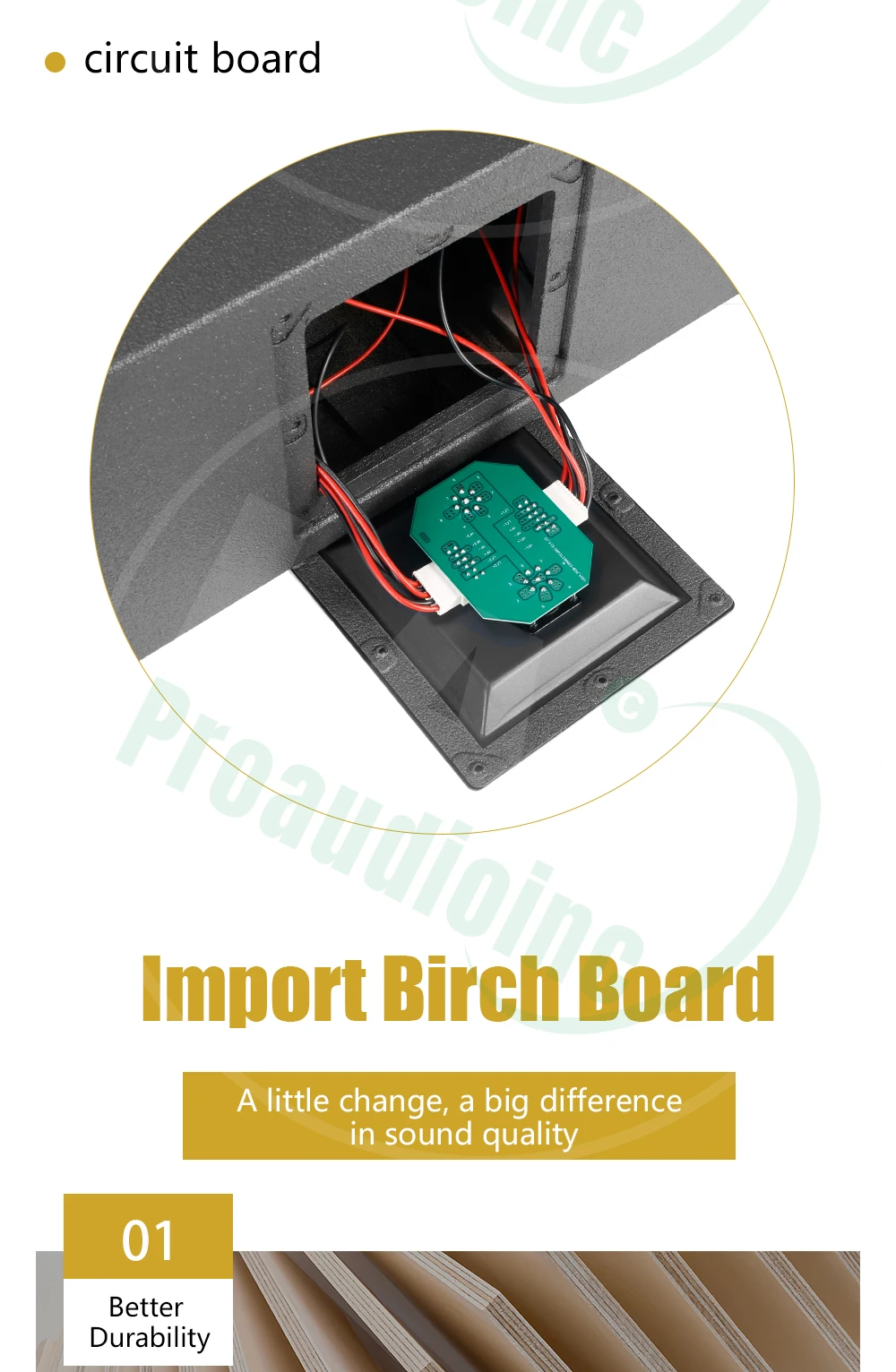

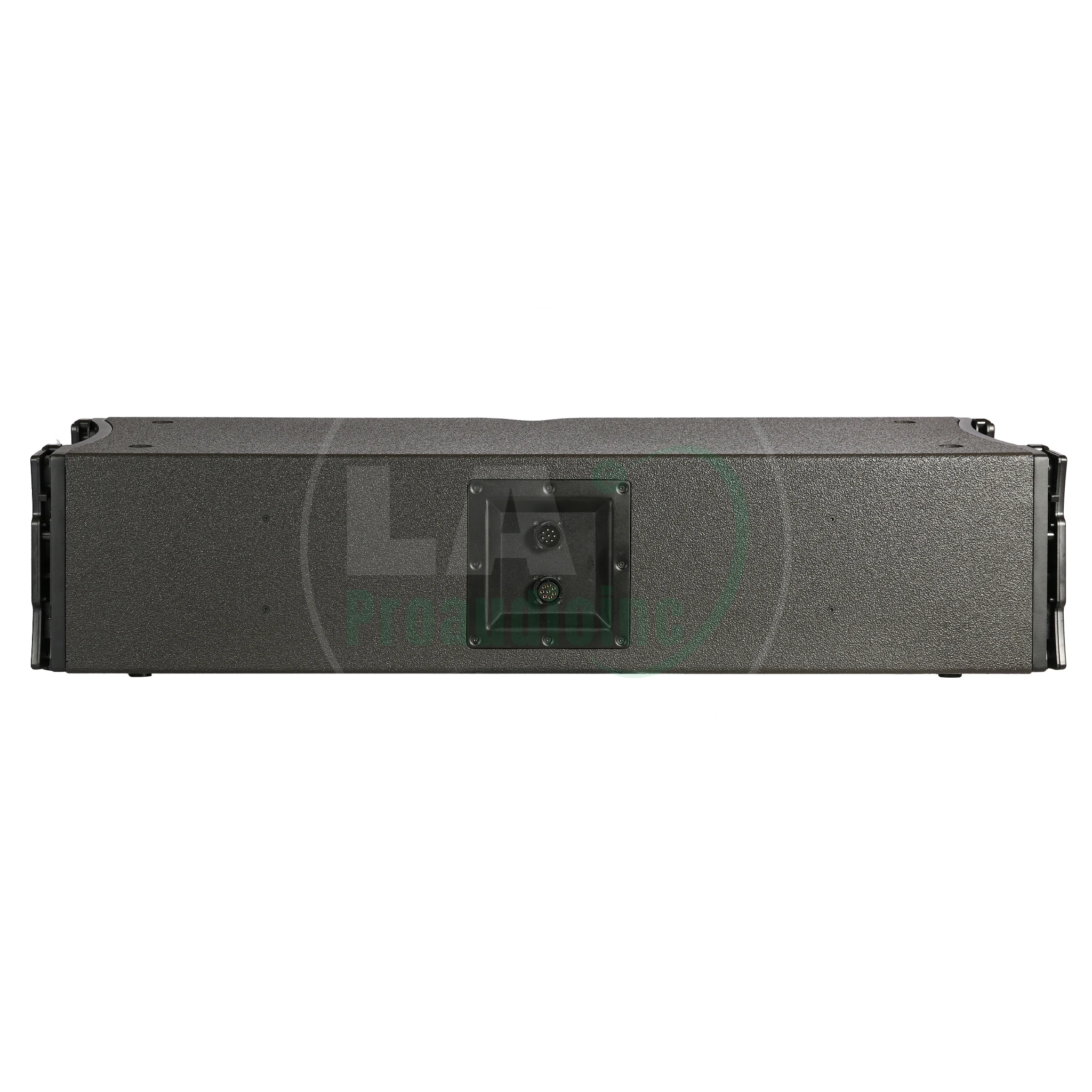

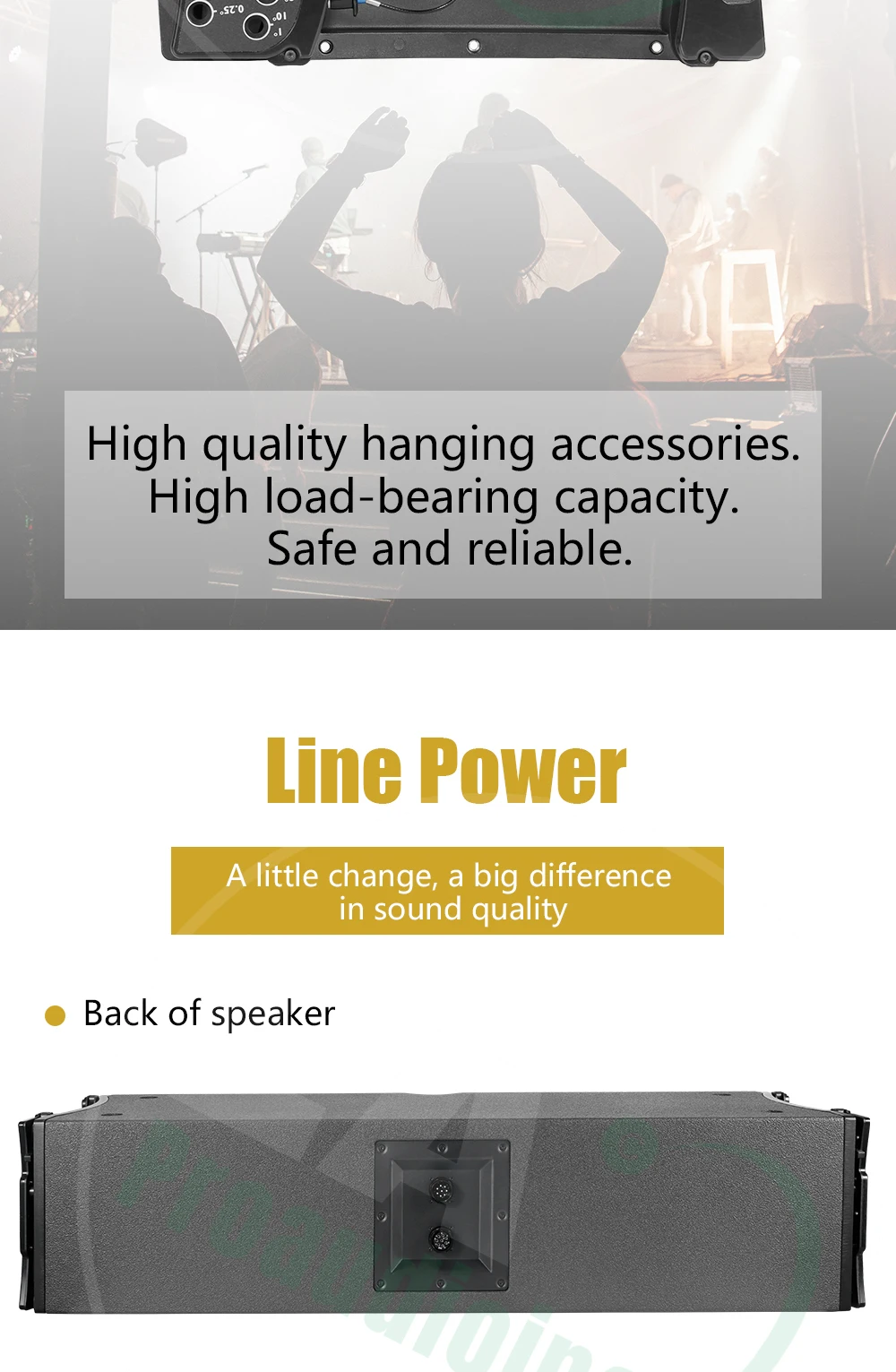

Connectors 2 x 8-point PA-COM

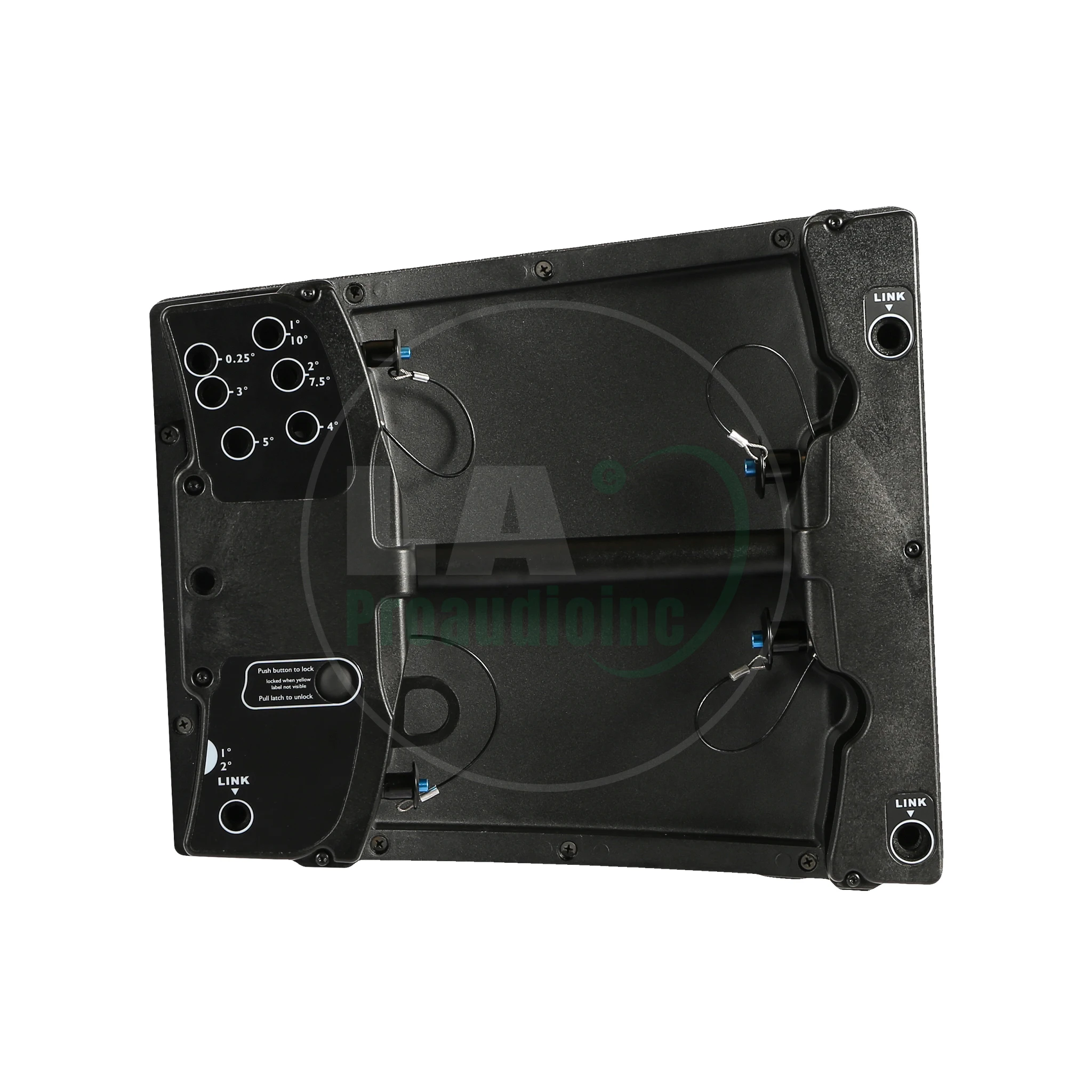

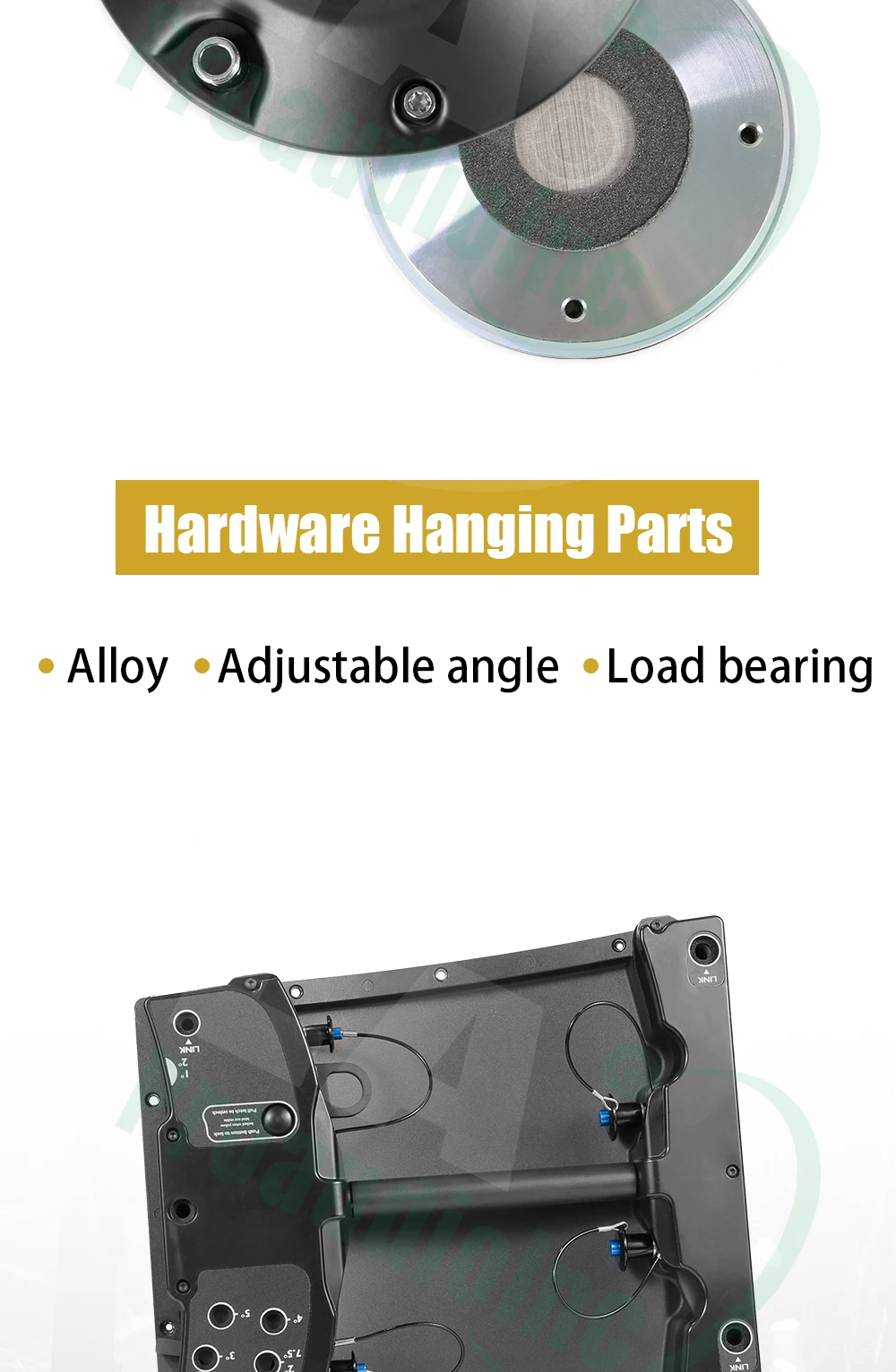

Rigging and handling Captive 4-points rigging system
2 large side handles
Inter-enclosure angles : 0.25, 1, 2, 3, 4, 5, 7.5 or 10°
Weight (net) 56 kg / 123 lb
Cabinet Premium grade Baltic birch plywood
Front Coated steel grill
Acoustically neutral 3D fabric
Side Die cast aluminium
Rigging components High grade steel with anti-corrosion coating
Finish Dark grey brown – Pantone 426 C
IP IP55
Electroacoustic specs
3-way active full-range WST® enclosure
quad-amplified by LA4X / LA8 / LA12X
Usable bandwidth (-10 dB) 35 Hz – 20 kHz ([K2 70])
Maximum SPL1 147 dB (preset [K2_70])
Nominal directivity (-6 dB) Horizontal : 110° / 70° symmetric ; 90° asymmetric (35°/55° or 55°/33°)
Vertical : depends on the number of elements and array curvature.
Transducers LF: 2 × 12″ cone drivers
MF: 4 × 6.5″ cone drivers
HF: 2 × 3″ diaphragm compression drivers
Acoustical load LF: bass-reflex, L-Vents
MF: bass-reflex
HF: DOSC waveguide, Panflex
Nominal impedance LF : 2 x 8Ω
MF : 8Ω
HF : 16Ω
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
Connectors 2 x 8-point PA-COM
Rigging and handling Captive 4-points rigging system
2 large side handles
Inter-enclosure angles : 0.25, 1, 2
