Комплект солнечных панелей 10 кВт система батарей с системой 20 50 100
27,28-32,03 ₽

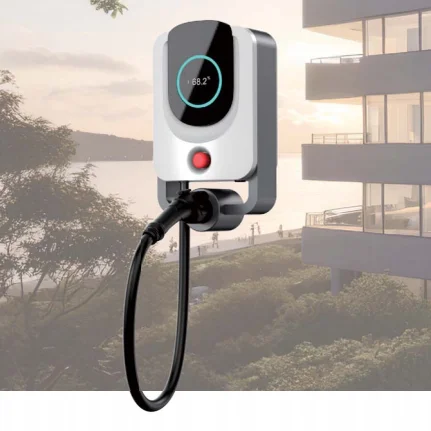

7 кВт 10 20 30 полная зачетная солнечная энергетическая система и домашняя Автомобильная зарядная станция
- Категория: >>>
- Поставщик: Hebei Jingyi Machinery Equipment Technology Co. Ltd.Hebei Ltd.
Сохранить в закладки 1601291650586:
Описание и отзывы
Характеристики
Product Description
What is hybrid solar system?
A hybrid solar panel system is a combination of a grid-connected and storage-ready apparatus that provides consistent energy supply during day and night. The hybrid system stores energy for later use in one or multiple solar batteries but then can also pull from the grid in high energy use periods like hot summer months. Any solar-plus-storage system that is not meant to be entirely off-grid will be a hybrid system.
Our services include:
* - System Configuration Planning: Tailored power system configuration plans based on specific customer needs.
* - Product Customization: Support for customizing product appearance, packaging, and logo design.
* - Equipment and Material Procurement: Offering a multi-purpose product combination and shipping service.
* - Installation Design and Guidance: For a certain volume of purchases, we can dispatch engineers to provide on-site service support.
* - System Configuration Planning: Tailored power system configuration plans based on specific customer needs.
* - Product Customization: Support for customizing product appearance, packaging, and logo design.
* - Equipment and Material Procurement: Offering a multi-purpose product combination and shipping service.
* - Installation Design and Guidance: For a certain volume of purchases, we can dispatch engineers to provide on-site service support.
Specification
Solar system
Our off-grid photovoltaic power system consists of the following components:
* - Photovoltaic Modules (PV Panels)
* - Energy Storage Batteries
* - Inverters
* - Mounting Brackets
* - Photovoltaic Modules (PV Panels)
* - Energy Storage Batteries
* - Inverters
* - Mounting Brackets
* -Accessories
* -PV Tools
Model | 5K-US/EU | 7.6K-US/EU | 8K-US/EU | |||
Battery Inout Data | ||||||
Battery Type | Lead-acid or Li-lon | |||||
Battery Voltage Range | 40V-60V | |||||
Max. Charging Current | 120A | 175A | 190A | |||
Max. Discharging Current | 120 | 175A | 190A | |||
Charging Curve | 3 Stages/Equalization | |||||
External Temperature Sensor | Optional | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power | 5500W | 8448W | 8800W | |||
Max. DC Input Voltage | 500V | |||||
MPPT Range | 125V-425V | |||||
Start-up Voltage | 150V | |||||
Max.Input Current | 18A+9A | 18A+18A | 18A+18A | |||
No.of MPPT Trackers | 2 | 2 | 2 | |||
No.of Strings Per MPPT Tracker | 2+1 | 2+2 | 2+2 | |||
AC Output Data | ||||||
Rated AC Output and UPS Power | 5000W | 7600W | 8000W | |||
Peak Power(off grid) | 2 times of rated power, 10 S | |||||
Max. AC Current | 20.8A | 32A | 33A | |||
Output Frequency and Voltage | 50/60Hz; 120Vac&240Vac(split phase), 230Vac(single phase) | |||||
Grid Type | Split phase/Single Phase | |||||
Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 97.00% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | ||||||
PV Arc Fault Detection | Integrated (Except European Type) | |||||
PV Input Lightning Protection | Integrated | |||||
Anti-islanding Protection | Integrated | |||||
PV String Input Reverse Polarity Protection | Integrated | |||||
Insulation Resistor Detection | Integrated | |||||
Residual Current Monitoring Unit | Integrated | |||||
Output Over Current Protection | Integrated | |||||
Output Shorted Protection | Integrated | |||||
Output Over Voltage Protection | Integrated | |||||
Certifications and Standards | ||||||
Grid Regulation | IEEE1547,VDE-ARN 4105, VDE0126 | |||||
Safety Regulation | IEC62109-1&2, IEC62040-1 | |||||
EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | |||||
General Data | ||||||
Operating Temperature Range | -25~60℃, >45℃ Derating | |||||
Cooling | Fan | |||||
Noise (dB) | <30 | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 32KG | |||||
Size (Length*Width*Height mm | 680*420*233mm | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 10 years | |||||
HALF CELL MONO/POLY SOLAR PANEL
1. Positive power tolerance:0~+5w
2. 100%EL Double-inspection ensures modules are defects free
3. 5BB, 6BB, 9BB, 10BB, 12BB, MBB Available
4. 158.75 mm, 166 mm, 182 mm, 210 mm Size
5. Full Cell, Half Cut, 3-Cut
6. Perc/Hjt/All Black/Frameless Tech
7. Customized brand
8. Waterproof Label on Back of Panel
SOLAR BATTERY BANK
1. Deep cycle long lifespan
2. High discharge performance
3. Easy installation and Maintenance-free
4. Agm/Gel/Lithium Ion Battery Type
5. 2V/12V/48V/Low Voltage Battery
6. More than 6000 times, up to 90% DOD
7. Wide suitability of ambient temperature range
8. Maintenance is simple, reducing deep discharge.
2. Supports automatic battery switching
3. Compatible with lead-acid /lithium ion batteries
4. Built-in MPPT solar charge controller
5. Compatible anticountercurrent function
6. Touch screen LCD
7. Natural cooling, low noise
8. Battery reverse connect protection

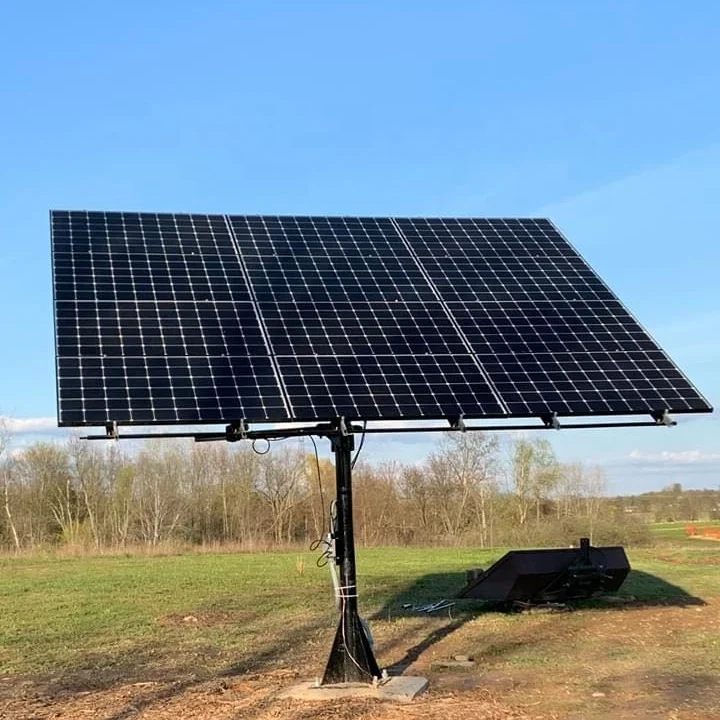

1. Ground Solar Mounting System
2. Residential Roof(Pitched Roof)

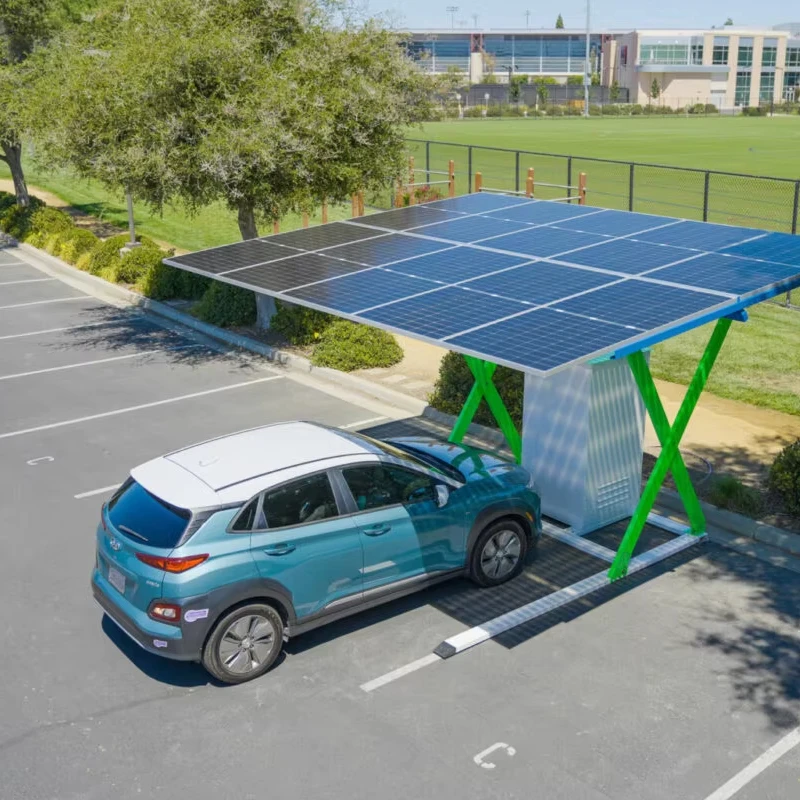

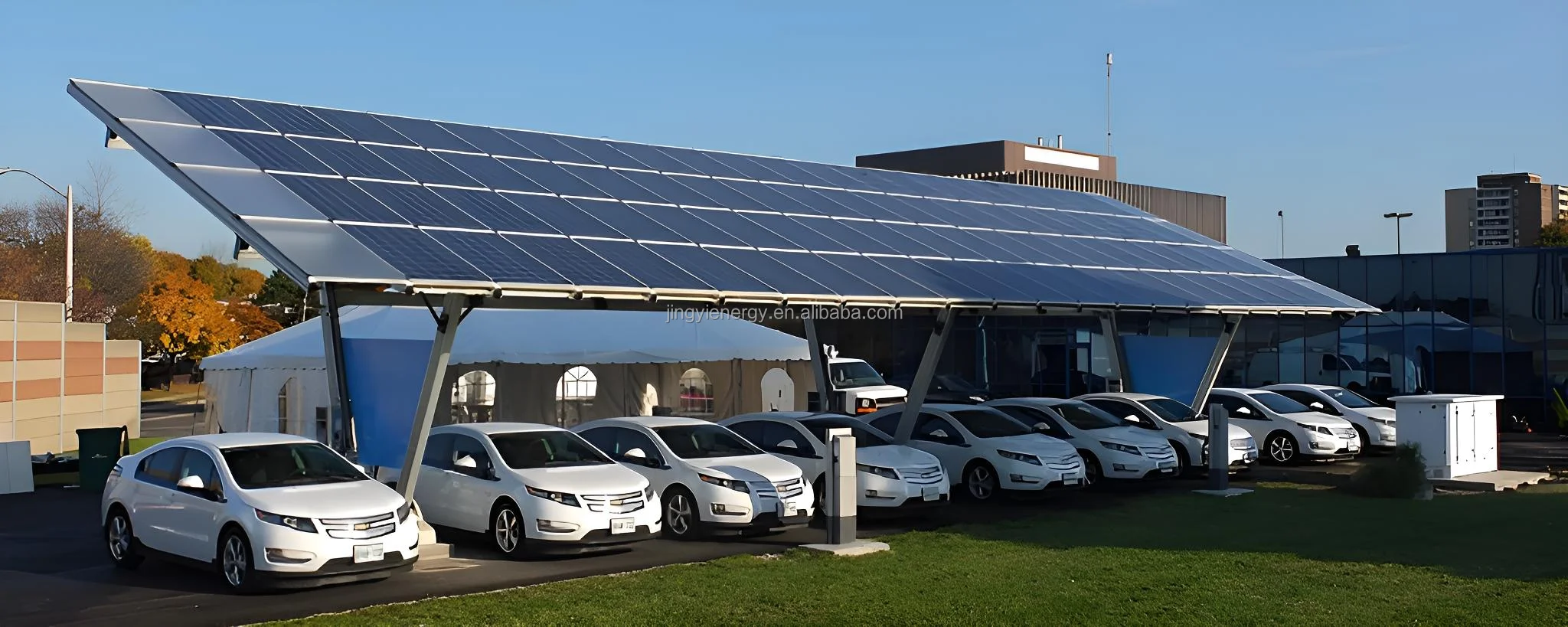

3. Car parking solar mounting system
4. Vertical wall solar mounting system
5. Commercial Roof(Flat roof&workshop roof)
6. All aluminum structure mounting system
7. Ballasted mount, Do not harm structure.
8. Most Parts are Preinstalled, Save 50% Labour Force
Production line
-Our focus is on the development of off-grid solar power generation and energy storage systems, offering preferential power generation system units, individual products, and comprehensive services to areas lacking electricity, with unstable power supply, or high electricity costs.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Company Profile
Hebei Jingyi Machinery Equipment Technology Co., Ltd.
Since its establishment in 2017, our company has been a high-tech enterprise dedicated to the research and development, construction, operation, and maintenance of photovoltaic (PV) power systems. We are committed to
providing customized solar power solutions to our clients, with a track record of obtaining multiple installation patents and extensive experience in constructing and maintaining solar power stations.
providing customized solar power solutions to our clients, with a track record of obtaining multiple installation patents and extensive experience in constructing and maintaining solar power stations.
Contact us
FAQ
A:What are your main products?
Our company focuses on the development of solar power generation and energy storage system, and we provide power generation system configuration scheme according to the specific situation of users. And provide a variety of product portfolio delivery services such as solar panels, energy storage batteries, solar inverters, mounting brackets and other
accessories.
B: Are you a factory or a trading company?
We are an integrated trader of solar power generation system. We focus on the configuration of the system rather than the research and development of individual products. We provide customers with the most needed and suitable products, and give suggestions to some customers who don't know about solar power generation system.
C:Can you customize it by OEM and print our company's logo on the nameplate and packaging?
Yes, we can provide OEM for our customersafter reaching the required purchase volume, and our products support graphic
customization of appearance \\ packaging \\logo.
D:Can you guide the installation on site?
Yes, we can provide on-site installation guidance for customers who have reached a certain purchase volume, and we can also provide remote video guidance for customers who have not met the purchase requirements, and have made detailed installation manuals.
E: How does your factory carry out quality control?
Quality comes first. We have a professional team of engineers who are very familiar with most brands and models of equipment. We will assess the factory's qualification, production capacity, research and development capacity, product quality and after-sales service, and choose products with stable quality, guaranteed after-sales service and high cost performance for customers.
F: What kind of inverter can this product match?
We will choose the most suitable inverter for you according to your use environment, load power, configuration of solar panels and energy storage batteries and your budget.
accessories.
B: Are you a factory or a trading company?
We are an integrated trader of solar power generation system. We focus on the configuration of the system rather than the research and development of individual products. We provide customers with the most needed and suitable products, and give suggestions to some customers who don't know about solar power generation system.
C:Can you customize it by OEM and print our company's logo on the nameplate and packaging?
Yes, we can provide OEM for our customersafter reaching the required purchase volume, and our products support graphic
customization of appearance \\ packaging \\logo.
D:Can you guide the installation on site?
Yes, we can provide on-site installation guidance for customers who have reached a certain purchase volume, and we can also provide remote video guidance for customers who have not met the purchase requirements, and have made detailed installation manuals.
E: How does your factory carry out quality control?
Quality comes first. We have a professional team of engineers who are very familiar with most brands and models of equipment. We will assess the factory's qualification, production capacity, research and development capacity, product quality and after-sales service, and choose products with stable quality, guaranteed after-sales service and high cost performance for customers.
F: What kind of inverter can this product match?
We will choose the most suitable inverter for you according to your use environment, load power, configuration of solar panels and energy storage batteries and your budget.
