Китай двухбалочный козловой кран 40 тонн 50 100

Китай двухбалочный козловой кран 40 тонн 50 100

Категория: >>>
Поставщик: Shandong Tavol Machinery Co. Ltd.Shandong Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

We need you confirm below information when send inquiry to us:

1. Which kind of gantry crane do you need ?

2. FOB or CIF price ? (If CIF price, tell us your destination port)

3. Quantity ? (set)

4. Loading capacity ? (ton）

5. Lifting height ? (m)

6. Span ? (m)

7. Travelling length ? (m)

8. Working voltage ? (V, HZ, Phase)

If you have any unclear, please contact me directly

Product Description

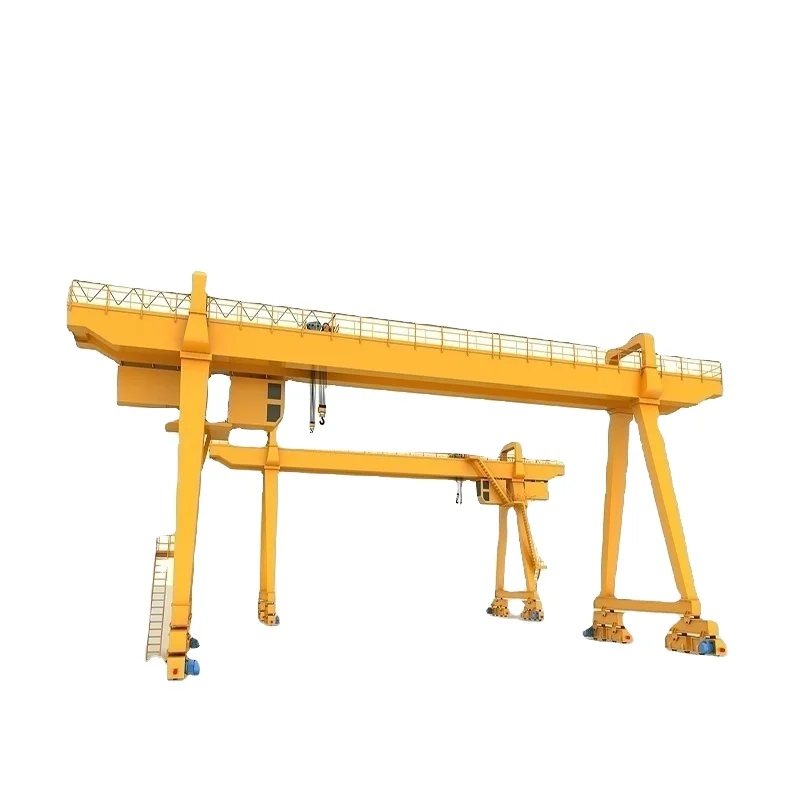

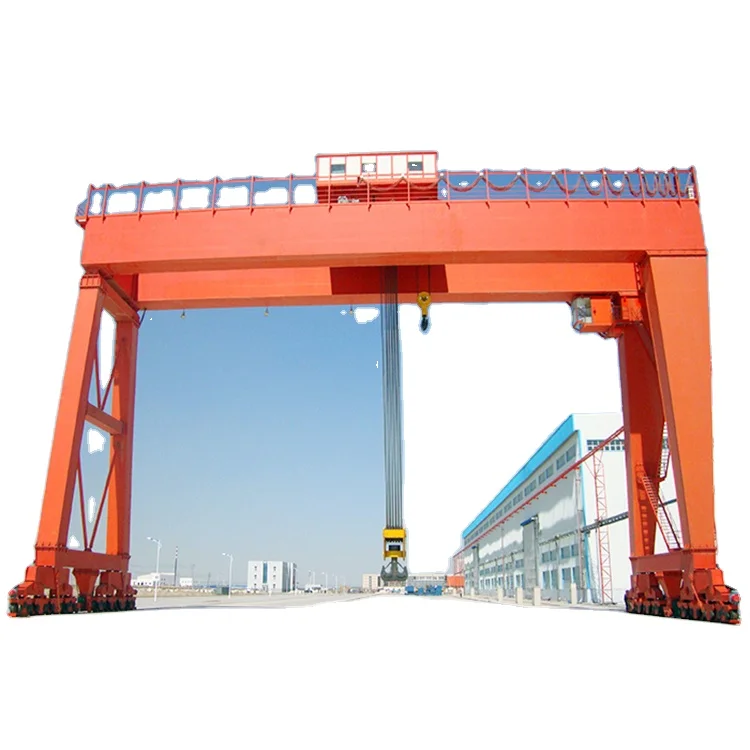

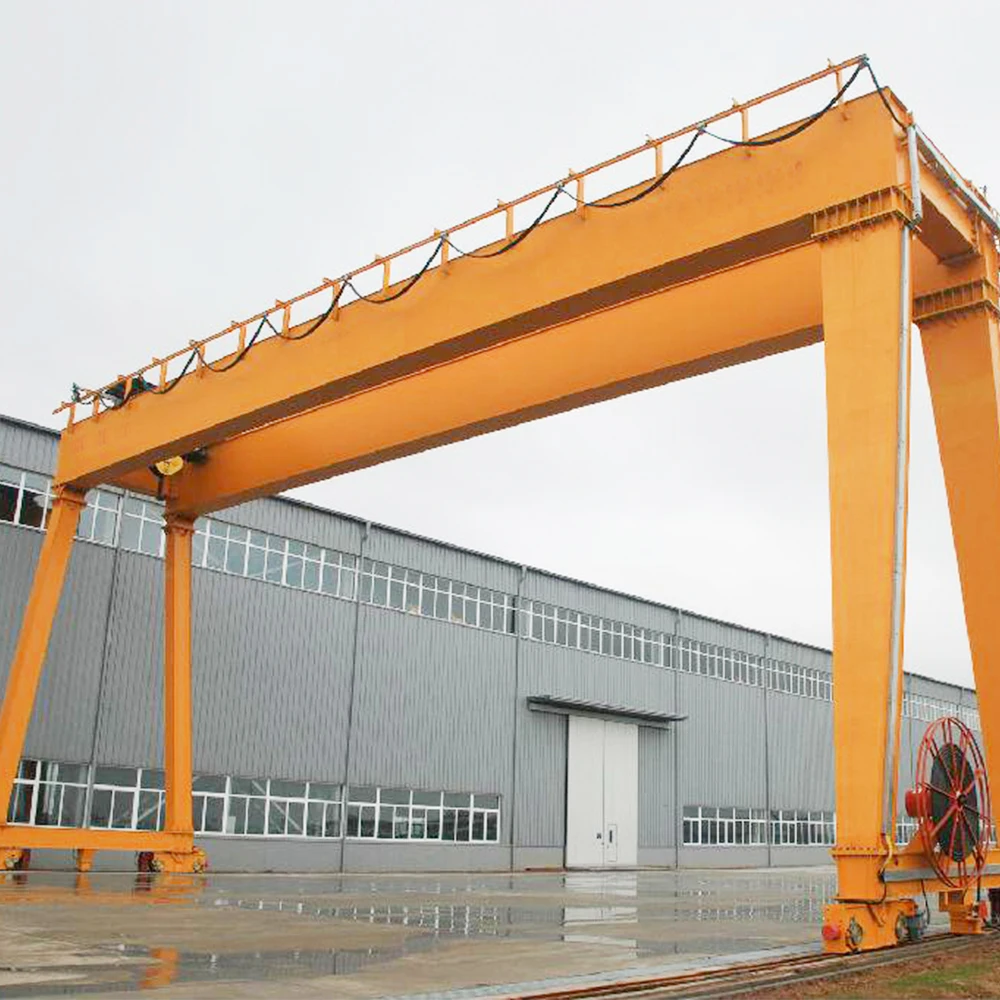

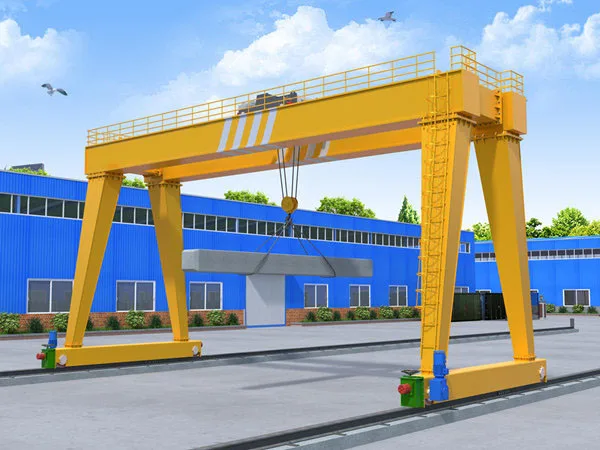

Double Girder Gantry Crane
Double Beam Gantry Crane Mainly made up of bridge, trolley, crane traveling mechanism
and electric system.
Applies to the open warehouse or rail along for general handling and lifting work. Can equipped with many lifting device for special work.
Normally, double girder gantry crane lifting capacity: 5 ton~200 ton

MG double girder gantry crane lifting equipment
Lift capacity: 3-200 ton
Span: 5-35 m
Work duty: A5-A7

Tavol Brand Heavy Duty Double Girder Gantry Cranes with Open Winch SWL Up to 200 Tons Suitable in Busy And Heavy Working Conditions

Popular Model SWL 5ton, 10 ton, 15 ton, 20 ton, 25 ton, 32 ton, 32/5 ton, 50 ton, 50/10 ton, 100 ton, 100/20 ton, 125ton, 125/50ton, 150 ton, 200ton, 200/50 ton, Popular Span size 12m, 16m, 18m, 20m, 22m, 25m, 28m, 30m, 32m, 35m, Popuar HOL 6m, 9m, 12m, 15m.

Product Introduction:
MG model double girder gantry crane is ideal for outdoor applications where lifting facilities are provided without the cost of a building or any supporting steel work.
It is also suitable for indoor applications where existing building structures are not possible to support overhead cranes. They can be constructed with a cantilever to allow handling outside the rail centers.
MG model double girder hoist gantry crane is mainly composed of main girders, winch trolley, ground girders, supporting legs, travel rails, cable spring, electrical parts, etc.

Main beam

Ground beam

Electric hoist

Trolley

Hook

Reducer

Cabin

Cable drum

Specification

Descriptions	Reference Data
Lift capacity	3 ton ~300 tons
Span	3 meters ~ 35 meters
Lift height	6 meters ~18 meters
Work duty	A5~A7
Control method	Remote control or Cabin control
Electrical parts	CHINT or International brand
Motor	Chinese famous brand or International brand
Paints	Chinese famous brand "Lehua"
Bearings	Chinese famous brand "HRB"
Lift speed	0~10M/Min
Cross travel speed	20~30M/Min
Long travel speed	30~40M/Min

OUR SERVICE

Gantry Crane Services
1. Once provide us the requirement, the details technical data and CAD drawing will provide
you at the first time.
2. Strict quality control system, supervision the work to ensure the best crane for you.
3. Strict production line, make sure manufacture the goods on time.
4. Best cooperation forwarder provide the soonest and reliable service foe our goods.
5. If needed, senior engineers can be your side do the installation guide and training.
Gantry Crane After-sale service
1- One year warranty for whole machines.
2- Providing free quick-wear part.
3- Low charge for continue maintenance when warranty is expired.
4- Exclusive engineer support at any time.
5- We can provide free training to end-users.

Packing & Delivery

Gantry Crane Packing and Shipping
1. Electric parts and electric hoist packed by high quality plywood crate
2.other parts packed by bubble paper
3.Shipped by HC ,GP Container or Break Bulk Ship

Company Profile

Tavol Cranes Group
---- The International Market Pioneer of Cranes and Lifting Machinery from China.
This is an esteemed, leading disciplined and quality manufacturer and service provider for the lifting, materials handling
products and Construction Machinery for the Industry.
Over 20 years 1000+ Companies Create Great Value with Tavol Cranes and Lifting Machines, We have 200+ Professionals at your Disposal. A Personalized, fast and Efficient Service.
History : Since 1999 ，20 Years Experience
Location : Under Mountain Taishan，Shandong Province，P.R. China
Mission :Service Our Customers to Provide Quality to the End User While Working and Growing Together.

Tavol Cranes Group is a leading manufacturer and service provider of lifting and Materials
handling products, Main Products include Overhead Crane , Gantry Crane ,Tower Crane
and Construction Hoist etc .
Tavol Cranes has been in the International Market Since 2005, Join all kinds of International
Bidding for the Cranes and Warehouse Building, Own Three International Installation Team,
has Sales and Service more than 40 countries.
In 2014, We have successfully develop the German market .
We are sure Tavol Cranes is your best choice .

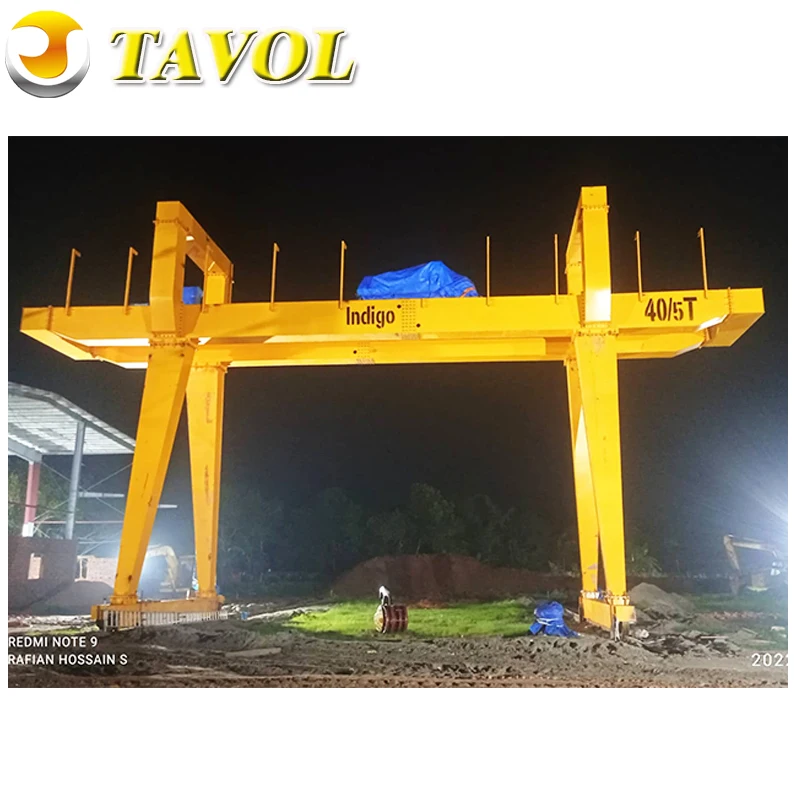

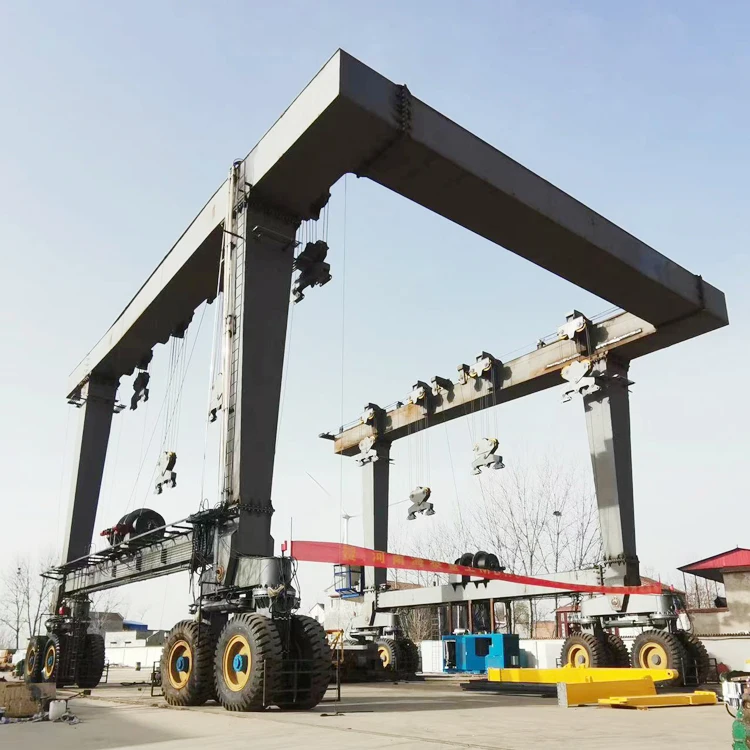

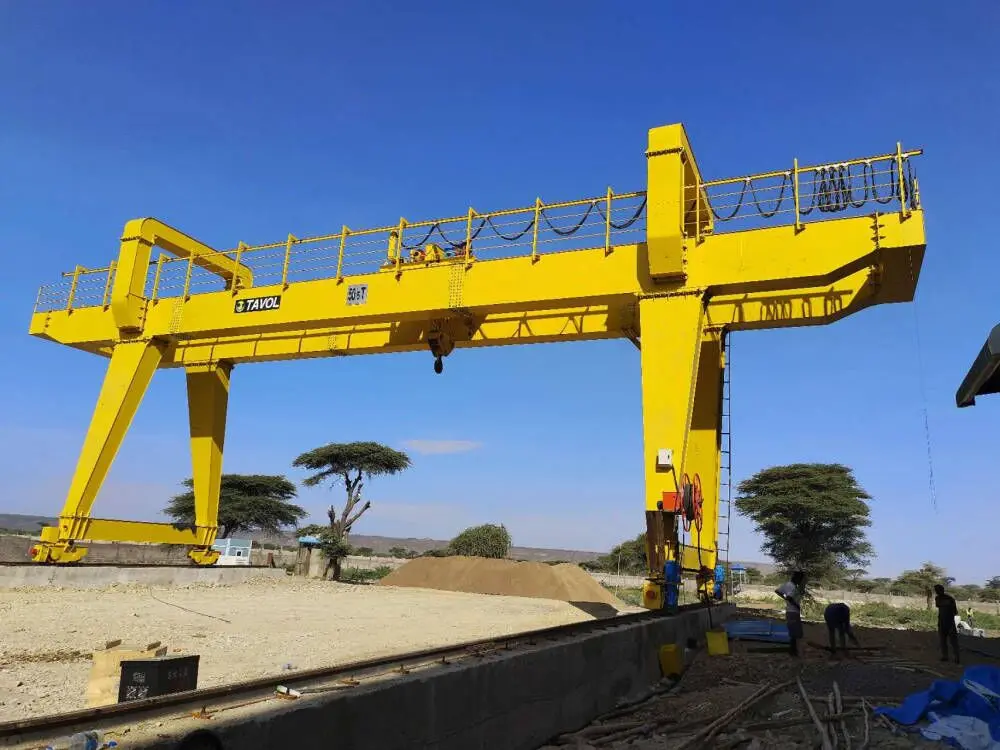

Customer Photos

FAQ

Please kindly tell us the following information for your gantry crane inquiry:
1- Lifting Capacity ?
2- It is single girder gantry crane , or double girder gantry crane ?
3- Lifting height ?
4- the Span of the main girder ?
