Электромагнитный мини-насос переменного тока 15 Вт 220-240 В
4,00-5,50 $
Высоконапорный воздушный гелиевый водородный кислородный насос для наполнения цилиндров
- Категория: >>>
- Поставщик: Dongguan Suncenter Fluid Pressure Technology Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1601292264650:
Описание и отзывы
Характеристики
Product Description

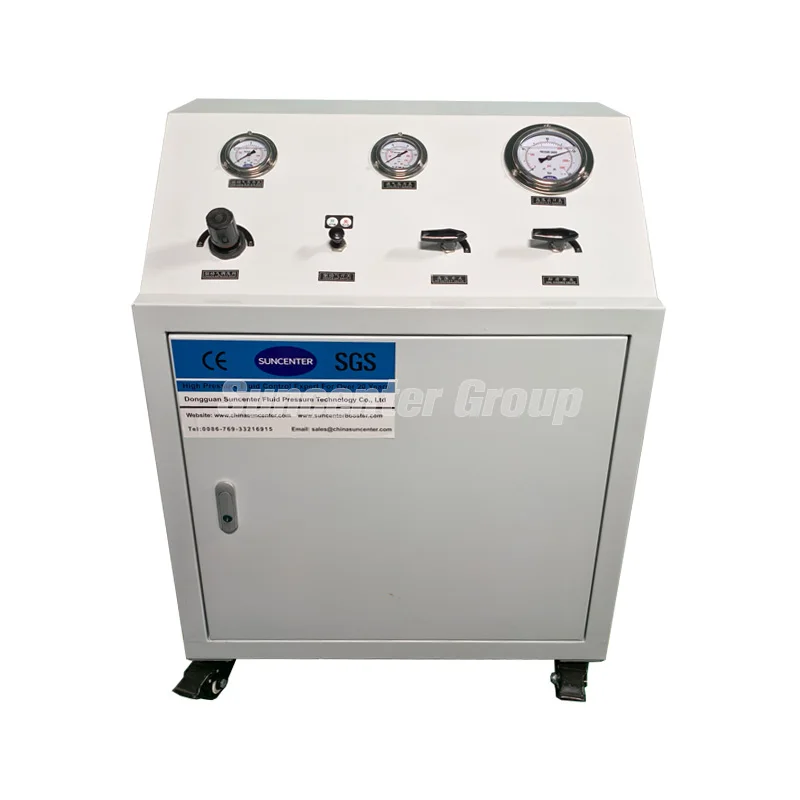

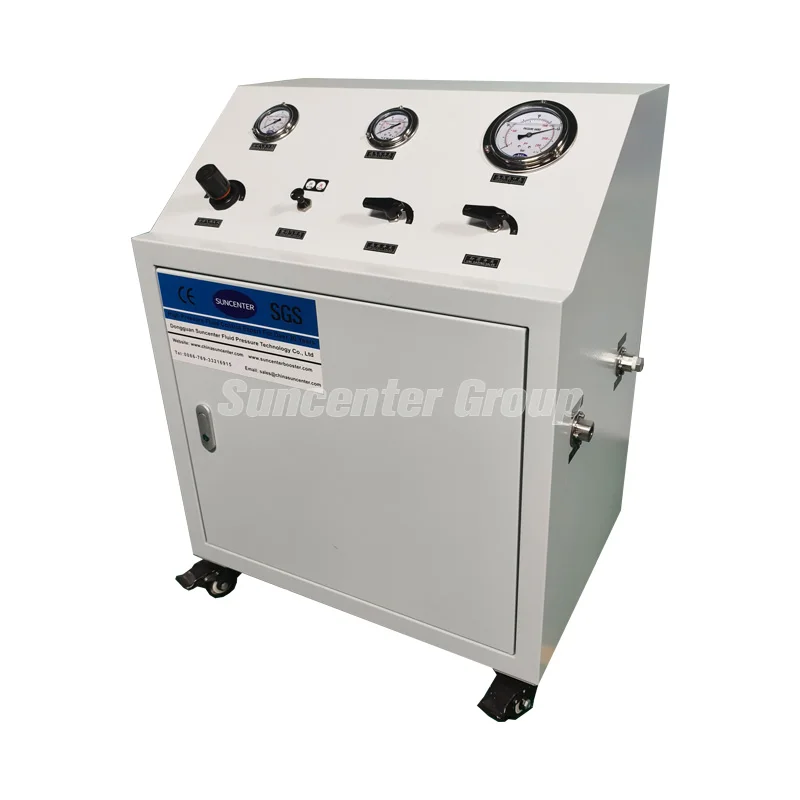

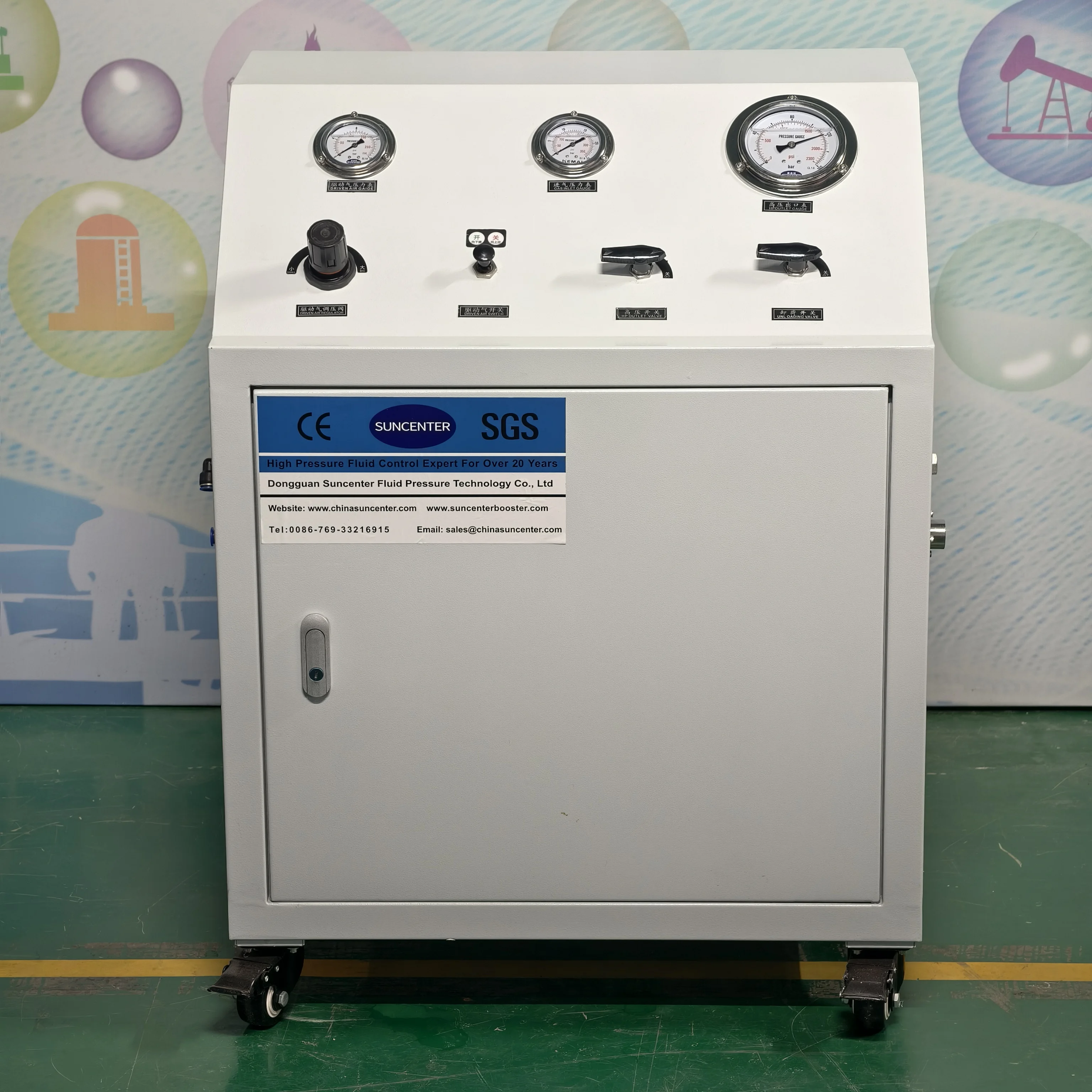

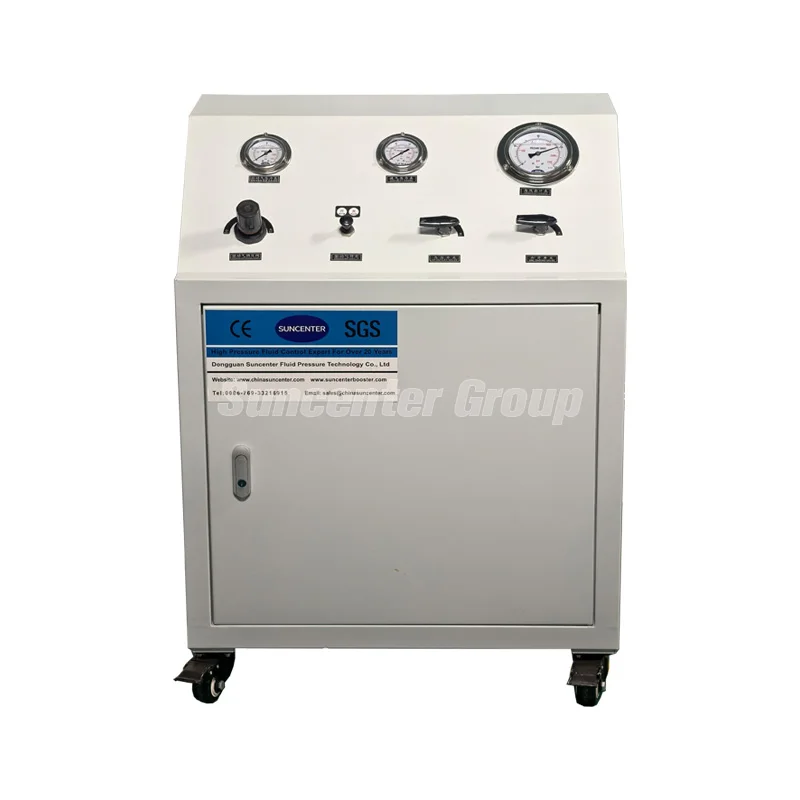

Air Driven Gas Booster System
Features
1.Applicable to most gases: Air/Ar/He/H2/O2/N2/CO2/NO2/CH4/C2H2/LNG/LPG/CNG/FM200/SF6/H2S, etc.
2.Driven by 3-8 bar compressed air, no electric spark risk
3.Wide range of pressures, maximum pressure 960 bar
4.Outlet pressure adjustable
5.Built-in cooling system
6.Automatic pressure lock & holding, automatically stop when the preset pressure reached and restart to replenish pressure once the loop pressure dropped
1.Applicable to most gases: Air/Ar/He/H2/O2/N2/CO2/NO2/CH4/C2H2/LNG/LPG/CNG/FM200/SF6/H2S, etc.
2.Driven by 3-8 bar compressed air, no electric spark risk
3.Wide range of pressures, maximum pressure 960 bar
4.Outlet pressure adjustable
5.Built-in cooling system
6.Automatic pressure lock & holding, automatically stop when the preset pressure reached and restart to replenish pressure once the loop pressure dropped

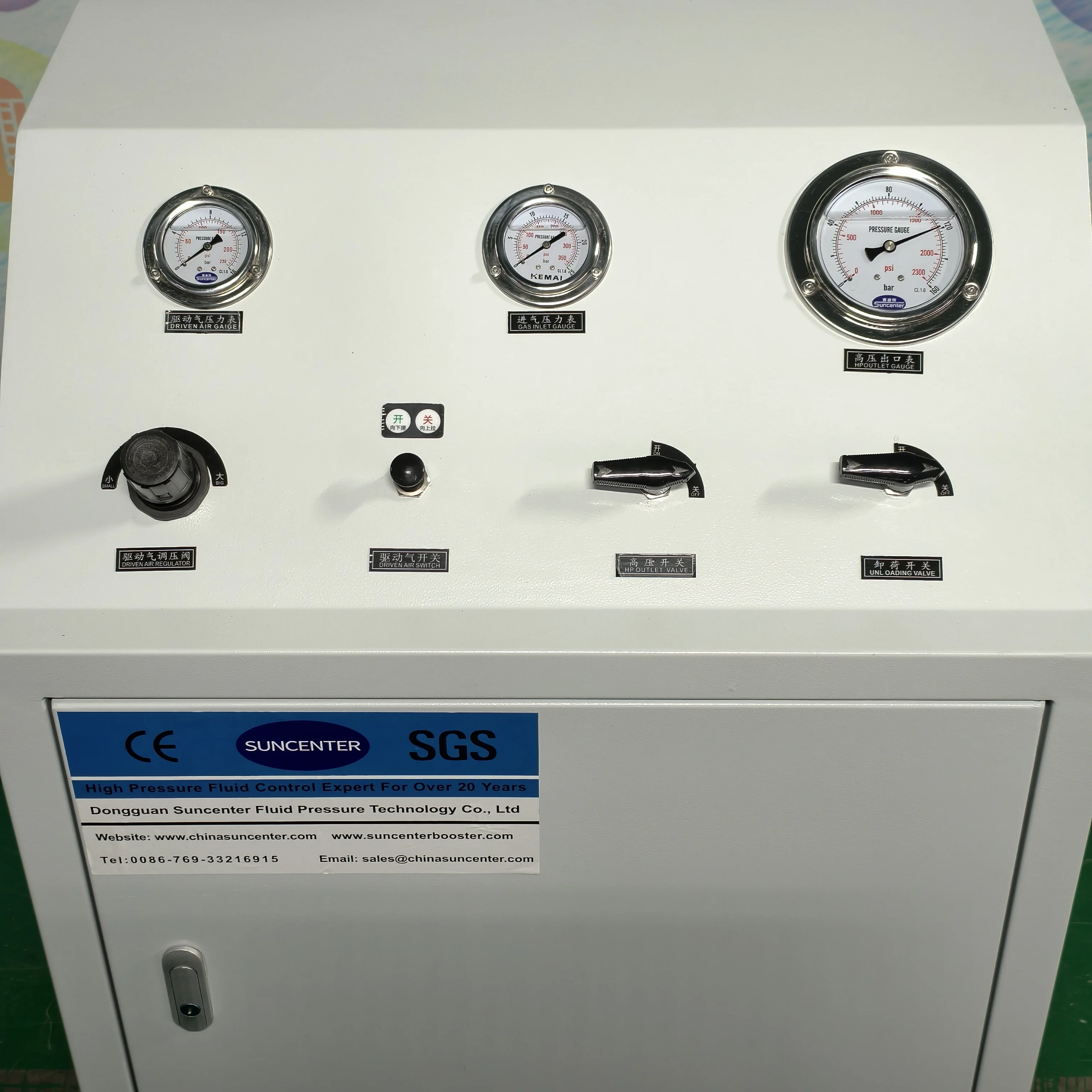

Structure & Composition
Gas booster system = Gas booster pump + Valves + Gauges + Connection ports
1.Gas booster pump
2.F.R.L combination for driven-air (adjust air pressure + add lube oil + filter )
3.Driven air switch, Driven air pressure gauge
4.Gas inlet valve, Gas inlet pressure gauge
5.Gas outlet valve, Gas outlet pressure gauge, Unload valve, tubing, etc.
6.Trolley ( three options)
Gas booster system = Gas booster pump + Valves + Gauges + Connection ports
1.Gas booster pump
2.F.R.L combination for driven-air (adjust air pressure + add lube oil + filter )
3.Driven air switch, Driven air pressure gauge
4.Gas inlet valve, Gas inlet pressure gauge
5.Gas outlet valve, Gas outlet pressure gauge, Unload valve, tubing, etc.
6.Trolley ( three options)
Applications
Gas transfer and filling
(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO22/CH4/LNG/LPG/CNG/FM200 etc.)
Charging of gas cylinder and accumulator with nitrogen
Supply for isolating gas systems
Gas assisted injection molding
Transfer of oxygen cylinders
Charging of breathing air bottles
Leak test
Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components
Safety valve adjusting
The standard gas booster system including following parts:
Air –driven gas booster pump (DGA/DGD/DGT three series for choosing)
Air –driven gas booster pump (DGA/DGD/DGT three series for choosing)
Stainless steel (carbon steel) material cabinet (Three models for choosing)
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and water filter)
Driven air switch (Pump starting switch), driven air pressure gauge
Gas inlet switch, Gas inlet pressure gauge
Gas outlet switch, Gas outlet pressure gauge, unloading valve, interconnecting pipes etc.
And we could also customize it according to clients’ special requirement.
Technical specification for DGS-DGA Series:
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-DGT15 | 15:1 | 0.1 | 56 | 120 | 2-8 bar | 15XPL | 3/8/ 1/4 | 230(at PA of 8 bar ) |
DGS-DGT25 | 25:1 | 0.1 | 10 | 200 | 2-8 bar | 25XPL | 3/8/ 1/4 | 156(at PA of 8 bar ) |
DGS-DGT7/25 | 25:1 | 5 | 56 | 200 | 2-8 bar | 25XPL | 3/8/ 1/4 | 156(at PA of 8 bar ) |
DGS-DGT40 | 40:1 | 0.1 | 10 | 320 | 2-8 bar | 40XPL | 3/8/ 1/4 | 124(at PA of 8 bar ) |
DGS-DGT15/40 | 40:1 | 5 | 120 | 320 | 2-8 bar | 40XPL | 3/8/ 1/4 | 124(at PA of 8 bar ) |
DGS-DGT60 | 60:1 | 0.1 | 10 | 480 | 2-8 bar | 60XPL | 3/8/ 1/4 | 80(at PA of 15 bar ) |
DGS-DGT15/60 | 60:1 | 6 | 120 | 480 | 2-8 bar | 60XPL | 3/8/ 1/4 | 80(at PA of 15 bar ) |
DGS-DGT100 | 100:1 | 0.1 | 10 | 800 | 2-8 bar | 100XPL | 3/8/ 1/4 | 63(at PA of 8 bar ) |
How to Select Suncenter Air Driven Gas Boosters/Systems?
In order to choose suitable booster pump or systems for you, please kindly reply us the following questions:
1.What is your present gas pressure?( )bar
2.What is your gas?oxygen gas,nitrogen gas or other gases?
3.What outlet gas pressure do you want?( )bar
4.What driven air pressure (of your air compressor) can you offer?( )bar,
because our booster is completely air operated and no need any electricity
5.What outlet gas flow rate do you need?( )L/min
1.What is your present gas pressure?( )bar
2.What is your gas?oxygen gas,nitrogen gas or other gases?
3.What outlet gas pressure do you want?( )bar
4.What driven air pressure (of your air compressor) can you offer?( )bar,
because our booster is completely air operated and no need any electricity
5.What outlet gas flow rate do you need?( )L/min
Company Profile
Packing & Delivery
FAQ
Q1: Are you a factory or trading company?
A1: Yes, we have more than 15 years experiences in high pressure fluid exchange and controlling field,we provide various kinds of pneumatic and hydraulic boosters,systems and solutions.
Q2: What is your hot items?
A2:Our company specializes in the production of pneumatic gas booster pumps, pneumatic liquid booster pumps, air-driven air booster pumps, air booster valves, air gas booster pumps, pneumatic booster pumps, pressure gauge fatigue pressure test bench, hydrostatic burst test bench, pulse burst test bench, airtightness inspection test bench and so on.
Q3.Are all your products available in stock?
A3: Some products are available in stock. Please consult customer service for details to check the inven-tory quantity at that time.
Q4. How long is your warranty?
A4: 13 months' free warranty since the purchasing date and free technical sup-port during lifetime
Q5: How to operate the machine?
A5: After you get the machine, we will send you the working video to teach you for maintenance and operating.
Q6:Do you take OEM or ODM orders?
A6:Yes, we accept OEM and ODM from customers
Q2: What is your hot items?
A2:Our company specializes in the production of pneumatic gas booster pumps, pneumatic liquid booster pumps, air-driven air booster pumps, air booster valves, air gas booster pumps, pneumatic booster pumps, pressure gauge fatigue pressure test bench, hydrostatic burst test bench, pulse burst test bench, airtightness inspection test bench and so on.
Q3.Are all your products available in stock?
A3: Some products are available in stock. Please consult customer service for details to check the inven-tory quantity at that time.
Q4. How long is your warranty?
A4: 13 months' free warranty since the purchasing date and free technical sup-port during lifetime
Q5: How to operate the machine?
A5: After you get the machine, we will send you the working video to teach you for maintenance and operating.
Q6:Do you take OEM or ODM orders?
A6:Yes, we accept OEM and ODM from customers
Похожие товары
Мусорный насос серии Super T от китайского производителя

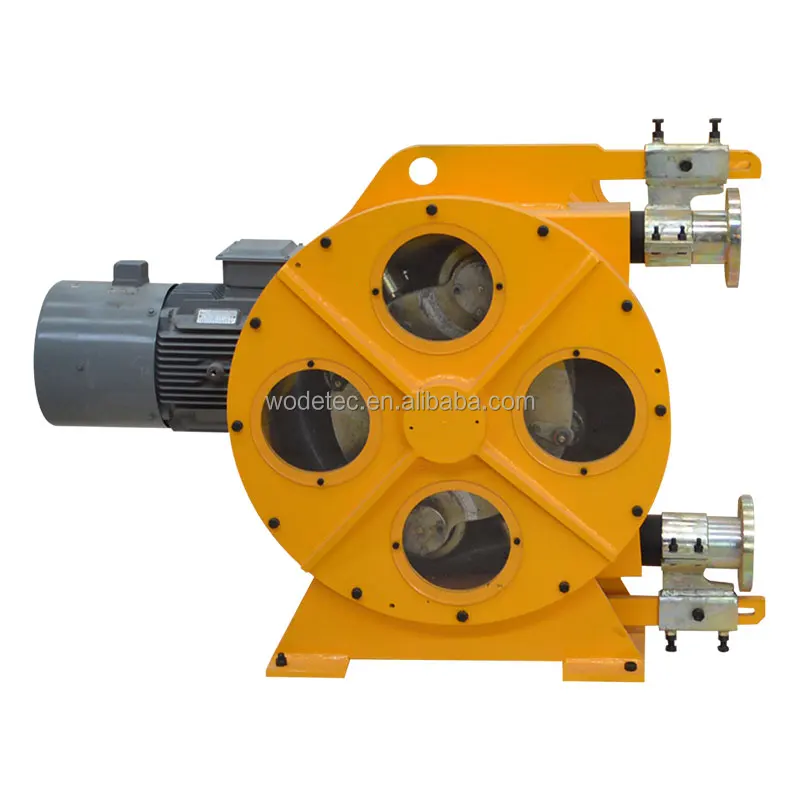

Промышленный перистальтический насос от китайского производителя для бетона
4 950,00 $
Электрический периферийный водяной насос Happy QB 60

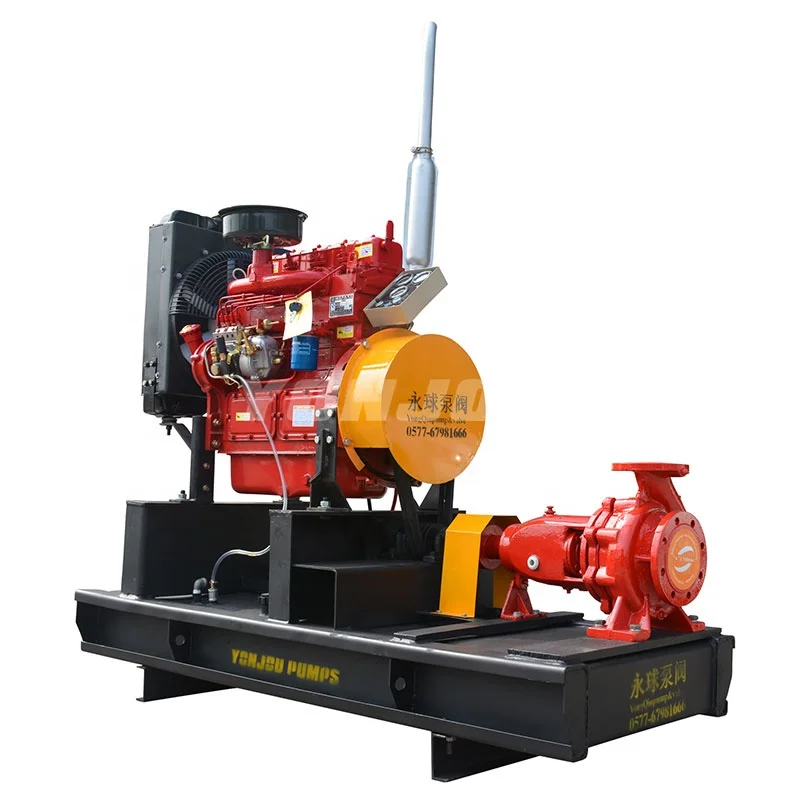

Дизельный пожарный насос серии YONJOU IS
700,00 $

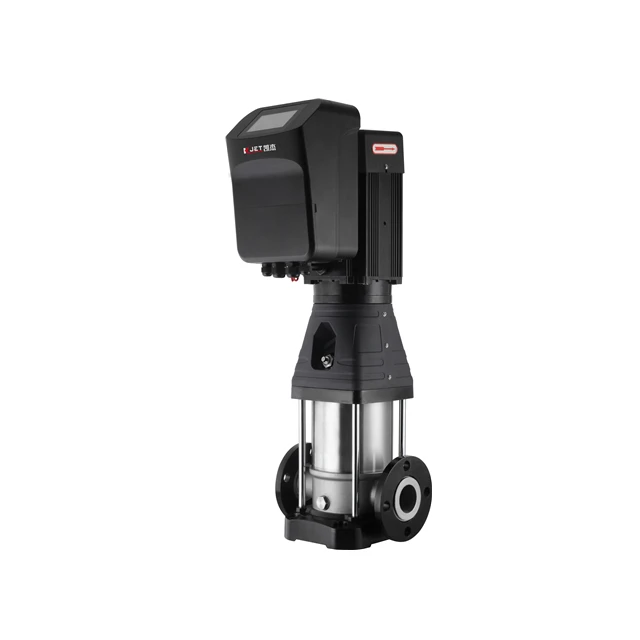

Вертикальный Многоступенчатый центробежный водяной насос высокого давления производитель для сельскохозяйственного орошения
1 120,00 $

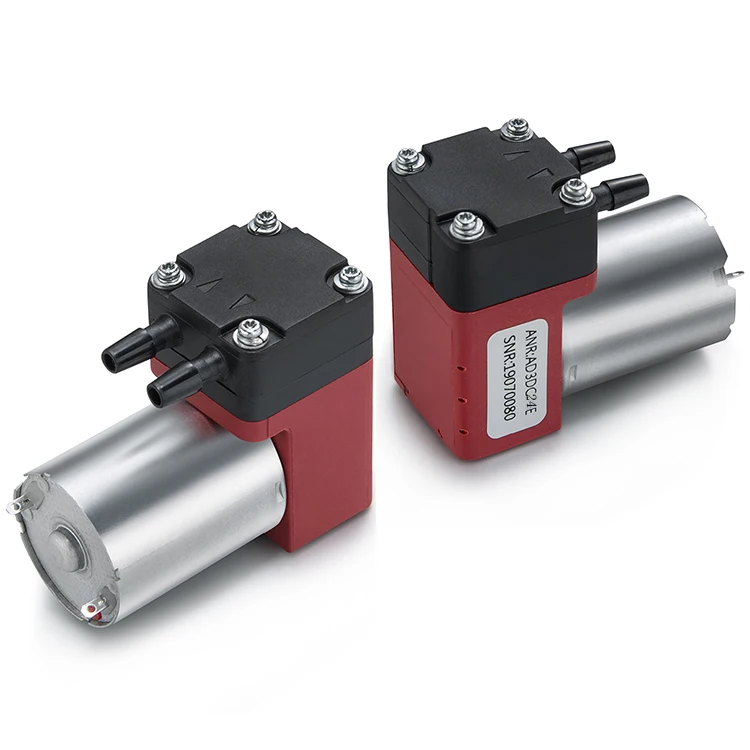

Высококачественный всасывающий воздушный насос постоянного тока 24 В лабораторный безмасляный мини-мембранный вакуумный для обнаружения газа
15,99-24,99 $

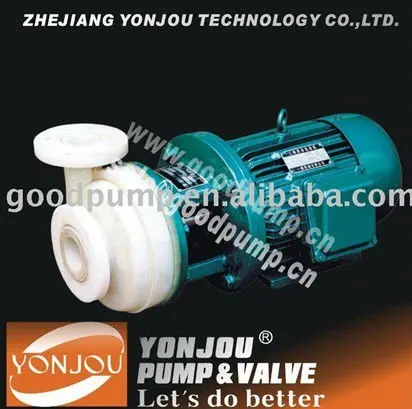

фп насос для серной кислоты центробежный насос/50-80 процента степени и насос/сохранения энергии
