Мобильная установка для бурения воды небольшого типа цена/Буровая дизельных скважин/Буровая водяных скважин и буровая
2 000,00-2 500,00 $
Китайский известный бренд 200 300 м установка для бурения глубоких скважин портативная буровая водяных
- Категория: >>>
- Поставщик: Henan Power Machinery Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601292536319:
Описание и отзывы
Характеристики
Product advantages

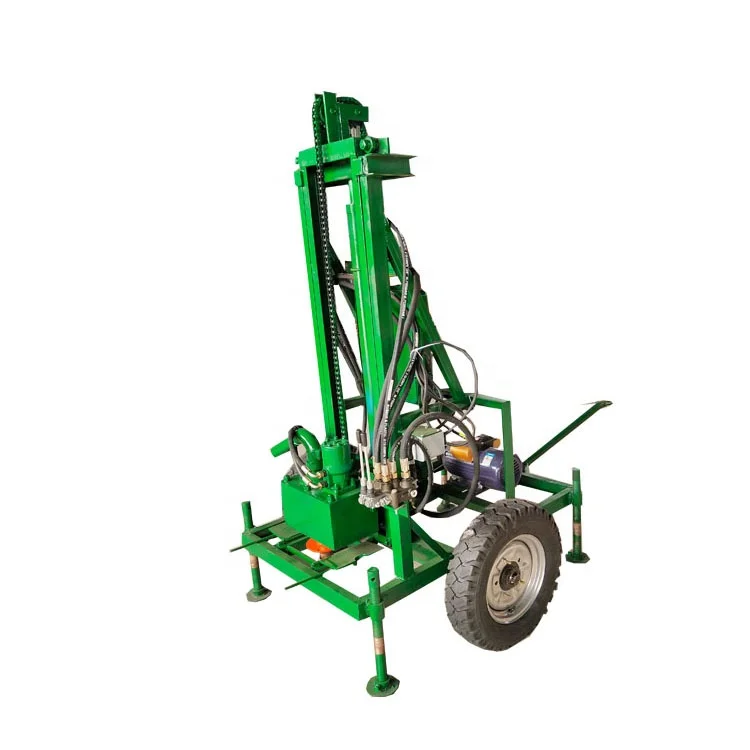

1.PW300 series rotary trailer mounted drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment.
2.The four outriggers are equipped with oil pipe guards, which protect the oil pipe joints on the one hand, and prevent dust and mud on the other, so as to increase the service life.
3.Standard winch,easy to use,high speed regulation performance.
4.The paint surface adopts laser rust removal process, which is brighter and more durable.
5.Centralized operating system.Falling tower for hydraulic operation, convenient and reliable.
6.Diesel engine with electric start, labor saving.
7.Matching triple pump.
3.Standard winch,easy to use,high speed regulation performance.
4.The paint surface adopts laser rust removal process, which is brighter and more durable.
5.Centralized operating system.Falling tower for hydraulic operation, convenient and reliable.
6.Diesel engine with electric start, labor saving.
7.Matching triple pump.
Product Parameters
Water Well Drilling Rig
2.Matching triple pump
3.Strong lifting capacity
4.Standard winch
high speed regulation performance
The Specification of PW260 Water Well Drilling Rig | ||||||
name | PW180 | PW200 | PW300 | |||
The Weight(T) | 5 | 5.2 | 7.2 | |||
The hole diameter(mm) | 140-254 | 140-254 | 140--325 | |||
Drilling depth(m) | 180 | 200 | 300 | |||
One-time advance length(m) | 3.3 | 3.3 | 3.3 | |||
Equipped capacitor(KW) | 55 | 65 | 85 | |||
Using air p pressure(MPA) | 1.7-2.5 | 1.7-2.5 | 1.7-3.0 | |||
Air consumption(m³/min) | 17-31 | 17-31 | 17-31 | |||
Rotary speed(r/min) | 45-70 | 45-70 | 45-70 | |||
The penetration efficiency(m/h) | 10-35 | 10-35 | 10-35 | |||
The engine brand | Quanchai engine | Quanchai engine | Yuchai engine | |||
Drill pipe diameter(mm) | Φ76 Φ89 | Φ76 Φ89 | Φ76 Φ89 Φ102 | |||
Drill pipe length (m) | 1.5m 2.0m 3.0m | 1.5m 2.0m 3.0m | 1.5m 2.0m 3.0m | |||
Rig lifting force(T) | 12 | 13 | 18 | |||
Rapid rise speed ( m/min ) | 20 | 30 | 22 | |||
Rapid feeding speed (m/min) | 40 | 60 | 40 | |||
Width of loading(m) | 2.4 | 2.4 | 2.73 | |||
Hoisting force of winch(T) | 1.5 | 1.5 | 2 | |||
Rotary torque(N.m) | 3200-4600 | 3400-4700 | 5700-7500 | |||
Dimension | 4800*1900*2200mm | 4800*1900*2200mm | 4800*1900*2200mm | |||
Equipped with Hammer | Medium and high wind pressure series | Medium and high wind pressure series | Medium and high wind pressure series | |||
Detail Display
1. The drilling rig is equipped with wheeled walking mechanism and hydraulic cylinder props. The machine is highly mobile, and it is convenient to adjust it horizontally.
2. Equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient for real-time monitoring of the operation inside the hole.
3. The lifting towers are hydraulically driven, which is convenient and reliable.
4. The electric start is adopted for the diesel engine, which saves much of the labor cost.
Recommend Drilling Accessories
We can supply all series of drilling equipment and drilling tools Our products use high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection.
Mud Pump
Optional equipment
Hammer
Determined according to the size of the hole
Steel air hose
Determined according to the size of the hole
Product Application
PW260 is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is special suitable for mountain area and rock stratum water sourcing project.This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system.
Related Products
Company Profile
Workshop Display
Why Choose Us
Packing & Delivery
FAQ
1. Why customer choose us?
FY series products have the characteristics of high drilling speed, economy and low failure rate,We
warmly welcome your small trial order for quality or market test.
warmly welcome your small trial order for quality or market test.
2.what can you buy from us?
Well Drilling Machine,DTH mine drilling rig,Drilling Tools and Accessories,Screw Air Compressor
3. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
4.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
5.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in China.
6. How long could your air compressor be used?
A: Generally, more than 10 years.
7.What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
