Mineral Iron Ore Magnetic Separator , Magnetic Separator Manufacturer ,
Magnetic Separation Machine Processing Plant.


Product Description


Magnetic separator for manganese ore
Magnetic separator for manganese ore are devices that are primarily used for eliminating tramp iron from ores and for removing contaminating materials that can damage equipment. There are mainly two kinds of magnetic separators produced by our factory. They are wet magnetic separator, magnetic drum separator and magnetic separator machine. In concentration processes, the magnetic separator for manganese ore machine is commonly used for sorting various types of metals. Similarly, in case of weak magnetic minerals such as hematite, limonite and garnet, they can be separated from the non-magnetic substances by the use of high- intensity separators.

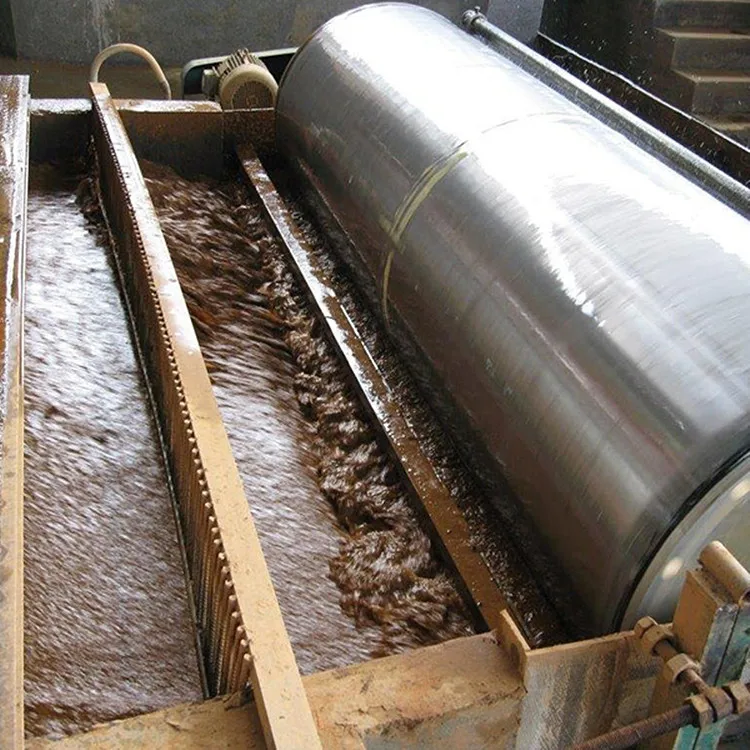

Working Principle of magnetic separator for manganese ore
The pulp flows into cell body from the pulp box, and under the water flow of the feeding spray pipe, the mineral grain will go into the feeding area of the cell body in the loose condition. In the magnetic field, the magnetic ore particles will have magnetic gathering and form magnet group or magnet chain which is influenced by the magnetic force inside the pulp and moves to the magnetic pole and finally is absorbed onto the cylinder. Magnetic separator for manganese ore is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore and ilmenite and can also be used for removing iron from the materials such as coal, non-metal ore and building material.


Process Chart of magnetic separator for manganese ore
Short magnetic circuit; little magnetic flux leakage; high magnetic intensity; Low energy consumption; fine beneficiating results; simple structure and easy maintenance. Magnetic Separator is used to separate magnetite, hematite, limonite, pyrrhotite, ilmenite smaller than 3 mm in wet way. It is also used to separate iron in coal, nonmetallic ore, construction industry, etc. We can provide magnetic separators of forward flow, semi counter flow and counter flow types according to customers' request.


Specification


Model
Cylinder Size (mm)
Capacity (m³/h)
Motor Power (kw)
Drum Speed (r/min)
Weight (kg)
(t· h)
(m³·h)
CTS/CTN/CTB-69
600×900
8-15
24
1.1
40
780
CTS/CTN/CTB-612
600×1200
10-20
32
2.2
40
990
CTS/CTN/CTB-618
600×1800
15-30
48
2.2
40
1330
CTS/CTN/CTB-712
750×1200
15-30
48
3
35
1500
CTS/CTN/CTB-718
750×1800
20-45
72
3
35
2100
CTS/CTN/CTB-918
900×1800
25-55
90
4
28
2500
CTS/CTN/CTB-924
900×2400
35-70
110
4
28
2500
CTS/CTN/CTB-1024
1050×2400
52-100
160
5.5
22
5000
CTS/CTN/CTB-1030
1050×3000
65-125
200
7.5
19
5800
CTS/CTN/CTB-1224
1200×2400
52-100
160
5.5
19
6200
CTS/CTN/CTB-1230
1200×3000
82-120
192
7.5
19
7200
CTS/CTN/CTB-1530
1500×3000
90-170
270
11
14
9700
CTS/CTN/CTB-1540
1500×4000
115-220
350
11
14
11800

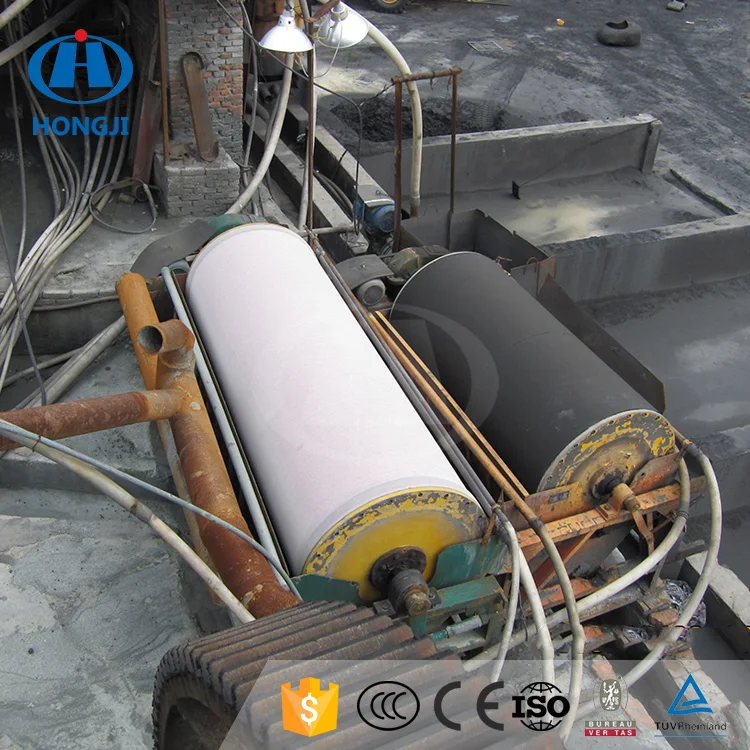

Our Successful Case




Company Profile








Henan Hongji Mine Machinery Co., Ltd. is a reputed manufacturer and joint-stock enterprise with import & export rights and mainly produces large and medium-sized mining machinery, metallurgy machinery and building material equipment. We were founded on August 7th, 1996 by restructuring and setting up 4 branch companies and a research institute. The first company of Zhengzhou Huaye Industrial Machinery Co.,Ltd. was established in 1969. Now, we integrate the research, development, production, and sale together.

Customers' need is what we are trying to create. Customer satisfaction is what we are seeking. Over the last couple of decades, Hongji people have created continuously, transcending ourselves and insisting on the concept of "Development is of overriding importance". Develop the brand with quality. Promote the brand with service. We, Hongji people, are forging ahead for first-class brand with innovative spirit and do our best to contribute to the national industry.


Certifications




Our Services


One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipment,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipment and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).


After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipment supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.


FAQ




1. Who are we?
We are based in Henan, China, start from 2008,sell to Eastern Europe(20.00%),Domestic Market(20.00%),Mid East(15.00%),South America(10.00%),South Asia(5.00%),North America(5.00%),Oceania(5.00%),Western Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Mining Machinery

4. Why should you buy from us not from other suppliers?
Our company has independent R&D center and production base and mainly manufacture the 50-5000tpd capacity stone crushing line ,100-3500tpd Cement production line, making powder equipment ball mill, rotary dryer and so on.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Arabic,Russian
