Коммутатор фиксированной сети CloudEngine S5736 S24T4XC кампуса 24 порта с портами Ethernet 10/100/1000BASE T 4 10 гигабитный SFP
- Категория: >>>
- Поставщик: Chongqing Yujia Technology Co. Ltd.Chongqing Ltd.
Сохранить в закладки 1601292587352:
Описание и отзывы
Характеристики
Product Description
CloudEngine S5736-S series new standard full gigabit Ethernet switch, providing 24 ports PoE/ non-poe, 48 ports PoE/ non-poe, four upstream 10GE ports, and one expansion card slot.
CloudEngine S5736-S series switches are based on the new generation of high-performance hardware and Hua wei's VRP Versatile Routi ng Platform (software platform). They have enhanced three-layer features, simple operation and maintenance, flexible Ethernet networking. Mature IPv6 features are widely used in various industries such as healthcare, retail, mining, and Internet.
CloudEngine S5736-S series switches are based on the new generation of high-performance hardware and Hua wei's VRP Versatile Routi ng Platform (software platform). They have enhanced three-layer features, simple operation and maintenance, flexible Ethernet networking. Mature IPv6 features are widely used in various industries such as healthcare, retail, mining, and Internet.
Rich service functions
Powerful power supply capacity
Intelligent operation and maintenance of the whole network
Powerful power supply capacity
Intelligent operation and maintenance of the whole network
attribute | description |
description | S5736-S24T4XC(24 10/100/1000BASE-T Ethernet ports,4 10-gigabit SFP+, single card slot, no Power supply) |
Component coding | 98011022 |
Model number | S5736-S24T4XC |
Initial support version | V200R020C00 |

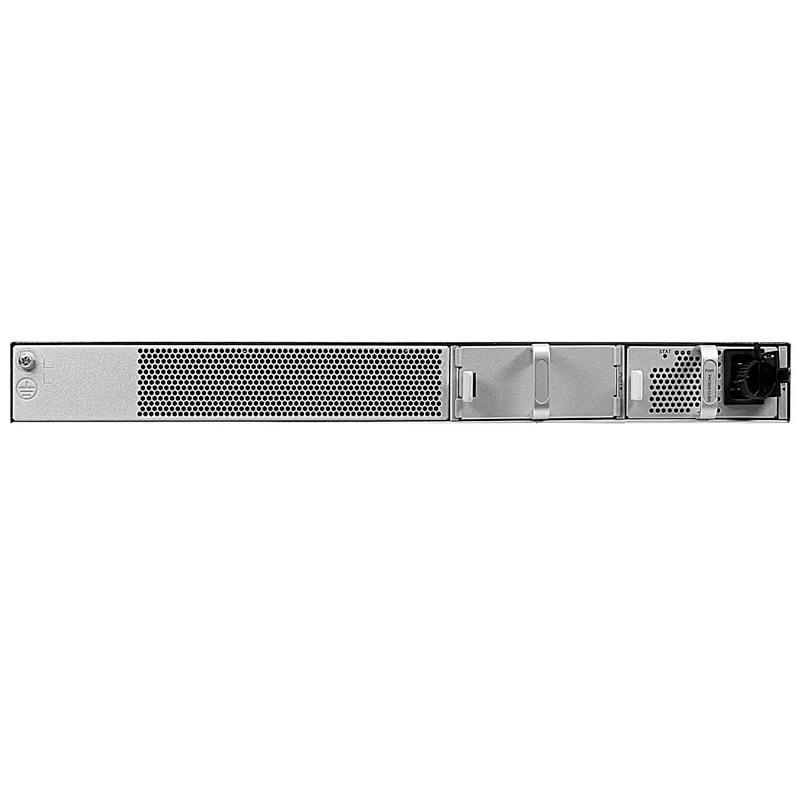

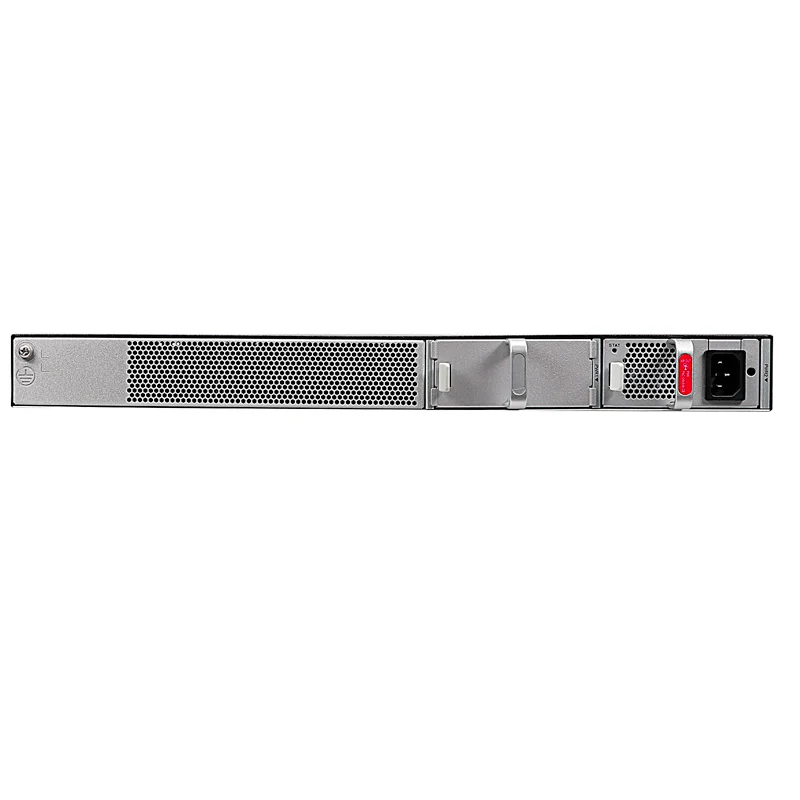

Details Images
Specification
project | description |
Size (W x D x H, excluding packing material) [mm] | Basic dimensions (depth is not including the distance between the protruding structural parts of the front and rear panels) : 442.0mm x 420.0mm x 43.6mm |
Maximum dimensions (depth is the maximum distance between the protrudable port on the front panel and the handle on the rear panel module) : 442.0mm x 444.0mm x 43.6mm | |
Size (W x D x H, including packing material) [mm] | 710 mm * 560 mm * 150 mm |
Case height [U] | 1U |
Weight (excluding packing material) [kg] | 5kg |
Weight (including packing material) [kg] | 8kg |
Typical power consumption [W] | 39W |
Typical heat dissipation value [BTU/hour] | 133.07 BTU/hour |
Maximum power consumption [W] | 55W |
Maximum heat dissipation value [BTU/hour] | 187.67 BTU/hour |
MTBF [year] | 83.79 year |
MTTR [hour] | 2hour |
availability | > 0.99999 |
Ambient noise (sound power) [dB(A)] | 47.4 dB (A) |
Ambient noise (sound pressure) [dB(A)] | 35.4 dB (A) |
Number of card slots | 1 |
Power slot number | 2 |
Number of fan modules | 2 |
Power supply redundancy | 1 + 1 |
A pluggable AC and DC power module can be configured on the same device. | |
Long-term operating environment temperature [°C] | -5°C ~ +45°C (0m ~ 1800m altitude) |
Short-term operating ambient temperature | -5°C ~ +50°C (0m ~ 1800m altitude) |
Ambient temperature variation limit [°C] | From 1800m to 5000m, the maximum temperature decreases by 1°C for every 220m increase in altitude. |
The device can work for a short time when the temperature exceeds the normal range, but the following conditions must be met: | |
The operating temperature exceeds 45 ° C for a maximum of 96 consecutive hours in one year | |
In a year, the operating temperature will not exceed 45 degrees for a total of 360 hours | |
The operating temperature shall not exceed 45 degrees for more than 15 times in a year | |
If any of the above three conditions is exceeded, the device is used out of specification, which may cause damage to the device or cause unknown problems. | |
The device cannot be started when the ambient temperature is lower than 0°C. The maximum distance of an optical module for short-term operation cannot exceed 10km. | |
Storage temperature [°C] | -40°C to +70°C |
Long-term working environment relative humidity | 5%-95% RH, non-condensation |
Long-term working altitude [m] | 0m to 5000m |
Storage altitude [m] | 0m to 5000m |
Power supply system | Pluggable power supply |
Rated input voltage [V] | AC input: 100V AC to 240V AC; 50/60Hz |
DC input: -48V DC to -60V DC | |
Input voltage range [V] | AC input: 90V AC to 290V AC; 45Hz to 65Hz |
DC input: -38.4V DC to -72V DC | |
Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Module. |
memory | 2GB |
Flash | The physical space is 1GB. You can run the display version command to view the actual available space |
Console port type | RJ45 |
Eth Management network port type | RJ45 |
USB interface | support |
Real-time clock (RTC) | support |
RPS input | Do not support |
Service port lightning protection [kV] | Common mode ±6kV |
Power port lightning protection [kV] | Ac power module: differential mode ±6kV, common mode ±6kV |
Dc power module: differential mode ±2kV, common mode ±4kV | |
Fan type | Pluggable fan |
Heat dissipation mode | Air cooling heat dissipation, intelligent speed regulation |
Airflow direction | Wind in from left front and right, wind out from behind |
PoE function | Do not support |
Product certification | Support EMC authentication |
Support safety certification | |
Support production certification |
