Products Description

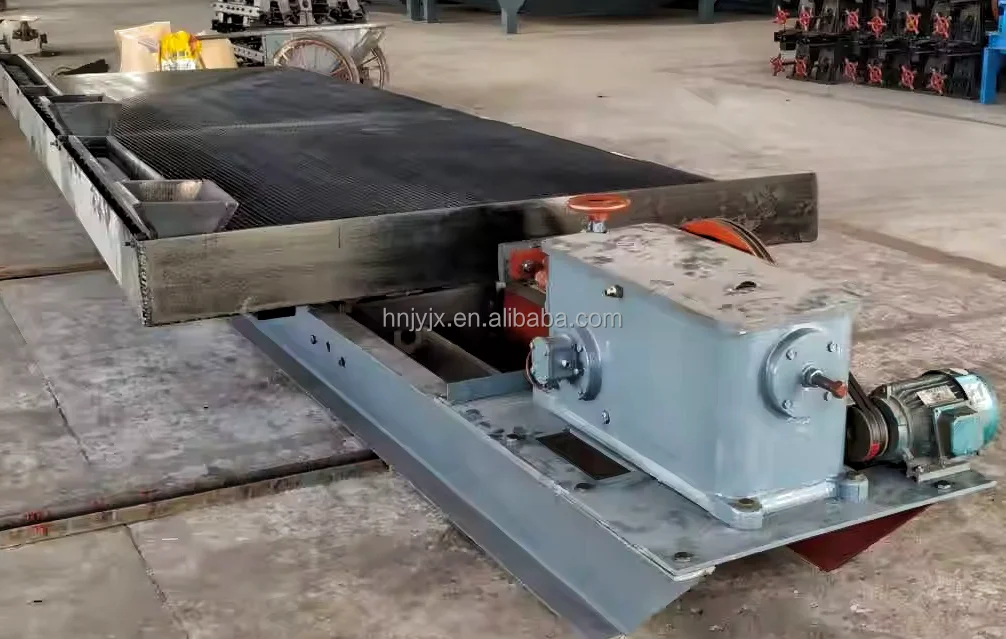

Shaking table
Gold Separator Machine is mainly used to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation, adjustable.
The shaking table is widely used in the selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, limonite and coal.
The shaking table is widely used in the selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, limonite and coal.

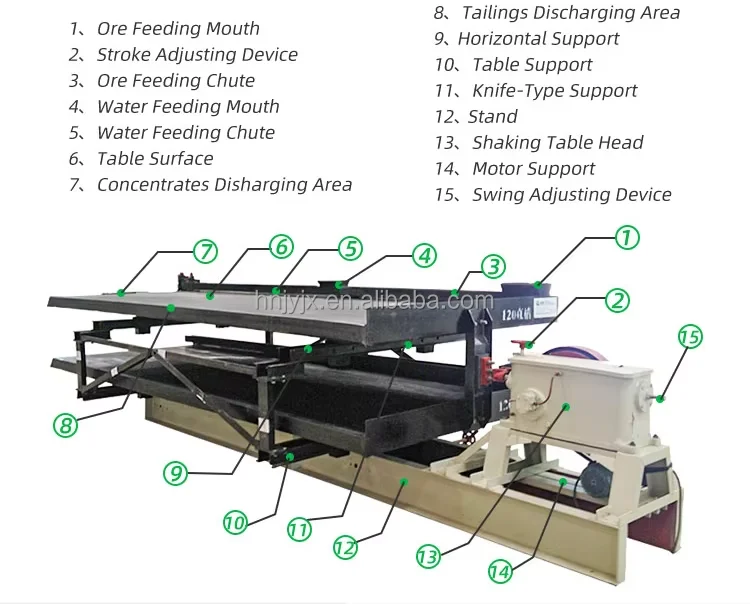

Product Structure
Gold shaking table main component includes head, electric motor, slope regulator, ore tank, water tank, compound strip, and lubrication system. Shaking table mineral separation is an inclined table, the combined action of the symmetrical reciprocating motion of a mechanical slab and the flow of water on a thin inclined plane, causes loose layering and zoning of ore particles on the table surface, thereby causing the mineral separation process to be carried out according to different densities.
Shaking table can make material have different motion base on different particle density and particle size, and from the feeder tank material flow out like a diagonal along the edge of the bed, the discharge line is very long, accurate real estate product of a variety of different quality, such as the concentrate, inferior concentrate, medium concentrate and tailing in time etc.
Shaking table can make material have different motion base on different particle density and particle size, and from the feeder tank material flow out like a diagonal along the edge of the bed, the discharge line is very long, accurate real estate product of a variety of different quality, such as the concentrate, inferior concentrate, medium concentrate and tailing in time etc.
Product Parameters
Model | Coarse sand shaking table | Fine sand shaking table | Slurry shaking table | ||
Size of table | length （mm） | 4450 | 4450 | 4450 | |
Width of driving side （mm） | 1855 | 1855 | 1855 | ||
Width of concentrating side （mm） | 1546 | 1546 | 1546 | ||
Max.feeding size （mm） | 2 | 0.5 | 0.15 | ||
Feeding capacity (t/d） | 30-60 | 10-20 | 15-25 | ||
Density (%) | 25-30 | 20-25 | 15-25 | ||
Stroke （mm） | 16-22 | 11-16 | 8-16 | ||
Frenquency (f) | 45-48 | 18-53 | 50-57 | ||
Quantity for washing water in the table(t/d) | 80-150 | 30-60 | 10-17 | ||
Cross slope (°) | 2°30-4°30 | 1°30-3°30 | 1°-2° | ||
Protrait slope (%) | 1.4 | 0.92 | ----- | ||
Pinch-out table angle (°) | 32°-42° | 40° | 42° | ||
Concentration area | 7.6 | 7.6 | 7.6 | ||
Length scale | 2.6 | 2.6 | 2.6 | ||
Grooved section morphology | Rectangle | Zigzag wave | Triangle | ||
Power (kw) | 1.1 | 1.1 | 1.1 | ||
Product Features
1). High separation accuracy. It can get final concentrates, middling, and tailing only for one time separation of the raw ore.
2). Made by 6s firber glass material;
3). Steel structure support, easy to install and move to other place;
4). High recovery ratio, as usual more than 90% recovery ratio.
3). Steel structure support, easy to install and move to other place;
4). High recovery ratio, as usual more than 90% recovery ratio.
5) . The frequency stroke is easier to be adjusted.

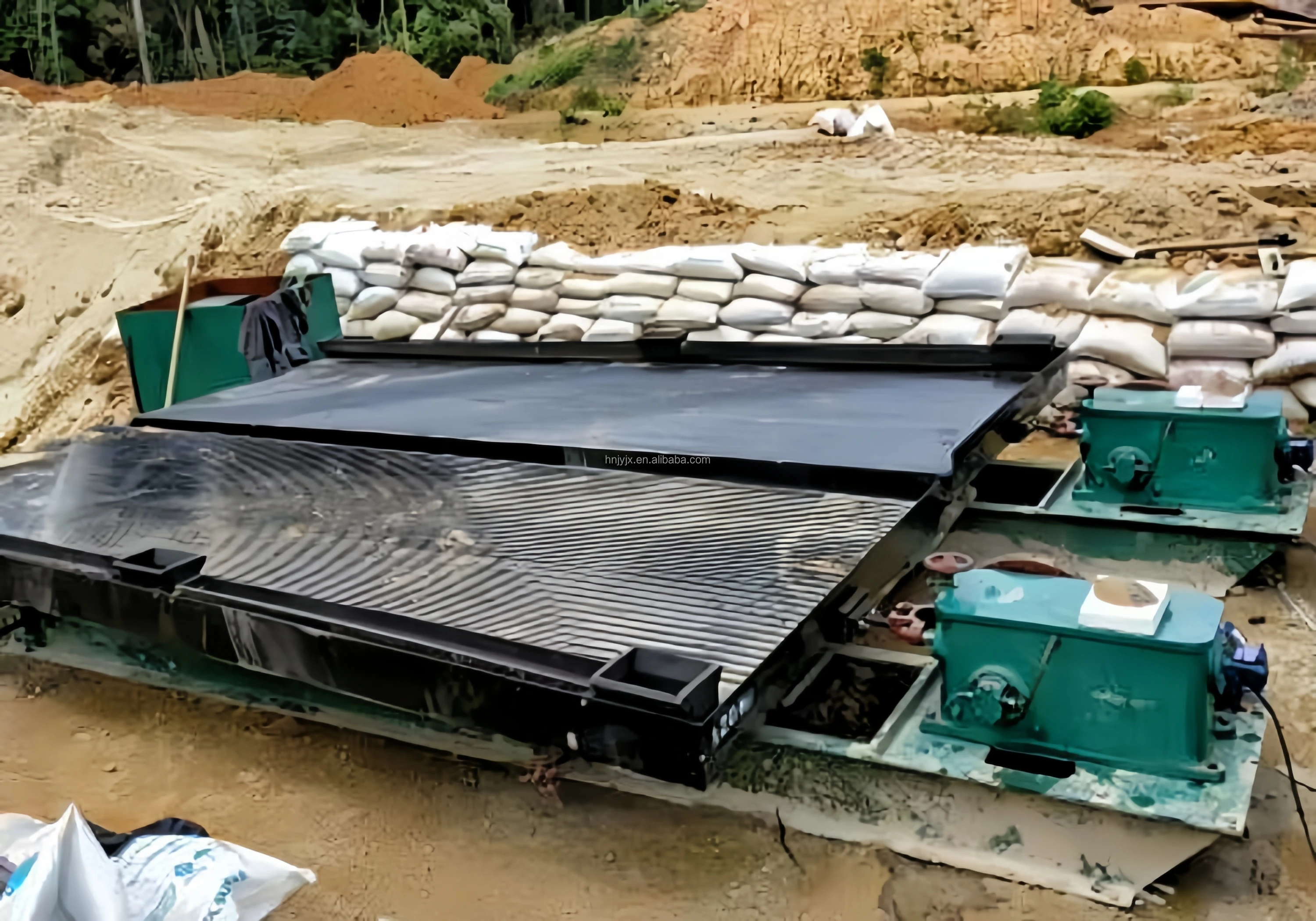

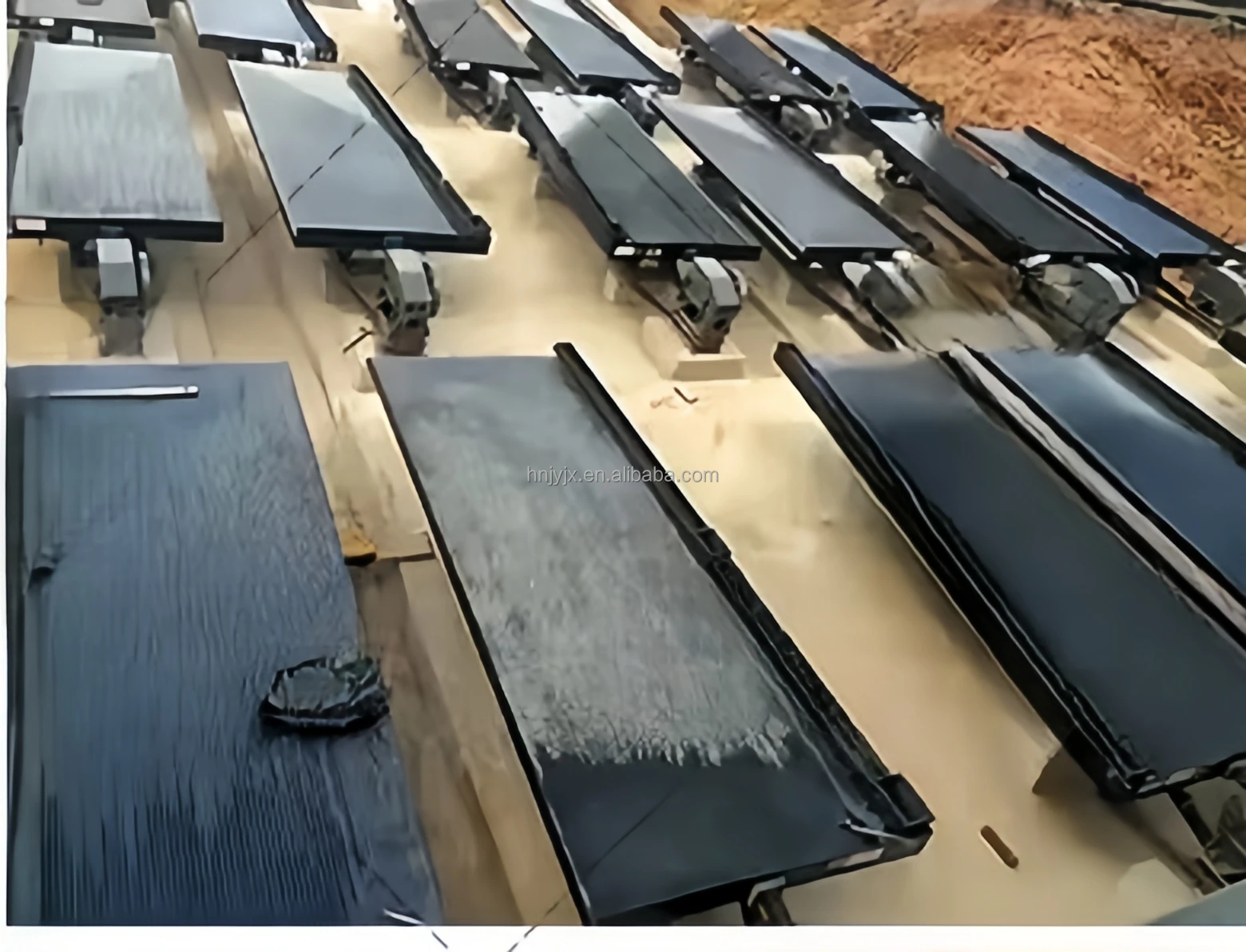

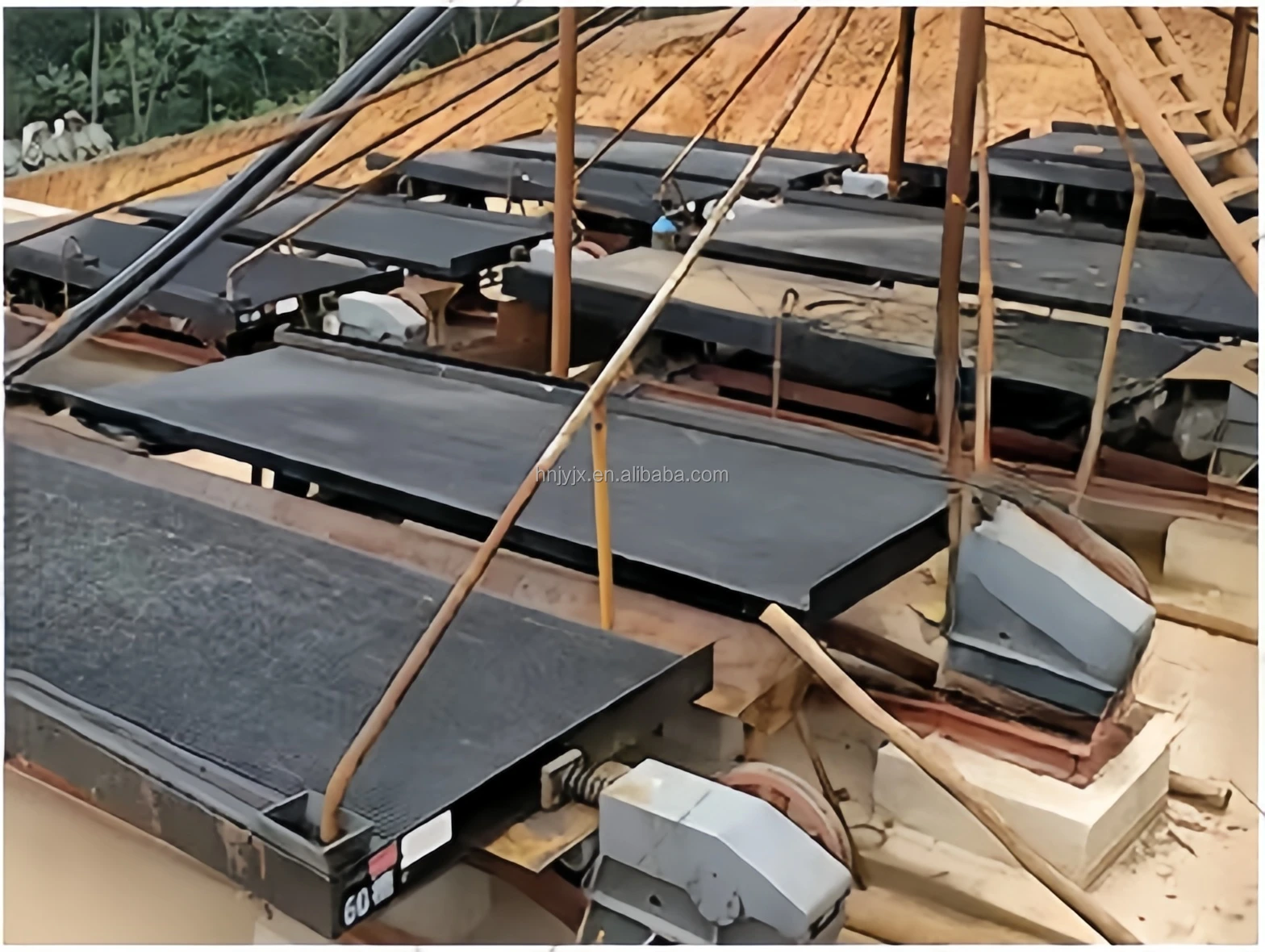

Customer Site
Maybe you are interested in
Company Profile
FAQ
Q: Are you a manufacturing or trading company?
A: We are a factory, established in 1998. We are the direct manufacture, so we can offer you the lowest price than the market price. The price of the machine can be given the largest discount based on quantity.
Q: What is your payment method?
A: T/T, L/C, Paypal, and Western Union are all available. After sign the contract, pay the 30%-50% deposit of total purchase price and pay the full payment before delivery. We take photos and videos of finished products before delivery.
Q: How long is your delivery time?
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and parts availability.
A: T/T, L/C, Paypal, and Western Union are all available. After sign the contract, pay the 30%-50% deposit of total purchase price and pay the full payment before delivery. We take photos and videos of finished products before delivery.
Q: How long is your delivery time?
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and parts availability.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at the lowest cost. We will provide the technical advice and find the solution immediately for you when the machine is in trouble.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas.
A: One year. Spare parts for you at the lowest cost. We will provide the technical advice and find the solution immediately for you when the machine is in trouble.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas.
Похожие товары

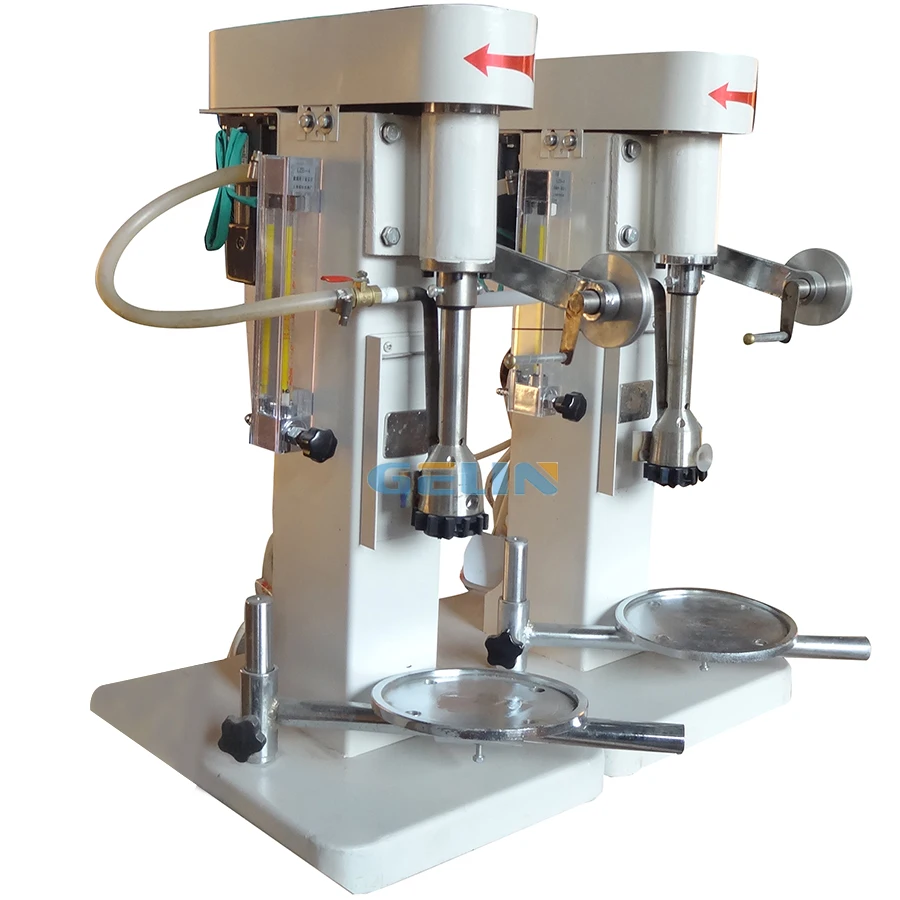

Заводская цена портативная лабораторная Флотационная ячейка для перемешивания мелких минералов
Магнитный конвейер с постоянным поперечным ремнем для очистки болтов и гвоздей от проезжей части
292 426,37-381 425,70 ₽
Нигерийская машина для спирального сепаратора золотого требуется спиральный гравитационный сепаратор
127 014,76-127 141,90 ₽

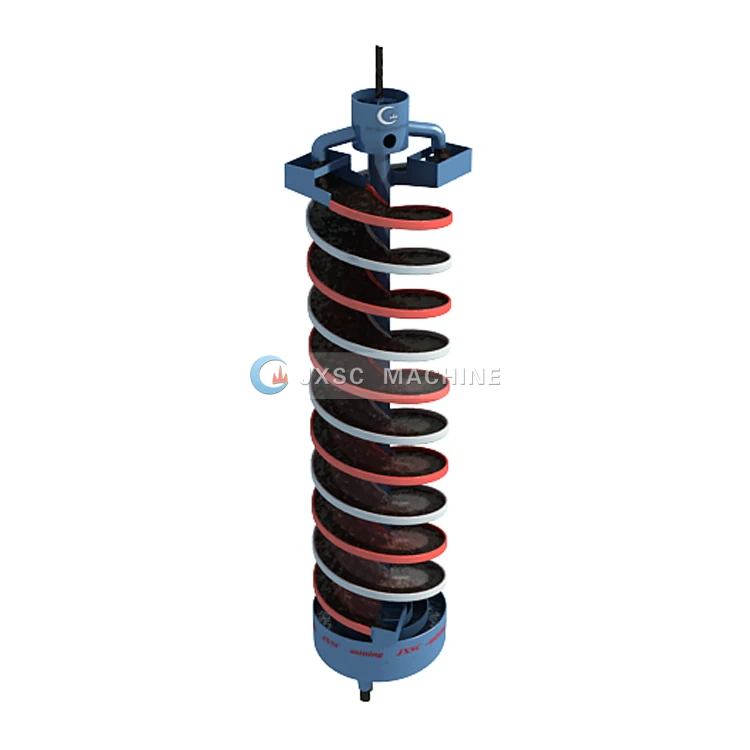

Шахтный гравитационный сепаратор линия обработки спиральный конденсатор
Производитель горных работ производственная линия Gold CIP золотодобыча
1 271 419,00 ₽

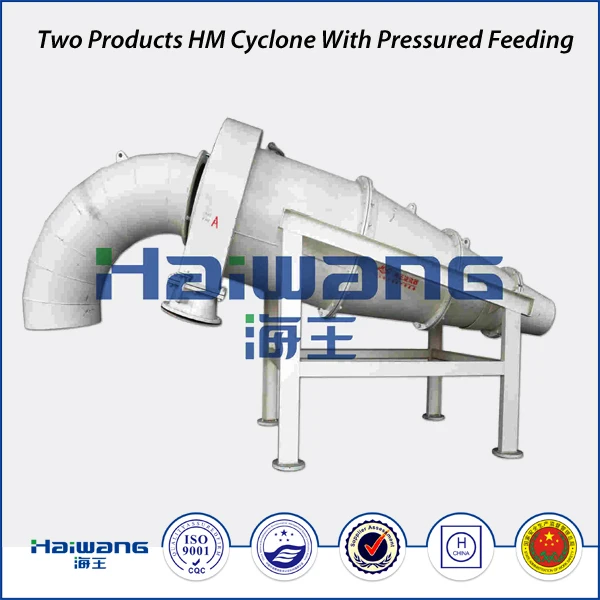

Двухпродуктовый тяжелосредный циклон

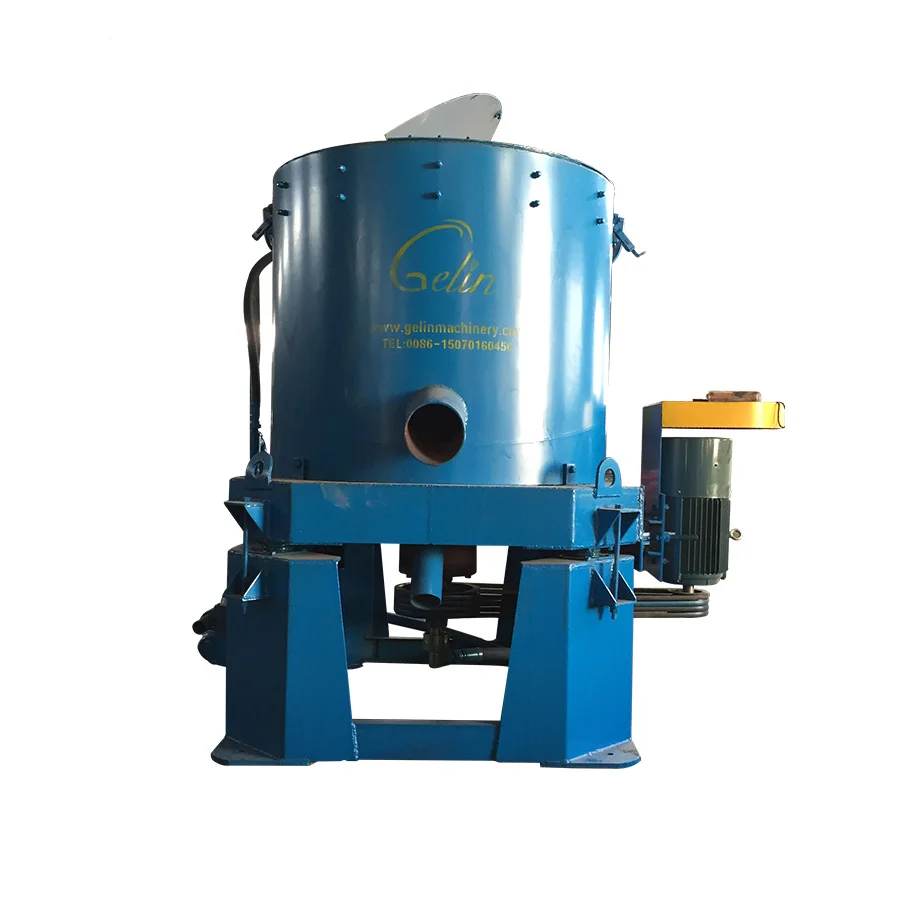

Золотой концентратор Knelson в Китае гравитационная концентрация
