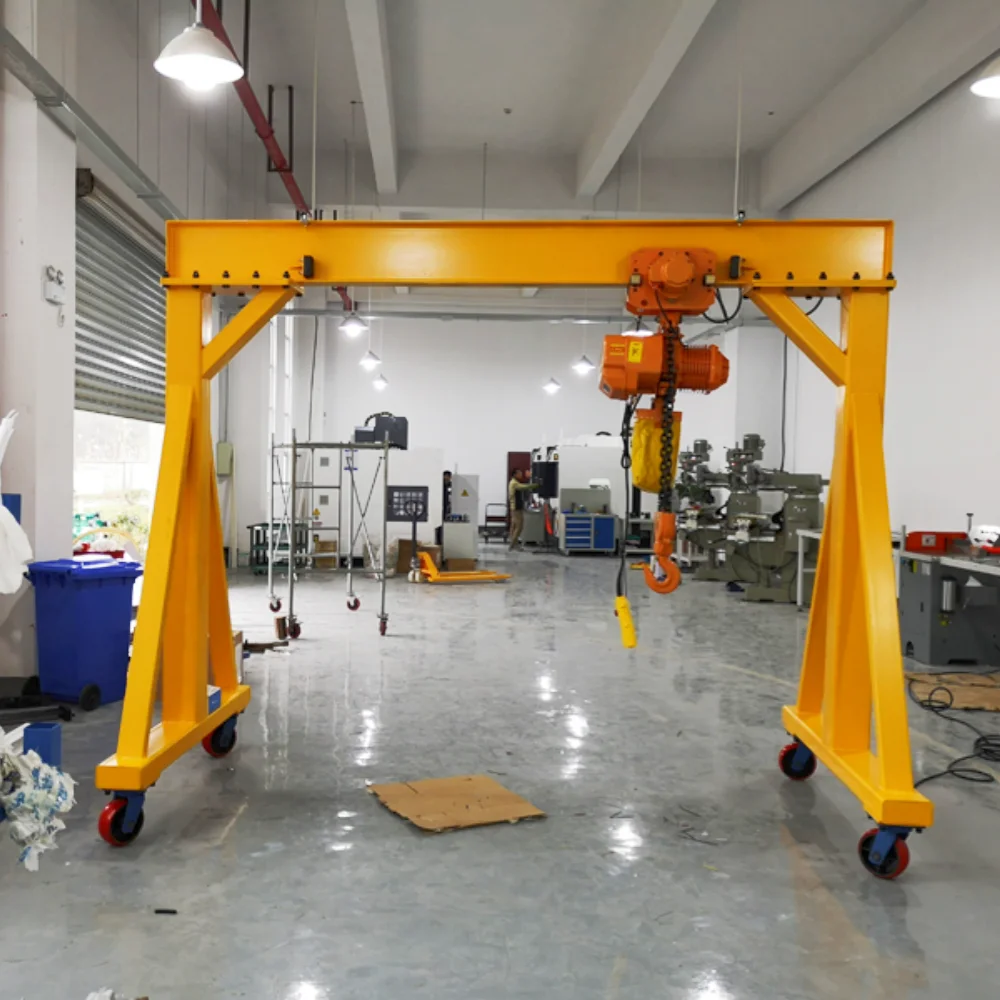

5 тонн 3 тонны 1 тонный Портальный Кран
580,00-1 200,00 $
Тяжелая емкость 45 тонн резиновый контейнер для шин козловой кран цена
- Категория: >>>
- Поставщик: Henan Huasui Heavy Industry Machinery Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601293010325:
Описание и отзывы
Характеристики
Products Description

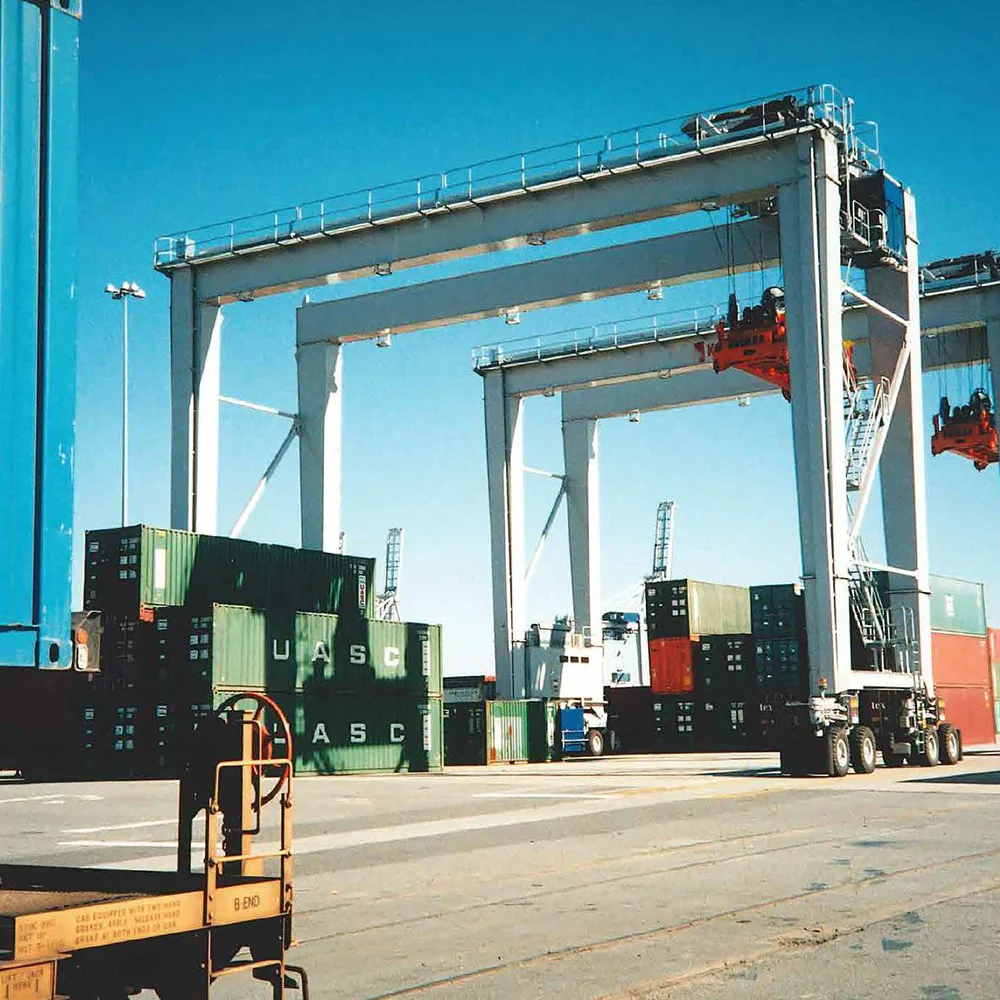

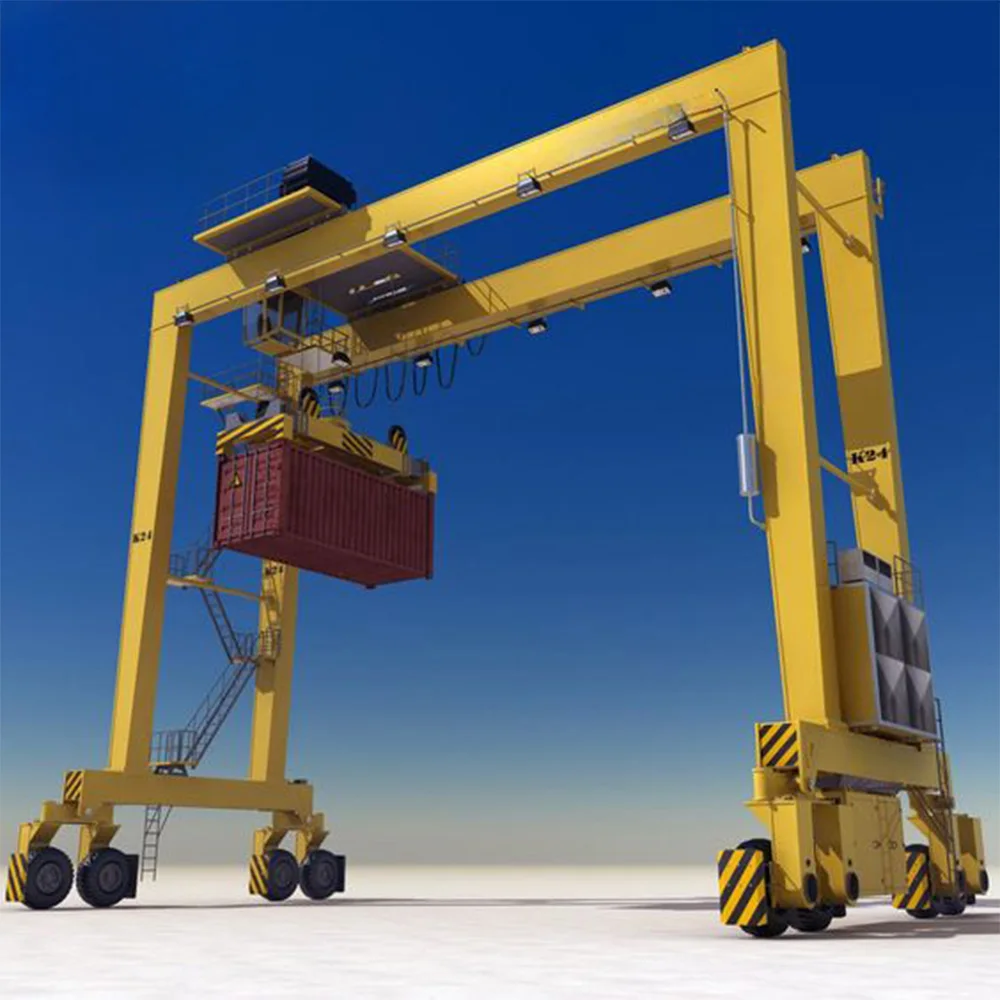

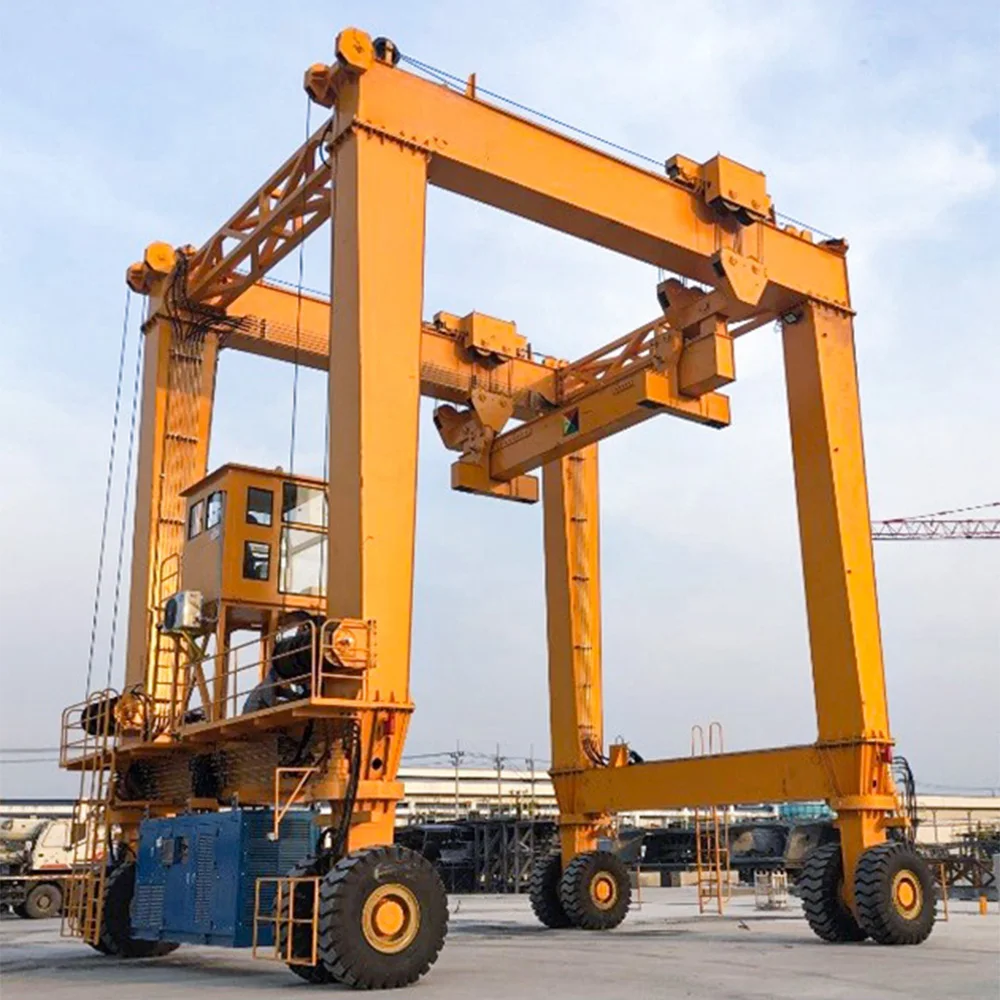

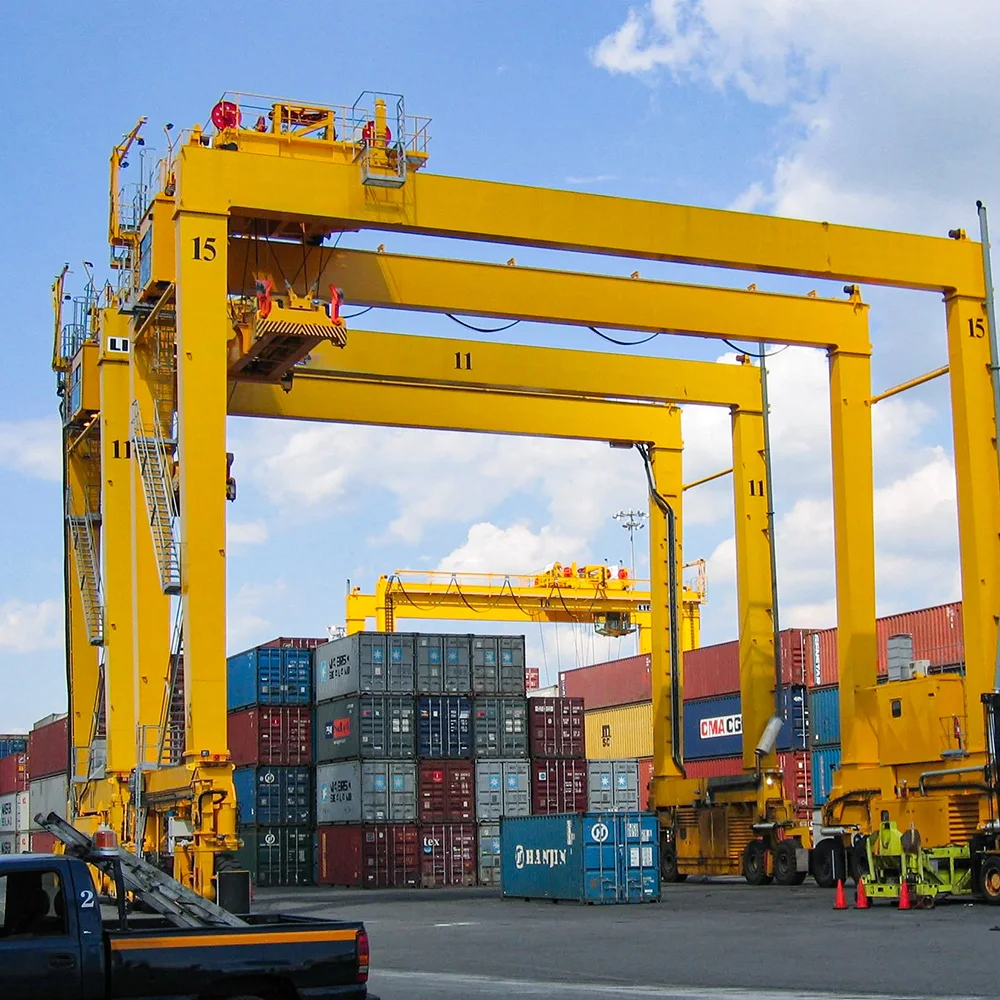

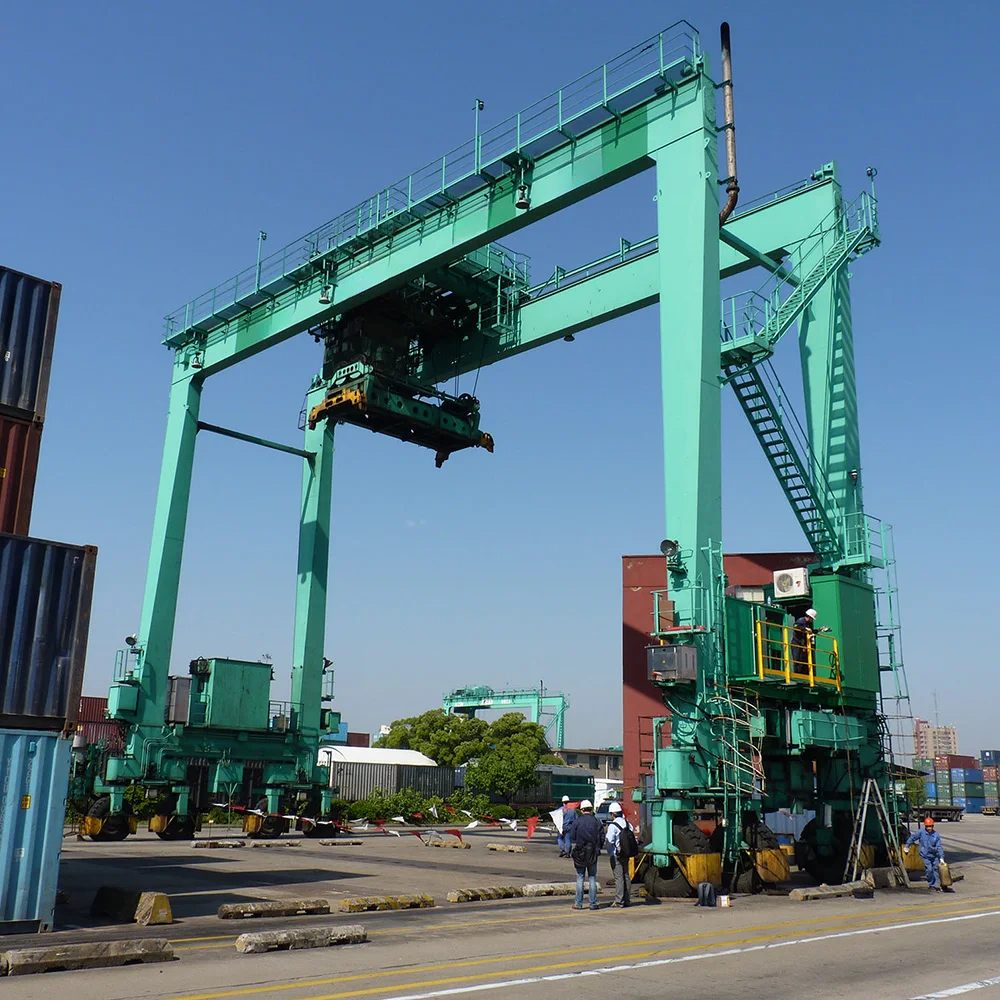

Heavy Capacity 45ton Rubber Tyre Container Gantry Crane Price is a kind of lifting equipment used in container ports and logistics parks. It is mainly used for container loading, unloading, handling and stacking operations in the yard.
It is supported by pneumatic rubber tires and is usually powered by a diesel generator set, but can also be powered by a cable drum, lithium battery, etc. It consists of trolley mechanism, trolley assembly, gantry, power system, and a special container spreader. As it adopts rubber tyres as the support and movement, it has high flexibility and can move freely in a wide range without the need of track laying.
Rubber tyred gantry crane has various functions, high efficiency, stable and reliable, wide operating range and good maneuverability. The rubber tyred gantry crane is less sensitive to uneven ground and is easy to use, maintain and repair. Its most important feature is that it can travel straight, horizontally, turn 0-90 degrees and rotate in place.
It is supported by pneumatic rubber tires and is usually powered by a diesel generator set, but can also be powered by a cable drum, lithium battery, etc. It consists of trolley mechanism, trolley assembly, gantry, power system, and a special container spreader. As it adopts rubber tyres as the support and movement, it has high flexibility and can move freely in a wide range without the need of track laying.
Rubber tyred gantry crane has various functions, high efficiency, stable and reliable, wide operating range and good maneuverability. The rubber tyred gantry crane is less sensitive to uneven ground and is easy to use, maintain and repair. Its most important feature is that it can travel straight, horizontally, turn 0-90 degrees and rotate in place.
Features
High flexibility
As there is no need to lay tracks, the tyre crane is able to travel freely in the yard with high adaptability.
Efficient Operation
It can lift, move and place containers of various sizes,and operate quickly to improve operational efficiency.
Space Saving
Higher containers can be stacked, making full use of vertical space and increasing storage density in the yard.
Low Maintenance Cost
Compared with rail cranes, tyre cranes have lower maintenance and operating costs.
Main Parts
Main Beam and Outriggers
Consist of a sturdy steel structure with the main beam spanning between two outriggers equipped with rubber tyres underneath the outriggers to provide stable support
Rubber Tyres
A number of rubber tyres are arranged at the bottom of the outriggers, which can achieve a variety of movement modes such as straight line, traverse and inclined trav
Lifting Mechanism
Comprising wire ropes, reels and spreaders for lifting, lowering or moving containers horizontally.
Electric Motor or Diesel Engine
Provides power, and some of the equipment can also be equipped with a hybrid system to reduce energy consumption.
Technical Parameter
Item | Parameter | Parameter | |
Load Capacity | 30-65T | 30-65T | |
Span | 23-35m | ||
Lifting Height | 20-30m | ||
Lifting Speed | No load | 24 metres/min - 30 metres/min | |
Full load | 12 m/min - 18 m/min | ||
Horizontal Travelling Speed | 20 km/h - 25 km/h | ||
Lateral Travel Speed | 40 m /min - 50 m /min | ||
Power Type | Diesel-powered, hybrid, electric | ||
Number of Tyres | 8-16 | ||
Control Mode | Manual control, remote control, automated control | ||
Operating Temperature Range | -20°C - 50°C | ||
About Our Factory
Certifications
Packing & Delivery
FAQ
1. What types of cranes do you offer?
As a manufacturer with over 20 years’ experience, Huasui provide a range of cranes, including gantry cranes, overhead cranes, RTG cranes, jib cranes, and customized lifting solutions tailored to specific industry needs, such as for steel, precast concrete, and container handling.
2. How do I know which crane is suitable for my project?
Our team of experts is here to help! By understanding your lifting capacity requirements, operational environment, and usage frequency, we can recommend the ideal crane solution for your project. Contact us for a free consultation.
3. How to choose the right crane?
The following factors need to be considered when choosing a crane: Load capacity, Lifting height, Working environment, Frequency of operation.
4. What maintenance services do you offer?
We offer comprehensive maintenance plans, including preventive maintenance, inspection, repair, and spare parts replacement, to keep your crane running efficiently and safely. Our service team is available for scheduled and emergency support.
5. Are your cranes compliant with international safety standards?
Absolutely. Our cranes are manufactured in compliance with major international standards such as ISO, EN, and GB/T. Additionally, we ensure that each crane undergoes rigorous testing and inspection before delivery.
6. What are your delivery and installation timelines?
Delivery and installation timelines vary based on the type and customization of the crane. Generally, standard cranes can be delivered within 6–8 weeks, while customized solutions may require additional time. We aim to provide accurate timelines upfront to ensure smooth project planning.
7. Do you offer installation services?
Yes, we provide comprehensive training programs for crane operators, including safety training, maintenance guidelines, and operational best practices to ensure your team is fully prepared to operate the crane safely and efficiently.
Похожие товары

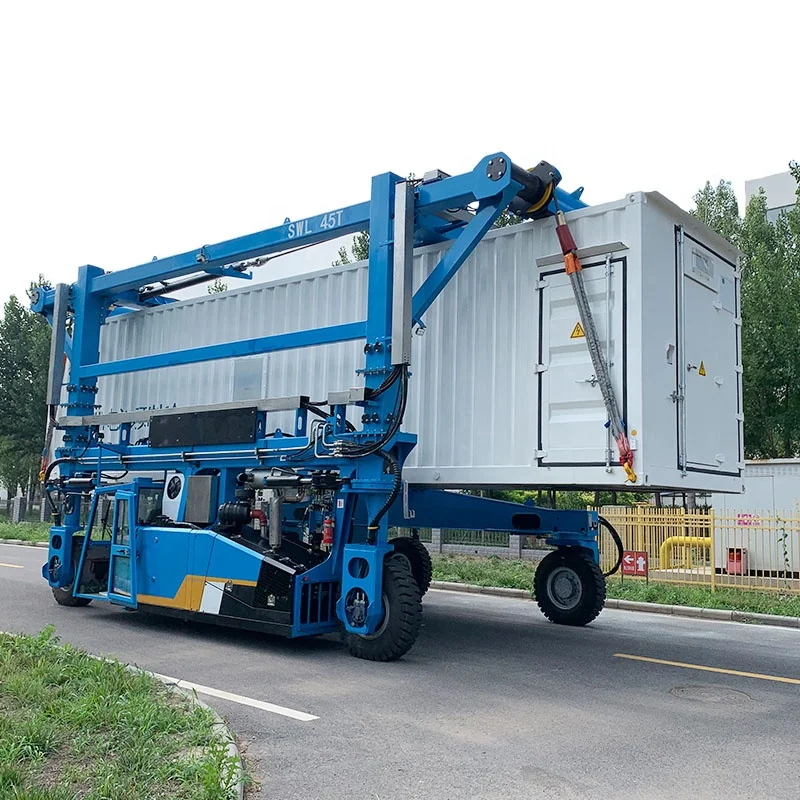

Мобильная Автоматическая контейнерная подъемная система движущегося оборудования будет пересаглить Перевозчик 35 тонн

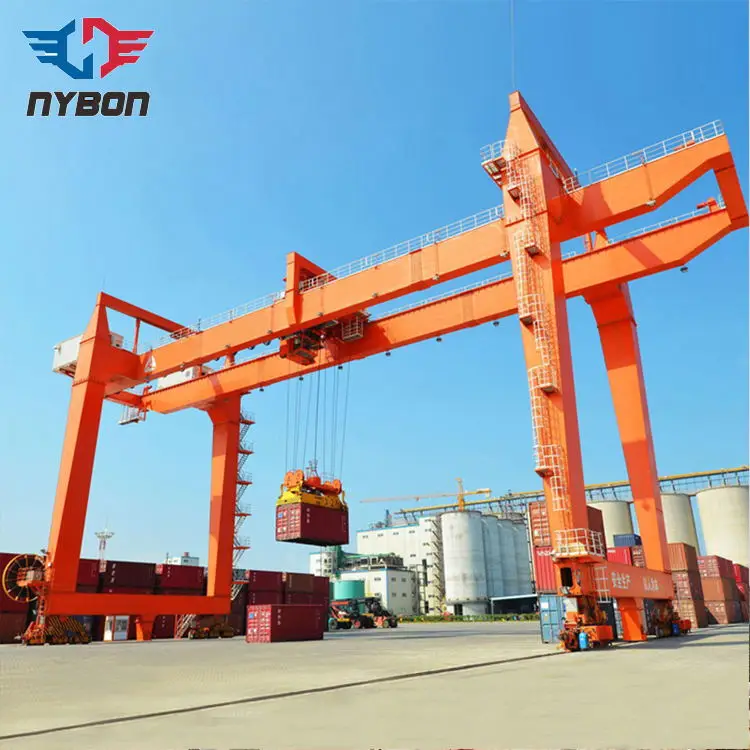

Контейнерный козловой кран RMG 40 тонн цена
Прямые продажи с завода 10 тонн 20 30 портальный кран goliath быстрой доставкой
4 000,00-4 800,00 $

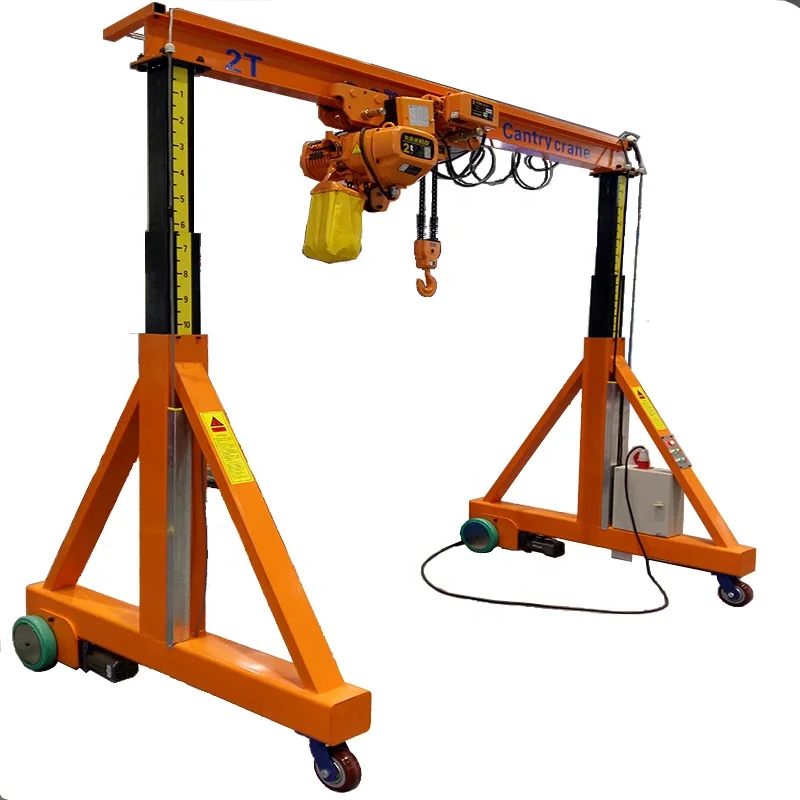

1t 2t 3t 5t 7 5 t 10t 15t 20t мини Подвижная рама козловой кран 2000lb 4000 6000 фунтов лёгкий нейлоновый трос автоматизированное перемещение стальной для продажи
2 000,00 $
Кабельный барабанный козловой кран 20 тонн 40 70 двойной балочный
15 000,00-20 000,00 $

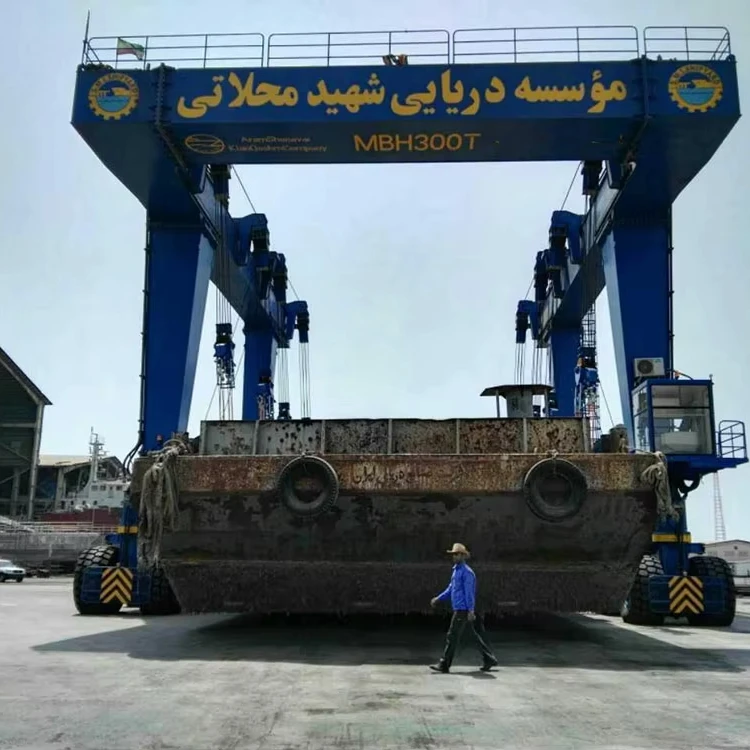

Китайский завод новый 50-тонный 80-тонный 100 тонный 300 МОРСКОЙ лодочный подъемник яхтенный козловой кран для продажи
