Электрическая машина для продольной резки горячая Распродажа сверхпрочная Резки Металлических Труб
74 723,36-90 142,46 ₽
2024 Новая Мощная для 13 мм электрическая гидравлическая канавочная машина муфта труб роликовая канавка
- Категория: >>>
- Поставщик: Hangzhou Deruibao Piping Technology Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1601293065968:
Описание и отзывы
Характеристики
Product Description

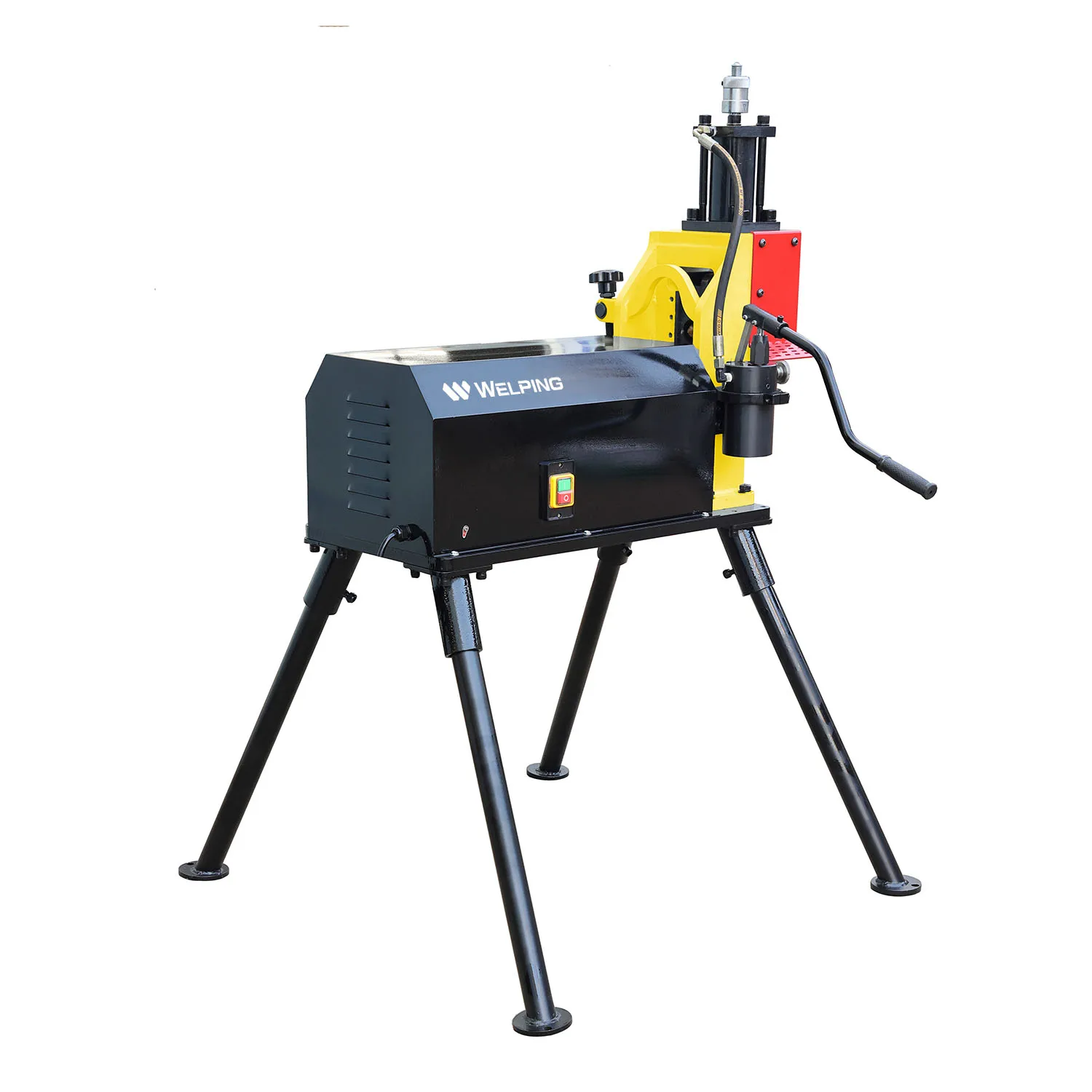

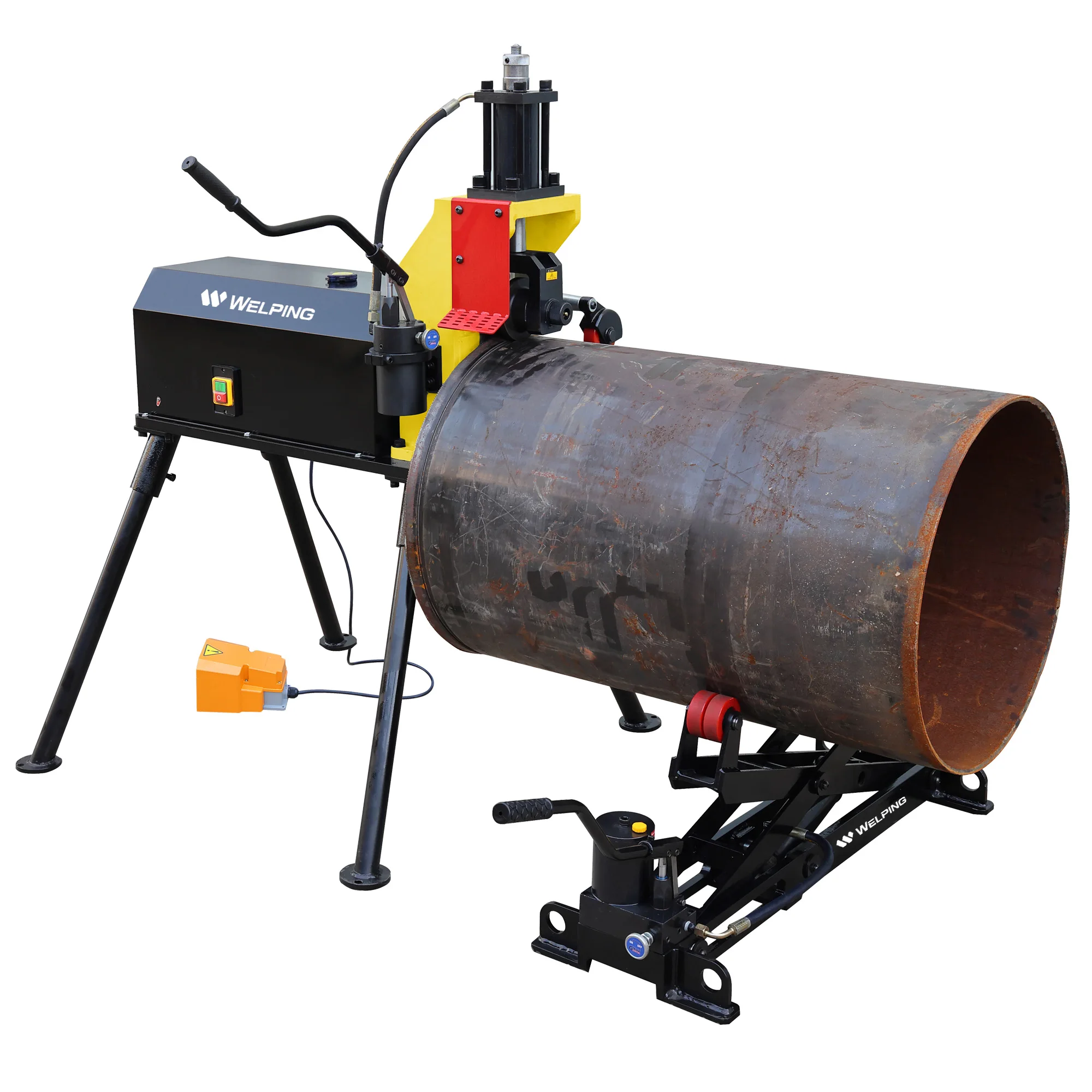

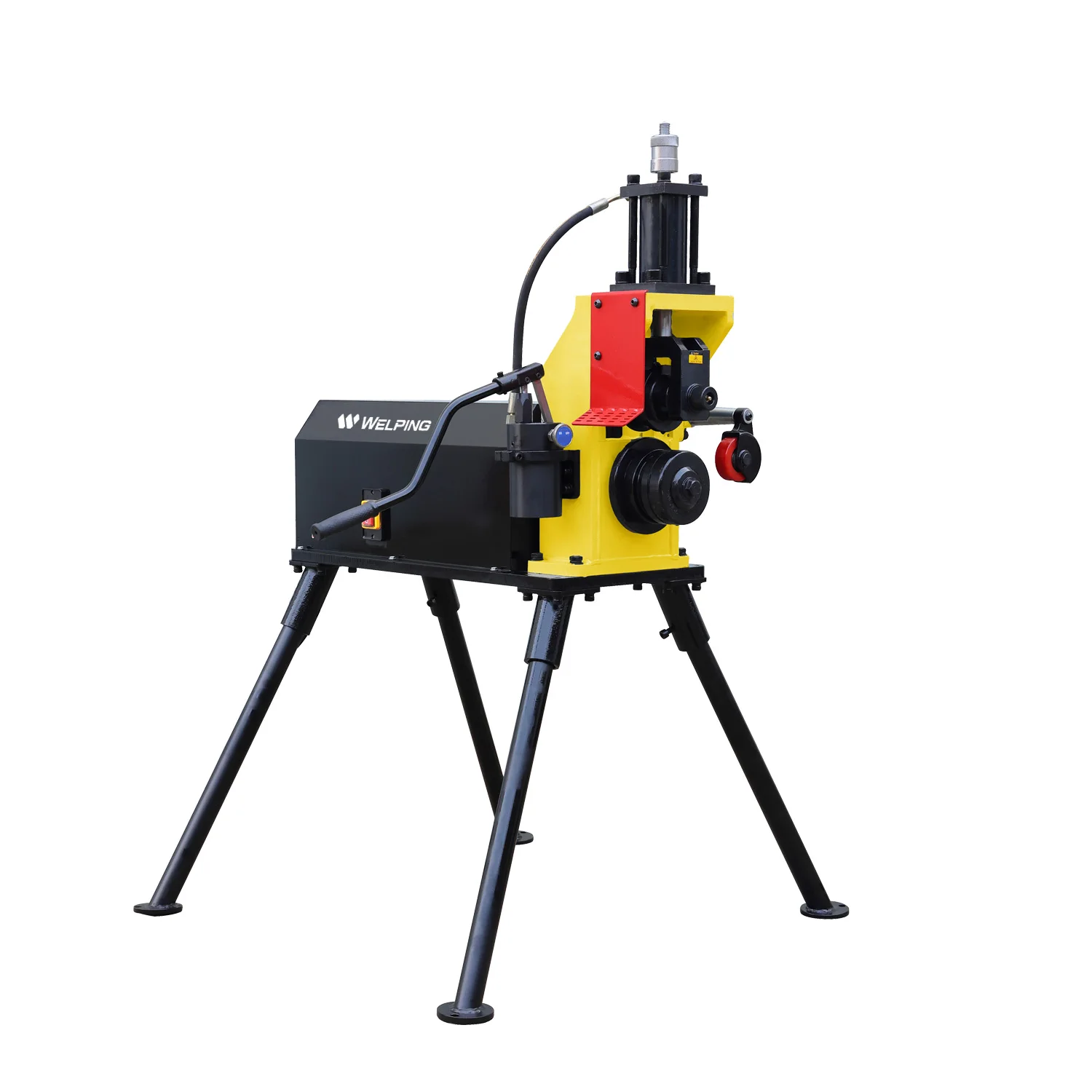

* Model RG-4X Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and stainless steel from 8"-24" (DN200~DN600) SCH10 to SCH40.
* This heavy-duty roll groover is ideal for use in both workshop and job site settings. Equipped with a powerful motor, hydraulic feeding pump, foot switch, and pipe stand, it boasts full functionality for streamlined mass fabrication.
* Additionally, its exceptional strength and durability make it a reliable choice for heavy-duty applications.
* The exceptional hydraulic feeding pump and locking nut for groove depth integration guarantee exceptional groove quality and maximum efficiency.
* This heavy-duty roll groover is ideal for use in both workshop and job site settings. Equipped with a powerful motor, hydraulic feeding pump, foot switch, and pipe stand, it boasts full functionality for streamlined mass fabrication.
* Additionally, its exceptional strength and durability make it a reliable choice for heavy-duty applications.
* The exceptional hydraulic feeding pump and locking nut for groove depth integration guarantee exceptional groove quality and maximum efficiency.
Model | RG-4X |
Suitable materials | Carbon Steel,Stainless Steel |
Capacity | for 8"-16" steel pipe SCH20/SCH40 for 16"-24" steel pipe SCH10/SCH20 |
Power supply | 220V/110V |
Frequency | 50HZ /60HZ |
Max wall thickness | 13 mm |
Motor power | 2200W |
Output speed | 20RPM |
Packing gross weight | 230kgs |
Packing size | 110*75*99cm |
Item No. | Phase | Power | Voltage/Frequency | N.W.(kgs) |
900040 | 3 | 1100W | 380V,50/60HZ | 230 |
900041 | 3 | 1100W | 440V,50/60HZ | 230 |

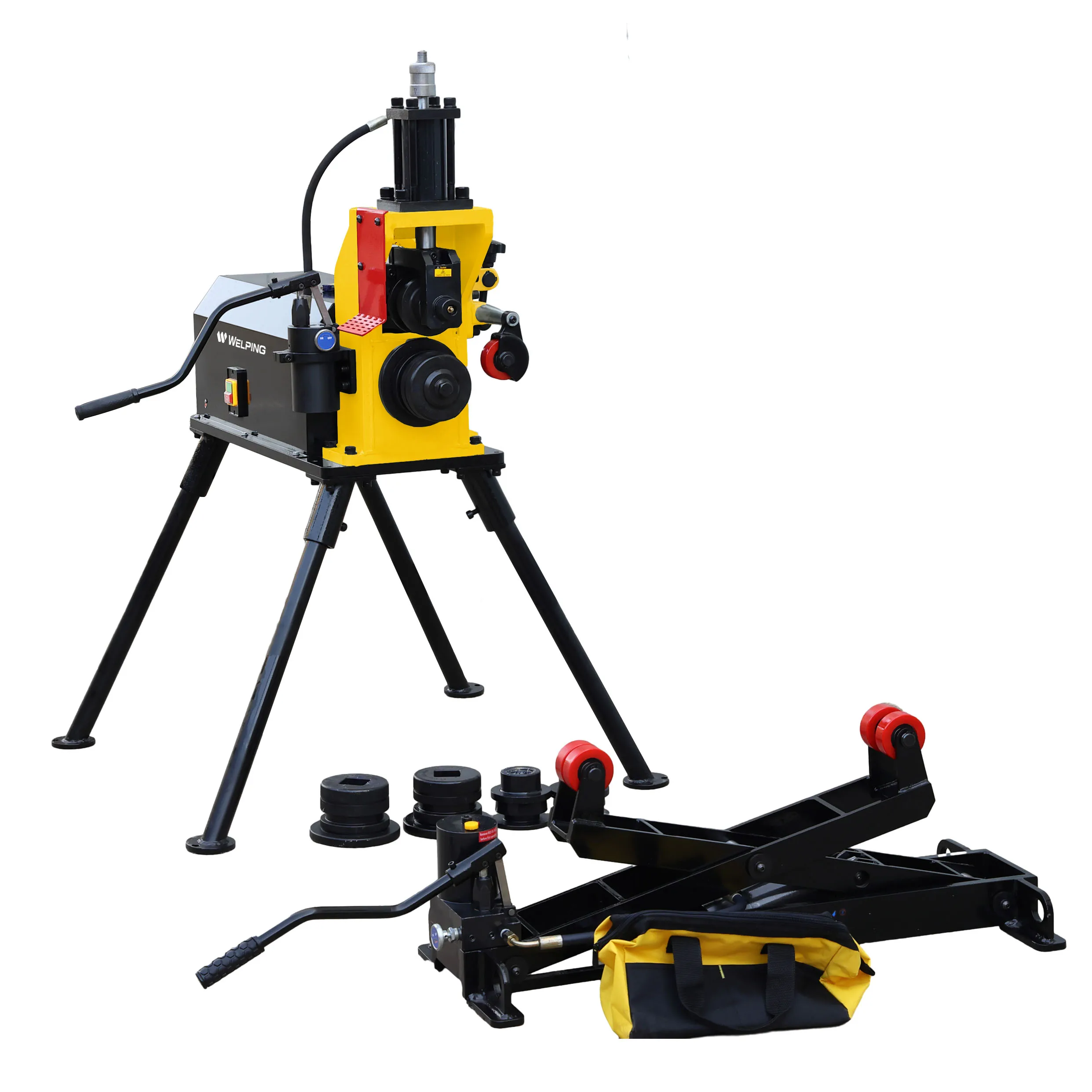

Standard Parts
Item No. | Description | N.W.(kgs) |
911087 | Drive roller 8"-12" (φ219~φ325) | 3.50 |
911088 | Drive roller 14"-16" (φ355~φ426) | 3.50 |
911089 | Drive roller 18"~24" (φ457-φ630) | 3.50 |
912029 | Groove roller 8"-12" (φ219~φ325) | 2.00 |
912030 | Groove roller 14"-16" (φ355~φ426) | 2.00 |
912031 | Groove roller 18"~24" (φ457-φ630) | 2.00 |
998026 | Foot Switch | 1.50 |
998038 | Pipe stand for 8"~24" (φ457-φ630) | 25.0 |
998011 | Pipe stabilizer | 2.80 |
Optional Parts
Item No. | Description | N.W.(kgs) |
911099 | AGS Groove Roller 14"-24" (φ355~φ630) | 3.50 |
912034 | AGS Drive Roller 14"-24" (φ355~φ630) | 2.00 |
Features
Company Profile
Company introduction
Since 2005, Hangzhou Welping Machinery Equipment Co., Ltd. has been focusing on the development, manufacturing and sales of pipe tool equipment. Our goal is to combine industrial-level design, performance and quality to create a machine that will become your first choice. Our products can be used in municipal drainage, natural gas, sewage, chemical, agricultural irrigation and so on.Our products sell well at home and abroad by virtue of high quality and competitive price.They are mainly distributed in India, South Africa, Sri Lanka, Russia, Germany and so on. To suit different pipe applications and market requirements, we are offering different level tools represented by brand WELPING, YOVIDA, Doweld , Volkir, ENERFLEX Brand WELPING enjoys a high reputation in the market of China and Russia, benefiting from the steady quality and performance. Thanks to our experienced engineers, WELPING can help you to quickly decide OEM and DM requirements. At the same time, we are improving and updating products line to better suit field requirements.
Specification
1.Payment Term
Our Usual Payment Term Is Of T/T Remittance Before Shipment Or Against B/L Copy. We Cherish Long-Term Cooperation,We Grand More Favorable Payment Terms For Our Regular Customers.
2.Production Lead Time
Owe To Self-Managing Production Procedures And Machinery, Standard And Light-Oem Items, Welping Can Finish In Around 10-15 Days.
3.Customized Design
Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor Structure Modifications. Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.
4.Product Warranty
We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.
5.About Agency
To Further Serve Our Customers And Provide More Value To Clients, We Are Very Willing To Establish Agency With Influential Distributors. As Welping’S Agent, You Can Get More Favorable Cooperation Terms And Service.
Похожие товары
SUNTECHMACH 50/60 Гц OEM Заводская Прямая цена дешевая экономичная 12-дюймовая электрическая трубчатая машина
49 815,57-51 001,66 ₽
DEKO DKID13Z3 710 Вт Электрический ударный вращающийся молоток Аккумуляторная дрель с 2 функциями электроинструментов
1 547,85-2 366,24 ₽
Высокое качество оптовая продажа Китай Оптовая миниатюрный линейный привод
Бесгазовая сварочная машина DPM/диоксид углерода небольшой цифровой сварочный аппарат для домашнего использования
5 633,91-7 472,34 ₽

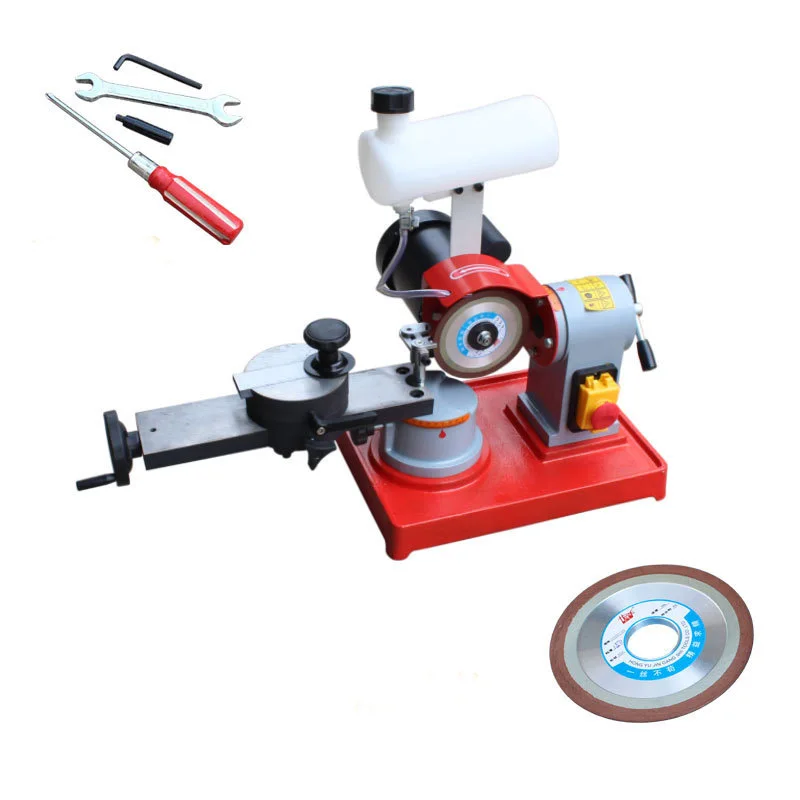

Точилка для ножей
17 315,66 ₽

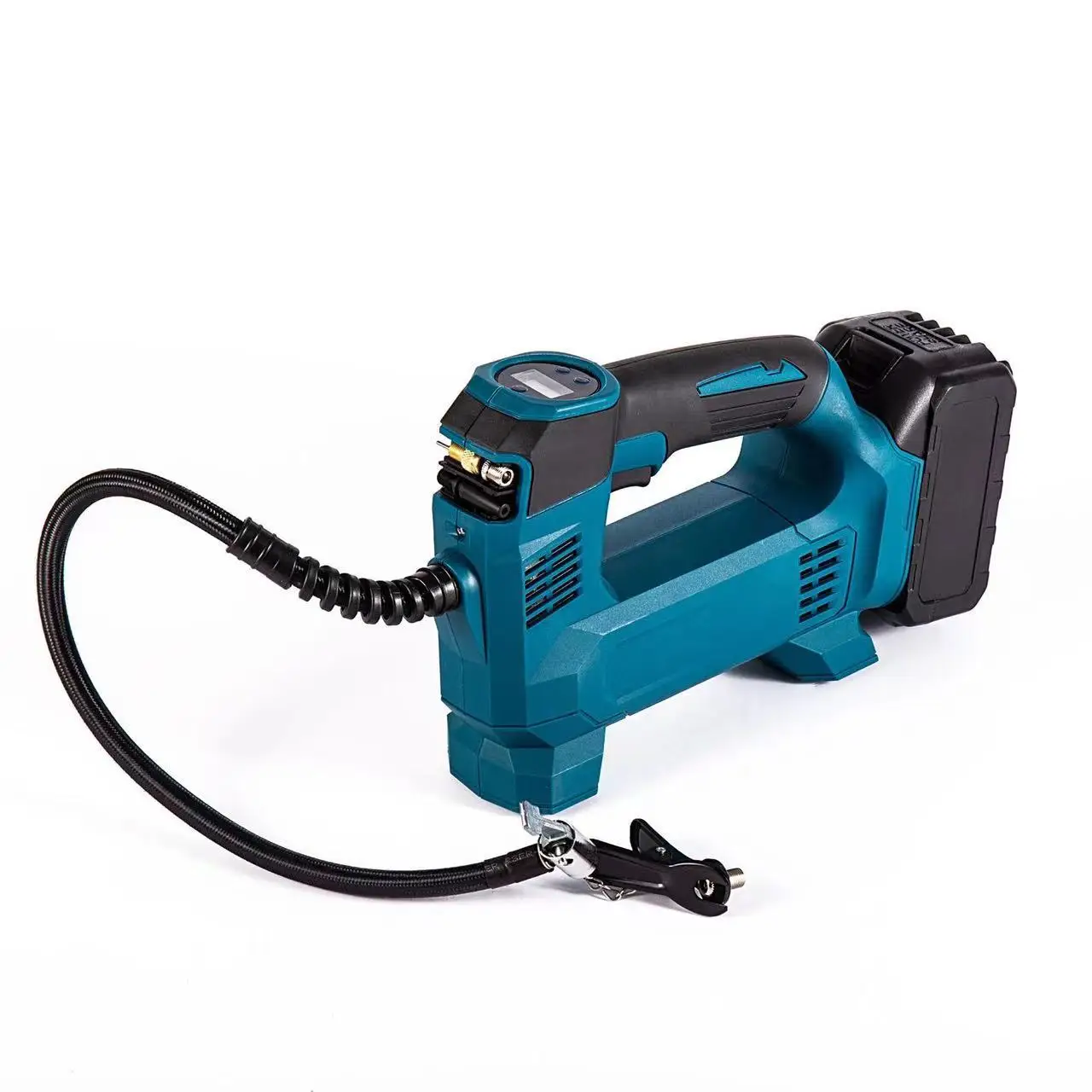

Промышленный класс небольшой портативный Аккумуляторный автомобильный воздушный насос с литиевой батареей Электрический шинный
