Промышленный открытый каркас FHD IPS экран емкостный сенсорный монитор высокой яркости 1000nits светодиодный с VGA USB HDMIed
- Категория: >>>
- Поставщик: Shenzhen Monsview Industrial Co. LimitedShenzhen Limited
Сохранить в закладки 1601293139719:
Описание и отзывы
Характеристики
Industrial FHD IPS 1920*1080 Open Frame Touch Screen Display High Brightness LED Monitors
Main Feature
1.Touch function and LCD display all in one solution, performance excellent, good appearance;
2.Higher sensitivity and response speed than same product, very smoothly when touch and draw line;
3.Bottom base detachable, can be wall mounted or bracket installation;
4.High life time, LCD upgrade or change will not cause the touch monitor appearance different;
5.Hight brightness, high contrast ratio, quick response time, multi color support, wide viewing angle;
6.Full plastic housing, beautiful out-looking, narrow frame design, slender and super thin;
7.National standard professional production line, one million dust-free environment ,screen body and LCD screen fit;
8.Certification: FCC,CE,CCC,UL,ROHS;
1.Touch function and LCD display all in one solution, performance excellent, good appearance;
2.Higher sensitivity and response speed than same product, very smoothly when touch and draw line;
3.Bottom base detachable, can be wall mounted or bracket installation;
4.High life time, LCD upgrade or change will not cause the touch monitor appearance different;
5.Hight brightness, high contrast ratio, quick response time, multi color support, wide viewing angle;
6.Full plastic housing, beautiful out-looking, narrow frame design, slender and super thin;
7.National standard professional production line, one million dust-free environment ,screen body and LCD screen fit;
8.Certification: FCC,CE,CCC,UL,ROHS;
9.Open Frame LCD display is designed for commercial and industrial applications
10. The high level of brightness together with fast response time and LED backlight technology.
11. Easy to Mount Open Frame,Rugged construction against external impact, metal chassis.
12. VESA Mounting Hole Pattern
13. OSD buttons can prevent unnecessary setting changes
10. The high level of brightness together with fast response time and LED backlight technology.
11. Easy to Mount Open Frame,Rugged construction against external impact, metal chassis.
12. VESA Mounting Hole Pattern
13. OSD buttons can prevent unnecessary setting changes
Product Description
Open Frame Touch Screen Monitor Specification
| Series | Open frame | ||||
| LCD Type | 15" 17" 19" 21.5" 23.6" 27" 32" TFT-LCD | ||||
| Video Input | VGA and DVI , HD MI - optional | ||||
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||||
| Power Supply | Type: External brick | ||||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | |||||
| Output voltage/current: 12 volts at 4 amps max | |||||
| Mount Interface | 1)VESA 75mm and 100mm | ||||
| 2)2)Mount bracket, horizontal or vertical | |||||
| LCD Specification | |||||
| Resolution | 1024*768/ 1280*1024/1920*1080 | ||||
| Dot Pitch(mm) | 0.3075×0.3075 | ||||
| Nominal Input Voltage VDD | +3.3V(Typ) | ||||
| Viewing angle (v/h) | 178°/178°(CR>5) | ||||
| Contrast | 1000:1 | ||||
| Luminance(cd/m2) | 300, 1000,1500cd/m2 - optional | ||||
| Response Time(Rising/Falling) | 5ms/5ms | ||||
| Support Color | 16.2M colors | ||||
| Backlight MTBF(hr) | 50000 | ||||
| Touchscreen Specification | |||||
| Type | Capacitive, Resistive, IR touch screen | ||||
| Resolution | 10 points, Singel, 2 Point, 5 Point Point touch | ||||
| Light Transmission | 92% | ||||
| Touch Life Cycle | 50 millions | ||||
| Touch Response time | 2ms | ||||
| Touch System Interface | USB interface | ||||
| Power consumption | +5V@80mA | ||||
| External AC Power Adapter | |||||
| Output | DC 12V /4A | ||||
| Input | 100-240 VAC, 50-60 Hz | ||||
| MTBF | 50000 hr at 25°C | ||||
| Environment | |||||
| Operating Temp. | 0~50°C | ||||
| Storage Temp. | -20~60°C | ||||
| Operating RH: | 20%~80% | ||||
| Storage RH: | 10%~90% | ||||

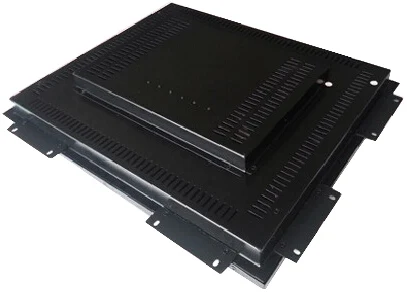

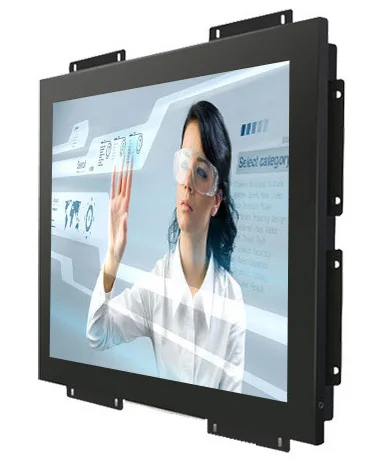

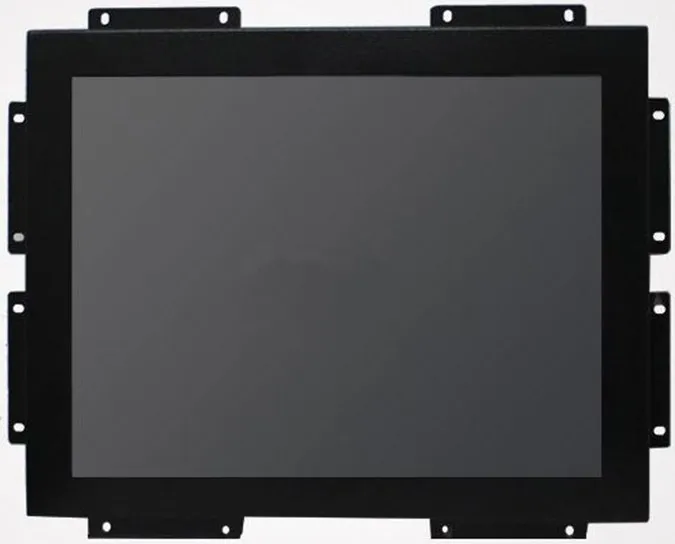

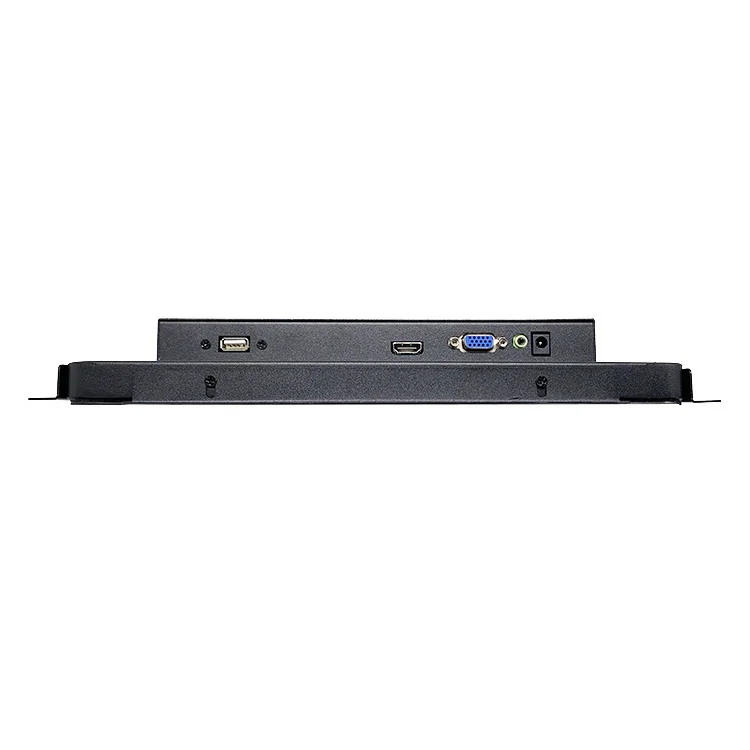

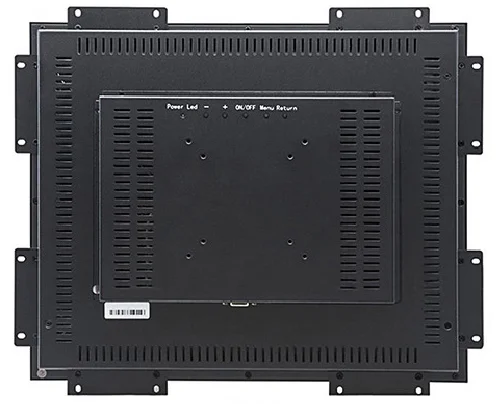

Open Frame Touch Screen Monitor Details Information
Open Frame Touch Screen Monitor Spare Parts
Open Frame Touch Screen Monitor Power cable for option
Open Frame Touch Screen Monitor Application
Open Frame Touch Screen Monitor Test System
Open Frame Touch Screen Monitor Certification
Can be make it different kinds of certification according to you require
Packaging & Shipping
Open Frame Touch Screen Monitor Packing Details Information.
Can be printing LOGO on the packing box according to design require!
How to shipping about Open Frame Touch Screen Monitor?
Sample or small order can be send by UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door).
For Air transportation, Sea transportation Please choose your favorite, shipping method according your detail requirement.
The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities.
Express or Air will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
Our Services
Open Frame Touch Screen Monitor Sample Availability & Policy:
Paid samples are available in 3 - 5 days.
Buyer covers the shipping cost, Sample fee can be deducted from the first order
OEM & ODM sample lead time to be discussed.
How about our after-sales service?
1) Provide 1% spare parts and Service manual .
2) Guarantee 3 year warranty.
3) Do OEM/ODM services: design color box, print logo, make start-up logo
4) Offer Pictures relevant to orders production.
Open Frame Touch Screen Monitor Compliance :
All of Products can be compliant with RoHS, CE, FCC.
Can also do WEEE / REACH Complaint.
Recycle Material Compliant
UL / CSA Complaint can be done upon requirement
PSE / NCC can be done upon requirement
Open Frame Touch Screen Monitor Warranty & Spare parts Conditions :
1. Products comes with 3 Year Warranty
2. Offer Premium Quality for Customer to make better profits
3. Haintain High Quality Standard
4. Products makes Customer Best Seller Product
5. Provide Best Product for futher sales
6. Sell Original Authentic Product to Customer
7. Products are Environment Friendly Products.
8. Give Best Service Guarantee to Customer
9. Believe Customer Satisfaction and Maintain Promise offered to Customer.
Related Products
Company Information
Monsview Industrial Co.,Ltd was established in 2002, we are a worldwide leading manufacturer specialized in designing&producing LCD LED monitor, touchscreen monitor, open frame monitor,industrial monitor, industrial panel pc, digital signage, cctv monitor etc.Our monitor size ranges from 5 inch to 45 inch and are widely used in the fields of security monitoring, traffic control center, broadcasting system, city square, shopping mall, bank,school and hospital,etc. Our monitors can be applied in devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, POS, Medical Treatment, CNC Machine etc.
Monsview has been ranked in the Top 10 brand LCD monitor supplier, Our company has independent import and export rights. Our products and solutions are popular both in domestic and global markets in over 150 countries, mainly in America, Europe,Oceania,Asia, and Middle East and gained strong reputation in this industry. Our Strong & professional R&D department can provide our customers with various solutions and customized service. Monsview will adhere to its core value proposition of "Responsibility Makes Perfect" and will spare no effort to improve its competitiveness by implementing the concept of scientific development.
How does we work?
Exhibition
FAQ
1. Q : When Monsview establised ?
A: In 2002
2. Q: Monsview is a factory or Trade Company ?
A: Monsview is a manufacturer owing 3000 m2 factory.
3. Q: Do you accept OEM service?
A: Yes,Monsivew supply OEM service: Customized size monitor, customizedpackage, customized manual.
4. Q: What is the delivery time for OEM / ODM order?
A: 5-12 working days after all order details confirmed.
5. Q: What is Main Products ?
A: Computer and Industrial LCD LED Monitor;
Open frame monitor;
Touch Monitor;
CCTV Monitor;
AD Player;
AIO Computer.
6. Q: Your company Policy as to the MOQ and Lead Time .
A: Our standard Model with safe stock, MOQ can be 1 piece, Lead time is 3 to 5 working days.
As to Cutomized models without stock, MOQ is 1pcs , Lead Time is 5 to 7 working days.
7. Q: How is the products' warranty ?
A: If there is any quality problem winthin 1 year, we will free to repair it.
And if you received the defective one in the first time, we will exchange the new one to you and the shipping should be paid by you.
8. Q: What are your terms of payments ?
A: We accepts payment via T/T, PayPal, West Union and Ali Pay.
9. Q: What kind of Shipping way?
A: DHL/ FedEx/ UPS/ EMS/ Air/ Sea is accepted.
It is better if you have your own freight agency.
