Волоконно-лазерная резка Vevor Волоконно-Лазерная трубчатая машина для резки лазерной волокна
2 941 265,60-3 167 516,80 ₽
Небольшой мини волоконно лазерный резак машина 3000 Вт 6000 для металла из нержавеющей стали 6060 1390
- Категория: >>>
- Поставщик: Wuhan BST LASER Machinery Co. LtdWuhan Ltd
Сохранить в закладки 1601293358790:
Описание и отзывы
Характеристики
Product Description

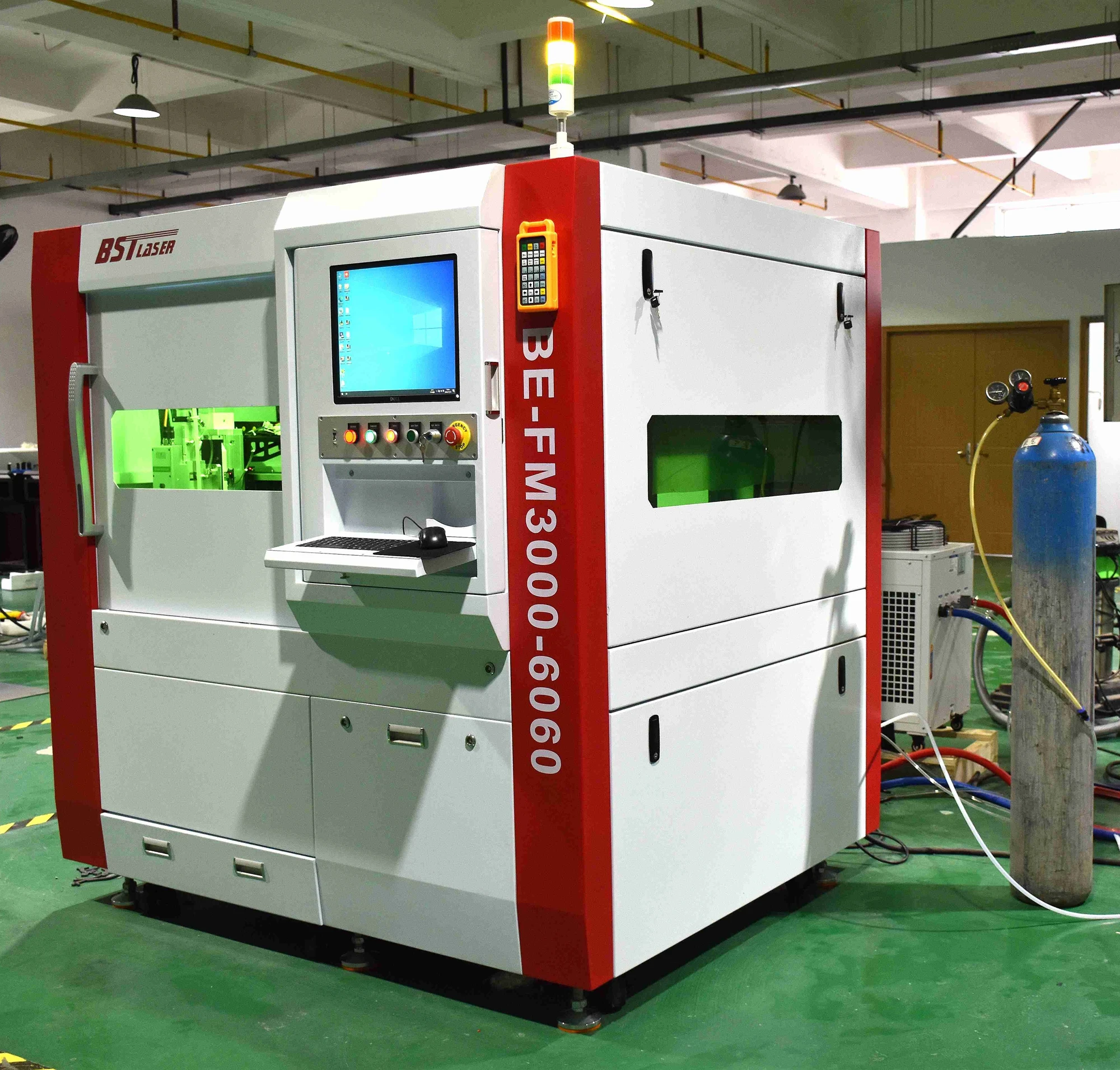

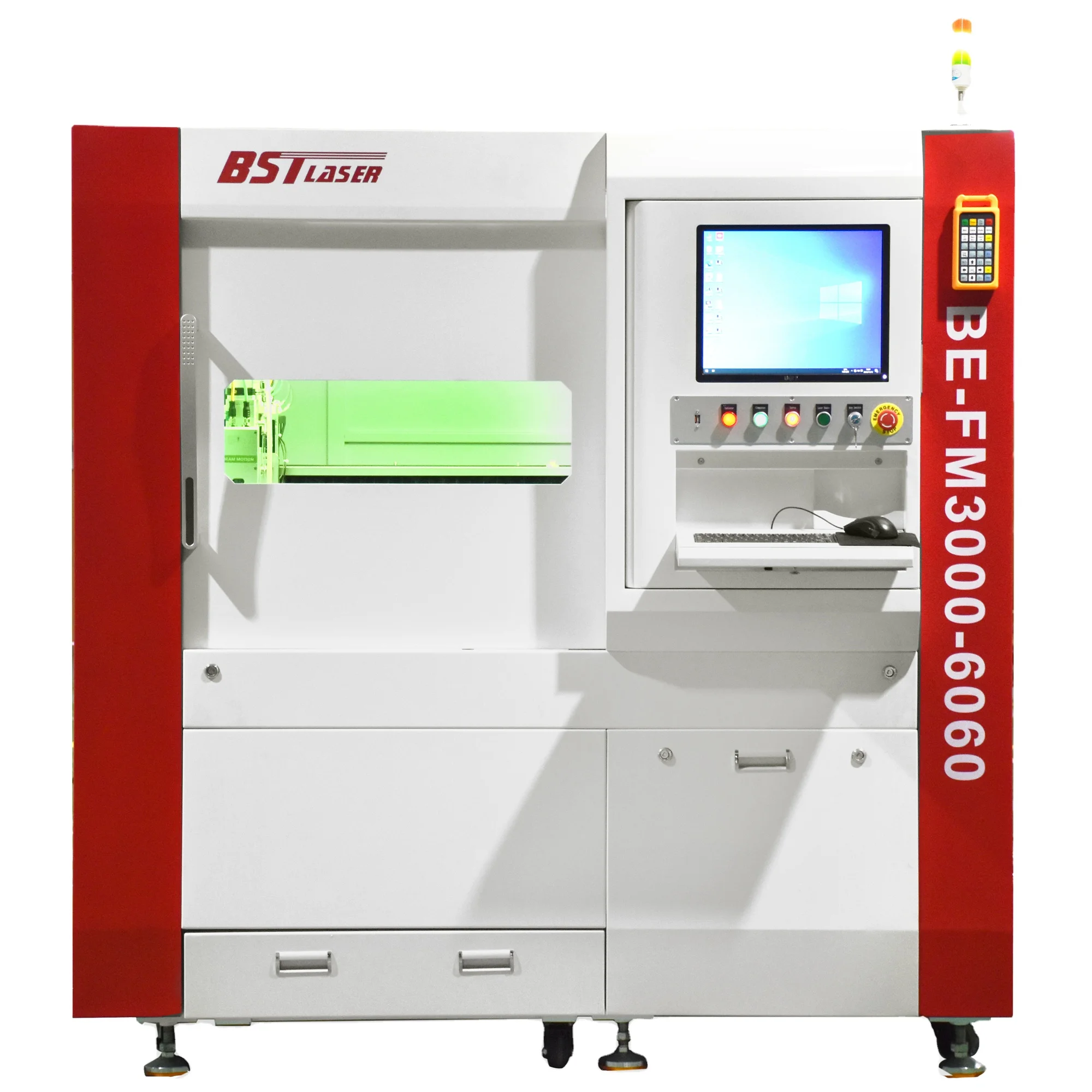

Small Mini Fiber Laser Cutter Machine 3000w 6000 for Metal Stainless Steel 6060 1390
Wechat/Whatsapp: +86 18140685791 Mail: maggie@bstlaser.com
Small size fiber laser cutting machine, also commonly known as small fiber optic cutting machine or mini fiber optic cutting machine, is a high-precision laser processing equipment specially designed for cutting small-format materials.
This device uses high-energy fiber laser beam to accurately cut metal in various shapes and designs.

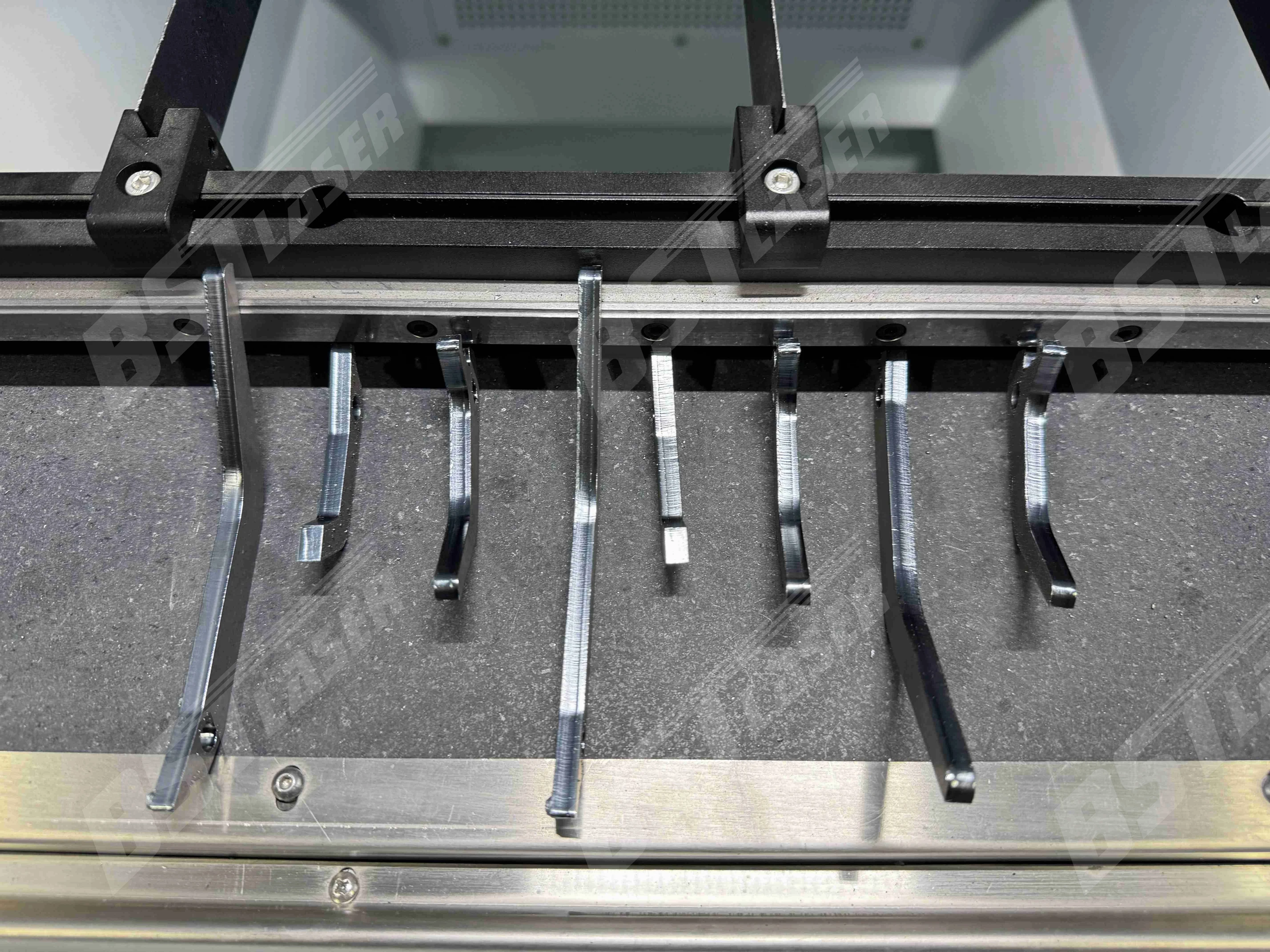

Brass cutting test for foreign customer below. Foreign customer very satisfied with the cutting effect. It is much better than common machines! We can offer free sampling service. Welcome inquiry!
Application
Widely used in 3C electronic products, aerospace, automobile manufacturing, golden and silver jewelry, mechanical and electrical products, household appliances and precision accessories and other industries.
The Features of Small Fiber Laser Cutting Machine
1> High precision: The small-size fiber cutting machine adopts a high-precision control system and high-quality fiber laser, which can ensure the cutting accuracy of 0.1mm or even higher, ensuring flat and smooth cut surface.
2> High efficiency: Due to the high energy density and fast moving characteristics of the laser beam, the small-size fiber cutting machine can achieve high-speed cutting and improve production efficiency.
3> Contactless cutting: Laser cutting is a non-contact processing method that does not cause mechanical pressure or damage to materials, making it particularly suitable for cutting thin and fine materials.
4> Good stability: The equipment adopts an advanced cooling system and a stable laser light source to ensure stability and reliability during long-term continuous work.
5> Flexibility: Small fiber laser cutting machines can handle various complex shapes and patterns, including curves, circles, sharp angles, etc., to meet diverse design requirements.
5> Easy operation: The small-size fiber cutting machine is usually equipped with a touch screen or computer control system, which is simple and intuitive to operate and easy to use.
6> Widely applicable materials: Laser jewelry cutting machines are suitable for cutting metal materials such as SS, CS, Aluminum, Brass, Galvanized, Gold, Silver, Platinum etc.
7> Saving Shipping Fee&Space: As it is small compact size, so it saves much shipping fee and save room space.
Jewelry Cutting Samples
Key Parts of the Machine
Raycus CE Fiber Laser Source(Global Warranty)
* Core component of laser cutting machines, generating laser beams.
* We choose high-precision and high stability lasers to ensure cutting accuracy and effectiveness.
* We choose high-precision and high stability lasers to ensure cutting accuracy and effectiveness.
Raytools Laser Head
* Auto Focusing and out putting laser beams, which directly affects the accuracy and quality of cutting.
* Thin and powerful laser beam achieve precise cutting of materials.
* Thin and powerful laser beam achieve precise cutting of materials.
Thicker Marble Working Table
* Placing materials to be cut, which have sufficient rigidity and stability
* It ensures the materials do not move or deform during the cutting process and keep over 30 years without deformation.
* It ensures the materials do not move or deform during the cutting process and keep over 30 years without deformation.
* High precision reach 0.1mm and advanced cutting than common.
Servo Motors
* Moving the cutting head to the designated position to achieve precise cutting of materials.
* Including components such as servo motors, guides, and screws, which need to have the characteristics of high precision, high speed, and high stability.
* Including components such as servo motors, guides, and screws, which need to have the characteristics of high precision, high speed, and high stability.
Ball Screw Transmission
* XYZ axis all adopts ball screw transmission and linear guide rails, which ensures high rigidity and stability.
Fume Exhaust
* Helpful for fume exhausting out, and ensure people's health.
Cable Protection Chain
* Protecting the fiber cable/water pipe/gas pipe from dust and damaging.
DSP Control
* Remote controlling DSP
Cypcut Controlling Software
* Upgrade version controlling system specially built for the sheet metal fabrication sector, with features such as ease of
installation and adjustment, outstanding performance, and completely integrated solutions.
installation and adjustment, outstanding performance, and completely integrated solutions.
Water Chiller
* S&A CWFL series from a leading Chinese brand with a variety of alarm protection features.
* It has two functioning modes of constant temperature and intelligent temperature management.
* It has two functioning modes of constant temperature and intelligent temperature management.

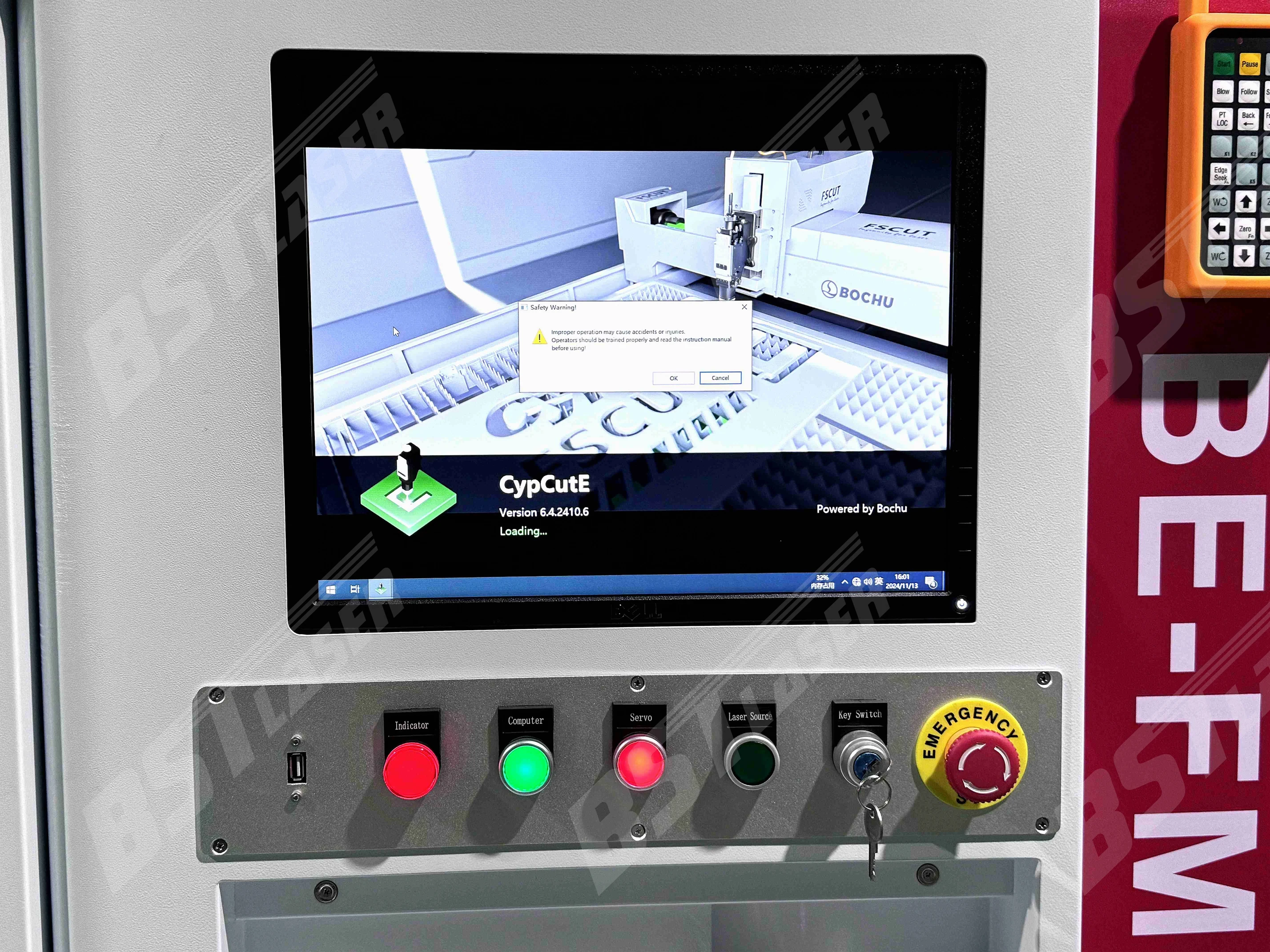

Controlling Station
* Industrial controlling pc and separated buttons for each key components, which brings clear instructions for users.
Alarm
* The Alarm light indicates the working status to ensure safety.
Observing Window
* Adopts superior quality laser protection plate. People can watch the cutting process from the window.
Material Drawer
* Collecting the cutting pieces
Specification
Laser Source | Wave Length | 1064nm | |
Power | 1500W 2000W 3000W | ||
Repeated Frequency | 10000HZ | ||
Unstability | ≤1.5% | ||
Cutting Line Width | Maximum 0.1mm | ||
Cutting Size | 600*400mm, 600*600mm, 300*300mm, 600*900mm, 1300*900mm, 1300*1300mm | ||
Speed | 80M/min-120M/min | ||
Max Acceleration | 1.2G | ||
Cutting Head Z axis Moving Distance | 0-100mm | ||
Repeated Position Accuracy | ±0.02mm | ||
Position Accuracy | ±0.05mm | ||
Laser Point | Red Point | ||
Max Cutting Speed | ≤33M/min(depending on different materials) | ||
Max Cutting Thickness | 1500W: 925 silver 2.2mm/stainless steel 4mm/carbon steel 6mm/Brass 3mm/Aluminum 2mm | ||
Continuous Working | ≤24 hours | ||
Industrial computer, operating system Windows; Control software CypCut supports updates | |||
The software is equipped with segment cutting, process saving, and breakpoint memory tracing; Support pause, start at any point, and processing order Preview and simulate machining. The same software supports planar and intersecting line cutting. Power adjustment according to speed, supporting wireless Handheld box, Ethernet remote control. Support graphic data formats such as AI, DXF, PLT, Gerber, etc. can Integrate CypNest cutting and nesting software. Functional coverage of sheet metal management, part management, process design and optimization Layout in all aspects. Support file formats such as PLT, AI, and NC code. | |||
Layout structure: The integrated control cabinet, laser generator, and chiller can be moved for easy installation and maintenance | |||
Closed loop capacitor follower, static measurement accuracy of 0.001mm, with highly automatic tracking and segmentation. Perforation, progressive perforation, edge finding cutting, frog jumping on stage, cutting head height can be set arbitrarily. Flight optical path compensation, fallback function, breakpoint return function, slitting compensation function, pulse cutting Control function, common edge cutting and other functions, multiple parts import, layout function, efficient automatic layout Version function, can set corresponding process databases according to different materials and thicknesses, supports marking and small hole marking, support for pre perforation and film spraying functions. Height follow-up control range 0-25mm, It can achieve rapid cutting of surfaces of irregular pipes such as curved surfaces, round pipes, and square pipes, while effectively protecting the cutting head. | |||
Company Profile
As 15 years laser machine manufacturer, BST Laser is committed to providing customers with high-quality and reliable laser machines.
As a result of our quality control measures, our laser machines all have got CE certification.
BST Laser also has got TUV certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
As a result of our quality control measures, our laser machines all have got CE certification.
BST Laser also has got TUV certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
Super Service
BST Laser technician provide professional on-site service for foreign customer. 0 worry. Be rest assured to work with us!
After Service
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Before Delivery:
* Check and test laser welding machine at least 10 times to make sure the machine's quality.
* Also we will send you the testing report and save the hand held laser welding machine's technical information for better after-sale service.
After-Sales Service:
* Training how to install the laser welding machine handheld.
* Training how to use the welder machines laser welding.
* Engineers available to service machinery overseas.
* Lifetime technical support and service by free.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Before Delivery:
* Check and test laser welding machine at least 10 times to make sure the machine's quality.
* Also we will send you the testing report and save the hand held laser welding machine's technical information for better after-sale service.
After-Sales Service:
* Training how to install the laser welding machine handheld.
* Training how to use the welder machines laser welding.
* Engineers available to service machinery overseas.
* Lifetime technical support and service by free.
FAQ
To recommend you suitable fiber laser cutting machine, here are some questions:
1. What's your cutting material and thickness? such as gold, silver, brass, stainless steel, carbon steel, aluminum...
2. How much working size? such as 300*300mm, 600*600mm, 600*400mm, 1300*900mm, 3000*1500mm...
1. What's your cutting material and thickness? such as gold, silver, brass, stainless steel, carbon steel, aluminum...
2. How much working size? such as 300*300mm, 600*600mm, 600*400mm, 1300*900mm, 3000*1500mm...
