Экскаваторы Hyundai 330 2020 LC 9s/330LC 9t для достижения CAT330GC 1700 часов по низкой цене сделано в Корее двигатель марки CAT

Сохранить в закладки 1601293384313:


Цена:10 768 199,62 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

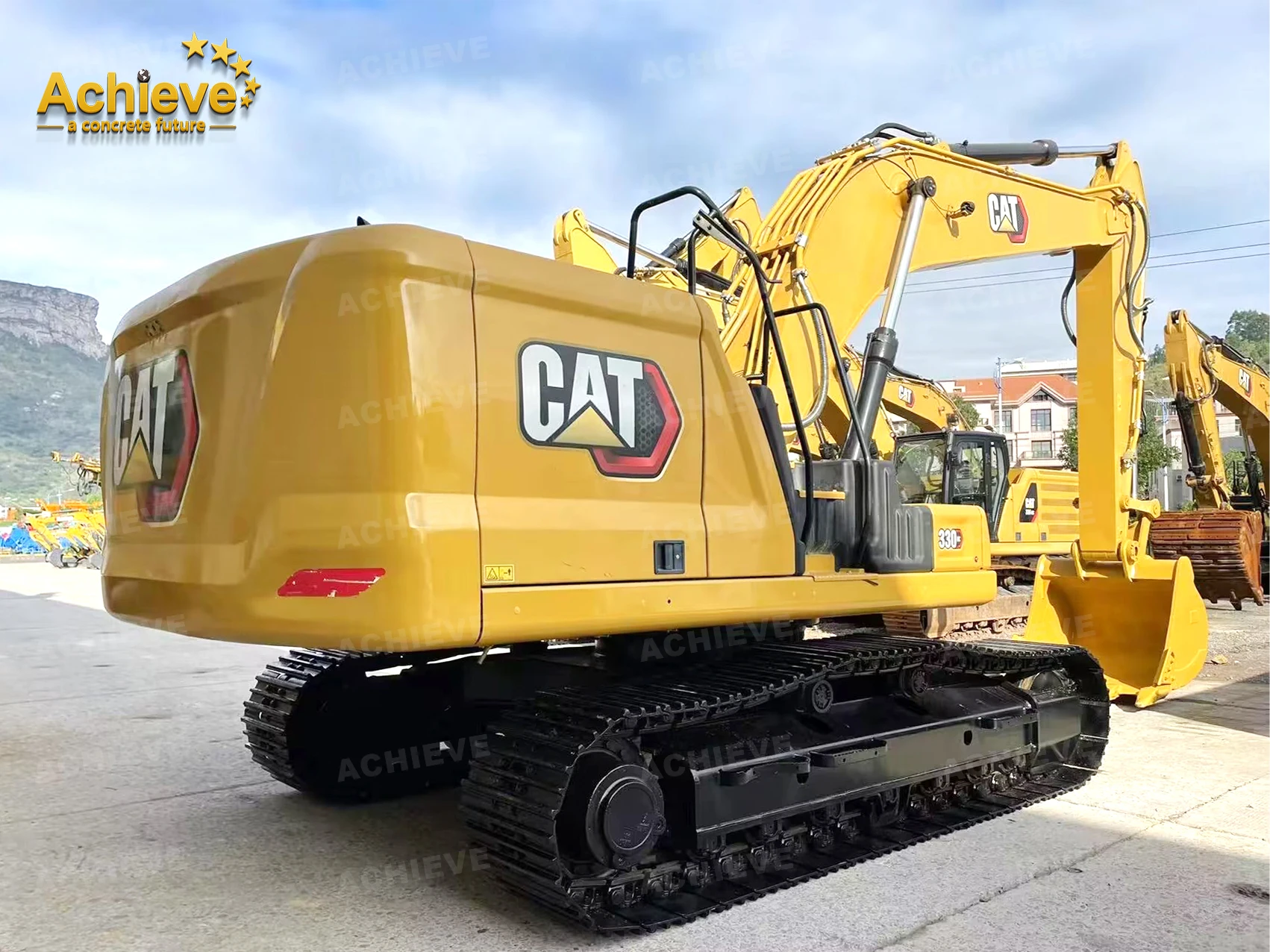

Medium Excavator 330 GC
No matter what you do—digging, trenching or truck loading—Cat® excavators deliver outstanding performance, unmatched versatility and exceptional fuel efficiency. Superior operator ease, outstanding durability and the latest safety and technology features will help you take your business to the next level.


Reliable. Productive. Efficient.
The Cat® 330 GC offers an excellent balance of reliable performance, operator productivity features and reduced costs. The Cat 330 GC is the smart choice for operations that value high reliability and low hourly cost performance.


Maximum digging depth
7260 mm
Net Power - ISO 9249
149.8 kW
Operating Weight
30400 kg


Up to 10% reduction in fuel consumption
The precise combination of a large hydraulic pump, electronic main control valve and electronically controlled cooling fan delivers class-leading performance while reducing fuel consumption.
Reliable performance
A rearview camera improves visibility, and a three-stage fuel filtration system keeps your machine running efficiently. The 330 GC is easy to use and built to last.
Up to 25% lower operating costs
Service intervals are extended and more synchronized than previous models, so you can get more work done at a lower cost.










Medium Excavator
330 GC

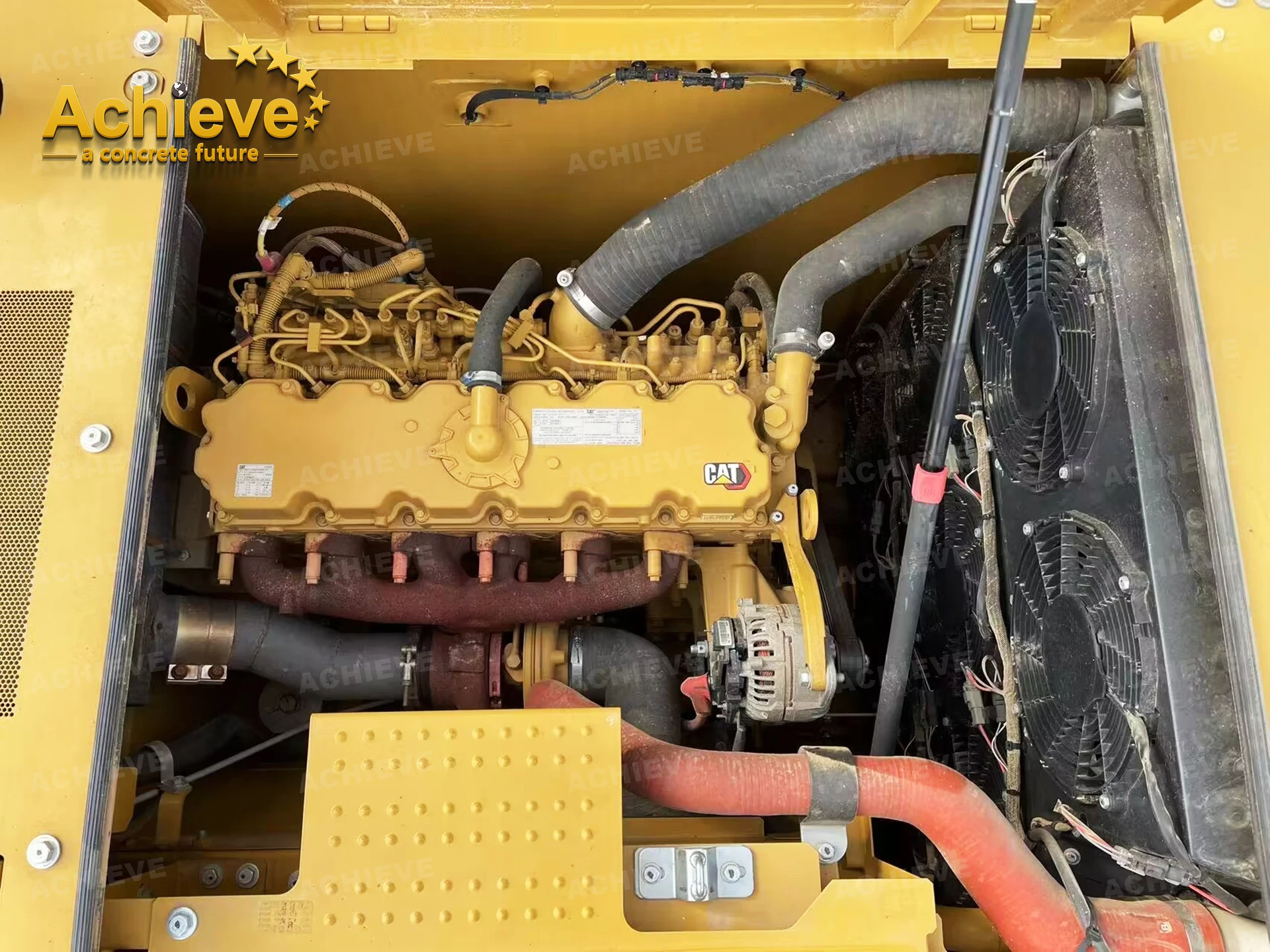

engine
Net Power - ISO 9249
149.8 kW
Net Power - ISO 9249 (DIN)
204 hp (Metric)
engine model
Cat C7.1
Engine Power - ISO 14396
151 kW
Engine power - ISO 14396 (DIN)
205 hp (Metric)
Cylinder diameter
105 mm
stroke
135 mm
Displacement
7.01 l
Biodiesel Performance
Up to B20 grade can be used¹
Note (1)
Meets China's National IV non-road emission standards.
emission
Net power advertised is the power available at the flywheel at 2000 rpm when the engine is equipped with fan, intake system, exhaust system and alternator. The power advertised is tested to the specified standard in effect at the time of manufacture.
Note (2)
¹Cat diesel engines require ULSD (Ultra-Low Sulfur Diesel, 15 ppm or less) or blends of ULSD with the following lower carbon intensity fuels**: up to 20% biodiesel FAME (Fatty Acid Methyl Ester)* or up to 100% renewable diesel, HVO (Hydrotreated Vegetable Oil), and GTL (Gas-to-liquid) fuels. Refer to guidelines for successful application. Consult your Cat dealer or refer to Caterpillar Machine Oil Recommendations (SEBU6250) for details. *Engine without aftertreatment equipment can use up to 100% biodiesel blends (for blends above 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions of lower carbon intensity fuels are similar to conventional fuels.

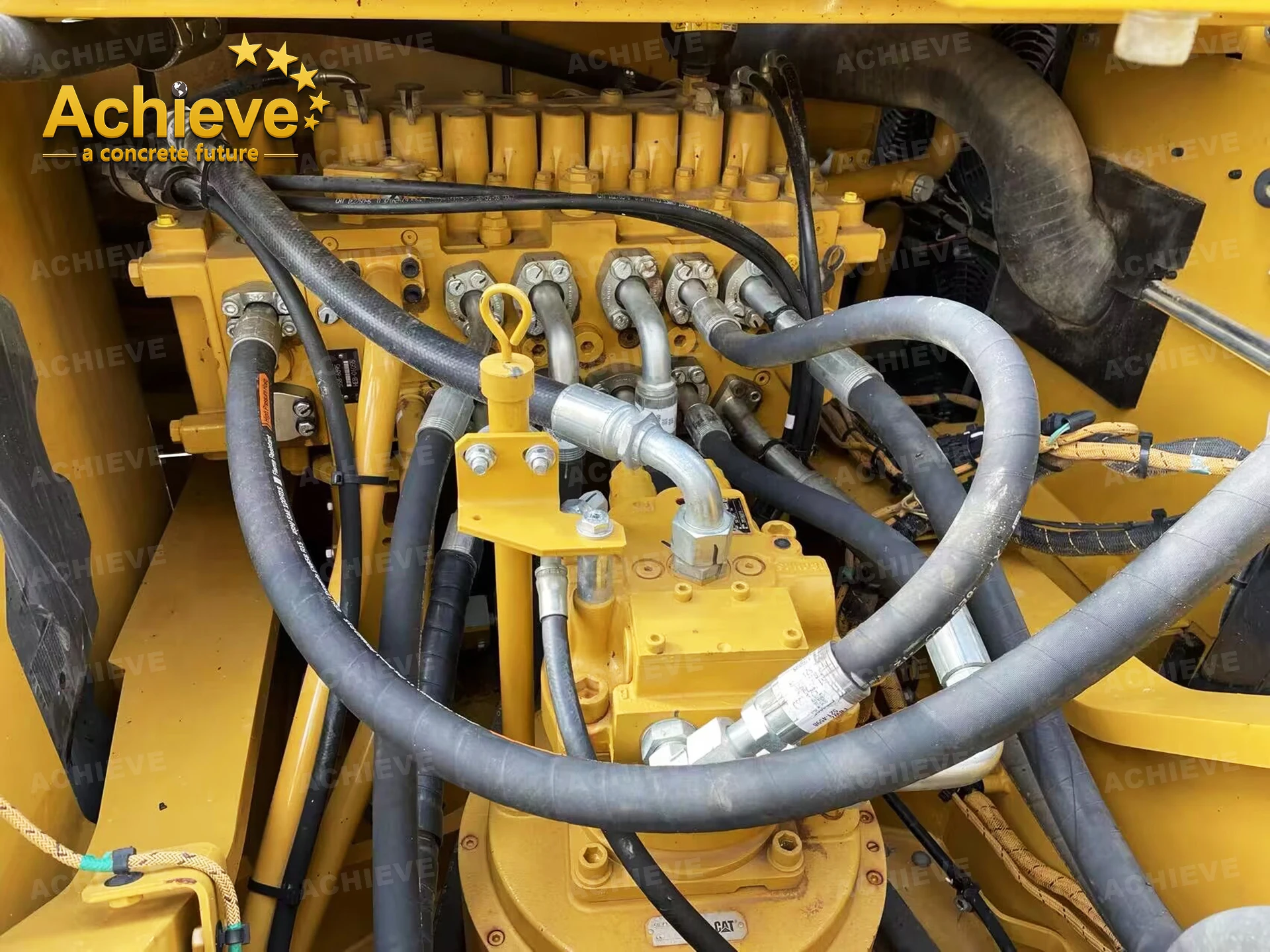

Hydraulic system
Main System – Maximum Flow
560 l/min (148 gal/min)
Maximum Pressure - Equipment
35000 kPa
Maximum Pressure - Travel
35000 kPa
Maximum Pressure - Swing
28400 kPa

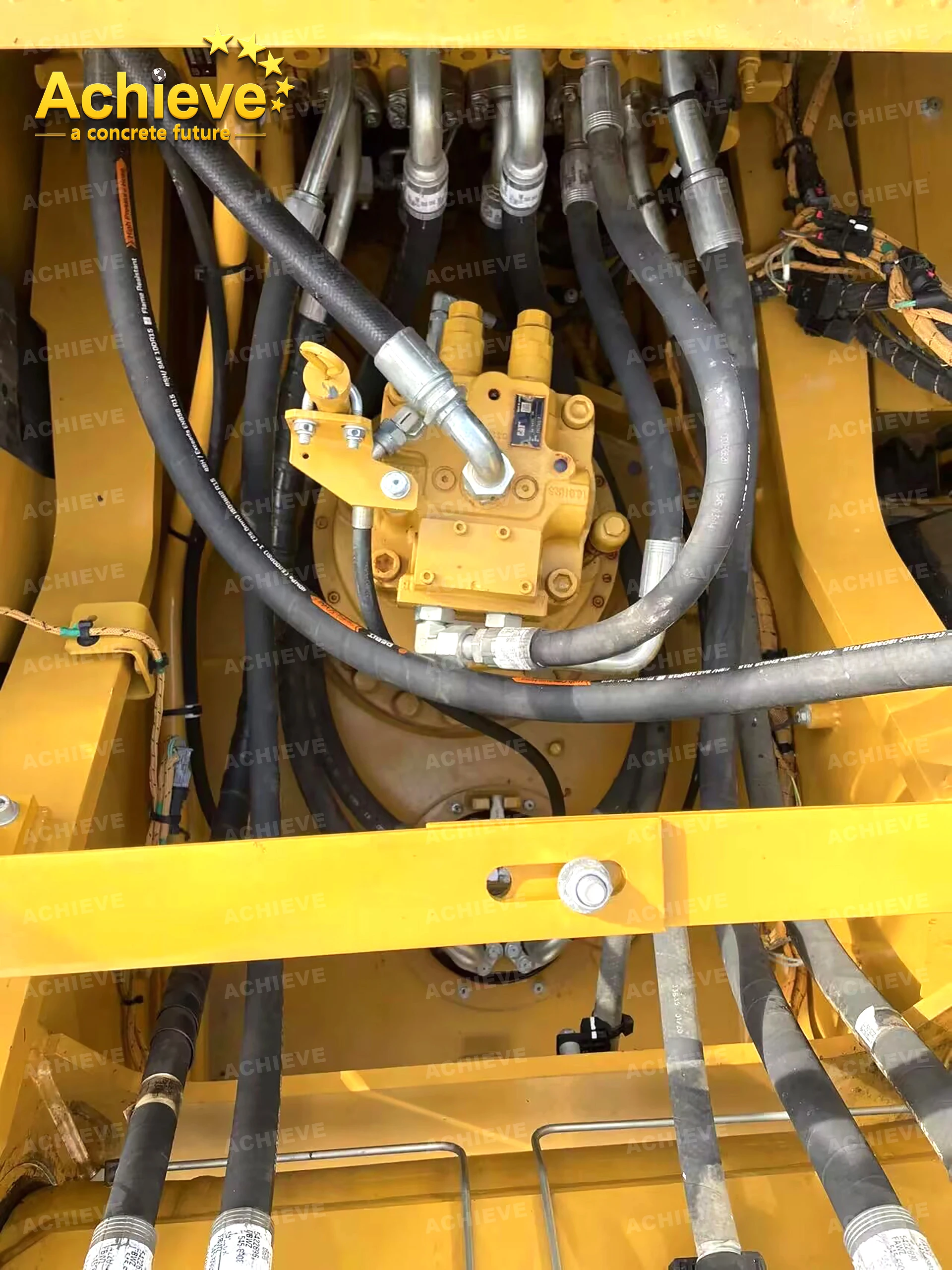

Rotating mechanism
Swing speed
11.5 r/min
Maximum rotation torque
105 kN·m
weight
Operating Weight
30400 kg
Note
Heavy Duty (HD) long undercarriage, reach boom, R3.2 m (10'6") stick, HD 1.60 m³ (2.09 yd³) bucket, 600 mm (24") triple grouser shoes and 6700 kg (14,770 lb) counterweight
Maintenance refill capacity
Fuel tank capacity
474 l
cooling system
25 l
Engine oil
25 l
Slewing Drive - Each
10 l
Final Drives - Each
5.5 l
Hydraulic system - including tank
310 l
Hydraulic tank
147 l
Service Refill Capacities
DEF Tank
41 l
size
Boom
Reach 6.15 m (20'2")
Stick
Reach 3.2 m (10'6")
Bucket
Heavy Duty 1.60 m3 (2.09 yd3)
Shipping Height – Top of Cab
3050 mm
Armrest height
3050 mm
Shipping Length
10420 mm
Tail turning radius
3130 mm
Counterweight clearance
1110 mm
Ground clearance
490 mm

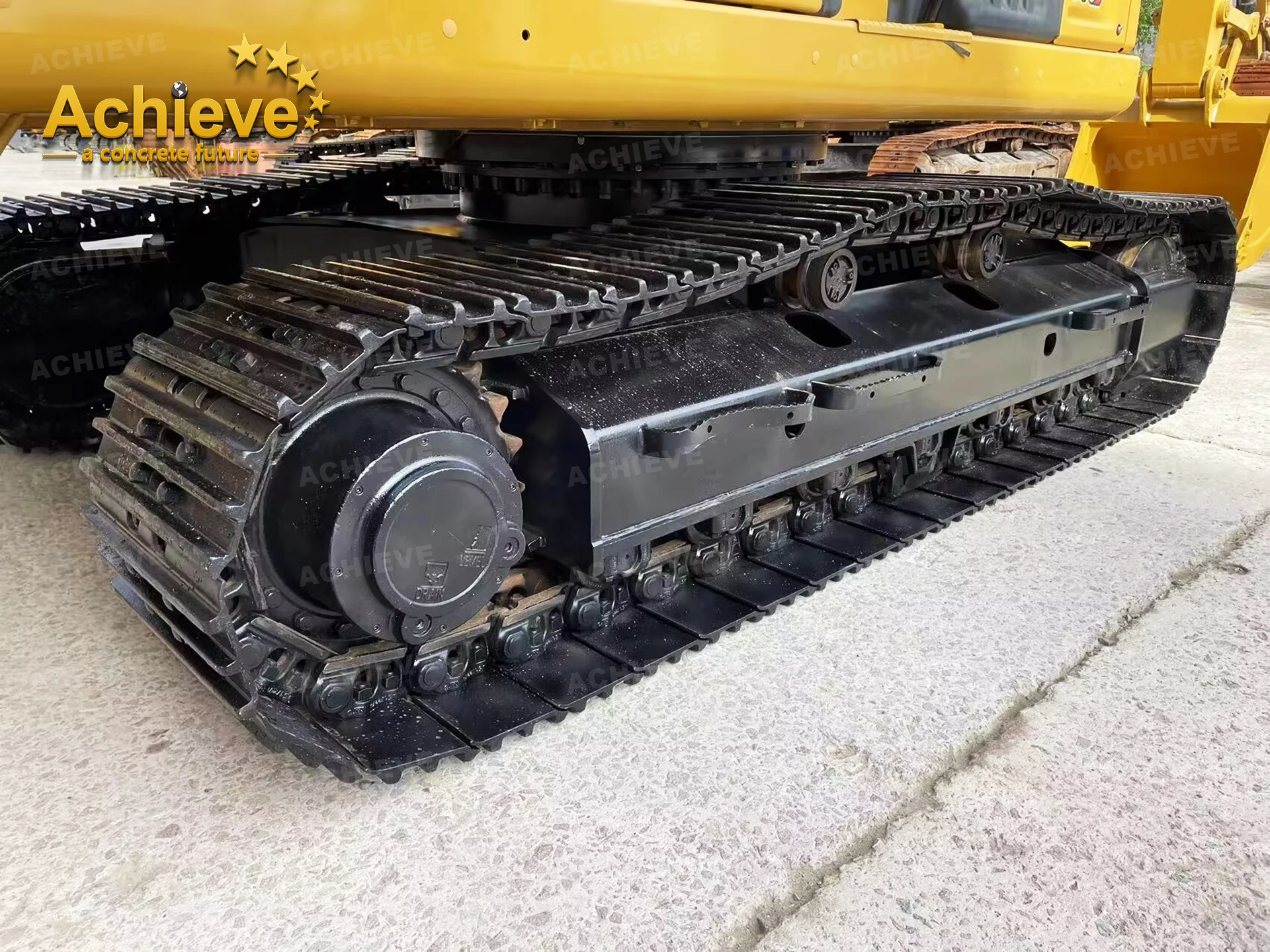

Track length
4850 mm
Center distance of track rollers
3990 mm
Track gauge
2590 mm
Transport width
3190 mm
Working range and force
Maximum digging depth
7260 mm
Boom
Reach 6.15 m (20'2")
Stick
Reach 3.2 m (10'6")
Bucket
Heavy Duty 1.60 m3 (2.09 yd3)
Maximum ground reach
10690 mm
Maximum cut height
9980 mm
Maximum loading height
6930 mm
Minimum loading height
2280 mm
2440 mm (8 ft) maximum cut depth with flat bottom
7100 mm
Maximum vertical wall digging depth
6030 mm
Bucket Breakout Force - ISO
179 kN
Stick Breaking Force - ISO
126 kN






Latest Features
* Cab monitor improvements.
1. The continually improved user interface allows for intuitive navigation, minimizing performance impact through easy-to-use touchscreen menus.
2. Quickly identify applications with the help of grid list view, abbreviated application names, and categorized menu options.
3. The Notification Center allows operators to view important information at all times and displays messages without reducing the camera view.
4. Color-coded notifications distinguish critical messages from others.
5. Learn about the machine and technical features with a full set of “how to” videos using the QR code inside the monitor.
* Operator Coaching - Empowering operators. Exceeding targets.
1. Operator Guidance is an in-cab system that identifies specific opportunities for operators to increase productivity and
prevent unnecessary machine wear.
2. Upon detecting inefficient or restricted operations, the system alerts operators and provides in-depth analysis of
inefficiencies and steps for improvement.
3. Use with a VisionLink® Productivity subscription to view this information and other operator guidance insights from anywhere.

* Standard integrated vehicle health management system provides operators with maintenance instructions and required parts to improve uptime.


Less fuel consumption, higher efficiency
* Fuel savings of up to 10 percent compared to a 330D2 excavator operating in similar applications.
* Standard Cat technologies improve operating efficiency by up to 45 percent by reducing operator fatigue and saving on operating costs, including fuel consumption and routine maintenance.
* The C7.1 engine can use biodiesel up to B20 and meets China's National IV non-road emission standards.
* Match the excavator to the job with two power modes; and automatically match engine and hydraulic power to digging conditions with Smart mode.
* Auxiliary hydraulic options give you the versatility you need to use a wide variety of Cat implements.
* Perfect for temperature challenges, the excavator can operate in high temperature environments up to 52°C (125°F) and has cold start capability as low as –18°C (0°F). An optional –32°C (-25°F) starting kit is available.




Long-term value and durability
* Operates at altitudes up to 3000 m (9840 ft) without derating.
* Perfect for temperature challenges, the excavator can operate in high temperature environments up to 52°C (125°F) and has cold start capability as low as –18°C (0°F). An optional –32°C (-25°F) starting kit is available.
* Automatic preheat feature heats hydraulic oil faster in cold weather and helps extend component life.
* Dual fuel filtration protects the engine from dirty diesel fuel.
* Grease-sealed track pins and bushings reduce travel noise and keep debris out, extending undercarriage life.
* Track guiding guards help keep the excavator tracks aligned when traveling and working on slopes.
* Sloped track frames prevent mud and debris buildup, helping reduce the risk of track damage.


Work comfortably in the latest cab
* The cab is equipped with a wide seat that can be flexibly adjusted to suit operators of various sizes.
* Easy-to-reach controls are located in front of the operator, allowing the operator to comfortably control the excavator.
* Standard automatic climate control ensures a comfortable temperature is maintained throughout the entire operation.
* Advanced viscous mounts reduce cab vibrations by up to 50 percent compared to previous excavator models.
* With ample cab storage space under and behind the seat, overhead and in the console, it's easy to store your gear. Cup holders, document holders, bottle holders and coat hooks are also provided.
* Connect personal devices using the standard radio's USB port and Bluetooth® technology.




Designed for operators
* The engine can be started via a push button, Bluetooth® key fob or the unique operator ID feature.
* Use Operator ID to set power mode and joystick preferences; the excavator remembers those preferences each time you work.
* Navigation is fast with the high-resolution 203 mm (8 in) standard touchscreen monitor or rotary knob controls.
* Prevents the hydraulic hammer from overloading. The hydraulic hammer automatic stop signal will continue to warn for 15 seconds, and then automatically shut down the hydraulic hammer after 30 seconds, thus preventing wear on the implement and excavator.
* Don’t know how a feature works or how to maintain your excavator? Access the operator’s manual at any time with just a tap on the touchscreen monitor.
* The Cat PL161 Attachment Locator is a Bluetooth device that helps you find attachments and other equipment quickly and easily.
* Find the tool you need - even if it's hidden under grass or debris. Available Bluetooth readers search for any work tool
equipped with a Cat asset tracking device up to 60 m (200 ft).
* Cat Single Joystick makes it easier to control excavator movement. Simply push a button to control travel and steering with one hand, without having to use both hands on joysticks or both feet on pedals.
Reduced maintenance costs
* Expected reduction in maintenance costs of up to 25% compared to the 330D2 (savings based on 12,000 machine hours).
* Perform all routine maintenance work at ground level.
* Check engine oil level quickly and safely with the ground-level engine dipstick; fill and check engine oil from the top of the machine with a second dipstick easily accessible.
* Track your excavator's filter life and service intervals via the in-cab monitor.
* Using genuine Cat oils and filters with typical S∙O∙S monitoring can extend current service intervals to 1,000 hours, twice as long as before, giving you more uptime to get more work done.
* The latest intake filter with precleaner is estimated to last up to 1,000 hours — a 100 percent increase in service life over previous filters.
* New hydraulic oil filters provide improved filtration, a drain valve to keep the oil clean between filter changes, and longer service life with up to 3,000 hours between changes — 50% longer than previous filter designs.
* The high-efficiency cooling fan runs only when needed; you can program the interval so it automatically reverses to keep the radiator core clean without interrupting your work.
* Improve productivity with proactive maintenance reminders. Integrated vehicle health management system provides operators with step-by-step maintenance instructions and required parts, helping to avoid unnecessary downtime.
* The S·O·S SM sampling port simplifies maintenance and allows quick and easy extraction of oil samples for analysis.




You can work safely and return home safely every day
* All daily maintenance points are accessible at ground level—no need to climb on top of the excavator.
* Secure your excavator with an operator ID. Use a PIN code on the monitor to enable push-button start.
* The standard ROPS cab complies with ISO 12117-2:2008 requirements.
* With smaller cab pillars, large windows and a flat hood design, the operator has excellent visibility inside the ditch, in each swing direction and behind the driver. A rearview camera is standard and a right-side camera is available.
* The right maintenance platform is designed to facilitate easy, safe and quick access to the upper maintenance platform; the maintenance platform steps use non-slip perforated plates to prevent slipping.
* When the standard hydraulic lock lever is in the lowered position, all hydraulic and travel functions are blocked.
* Activation of the ground level shutoff switch completely stops fuel flow to the engine and shuts down the machine.
* Enhance job site safety. Add a swing alarm to alert personnel when the machine is rotating from the ditch to the pile and back again.


Sustainability
* The Cat® C7.1 engine meets China National IV non-road emission standards.
* Cat diesel engines require ULSD (Ultra Low Sulfur Diesel, 15 ppm sulfur or less) or blends of ULSD with the following lower carbon intensity fuels**: up to 20% biodiesel FAME (Fatty Acid Methyl Esters)* or up to 100% renewable diesel, HVO
(Hydrogenated Vegetable Oil) and GTL (Gas to Liquid) fuels. Refer to guidelines for successful application. Consult your Cat dealer or Caterpillar Machine Fluid Recommendations (SEBU6250) for more information.
* Remote Flash minimizes downtime and maintenance time, maximizing asset operating efficiency. Cat dealers can send machine update reminders online and deploy them without the need for a dealer technician to arrive onsite.
* Automatic Engine Speed ​​Control automatically puts the engine into idle mode when the machine is not operating, helping to reduce unnecessary fuel consumption and greenhouse gas emissions.
* One-Touch Idle, when engaged, helps the operator reduce engine speed when the machine is unloaded and return to normal operating speed when needed, saving fuel and reducing greenhouse gas emissions.
* The Engine Idle Shutdown Timer shuts down the machine after a preset idling period, saving fuel consumption, greenhouse gas emissions and unnecessary idling time.
* Cat Scheduled Oil Sampling (S·O·S SM ) service can help uncover excessive wear, fluid contamination or other “hidden” problems that can shorten component life. In many cases, you can use fluid monitoring to extend oil and coolant change intervals. See your Cat dealer or refer to your machine’s Operation and Maintenance Manual for more information.
* Extending maintenance intervals not only reduces downtime, but also reduces the amount of fluid and the number of filters that need to be changed over the life of the machine.
* Investing in well-trained operators is worth it. Skilled operators improve your bottom line by maximizing productivity,
avoiding costly downtime, and ensuring job sites are safe, which helps improve fuel efficiency and reduce greenhouse gas emissions.
*Engine without aftertreatment equipment can use up to 100% biodiesel blends (for blends above 20%, consult your Cat dealer).
**Tailpipe greenhouse gas emissions from low carbon intensity fuels are about the same as conventional fuels.




★ Achieve Development (Changsha) Co., Ltd., headquartered in Changsha, which is the construction machinery center in China, the same city as ZOOMLION & SANY & SUNWARD.

★ Achieve Development, is a professional supplier of High Standard Reconditioned Excavators & Bulldozers & High Quality parts of world class brands.

★ We cooperated with CAT & Komatsu & Shantui official partners to make sure the recondition quality, we are in this industry more than 15 years, familiar with the best parts supply chain in China, know how to guaranty the quality with the lowest cost, save money for our partners.

We provide our partners with products that are more valuable than the price.






Q1:Are you a manufacture or a trading company?
A1:We are a trading company with joint-venture factory since 2018 Year.

Q2:What is your advantage? More than a decade,We have been focusing on CAT、KOMATSU、SHANTUI.
A2:-Professionally and Highly remanufactured standard for used Excavators、Bulldozers、Wheel-Loaders.
-Providing competitive price for customer.
-Professional sales service availably.

Q3:What is your main products?
A3:Excavators、Bulldozers、Wheel-Loaders and quality spare parts. We have the whole series products you need.

Q4: What payment terms are acceptable?
A4: Usually we can adopt T/T or L/C payment.

Q5:What about the deliverv time?
A5: 7-30 days after receiving the deposit.

Q6: How about the warranty time?
A6: 12 months or 2000 working hours after shipment.

Q7: What is the minimum order quantity?
A7: The minimum order quantity is 1 piece.
