10% Дисконтная трубка лазерная резка 1 5 кВт 2 металлическая труба и профиль Лазерная машина
15 000,00-21 000,00 $
1500 Вт 2000 3000 6000 12000 прилагаемая волоконно лазерная машина для резки листового металла Экологически чистая модель
- Категория: >>>
- Поставщик: Jinan Looke Intelligent Equipment Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601293795488:
Описание и отзывы
Характеристики
Product Description

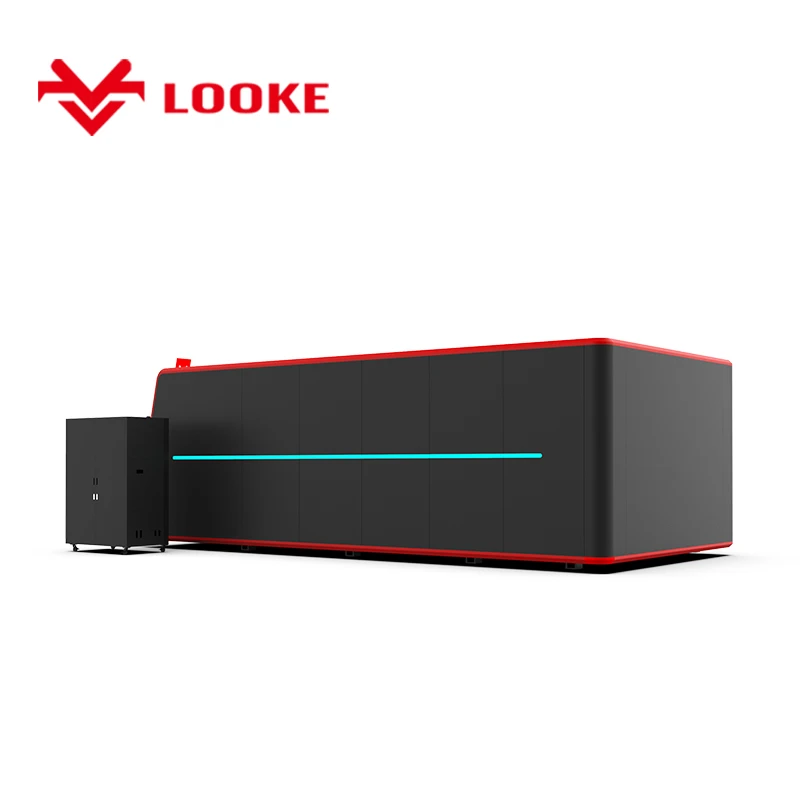

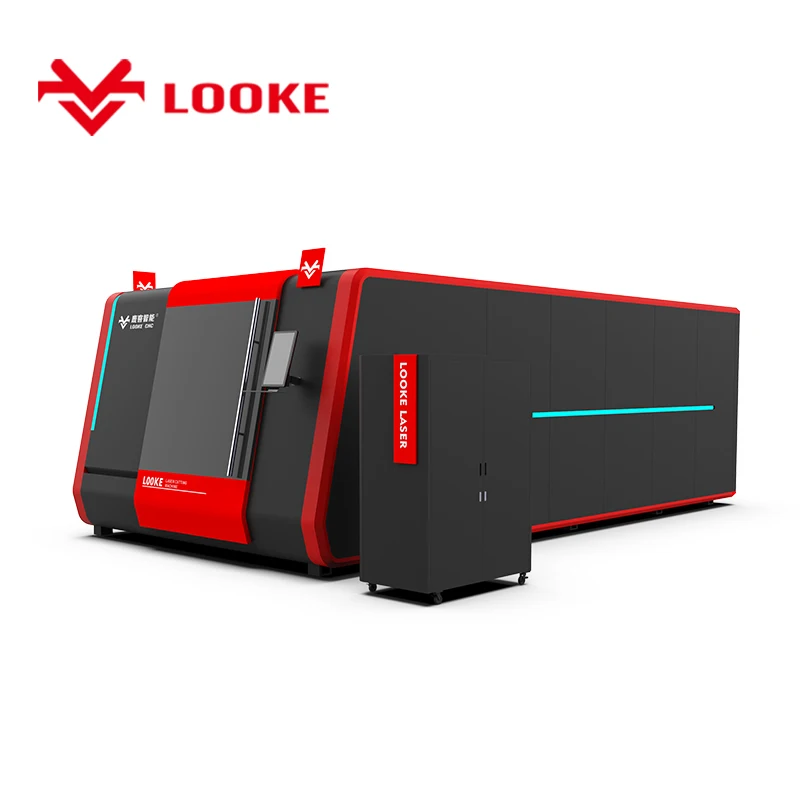

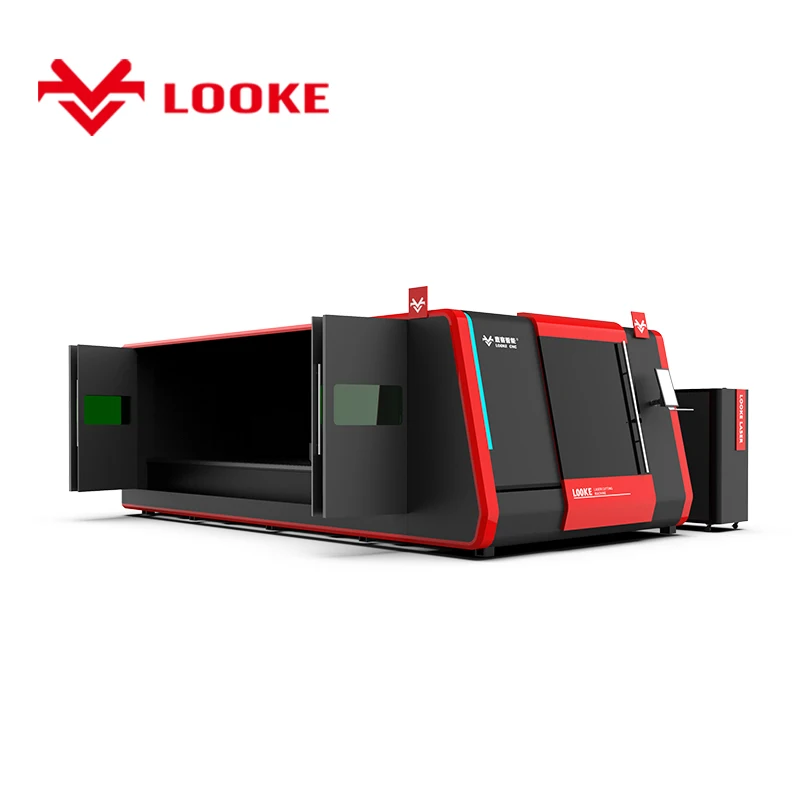

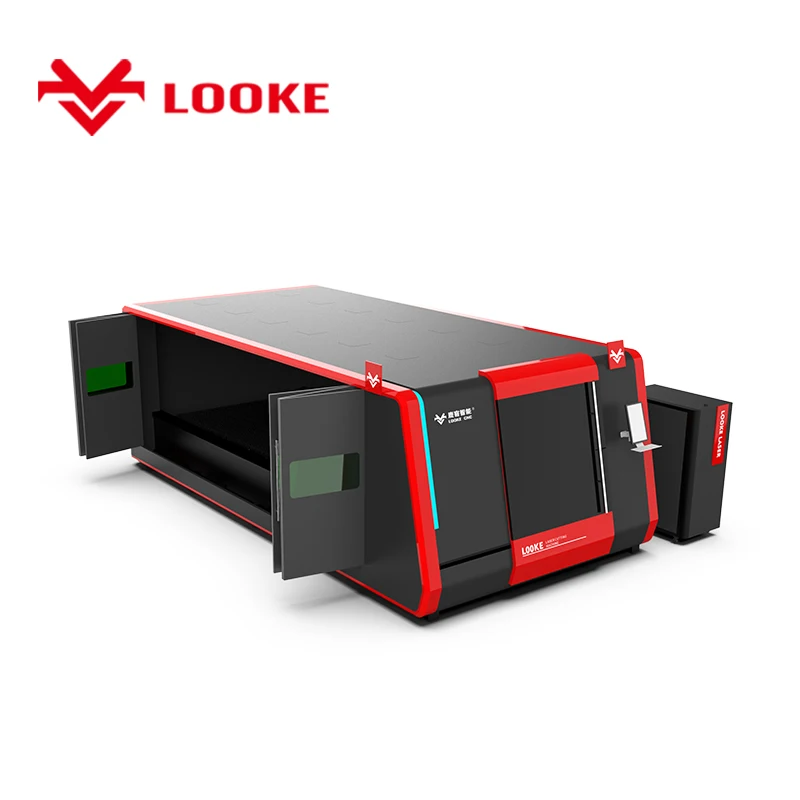

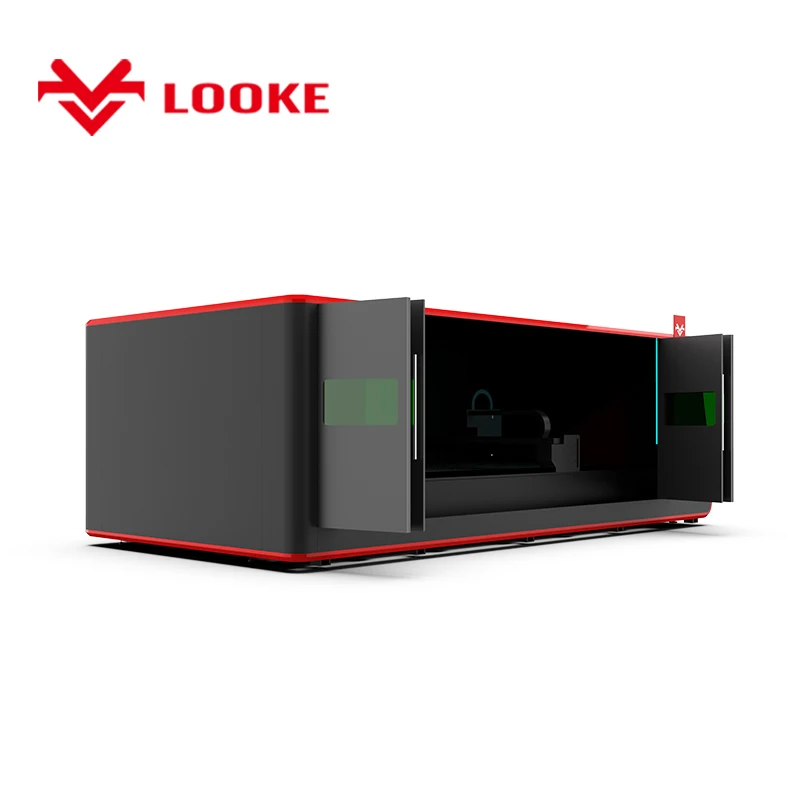

1500w 2000w 3000w 6000w 12000w Enclosed Fiber Laser Metal Sheet Plate Cutting Machine Environmentally Friendly Model
Main Features
Fiber laser power source options from 1000W to 3000W. Light alloy beam (Y axis) to provide High dynamic performance. The optical path changes while the sheet remains still, thus the processing efficiency is high.
X, Y axis adopts high quality gear and rack, reduction gear, ensuring life and precision for a long time.
Imported Servo Motors. All motors are with Absolute Encoder.
The system is equipped with section dust collector to improve the working environment. The area beneath the cutting table is divided into several sections. During the cutting process, only the ducts directly beneath the cutting head are open for fume extraction. The ducts in the other sections remain closed to improve dust collection.
Applications for cutting stainless steel, carbon steel, aluminum, titanium, and most non-ferrous metals.
Fiber laser power source options from 1000W to 3000W. Light alloy beam (Y axis) to provide High dynamic performance. The optical path changes while the sheet remains still, thus the processing efficiency is high.
X, Y axis adopts high quality gear and rack, reduction gear, ensuring life and precision for a long time.
Imported Servo Motors. All motors are with Absolute Encoder.
The system is equipped with section dust collector to improve the working environment. The area beneath the cutting table is divided into several sections. During the cutting process, only the ducts directly beneath the cutting head are open for fume extraction. The ducts in the other sections remain closed to improve dust collection.
Applications for cutting stainless steel, carbon steel, aluminum, titanium, and most non-ferrous metals.
1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
Advantages:
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
Advantages:
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.
Specification
Model | LOOKE-3015S Fiber laser cutting machine |
Working area | 1500*3000mm working area |
Laser source | 1000/1500/2000/3000W Raycus/ MAX fiber laser source |
Laser cutting head | Raytools laser head |
Bed structure | High rigidity welded steel framework |
Table surface | Blade table |
Guide rail | Taiwan Hiwin linear square guide rail 25mm |
Transmission | X,Y with helical gear rack ,Z with TBI ball screw |
Motors and drivers | FUJI servo motor & driver, X,Y axis 750w, Z axis 400w |
Control system | FSCUT control system |
Software | TubePro CypCut software |
Chiller | S&A, Dual Temperature Control or Hanli brand chiller |
Reducer | Japan imported SHIMPO reducer |
Tool sensor | Automatic tool sensor |
Lubrication system | Electric automatic lubrication system |
Pressure valves | High-pressure(N2,air):2.5MPa(Shuoda) Low-pressure(O2):1MPa(SMC) |
Electronic Proportional Valve | SMC from Japan |
Electronic Components | SCHNERDER, Omron |
Max. idling speed | 80m/min |
Positioning Accuracy | ±0.03mm |
Re-Positioning Accuracy | ±0.02mm |
Instruction format | G code *.u00 *.mmg *.plt |
Working voltage | AC380V, 3 phase,50-60hz(for more than 1000w) AC220V, single phase, 50-60hz(for 1000w) |
Others | Tool box, English Manual, Exhaust fan, cutting nozzle, protection mirrors etc |
Machine details
Feedback & Sample
Packing & Delivery
Company Profile
Jinan LOOKE Intelligent Equipment Co., Ltd. is famous in CNC equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5 years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material
thickness and working size.
thickness and working size.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5 years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
Contact
Contact: Hannah Hou Mob: +86 151 6641 7523
WhatsApp: +86 151 6641 7523 Email: sales11@jnlooke.com
Похожие товары
Долгий срок службы машина для лазерной резки и гравировки грома
13 000,00-15 000,00 $
Bodor высокопроизводительная Серия P Промышленная безопасная резка 12 кВт лазерная машина для резки металла со сканирующей резкой
198 000,00 $
OREE волоконная лазерная машина для резки листового металла 500 Вт 1000 3000
Поставщик легкий в эксплуатации автоматический 3000 Вт Пятиосевой лазерный Трубный резак 10 м 1500 волоконно-лазерный трубный станок 6 кВт для продажи
13 500,00-18 999,00 $
Лучшее качество волоконно-лазерная машина для резки металла инженерное оборудование точные детали кораблей металлургическое
9 750,00 $

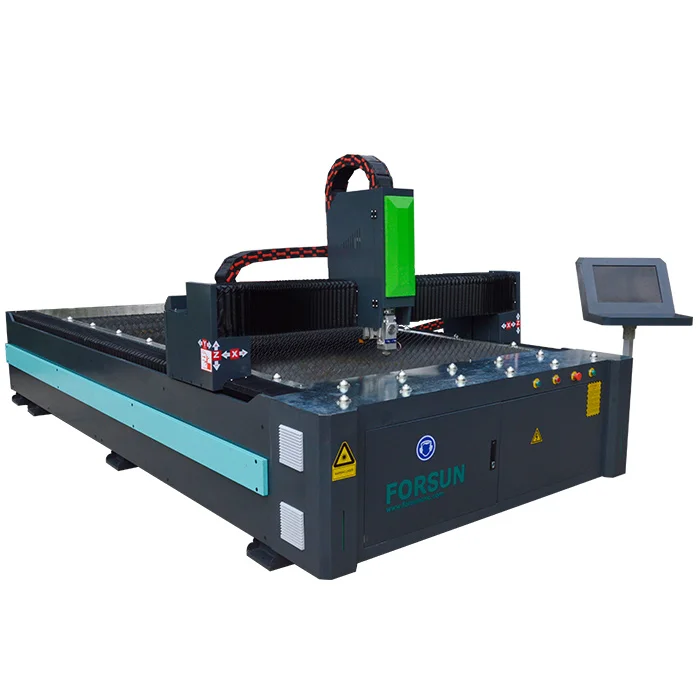

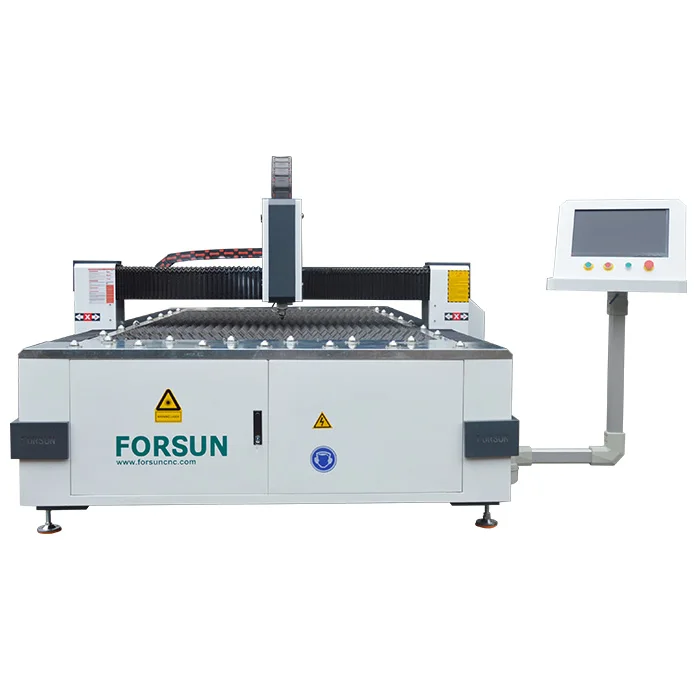

30% OFF Forsun 3015 2000W metal fiber laser cutting machines with factory price
