Product Description

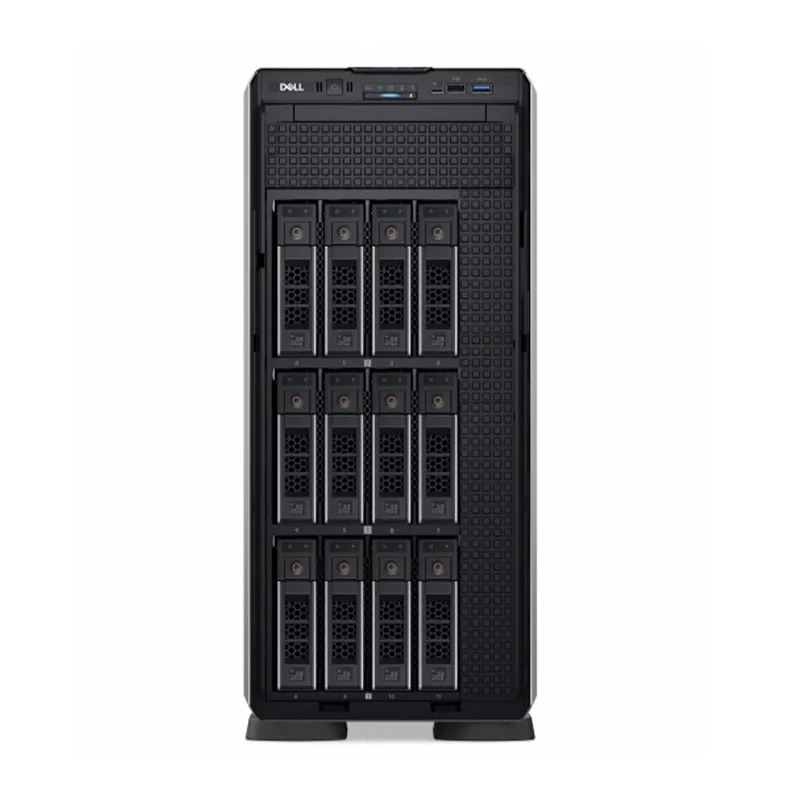

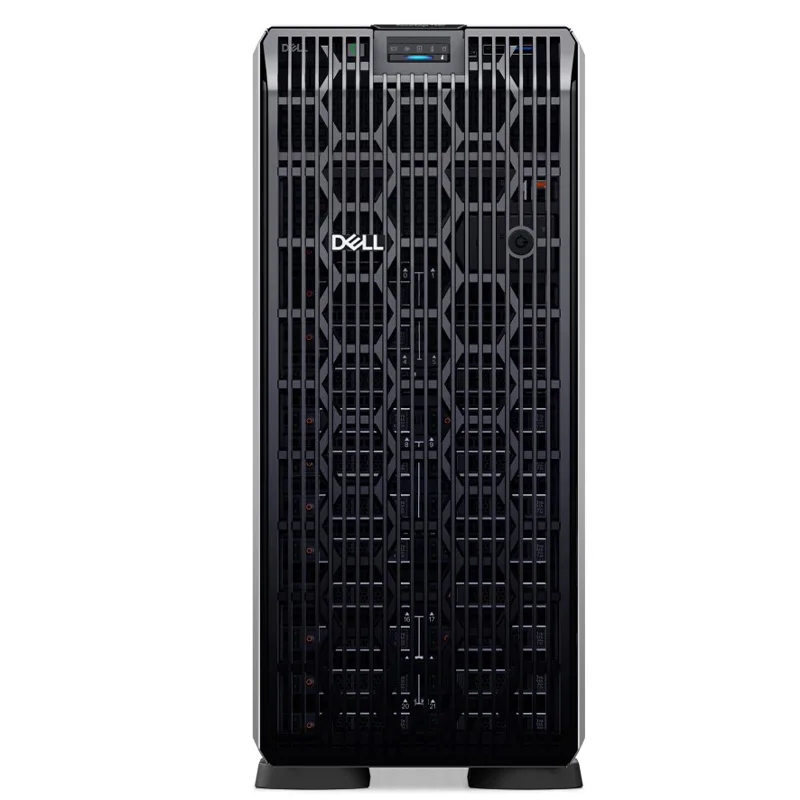

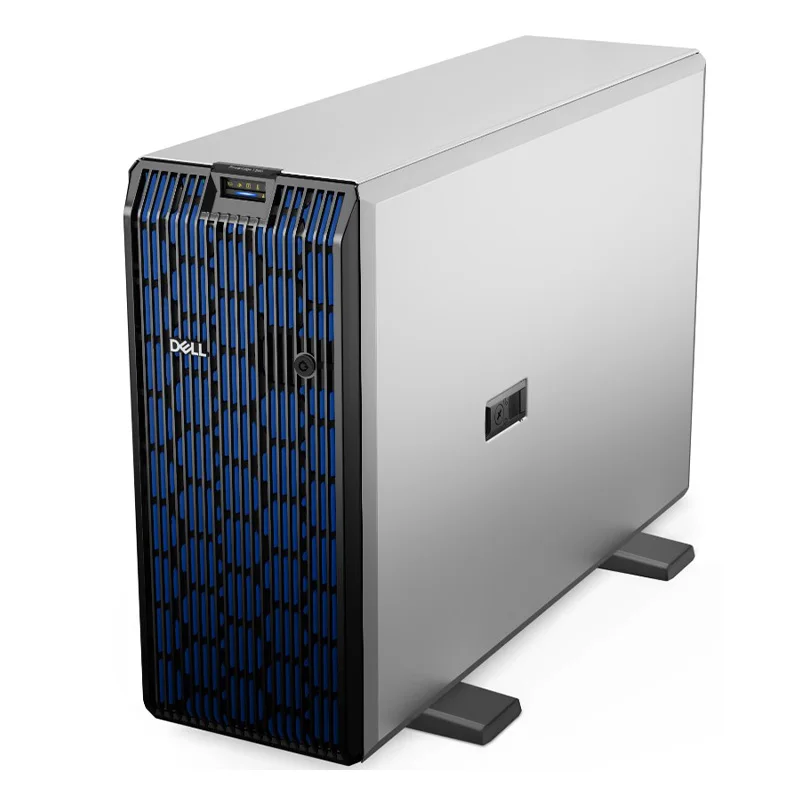

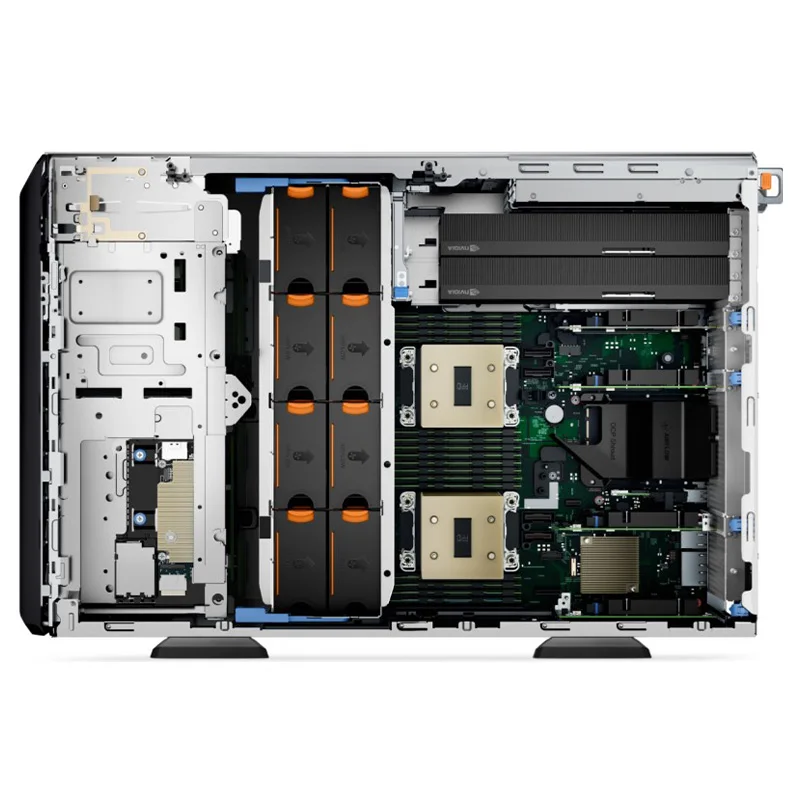

DELL PowerEdge T560 Tower Server
The Dell T560, powered by the 4th Generation Intel® Xeon® Scalable processors, is an enterpriseclass tower server that offers advanced technologies with accelerators. It is a purpose-built server with officefriendly acoustics that maximizes next-gen technologies to achieve optimal performance in a small footprint. The JLS Future T560 is an ideal tower server for traditional corporate IT, virtualization, database and analytics, and inferencing for AI/ML, delivering robust compute performance.
Processor | Up to two 4th Generation Intel® Xeon Scalable processor, with up to 32 cores per processor and optional Intel® QuickAssist Technology |
Memory | • 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only |
Storage controllers | • Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB • External HBA (non-RAID): PERC HBA355e • Software RAID: S160 (for NVMe drives only) |
Drive Bays | Front bays: • Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB • Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB • Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB • Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB • Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB • Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB |
Power Supplies | • 2800 W Titanium 200—240 VAC or 2800 W 240 VDC, hot swap redundant • 2400 W Platinum 100—240 VAC or 2400 W 240 VDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 1800 W 240 VDC, hot swap redundant • 1400 W Titanium 277 VAC or 1400 W 336 VDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 1400 W 240 VDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 1100 W 240 VDC, hot swap redundant • 1100 LVDC -48 — (-60) VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 800 W 240 VDC, hot swap redundant • 700 W Titanium 200—240 VAC or 700 W 240 VDC, hot swap redundant • 600 W Platinum 100—240 VAC or 600 W 240 VDC, hot swap redundant |
Cooling options | Air cooling |
Fans | • Up to eight Standard (STD) fans or High performance (HPR) fans |
Dimensions | • Height — 464.0 mm (18.26 inches) (with feet) 508.8 mm (20.03 inches) (with caster wheels) 446.0 mm (17.60 inches) (without feet) • Width — 200.0 mm (7.87 inches) • Depth — 678.2 mm (26.70 inches) (with bezel) 660.6 mm (26 inches) (without bezel) |
Form Factor | 4.5U tower server |
Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC Service Module • iDRAC RESTful with Redfish • Quick Sync 2 wireless module |
Bezel | Optional security bezel |
OpenManage Software | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center |
Mobility | OpenManage Mobile |
Integrations and Connections | • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manage |
Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
Embedded NIC | 2 x 1GbE LOM on Planar |
Network Options | 1 x OCP x8 card 3.0 Note: The system allows both LOM on planar and OCP card to be installed on the system. |
GPU Options | Up to 2 x 300 W DW or 6 x 75 W SW |

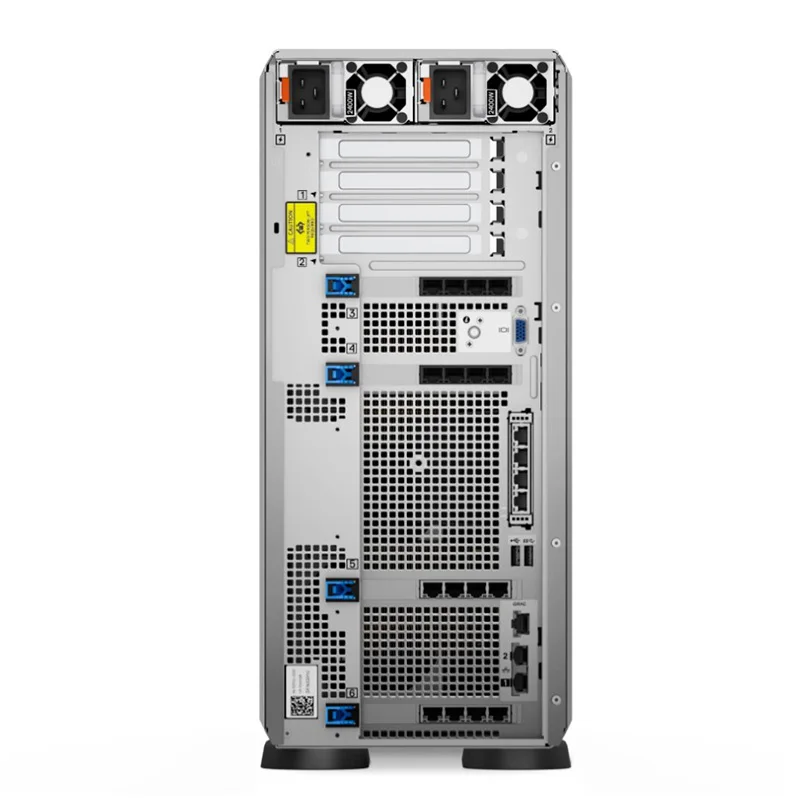

Ports | Front Ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x iDRAC Direct (Micro-AB USB) portRear Ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x Serial port (optional) • 1 x Dedicated iDRAC (RJ45) port • 1 x VGA port • 2 x Ethernet ports Internal Ports • 1 x USB 3.0 (optional) |
PCIe | Up to six PCIe slots: • Slot 1: x16 Gen5 Full height, Full length • Slot 2: x16 Gen5 Full height, Full length • Slot 3: x16 Gen4 Full height, Half length • Slot 4: x16 Gen4 Full height, Half length • Slot 5: x16 (x8 lanes) Gen4 Full height, Half length • Slot 6: x16 Gen4 Full height, Half length |
Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
Contact me
Company Profile
Похожие товары

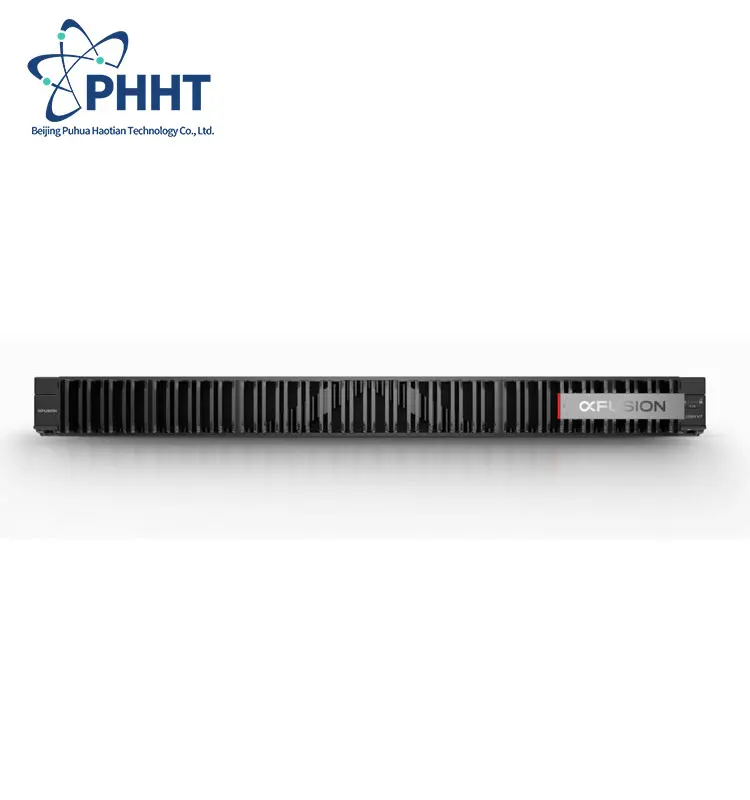

Factory Wholesale Surprise Price 2u intel xeon rack server good discount in stock 1288h v7

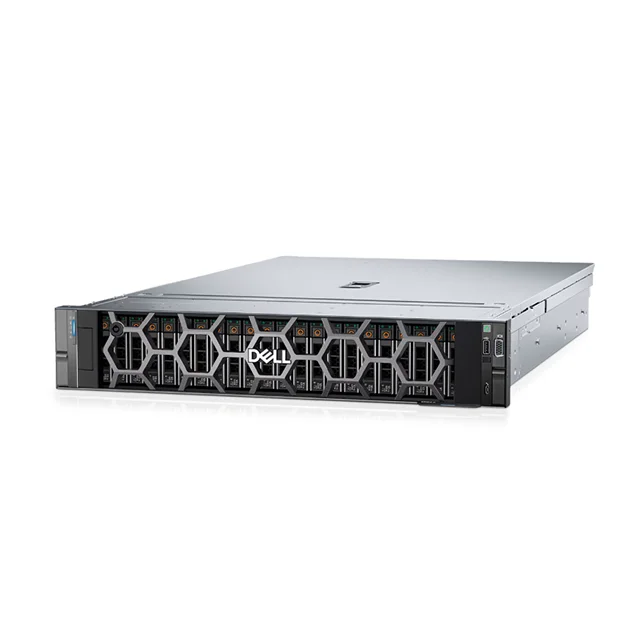

Новый двухсоковый сервер Intel Xeon Gold 5418N 12LFF PowerEdge R760 Высокопроизводительный
368 088,37 ₽

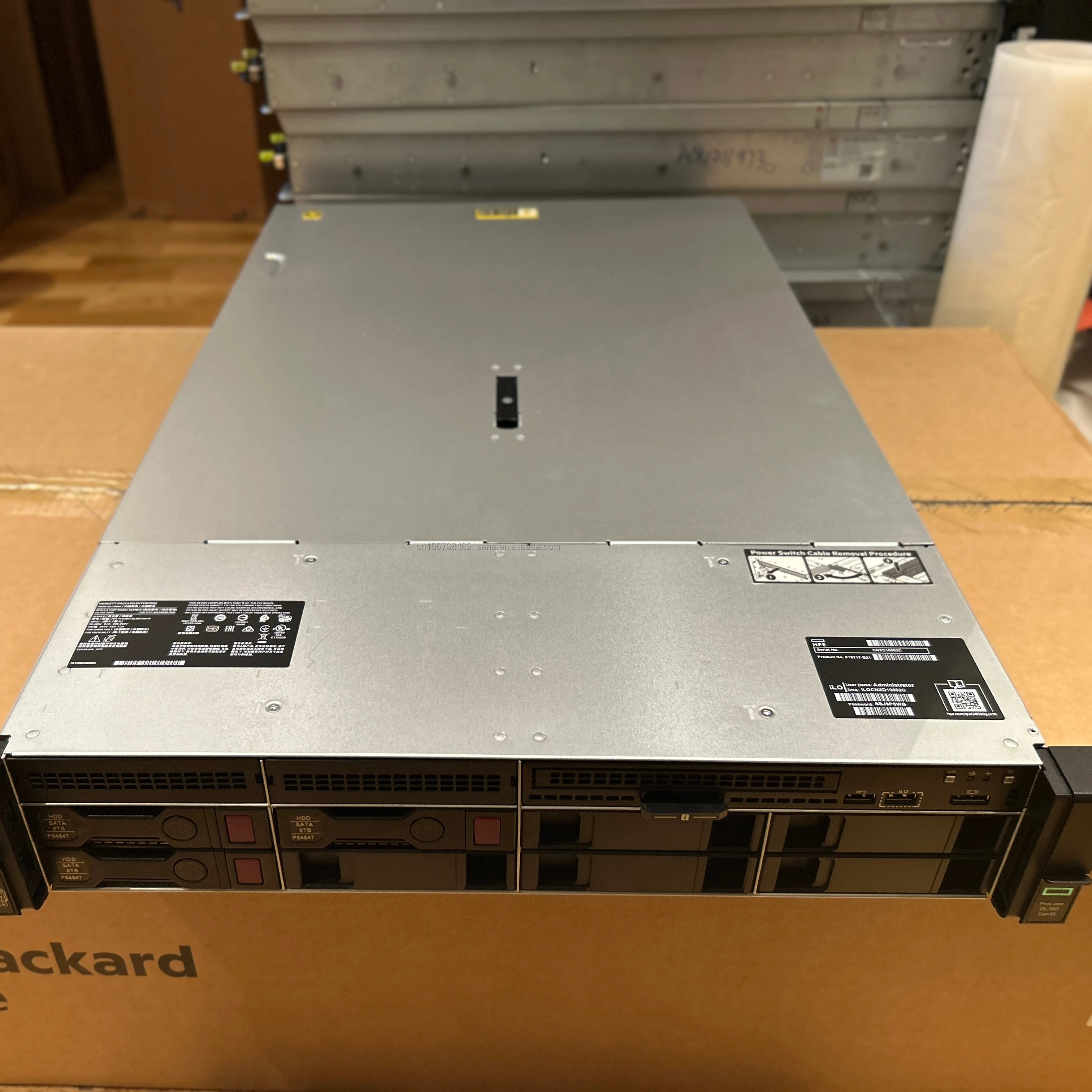

Сервер HPEs DL380GEN10 8LFF INTEL CPU 5218R 20C 2 1 Гц 32 Гб DDR4 P408-a новый сервер DL380G11 DL380G10 PLUS DL360G10 DL360G11
