5 Вт УФ лазерная маркировочная машина подходит для печатной платы травления маркировки стекла
507 707,70 ₽
Квантовый 3 Вт 5 10 gobos УФ Ультрафиолетовый Лазерный Маркер Гравировальный гравировальный станок для металла неметаллическое пластиковое стекло
- Категория: >>>
- Поставщик: Liaocheng City Quantum Machinery Technology Co. Ltd.Liaocheng Ltd.
Сохранить в закладки 1601293849094:
Описание и отзывы
Характеристики
Product Overview

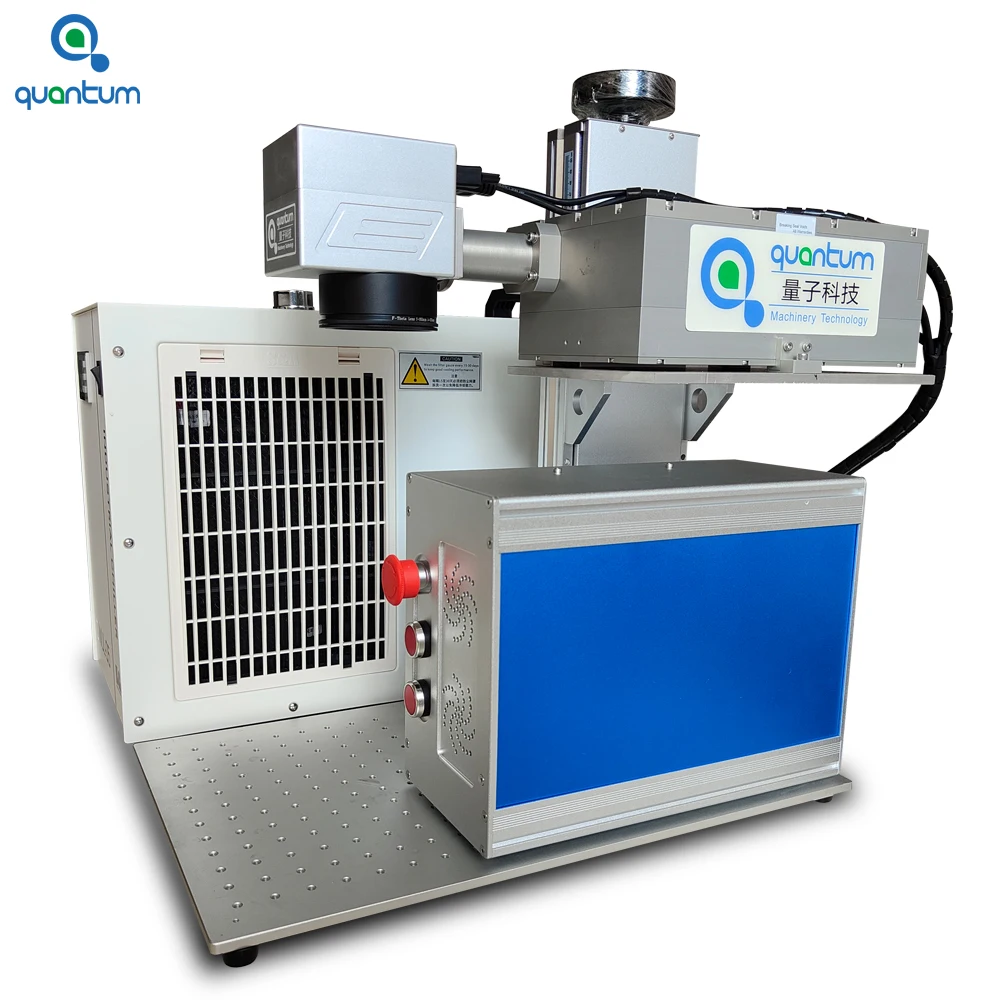

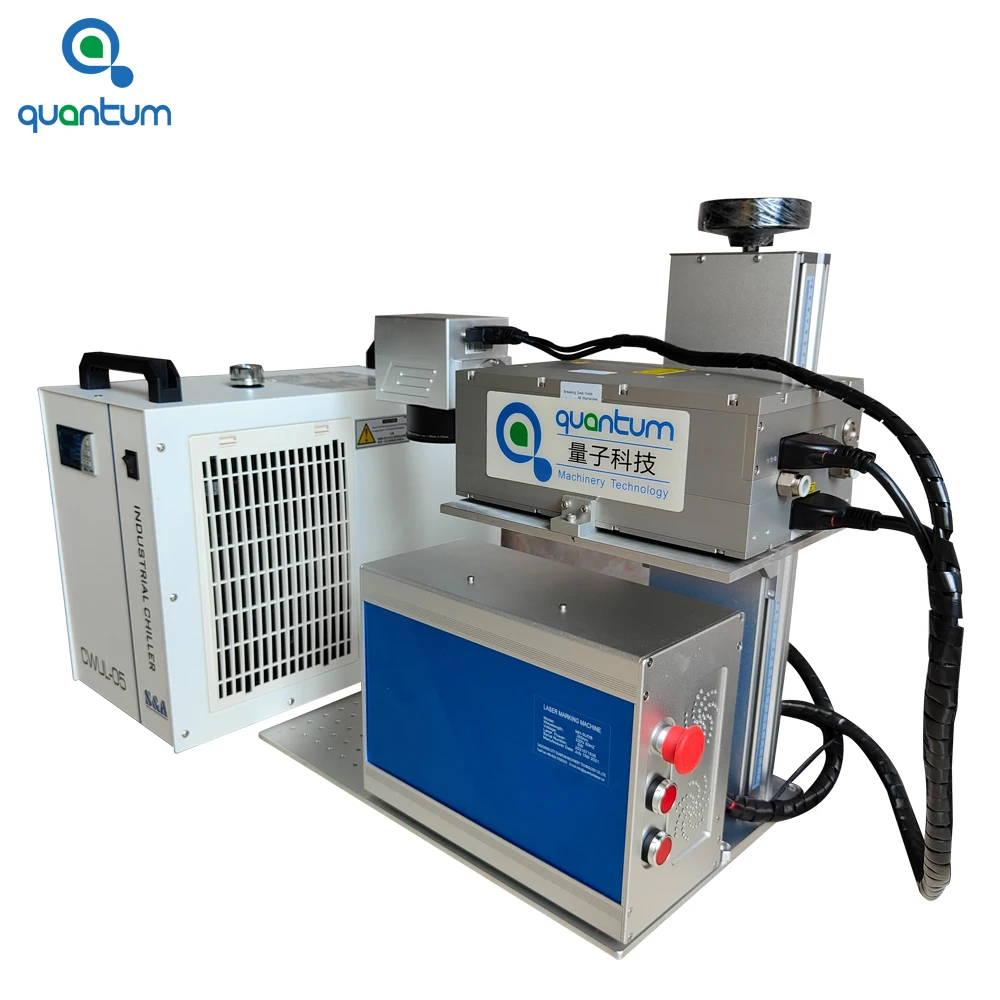

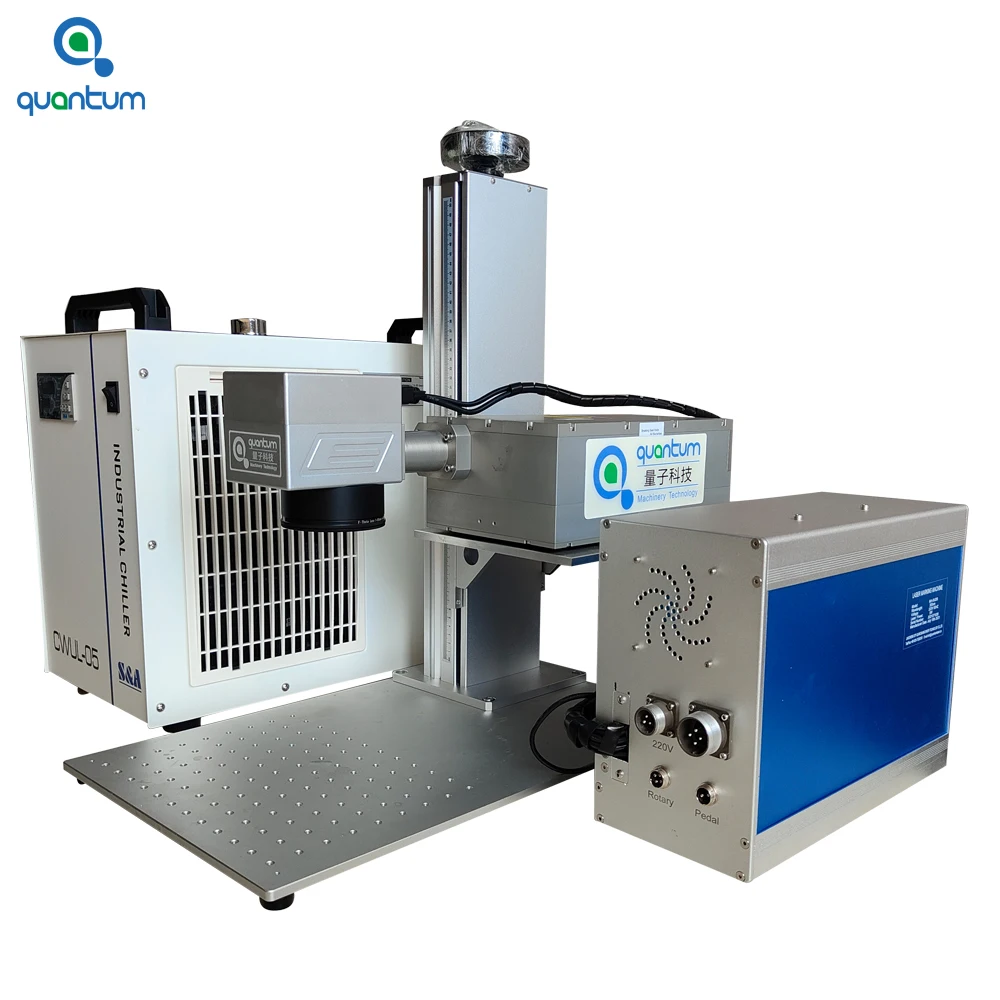

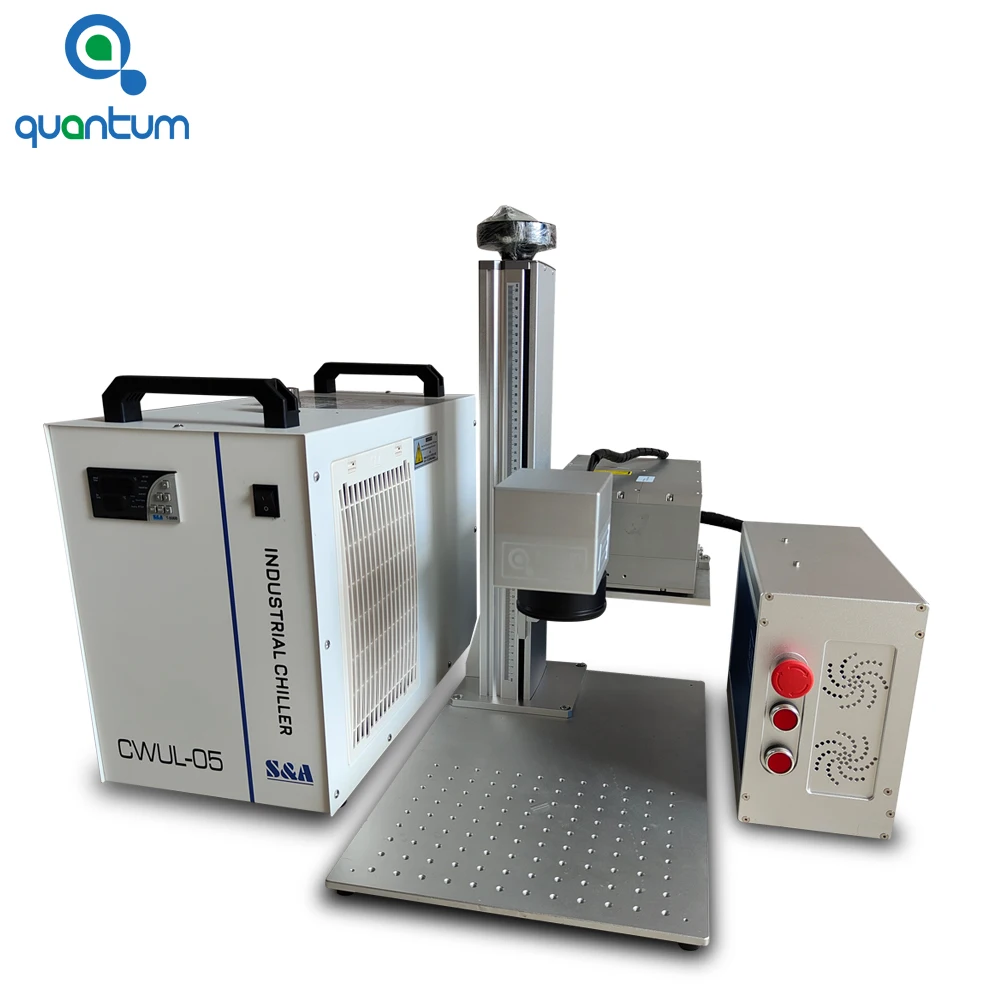

UV Laser Marking Machine
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry
products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, previous to light polymer materials, plastic, fire prevention materials etc.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry
products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, previous to light polymer materials, plastic, fire prevention materials etc.

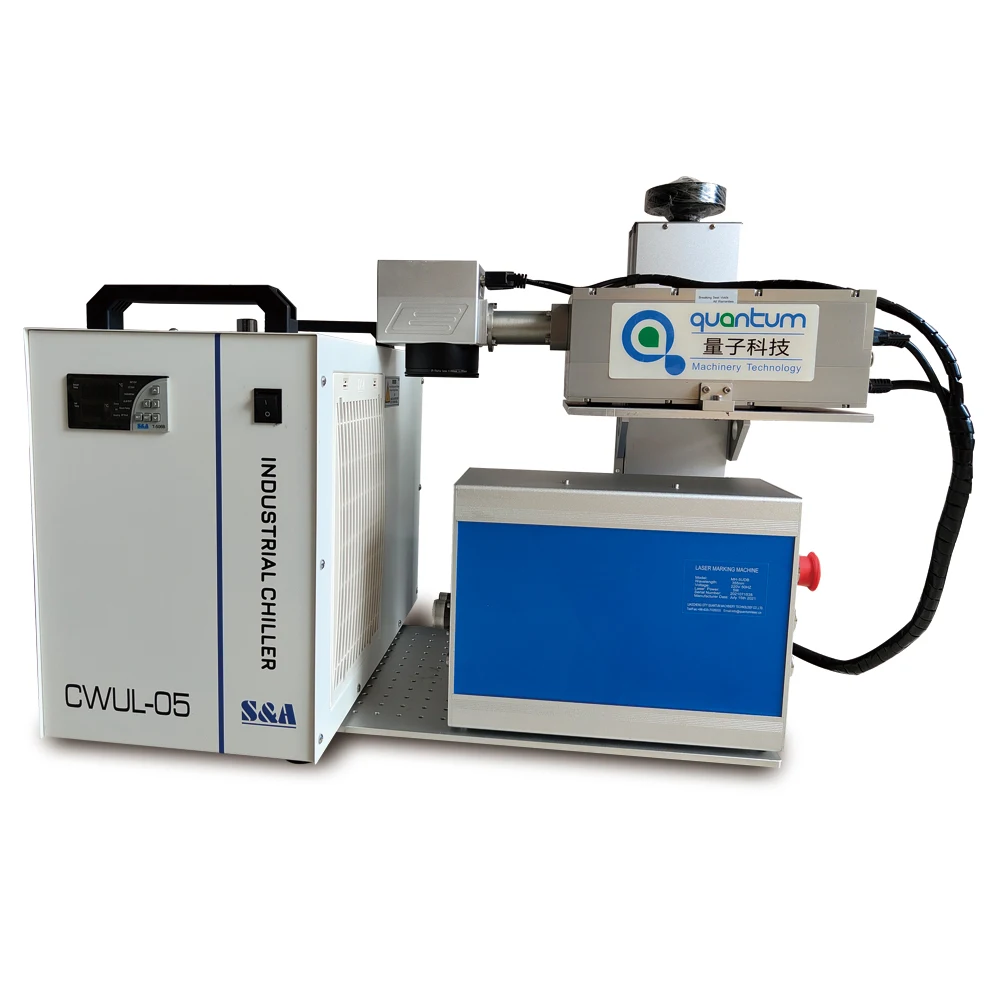

Front elevation
Product Paramenters
Effective Working Area (Optional ) | (X=100mm)*(Y=100mm) |
Laser Power (Optional) | 3W / 5W |
Worktable | Anodized Aluminum Plate with M9 Location Holes |
Wave Length | 355nm |
Laser Frequency | 20~100KHz |
Computer System | WINDOWS XP/Win7/Win8/Win10 |
Minimum Character | 0.15mm |
Maxi Marking Depth | 2mm |
Minimum Linear Width | 0.01mm |
Cooling way | Air Cooling |
Max Marking Speed | 7000mm/s |
Data Transfer | USB2.0 transmission |
Control System | EZCAD Controller |
Graphic Format Supported: | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP |
Compatiable Software | CorelDraw, AutoCAD,Adobe Illustrator,Cadian |
Total Power | 500W ( AC220V 50Hz /AC110V 50Hz) |
Package Weight | 150KG |
Package Size | 950mm×910mm×1310mm |
Product Configuration
Samples
How to Get Free Samples:
1. One Alibaba account can get only one free sample.
2. A different account but with the same address will be seen as the same account.
3. You need to pay the shipping cost (there are many cheap and economic express shipping methods which are low to 5 dollars for
you to choose).
4. If you have agent in China,we will charge only 2 dollars as shipping cost.
5. Only accept payment through Alibaba trade assurance.
6. You need to send us inquiry before get free sample.
7. If you place following order after getting free sample,we will refund the shipping cost of the free sample.
1. One Alibaba account can get only one free sample.
2. A different account but with the same address will be seen as the same account.
3. You need to pay the shipping cost (there are many cheap and economic express shipping methods which are low to 5 dollars for
you to choose).
4. If you have agent in China,we will charge only 2 dollars as shipping cost.
5. Only accept payment through Alibaba trade assurance.
6. You need to send us inquiry before get free sample.
7. If you place following order after getting free sample,we will refund the shipping cost of the free sample.
Similar Products
Our Service:
1. 24 months warranty for the whole machine.2. Technical support by phone, email , WhatsApp or Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Product packaging
FAQ
1. What's your after-sales service?
♦ 24/7 support online.
♦ Lifelong and free technical support.
♦ We are responsible for troubleshooting.
♦ Service overseas: If the questions need to be solved face to face, we will dispatch an engineer to your company.
2. What's your guarantee?
♦ Laser Power Source is 100% genuine and certificate is with it.
♦ Machine is verified. Inspection and adjustments is completed as well as verified in writing.
♦ Testing is done and results is verified in writing.
3. What's your warranty?
♦ The complete machine warranty is one years.
4. What's your Payment Terms Supported?
♦ By 100% T/T in advance.
♦ By 30% T/T in advance, 70% balance paid before shipment.
♦ By Alibaba Trade Assurance, PayPal, Western Union, L/C.
5. What's your date of delivery?
♦ Within 7 days after receiving payment.
6. What's your packaging?
♦ Exported wooden case (or according to your requirements)
7. What watt is suitable for me?
♦ If you are not sure, please tell me what the machine will be used to do? Then I can suggest a suitable and right watt to you.
♦ 24/7 support online.
♦ Lifelong and free technical support.
♦ We are responsible for troubleshooting.
♦ Service overseas: If the questions need to be solved face to face, we will dispatch an engineer to your company.
2. What's your guarantee?
♦ Laser Power Source is 100% genuine and certificate is with it.
♦ Machine is verified. Inspection and adjustments is completed as well as verified in writing.
♦ Testing is done and results is verified in writing.
3. What's your warranty?
♦ The complete machine warranty is one years.
4. What's your Payment Terms Supported?
♦ By 100% T/T in advance.
♦ By 30% T/T in advance, 70% balance paid before shipment.
♦ By Alibaba Trade Assurance, PayPal, Western Union, L/C.
5. What's your date of delivery?
♦ Within 7 days after receiving payment.
6. What's your packaging?
♦ Exported wooden case (or according to your requirements)
7. What watt is suitable for me?
♦ If you are not sure, please tell me what the machine will be used to do? Then I can suggest a suitable and right watt to you.
