Product Description

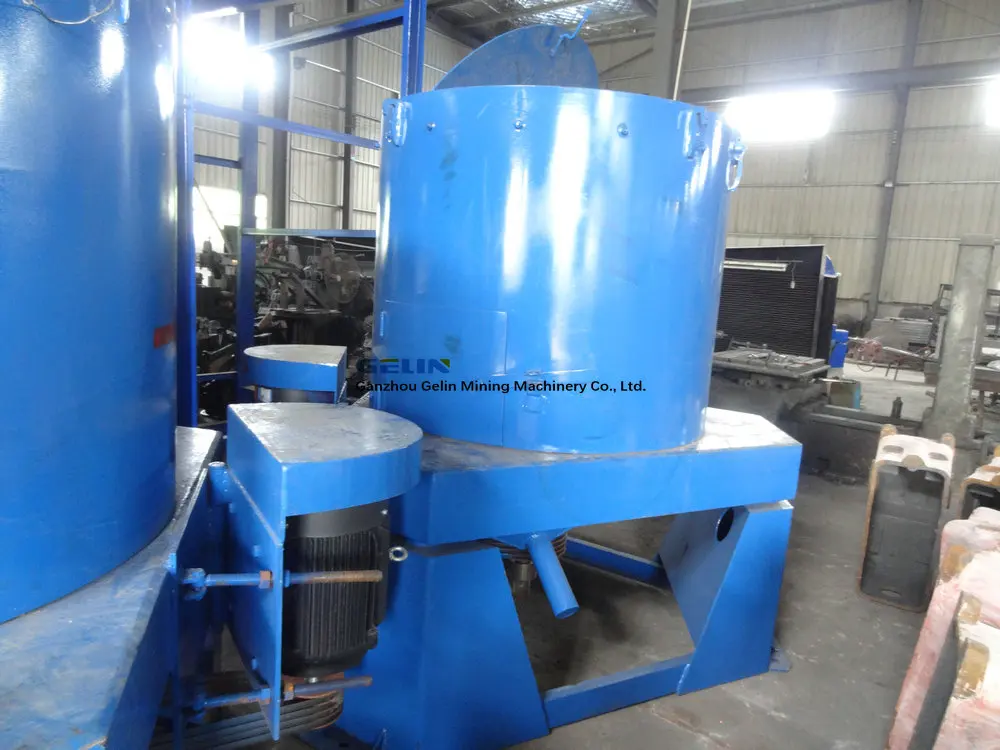

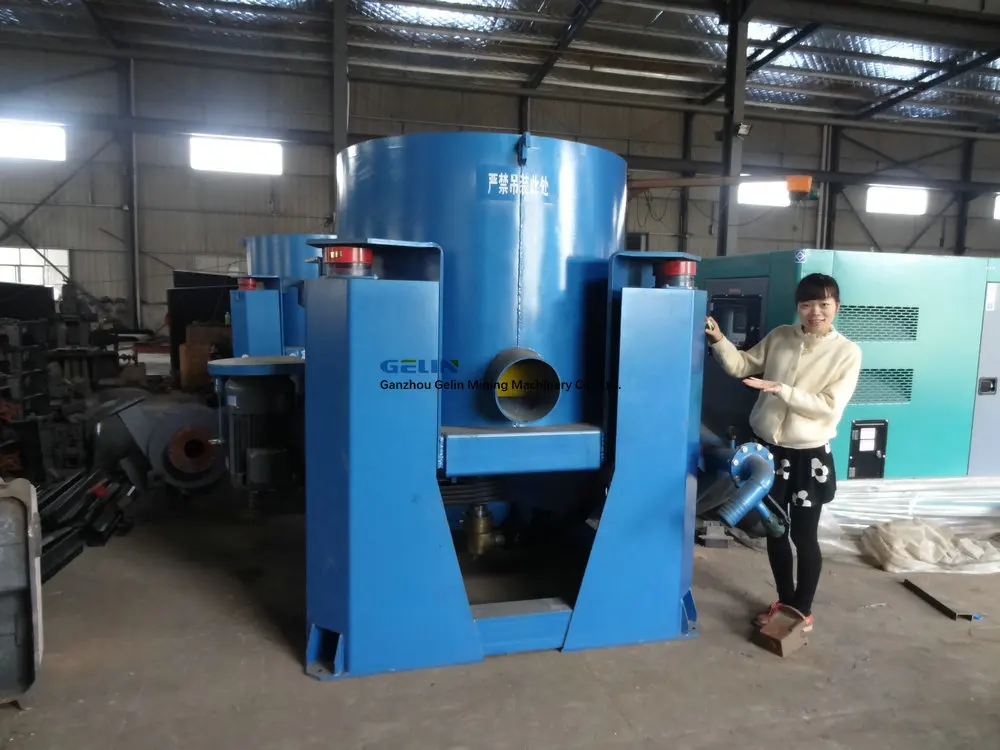

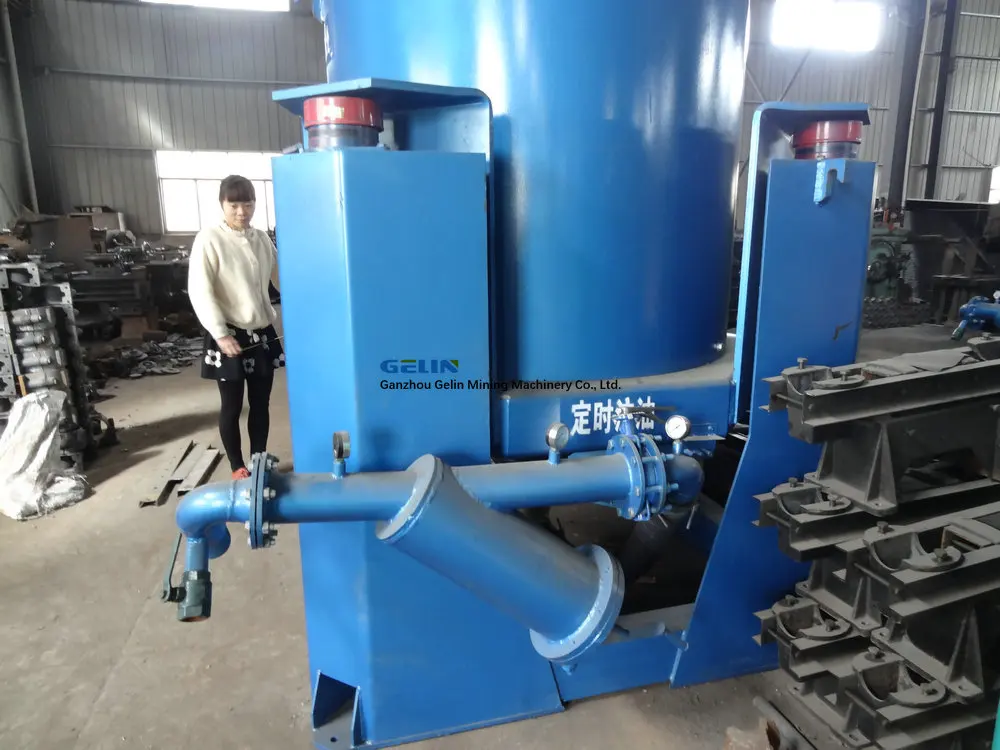

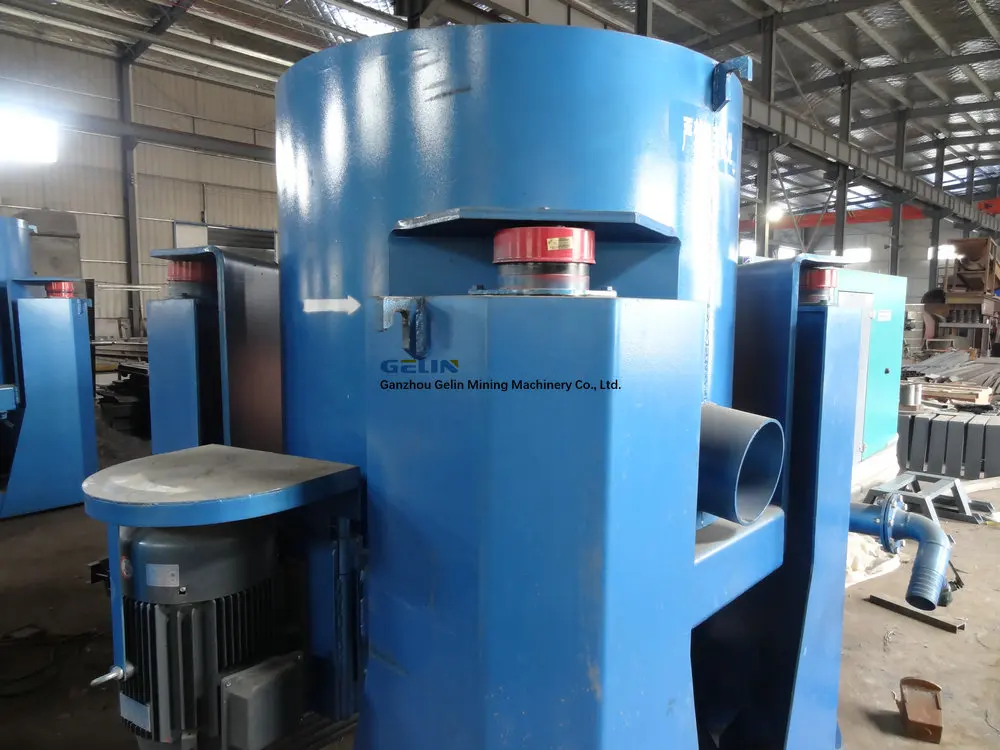

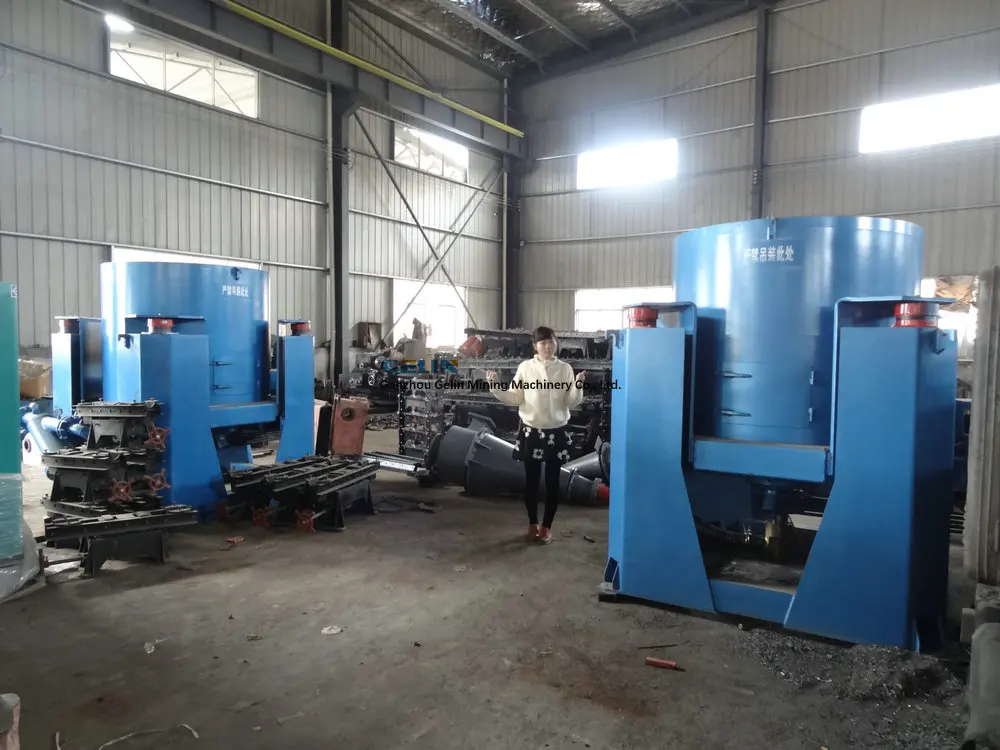

STLB 20 30 60 80 100 120 Automatic Discharge Gold Centrifugal Concentrator Africa Gold Mining Machinery
Gelin Gold Concentration Separator,also called centrifugal concentrator, is a new type of gravity concentration equipment for concentrating gold and other high density minerals.It is usually used for roughing separation during the gold separation flowchart to recover most of the useful minerals and get rid of most of the barren rocks.
Our factory provides different types with different capacities,semi-automatic type and full automatic type is available to sell too.
Features
1.High recovery rate: For placer gold,it will be 98% or more; for rock gold, it could reach 97% when the feeding size is below 0.04mm.
2.Large capacity and high efficiency.
3.Easy to install and adjust,the machine has Characteristics of integrity and simpleness utility,which makes it convenient to operate and change spare parts.
4.Eco-Friendly and low noise and no chemical agent involved. 5.Small occupied area benefits to be a part of ore beneficiation plant.
Application&Successful Case
Centrifugal concentrator is widely used for the recovery of gold, tungsten, lead, manganese, iron, etc. We have exported to South Africa, Kenya,Congo,Indonesia,Pakistan,etc. and enjoy high reputation.
Working Principle
During operation, the lighter material flows upward over the grooves and heavy mineral particles (usually of economic value) become trapped within them.Pressurized water is injected through a series of tangential water inlets along the perimeter of each groove to maintain a fluidized bed of particles in which heavy mineral particles can be efficiently concentrated.
1. Access Door
2.Feeding Pipe
3. Drain Pan
4.Liner
5.Shell
6.Tailing Discharge Opening
7.Supporting Leg
8. Rack
9.Bearing Seat
10.Main Shaft
11.Rubber Seat
12.Spring
13.Motor
14.Belt
Technical Data
| TYPE | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 |
| Capacity(t/h) | 0.2-0.3 | 2-3 | 10-15 | 35-45 | 60-120 |
| Particle size(mm) | 0-3 | 0-4 | 0-6 | 0-6 | 0-6 |
| Feeding concentration(%) | 0-50% | ||||
| Back wash water(t/h) | 1.5-2 | 4-6 | 10-15 | 17-25 | 40-60 |
| Output(kg/time) | 2-3 | 10-20 | 30-40 | 60-70 | 70-80 |
| Discharge cycle(H) | 1-4 | ||||
| Power(kw) | 0.75 | 1.5 | 5.5 | 11 | 18.5 |
| Revolution(R) | 800 | 600 | 460 | 400 | 360 |
| Pressure water | 20 | 120 | 400 | 1200 | 1500 |
| Weight(T) | 0.25 | 0.5 | 1.2 | 1.5 | 2 |
| Approximately dimension(mm) | 790*785*790 | 1180*1140*1250 | 1970*1670*1750 | 2300*1800*2200 | 2500*2000*2400 |
PackingNormally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
DeliveryUsually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Ganzhou Gelin Mining Machinery Co., Ltd is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, separation etc. in China. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc.
Sincerely welcome customers to visit our factory.
One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
Q: What is your payment terms?
A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.
A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.
Q: How long is the guarantee period of your products?
A: The guarantee period is 1-2 years, pls ask staff for more details. And we will supply lifelong technical support service and the spare parts at lowest cost.
Q: Is it possible to produce customized products ?
A: Yes, most of our products are produced as required.
A: Yes, most of our products are produced as required.
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
Похожие товары
Соединение для горнодобывающего транспортного средства высокопрочная конвейерная цепь угольной шахты
Lhd погрузчик TC-0.75 подземный шахтерский
35 726 873,90-36 108 299,60 ₽
Центробежный концентратор для добычи золота небольшой емкости STLB20 оборудования Аллювиального
432 282,46 ₽
Лидер продаж подставка для подземной угольной шахты опора одиночная гидравлическая поддержки
8 899,94-25 428,38 ₽
Промышленный импульсный мешок с фильтром пылеуловитель
Гусеничное шасси в сборе

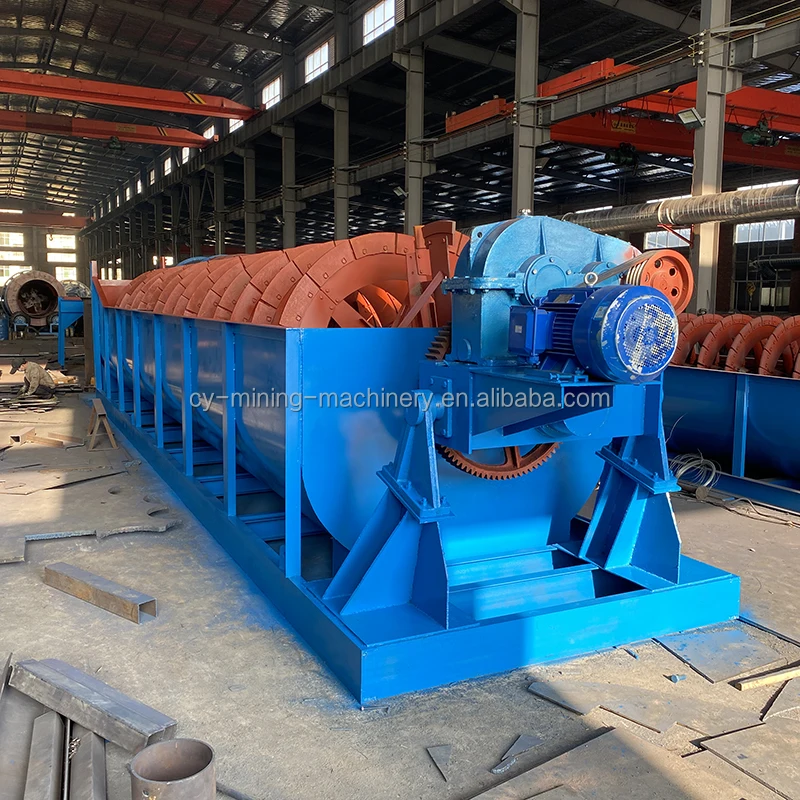

Нигерийский высокий спиральный классификатор концентрированный Золотой сепаратор двойной для продажи
