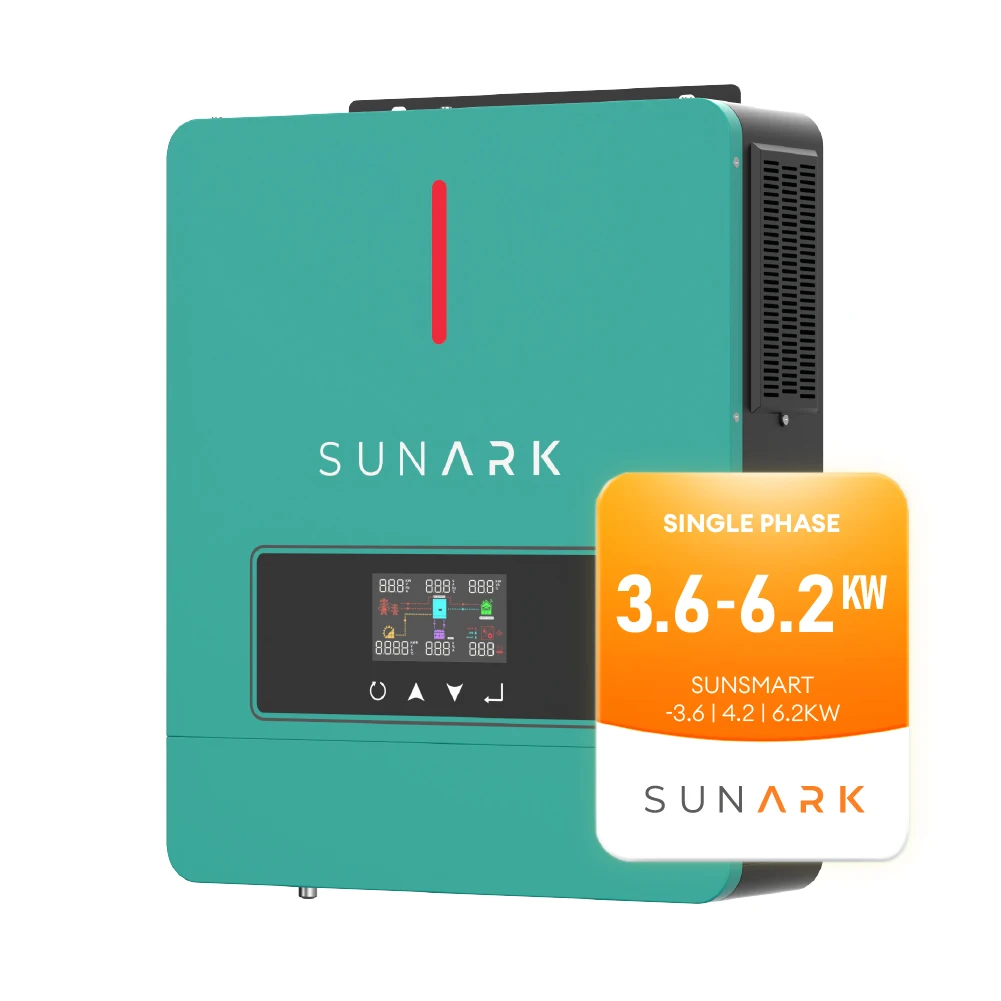

Солнечный инвертор Sunark 3 кВт 5 6 2
12 459,91-19 325,57 ₽
Sunark 10 лучших брендов Инвертор солнечной энергии 3000 Вт 6 кВт 2 гибридный солнечный инвертор без шума
- Категория: >>>
- Поставщик: SunArk Power Co. Ltd.SunArk Ltd.
Сохранить в закладки 1601293919892:
Описание и отзывы
Характеристики
Products Description
Pure sine wave solar inverter(on/off Grid)
· Output power factor 1.0
· WIFI&GPRS available for IOS and Android
· Inverter can run without battery
· One-key restoration to factory Settings
· Built-in Lithium battery automatic activation
Dual communication ports for Battery communication and Wifi communication
· Output power factor 1.0
· WIFI&GPRS available for IOS and Android
· Inverter can run without battery
· One-key restoration to factory Settings
· Built-in Lithium battery automatic activation
Dual communication ports for Battery communication and Wifi communication
Built-in 120A MPPT Solar charge:max 6200W (for 3.6KW/4.2KW),max 6500W (for 6.2KW)
· High PV input voltage range(60~500VDC)
· Built-in anti-dust kit for harsh environment
· Smart battery charge design to optimize battery life
· Dual output
· High PV input voltage range(60~500VDC)
· Built-in anti-dust kit for harsh environment
· Smart battery charge design to optimize battery life
· Dual output
Model | SunSmart-3.6KW | SunSmart-4.2KW | SunSmart-6.2KW | ||
Phase | 1-phase | ||||
Maximum PV Input Power | 6200W | 6200W | 6500W | ||
Rated Output Power | 3600W/3600VA | 4200W/4200VA | 6200W/6200VA | ||
Maximum Solar Charging Current | 120A | ||||
GRID-TIE OPERATION | |||||
PV INPUT (DC) | |||||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||||
Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC | ||||
MPPT Voltage Range | 60~450VDC | ||||
Maximum Input Current | 1/18A | 1/22A | |||
GRID OUTPUT (AC) | |||||
Nominal Output Voltage | 220/230/240VAC | ||||
Output Voltage Range | 195~253VAC | ||||
Nominal Output Current | 15.7A | 18.2A | 27.0A | ||
Power Factor | >0.99 | ||||
EFFICIENCY | |||||
Maximum Conversion Efficiency (DC/AC) | 98% | ||||
TWO LOAD OUTPUT POWER | |||||
Full Load | 3600W | 4200W | 6200W | ||
Maxium Main Load | 3600W | 4200W | 6200W | ||
Maxium Second Load(battery mode) | 1200W | 1400W | 2067W | ||
Maxium Load Cut Off Voltage | 26VDC | 26VDC | 52VDC | ||
Maxium Load Return Voltage | 27VDC | 27VDC | 54VDC | ||
OFF-GRID OPERATION | |||||
AC INPUT | |||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||||
Frequency Range | 49-51±1HZ | ||||
Maximum AC Input Current | 21.1A | 24.7A | 36.4A | ||
PV INPUT (DC) | |||||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||||
MPPT Voltage Range | 60~450VDC | ||||
Maximum Input Current | 1/18A | 1/22A | |||
BATTERY MODE OUTPUT (AC) | |||||
Nominal Output Voltage | 220/230/240VAC | ||||
Output Waveform | Pure sine wave | ||||
Efficiency (DC to AC) | 94% | ||||
BATTERY & CHARGER | |||||
Nominal DC Voltage | 24VDC | 48VDC | |||
Maximum Solar Charging Current | 120A | ||||
Maximum AC Charging Current | 100A | ||||
Maximum Solar+AC Charging Current | 120A | ||||
HYBRID OPERATION | |||||
PV INPUT (DC) | |||||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||||
Start-up Voltage / Initial Feeding Voltage | 90VDC/120VDC | ||||
MPPT Voltage Range | 60~450VDC | ||||
Maximum Input Current | 1/18A | 1/22A | |||
GRID OUTPUT (AC) | |||||
Nominal Output Voltage | 220/230/240VAC | ||||
Output Voltage Range | 195~253VAC | ||||
Nominal Output Current | 15.7A | 18.2A | 27.0A | ||
AC INPUT | |||||
AC Start-up Voltage / Auto Restart Voltage | 120-140VAC/180VAC | ||||
Acceptable Input Voltage Range | 90-280VAC or 170-180VAC | ||||
Maximum AC Input Current | 2.1A | 24.7A | 36.4A | ||
Maximum AC Charging Current | 100A | ||||
GENERAL | |||||
PHYSICAL | |||||
Dimension,D*W*H(mm) | 420*350*110 | ||||
Cartoon Dimension,D *W *H(mm) | 500*415*180 | ||||
Net Weight (kgs) | 8.0 | 8.0 | 8.9 | ||
Gross Weight(kgs) | 9.0 | 9.0 | 10.0 | ||
INTERACE | |||||
Communication Port | RS232/RS485/WIFI/GPRS/LITHIUM BATTERY | ||||
ENVIRONMENT | |||||
Humidity | 5% to 95% Relative Humidity(Non~condensing) | ||||
Operating Temperature | -10°C~50°C | ||||
STANDARD | |||||
Compliance Safety | CE | ||||
Product Detail
Applications
Products Series
SunSmart-3.6/4.2/6.2KW
Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current:
120A Battery Voltage: 24/48VDC
120A Battery Voltage: 24/48VDC
SunSmart PRO-3.6/4.2/6.2KW
Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current:
120A Battery Voltage: 24/48VDC
120A Battery Voltage: 24/48VDC
SunSmart MAX-8.2/10.2KW
Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current:
120A Battery Voltage: 24/48VDC
120A Battery Voltage: 24/48VDC
SunPilot-2000/3200
Output Power: 2200-3200VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 80A
Battery Voltage: 12/24VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 80A
Battery Voltage: 12/24VDC
SunPilot ECO-2000/3200/4200/7000
Output Power: 2000-7000VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 60/80A
Battery Voltage: 12/24/48VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 60/80A
Battery Voltage: 12/24/48VDC
SunPilot MINI-1000/1500
Output Power: 1000-1500VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 40A
Battery Voltage: 12/24VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 40A
Battery Voltage: 12/24VDC
SunPilot LV-3.6/6.2KW
Output Power: 3.6-6.2KW Split
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 120A
Battery Voltage: 24/48VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 120A
Battery Voltage: 24/48VDC
SunMaster-4.2/6.2/10.2KW
Output Power: 4.2-10.2KW Single
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC
SunMaster M-1.0/1.5/4.2/6.2KW
Output Power: 1.0-6.2KW Single
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC
Our Factory
Project Case
Company Profile
Our Factory
SunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.
