JQLASER Настольный волоконный лазерный принтер маркировочный станок для гравировки ювелирных изделий Логотип Стекло Металл лазер
192 313,52-214 938,64 ₽
40 Вт 60 CO2 лазерная маркировочная машина ПВХ Трубы Лазерная печатная маркировка гравировка чехол для телефона
- Категория: >>>
- Поставщик: Henan Feiyide Intelligent Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601293944537:
Описание и отзывы
Характеристики
Product Introduction
1,Marking accuracy is good, fast speed, engraving depth by changing the laser parameters control, stable performance, can work continuously for a long time;
2, The configuration of high-power laser can be a variety of non-metallic products for engraving and cutting;
3, No consumables, low processing cost, laser operation life of about 30,000 hours;
4, Marked clear, not easy to wear, engraving and cutting efficiency is high, environmental protection and energy saving;
5, Support PLT, PCX, DXF, BMP, JPEG and other formats, can directly use SHX, TTF font;
6, Support automatic coding, printing serial number, batch number, date, bar code, two-dimensional code, automatic jump number, etc.;
7, Powerful graphics drawing and editing functions, color images can be directly marked after gray conversion.

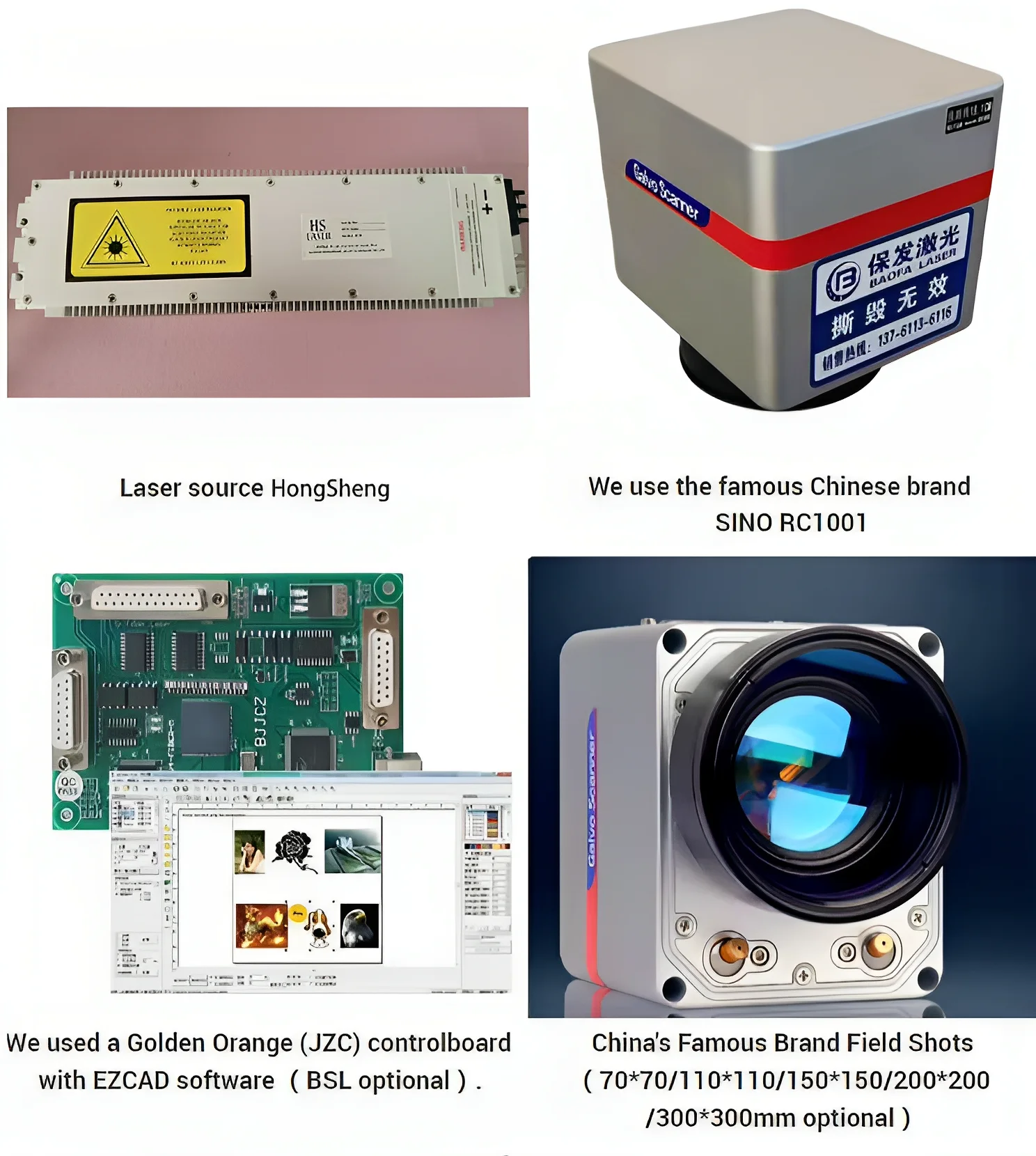

Components
Details
Application
Application Industries:
Suitable for clothing, leather, craft gifts, packaging, advertising, wood, textile, plastics, signs, electronic communications, watches, glasses, printing, decoration and other non-metallic processing industries can achieve perfect marking.
Application Materials:
Carbon dioxide laser marking machine is mainly used for non-metal (wood, leather, acrylic, fabric, PCB plastic board, self-adhesive, EVA, sponge, cardboard, silicone, stone, rubber, packaging bags, crop seeds, epoxy resin, acrylic resin, unsaturated resin) and other materials
Sample Display
Engraving Materials
Texture Of Material | Carving | Texture Of Material | Carving |
Wood | √ | Aluminium | × |
Painted Wood | √ | Copper | × |
Paper Products | √ | Stainless Steel | × |
Leather wear | √ | Iron | × |
Cloth | √ | Gold | × |
Acrylic | √ | Silver | × |
Plastic | √ | Ceramic | × |
Rubber | √ | Glass | × |
PVC | √ | Aluminium Alloy | × |
Bamboo | √ | Other Metals | × |
Specification
Specifications | |||||||
Equipment Model | HLCM-D40/60 | ||||||
Laser | Hongsheng H40/60 | ||||||
Galvanometer | Sino RC1001 | ||||||
Power | 40W/60W | ||||||
Marking range | 70*70mm~300*300mm optional | ||||||
Marking card | BSL/JCZ | ||||||
Marking software | BSL/JCZ | ||||||
Cooling mode | Built-in air cooling | ||||||
Power regulation | 10-100% | ||||||
Frequency | 0-20 | ||||||
Beam diameter | 2.3士0.2mm | ||||||
Divergence angle | <7mrad | ||||||
Air volume | 2kg/min-3kg/min | ||||||
Warranty | 2 years | ||||||
Voltage input | 120/220V 50/60hz | ||||||
Graphic lmport | PLT vector file | ||||||
Connection mode | USB Link | ||||||
System Requirements | WlN7 and above systems | ||||||
Complimentary Accessories
Packing List
Number | Parts | Quantity |
1 | Laser Machine | 1 |
2 | Manual | 1 |
3 | Parameter Table | 1 |
4 | USB Flash Drive | 1 |
5 | Power Cable | 1 |
6 | USB Cable | 1 |
7 | Fixer | 2 |
8 | Metal Card | 3 |
9 | Ruler | 1 |
10 | Spanner | 1 |
11 | Laser protective glasses | 1 |
Product Catalog
Customer Testimonials
Product Packaging
After-Sales Service
Warranty:
1.Warranty for the whole equipment is 24 months.
2.lf there is a non-man-made failure during the warranty period, we will send the components to replace for free and no shipping fee.
3. After the expiration of the warranty period, the factory will provide lifelong service at cost only.
4. lf the software data is faulty, the factory will provide remote technical support for free.
Technical support:
1. The machine will be debugged correctly before transportation, you can use the machine immediately after receiving it.
2. You will also receive free English training videos and documents to help you learn how to use it quickly
3. You can ask us at any time during the use of questions, we provide technical support through Whatsapp, Wechat, Alibaba, Email and so on.
We have a professional and experienced after-sales team
Certificates

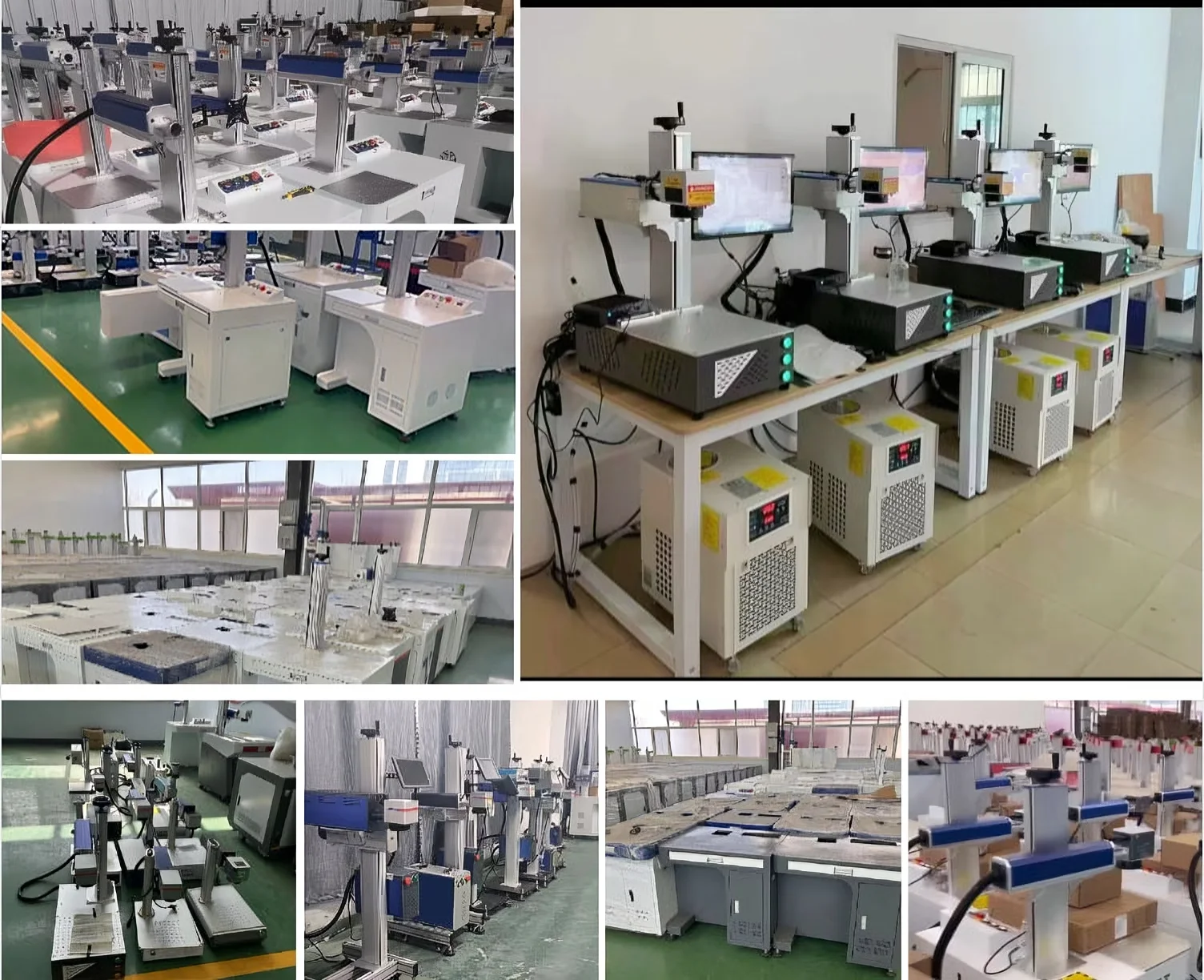

Inventory
FAQ
1.About the software and whether it is compatible with Lightburn
Our standard marking software is EzCad. It's a professional marking software which can be used in Win7 or above. Already contained with the machine. We'll put it in the USB drive and send it to you with the machine.If you want it to be compatible with Lightburn, please take the initiative to inform customer service and we will replace the corresponding board and software for you free of charge.
If you need embossing (2.5D), please take the initiative to inform customer service and you can have this feature for a small fee. Please note, however, that embossing and Lightburn compatibility cannot be had at the same time.
2.About precision
The minimum line width is 0.5mm.
The repeated positioning accuracy is 0.01mm.
3.The language of the software and documents?
The software supports Chinese, Korean, Japanese, German, French, Arabic, Spanish,Portuguese.
Vietnamese, Farsi, Russian, Thai and so on.The documentation is in English.
4.Whether you need to manufacture or have stock?
Need 3 working days to manufacture.
5.ls it include red light preview?
Yes, include red light preview for calibration and pre-verification.
6. What are the wearable parts of the machine?
The machine has no wear parts and no consumables.
7.l am buying this machine for the first time, is it easy to use?
It's very easy to use, l will send you a video, after watching the video you will know it.
8.l am a dealer, do you have wholesale price?
Yes, please contact me, we have dealer pricing policy and supporting services, such as LOGO or shell customization, internal configuration customization, local after-sales technical training, etc.
