Мини-дробилка для медной руды горнодобывающая техника дробилка 250x400 дизельного двигателя
94 886,80-95 598,46 ₽
Выгодная цена золотодобывающая промышленность дробилка для бетонной гальки 500*600 600*600 1 2 5 10 тонн/час молотковая
- Категория: >>>
- Поставщик: Jiangxi Henghong International Mining Machinery Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601294060421:
Описание и отзывы
Характеристики
Product Overview
Favorable Price Gold Mining Industry Concrete Pebbles Crusher Machine 500*600 600*600 1-2 5-10 Ton/Hour Hammer Mill Rock Crusher
Jiangxi Henghong mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine,mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.
Hammer Mill Rock Crusher Introduction
Hammer mill as one of the ore crushing equipment, is able to crush the ores below 50mm or tailings and middlings that are not released completely. The released output could be concentrated by shaking table in the next process. Being suitable for small scale nonferrous and precious metal mines like tungsten, tin, gold, the hammer mill could be the alternative of ball mill in some extent. It is with easy installation and operation, low investment and quick effect. Its sieve opening size, minimum 1mm, can be customize configured as per the actual ore situation.
If the working site is short of electricity, It can also drive by diesel engine.
Hammer Mill Rock CrusherApplication
Hammer mill can be used for many minerals crushing such as stone, rock, gold, copper, iron, zinc ore,silver, limestone, quarries, gypsum, phosphate, manganese, aluminum, aggregate, e-waste scrap, slag, coke, coal, and Construction Materials.
We Supply Various Styles of Hammer Mill

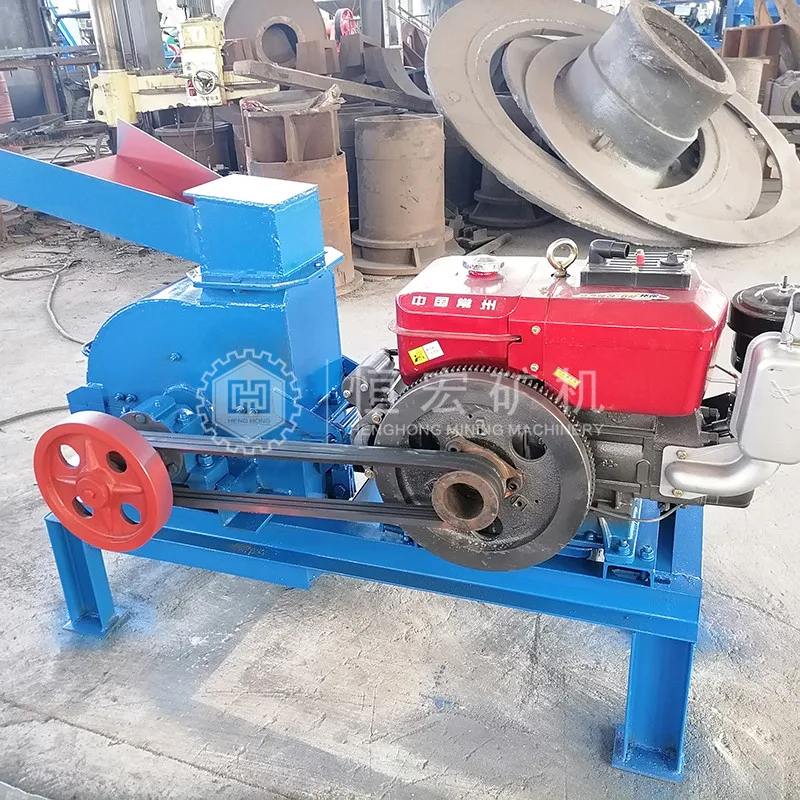

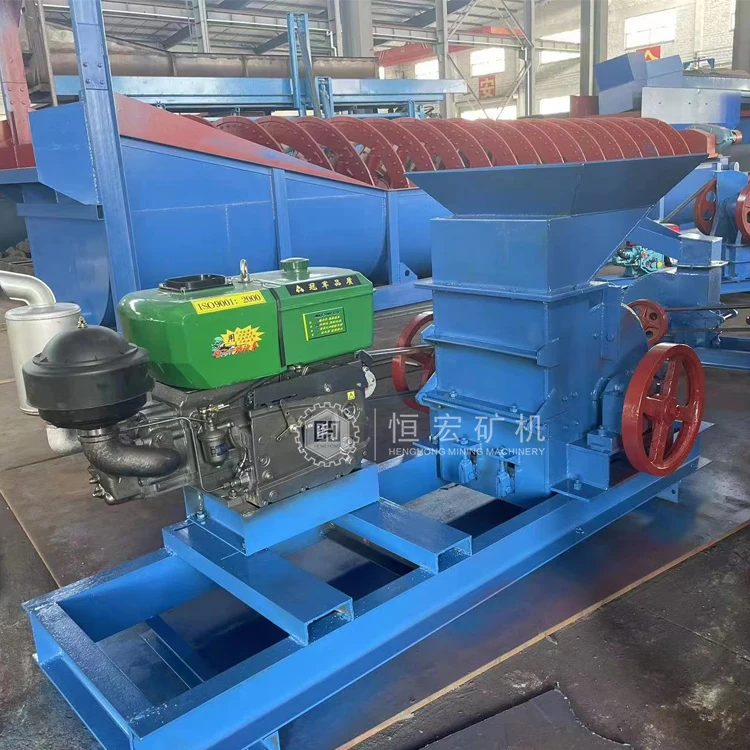

Hammer Mill With Diesel Engine

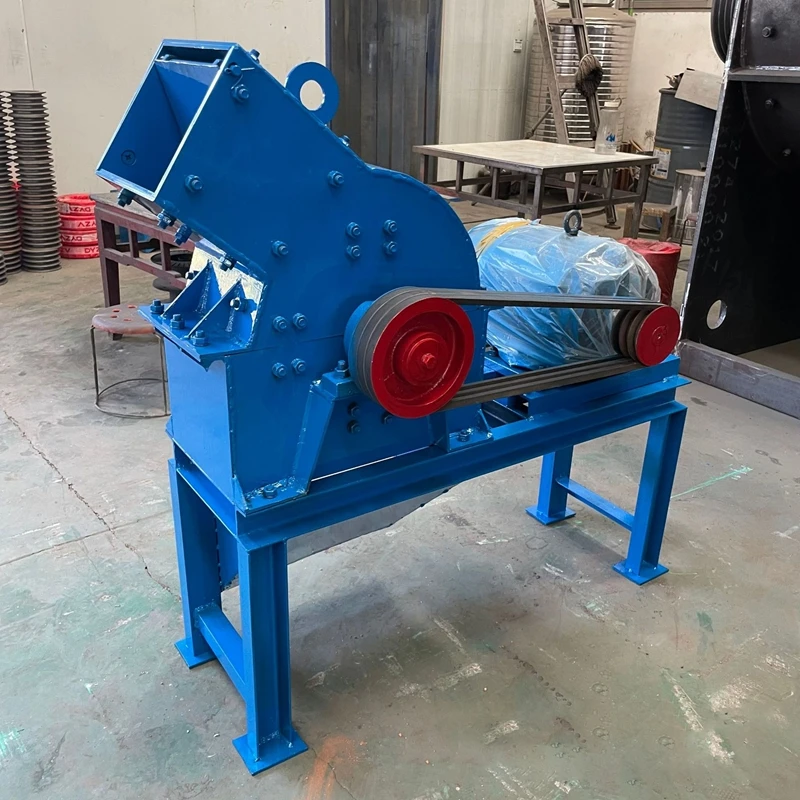

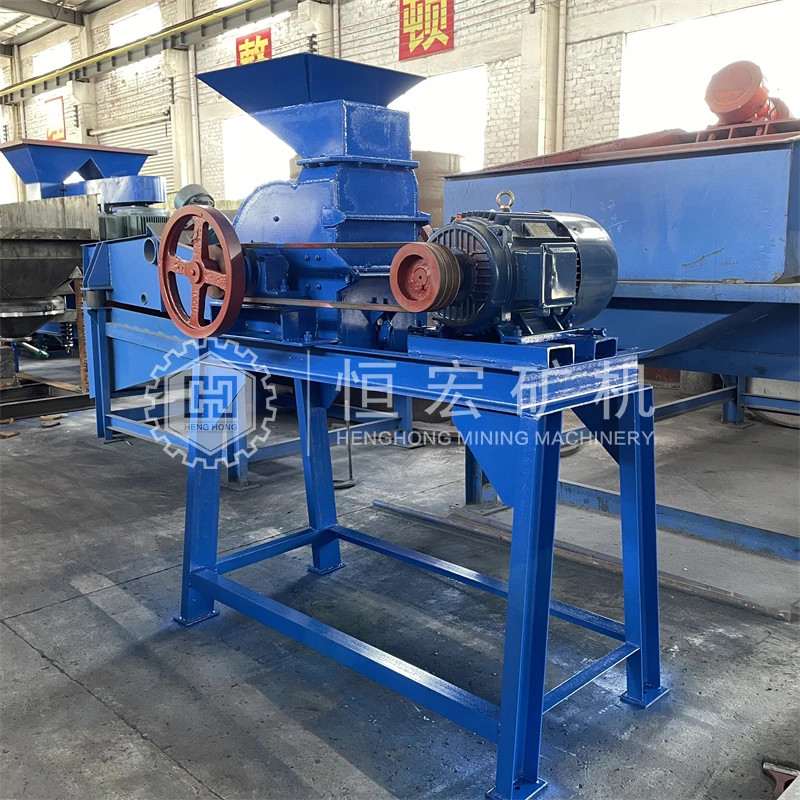

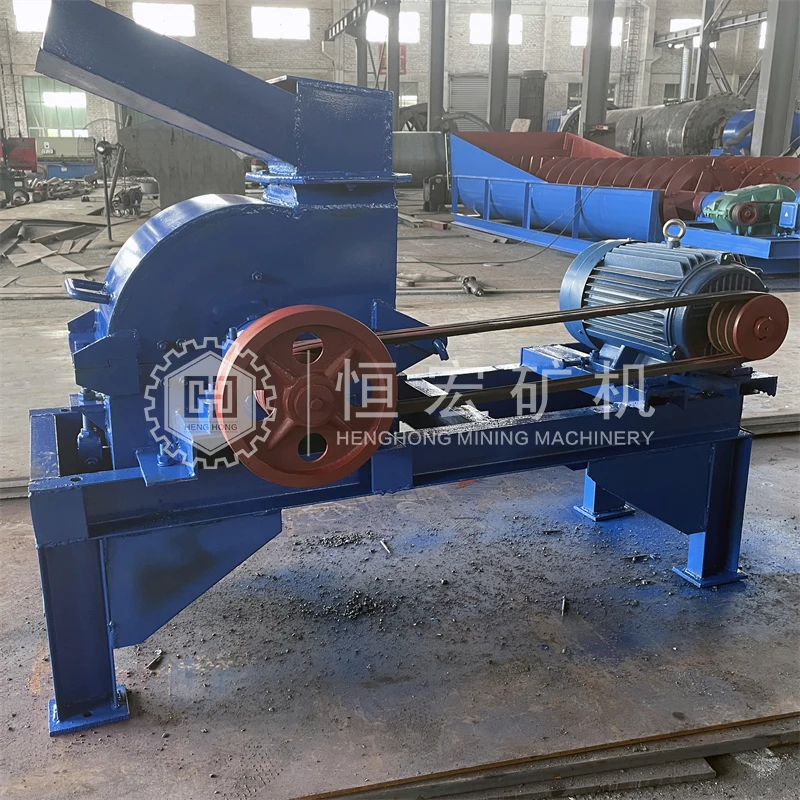

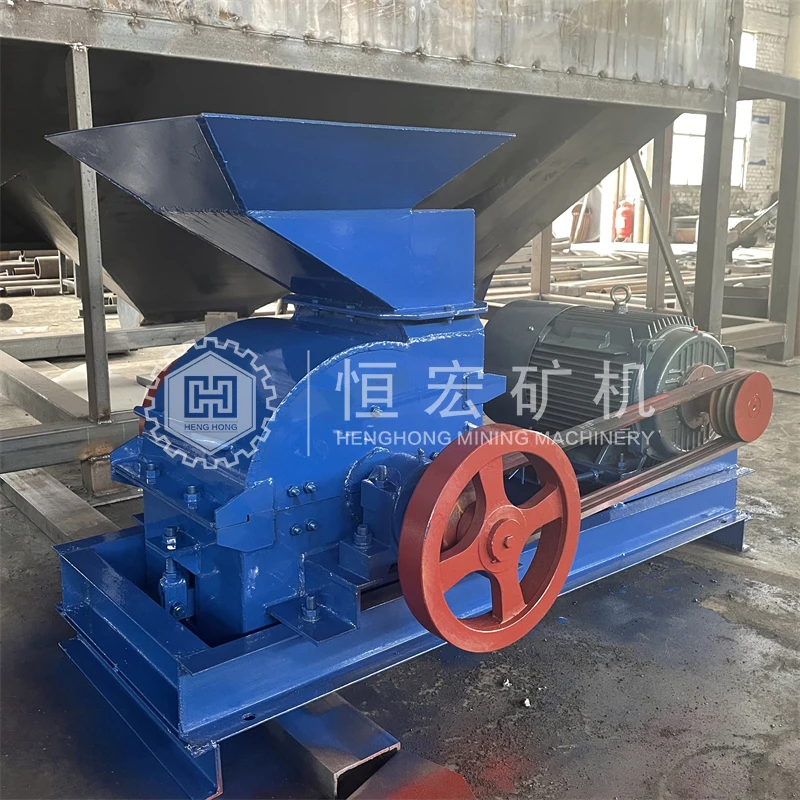

Hammer Mill With Electric Motor

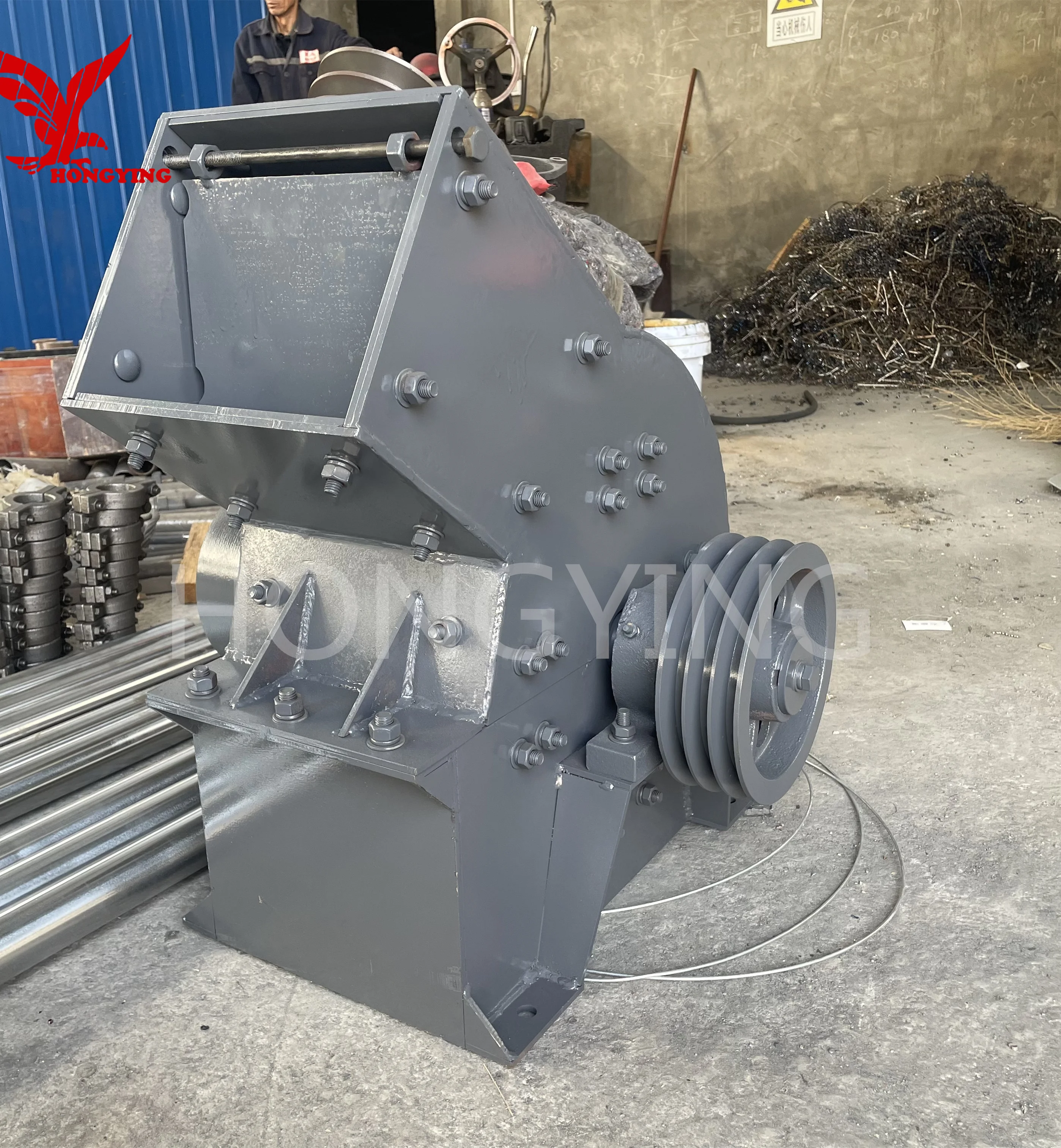

Hammer Mill Body Only

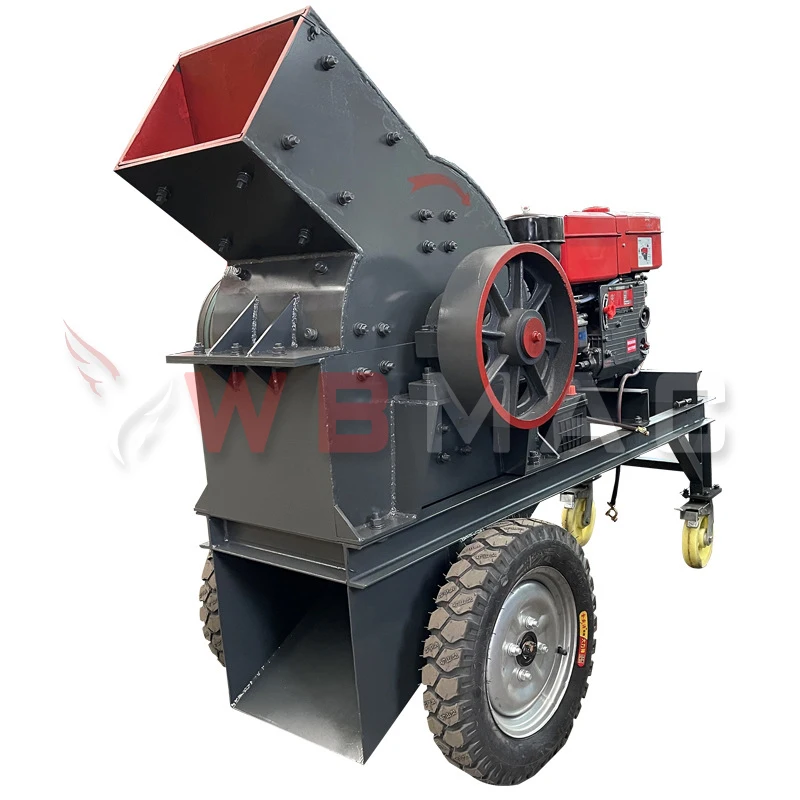

Mobile Type Hammer Mill
Hammer Mill With Short Support Feet
Hammer Mill With High Support Feet
Product Paramenter
Model | Capacity(t/h) | Max feeding size(mm) | Discharging size(mm) | Motor power(kw) |
200*500 | 1-3 | ≤50 | >1.5 | 7.5 |
300*500 | 3-6 | ≤50 | >1.5 | 11 |
400*500 | 4-7 | ≤50 | >1.5 | 18 |
400*600 | 5-10 | ≤50 | >1.5 | 22 |
500*600 | 6-11 | ≤50 | >1.5 | 30 |
600*600 | 8-12 | ≤50 | >1.5 | 37 |
Working Principle
The rotor configured with hammers, as the main working component of hammer mill, is composed of spindle, disc, pin shaft, and hammers. The rotor, being driven by the motor, rotates in a high speed in the crushing cavity. The materials, being fed into the crushing cavity from feeding port, are crushed, shattered, and ground under the function high speed hammers. The under size will be discharged through the screen plate which is installed at the bottom of the rotor, while the oversize will remain upon the screen plate for re-crushing and grinding, and be discharged finally.
Key Components
1. Rotor: The rotating component that holds the hammers and spins to create the hammering action.
2. Hammers: These are the primary crushing tools, attached to the rotor and responsible for striking the material.
3. Screen: Located at the bottom of the mill, it controls the size of the crushed material that can exit the machine.
4. Feed Hopper: The opening where the material is introduced into the mill.
5. Motor: Provides the necessary power to rotate the rotor and hammers.
6. Frame: The structure that supports the entire assembly and maintains stability during operation.
1. Rotor: The rotating component that holds the hammers and spins to create the hammering action.
2. Hammers: These are the primary crushing tools, attached to the rotor and responsible for striking the material.
3. Screen: Located at the bottom of the mill, it controls the size of the crushed material that can exit the machine.
4. Feed Hopper: The opening where the material is introduced into the mill.
5. Motor: Provides the necessary power to rotate the rotor and hammers.
6. Frame: The structure that supports the entire assembly and maintains stability during operation.
Our Workshop
Shipping Way：
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).
Successful Cases
Project Flowchart
Popular Products You May Like
FAQ
Q1: Are you manufacturer or trade company?
A1: We are original manufacturer with One-stop service has more than 40 years history in China.
Q2: What's your major products?
A2: Our products have been sold to all over the world, they are ball mill, wet pan mill, jaw crusher, hammer crusher, shaking table, centrifugal concentrator, jig machine, spiral chute, flotation machine, magnetic separator, sand washing machine, gold smelting furnace, belt conveyor, slurry pump etc.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: What about after-sale service?
A4: 18 months warranty for all kinds of products.
Q5: How long is your delivery time?
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q7: How to get the free solution and quotation?
A7: Please send inquiry to us on Alibaba, or please scan and add us as below picture, our sales manager will contact you ASAP.
A1: We are original manufacturer with One-stop service has more than 40 years history in China.
Q2: What's your major products?
A2: Our products have been sold to all over the world, they are ball mill, wet pan mill, jaw crusher, hammer crusher, shaking table, centrifugal concentrator, jig machine, spiral chute, flotation machine, magnetic separator, sand washing machine, gold smelting furnace, belt conveyor, slurry pump etc.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: What about after-sale service?
A4: 18 months warranty for all kinds of products.
Q5: How long is your delivery time?
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q7: How to get the free solution and quotation?
A7: Please send inquiry to us on Alibaba, or please scan and add us as below picture, our sales manager will contact you ASAP.
Похожие товары

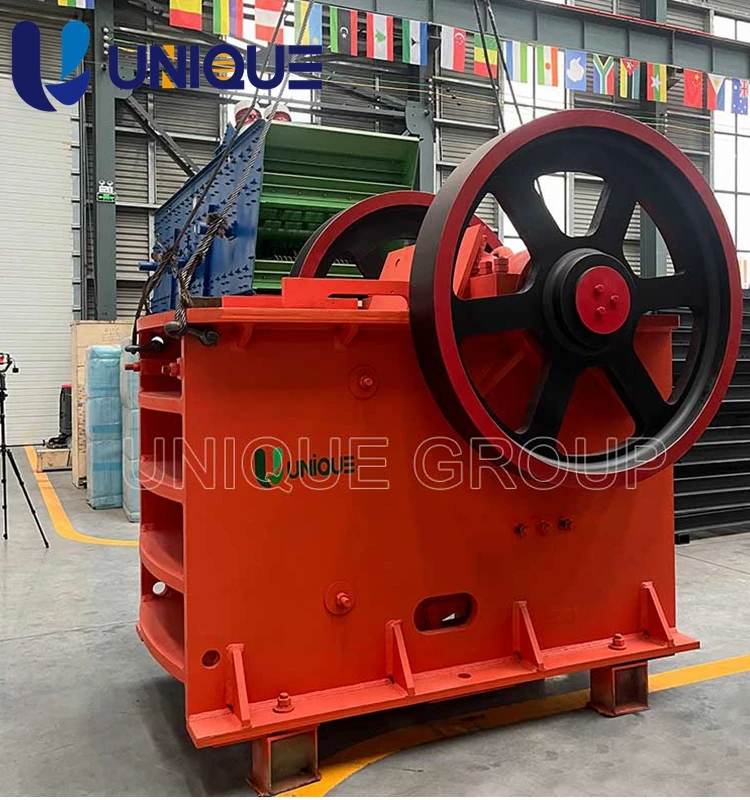

Мини-портативная дробилка для первичного камня с поясом новая мобильная щековая производства небольших предприятий
