Большой формат 1 м * лазерная гравировальная машина зеркальное стекло MOPA маркировочная 100 Вт 200 JPT M8
- Категория: >>>
- Поставщик: Liaocheng Hengchunyuan Machinery Equipment Co. Ltd.Liaocheng Ltd.
Сохранить в закладки 1601294090751:
Описание и отзывы
Характеристики
Large Format 1m*1m Laser Engraving Machine Mirror Glass MOPA Laser Marking Machine 100W 200W JPT M8
- Fast Speed, High Precsion, User-Friendly Operation
- Sandblasting No Pollution, Save Labor Costs
- All-in-One Equipment for Coating Removal, Sandblasting and Drilling
Product Description
The laser systems for glass that best meet your needs
FL-1325 Fiber Laser Marking Machines guarantee excellent results with a minimum power consumption. The laser use to engrave glass is the ideal choice to optimize manufacturing costs and times and obtain elegant and customized treatments. As there is no contact with the material, this considerably reduces any risk of break and does not involve tools to be replaced. Furthermore, the laser is an extremely environment-friendly technology, both for the low power consumption and for the possible unique effects that do not require any chemical products. These advantages, combined with the processing speed, make the laser machines a revolutionary technology for glass engraving.
Main Characteristics:
1. Servo motor lifting (no manual), motor lifiting more convenient
2. The Galvo head has double red dots. Help you find the focal length easily
3. China higher quality aluminum casing, not easy to oxidize, beautiful design
4. Surface marking of stainless steel plate / metal decorative plate5. JPT laser source, China best, with a service life of more than 80,000 hours
Technical Parameters
Effective Working Area | (X= 120cm/ 130cm/ 150cm)*(Y= 120cm/250cm/300cm) |
Laser Power | 100W, 200W, 300W |
Wave Length | 1064nm |
Motherboard | SYNTEC |
Lifting Height | 300mm (customizable) |
Control System | SYNTEC |
Engraving Speed | ≤7000mm/s |
Maxi Marking Depth | ≤0.2mm |
Minimum Character | 0.2mm |
Minimum Linear Width | 0.1mm |
Positioning Accuracy | 0.05mm |
Minimum Characters | 0.2mm |
Repetition Frequency | 1-1000KHZ |
Light Speed Quality | <2 |
Format | PLT/ AI/ DXF/ BMP |
Does it support CNC | Yes |
Supply Voltage | 220V/50Hz |
Cooling Way | Air Cooling |
Net Weight | 950KG |
Working Environment | Temperature 10-35℃, humidity 585%, no condensation, no dust or less dust |
Total Power | 2KW |
Core Component Warranty | 1year |

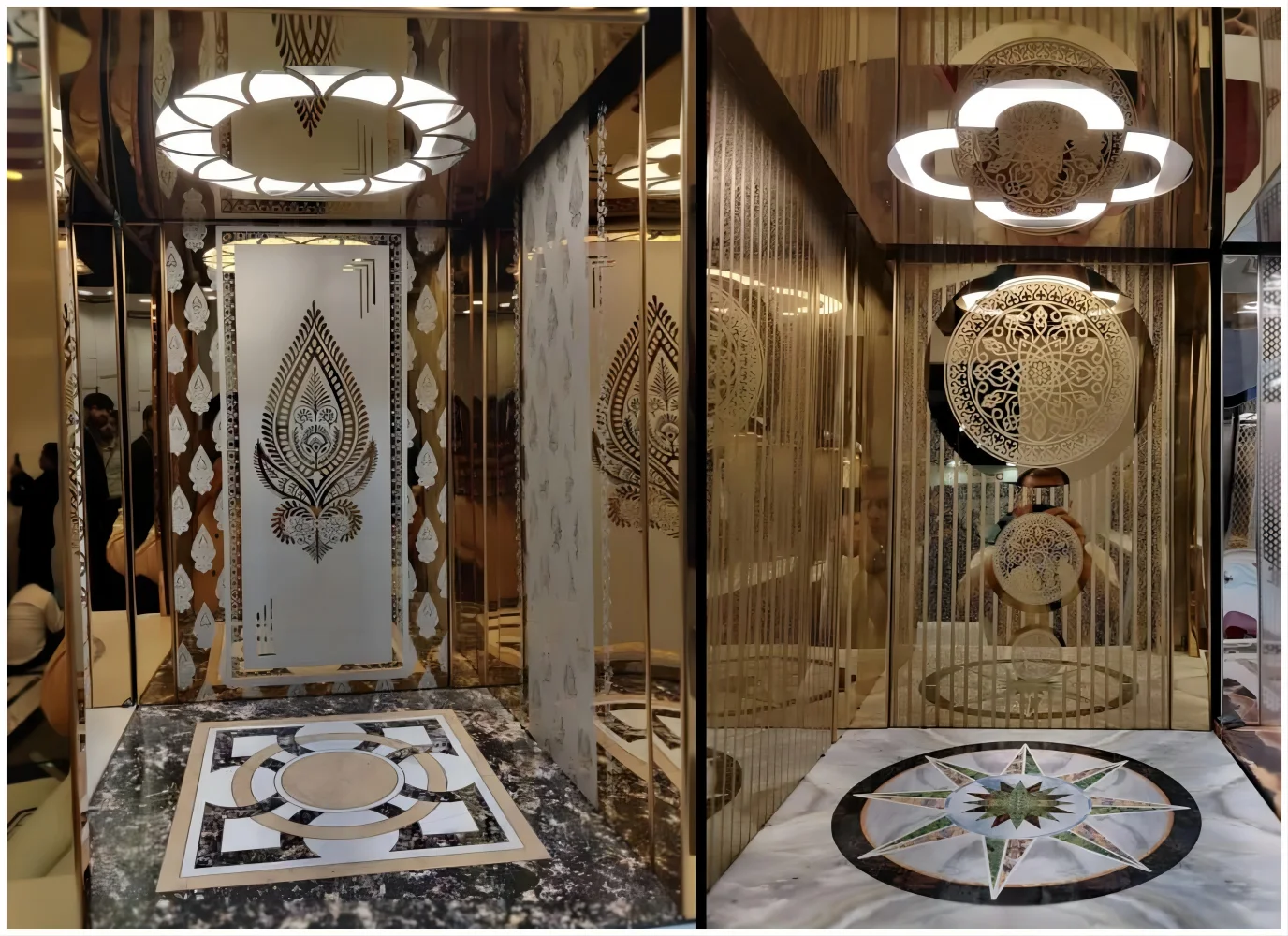

Sample Show
Marking Material:
- Glass mirror: bathroom mirror decoration, customized glass etching, LED light engraving, makeup mirror, LED displays indoor and outdoor
- Metal ( Gold, silver, brass, copper, Iron, aluminum, titanium, zinc, steel...)
- Plastic (PC,PVC,PE,HDPE,ABS,PPR,PET,HIPS,PS,PP,PPO,PA,POM,PMMA...)
- Others (Oil paint surface, coating surface, plastic film, package...)
Packaging & Shipping
The machine will be packed in plywood box, packing dimension is as followed:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can pack according to your requests.
We work with dozens of international freight companies to build long-term relationships that reach all countries and regions around the world, and their experience in shipping will keep your machines safe. We can also provide train transportation,especially in Russia, Ukraine and other landlocked countries.
Company Information
Liaocheng Hengchunyuan Machinery Equipment Co., Ltd. was established in 1997, our brands are Flash Laser & Founder Laser. We are a large-scale professional company, integrating the R&D, production and sale of laser & CNC equipment, combined with optics, mechanics and electrics.
We are a national-level high-tech innovation enterprise and a software enterprise.
Our main products are laser marking machine, laser engraving machine, laser cutting machine, laser welding machine, laser cleaning machine and etc. We also can provide OEM ODM services for distributors and agents worldwide, best prices and services can be supplied to help you earn the market in your country :) Please feel free to contact me for details!
We attend exhibitions all over the world every year, our machines are also displayed to customers. Advertisement will be posted every time in advance, we look forward to meeting you there!
Related Products
Apart from seperate model, one of our best seller is desktop fiber laser marking machine 20w. Please kindly click the photo below for quick view:
Common Questions
Delivery time
It takes about 7-9 days to get machine ready and 48 hours of continuous test to ensure the quality of the laser beam. After that, the machine will be packed carefully and be shipped by Courier (DHL/FedEx/UPS), Sea, Railway or other transport companies previously designated for customer. By courier, it takes 5-7 days to arrive; by sea, delivery time depends on distances (less than 7 days for East Asia, 10-25 days for other Asian countries and North America, 30-50 days for Europe, 50-60 days for South America and Africa.
How the warranty works?
Our fiber laser marking machine has 1 year warranty for the equipment. If any part gets broken or doesn't work properly during warranty, we can send new parts freely for replacement in the shortest time.
Which software use the machine and which operative system do I need to use?
The machine uses EzCad software and can operate in any Windows system, it supports Lightburn as well. Lightburn can work with MacOS or Linux system also.
Is it easy to use?
We send a video tutorial in English with all the information for you to operate the software, at the same time our engineers can communicate directly with you by Whats app or We chat. No worries about this.
It takes about 7-9 days to get machine ready and 48 hours of continuous test to ensure the quality of the laser beam. After that, the machine will be packed carefully and be shipped by Courier (DHL/FedEx/UPS), Sea, Railway or other transport companies previously designated for customer. By courier, it takes 5-7 days to arrive; by sea, delivery time depends on distances (less than 7 days for East Asia, 10-25 days for other Asian countries and North America, 30-50 days for Europe, 50-60 days for South America and Africa.
How the warranty works?
Our fiber laser marking machine has 1 year warranty for the equipment. If any part gets broken or doesn't work properly during warranty, we can send new parts freely for replacement in the shortest time.
Which software use the machine and which operative system do I need to use?
The machine uses EzCad software and can operate in any Windows system, it supports Lightburn as well. Lightburn can work with MacOS or Linux system also.
Is it easy to use?
We send a video tutorial in English with all the information for you to operate the software, at the same time our engineers can communicate directly with you by Whats app or We chat. No worries about this.
How to Order
1) Please tell us what kind of material are you looking to engrave.
2) And what's the engraving speed do you need?
3) Also inform us if you are looking to both engrave and cut.
4) We recommend the most suitable model, estimate the cost and send the quotation including freight.
5) We start production after the payment of 30% of the total invoice.
6) We arrange the shipping of goods and take care of export procedures after you confirm the real machine photos/test videos and pay the balance.
7) Comment on our website and let us know about your experience with our machine.
2) And what's the engraving speed do you need?
3) Also inform us if you are looking to both engrave and cut.
4) We recommend the most suitable model, estimate the cost and send the quotation including freight.
5) We start production after the payment of 30% of the total invoice.
6) We arrange the shipping of goods and take care of export procedures after you confirm the real machine photos/test videos and pay the balance.
7) Comment on our website and let us know about your experience with our machine.
If any question, please feel free to contact me for details!
Похожие товары

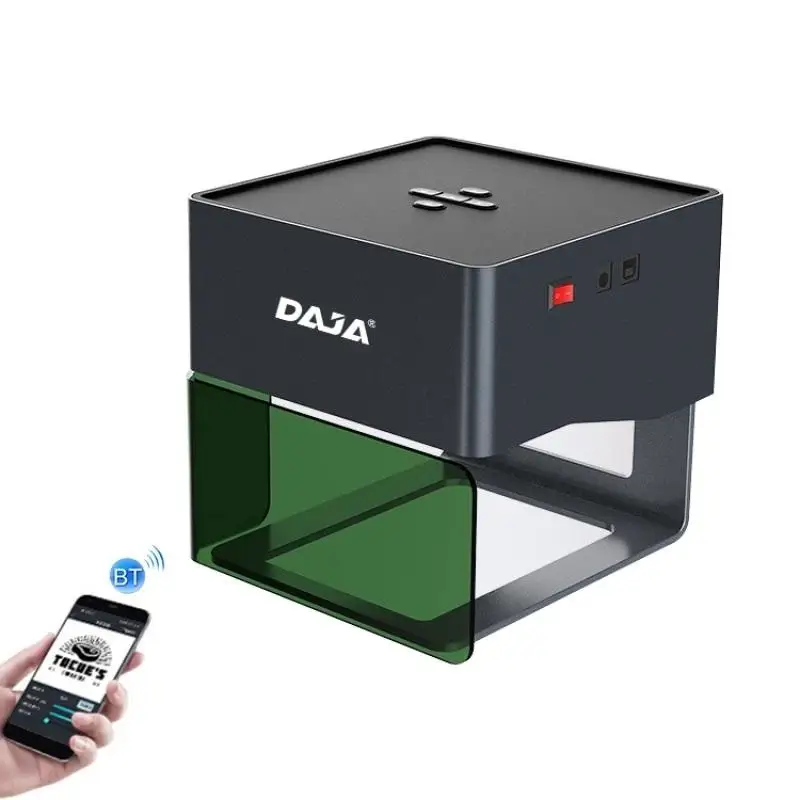

BLT DAJA DJ6 мини настольный лазерный гравер DIY Лазерный резак принтер CNC для бумаги дерево кожа Стекло
