Product Description
Multi style connectors can be used to connect vacuum equipment

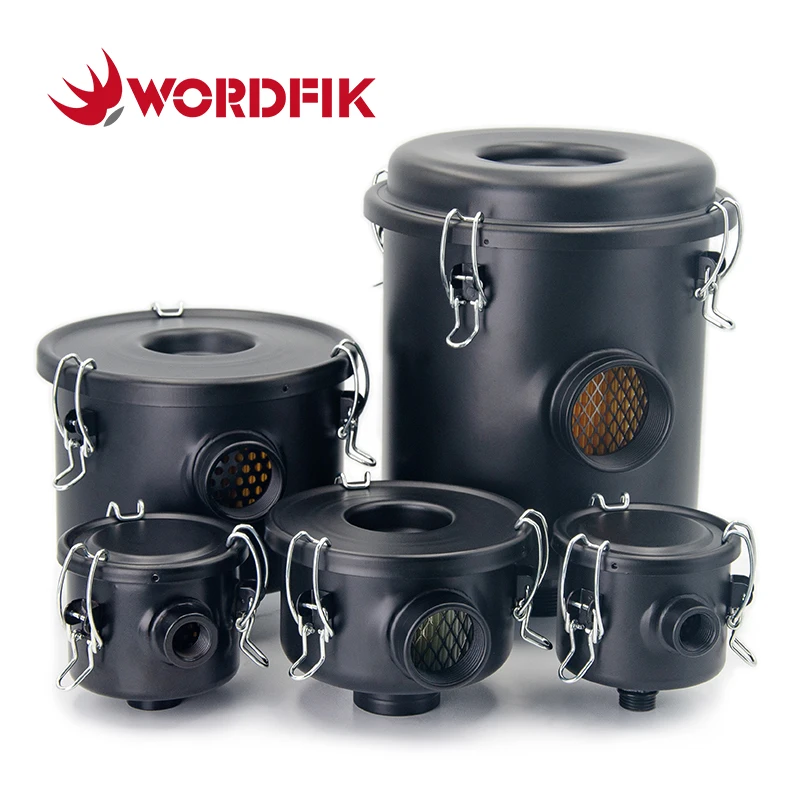

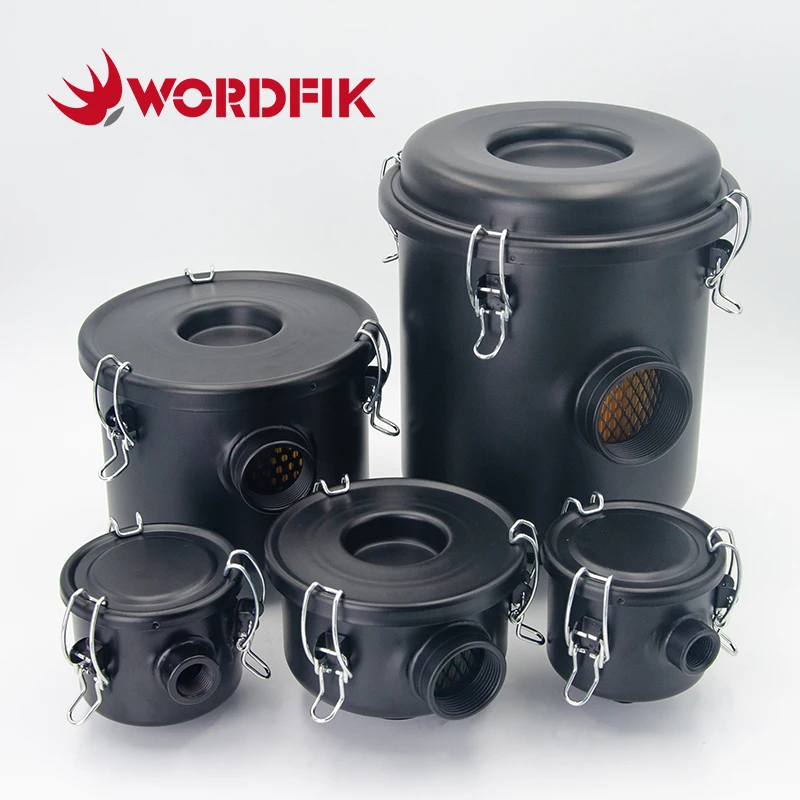

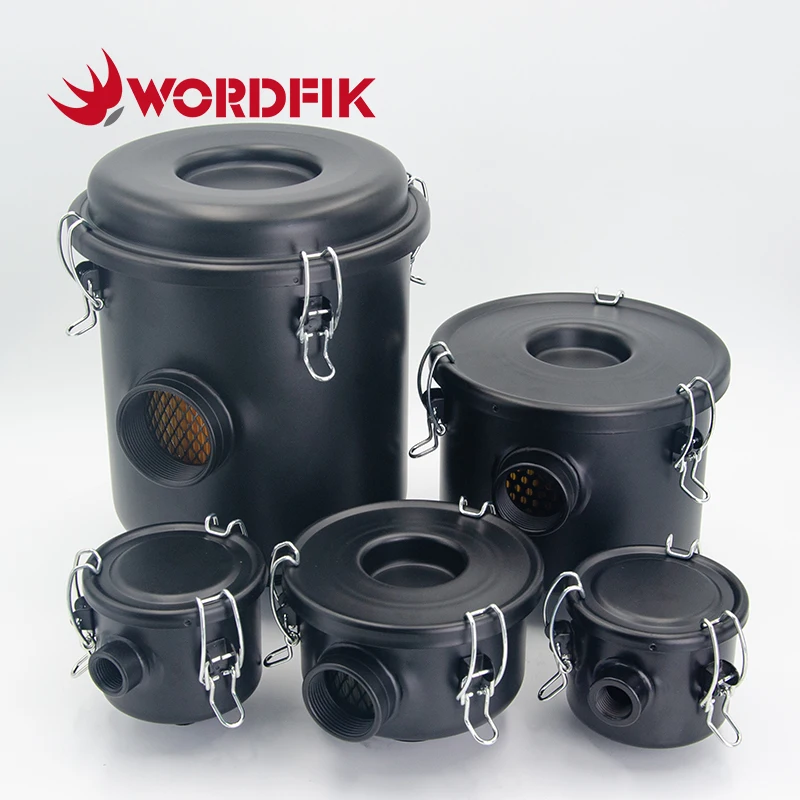

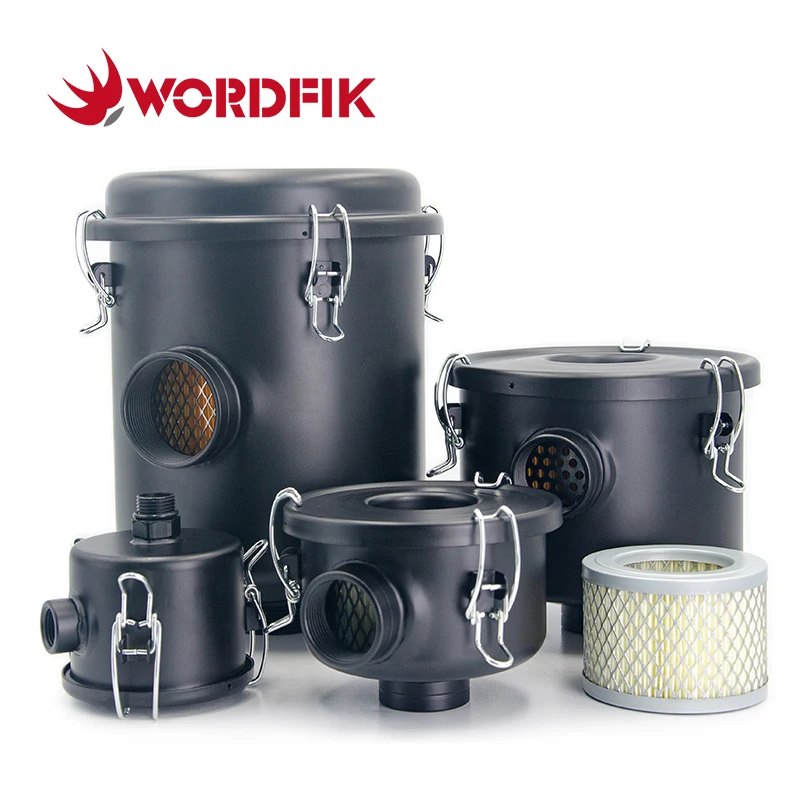

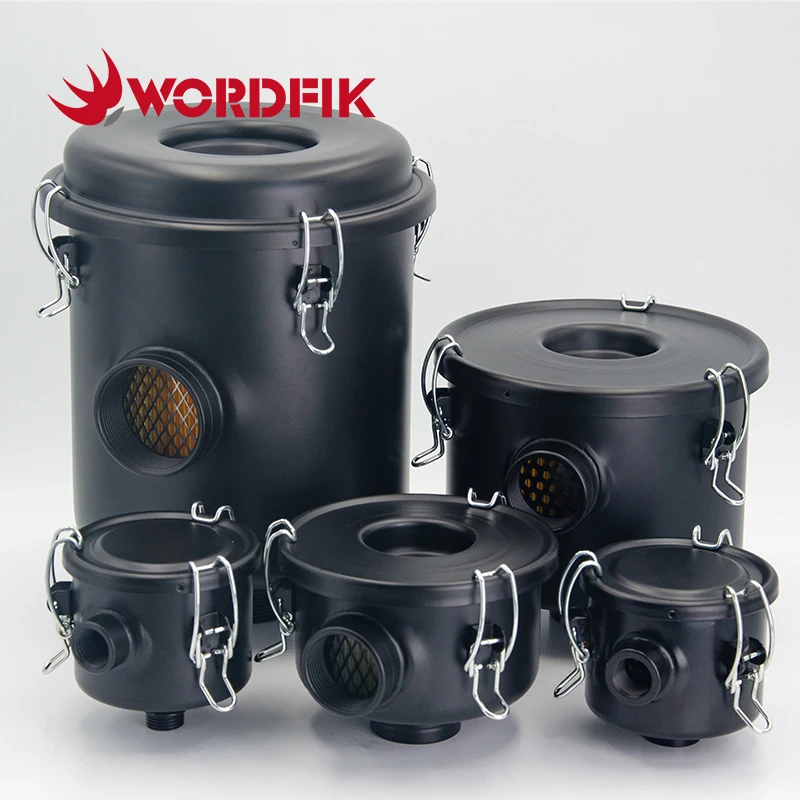

Wordfik Vacuum F Series Vacuum Inlet Filter
Ensure smooth performance.
Protect your vacuum pump from unwanted particles with vacuum inlet filters.
An inlet filter captures any unwanted particles before they are drawn into a vacuum pump or compressor. It is placed at the inlet and is mainly used in dusty or humid applications.
Reduce your maintenance and save money with an inlet filter.
F series vacuum inlet filter features:
1. Consist of a steel housing and a lid with quick clamps.
2. Rugged all steel construction for heavy duty applications
3. Paper cartridges can easily be replaced
4. Large dirt holding capacity and easy cleaning
5. High separation efficiency 99% removal for 5 micron
6. Avoid contamination and abrasion
7. Usage temperature: -15 to 90℃
Depending on the application and the particles present in the medium to be pumped, we offer two standard choices for our vacuum pumps and compressors:
1. Inlet filter with a paper cartridge for dusty applications, such as pneumatic conveying of powders.
2. Inlet filter with a polyester cartridge for humid applications. These inlet filters can easily be cleaned and reused, and are suitable for food processing applications.
Ensure smooth performance.
Protect your vacuum pump from unwanted particles with vacuum inlet filters.
An inlet filter captures any unwanted particles before they are drawn into a vacuum pump or compressor. It is placed at the inlet and is mainly used in dusty or humid applications.
Reduce your maintenance and save money with an inlet filter.
F series vacuum inlet filter features:
1. Consist of a steel housing and a lid with quick clamps.
2. Rugged all steel construction for heavy duty applications
3. Paper cartridges can easily be replaced
4. Large dirt holding capacity and easy cleaning
5. High separation efficiency 99% removal for 5 micron
6. Avoid contamination and abrasion
7. Usage temperature: -15 to 90℃
Depending on the application and the particles present in the medium to be pumped, we offer two standard choices for our vacuum pumps and compressors:
1. Inlet filter with a paper cartridge for dusty applications, such as pneumatic conveying of powders.
2. Inlet filter with a polyester cartridge for humid applications. These inlet filters can easily be cleaned and reused, and are suitable for food processing applications.
Overall dimension of filter
Size of filter element
Air filter | Flow (m³/h) | Weight (kg) | A | B | C (mm) | D (mm) | E (mm) | F (mm) | Article number |
F002 | 32 | 1 | G 1/2" | G 1/2" | 101 | 90 | 53 | 70 | ZC0020P |
F002-1 | 42 | 1 | G 3/4" | G 3/4" | 101 | 90 | 53 | 70 | ZC0021P |
F004-1 | 90 | 1.4 | G1" | G1" | 146 | 110 | 70 | 75 | ZC0041P |
F004 | 100 | 1.4 | G1 1/4" | G1 1/4" | 146 | 110 | 70 | 75 | ZC0040P |
F003 | 120 | 2.3 | G1 1/4" | G1 1/4" | 185 | 170 | 115 | 130 | ZC0030P |
F003-1 | 150 | 2.3 | G1 1/2" | G1 1/2" | 185 | 170 | 115 | 130 | ZC0031P |
F006 | 300 | 4.2 | G2" | G2" | 222 | 258 | 125 | 240 | ZC0060P |
F006-1 | 300 | 4.2 | G3" | G3" | 222 | 258 | 125 | 240 | ZC0061P |
F008 | 400 | 4.5 | G4" | G4" | 335 | 410 | 260 | 300 | ZC0080P |
Air filter element | D1 (mm) | d (mm) | H (mm) | Filter element No |
F002 | 65 | 38 | 69 | FG02540 |
F002-1 | 65 | 38 | 69 | FG02540 |
F004-1 | 98 | 60 | 70 | FG63100 |
F004 | 98 | 60 | 70 | FG63100 |
F003 | 128 | 65 | 125 | FG0150L |
F003-1 | 128 | 65 | 125 | FG0150L |
F006 | 150 | 88 | 222 | FG0300L |
F006-1 | 150 | 88 | 222 | FG0300L |
F008 | 270 | 165 | 360 | FG0400L |
Specification
item | F002 F002-1 F003 F003-1 F004 F006 F006-1 F008 Wordfik Brand Vacuum Pumps Air Intake Filter Housing Vacuum Air Filter Assembly |
Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other |
Condition | New |
Efficiency | 99% |
Construction | Paper filter |
Porosity | 5um |
Place of Origin | Guangdong China |
Brand Name | Wordfik |
