Products Description
WCB/Stainless GB Dual-Plate Wafer Check Valve
ZG VALVE WCB/Stainless Steel API Dual-Plate Wafer Check Valve, CE pressure equipment Certification, multiple pressure
tests,two-year warranty, a variety of materials are available.
Size Range: 2"~144" DN50-DN3200
tests,two-year warranty, a variety of materials are available.
Size Range: 2"~144" DN50-DN3200
Working Pressure: PN10~PN100
Body Materials: WCB, A105, WC6, F11, WC9, F22, LCB, LF2, CF8, F304, CF3, F304L, CF8M, F316, CF3M, F316L, ZG1Cr18Ni9Ti, 1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, 1Cr18Ni12Mo2Ti, Copper and copper alloys, Ti and Ti alloys
Trim: 304, 304L, 316, 316L, SS321, Alloy 20, Copper and copper alloys, Ti and Ti alloys
Spring: 304, 304L, 316, 316L, Monel, Inconel600, Incomel X-750
Seal: 13Cr/13Cr, body material, Stainless Steel, Monel alloy, Cemented carbide, Alloy 20(N08020), Copper and copper alloys, Ti and Ti alloys, NBR, PTFE, VITON, EPDM, Silicone rubber
Application for: By selecting different materials, it can be applied to a variety of media such as water, steam, oil, nitric acid,
acetic acid, strong oxidizing media, and urea.
acetic acid, strong oxidizing media, and urea.
Shell Test：1.5 times
Seat Test：1.1 times
Payment: T/T, D/P or L/C
Lead Time: 5-30 days
Description
Design Features:
Check Valves are the valves of stopping the fluid from backflow. The disc can be opened by the pressure of fluid. And then the fluid runs from the inlet to the outlet side. When the pressure of inlet is less than outlet, the disc can be cloased
automatically and stop the fluid from backflow.
automatically and stop the fluid from backflow.
The swing check valve adopts a built-in rocker swing structure. All the opening and closing parts of the valve are installed
inside the valve body and do not penetrate the valve body. Except for the sealing gasket and sealing ring at the middle flange, the whole There is no leakage point, preventing the possibility of valve leakage. The swing arm of the swing check valve adopts a spherical connection structure at the connection between the rocker arm and the valve flap, so that the valve flap has a certain degree of freedom within the range of 360 degrees, and there is an appropriate micro position compensation.
inside the valve body and do not penetrate the valve body. Except for the sealing gasket and sealing ring at the middle flange, the whole There is no leakage point, preventing the possibility of valve leakage. The swing arm of the swing check valve adopts a spherical connection structure at the connection between the rocker arm and the valve flap, so that the valve flap has a certain degree of freedom within the range of 360 degrees, and there is an appropriate micro position compensation.
It is suitable for clean media, not for media containing solid particles and high viscosity.
Wafer Swing Check Valve Features:
1. The structure length is short, and its structure length is only 1/4~1/8 of the traditional flange check valve;
2. Small size and light weight, its weight is only 1/4~1/20 of the traditional flange check valve;
3. The valve flap closes quickly and the water hammer pressure is small;
4. Both horizontal pipes and vertical pipes can be used, and the installation is convenient;
5.The flow channel is unobstructed and the fluid resistance is small;
6. Sensitive action and good sealing performance;
7. The valve disc has short stroke and small closing impact;
8. The overall structure, simple and compact, beautiful appearance;
9. Long service life and high reliability.
Field of Application：
Size Range: 2"~144" DN50-DN3200
Working Pressure: PN10~PN100
Working Temperature: -196~540°C
Application for: By selecting different materials, it can be applied to a variety of media such as water, steam, oil, nitric acid, acetic acid, strong oxidizing media, and urea.
Technical Specification：
Design standard: JB/T8937
Face to Face dimension: JB/T8937
Connection flange: JB/T74-90, GB/T13402, GB/T9112-9124, HG/T20592~20635
Pressure temperature rating: JB/T74, GB/T9124, HG20604~20625
Pressure temperature rating: JB/T74, GB/T9124, HG20604~20625
Test standard: JB/T9092
Material Specification | ||
Part Name | Material | |
Body | WCB, A105, WC6, F11, WC9, F22, LCB, LF2, CF8, F304, CF3, F304L, CF8M, F316, CF3M, F316L, ZG1Cr18Ni9Ti, 1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, 1Cr18Ni12Mo2Ti, Copper and copper alloys, Ti and Ti alloys | |
Trim | 304, 304L, 316, 316L, SS321, Alloy 20, Copper and copper alloys, Ti and Ti alloys | |
Spring | 304, 304L, 316, 316L, Monel, Inconel600, incomel X-750 | |
Seal | 13Cr/13Cr, body material, Stainless Steel, Monel alloy, Cemented carbide, Alloy 20(N08020), Copper and copper alloys, Ti and Ti alloys, NBR, PTFE, VITON, EPDM, Silicone rubber | |

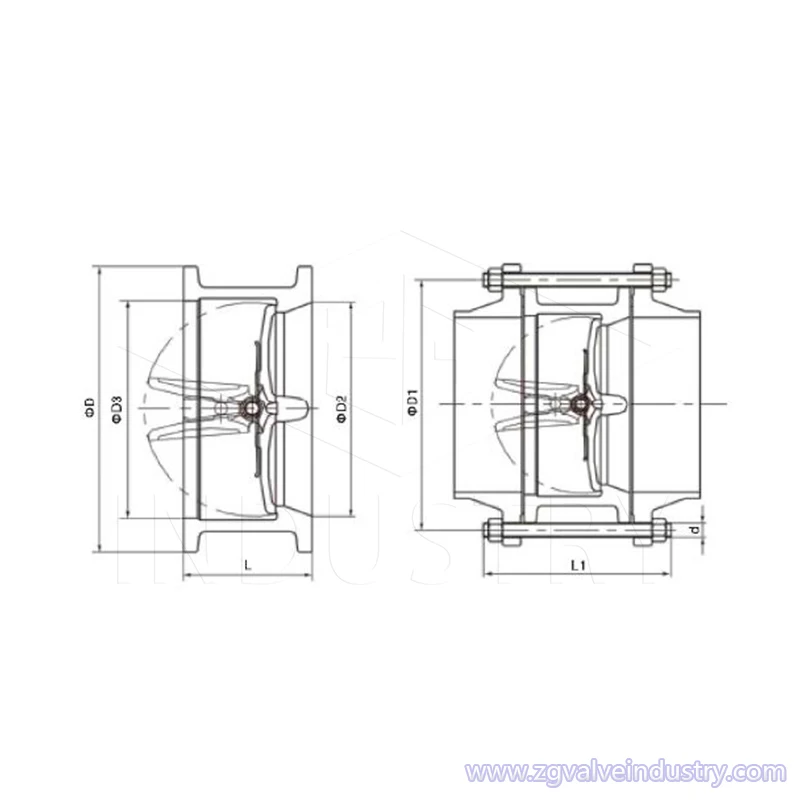

DN | Inch | Pressure | L | D | D1 | n-d |
50 | 2" | PN10 | 60 | 108 | 125 | 4-M16 |
50 | 2" | PN16 | 60 | 108 | 125 | 4-M16 |
50 | 2" | PN25 | 60 | 108 | 125 | 4-M16 |
50 | 2" | PN40 | 60 | 108 | 125 | 4-M16 |
50 | 2" | PN63 | 60 | 114 | 135 | 4-M20 |
50 | 2" | PN100 | 60 | 120 | 145 | 4-M24 |
65 | 2 1/2" | PN10 | 67 | 128 | 145 | 4-M16 |
65 | 2 1/2" | PN16 | 67 | 128 | 145 | 4-M16 |
65 | 2 1/2" | PN25 | 67 | 128 | 145 | 8-M16 |
65 | 2 1/2" | PN40 | 67 | 128 | 145 | 8-M16 |
65 | 2 1/2" | PN63 | 67 | 138 | 160 | 8-M20 |
65 | 2 1/2" | PN100 | 67 | 144 | 170 | 8-M24 |
80 | 3" | PN10 | 73 | 142 | 160 | 8-M16 |
80 | 3" | PN16 | 73 | 142 | 160 | 8-M16 |
80 | 3" | PN25 | 73 | 142 | 160 | 8-M16 |
80 | 3" | PN40 | 73 | 142 | 160 | 8-M16 |
80 | 3" | PN63 | 73 | 148 | 170 | 8-M20 |
80 | 3" | PN100 | 73 | 154 | 180 | 8-M24 |
100 | 4" | PN10 | 73 | 162 | 100 | 8-M16 |
100 | 4" | PN16 | 73 | 162 | 180 | 8-M16 |
100 | 4" | PN25 | 73 | 168 | 190 | 8-M20 |
100 | 4" | PN40 | 73 | 168 | 190 | 8-M20 |
100 | 4" | PN63 | 79 | 174 | 200 | 8-M24 |
100 | 4" | PN100 | 79 | 181 | 210 | 8-M27 |
125 | 5" | PN10 | 86 | 192 | 210 | 8-M16 |
125 | 5" | PN16 | 86 | 192 | 210 | 8-M16 |
125 | 5" | PN25 | 86 | 194 | 220 | 8-M24 |
125 | 5" | PN40 | 86 | 194 | 220 | 8-M24 |
125 | 5" | PN63 | 105 | 211 | 240 | 8-M27 |
125 | 5" | PN100 | 105 | 218 | 250 | 8-M30 |
150 | 6" | PN10 | 98 | 218 | 240 | 8-M20 |
150 | 6" | PN16 | 98 | 218 | 240 | 8-M20 |
150 | 6" | PN25 | 98 | 224 | 250 | 8-M24 |
150 | 6" | PN40 | 98 | 224 | 250 | 8-M24 |
150 | 6" | PN63 | 136 | 248 | 280 | 12-M30 |
150 | 6" | PN100 | 136 | 258 | 290 | 8-M30 |
200 | 8" | PN10 | 127 | 273 | 295 | 12-M20 |
200 | 8" | PN16 | 127 | 273 | 295 | 12-M20 |
200 | 8" | PN25 | 127 | 284 | 310 | 12-M24 |
200 | 8" | PN40 | 127 | 291 | 320 | 12-M27 |
200 | 8" | PN63 | 165 | 310 | 345 | 12-M33 |
200 | 8" | PN100 | 165 | 324 | 360 | 12-M33 |
250 | 10" | PN10 | 146 | 328 | 350 | 12-M24 |
250 | 10" | PN16 | 146 | 329 | 355 | 12-M24 |
250 | 10" | PN25 | 146 | 341 | 370 | 12-M27 |
250 | 10" | PN40 | 146 | 353 | 385 | 12-M30 |
250 | 10" | PN63 | 213 | 362 | 400 | 12-M33 |
250 | 10" | PN100 | 213 | 392 | 430 | 12-M36×3 |
300 | 12" | PN10 | 181 | 378 | 400 | 12-M20 |
300 | 12" | PN16 | 181 | 384 | 410 | 12-M24 |
300 | 12" | PN25 | 181 | 401 | 430 | 16-M27 |
300 | 12" | PN40 | 181 | 418 | 450 | 16-M30 |
300 | 12" | PN63 | 229 | 422 | 460 | 16-M33 |
300 | 12" | PN100 | 229 | 456 | 500 | 16-M39X3 |
350 | 14" | PN10 | 184 | 438 | 460 | 16-M20 |
350 | 14" | PN16 | 184 | 444 | 470 | 16-M24 |
350 | 14" | PN25 | 184 | 458 | 490 | 16-M30 |
350 | 14" | PN40 | 222 | 475 | 510 | 20-M33X3 |
350 | 14" | PN63 | 273 | 487 | 525 | 16-M36X3 |
350 | 14" | PN100 | 273 | 510 | 560 | 16-M45×3 |
400 | 16" | PN10 | 191 | 489 | 515 | 16-M24 |
400 | 16" | PN16 | 191 | 496 | 525 | 16-M27 |
400 | 16" | PN25 | 191 | 515 | 550 | 16-M33 |
400 | 16" | PN40 | 232 | 547 | 585 | 16-M36X3 |
400 | 16" | PN63 | 305 | 541 | 585 | 16-M39×3 |
400 | 16" | PN100 | 305 | 570 | 620 | 16-M45X3 |
450 | 18" | PN10 | 203 | 539 | 565 | 20-M24 |
450 | 18" | PN16 | 203 | 556 | 585 | 20-M27 |
450 | 18" | PN25 | 203 | 565 | 600 | 20-M33 |
450 | 18" | PN40 | 264 | 572 | 610 | 20-M36X3 |
500 | 20" | PN10 | 219 | 594 | 635 | 20-M24 |
500 | 20" | PN16 | 219 | 618 | 650 | 20-M30 |
500 | 20" | PN25 | 219 | 622 | 660 | 20-M33 |
500 | 20" | PN40 | 292 | 626 | 670 | 20-M39X3 |
600 | 24" | PN10 | 222 | 696 | 725 | 20-M27 |
600 | 24" | PN16 | 222 | 732 | 770 | 20-M33 |
600 | 24" | PN25 | 222 | 732 | 770 | 20-M36X3 |
600 | 24" | PN40 | 318 | 745 | 795 | 20-M45X3 |
700 | 28" | PN10 | 305 | 811 | 840 | 24-M27 |
700 | 28" | PN16 | 305 | 802 | 840 | 24-M33 |
700 | 28" | PN25 | 305 | 831 | 990 | 24-M39×3 |
800 | 32" | PN10 | 305 | 918 | 950 | 24-M30 |
800 | 32" | PN16 | 305 | 912 | 950 | 24-M36X3 |
800 | 32" | PN25 | 305 | 942 | 990 | 24-M45X3 |
900 | 36" | PN10 | 368 | 1018 | 1050 | 28-M30 |
900 | 36" | PN16 | 368 | 1012 | 1150 | 28-M36×3 |
900 | 36" | PN25 | 368 | 1040 | 1090 | 28-M45×3 |
1000 | 40" | PN10 | 432 | 1124 | 1160 | 28-M33 |
1000 | 40" | PN16 | 432 | 1126 | 1170 | 28-M39×3 |
1000 | 40" | PN25 | 432 | 1155 | 1210 | 28-M52×3 |
1200 | 48" | PN10 | 524 | 1340 | 1380 | 32-M36×3 |
1200 | 48" | PN16 | 524 | 1340 | 1390 | 32-M45×3 |
1200 | 48" | PN25 | 524 | 1365 | 1420 | 32-M52X3 |
900 | 36" | 600 | 635 | 1126 | 1193.8 | 28-M64X3 |
900 | 36" | 900 | 718 | 1195 | 1289.1 | 28-M64X3 |
1000 | 40" | 150 | 432 | 1158 | 1200.2 | 36-M39×3 |
1000 | 40" | 300 | 546 | 1110 | 1155.7 | 32-M45×3 |
1000 | 40" | 600 | 660 | 1153 | 1212.9 | 32-M56X3 |
1000 | 40" | 900 | 762 | 1246 | 1339.9 | 24-M90X3 |
1050 | 42" | 150 | 432 | 1213 | 1257.3 | 36-M39×3 |
1050 | 42" | 300 | 568 | 1161 | 1206.5 | 32-M45×3 |
1050 | 42" | 600 | 702 | 1215 | 1282.7 | 28-M64X3 |
1050 | 42" | 900 | 787 | 1296 | 1390.7 | 24-M90X3 |
1200 | 48" | 150 | 524 | 1397 | 1422.4 | 44-M39×3 |
1200 | 48" | 300 | 629 | 1320 | 1371.6 | 32-M48×3 |
1200 | 48" | 600 | 787 | 1386 | 1460.5 | 32-M70X3 |
1350 | 54" | 150 | 591 | 1545 | 1593.9 | 44-M42×3 |
1350 | 54" | 300 | 718 | 1489 | 1549.4 | 28-M56X3 |
1500 | 60" | 150 | 660 | 1710 | 1759 | 52-M42×3 |
1500 | 60" | 300 | 838 | 1642 | 1701.8 | 32-M56X3 |
1650 | 66" | 150 | 787 | 1881 | 1930.4 | 52-M45×3 |
1800 | 72" | 150 | 851 | 2046 | 2095.5 | 60-M45×3 |
1950 | 78" | 150 | 927 | 2204 | 2260.6 | 64-M52X3 |
2100 | 84" | 150 | 1041 | 2369 | 2425.7 | 64-M52X3 |
Похожие товары
Латунный ножной клапан-бренд 3100 - Ayron
RTS нержавеющая сталь 201 304 NPT BSP односторонний невозвратный обратный клапан H12 резьба пружинная нагрузка вертикальный
LIRLEE заводская цена под заказ Высокое качество отстойный насос обратный клапан ps для бассейна
Спот оптом аксессуары для машины сгорания DUNGS реле давления GW 3 A6 переключатель воздуха

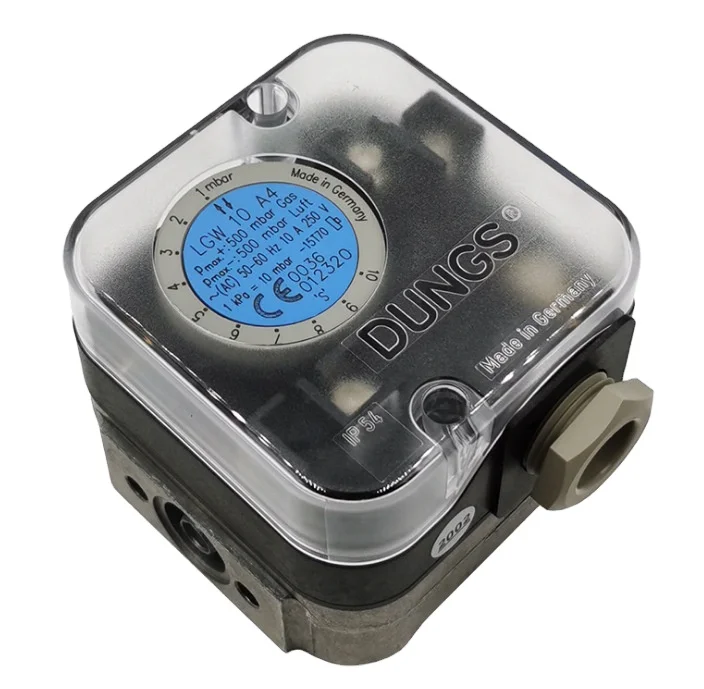

Переключатель перепада давления DUNGS GW500A4 для контроля воздуха в Германии
