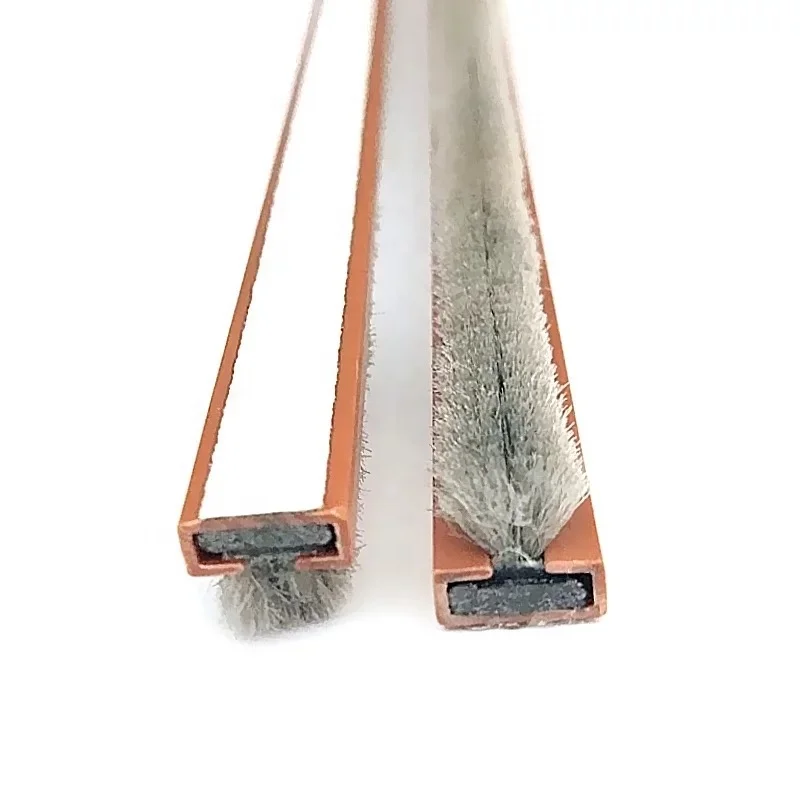

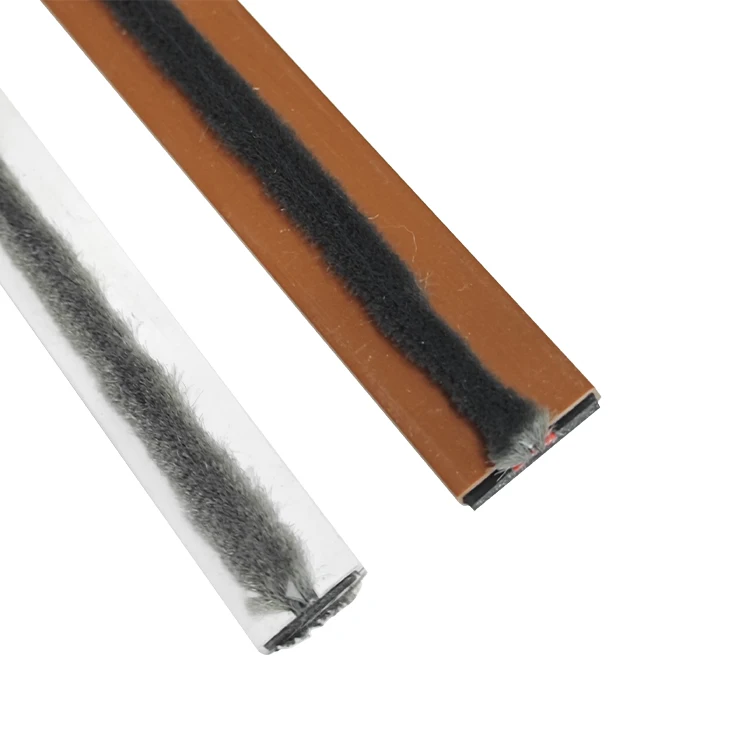

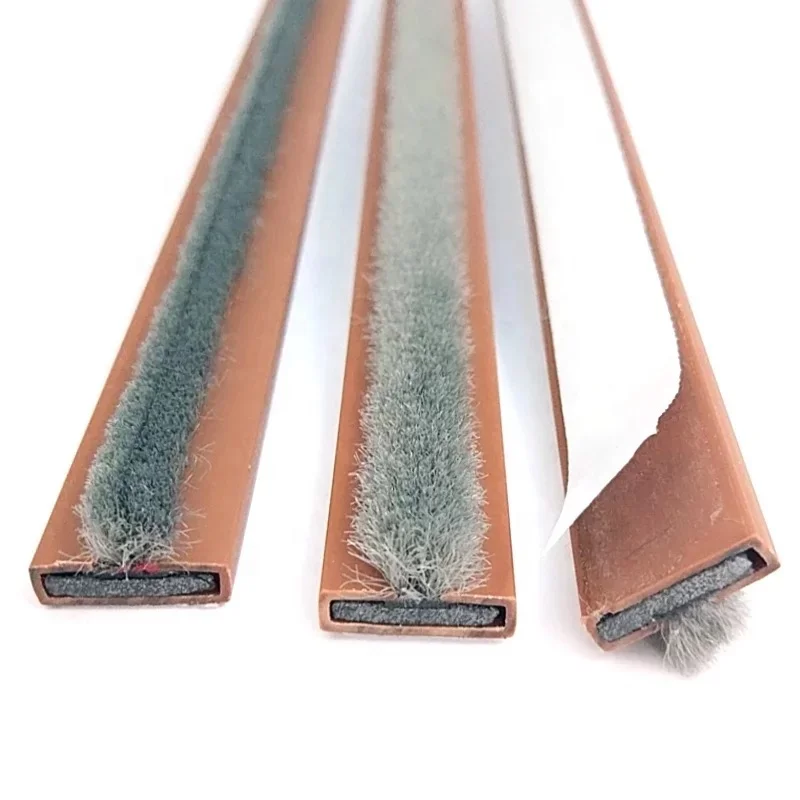

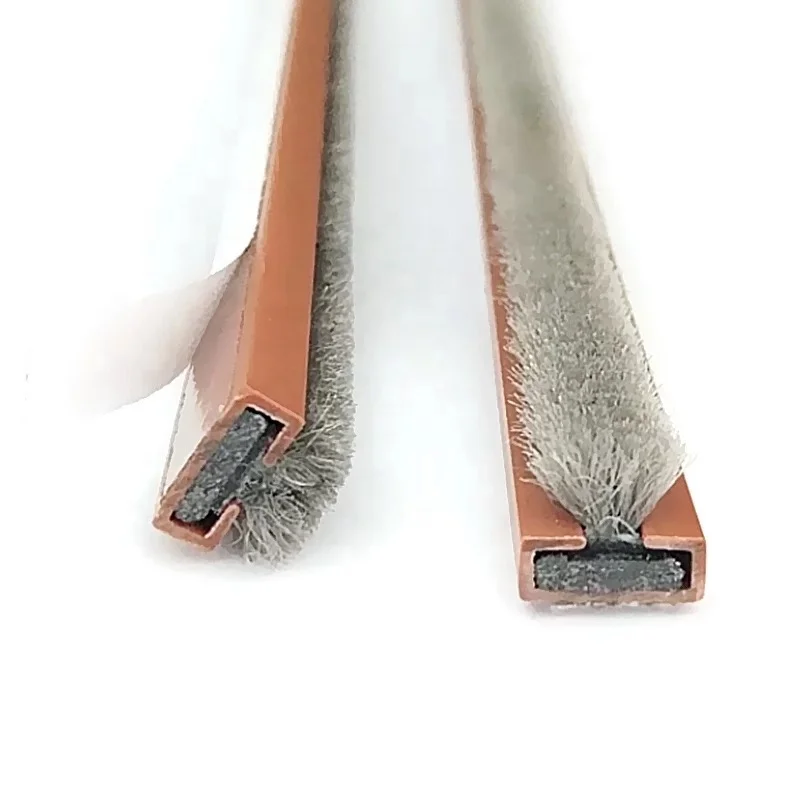

PRODUCT DESCRIPTION
The Fire/Smoke seals have been designed for use in fire resisting door assemblies to seal the gap between leaf and frame, or between separate leaves, in the event of a fire. When subjected to the heat of a fire the intumescent core material expands to fill any gap between the door leaf and frame. This forming of a robust char barrier will hold up the passage of hot gases and smoke as well as the flames.
The Fire/Smoke seals are suitable for use on fire resisting door assemblies manufactured from timber, or timber doors with steel frames. They are unaffected by atmospheric moisture and therefore do not require any further protection.
The Fire/Smoke seals are suitable for use on fire resisting door assemblies manufactured from timber, or timber doors with steel frames. They are unaffected by atmospheric moisture and therefore do not require any further protection.
EXPANSION RATIO
The BIYOU Fire/Smoke seals is a general-purpose intumescent material, based on expandable graphite that will expand more than 30 fold when heated.
The BIYOU Fire/Smoke seals is a general-purpose intumescent material, based on expandable graphite that will expand more than 30 fold when heated.
FIELD OF APPLICATION
The BIYOU Fire/Smoke seals has been specifically designed for use in the following applications:
1, Sutiable for latched single and double door
2, Sutiable for unlacted single and double door
3, Rebates in door frame or door leaf
The BIYOU Fire/Smoke seals has been specifically designed for use in the following applications:
1, Sutiable for latched single and double door
2, Sutiable for unlacted single and double door
3, Rebates in door frame or door leaf
BENEFITS
1, EN 1634-1:2014 & UL 10C
2, Easy to cut
3, Protects against fire and smoke
4, Unaffected by moisture, humidity
FITTING INSTRUCTION
1, Intumescent seals needs to be located centrally in either door leaf or frame.
2, Rout a groove suitable for the size of intumescent seal selected. Clean the rebate to remove any dust.
3, Measure and cut seal to length using a hacksaw. Remove self-adhesive backing and butt joint fit all seals to inside and outside of door frame or door, and meeting stiles of pairs of doors where applicable. Pressure must be applied to activate adhesive backing. Remove the self-adhesive backing liner from the product and push fit into the routed groove.
2, Easy to cut
3, Protects against fire and smoke
4, Unaffected by moisture, humidity
FITTING INSTRUCTION
1, Intumescent seals needs to be located centrally in either door leaf or frame.
2, Rout a groove suitable for the size of intumescent seal selected. Clean the rebate to remove any dust.
3, Measure and cut seal to length using a hacksaw. Remove self-adhesive backing and butt joint fit all seals to inside and outside of door frame or door, and meeting stiles of pairs of doors where applicable. Pressure must be applied to activate adhesive backing. Remove the self-adhesive backing liner from the product and push fit into the routed groove.

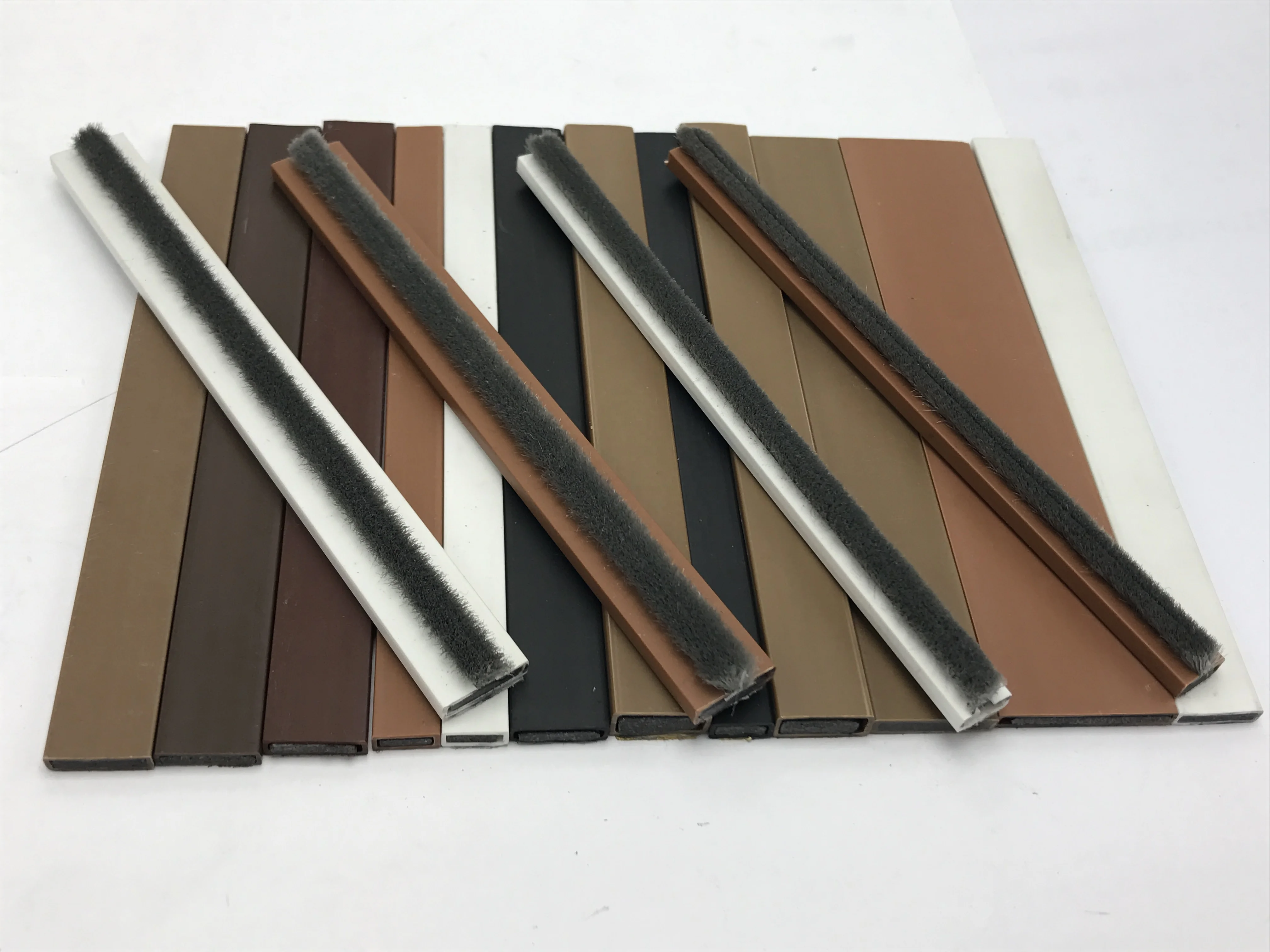

COLOR CHART
(White, Brown, Dark Brown, Silver, Grey, Black, Red)
(White, Brown, Dark Brown, Silver, Grey, Black, Red)
We are also able to manufacture seals to any RAL colors
CHEMICAL COMPOSITION: The element rapid high-pressure forming multi-directional expandable graphite.
OUTER CONTAINER: PVC-u outer casing, which has a proven performance in terms of durability, along with a high performance acrylic adhesive to aid installation.
Product Code | Size (mm) | Size(mm) | Pc/Ctn | Remark |
BY-PCS1040 | 10x4x2100 | 10x4x2200 | 250 | You could customize the color and Length |
BY-PCS1540 | 15x4x2100 | 15x4x2200 | 175 | |
BY-PCS2040 | 20x4x2100 | 20x4x2200 | 125 | |
BY-PCS2540 | 25x4x2100 | 25x4x2200 | 110 | |
BY-PCS3040 | 30x4x2100 | 30x4x2200 | 75 |
PRODUCT SHOWCASE
PRODUCT PACKAGE
COMPANY PROFILE
INTERNATIONAL TESTING
CERTIFICATE DISPLAY
PACKING & DELIVERY
FAQ
Q1. Are you a manufacturer or trading company?
We are a professional manufacturer for passive fire stopping products, acoustic and weather sealing system with more than 15 years’ experience.
Q2. Do you accept OEM or ODM?
Yes, We are professional in OEM and ODM. Now cooperating with famous brands for OEM & ODM.
Q3. What is payment term?
We prefer T/T, other ways should be confirmed first. For new customer, 30% advanced payment after order confirmation,70% balance payment before shipment.
Q4.Could you send me sample before I place an order?
Yes, we offer free samples for your evaluation; you provide the Courier account for freight collect.
Q5. What is your delivery time?
7-20 days according to your purchasing quantities.
Q6. How do you control the quality?
We will arrange sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to your confirmed samples.
We are a professional manufacturer for passive fire stopping products, acoustic and weather sealing system with more than 15 years’ experience.
Q2. Do you accept OEM or ODM?
Yes, We are professional in OEM and ODM. Now cooperating with famous brands for OEM & ODM.
Q3. What is payment term?
We prefer T/T, other ways should be confirmed first. For new customer, 30% advanced payment after order confirmation,70% balance payment before shipment.
Q4.Could you send me sample before I place an order?
Yes, we offer free samples for your evaluation; you provide the Courier account for freight collect.
Q5. What is your delivery time?
7-20 days according to your purchasing quantities.
Q6. How do you control the quality?
We will arrange sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to your confirmed samples.
