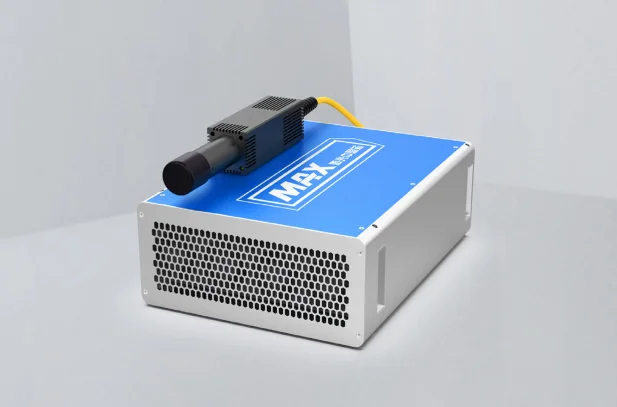

20 Вт MOPA импульсный волоконный лазер
- Категория: >>>
- Поставщик: Wuhan Junshang Jiapin Technology Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1601294702952:
Описание и отзывы
Характеристики
Specification
model | MFPT-20M |
description | MOPA Pulsed Fiber Laser |
optical specifications: | |
mode of operation | pulse |
wavelength(nm) | 1064(1060~1070) |
nominal power | 19~21W |
spectral bandwidth 3dB(nm) | ≤15 |
polarization | random* |
pulse repetition rate(KHz) | 1~4000 |
full power repetition rate(KHz) | 28~4000 |
laser beam quality M2 | ≤1.3 |
adjustable pulse duration range(ns) | 2~350 |
24h output power stability(%) | ±2 |
power tunability(%) | 10~100 |
single pulse energy(mJ) | 0.7 |
output beam diameter(mm) | 6 ±1 |
beam ellipticity(%) | ≥90 |
the laser switch on time(μs) | <300 |
the laser shutdown time(μs) | <200 |
fiber delivery system: | |
fiber length(m) | 1.9 (or customized) |
no red light | no red light indicator at working position when operating |
bending radius of optical fiber cable | ≥100 |
output mode | isolator |
electrical ratings: | |
supply voltage(VDC) | 24 VDC |
rated power(W) | 100 |
other specifications: | |
operating temperature (℃) | 0~40 |
humidity (%) | 10~95 |
storage temperature(℃) | -10~+60 |
cooling method | air cooling |
MOPA Pulsed Fiber Laser: | MOPA pulsed fiber laser uses MOPA to construct multi-stage amplification and the pulse width and frequency can be adjusted independently. It makes more laser applications possible. |
suitable for: | The pulse width is adjustable from 2-500ns, and the peak power is up to 10kW. The repetition rate is up to 4000kHz, which is ideal laser souce for laser fine machining, widely used in anodised aluminium dark marking, stainless steel color maring, flight marking, Chip marking, solar wafer chip scribing, laser deep carving and other fields. |
application: | stainless steel color marking, data line interface marking, solar wafer scribing, anodised aluminium dark marking. |

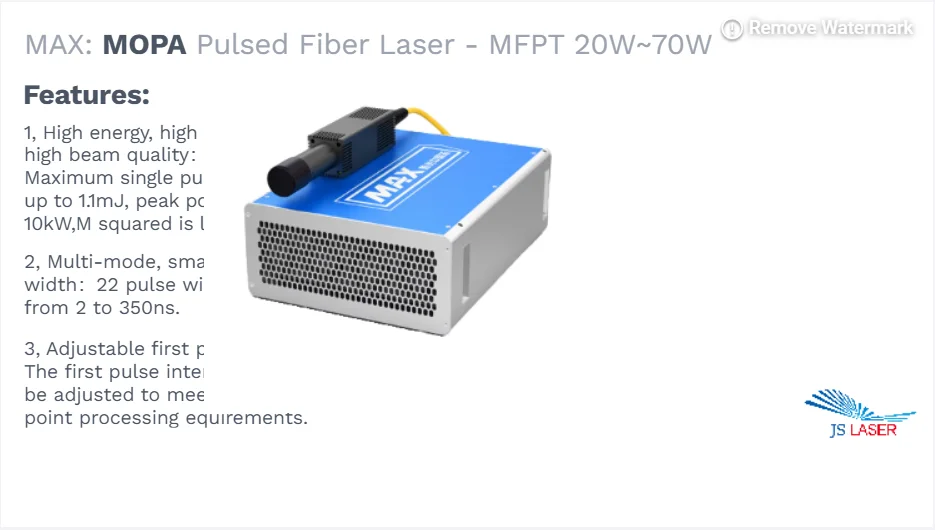

feature: | 1- High energy, high peak value, high beam quality: Maximum single pulse energy up to 1.1mJ, peak power up to 10kW, M squared is less than 1.4. 2- Multi-mode, small pulse width: 22 pulse widths ranging from 2 to 350ns. 3- Adjustable first pulse: The first pulse intensity can be adjusted to meet the first point processing requirements. 4- Compact structure: Air-cooled miniaturized module for portable integration. 5- Multiple industrial control interfaces: DB25, RS232 and network port to meet the requirements of different control modes. 6- Wide application: Widely used in anodised aluminium dark marking, stainless steel color marking, flight marking, Chip marking, solar wafer scribing, laser deep carving and other fields. |
Company Profile
1, I have no idea about this machine. Is it suitable for me to clean workpieces?
We will help you and give you advice. You can share with us your workpiece material and impurity cleaning and impurity thickness.
We will help you and give you advice. You can share with us your workpiece material and impurity cleaning and impurity thickness.
2, When I receive this machine, I didn't know how to use it. What should I do?
It's very easy to operate. We will send you the operation video and manual of the machine. Our engineers will conduct the training online for you. If required, we can send our engineers to your site for training, or you can send operators to our factory for training.
3, What should I do if there is something wrong with this machine?
We offer a two-year warranty on the machine. During the two-year warranty period, if there is any problem with the machine, we will provide parts free of charge (except man-made damage). After the warranty, we still provide lifetime service. Therefore any questions please tell us, we will provide you with solutions and help you solve them.
We offer a two-year warranty on the machine. During the two-year warranty period, if there is any problem with the machine, we will provide parts free of charge (except man-made damage). After the warranty, we still provide lifetime service. Therefore any questions please tell us, we will provide you with solutions and help you solve them.
4, What are the consumables of laser marking machine?
It has no consumables. It's very economical and cost effective.
5, How about packaging? Will it protect the product?
We have three layers of packing. Externally, we use non-fumigated wooden cases. In the middle, the machine is covered with foam to protect the machine from shaking. For the inner layer, the machine is covered with waterproof plastic film.
6, How about the delivery time?
Normally, the delivery time is within 5 working days after receipt of payment.
7, What terms of payment can you accept?
We can accept any form of payment, such as TT, LC, Western Union, Paypal, e-check, master card, cash, etc.
8, How about the mode of transportation?
Depending on your address, we can ship by sea, air, truck or rail. We can also deliver the machine to your office according to your requirements.
It has no consumables. It's very economical and cost effective.
5, How about packaging? Will it protect the product?
We have three layers of packing. Externally, we use non-fumigated wooden cases. In the middle, the machine is covered with foam to protect the machine from shaking. For the inner layer, the machine is covered with waterproof plastic film.
6, How about the delivery time?
Normally, the delivery time is within 5 working days after receipt of payment.
7, What terms of payment can you accept?
We can accept any form of payment, such as TT, LC, Western Union, Paypal, e-check, master card, cash, etc.
8, How about the mode of transportation?
Depending on your address, we can ship by sea, air, truck or rail. We can also deliver the machine to your office according to your requirements.
