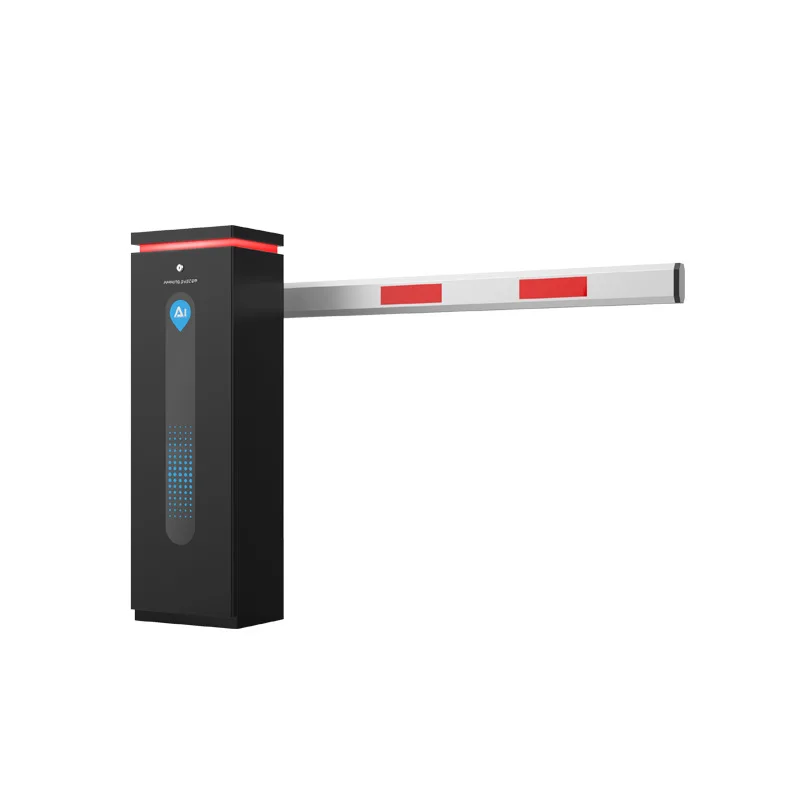

Автомобильный автоматический парковочный барьер из нержавеющей стали/Алюминиевый автомобильный для дорожного движения
32 421,19-33 056,90 ₽
Higher Stability DC24V Variable Frequency 90 degree Folding Boom Barrier Gate for Car Park Basement
- Категория: >>>
- Поставщик: Shenzhen Wejoin Machinery & Electrical Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601295534501:
Описание и отзывы
Характеристики
Product Description
WEJOIN High-Grade DC24V Variable-Frequency Barrier Gate CB01VF
DC brushless motor with frequency conversion control,
allows for a smooth trip of the gate arm with no bounce in the end position.
The running speed can be 1 seconds (model WJCB01VF-H, 1~4s adjustable),
100% duty cycle and free maintenance make the barrier be proper for toll stations and parking systems!
allows for a smooth trip of the gate arm with no bounce in the end position.
The running speed can be 1 seconds (model WJCB01VF-H, 1~4s adjustable),
100% duty cycle and free maintenance make the barrier be proper for toll stations and parking systems!
Model | WJCB01VF-H | WJCB01VF-I | |||||||||
Running Speed | 1~4S | 2~6S | 6S | 6S | 6S | 6S | |||||

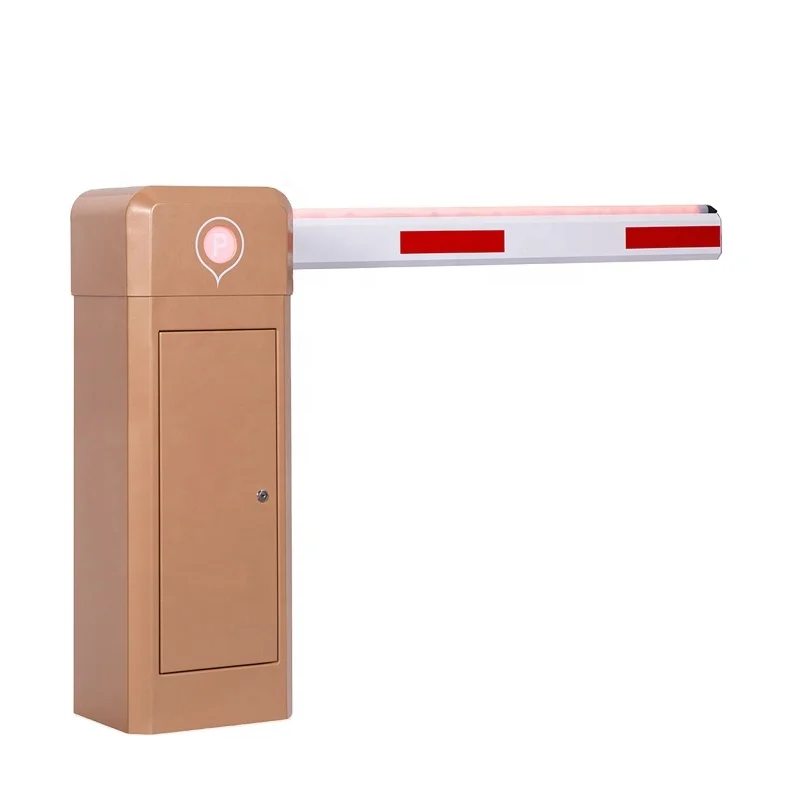

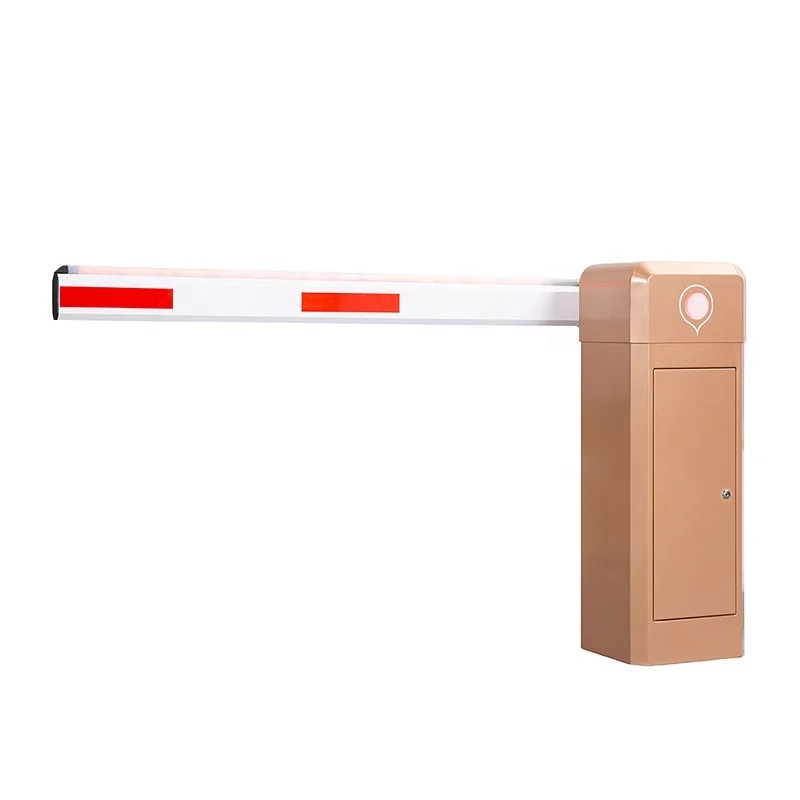

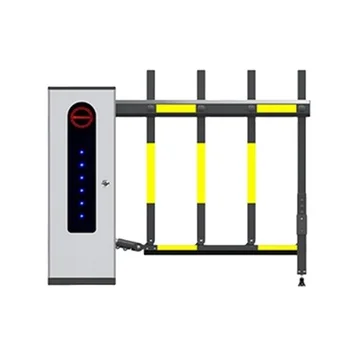

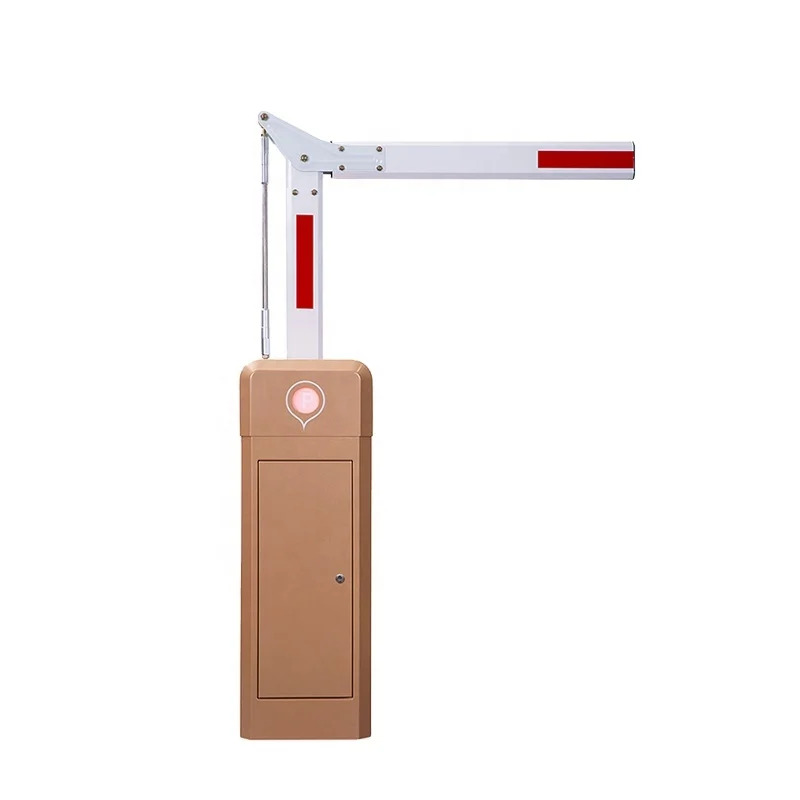

Boom Type | Straight | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence | |||||
Max Boom Length | 4.5M | 4M~8M | 5M | 4M | 4.5M | 4M | |||||
Cabinet Dimension (W*D*H) | 329*286*935MM, 335*315*967.2MM | ||||||||||
Power Supply Input Voltage | AC220V±10%, AC110V±10% | ||||||||||
Motor Voltage | DC24V | ||||||||||
Enclosure Rating | IP54 | ||||||||||
Working Temperature | -35°C ~ +70°C | ||||||||||
MTBF | 6 million times | ||||||||||
Duty Cycle | 100% | ||||||||||
Traffic Flow Application | 24 hours of uninterrupted operation | ||||||||||
Max Motor Power | 240 W | 180W | |||||||||
Max Motor Speed | 60 r/min | 30 r/min | |||||||||
Max Torque | 390 N.m | 300 N.m | |||||||||
Functions & Features
1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6million times, spring life 500,000 times.
2. Auto reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.
3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. Optional Bluetooth module, convenient debugging of barriers through small programs.
6. Large LCD screen display, English visual menu, easy function selection and debugging.
7. Left-installation and right-installation can be changed.
WJCB01VF-H Machine Core
WJCB01VF-I Machine Core
Control Board
Cabinet Dimension
Project Cases
Packing & Delivery
Manufacturing Technique
Company Profile
SHENZHEN WEJOIN MECHANICAL & ELECTRICAL CO.
Shenzhen WEJOIN Mechanical & Electrical Co. was founded in 2004. It is the first national high-tech enterprise specialized in research and development, manufacturing, and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gates, tripod turnstiles, flap barriers, swing barriers, etc. All the products have CE certificates and have been exported to more than 100 countries or regions, such as Germany, British, Spain, Czech, France, Malaysia, India, and so on.
Certifications
Exhibition
FAQ
Q1: What are your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you a manufacturer? Do you provide ODM / OEM service?
A: Yes, we are a manufacturer. WEJOIN provides professional customized services for global clients.
Q3: I would like to ask if this is with an RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with an RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm, etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about the payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Within one year, if any problems, we will offer the accessories.
Q10: Do you use WeChat? Can we please talk on WeChat? or WhatsApp?
A: Yes, my WeChat ID FZ15002051250, my phone number/WhatsApp is +86 15002051250, my skype ID wejoin09.
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you a manufacturer? Do you provide ODM / OEM service?
A: Yes, we are a manufacturer. WEJOIN provides professional customized services for global clients.
Q3: I would like to ask if this is with an RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with an RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm, etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about the payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Within one year, if any problems, we will offer the accessories.
Q10: Do you use WeChat? Can we please talk on WeChat? or WhatsApp?
A: Yes, my WeChat ID FZ15002051250, my phone number/WhatsApp is +86 15002051250, my skype ID wejoin09.
Похожие товары
Полностью автоматический Барьерный барьер для парковки и дороги
58 358,14-63 443,81 ₽
Автоматический автомобильный барьер для парковки дорожный контроль доступа безопасность
27 335,51-33 692,61 ₽
Автоматическая парковочная система с дистанционным управлением шлагбаум для дорожного движения и камера наружного применения
17 545,59-23 775,54 ₽
Прочные алюминиевые высокоскоростные автоматические барьерные ворота для контроля доступа транспортных средств на автостоянках из прочного материала
20 215,57-22 758,41 ₽

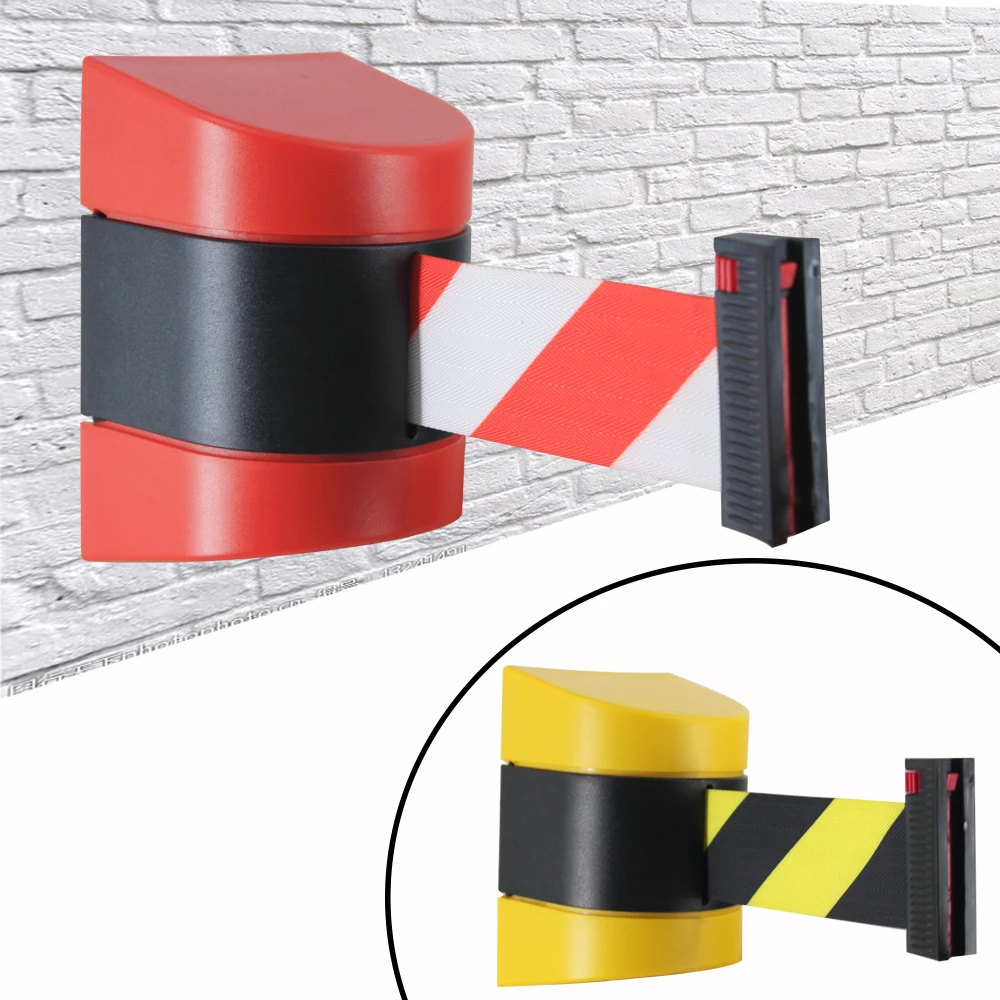

Защитный настенный многоцветный шнур Traust пластиковый дорожный выдвижной ремень для управления дорожным движением

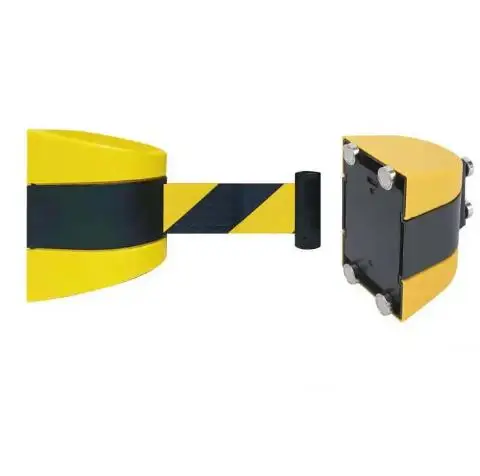

3M 5M 10M ABS Plastic Magnetic Barrier Rope Road Safety Queue Crowd Control Retractable Belt
