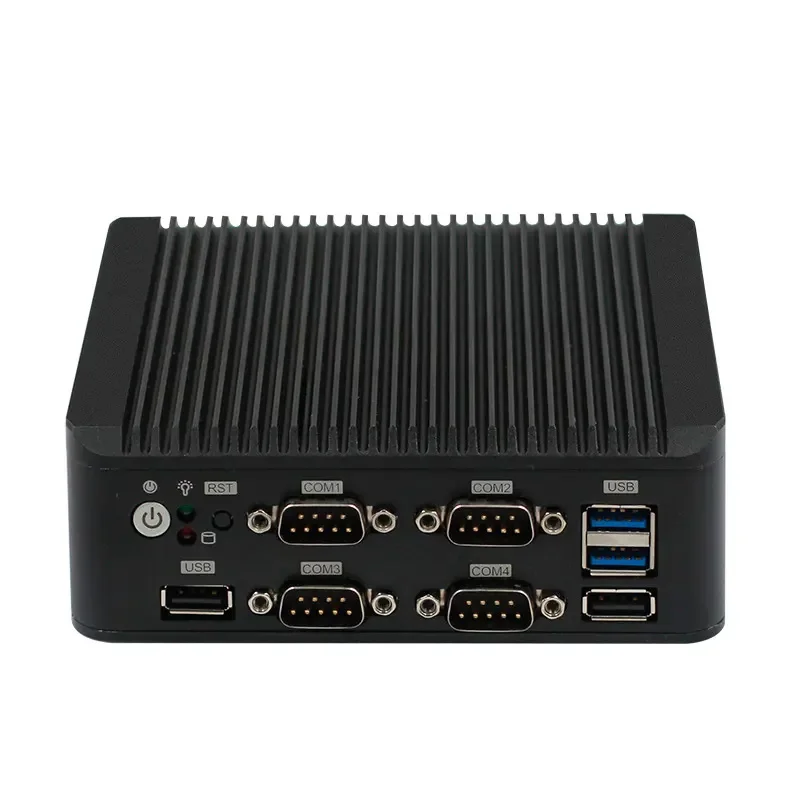

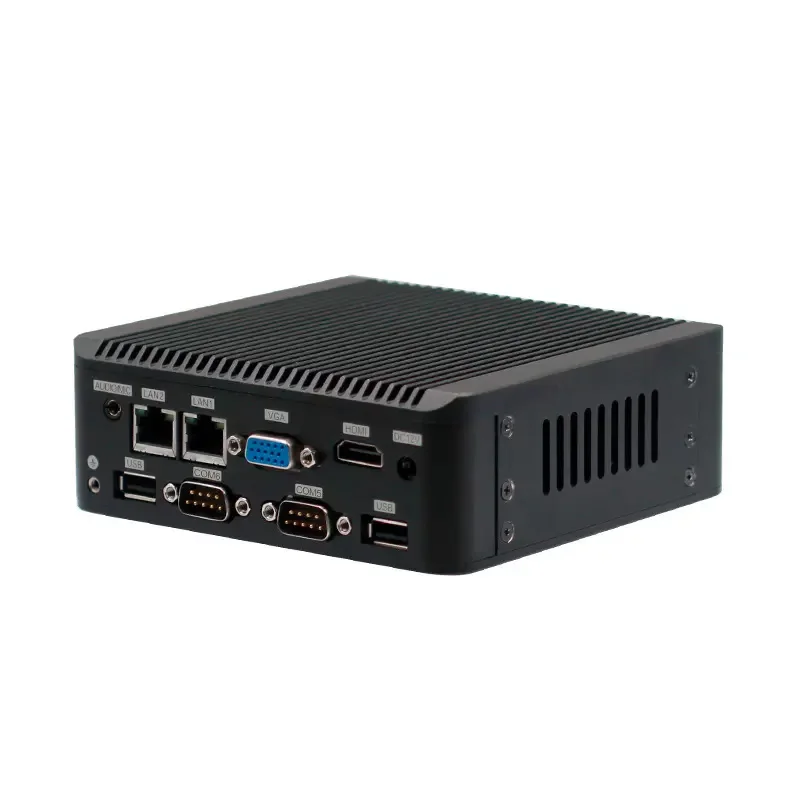

Безвентиляторный промышленный компьютер J4125 серверный маршрутизатор Win10 Linux тонкий клиент мини ПК
- Категория: >>>
- Поставщик: Shenzhen Pilot Tech Dev Ltd.Shenzhen Ltd.
Сохранить в закладки 1601295568710:
Описание и отзывы
Характеристики
PRODUCT SPECIFICATIONS
Nano Mini PC
1. Onboard Intel Elkhart Lake series /Intel 8th Gemini Lake-R processor;2. 1 * DDR4 SO-DIMM, supports up to 32 GB
3. 2 * Intel i226-V network;
4. 1 * VGA, 1 * H-D, TPM2.0 (optional);
5. 6 * COM, onboard eMMC optional;
6. Support power-on automatic boot function, jump selection;
7. Wide viltage 12-19V power supply;
8. Size 134*126*46.8 mm
Processor | Onboard Intel Elkhart Lake series processor |
EFI BIOS | |
Memory | 1 * DDR4 SO-DIMM, supports up to 32 GB |
Display | 1 * VGA, maximum resolution 1920x1200 |
1 * H-D, maximum resolution 4K@60Hz | |
H-D+VGA synchronous or asynchronous display | |
Storage | 1 * SATA3.0 |
1 * M.2 2280 M-Key (PCIe3.0 2x/SATA3.0, hardware selection) | |
Onboard eMMC, 32GB/64GB/128GB optional | |
Network | 2 * Intel i226-V network (LAN2 optional Intel i211) |
Sound card | ALC897 |

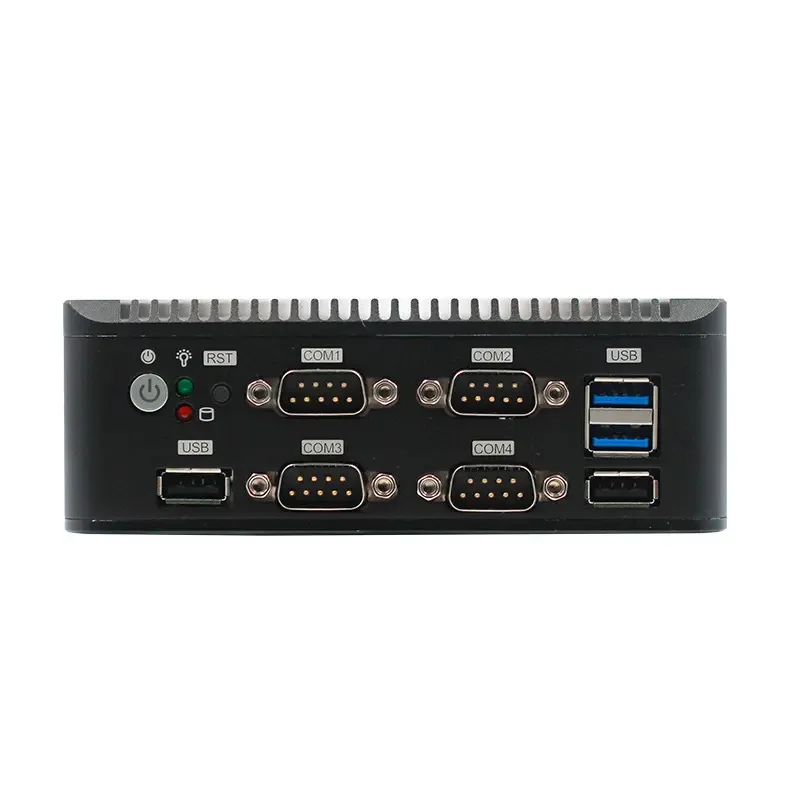

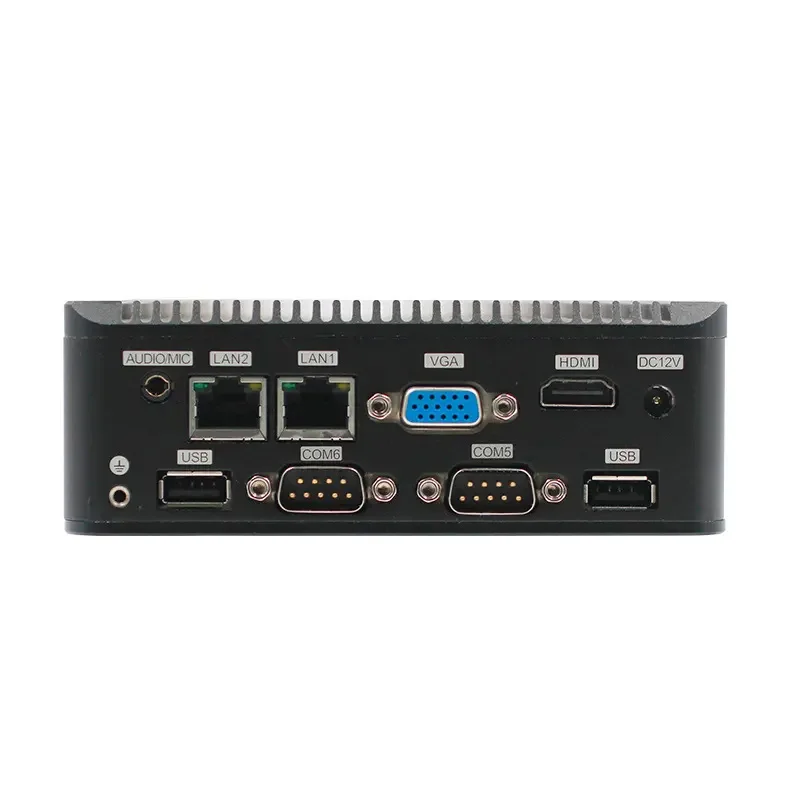

Board edge I/O interface | 1 * VGA, 1 * H-D |
2 * USB3.0, 2 * DB9 COM | |
1 * DC JACK, 2 * LAN | |
On-board expansion Interface/function | 0-255 seconds, providing watchdog routine |
Aluminum fanless heatsink (the motherboard has a reserved fan interface that supports automatic and manual fan speed adjustment) | |
4 * USB2.0 pin headers, 2 x 5Pin, pitch 2.0mm | |
6 * COM port (COM1/2 is RS232 /RS485 jumper optional, COM3/4/5/6 is RS232) | |
8-bit GPIO, 2 x 5Pin, pitch 2.0mm | |
1 * Mini PCIe (PCIe + USB2.0 protocol) | |
Power Supply | DC 12V, 60W |
Working Environment | Working temperature: -20ºC ~ +60ºC; Working humidity: 0% ~ 90% relative humidity, no condensation |
Storage temperature: -40ºC ~ +85ºC; Storage humidity: 0% ~ 90% relative humidity, no condensation | |
Operating system | Win10, Win11, Linux |
Size | 134*126*46.8 mm |
Weight | 1.5KG |
Details Images
OEM / ODM
Certifications
Packing&Shipping
Company Profile
Title goes here.
Shenzhen Dulcimer Technology Co., Ltd. is a company that is engaged in some automation industrial products and OEM/OEM industrial Mini PCs.
Our products include(but are not limited to: programmable logic controllers (PLC), human-machine interfaces (HMI),
inverters,servers, relays, switches, sensors, circuit breakers, Compact air cylinders, pressure regulators, and others.
We have a wide range of sales channels and a professional sales team. Dedicated to strict quality control and thoughtful customerservice from intimate pre-sales, sales, and after-sales, our experienced staff members are always available to discussyourrequirements and ensure full customer satisfaction. Our products have successfully entered the market of many countriesandregions around the world, like Singapore, Africa, India, and Italy, and have won the trust and support of many customers.
As an experienced enterprise, we are always committed to providing customers with high-quality, high-performance
industrialproducts to meet the changing market demand. Looking forward to cooperating with you to achieve a win-winsituationanddevelopment.
Our products include(but are not limited to: programmable logic controllers (PLC), human-machine interfaces (HMI),
inverters,servers, relays, switches, sensors, circuit breakers, Compact air cylinders, pressure regulators, and others.
We have a wide range of sales channels and a professional sales team. Dedicated to strict quality control and thoughtful customerservice from intimate pre-sales, sales, and after-sales, our experienced staff members are always available to discussyourrequirements and ensure full customer satisfaction. Our products have successfully entered the market of many countriesandregions around the world, like Singapore, Africa, India, and Italy, and have won the trust and support of many customers.
As an experienced enterprise, we are always committed to providing customers with high-quality, high-performance
industrialproducts to meet the changing market demand. Looking forward to cooperating with you to achieve a win-winsituationanddevelopment.
FAQ
1. About unit price:
The price connected with the product chain is not the actual price, the specific model price please consult the seller to quoteagain, this price is not the actual price.
2. About product pictures:
Due to the large number of models, the product picture is for reference only, and the actual order of the original genuine
material shall prevail.
3. About Ordering:
Please confirm the correct order model before ordering, once ordered, no quality problems will not be returned!
4. About delivery time:
Usually, the delivery time is 3-5 days after receiving the payment. If there are special circumstances, we will negotiate and communicate with the customer in advance.
The price connected with the product chain is not the actual price, the specific model price please consult the seller to quoteagain, this price is not the actual price.
2. About product pictures:
Due to the large number of models, the product picture is for reference only, and the actual order of the original genuine
material shall prevail.
3. About Ordering:
Please confirm the correct order model before ordering, once ordered, no quality problems will not be returned!
4. About delivery time:
Usually, the delivery time is 3-5 days after receiving the payment. If there are special circumstances, we will negotiate and communicate with the customer in advance.
