Product Description
MT-100SH COF Bonding Machine LCD Repair Bonding Machine TV Repair Machine
A COF (Chip-on-Film) bonding machine is specialized equipment used in the electronics manufacturing industry to attach a driver IC (Integrated Circuit) to a flexible film, typically used in display technologies like LCD, OLED, and other flat-panel displays. COF bonding machines are essential for producing high-quality, high-resolution displays used in smartphones, tablets, TVs, and other electronic devices. They ensure that connections are precise, stable, and durable, supporting the overall functionality and longevity of the display.
Detailed Images
New Pulse Heat Hot Press ACF COF Bonding Machines
A Pulse Heat Hot Press Bonding Machine is a specialized device used for precision bonding of components in electronic manufacturing, especially where heat-sensitive materials are involved.
\t1.\tPrecise Temperature Control: The pulse heat method allows for accurate temperature settings, reducing the risk of overheating and damage to sensitive components.
\t2.\tFast Heating and Cooling: The rapid heating and cooling cycle improves production efficiency and ensures minimal thermal impact on surrounding areas.
\t3.\tStrong and Reliable Bonds: Delivers consistent pressure and heat for uniform bonding, enhancing the durability of the connection.
\t4.\tEnergy Efficiency: Pulse heating uses energy only during the bonding phase, making it more efficient compared to continuous heating methods.
\t1.\tPrecise Temperature Control: The pulse heat method allows for accurate temperature settings, reducing the risk of overheating and damage to sensitive components.
\t2.\tFast Heating and Cooling: The rapid heating and cooling cycle improves production efficiency and ensures minimal thermal impact on surrounding areas.
\t3.\tStrong and Reliable Bonds: Delivers consistent pressure and heat for uniform bonding, enhancing the durability of the connection.
\t4.\tEnergy Efficiency: Pulse heating uses energy only during the bonding phase, making it more efficient compared to continuous heating methods.

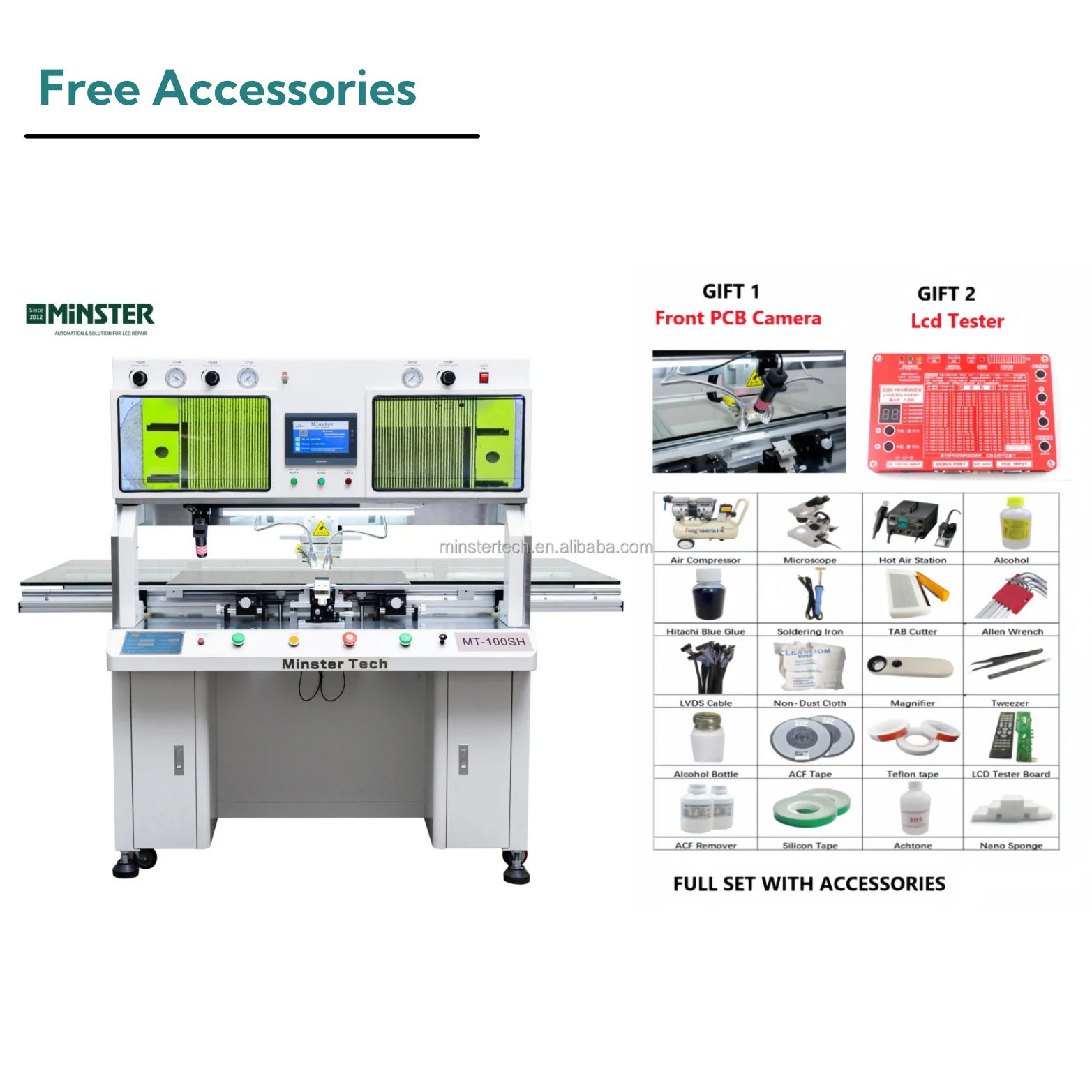

♦ FULL SET ACCESSORIES PROVIDED Free
Our Machine is equipped with bonding machine accessories. Once you get our machine, you can work on the machine directly for your bonding work.
♦Minster Unique Design for Bonding Machine
Our Bonding Machine adopts unique bonding head design. Our Bonding Head is fixed and not movable during bonding before and after cof alignment. The bonding Temperature is even all the time.it can work 30 pcs of cofs in one hour.
♦19 Inches Large Screen Monitors
with 2 Large 19 Inches High Resolution Monitors, You can see COF lines on the monitor clearly, which make your bonding work much more easier.
♦2 CCD Camera and 1 Front PCB Camera
Our Machine is equipped with 2 high resolution Cameras inside the machine. One Front PCB Camera is equipped for PCB Side Bonding.
♦High Precision COF Adjuster for Alignment
Our COF Adjuster is in high precision and accuracy ±0.5μm. It brings high repair rate to your panels.
♦Emergency Stop Design
We have Emergency Stop Button to protect your machine from abnormal operation and ensure the safety and endurance for your machine
♦Vacuum Absorption Design
Our machine has Vacuum Absorption Design which makes sure COF is not movable after your cof alignment
24 hours/7Days for Technical Support
we are providing comprehensive training for our machines and technical supports for all our machines. One Year warranty also.
Product Presentation

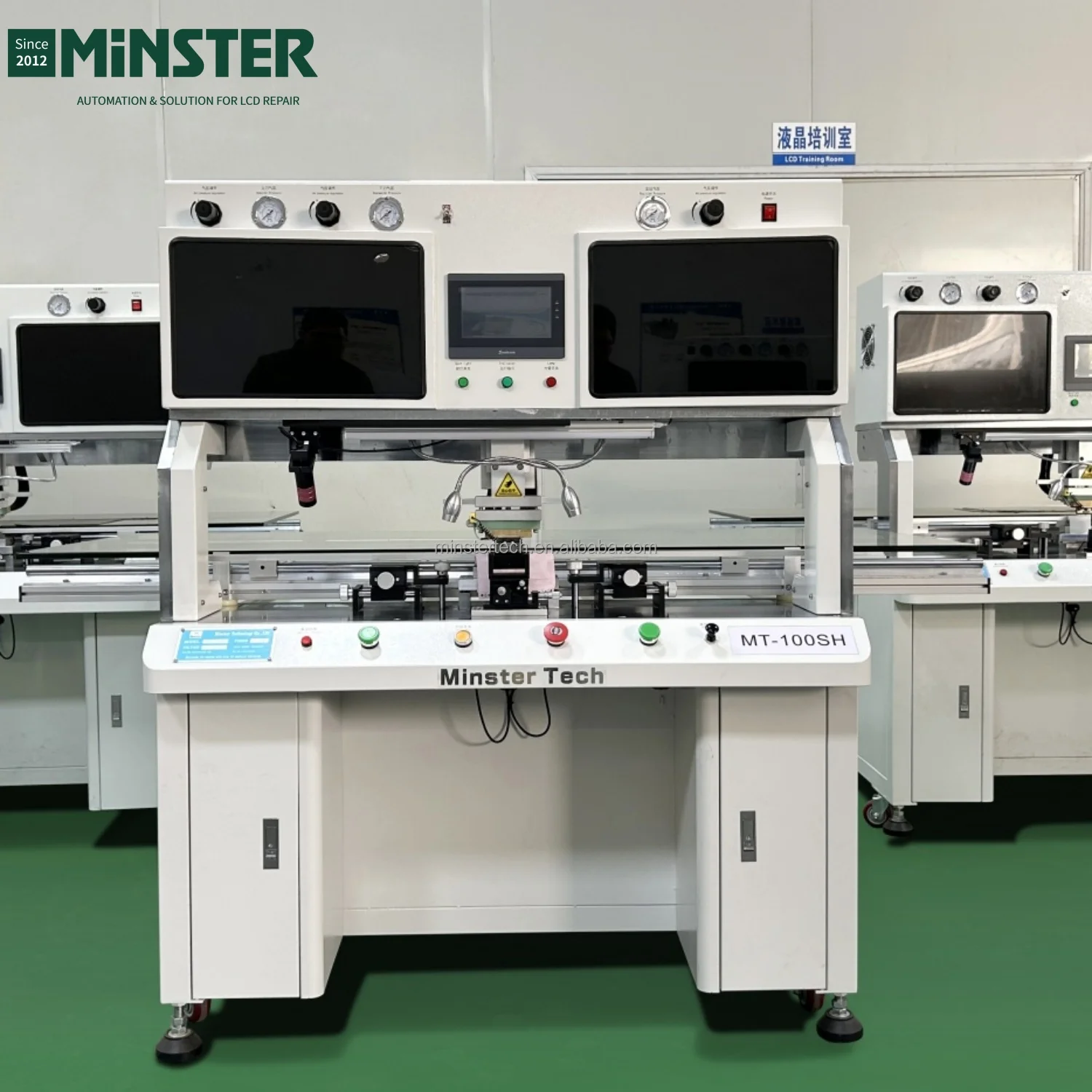

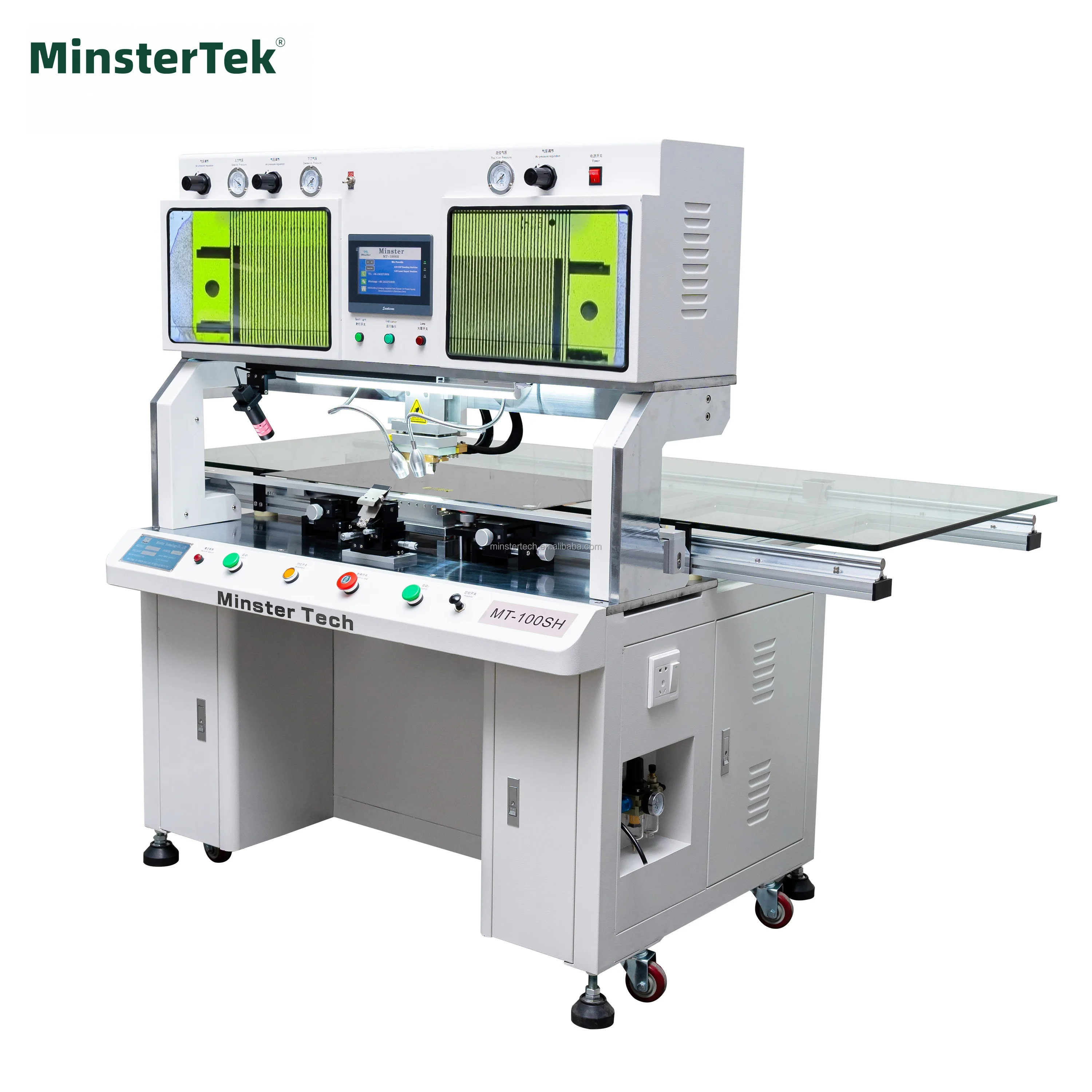

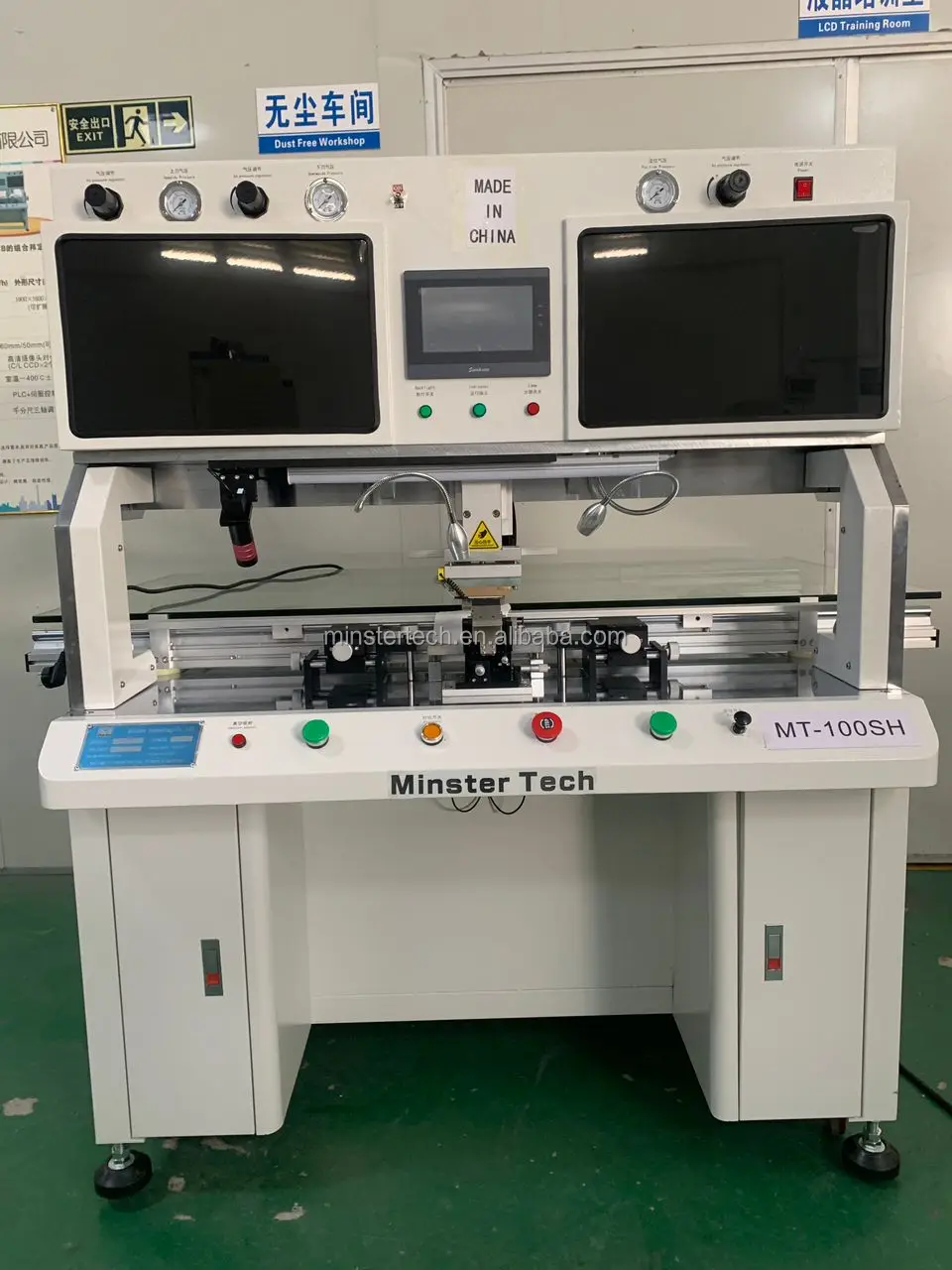

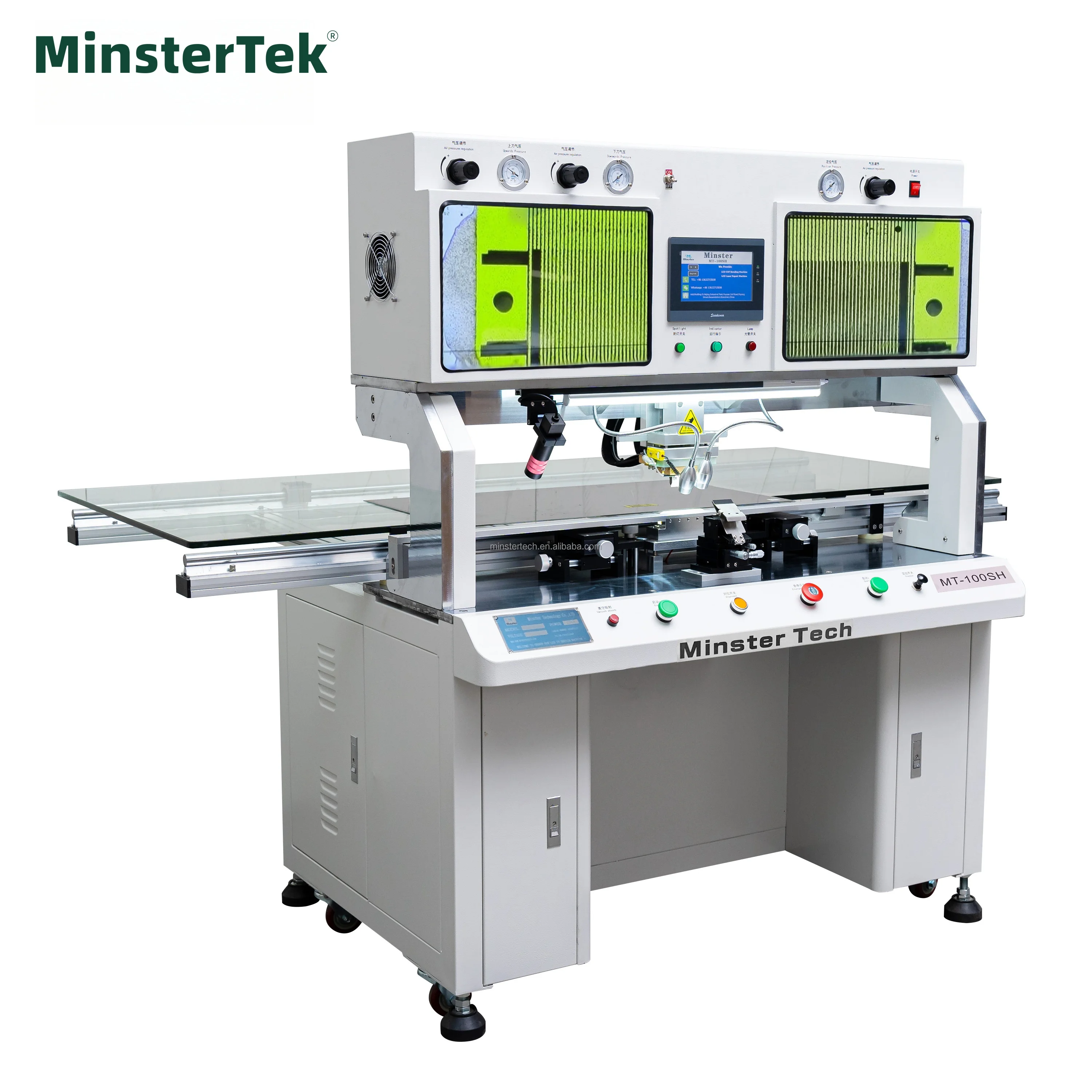

MT-100SH is a Large Single Head Bonding Machine. It can repair Screen up to 100 inches.
Product Name | COF Bonding Machine |
Model Number | MT-100SH |
Specification | Single Head Bonding Machine |
Support Max LCD size | 100 inch (Can be customized) |
Heating mode | Pulse heating |
Working precision | ≤±0.01mm |
Working capacity（PCS/HOUR） | 28 PCS/Hour |
Machine size | 1800mm (L) ×1200mm (W) ×1400mm(H) |
Input Power | AC220V±10%,50-60 Hz |
Rated Power(W) | 4000 |
Work pressure | 0.4-0.8Mpa |
Operation mode | 7inch touch screen control |
Alignment system | 2 High definition C/LCCD camera |
Temperature error range | ±0.5°C |
Programming control device | PLC controller |
TAB fixture | micrometer X, Y, Z Axis adjust |
Platform moving | Manual operation |
Hot press head size | 68*1.4mm |
Packing&Shipping
Safe Exported Standard Wooden Box Packing
All our machines will be packed safely in Exported Standard Wooden Boxes. It will protect your machine during long time shipping by sea.
Company Introduction
COF Bonding Machine Manufacturer
Minster Tech is a TV COF bonding machine manufacturer and solution provider in CHINA with more then 10 years experience. Our machines are widely used by TV factories and Repairing centers around the world. You are welcomed to visit our factory.
With over ten years Development, we have expanded our market over 53 countries and served more than 7000 users; We are helping
Factories, technicians and repair shops to solve problems and provide the top scale quality machines and technology for the most challenging repair jobs.
Factories, technicians and repair shops to solve problems and provide the top scale quality machines and technology for the most challenging repair jobs.
We have sold our products to many worldwide TV Brands. Till 2024, we have worked with Sharp USA, the largest LG supplier in Poland, Skyworth Factory in Indonesia and Big TV factory in Israel.
Welcome to talk with us and Enjoy your shopping Journey in Minster Tech.
Customer Story with MinsterTech
In the Past 12 Years, We have sold our machines and products all over the world and get good feedback from our customers. Here are some photos and comments from our customers.
FAQ
Why Choosing Bonding Machine from Minster?
Advantages of Our COF Bonding Machines
\t1.\tHigh Precision: Our COF bonding machines are designed with advanced alignment technology to ensure precise bonding, essential for the accurate repair and production of LED, LCD, and OLED screens.
\t2.\tVersatility: We offer a variety of models to accommodate different display types and sizes, including single-head and double-head machines for both small and large-scale production needs.
\t3.\tUser-Friendly Operation: The machines are equipped with intuitive interfaces and automated features, making them easy to operate even for users with minimal technical experience.
\t4.\tEfficiency and Speed: With advanced temperature and pressure control systems, our machines offer fast and reliable bonding processes, improving production efficiency and reducing downtime.
\t5.\tDurability and Reliability: Built with high-quality materials and components, our machines are designed for long-term use, ensuring stable performance and minimal maintenance over time.
\t6.\tComprehensive Support: In addition to providing cutting-edge equipment, we offer full after-sales support, including installation, training, maintenance, and repair services to ensure your machine continues to operate at peak efficiency.
These advantages make our COF bonding machines the ideal choice for businesses seeking reliable, high-performance solutions in the display repair and production industry.
\t1.\tHigh Precision: Our COF bonding machines are designed with advanced alignment technology to ensure precise bonding, essential for the accurate repair and production of LED, LCD, and OLED screens.
\t2.\tVersatility: We offer a variety of models to accommodate different display types and sizes, including single-head and double-head machines for both small and large-scale production needs.
\t3.\tUser-Friendly Operation: The machines are equipped with intuitive interfaces and automated features, making them easy to operate even for users with minimal technical experience.
\t4.\tEfficiency and Speed: With advanced temperature and pressure control systems, our machines offer fast and reliable bonding processes, improving production efficiency and reducing downtime.
\t5.\tDurability and Reliability: Built with high-quality materials and components, our machines are designed for long-term use, ensuring stable performance and minimal maintenance over time.
\t6.\tComprehensive Support: In addition to providing cutting-edge equipment, we offer full after-sales support, including installation, training, maintenance, and repair services to ensure your machine continues to operate at peak efficiency.
These advantages make our COF bonding machines the ideal choice for businesses seeking reliable, high-performance solutions in the display repair and production industry.
How to choose a COF Bonding Machine?
Choosing the right ACF (Anisotropic Conductive Film) bonding machine involves considering several key factors to ensure it meets your specific production and repair requirements. Here’s a guide to help you make an informed decision:
\t1.\tApplication and Requirements:
\t•\tDetermine the types of devices or screens you will work on (e.g., LCD, OLED, TFT).
\t•\tIdentify the size and resolution of the panels, as ACF bonding machines vary in compatibility with different screen sizes.
\t•\tDecide if the bonding machine will be used for assembly, repair, or both, as this may affect the required precision and speed.
\t2.\tMachine Specifications:
\t•\tPressure and Temperature Control: Accurate bonding relies on stable pressure and temperature settings. Look for machines with precise, programmable controls for consistent results.
\t•\tAlignment Accuracy: Higher precision is critical for high-density or small-pitch bonding applications, especially in FPC (Flexible Printed Circuit) bonding.
\t•\tHeating Uniformity: Uniform heating across the bonding area helps avoid misalignment and ensures optimal bonding quality.
\t3.\tBonding Speed and Throughput:
\t•\tIf production volume is a priority, consider the machine’s bonding speed and cycle time. Faster bonding speeds help increase throughput.
\t•\tFor repair applications, focus on machines that balance speed with precision, as these typically require more careful handling of components.
\t4.\tMachine Size and Footprint:
\t•\tAssess the space available in your facility. Larger machines may offer higher throughput but require more space.
\t•\tCompact models are often better suited for repair shops or facilities with space constraints.
\t5.\tCompatibility with ACF Materials:
\t•\tVerify that the machine is compatible with the ACF tapes or adhesives you plan to use. Some bonding machines work best with specific materials and brands.
\t6.\tUser Interface and Software:
\t•\tAn intuitive user interface can significantly reduce operator training time and improve productivity.
\t•\tSome advanced machines offer digital interfaces with memory settings, which can be helpful for repeatable, consistent results.
\t7.\tCost and Budget:
\t•\tBalance your budget with the features essential for your application. For example, high-precision models tend to be more costly but may offer better alignment and consistency.
\t•\tIf your business includes repair and maintenance services, investing in a versatile, mid-range machine might be beneficial.
\t8.\tAfter-Sales Support and Maintenance:
\t•\tEnsure that the manufacturer or supplier provides reliable after-sales support, training, and readily available spare parts.
\t•\tRegular maintenance support will extend the machine’s life and minimize downtime.
\t1.\tApplication and Requirements:
\t•\tDetermine the types of devices or screens you will work on (e.g., LCD, OLED, TFT).
\t•\tIdentify the size and resolution of the panels, as ACF bonding machines vary in compatibility with different screen sizes.
\t•\tDecide if the bonding machine will be used for assembly, repair, or both, as this may affect the required precision and speed.
\t2.\tMachine Specifications:
\t•\tPressure and Temperature Control: Accurate bonding relies on stable pressure and temperature settings. Look for machines with precise, programmable controls for consistent results.
\t•\tAlignment Accuracy: Higher precision is critical for high-density or small-pitch bonding applications, especially in FPC (Flexible Printed Circuit) bonding.
\t•\tHeating Uniformity: Uniform heating across the bonding area helps avoid misalignment and ensures optimal bonding quality.
\t3.\tBonding Speed and Throughput:
\t•\tIf production volume is a priority, consider the machine’s bonding speed and cycle time. Faster bonding speeds help increase throughput.
\t•\tFor repair applications, focus on machines that balance speed with precision, as these typically require more careful handling of components.
\t4.\tMachine Size and Footprint:
\t•\tAssess the space available in your facility. Larger machines may offer higher throughput but require more space.
\t•\tCompact models are often better suited for repair shops or facilities with space constraints.
\t5.\tCompatibility with ACF Materials:
\t•\tVerify that the machine is compatible with the ACF tapes or adhesives you plan to use. Some bonding machines work best with specific materials and brands.
\t6.\tUser Interface and Software:
\t•\tAn intuitive user interface can significantly reduce operator training time and improve productivity.
\t•\tSome advanced machines offer digital interfaces with memory settings, which can be helpful for repeatable, consistent results.
\t7.\tCost and Budget:
\t•\tBalance your budget with the features essential for your application. For example, high-precision models tend to be more costly but may offer better alignment and consistency.
\t•\tIf your business includes repair and maintenance services, investing in a versatile, mid-range machine might be beneficial.
\t8.\tAfter-Sales Support and Maintenance:
\t•\tEnsure that the manufacturer or supplier provides reliable after-sales support, training, and readily available spare parts.
\t•\tRegular maintenance support will extend the machine’s life and minimize downtime.
The Difference Between Single Head Bonding Machine and Double Head Bonding Machine
A Double Head Bonding Machine and a Single Head Bonding Machine each have unique advantages, depending on the production requirements:
Double Head Bonding Machine
\t1.\tHigher Efficiency: With two heads working simultaneously, the bonding process is significantly faster, making it ideal for high-volume production lines.
\t2.\tReduced Downtime: If one head requires maintenance, the other can continue working, minimizing production interruptions.
\t3.\tParallel Processing: Allows for bonding multiple types of products or different areas of the same product in one cycle.
\t4.\tCost Efficiency: Although more expensive upfront, the productivity boost can lead to a faster return on investment.
Single Head Bonding Machine
\t1.\tCompact Design: Generally smaller and more suitable for limited workspace environments.
\t2.\tLower Initial Investment: More cost-effective for smaller operations or when high throughput is not necessary.
\t3.\tEase of Operation: Typically simpler to set up and operate, making it suitable for smaller-scale productions or prototyping.
\t4.\tIdeal for Specific Jobs: Best suited for applications that do not require high-speed processing or that involve lower production volumes.
Would you like more detailed information or a comparison guide for your clients?
Double Head Bonding Machine
\t1.\tHigher Efficiency: With two heads working simultaneously, the bonding process is significantly faster, making it ideal for high-volume production lines.
\t2.\tReduced Downtime: If one head requires maintenance, the other can continue working, minimizing production interruptions.
\t3.\tParallel Processing: Allows for bonding multiple types of products or different areas of the same product in one cycle.
\t4.\tCost Efficiency: Although more expensive upfront, the productivity boost can lead to a faster return on investment.
Single Head Bonding Machine
\t1.\tCompact Design: Generally smaller and more suitable for limited workspace environments.
\t2.\tLower Initial Investment: More cost-effective for smaller operations or when high throughput is not necessary.
\t3.\tEase of Operation: Typically simpler to set up and operate, making it suitable for smaller-scale productions or prototyping.
\t4.\tIdeal for Specific Jobs: Best suited for applications that do not require high-speed processing or that involve lower production volumes.
Would you like more detailed information or a comparison guide for your clients?
More Questions
If you have more questions about our machines and factory, welcome to contact us.
