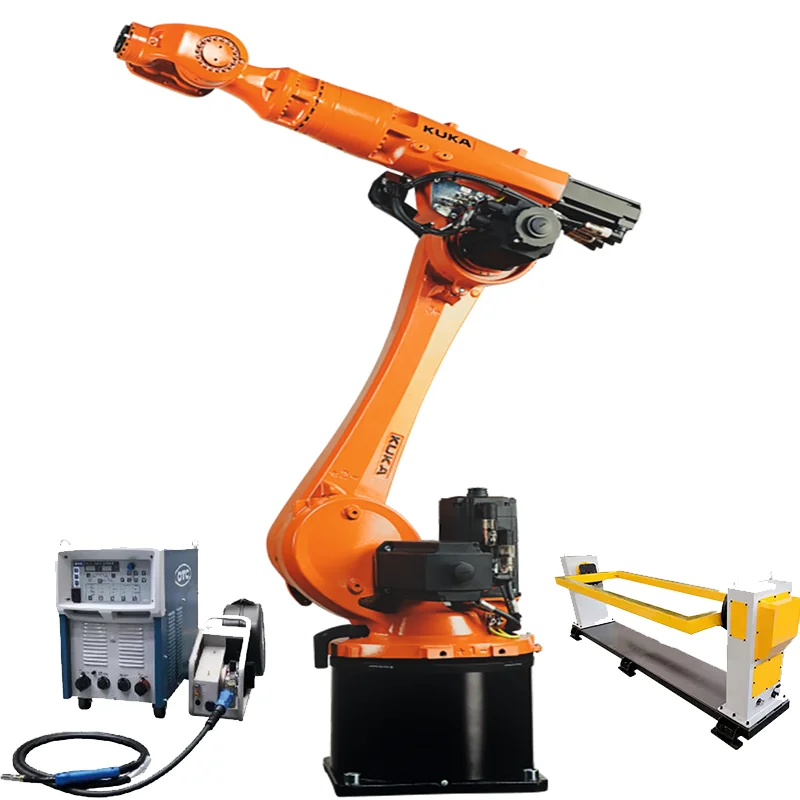

Промышленная автоматическая сварочная Роботизированная рука KUKA KR 360 R2830 с пистолетом точечной сварки и CNGBS dress pack промышленная робота
37 000,00-41 000,00 $
Система осциллирующей сварки автоматическая тележка стальной лист MIG MAG TIG CO2 сварочный станок с ЧПУ кислородный газовый резак
- Категория: >>>
- Поставщик: Qingdao Yuehongbo Welding And Cutting Equipment Co. Ltd.Qingdao Ltd.
Сохранить в закладки 1601295951338:
Описание и отзывы
Характеристики
KA-H2
CO2 welding automatic trolleys are widely used in ships, bridges, locomotives, steel structures, petrochemicals and other industries. They are suitable for welding a variety of welding structures, such as: welding of stiffened plates, ribs, intersections, welding of box beams, etc. wait.
Its main advantages are:
1.Reduce labor intensity and improve the working environment.
2.Improve work efficiency, which is 1.5 times that of manual welding.
3.Avoid poor weld quality caused by human factors. Generally, the defective rate of manual operation is about 20%. , and the use of automatic welding trolleys has no welding defect rate, so its comprehensive benefits are nearly 200% higher than manual welding.
4.High degree of automation, ensuring the stability of welding quality.
5.No need for very skilled technical workers.
Its main advantages are:
1.Reduce labor intensity and improve the working environment.
2.Improve work efficiency, which is 1.5 times that of manual welding.
3.Avoid poor weld quality caused by human factors. Generally, the defective rate of manual operation is about 20%. , and the use of automatic welding trolleys has no welding defect rate, so its comprehensive benefits are nearly 200% higher than manual welding.
4.High degree of automation, ensuring the stability of welding quality.
5.No need for very skilled technical workers.

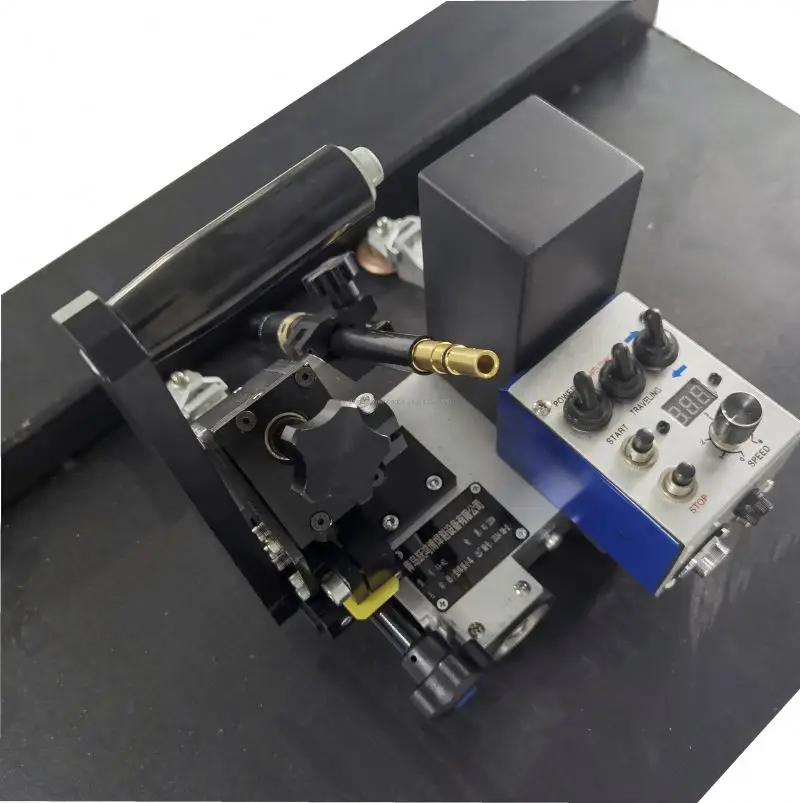

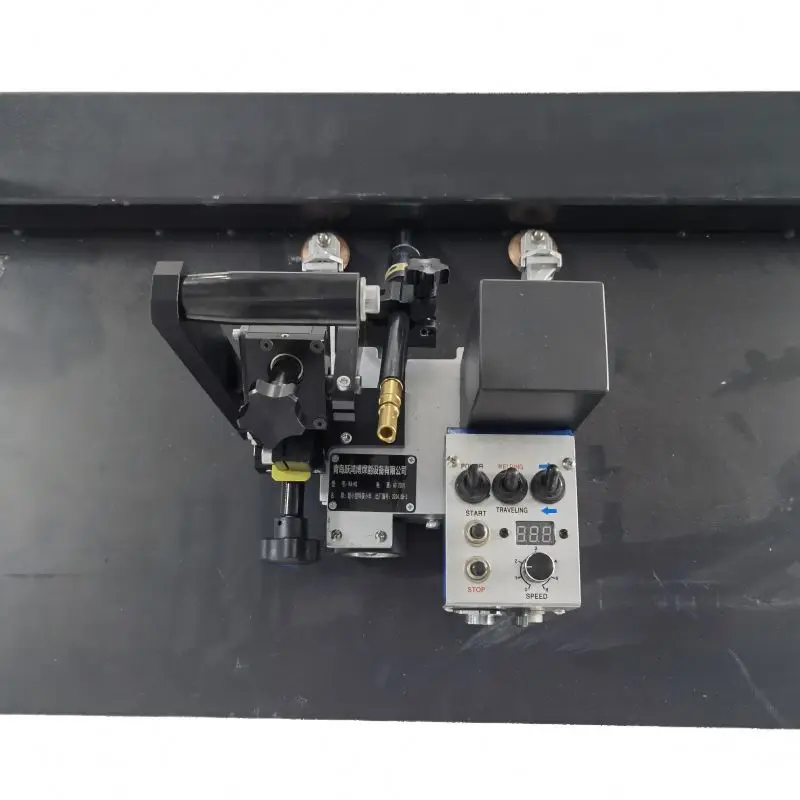

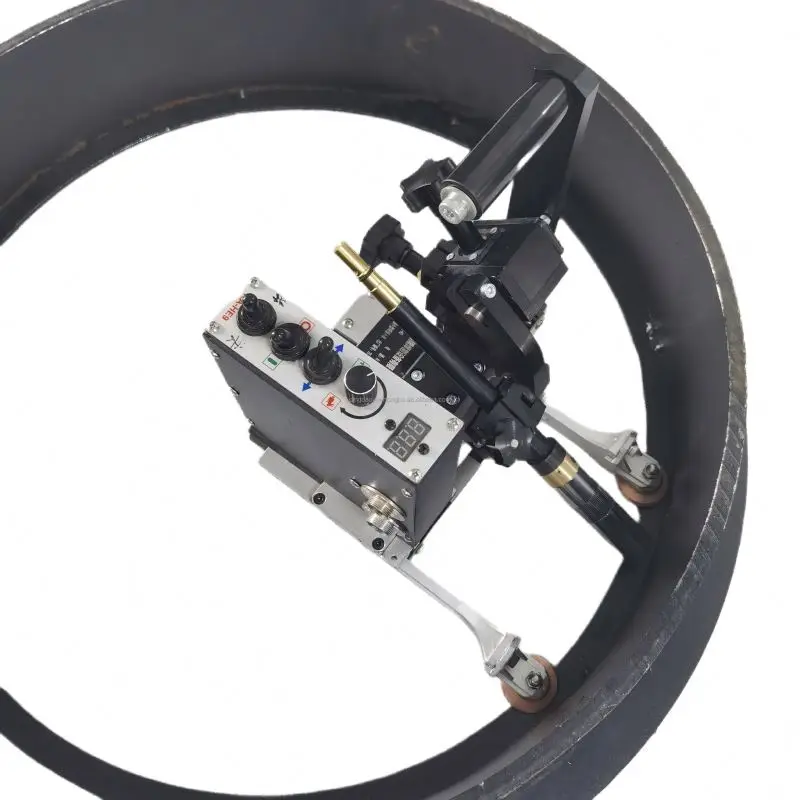

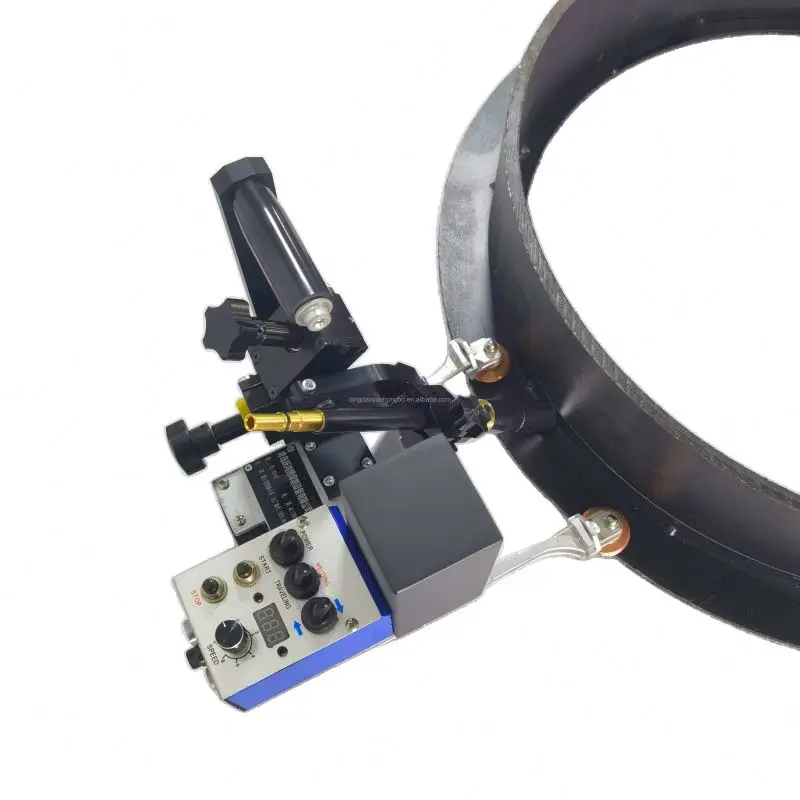

1.KA-H2 is an ultra-small, ultra-light (weight only 5.5Kg) horizontal fillet automatic welding car.
2. The speed is displayed with a digital tube, so the control is very accurate and the operation is easy.
3. The operating speed is designed using the feedback control principle, and it can also be accurately operated on the inclined plane, and the operation is stable.
3. The operating speed is designed using the feedback control principle, and it can also be accurately operated on the inclined plane, and the operation is stable.
4. Equipped with arc retracting device, improve the quality of weld at arc retracting.
species | content | remark | ||
trolley | Power source | AC 220V | ||
Battery selection | 24V Lithium battery 44800MAH | Guaranteed working hours of 10 hours | ||
size | 200*180*200 | Length * width * height | ||
weight | 6.5Kg | Lithium battery | ||
Move | Four-wheel drive | Sprocket drive | ||
Travel speed | 0 - 950mm/Min | Display in digital tube | ||
Welding gun adjustment range | Above and below | 60MM | ||
anteroposterior | 60MM | |||
Operating Angle adjustment range | ±360˚ | |||
Angle adjustment range | ±45˚ | |||
Start of walk | ||||
Walking stop | ||||
Choose the direction of travel | Left and right | |||
Adjust walking speed | Mark with scale | |||
Select welding/non-welding | ||||
1) Select wire diameter switch.
(2) Select the type of wire, solid core wire or flux-cored wire.
(3) Turn ON the power switchboard switch ----ON
(4) Turn ON the welding power switch ----ON
(The self-holding loop switch of the welding machine is OFF ----OFF)
(5) Open the valve of the CO2 storage cylinder, adjust the pressure to 2-3kg /cm2, and adjust the flow rate in the gas switch "check".
(6) Send the welding wire to the front end of the welding gun with a manual wire feed, and install a conductive nozzle corresponding to the diameter of the welding wire.
(7) Confirm the extension length of the welding wire.
(2) Select the type of wire, solid core wire or flux-cored wire.
(3) Turn ON the power switchboard switch ----ON
(4) Turn ON the welding power switch ----ON
(The self-holding loop switch of the welding machine is OFF ----OFF)
(5) Open the valve of the CO2 storage cylinder, adjust the pressure to 2-3kg /cm2, and adjust the flow rate in the gas switch "check".
(6) Send the welding wire to the front end of the welding gun with a manual wire feed, and install a conductive nozzle corresponding to the diameter of the welding wire.
(7) Confirm the extension length of the welding wire.
Qingdao Yuehongbo Welding and Cutting Equipment Co., Ltd. was established in 2012. It is an entity company integrating design, research and development, manufacturing and sales.
The company's products include automatic welding trolleys, special trolleys for all-position pipeline welding, weld seam laser trackers, visual tracking systems, welding oscillators, special equipment for corrugated board welding, special machines for straight seam plate welding, etc. The products are mainly aimed at large and medium-sized welding companies, and the scope of use includes: steel structure, shipbuilding, bridge, automobile industry and other manufacturing companies. It can realize different welding processes such as horizontal butt joint, right angle joint, vertical butt joint, vertical angle joint, circumferential pipe welding, horizontal butt joint, horizontal angle welding, etc.
The products are sold in more than 20 domestic autonomous regions in China, and exported to more than 20 countries and regions such as Southeast Asia, Europe and the United States. Comprehensive economic indicators (including productivity, sales, and profits) have been leading in the welding equipment industry.
We will follow the purpose of creating value for customers and providing opportunities for employees, and in the corporate style of "pursuing transcendence, harmonious development" and "unity and cooperation, integrity and truthfulness".
We look forward to cooperating with friends at home and abroad to create a brilliant future.
Q1:Is your company a trading one or a factory?
A:Factory and trade (we have our own factory site.)
Q2:How many years have you been producing welding equipment?
A:We have been in this industry for more than 10 years
Q3:Which payment terms are you accepted?
A:T/T
Q4:When to deliver the goods after the order is placed?
A:It depends on the quantity of the products. Generally we can arrange shipment after 15 to 20 days.
Q5. Does your company accept customization?
We have excellent design team, and we accept OEM.
Q6.:What's the shipping method?
A: International express and sea transportation,Depends on the customer
Q7: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.
Q8: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.And we warmly welcome you to China for inspection.
A:Factory and trade (we have our own factory site.)
Q2:How many years have you been producing welding equipment?
A:We have been in this industry for more than 10 years
Q3:Which payment terms are you accepted?
A:T/T
Q4:When to deliver the goods after the order is placed?
A:It depends on the quantity of the products. Generally we can arrange shipment after 15 to 20 days.
Q5. Does your company accept customization?
We have excellent design team, and we accept OEM.
Q6.:What's the shipping method?
A: International express and sea transportation,Depends on the customer
Q7: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.
Q8: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.And we warmly welcome you to China for inspection.
Похожие товары

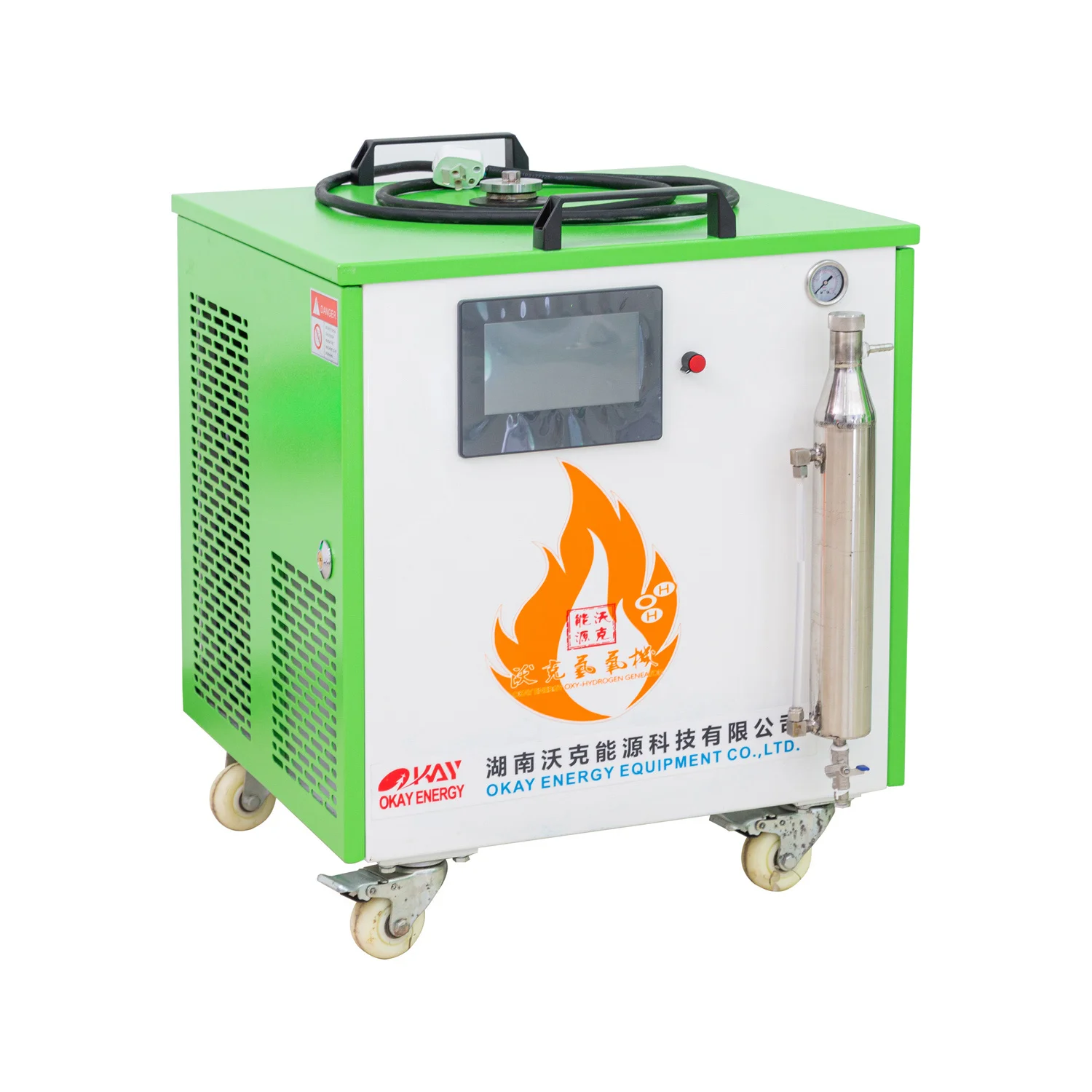

Электролизер hho mini для плавления золота 10 кг 1 машина серебра и
3 000,00-3 500,00 $
Сварочная колонка и бум автоматическое сварочное оборудование
12 000,00 $
Авто 40 дюймов с цинковым покрытием цилиндр прямого шва аппарат аргоновой дуговой сварки
3 000,00 $

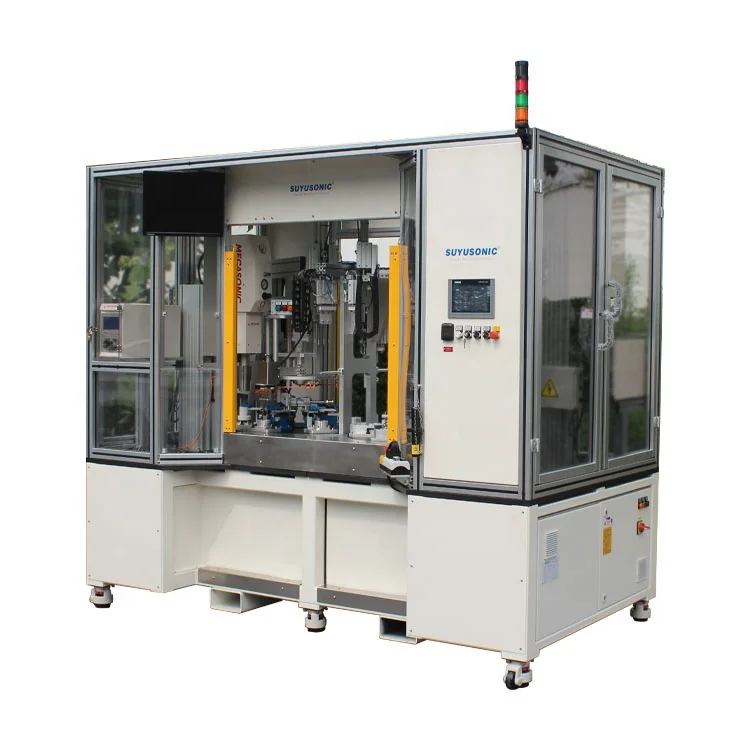

Высокоточный и производительный ультразвуковой аппарат для сварки пластика с двойным поворотным механизмом для автоматических продуктов
14 714 995,20 ₽
The new listing welding oscillator tig carriage with oscillation YHB-20
1 285,00-1 800,00 $
Полностью Автоматическая производственная линия стального ствола 55 галлонов/машина для производства стальных барабанов
499 999,00 $

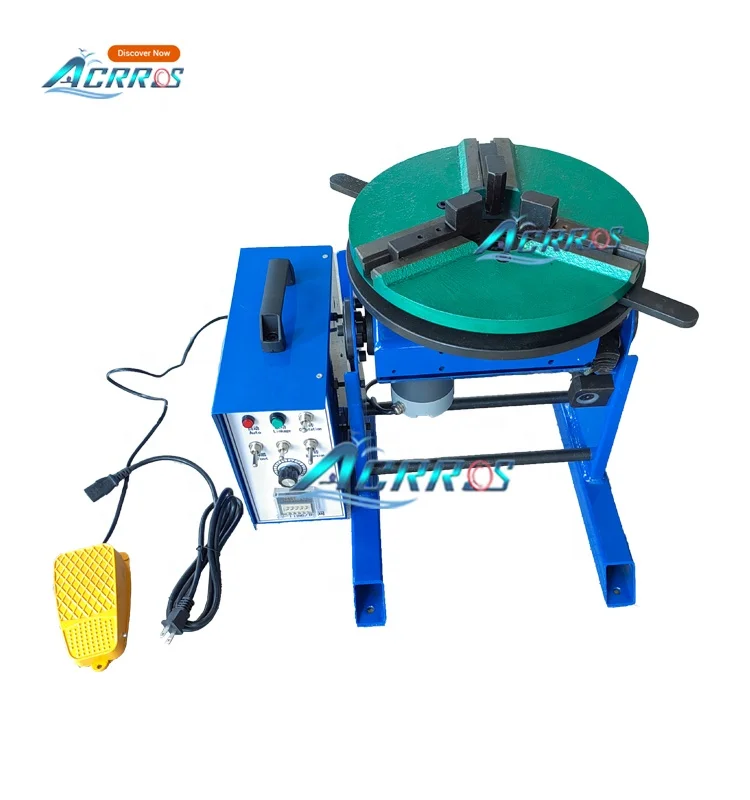

Поворотный стол для сварки труб/стол сварочного позиционирования/поворотный с 3 челюстями токарный патрон
