PRODUCT DESCRIPTION

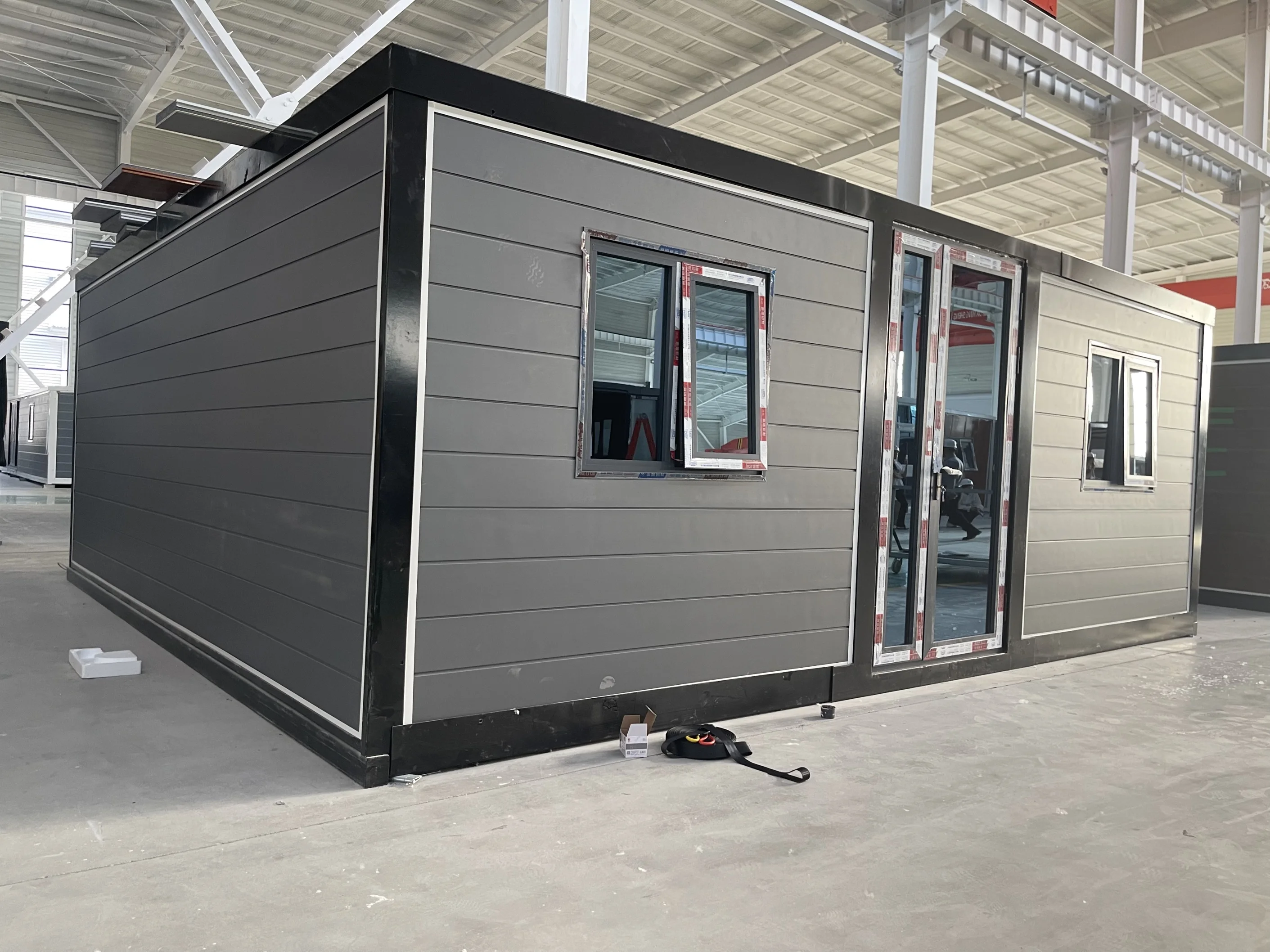

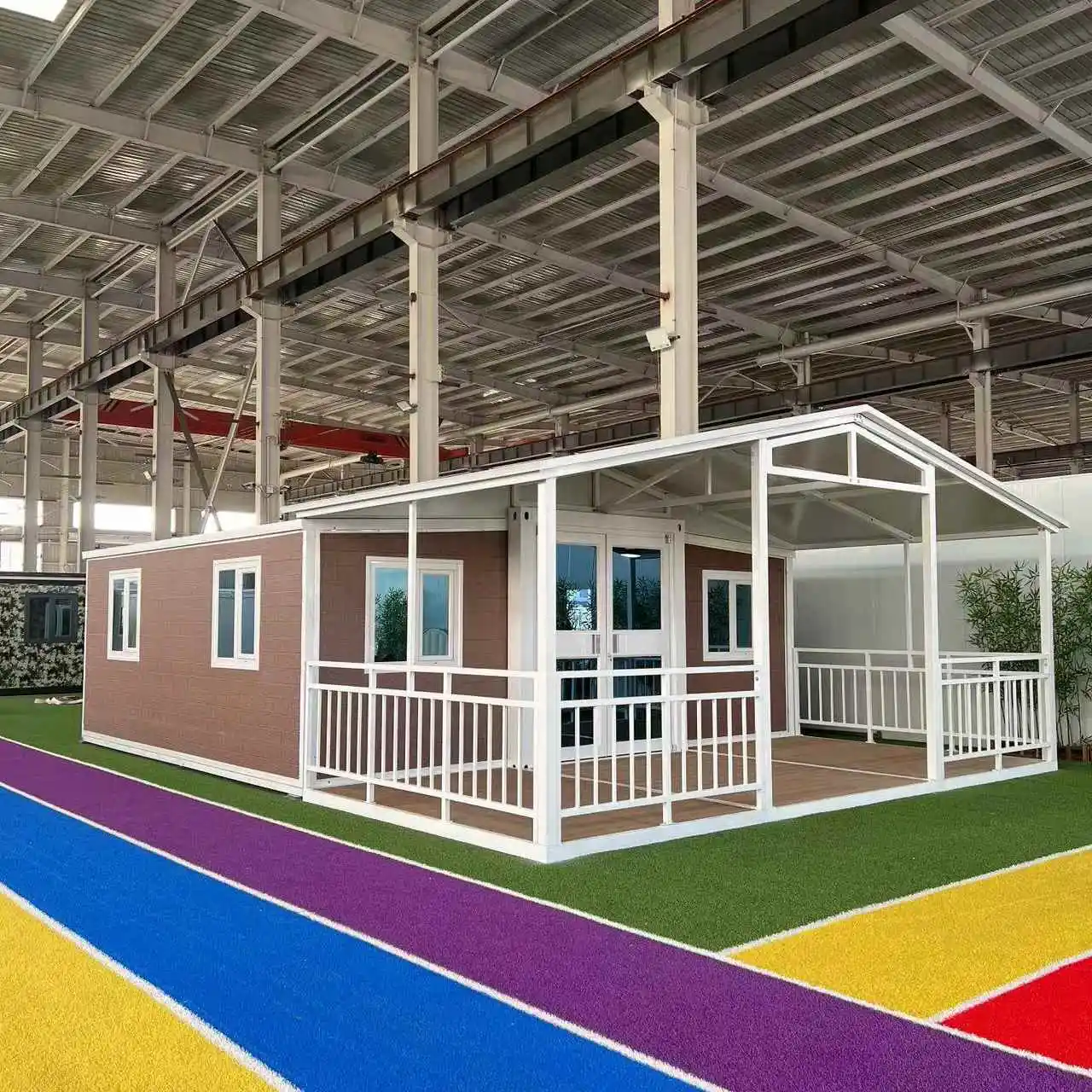

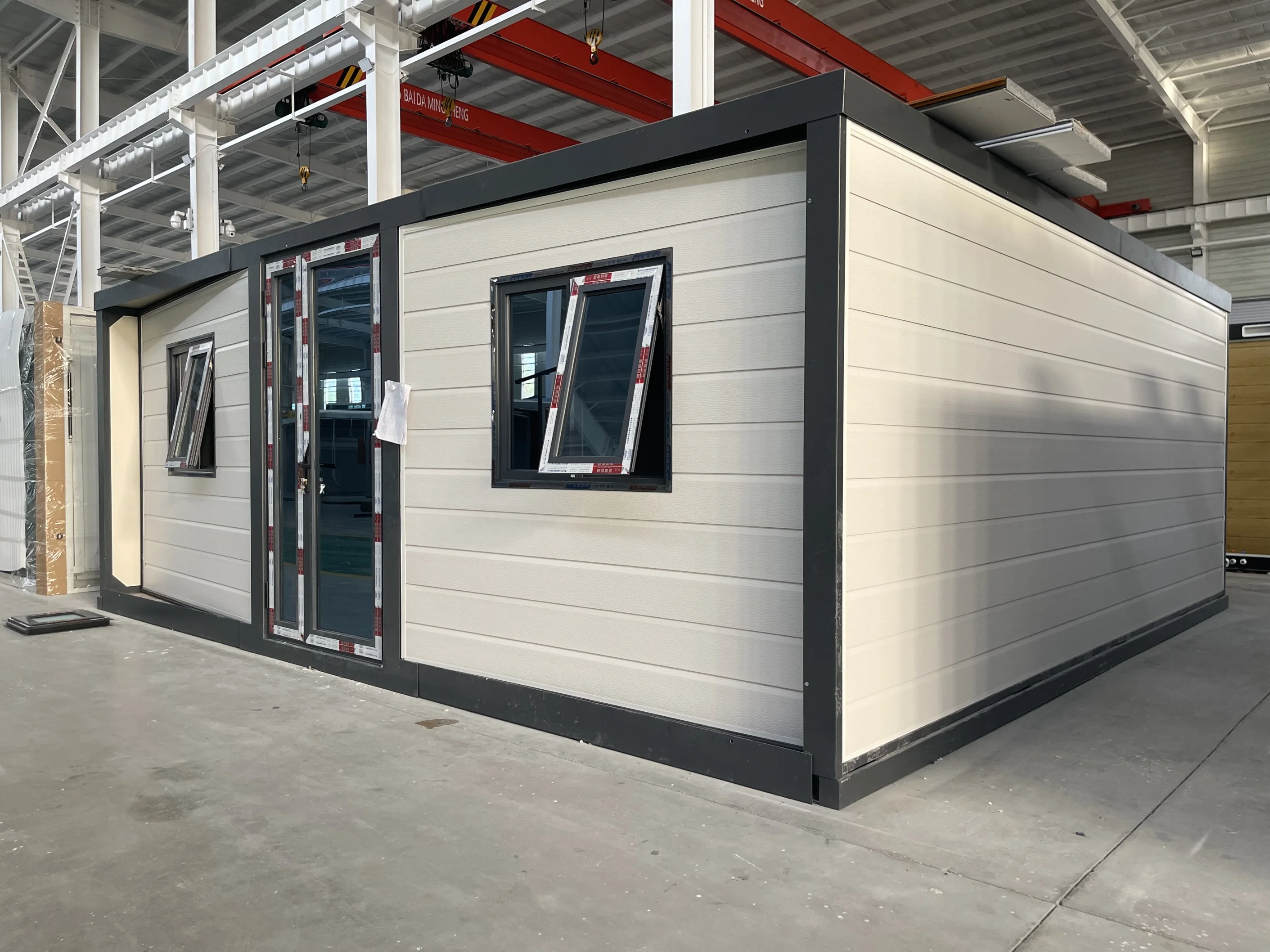

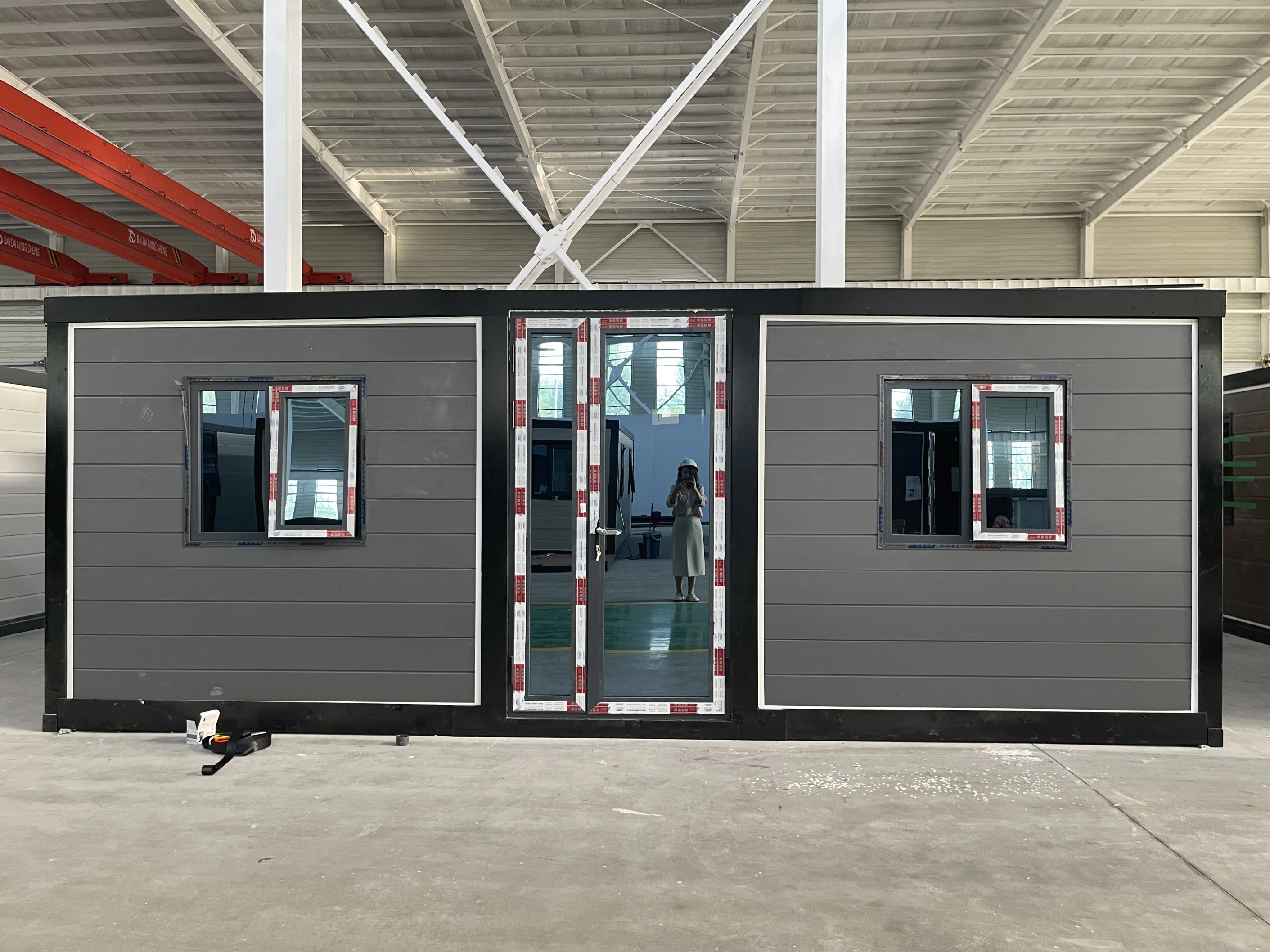

Introduction To Expandable Container House
The product is based on the innovation of ordinary residential containers; The specifications are the same as those of ordinary products. It is 6 meters long, 6 meters wide and 2.5 meters high，can be used as a three bedroom. From the current market application, it tends to be good. The advantages of expanded containers are: overall mobility, fast check-in, complete facilities, reusable, environmental protection and energy conservation.
PRODUCT PARAMETERS
Basic features | External dimension (mm) | 6320*5900*2480 | |
Internal dimension(mm) | 6160*5560*2240 | ||
Folding state(mm) | 2200*5900*2480 | ||
Total mass（kg） | |||
Frame structure | Middle roof beam | T2.5mmQ235B | |
Middle base beam | T2.5mmQ235B | ||
Side beam | t1.5mmQ235B | ||
Middle pillar | T2.5mmQ235B | ||
Side wall frame | t1.5mmQ235B | ||
Sub-frame | t1.5mmQ235B | ||
Hanging head | t4mmQ235B | ||
Folding hinge | 13mm Galvanized hinge | ||
Protective coating for integral frame | Electrostatic spraying/Straight white plastic powder | ||
Top and bottom of middle cabinet | 80*100 | ||
Top and bottom of side cabinet | 40*60*1.5 thick square tube | ||
Top of container | External roof board | t0.5mm Galvanized plate | |
Internal ceiling board | t831 internal ceiling board | ||
Wall panel | Heat preservation of middle top | T50mm glass filament cotton（Side top 50 foam plate) | |
Side wall, front wall panel& back wall panel | t50mm-Color steel plate with glass filament cotton or t50mm-Foam plate | ||
Internal partition | t50mm Foam board | ||
Internal washroom | About 1700*1500mm (can be adjusted) | ||
Floor | Middle floor | Fireproof glass magnesium floor 15mm | |
Floor on both sides | Bamboo flooring | ||
Electrical system | Electrical wiring, install in strict accordance with the moisture-proof specifications, all electrical products shall comply with CE certification. Connect the circuit according to the circuit engineering specification, indoor：2 LED lights, 2 Ceiling lamp, 3 five- hole single socket, 1 single switch, 3 ten -hole socket，1 Air conditioner socket，1 20A -Leakage protector. Voltage 220V, 50HZ | ||
Common Security Door | 2 sets of Common security door | ||
Window | 4 sets of Sliding plastic steel single glass window （920*1120mm） | ||
Quality guarantee | 1 year warranty | ||
COMPANY PROFILE
VR
CDPH
1. 25+ years experience in mobile housing industry
2. Self-owned factory for modular houses
3. Specialized technical & engineering team
4. ISO9001, ISO14001, OHSMS18001, TUV, BV, SGS, CE
5. Professional QC, R&D and After-Sell Service
2. Self-owned factory for modular houses
3. Specialized technical & engineering team
4. ISO9001, ISO14001, OHSMS18001, TUV, BV, SGS, CE
5. Professional QC, R&D and After-Sell Service
Supported with advanced automatic production line and hundreds of skilled manpower, the annual average production capacity is 40,000 units of Container House and 3,000,000 ㎡ Sandwich panels, which will be strictly tested and controled under 6S management system with the specialized QA and QC team during the whole production and prefabrication procedure.
CERTIFICATIONS
CASES DISPLAY
CUSTOMER PHOTOS
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1.\tQ: How about your delivery time?
A: Normally, the delivery time is as follows: Prefab house: 20-25days, Container house: 15-20days, Steel structure: 25-30days, Villa: 30-35days.
2.\tQ: What about the Month Capacity?
A: Prefab house: 100,000m2, Container house: 400units, Steel structure: 2000tons, Villa: 100,100m2.
3.\tQ: What’s the minimum order?
A: Prefab house: 50m2, Container house: 3units, Steel structure: 200m2, Villa: 100m2.
4.\tQ: What is your package?
A: Container house is in flat pack. Other houses will be loaded into shipping containers(main structure and panels in bulk, door/ceiling/floor tiles/furniture in cartons, sanitary/electrical/plumbing/hardware/fittings/tools in wooden case ).
5.\tQ: What’s you payment terms?
A: Wire transfer or LC.
6.\tQ: What certificate do you have?
A: We have been awarded the certificate by CE, American building Code, ISO9001, ISO14001, OHSAS18001 and China Classification Society. Meantime, we have been inspected many times by TUV, SGS and BV for the factory and products.
7.\tQ: What kind of technical drawings could you provide?
A: We could provide three-view drawing, 3D picture, blueprint, foundation, plumbing, electrical, communication, fire alarm, installation, furniture and so on.
8.\tQ: What is the lifespan and warranty period?
A: The lifespan for Prefab house is 5 to 10year, Container house is 10-15years, Steel structure is 15-20years and Villa is 20-50years. The warranty period for all the house is 12months from the delivery.
9.\tQ: What the value added service do you have?
A: We have camp/community planning design, indoor and outdoor electrical/plumbing design, communication/fire alarm/security system supply, furniture/ electric appliance offer, etc.
10.\tQ: Could you supply the service of installation?
A: Yes, we have 80 experienced supervisors who could go to guide the installation at any time. Meanwhile, we have skilled installation team who could finish some turn-key projects.
2.\tQ: What about the Month Capacity?
A: Prefab house: 100,000m2, Container house: 400units, Steel structure: 2000tons, Villa: 100,100m2.
3.\tQ: What’s the minimum order?
A: Prefab house: 50m2, Container house: 3units, Steel structure: 200m2, Villa: 100m2.
4.\tQ: What is your package?
A: Container house is in flat pack. Other houses will be loaded into shipping containers(main structure and panels in bulk, door/ceiling/floor tiles/furniture in cartons, sanitary/electrical/plumbing/hardware/fittings/tools in wooden case ).
5.\tQ: What’s you payment terms?
A: Wire transfer or LC.
6.\tQ: What certificate do you have?
A: We have been awarded the certificate by CE, American building Code, ISO9001, ISO14001, OHSAS18001 and China Classification Society. Meantime, we have been inspected many times by TUV, SGS and BV for the factory and products.
7.\tQ: What kind of technical drawings could you provide?
A: We could provide three-view drawing, 3D picture, blueprint, foundation, plumbing, electrical, communication, fire alarm, installation, furniture and so on.
8.\tQ: What is the lifespan and warranty period?
A: The lifespan for Prefab house is 5 to 10year, Container house is 10-15years, Steel structure is 15-20years and Villa is 20-50years. The warranty period for all the house is 12months from the delivery.
9.\tQ: What the value added service do you have?
A: We have camp/community planning design, indoor and outdoor electrical/plumbing design, communication/fire alarm/security system supply, furniture/ electric appliance offer, etc.
10.\tQ: Could you supply the service of installation?
A: Yes, we have 80 experienced supervisors who could go to guide the installation at any time. Meanwhile, we have skilled installation team who could finish some turn-key projects.
Похожие товары

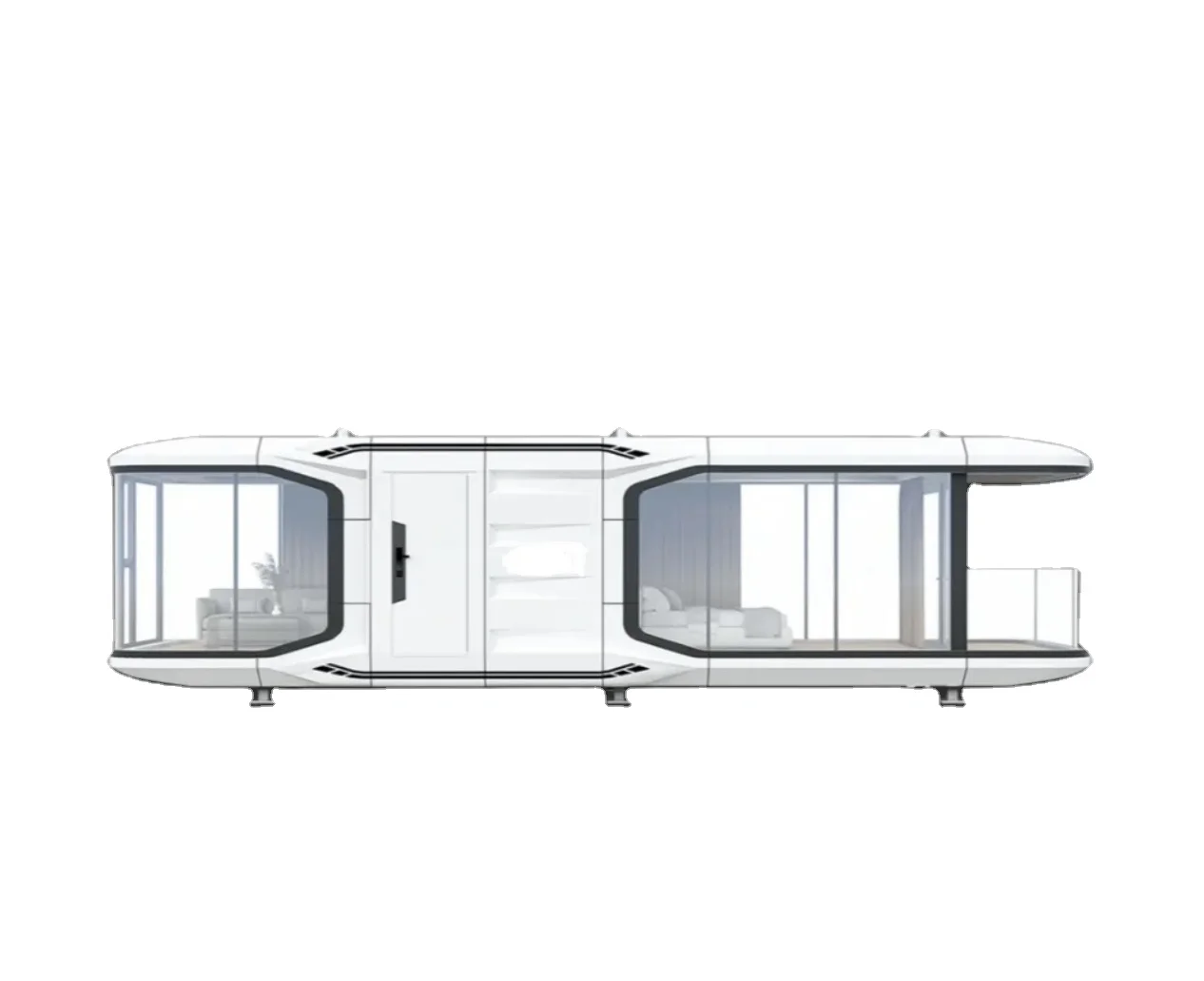

Персонализированный экологически чистый удобный инновационный опыт сборных домов с космическим вкусом
